> LED Foglight Project
Spoke
post Apr 13 2019, 08:45 AM
Post #1


Jerry
*****

Group: Members
Posts: 7,185
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

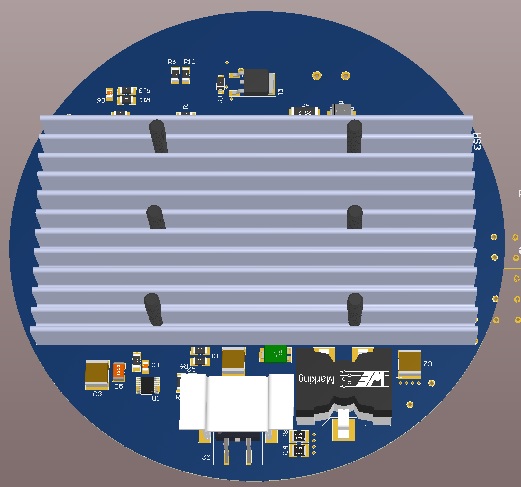

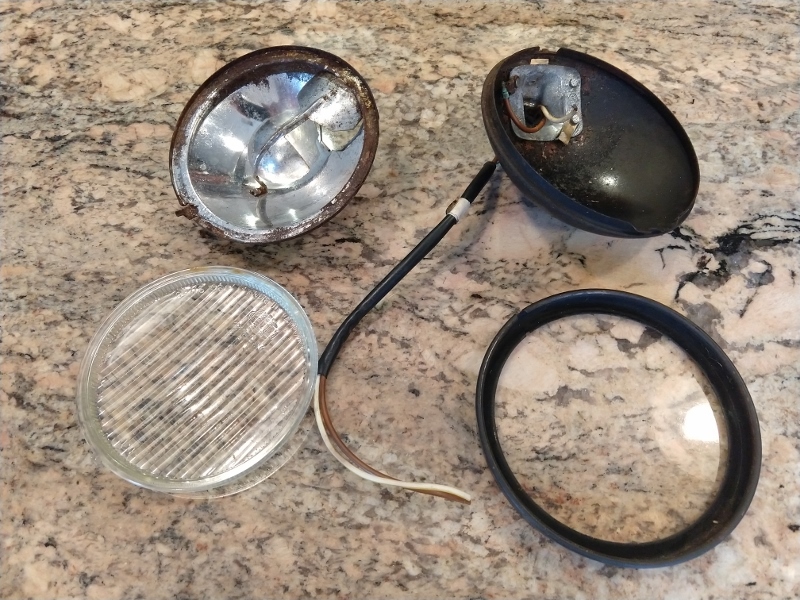

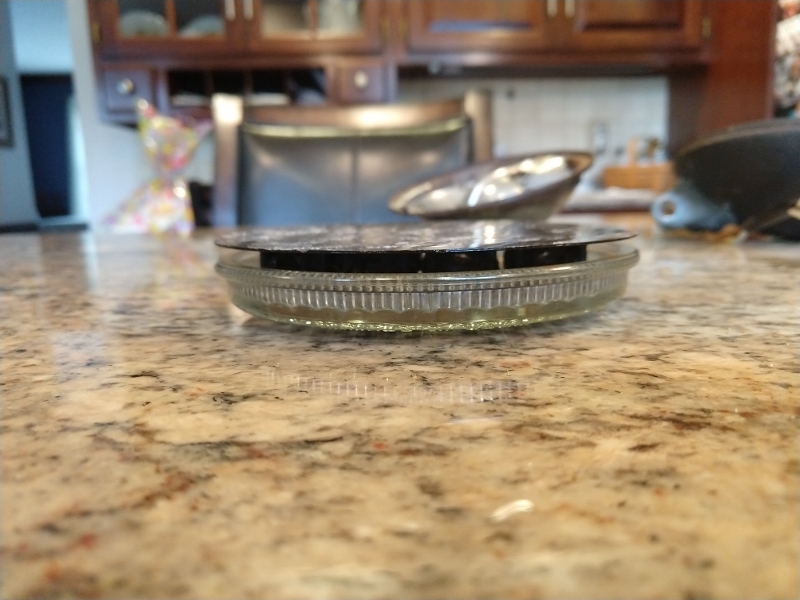

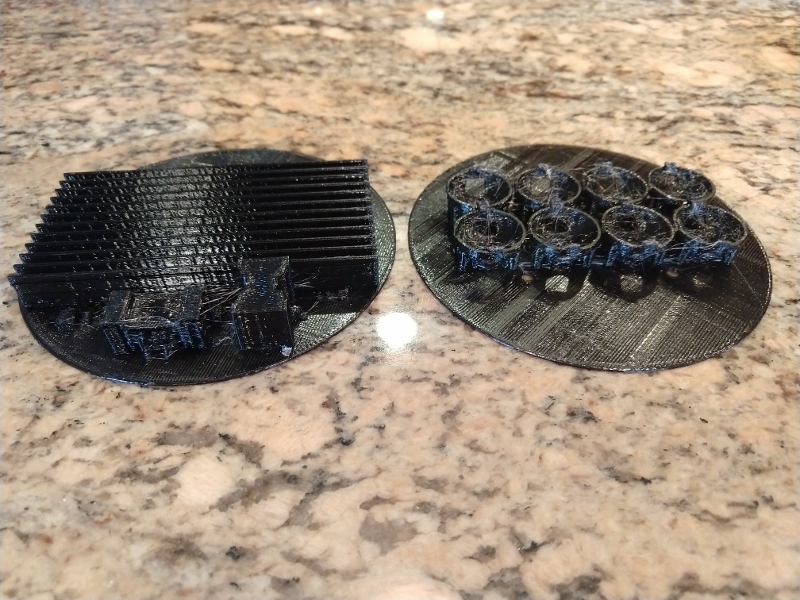

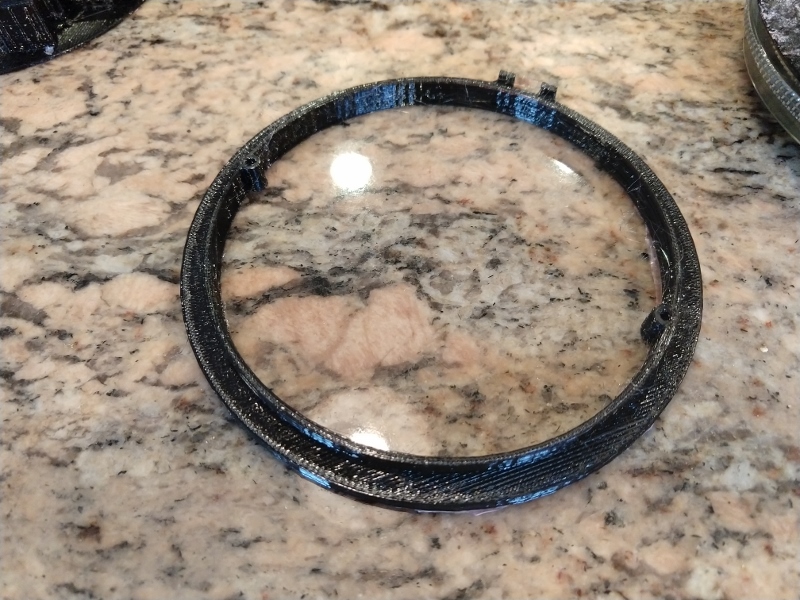

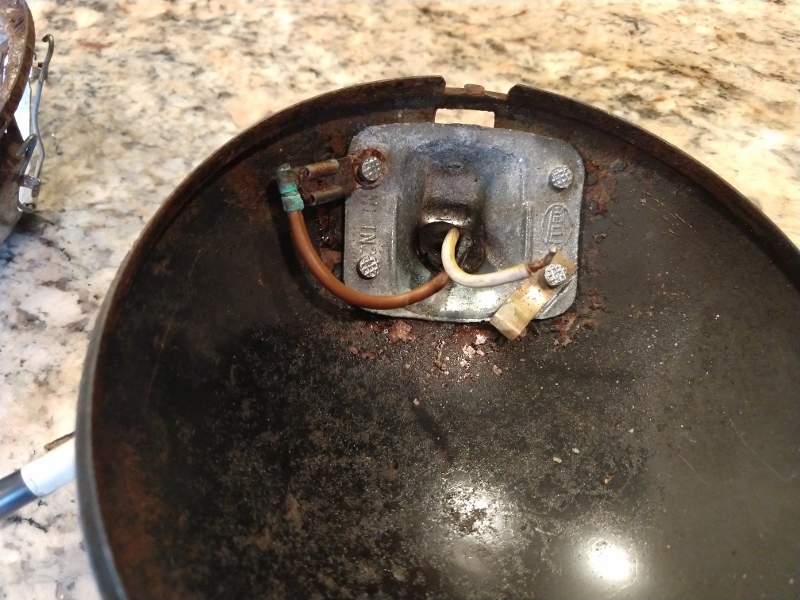

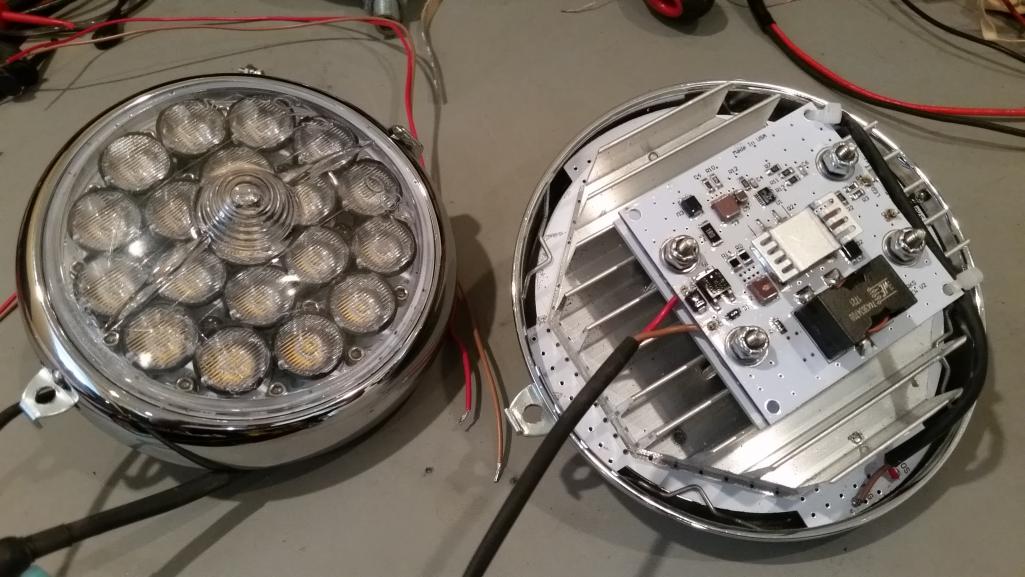

The design of an early foglight LED board has begun. mepstein sent me a couple of foglight fixtures to use to design the board. 2 main issues are fitment and heat dissipation. If things work out ok the design should be able to be re-laid out for the later square foglight.

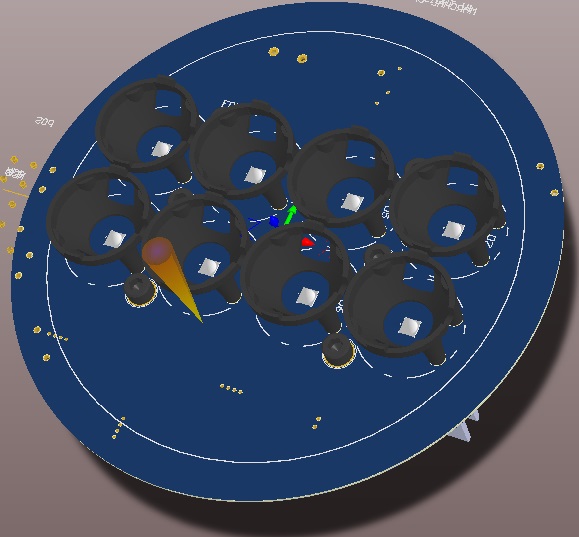

The board will have 8 Cree XP-G3 high power surface mount LEDs with 350ma current each. These will burn about 1W of power with a total power dissipation expected to be less than 10W. Hopefully these will be almost as bright as a headlight.

Each LED will have its own focusing lens. The lenses are Carclo 10192 elliptical 20mm lenses. The light pattern for the 10192 lens is shown below.

Attached Image

This is the spectral dispersion for the lens.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

Posts in this topic
Spoke   LED Foglight Project   Apr 13 2019, 08:45 AM
mmichalik   I know what I will be purchasing for the '74 o...   Mar 28 2020, 10:31 PM
Spoke   can you convert the late model fog lights as well...   Mar 29 2020, 08:54 AM
eric9144   Received my modified fogs yesterday from @[url=ht...   Apr 2 2020, 09:24 AM
Spoke   I've run into a set of 914 foglights which are...   May 6 2020, 04:13 PM
Spoke   The H3 lens is much larger than the TN2/4 lenses. ...   May 6 2020, 04:15 PM
914forme   I like the H3s, would gladly send a set of TN2s or...   May 6 2020, 06:24 PM
eric9144   The H3 lens is much larger than the TN2/4 lenses....   May 7 2020, 03:47 PM
Spoke   @Luke_M Your foglights are done. They look really...   Aug 9 2020, 05:24 PM
Spoke   ...more pictures...   Aug 9 2020, 05:25 PM
DRPHIL914   ...more pictures... Looking great! is there ...   Sep 4 2020, 07:26 AM
Spoke   ...more pictures... Looking great! is there...   Sep 4 2020, 07:52 AM
Mikey914   Sorry no pics but the clear is here - https://914r...   Sep 4 2020, 02:10 AM
Spoke   I'm kicking off an updated foglight to be able...   Sep 4 2020, 08:02 AM
Spoke   @jim_hoyland Got the first boards assembled usin...   Oct 4 2020, 07:44 PM
jim_hoyland   Looks great Jerry, I can see the difference. I’m...   Oct 4 2020, 07:55 PM
djway   So do you use the train to deliver parts to your w...   Oct 4 2020, 11:52 PM
Cairo94507   Good eyes re the train. I really want to do LED f...   Oct 5 2020, 06:01 AM
jim_hoyland   I opted to go with white LED after testing the yel...   Oct 21 2020, 02:51 PM
Al Meredith   Before retirement I was product and application sp...   Nov 18 2020, 03:05 PM
Cairo94507   Thats great to know but if I do LED fogs I really ...   Nov 18 2020, 04:17 PM
Spoke   @Cairo94507 Taking another look at arranging the...   Mar 25 2021, 04:32 AM
Cairo94507   Thanks for giving this some thought Jerry. :popcor...   Mar 25 2021, 07:34 AM
Spoke   Got the first boards with LEDs in a round pattern....   Apr 23 2021, 03:53 PM
Cairo94507   Got the first boards with LEDs in a round pattern...   Apr 23 2021, 05:20 PM
Spoke   @Cairo94507 Michael, finally got your foglights ...   May 23 2021, 09:13 AM
Cairo94507   Very cool Jerry. Thank you. Looking forward to g...   May 23 2021, 02:49 PM
