> Trunk Hinge Bolt Snapped Off!, Major PIA!
oakdalecurtis
post Apr 20 2019, 10:46 AM
Post #1


Oakdalecurtis
***

Group: Members
Posts: 1,356
Joined: 5-June 15
From: Oakdale, Ca
Member No.: 18,802
Region Association: Central California

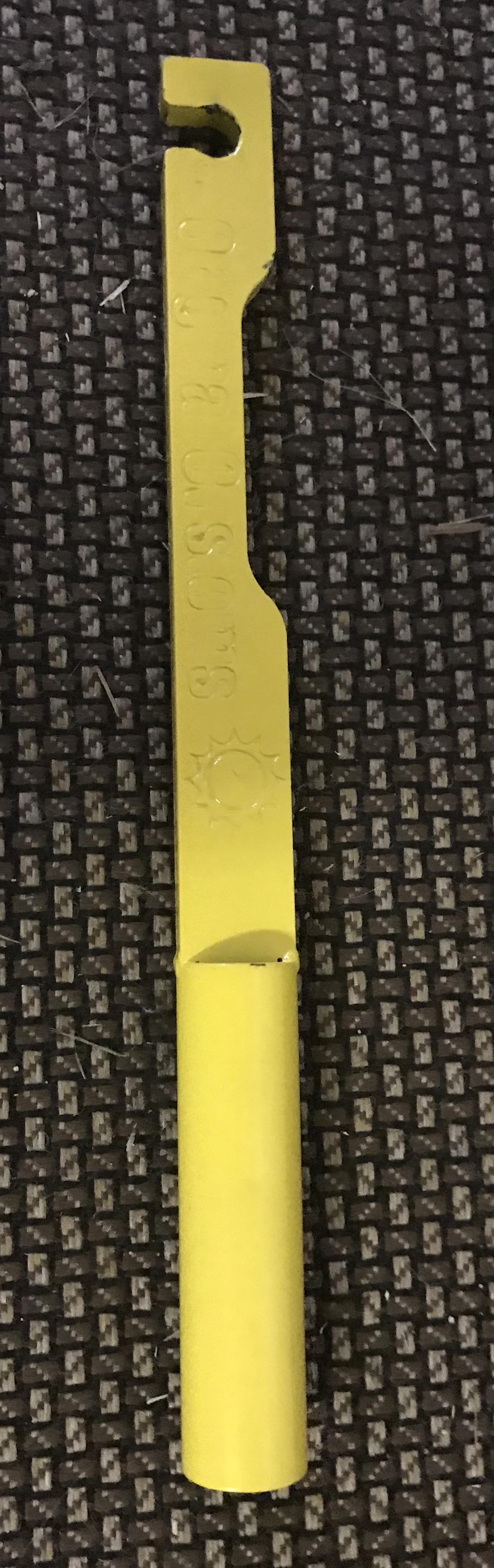

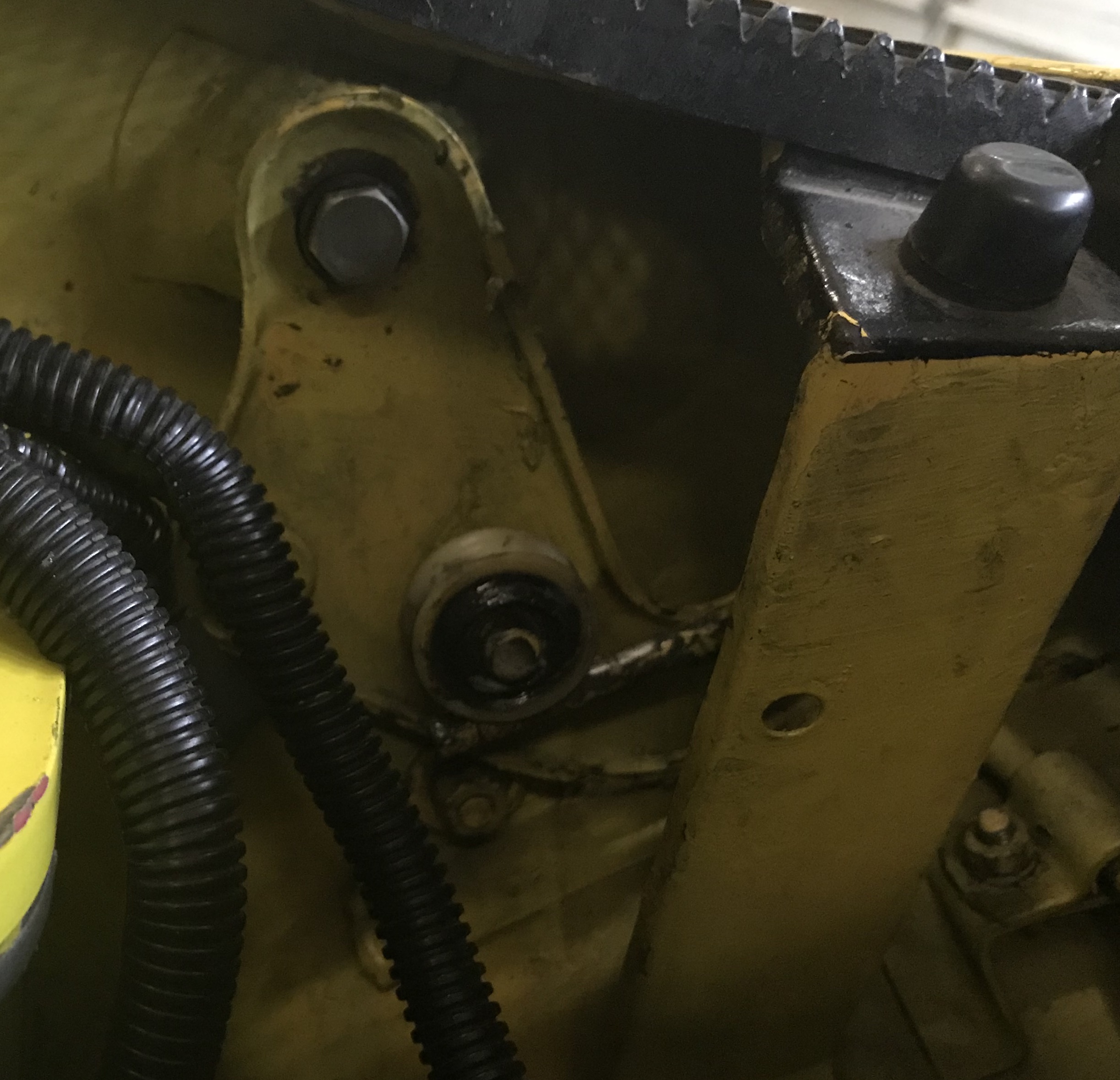

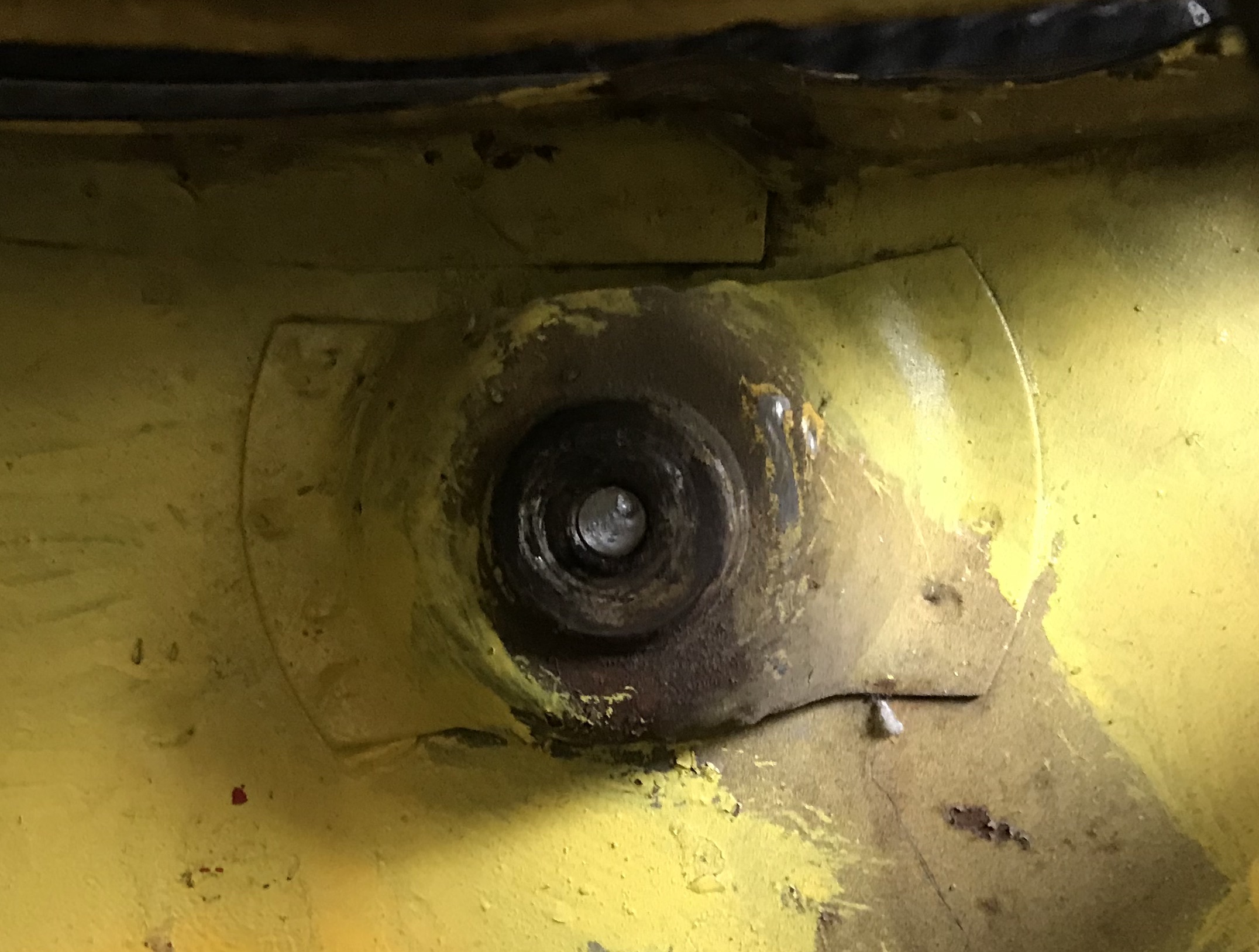

I was prepping my car for the next car show and was lowering the trunk slowly, then BANG! The closed trunk was now popping up about two inches high on the right side. I reopened it slowly and saw that the trunk hinge was no longer attached to the inner fender. The hinge bolt had sheared of cleanly, flush with the inner fender support bracket. I removed the trunk lid, released the torsion bar and disassembled the hinge mechanism. I'm pretty good mechanically, but I don't have
EasyOuts and have never removed a broken bolt. After a few phone calls to local mechanics, I found one that said he could remove the broken stud no problem. I ordered a new bolt from George at AA, and he recommended that I also buy a torsion bar tool. I am glad I took his advice! After the mechanic removed the broken bolt and we installed the hinge mechanism and the new bolt, it took the torsion tool, a crow bar, a ton of pressure, and both of us working together to put the torsion bar back over the hinge pin! Thanks George!

Attached Image

Attached Image

Attached Image

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Apr 20 2019, 10:51 AM
Post #2


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,239
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch



Did you guys open the lid before fighting with the rod? With the lid up, use a prop stick, you can move the rod around with a deep 10mm? socket and long extension. Replace BOTH rollers and lube them up.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dr914@autoatlanta.com
post Apr 20 2019, 11:07 AM
Post #3


914 Guru
*****

Group: Members
Posts: 8,161
Joined: 3-January 07
From: atlanta georgia
Member No.: 7,418
Region Association: None



well thankfully the trunk hinge pivot did not break! A lot easier to tap and clean the threads than weld in a new trunk hinge pivot. Antiseize on the shoulder of the bolt will prevent it from happening again



QUOTE(oakdalecurtis @ Apr 20 2019, 09:46 AM) *

I was prepping my car for the next car show and was lowering the trunk slowly, then BANG! The closed trunk was now popping up about two inches high on the right side. I reopened it slowly and saw that the trunk hinge was no longer attached to the inner fender. The hinge bolt had sheared of cleanly, flush with the inner fender support bracket. I removed the trunk lid, released the torsion bar and disassembled the hinge mechanism. I'm pretty good mechanically, but I don't have
EasyOuts and have never removed a broken bolt. After a few phone calls to local mechanics, I found one that said he could remove the broken stud no problem. I ordered a new bolt from George at AA, and he recommended that I also buy a torsion bar tool. I am glad I took his advice! After the mechanic removed the broken bolt and we installed the hinge mechanism and the new bolt, it took the torsion tool, a crow bar, a ton of pressure, and both of us working together to put the torsion bar back over the hinge pin! Thanks George!

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
windforfun
post Apr 20 2019, 12:10 PM
Post #4


Advanced Member
****

Group: Members
Posts: 2,053
Joined: 17-December 07
From: Blackhawk, CA
Member No.: 8,476
Region Association: None



QUOTE(dr914@autoatlanta.com @ Apr 20 2019, 09:07 AM) *

well thankfully the trunk hinge pivot did not break! A lot easier to tap and clean the threads than weld in a new trunk hinge pivot. Antiseize on the shoulder of the bolt will prevent it from happening again



QUOTE(oakdalecurtis @ Apr 20 2019, 09:46 AM) *

I was prepping my car for the next car show and was lowering the trunk slowly, then BANG! The closed trunk was now popping up about two inches high on the right side. I reopened it slowly and saw that the trunk hinge was no longer attached to the inner fender. The hinge bolt had sheared of cleanly, flush with the inner fender support bracket. I removed the trunk lid, released the torsion bar and disassembled the hinge mechanism. I'm pretty good mechanically, but I don't have
EasyOuts and have never removed a broken bolt. After a few phone calls to local mechanics, I found one that said he could remove the broken stud no problem. I ordered a new bolt from George at AA, and he recommended that I also buy a torsion bar tool. I am glad I took his advice! After the mechanic removed the broken bolt and we installed the hinge mechanism and the new bolt, it took the torsion tool, a crow bar, a ton of pressure, and both of us working together to put the torsion bar back over the hinge pin! Thanks George!

Attached Image

Attached Image

Attached Image



Congrats on the fix. I think AA might also sell aluminum rollers (vs. the white plastic ones). They're easy to install.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Apr 20 2019, 12:18 PM
Post #5


The rubber man
**********

Group: Members
Posts: 12,767
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None



These bolts take a lot of stress, not too surprising they do this.


Drop an old towel down to catch shavings and crud. Soak it down with penetrating oil and let sit for an hour.

Then use a left handed drill bit to drill a hole for a screw extractor (easy outs tend to break). Should come out without too much fuss. The key is lots of penetrating oil

The roller really will not make a difference if it's aluminum or delrin, but a good time to replace them. Also check the welds on the bracket while you are there to see if you have stress cracks (this one looks fine from what I can see. This will tell you if you will be back in the near future.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
maf914
post Apr 20 2019, 04:07 PM
Post #6


Not a Guru!
****

Group: Members
Posts: 3,049
Joined: 30-April 03
From: Central Florida
Member No.: 632
Region Association: None

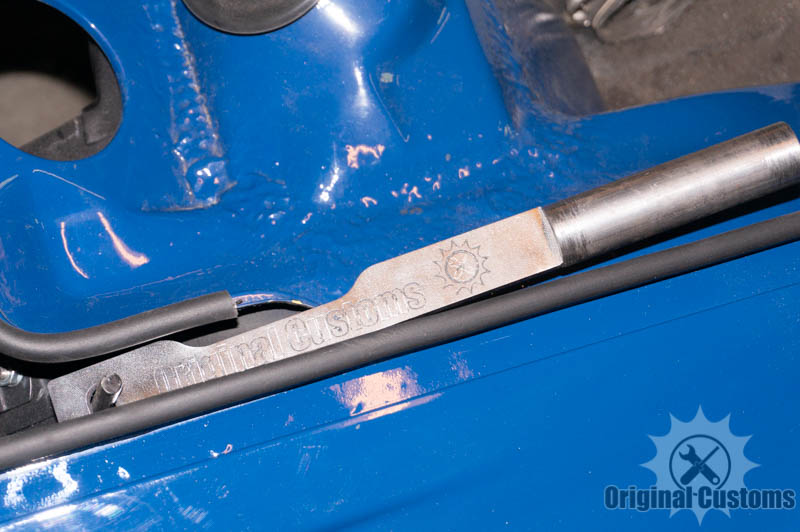

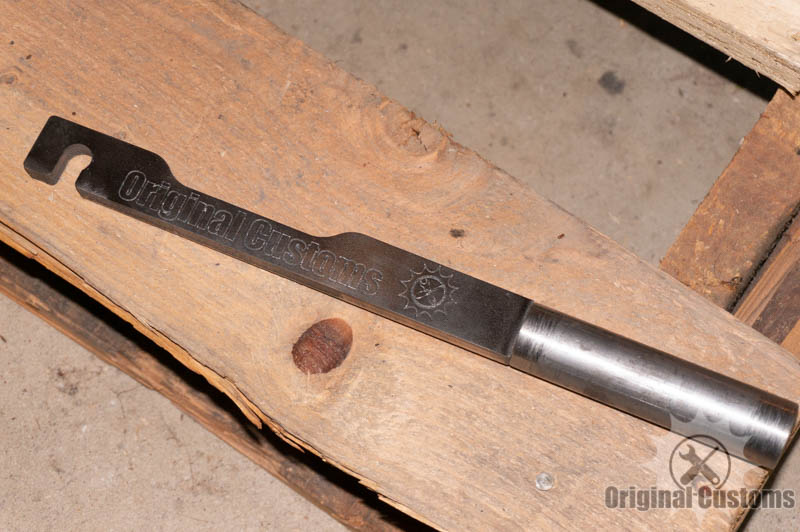

That torsion tool looks a lot like McMark's Original Customs tool. (IMG:style_emoticons/default/idea.gif)



Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JawjaPorsche
post Apr 20 2019, 05:22 PM
Post #7


Advanced Member
****

Group: Members
Posts: 3,463
Joined: 23-July 11
From: Clayton, Georgia
Member No.: 13,351
Region Association: South East States



I trashed my torsion bars in 1975 and have not look back.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DickSteinkamp
post Apr 20 2019, 05:24 PM
Post #8


Senior Member
***

Group: Members
Posts: 500
Joined: 27-February 17
From: Bellingham, WA
Member No.: 20,876
Region Association: None



I like the camp914 shox kit. This may not work for the pure stock owners, but it's probably what Porsche would have done if these struts had been invented. Less stress on hinges, easier to remove your trunk lid, much safer.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
