> Accelerator Pedal (need more help)
enf2232
post Sep 9 2019, 05:52 PM
Post #1


Member
**

Group: Members
Posts: 87
Joined: 13-July 14
From: Toledo, OH
Member No.: 17,621
Region Association: None
Pedal went to the floor and did not return. Removed carpet to be sure it was not hanging up. Disconnected pedal from linkage and there is no resistance in the mechanism. Where to start? Pedal cluster? Accelerator cable? Other? Novice at best when it comes to mechanical experience.

Pics added
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
partwerks
post Sep 9 2019, 05:57 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,611
Joined: 7-September 06
From: Grand Island, NE
Member No.: 6,787
I'd look in the back.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Rusty
post Sep 9 2019, 05:57 PM
Post #3


Wanted: Engine case GA003709
*****

Group: Admin
Posts: 7,959
Joined: 24-December 02
From: North Alabama
Member No.: 6
Region Association: Galt's Gulch
1. Check the throttle cable at the engine side. If there's lots of slop, it could very well be a broken cable. Replacing them is relatively easy.

2. Does the linkage seem intact? The pedal hinge is mounted to the floor with two bolts. It should spring back slightly on its own if the rubber is intact. It shouldn't wobble side-to-side much at all.

(IMG:http://www.914world.com/bbs2/uploads/post-2388-1512840054.jpg)

#9 is your accelerator cable
#7 is the female connector that joins the cable to the bracket
#25 is the bracket that's been known to fail (this week for me)
#6 is the rod from the bracket to the pedal.

Check these things first. You'll need to pull the wooden pedal board to examine the linkage closely.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post Sep 9 2019, 07:08 PM
Post #4


The rubber man
**********

Group: Members
Posts: 12,767
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None
Check to see if the throttle cable came out or your missing a spring. The natural resilience of the rubber is not enough to return on it's own.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
enf2232
post Sep 22 2019, 11:21 AM
Post #5


Member
**

Group: Members
Posts: 87
Joined: 13-July 14
From: Toledo, OH
Member No.: 17,621
Region Association: None
Finally had a chance to get back on it. Pulled the pedal board and the linkage seems attached at the pedals.

Loosened the air cleaner to get to the throttle linkage in the engine, again all seems intact.

There is slop in the cable at either end but not so you could pull it out from one end or the other.

Suggestions on next step?

My respect to all of you who work on your cars. My old body does not like getting into the tight spaces.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
enf2232
post Sep 22 2019, 11:25 AM
Post #6


Member
**

Group: Members
Posts: 87
Joined: 13-July 14
From: Toledo, OH
Member No.: 17,621
Region Association: None
QUOTE(Mikey914 @ Sep 9 2019, 09:08 PM) *

Check to see if the throttle cable came out or your missing a spring. The natural resilience of the rubber is not enough to return on it's own.


To what spring are you referring? My Haynes does not show a return spring in the pedal cluster (p72, fig 4-10) and I did not see any at the engine. Will post some photos in a bit.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
enf2232
post Sep 22 2019, 12:04 PM
Post #7


Member
**

Group: Members
Posts: 87
Joined: 13-July 14
From: Toledo, OH
Member No.: 17,621
Region Association: None

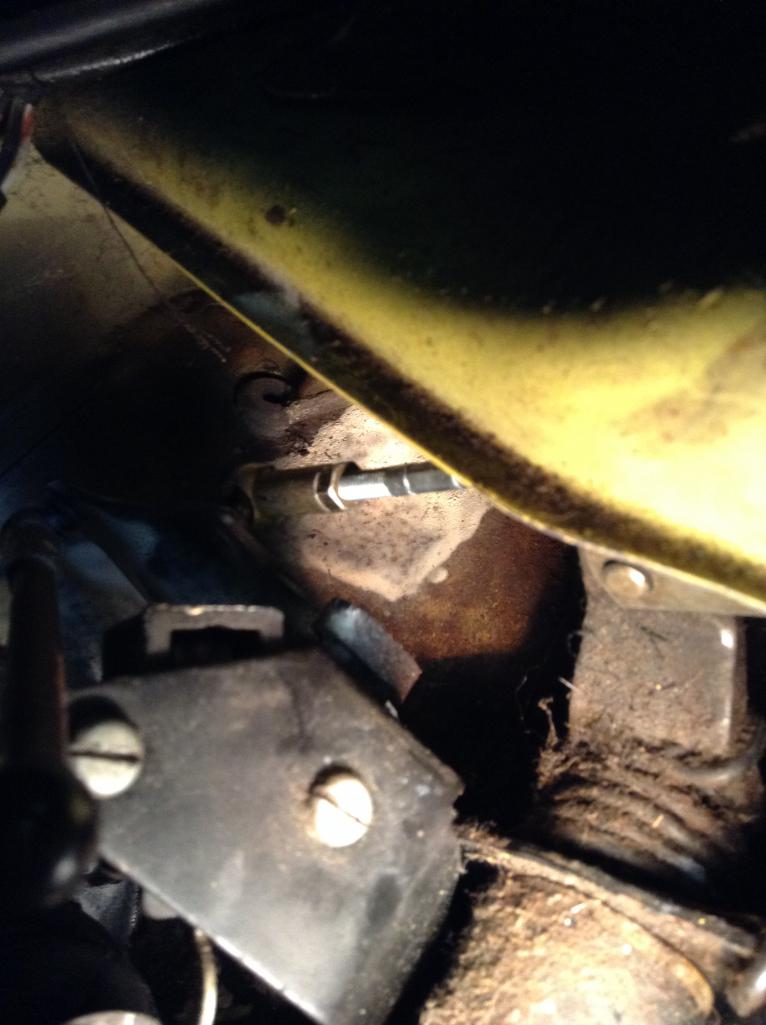

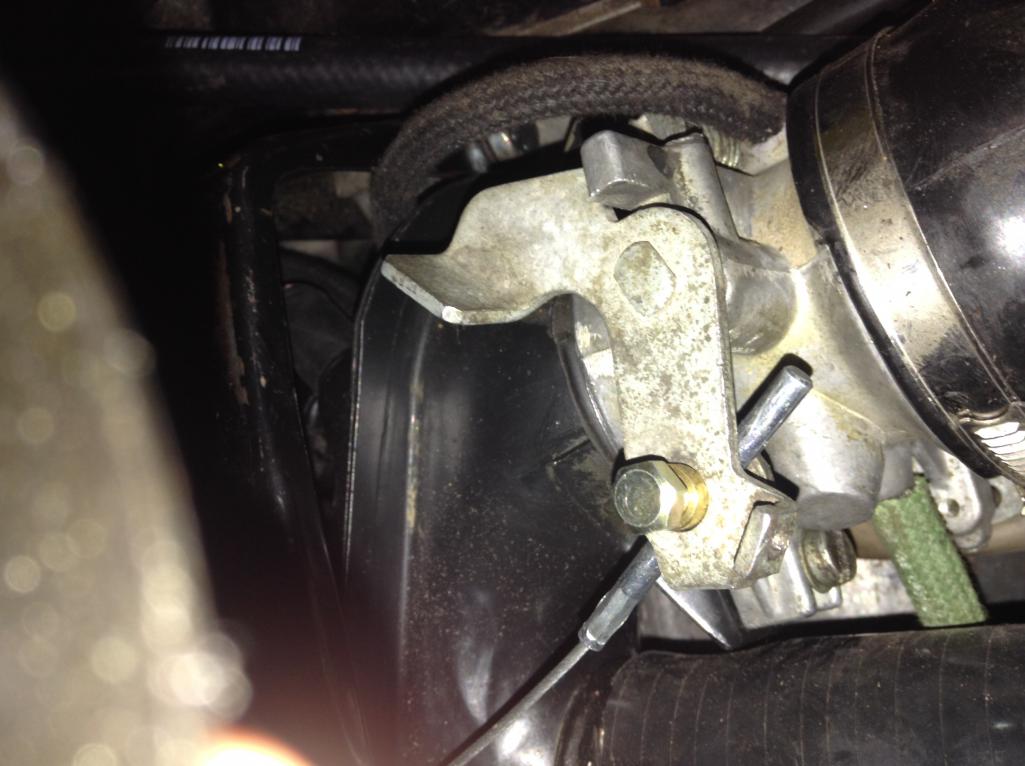

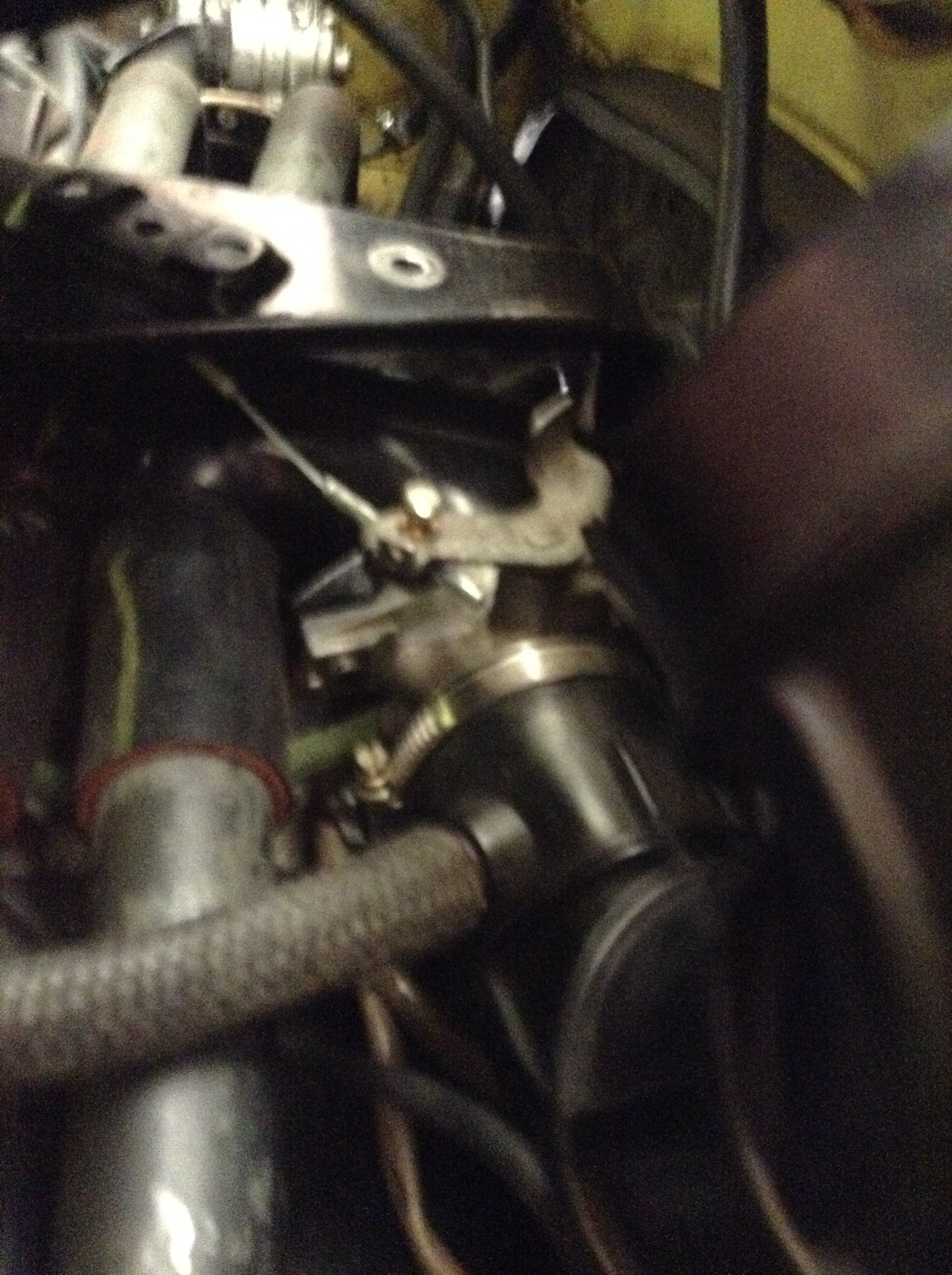

Some photosAttached Image Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rjames
post Sep 22 2019, 02:52 PM
Post #8


I'm made of metal
****

Group: Members
Posts: 4,231
Joined: 24-July 05
From: Shoreline, WA
Member No.: 4,467
Region Association: Pacific Northwest
Check spring l #33 in the parts diagram above.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Sep 22 2019, 03:07 PM
Post #9


"I got blisters on me fingers"
**********

Group: Members
Posts: 11,217
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
(IMG:style_emoticons/default/agree.gif) When the pedal cluster spring gives it up ...no workie!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
enf2232
post Sep 22 2019, 04:06 PM
Post #10


Member
**

Group: Members
Posts: 87
Joined: 13-July 14
From: Toledo, OH
Member No.: 17,621
Region Association: None
That part is labeled "spring for clutch pedal shaft" so I overlooked that. I cannot see anything obvious with that, but since it was brought up, is there a connection between the throttle cable and the vertical arm on part #34 at the fork bolt, #10? I cannot see it behind the body work. Need to pull an access panel off the center tunnel?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
phatnine11
post Sep 22 2019, 04:25 PM
Post #11


Member
**

Group: Members
Posts: 286
Joined: 22-March 05
From: Rancho Cucamonga, CA
Member No.: 3,798
enf2232,
Just a question, I don't see a spring on the throttle body?
Phatnine11
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
enf2232
post Sep 22 2019, 05:56 PM
Post #12


Member
**

Group: Members
Posts: 87
Joined: 13-July 14
From: Toledo, OH
Member No.: 17,621
Region Association: None
I didn't see one either and this is the first time digging into it. No clear evidence of where one should be.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
worn
post Sep 22 2019, 05:58 PM
Post #13


Winner of the Utah Twisted Joint Award
****

Group: Members
Posts: 3,466
Joined: 3-June 11
From: Madison, WI
Member No.: 13,152
Region Association: Upper MidWest
QUOTE(phatnine11 @ Sep 22 2019, 02:25 PM) *

enf2232,
Just a question, I don't see a spring on the throttle body?
Phatnine11

Good point. Should be a coil spring pulling the throttle closed.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
worn
post Sep 22 2019, 05:59 PM
Post #14


Winner of the Utah Twisted Joint Award
****

Group: Members
Posts: 3,466
Joined: 3-June 11
From: Madison, WI
Member No.: 13,152
Region Association: Upper MidWest
QUOTE(worn @ Sep 22 2019, 03:58 PM) *

QUOTE(phatnine11 @ Sep 22 2019, 02:25 PM) *

enf2232,
Just a question, I don't see a spring on the throttle body?
Phatnine11

Good point. Should be a coil spring pulling the throttle closed.

Goes through hole in lever shown in middle photo.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
enf2232
post Sep 24 2019, 05:04 PM
Post #15


Member
**

Group: Members
Posts: 87
Joined: 13-July 14
From: Toledo, OH
Member No.: 17,621
Region Association: None
Partial success. Removed air cleaner and searched and found spring. Reconnected and pedal seems to work. Put things in the engine compartment back together, ran out of light. Still have to test and put pedal board back in.

Thanks to all for the help.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Sep 25 2019, 07:08 AM
Post #16


Life's been good to me so far.....
***************

Group: Admin
Posts: 16,277
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
The later 914s had a secondary throttle spring wound around the shaft of the throttle body. If the main spring between the arm and the tin broke, the secondary one was there to make the throttle return. This was done by VW to cure runaway engine RPM complaints.

For safety purposes, I would suggest trying to find a 1.7 throttle body with the secondary return spring.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
