Hello,

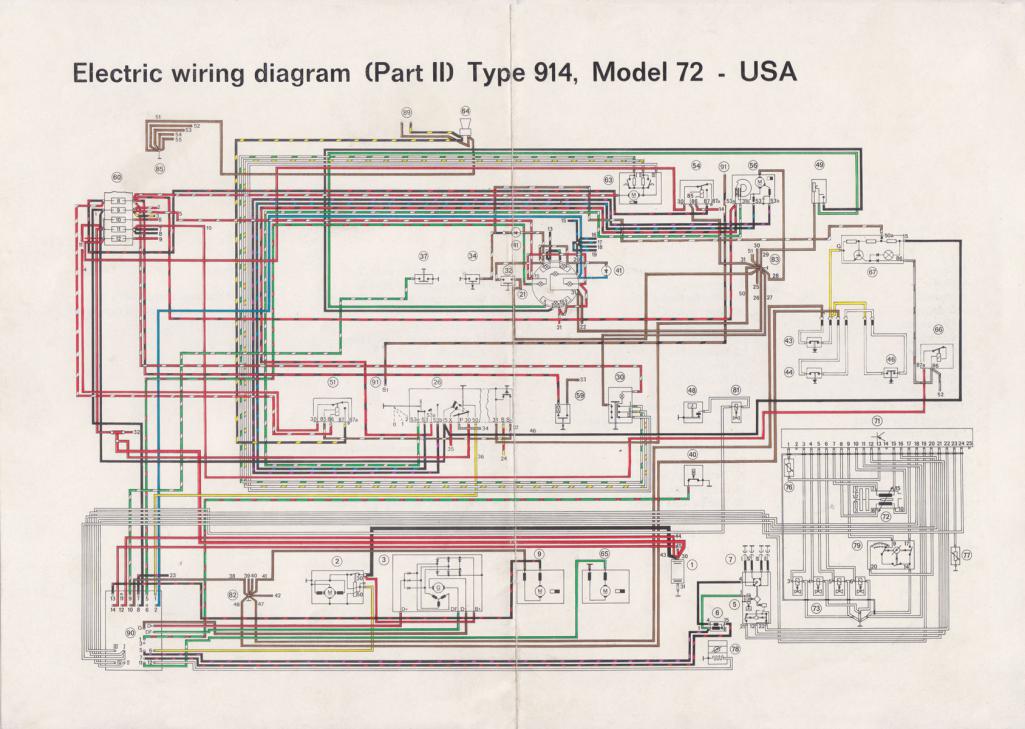

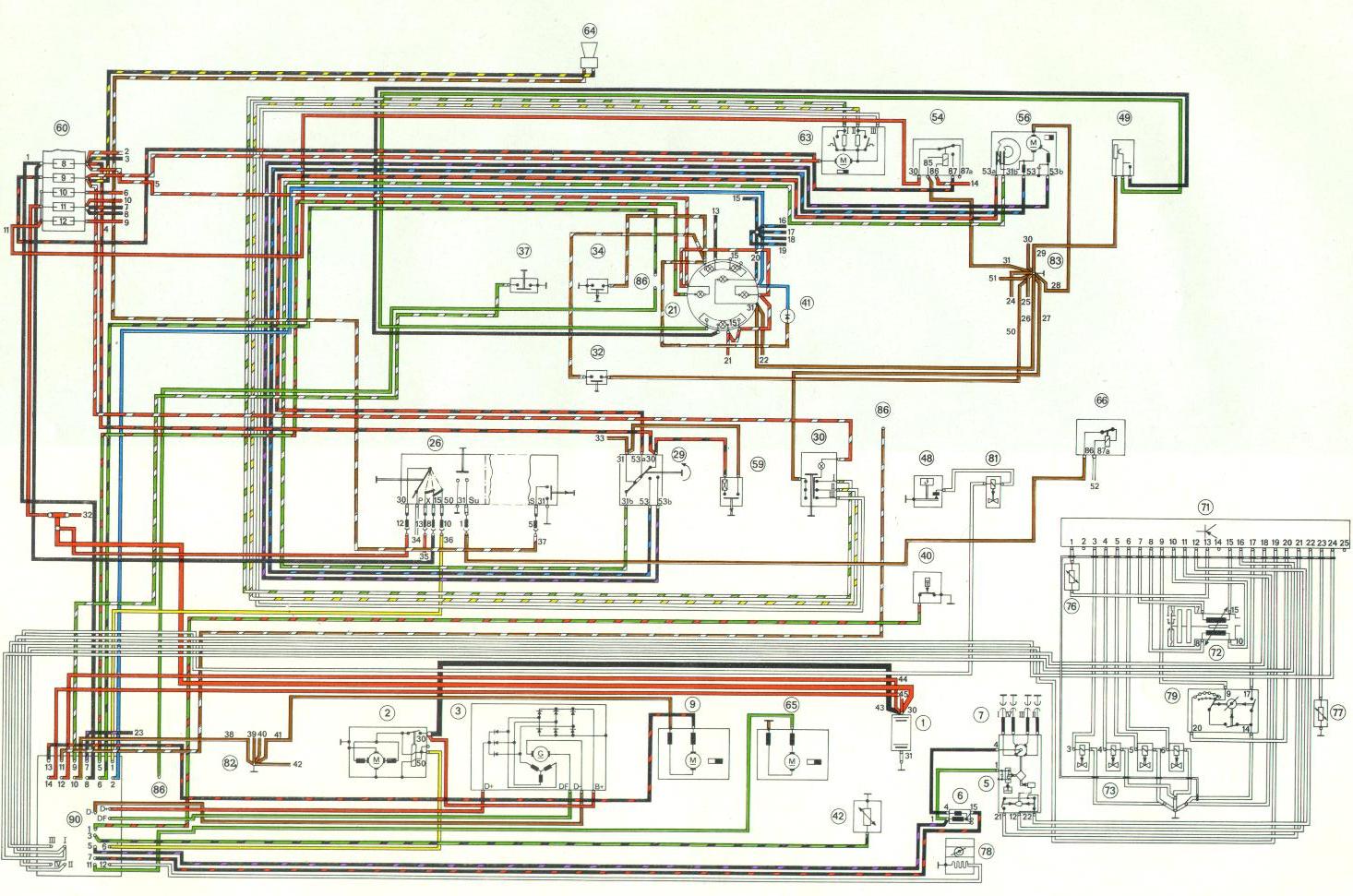

I've been trying to diagnose why the hand brake switch does not trigger my flashing warning light in the panel on my 1972 1.7L 914. Based on my debugging the trouble seems to be with the diode that is between the flasher lights in the panel, and the switch at the hand brake. (Left diode #41 on the attached diagram.) But for the life of me I cannot figure out where this diode is physically located. I took out the cluster gauge, and looked at the big clump of wires, and all I can see is the other diode, on the right in the diagram, that goes from the voltage indicator to the warning lights. That is there, and works fine. But where is the other one? Thanks, Andrei. Attached thumbnail(s)
|
   |

|
Posts in this topic
andreic Where is this diode? Sep 28 2019, 01:15 PM
andreic P.S. The hand brake switch is #34 in this diagram.... Sep 28 2019, 01:18 PM dlee6204 On my ‘73 it was right behind the gauge. Sep 28 2019, 05:14 PM andreic Well, I've come to believe that maybe that dio... Sep 29 2019, 09:42 AM tmc914 When I ran into a problem of my emergency brake li... Sep 29 2019, 07:18 PM
cary Fuel / Brake light gauge. Right side. Next to the ... Sep 30 2019, 12:21 AM  |
