> Rebuiding Inside-out
bkrantz
post Nov 10 2020, 08:34 PM
Post #1561


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
As a replacement, he ordered a steel replacement from URO.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 10 2020, 08:35 PM
Post #1562


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
All done, successfully running again.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 10 2020, 08:37 PM
Post #1563


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
While he was working, I started painting the spots I had scraped and primed, or applied seam sealer.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 10 2020, 08:38 PM
Post #1564


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

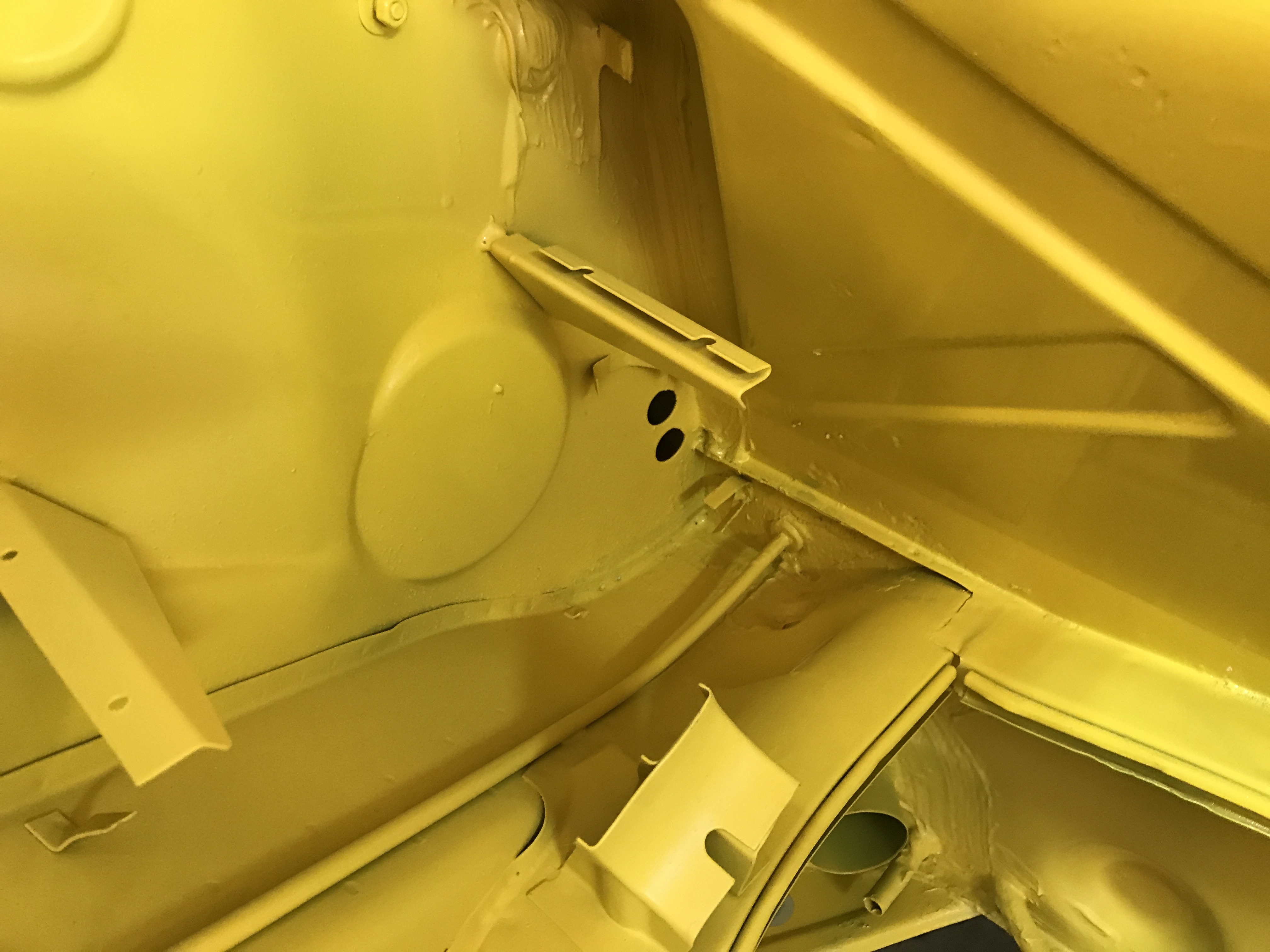

First coat in the hell hole and below.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
djway
post Nov 10 2020, 08:51 PM
Post #1565


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California
Beautiful.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
UROpartsman
post Nov 11 2020, 11:34 AM
Post #1566


Member
**

Group: Members
Posts: 297
Joined: 22-October 15
From: Simi Valley, CA
Member No.: 19,288
Region Association: None
QUOTE(bkrantz @ Nov 9 2020, 06:59 PM) *
My son ordered an optional steel pan to replace the stock plastic piece. It should be tougher.

Well done Bkrantz!

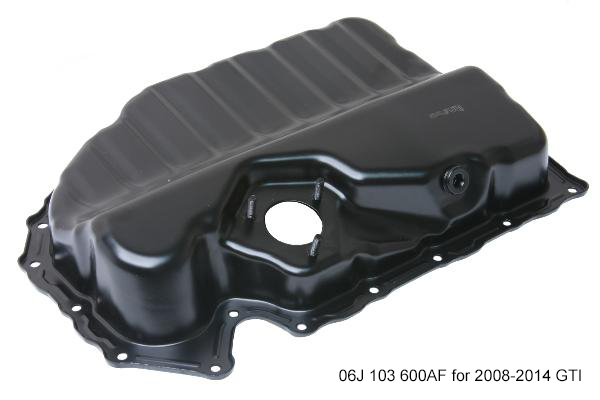

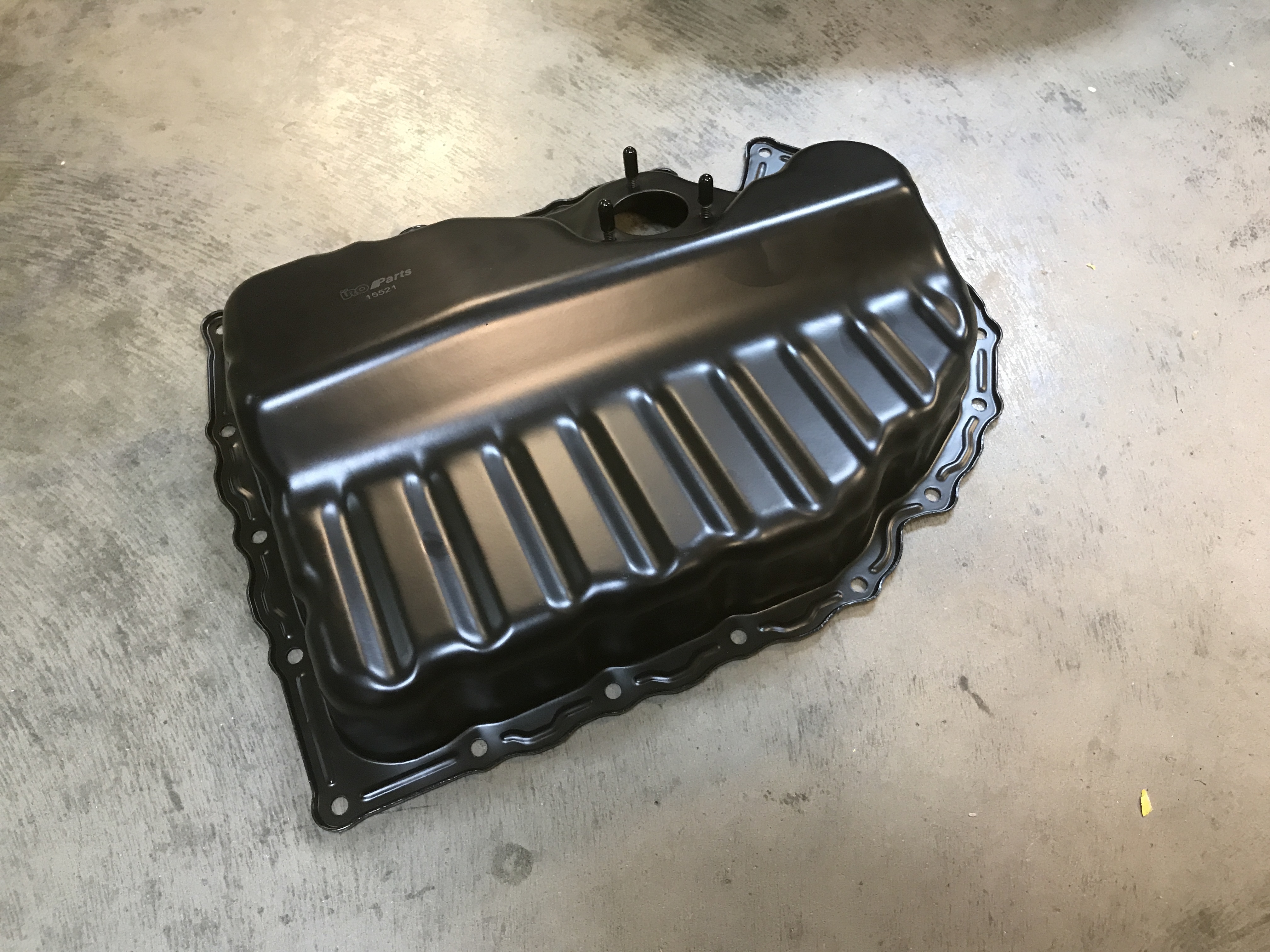

• URO Parts has offered steel Oil Pan 06J 103 600AF for 2008-2014 GTI (cars without oil level sensor also require Oil Level Sender Cover 03G 103 707) for about a year, with great feedback.

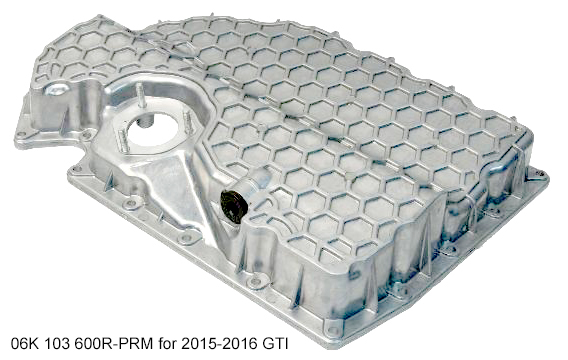

• We offer aluminum pan 06K 103 600R-PRM for 2015-2016 GTI cars that originally came with the honeycomb plastic pan, which appears to be the factory pan on your son's car.

What year is your son's GTI? It looks like he may have bought the wrong pan, even if the flange bolt pattern is the same. The 2008-2014 steel pan is slightly deeper and will hang lower than the 2015-2016 honeycomb aluminum pan, and is more likely to catch speedbumps, etc. Sent you a PM.


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 11 2020, 07:32 PM
Post #1567


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

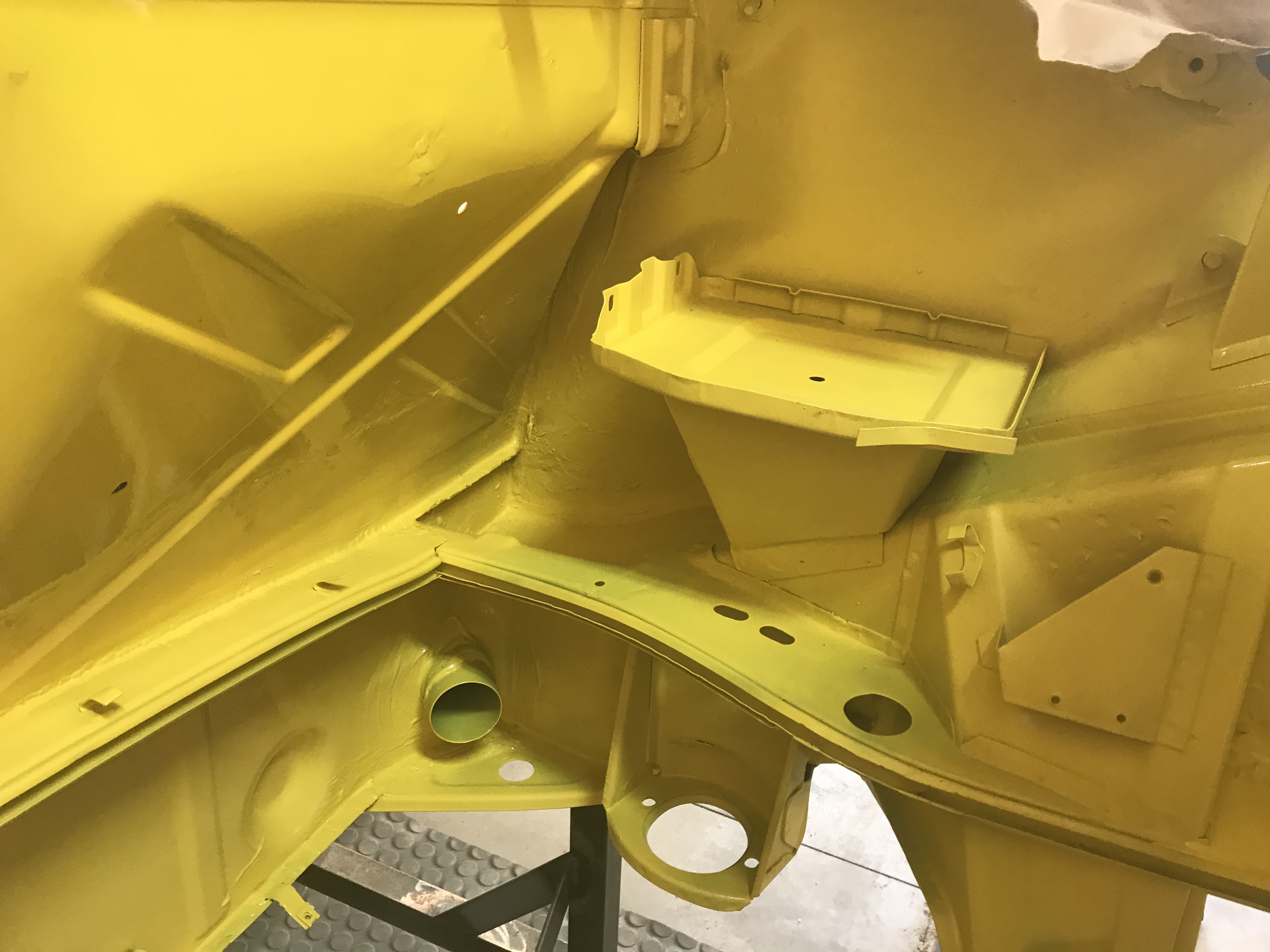

I finished spraying color today (I think), and got coverage on all the spots, including the added seam sealer. I will add some clear coat and call it done.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 11 2020, 07:32 PM
Post #1568


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

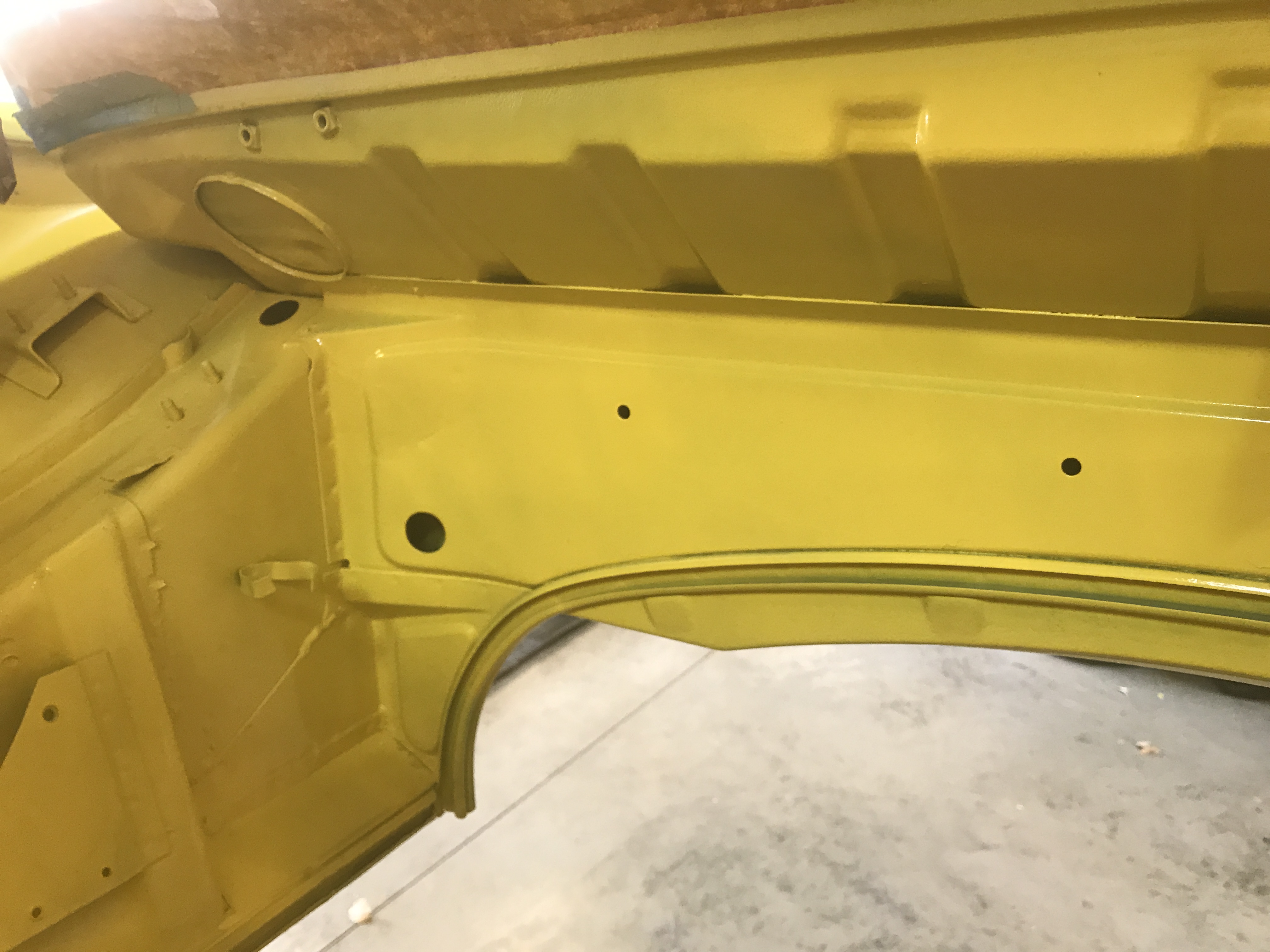

Other side


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 11 2020, 07:33 PM
Post #1569


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

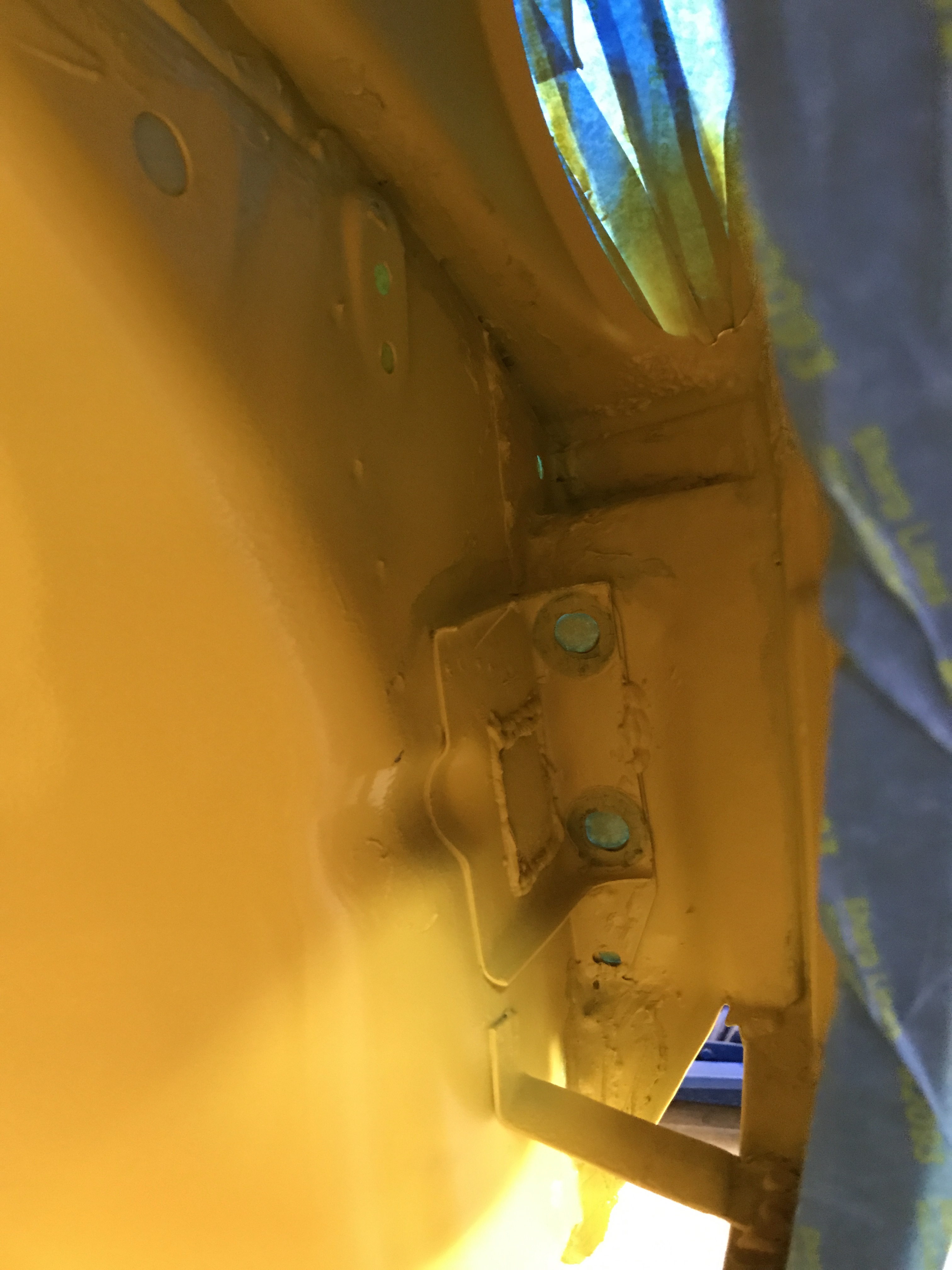

Left side hell hole.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2020, 07:24 PM
Post #1570


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

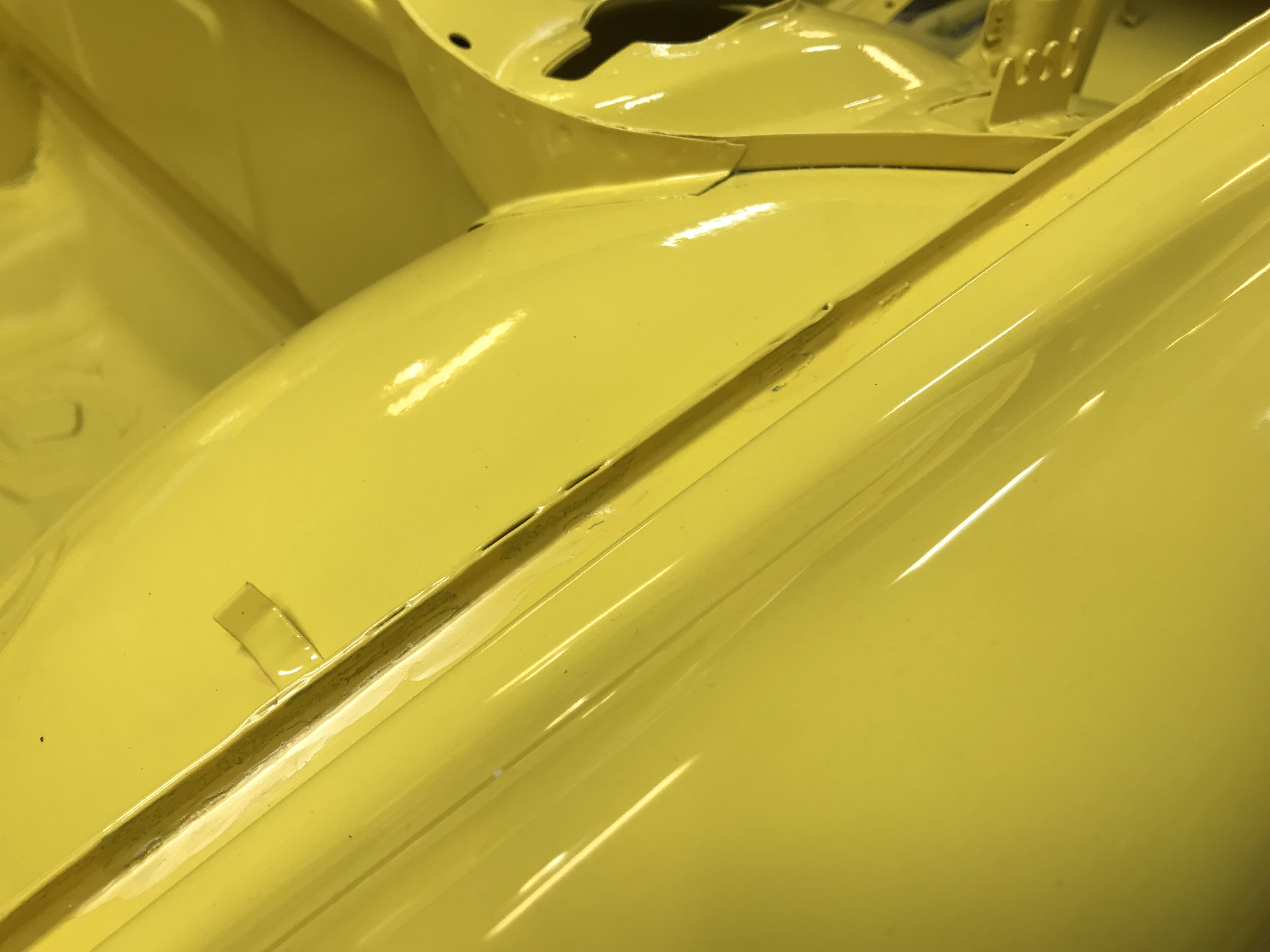

I touched up the last few spots, including in the frunk weatherstrip channel.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 13 2020, 07:25 PM
Post #1571


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
OK, except for a few very small spots, the paint is now complete. Time to start building.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Kansas 914
post Nov 13 2020, 09:03 PM
Post #1572


Advanced Member
****

Group: Members
Posts: 3,004
Joined: 1-March 03
From: Durango, Colorado
Member No.: 373
Region Association: Rocky Mountains
QUOTE(bkrantz @ Nov 13 2020, 06:25 PM) *

OK, except for a few very small spots, the paint is now complete. Time to start building.

Great job!

Now the fun begins.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 14 2020, 07:34 PM
Post #1573


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(Kansas 914 @ Nov 13 2020, 08:03 PM) *

QUOTE(bkrantz @ Nov 13 2020, 06:25 PM) *

OK, except for a few very small spots, the paint is now complete. Time to start building.

Great job!

Now the fun begins.


Indeed!

My initial plan:

1. Dynamat on floor and inside of firewall.
2. Fuel lines in tunnel.
3. Brake line in tunnel.
4. Cables in tunnel.
5. Wiring harness.

Comments?
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 14 2020, 07:40 PM
Post #1574


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

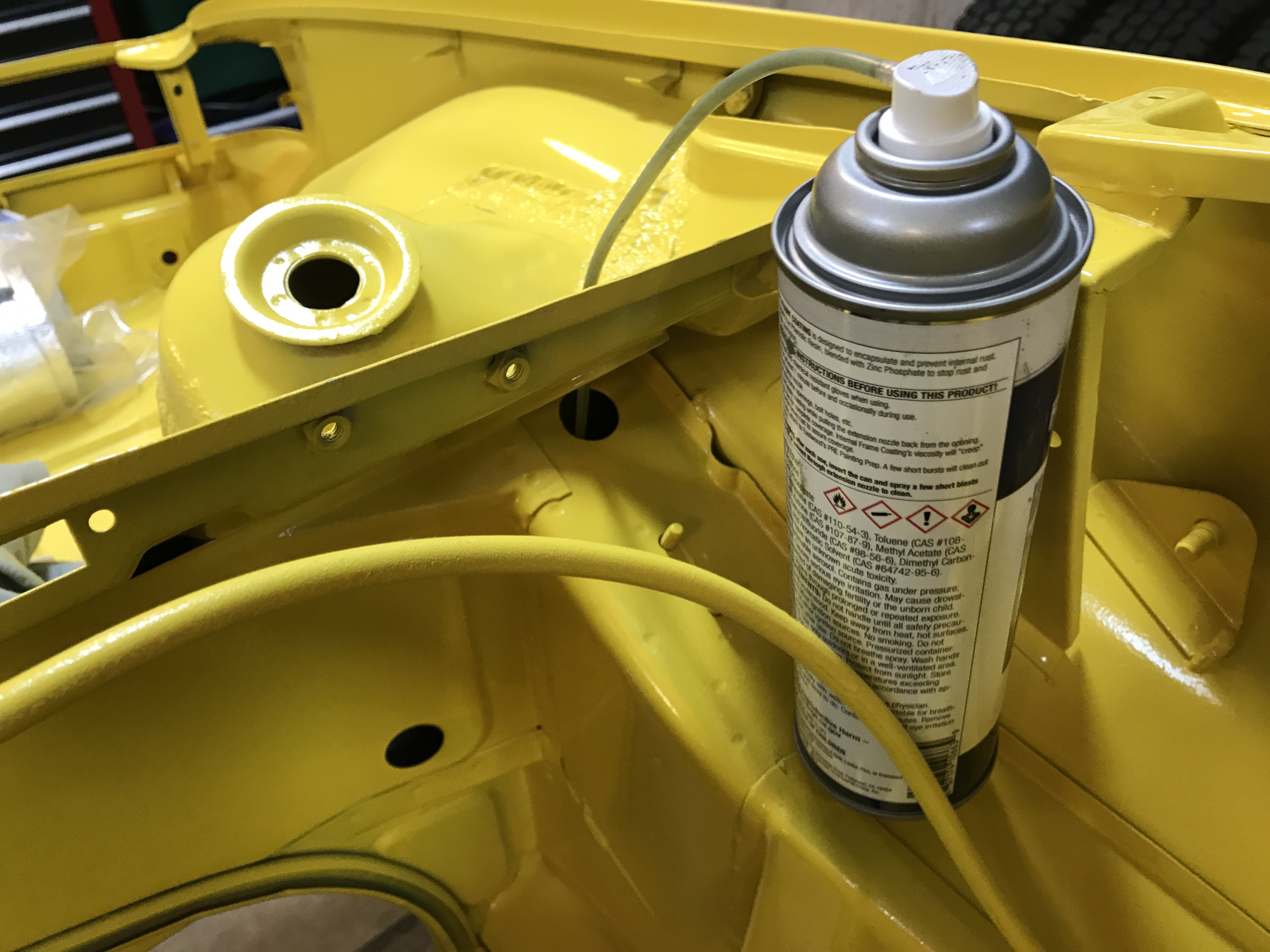

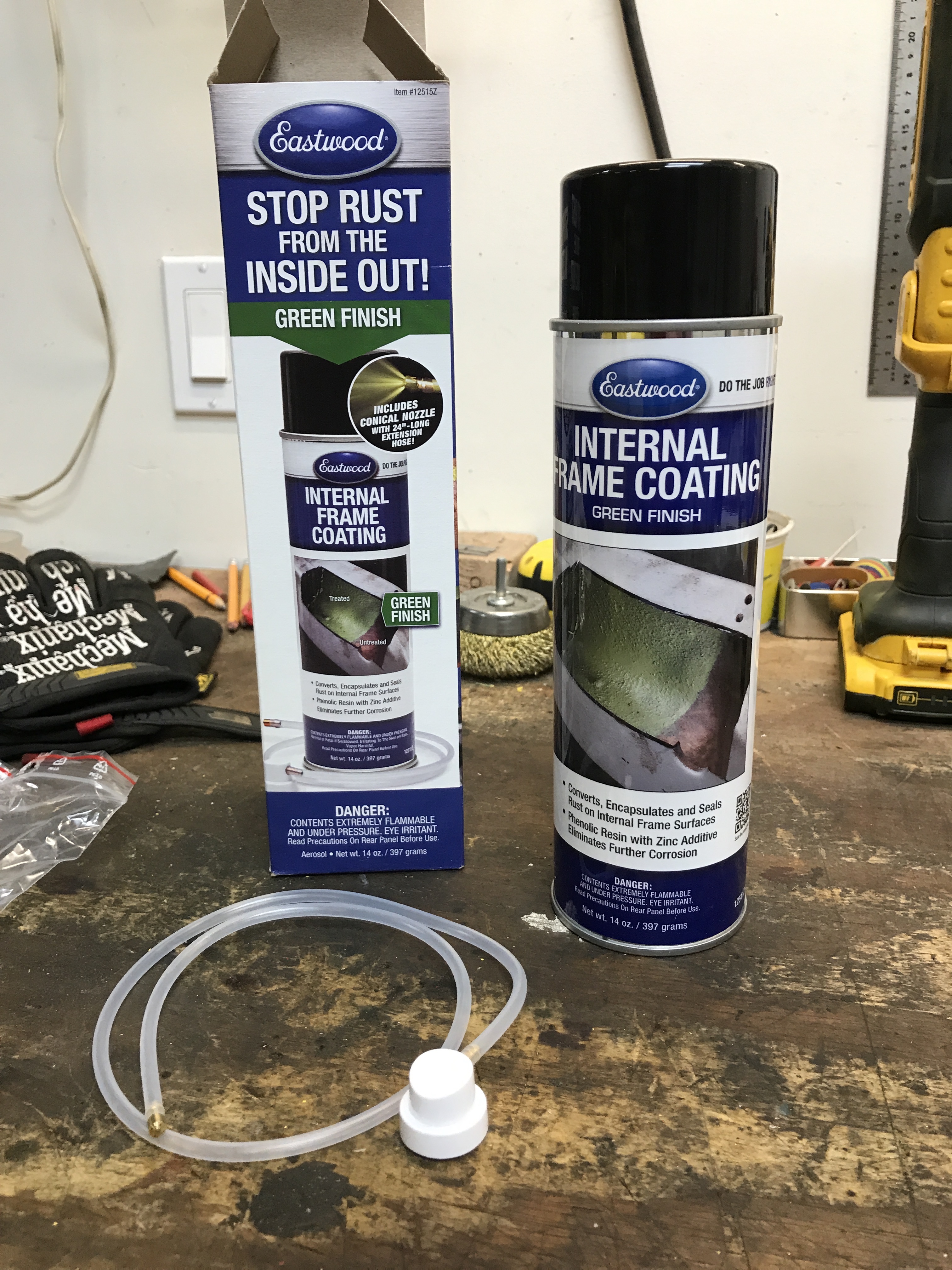

Before adding parts to the body, I decided to add some rust prevention in the cavities, especially the longs. I have had a couple of cans of Eastwood Internal Frame Coating sitting around for months.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 14 2020, 07:41 PM
Post #1575


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

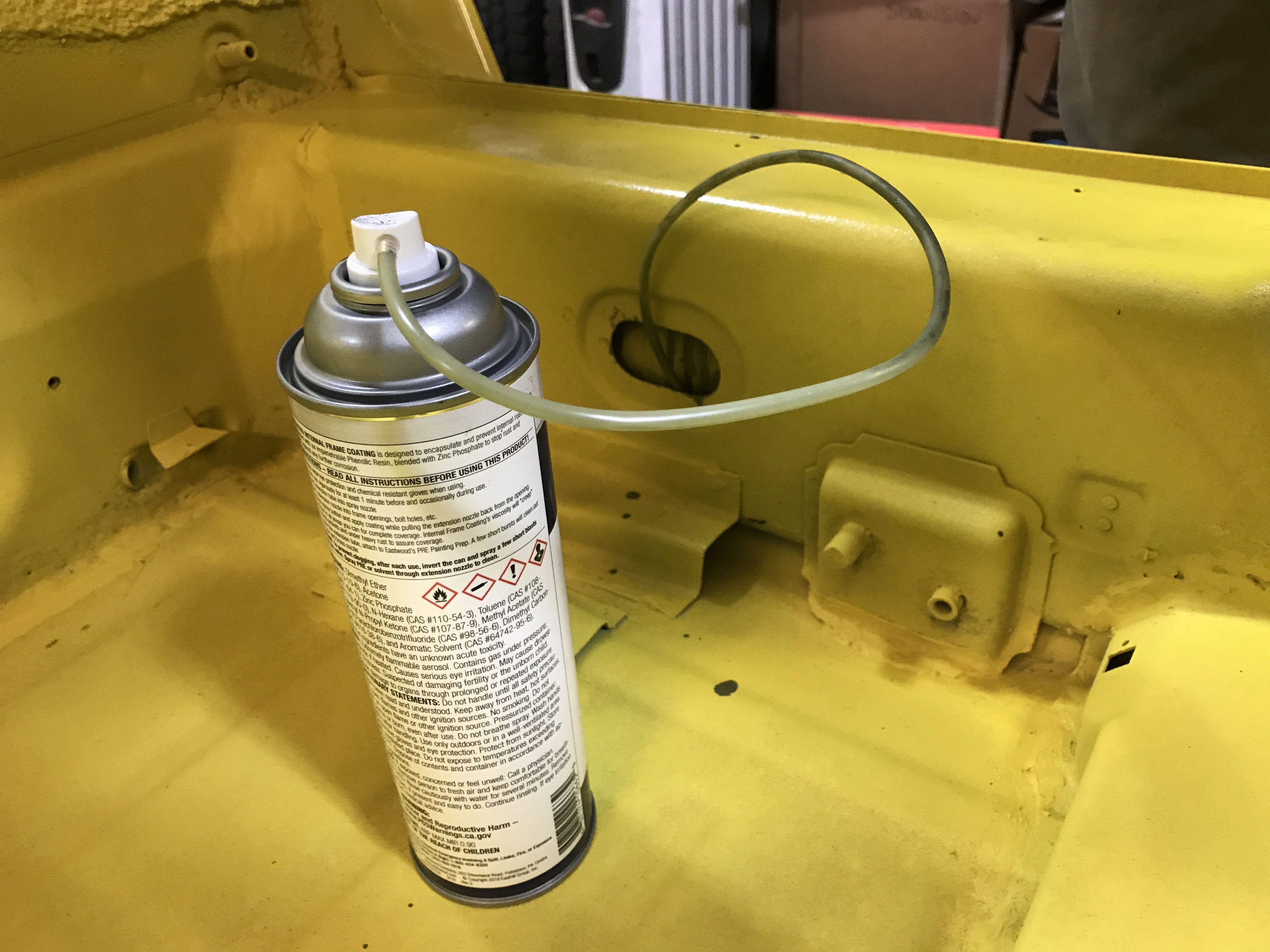

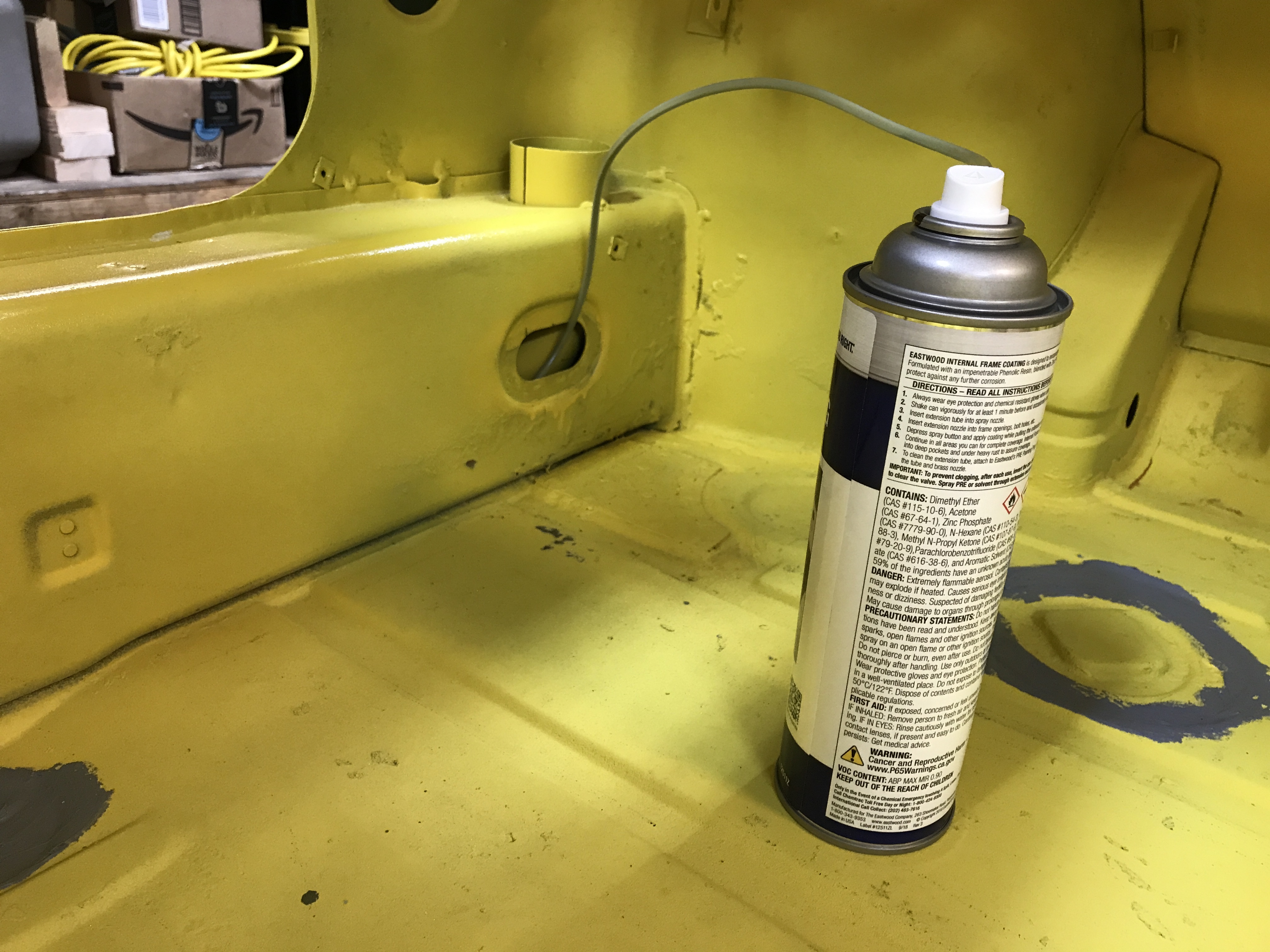

I used the access holes to get inside the longs.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 14 2020, 07:42 PM
Post #1576


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
The nozzle and hose are small enough diameter to sneak past obstructions.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 14 2020, 07:43 PM
Post #1577


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

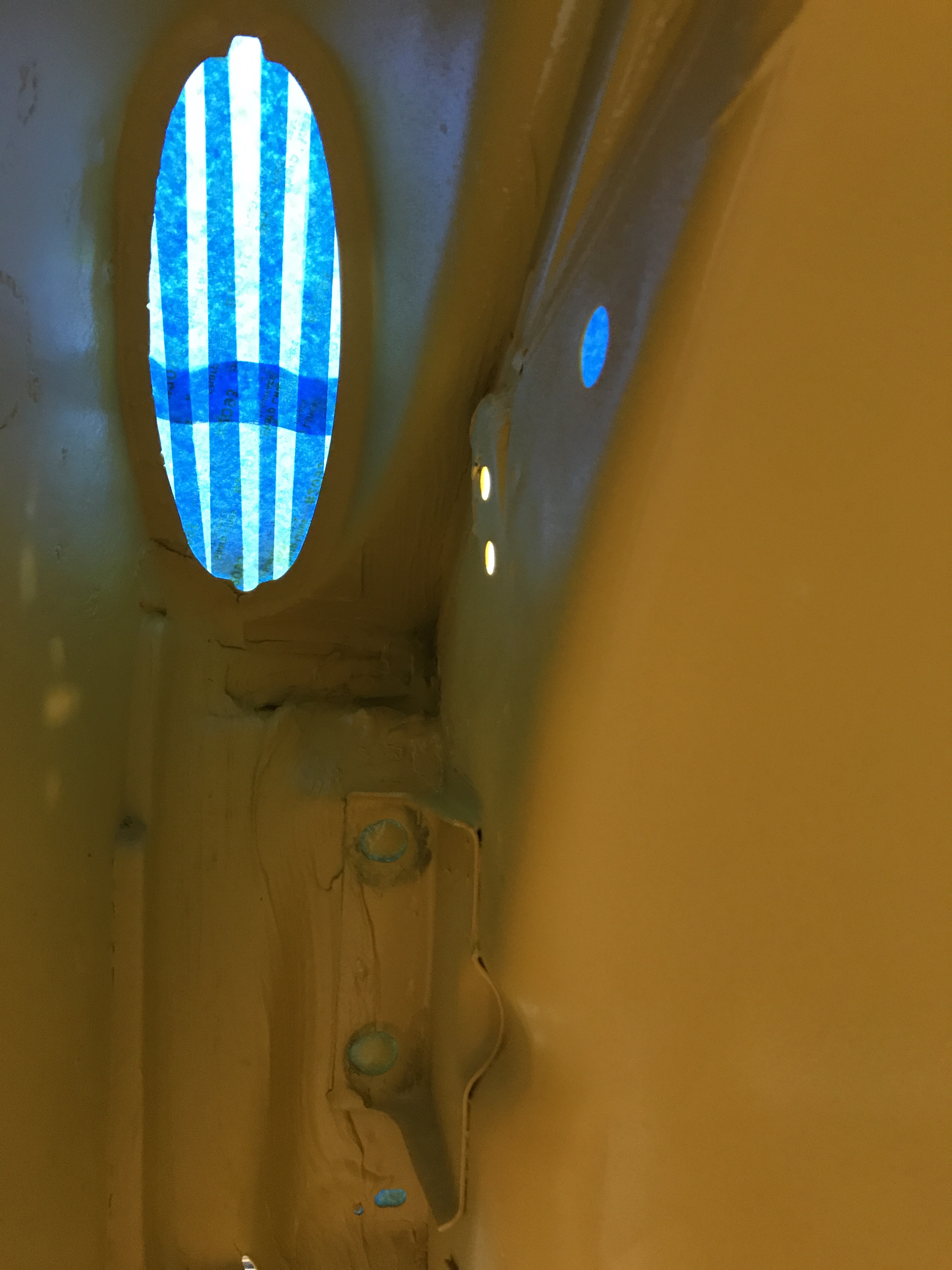

Access to the upper part of the rear longs.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 14 2020, 07:46 PM
Post #1578


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

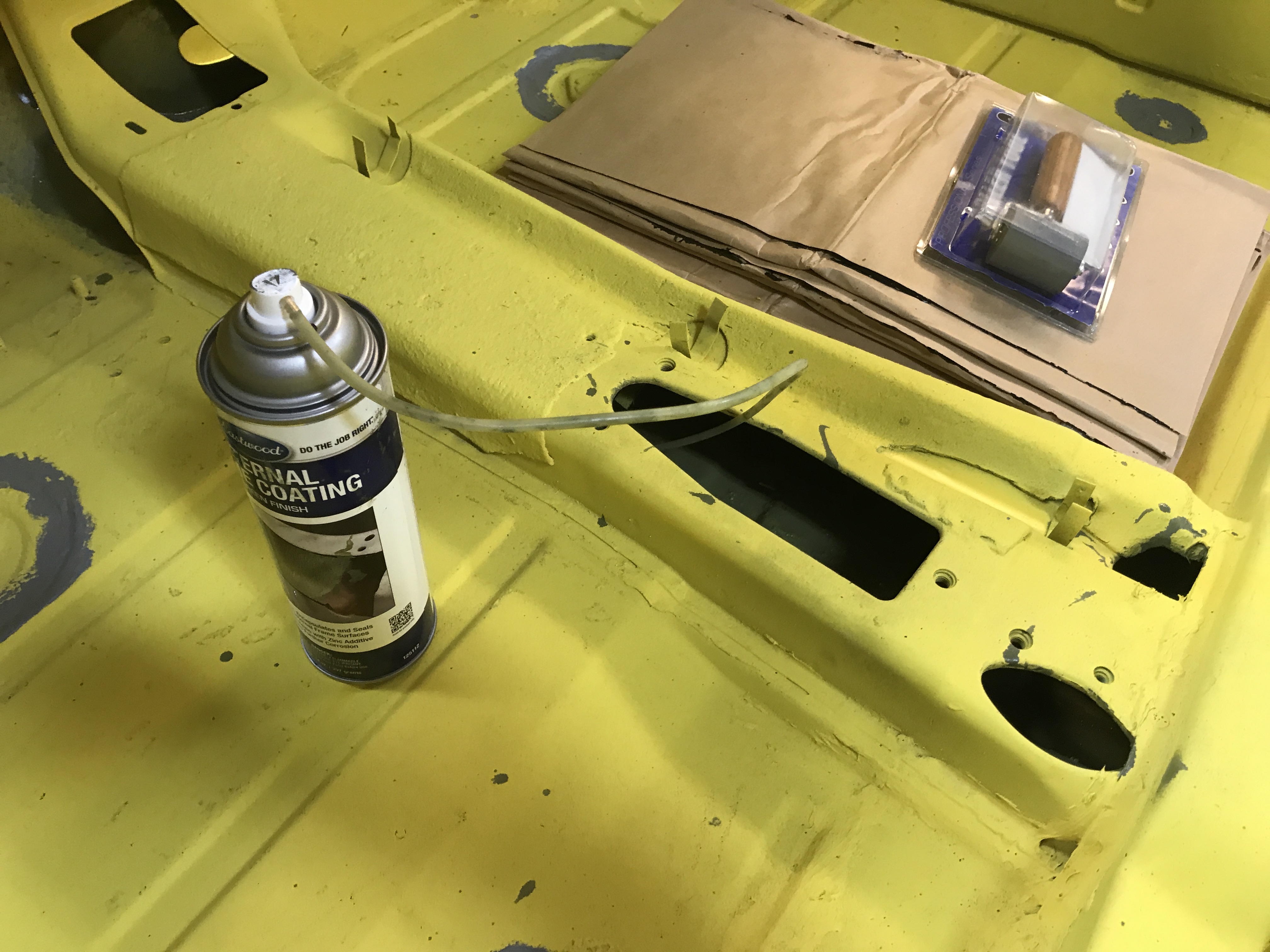

And also inside the tunnel. The nozzle sprays a 180 degree pattern.

In addition, I sprayed inside the lower firewall, the closed brace by the driver pedal area, the cross brace in the trunk, and the side braces under the fuel tank.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 14 2020, 07:47 PM
Post #1579


914 Guru
*****

Group: Members
Posts: 8,497
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

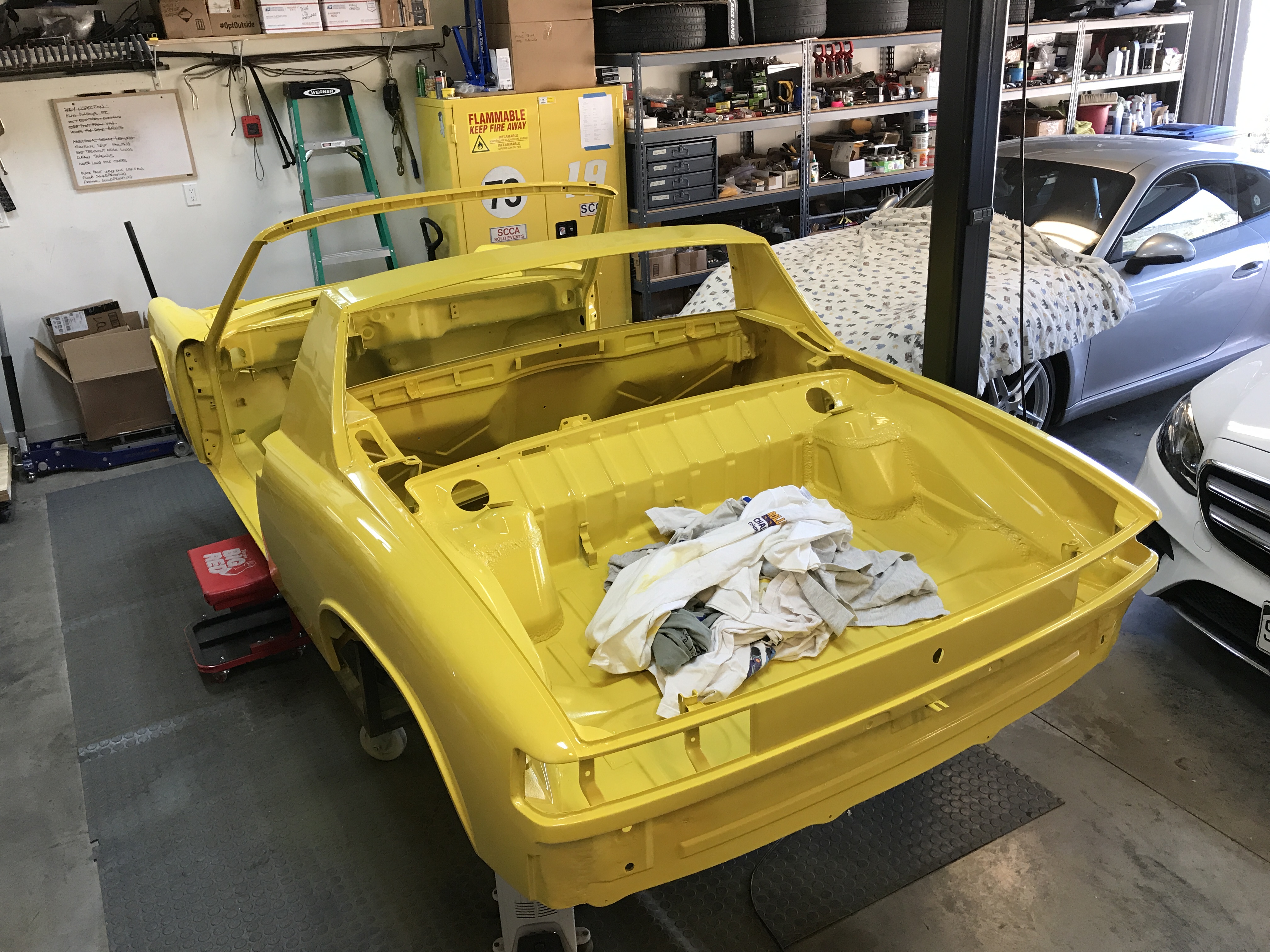

Prelims almost done.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Kansas 914
post Nov 14 2020, 08:02 PM
Post #1580


Advanced Member
****

Group: Members
Posts: 3,004
Joined: 1-March 03
From: Durango, Colorado
Member No.: 373
Region Association: Rocky Mountains
Great work!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
