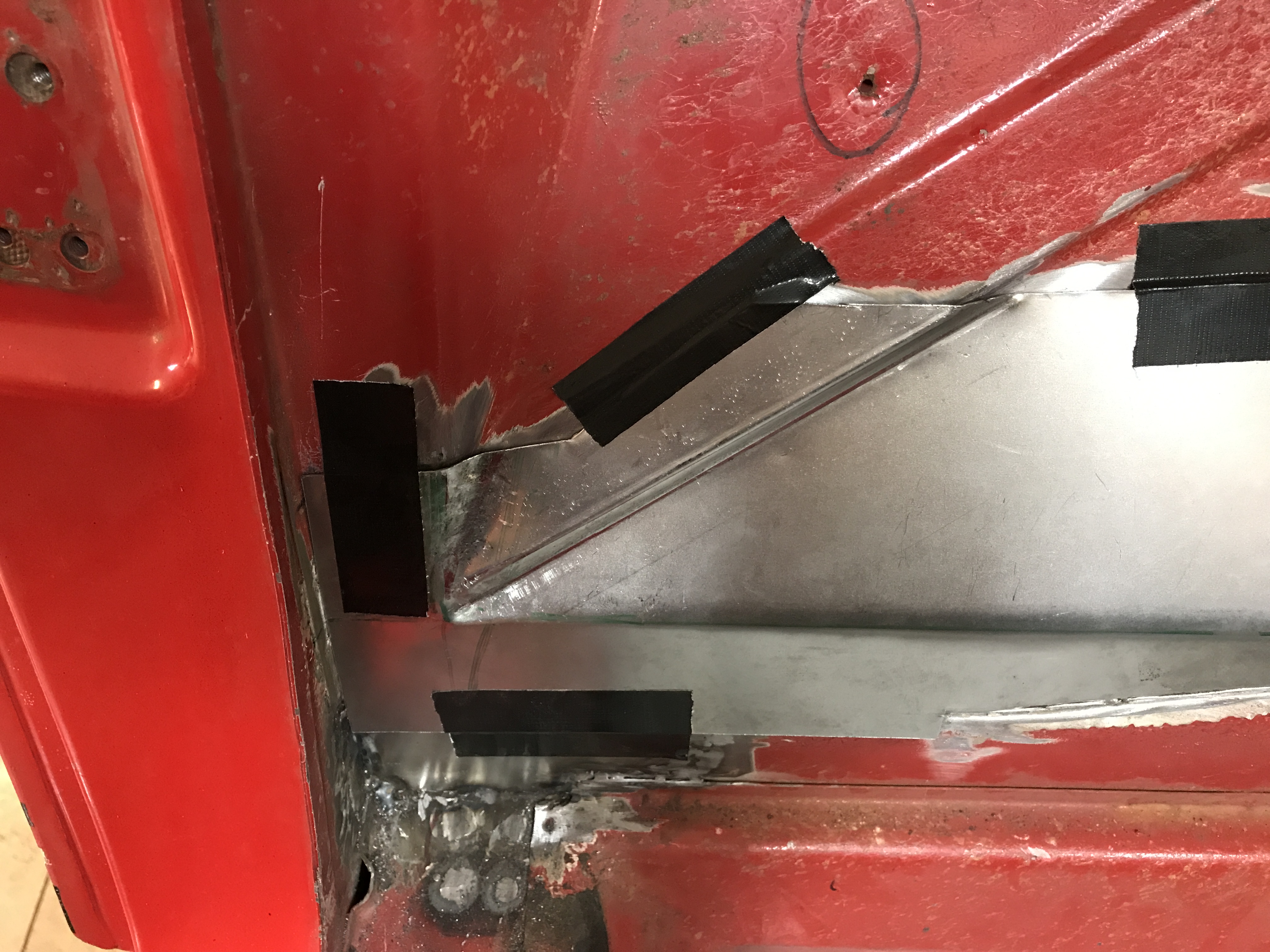

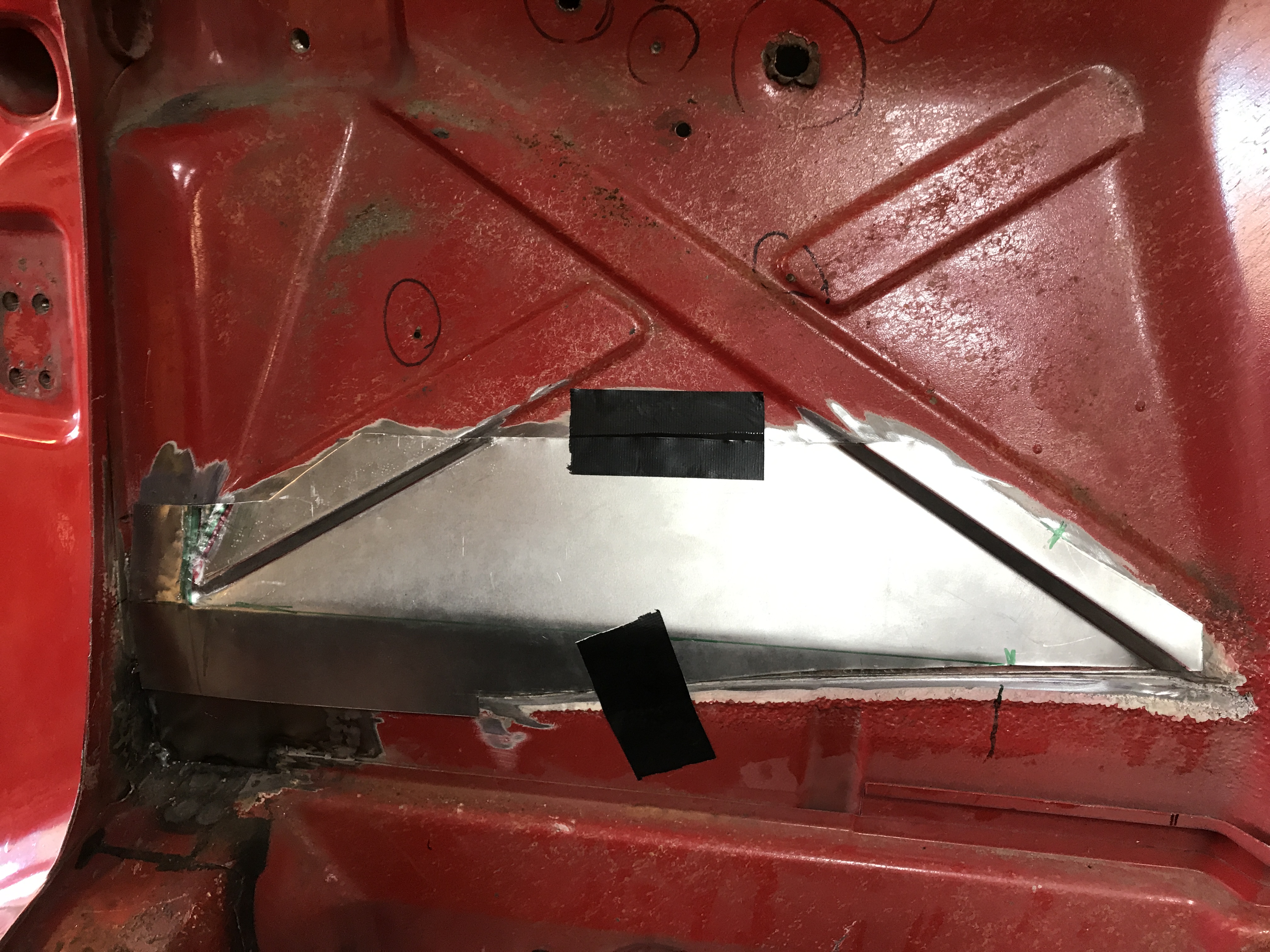

Now time to move on. Here is the middle layer patch for the top of the sill, final fit.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Feb 29 2020, 10:15 PM
Post #302


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

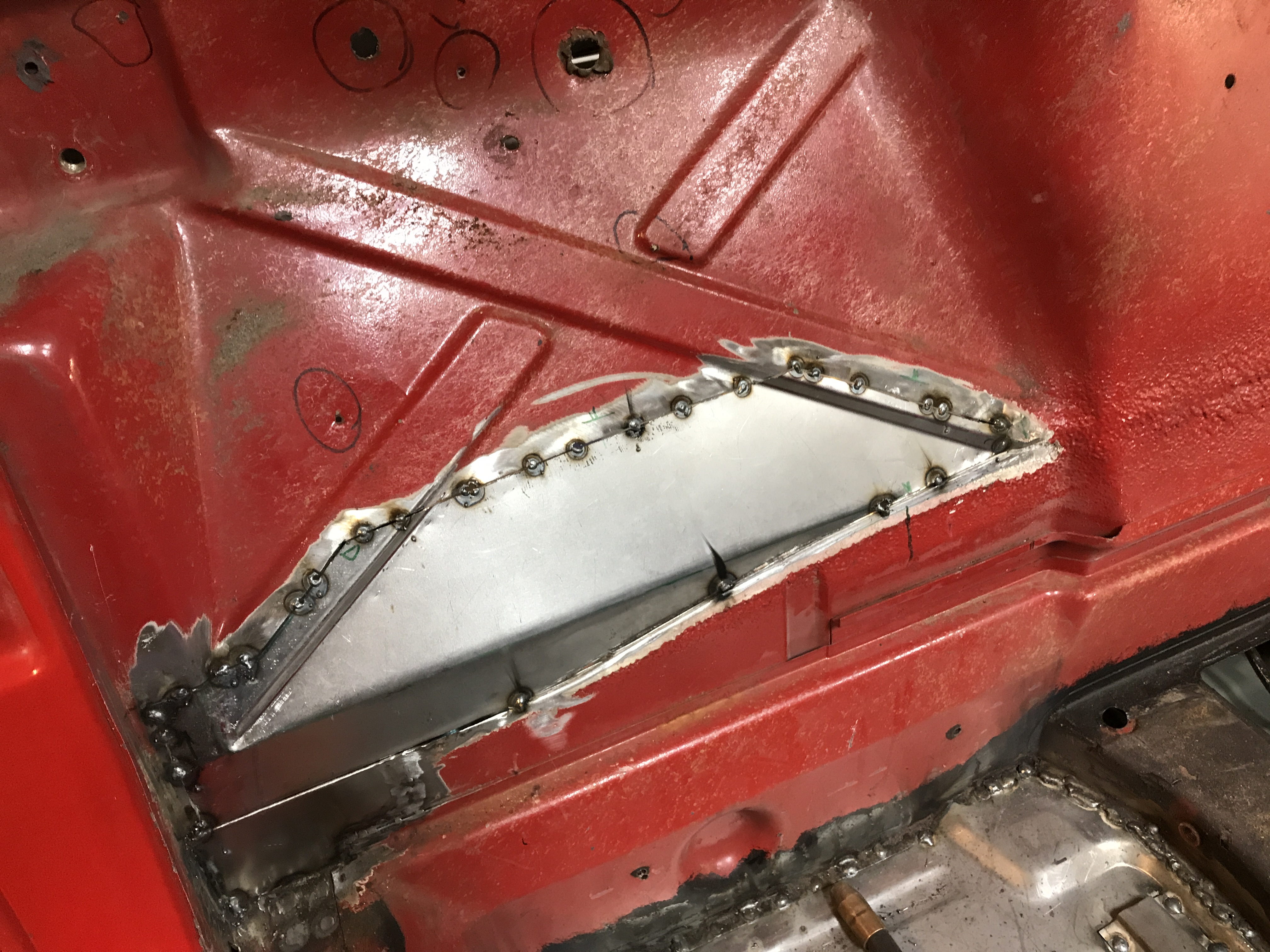

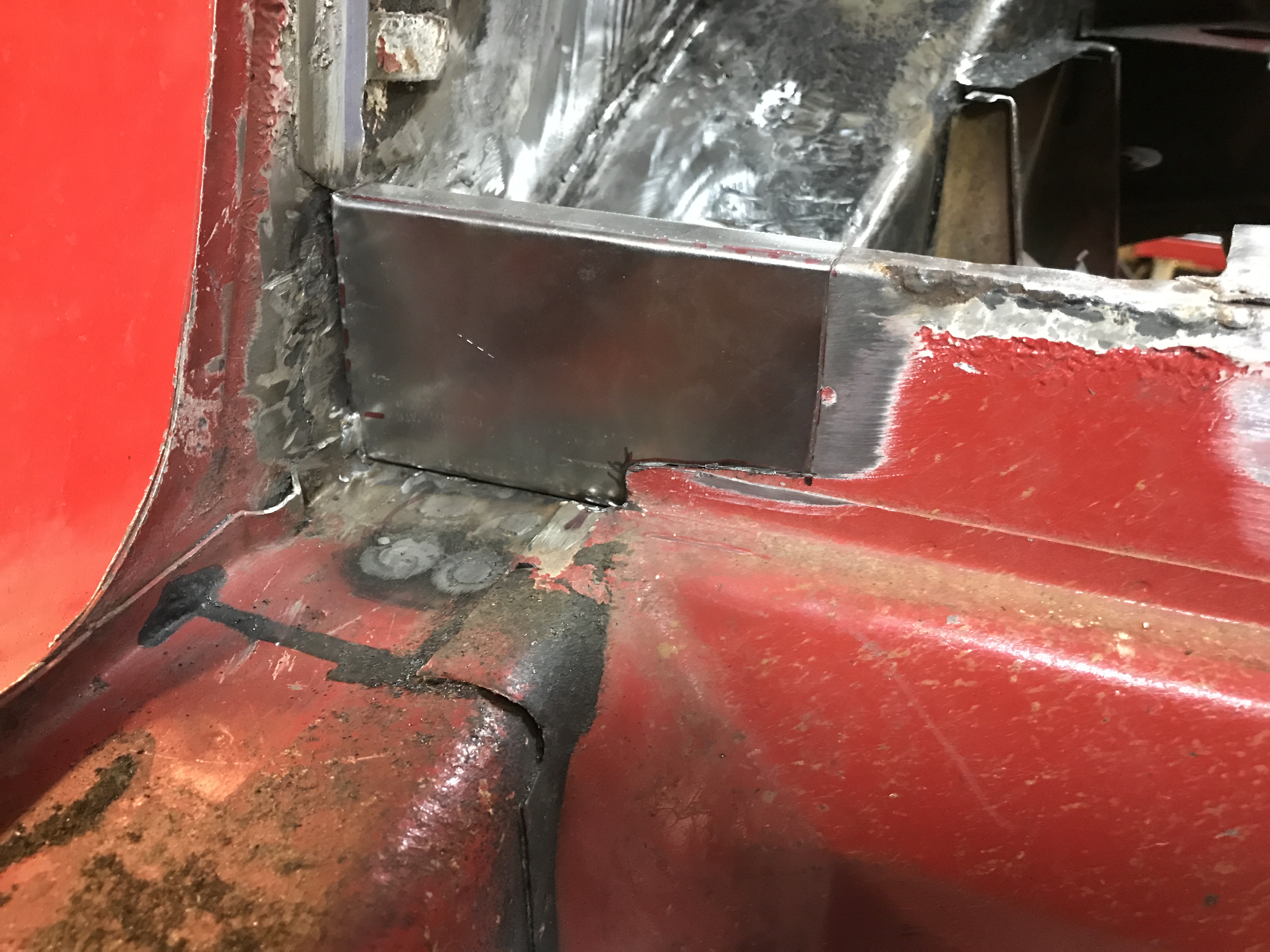

And welded in place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Feb 29 2020, 10:16 PM
Post #303


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

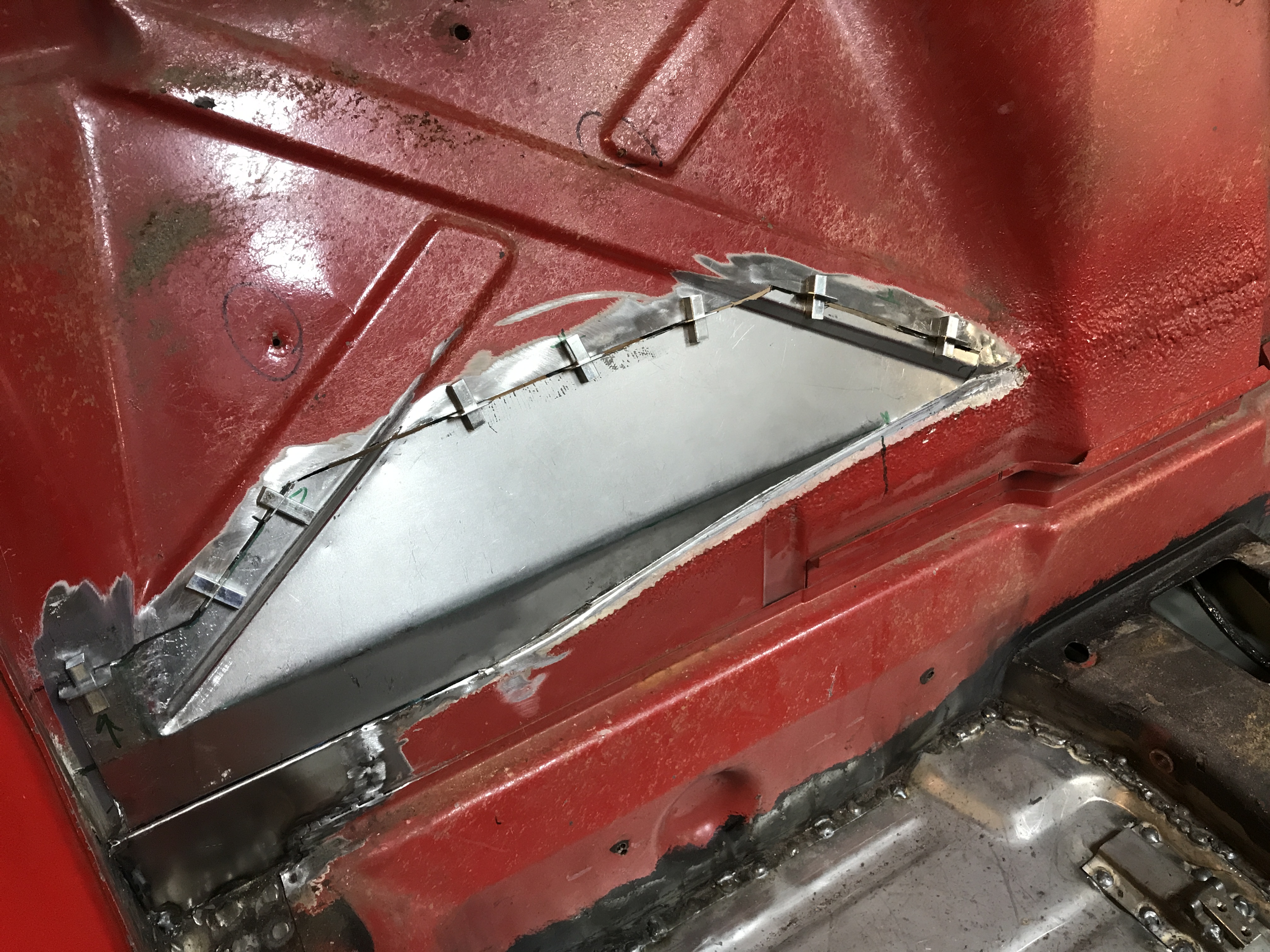

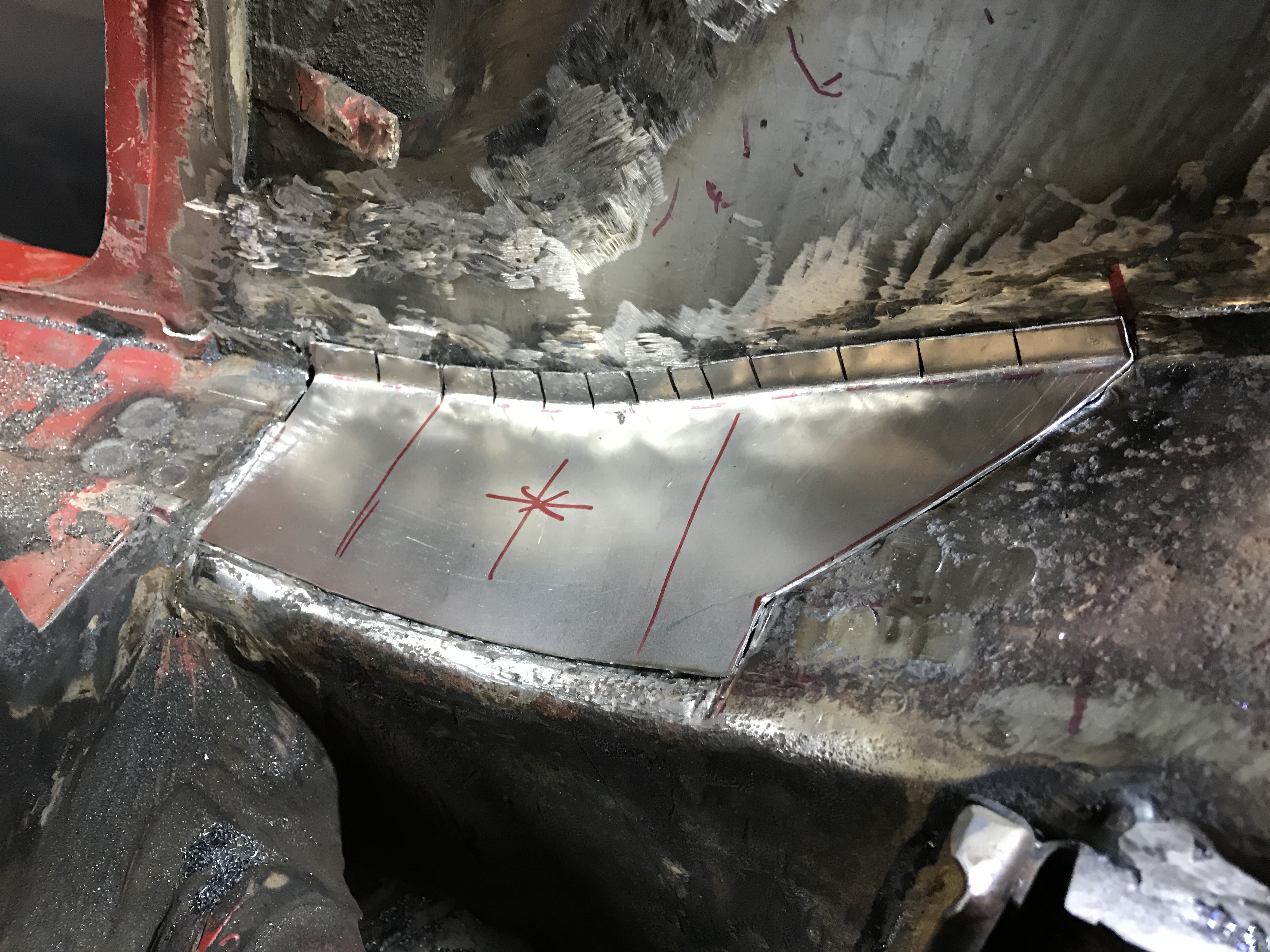

And here is the top layer patch, nearly fitted.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 1 2020, 09:36 PM
Post #304


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

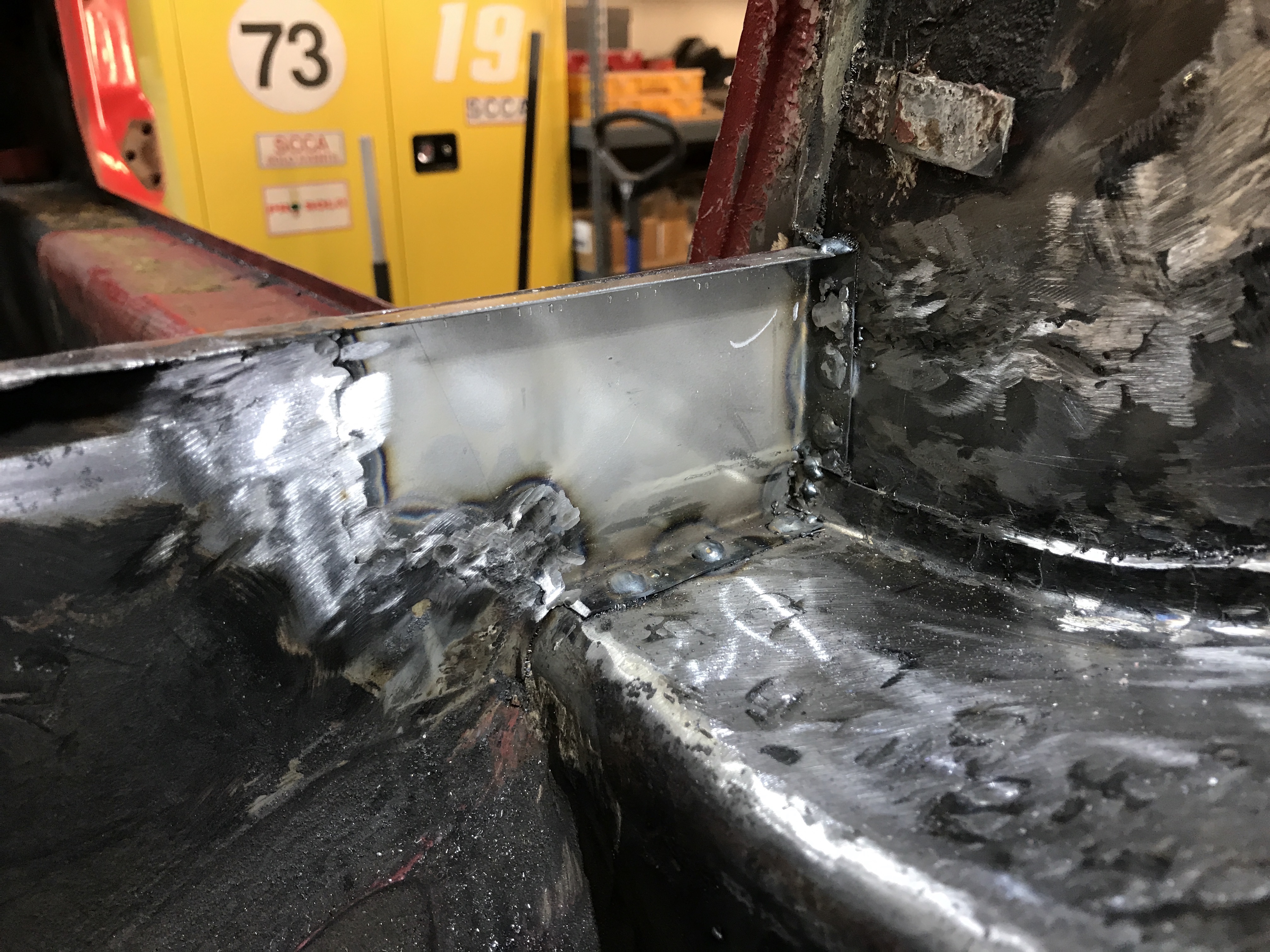

Started welding on the last layer, beginning with the flange against the inner fender wall. Nice to have the car on the rotisserie, so I could weld with the flange and fender wall horizontal.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 1 2020, 09:40 PM
Post #305


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I ground down the welds along the flange and they looked good, so went on the weld the main part of the patch. Mostly straight-forward, except along the seam against the remaining original pitted metal. That led to some more ugly welds.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 1 2020, 09:42 PM
Post #306


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I still have to grind this down and check the weld success, but I am happy to be close to done on closing up the hell hole, only 6 months after I cut a hole in the top to explore for internal rust.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 1 2020, 10:56 PM
Post #307


914 Guru
*****

Group: Members
Posts: 5,290
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
A bit of (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/smash.gif) (IMG:style_emoticons/default/welder.gif)

And now some (IMG:style_emoticons/default/piratenanner.gif) (IMG:style_emoticons/default/aktion035.gif) (IMG:style_emoticons/default/smilie_pokal.gif)

Super job! Isn't it a great feeling when it's "job done"? Keep up the great work and detailed documentation.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 2 2020, 09:55 PM
Post #308


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Thanks. Milestones are good for my mental health, as are my documentations and posts.

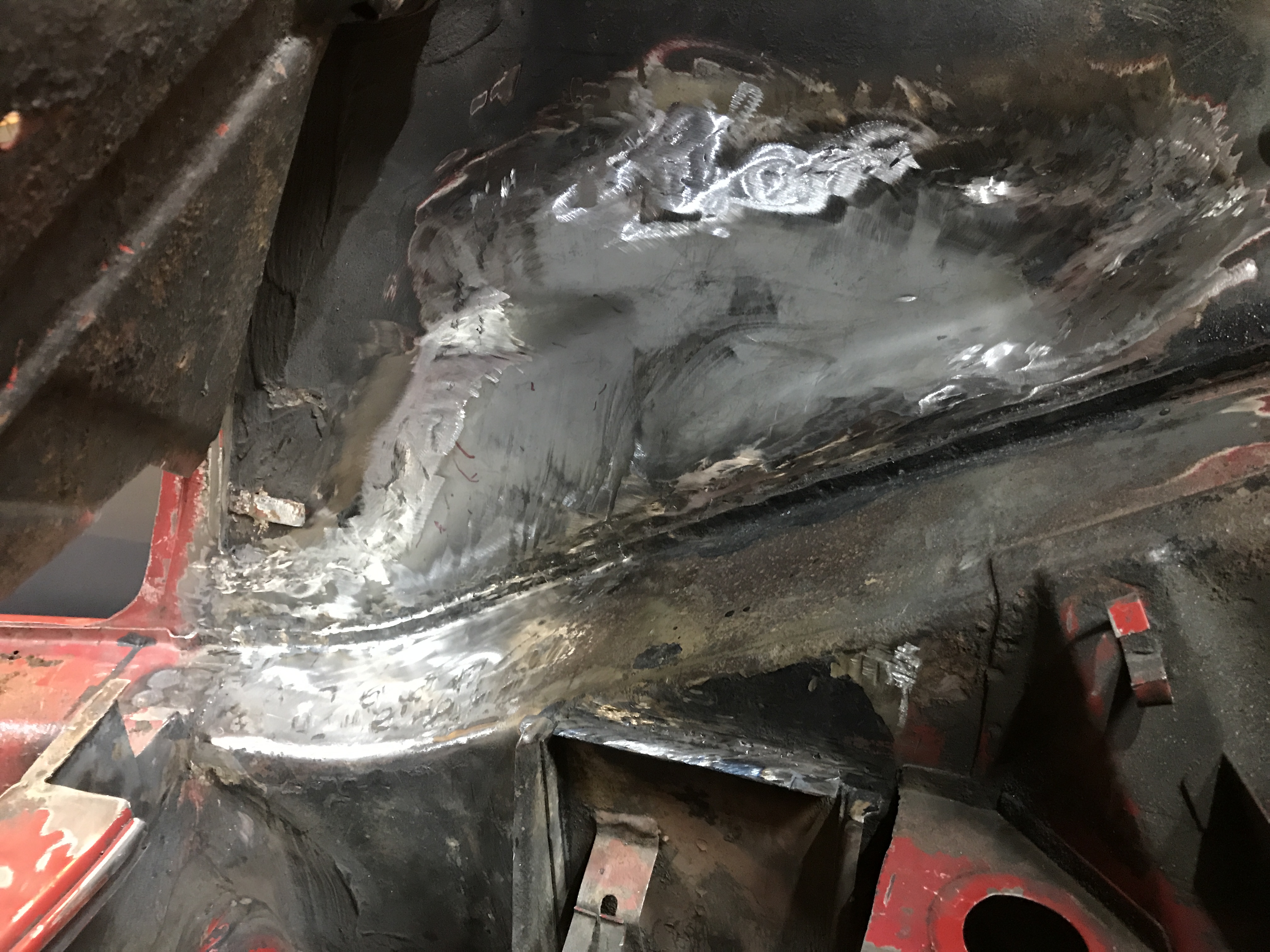

Anyway, here is the finished (for now) product. A bit lumpy, but it should be functional and look OK, especially after prep and paint.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 2 2020, 09:56 PM
Post #309


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

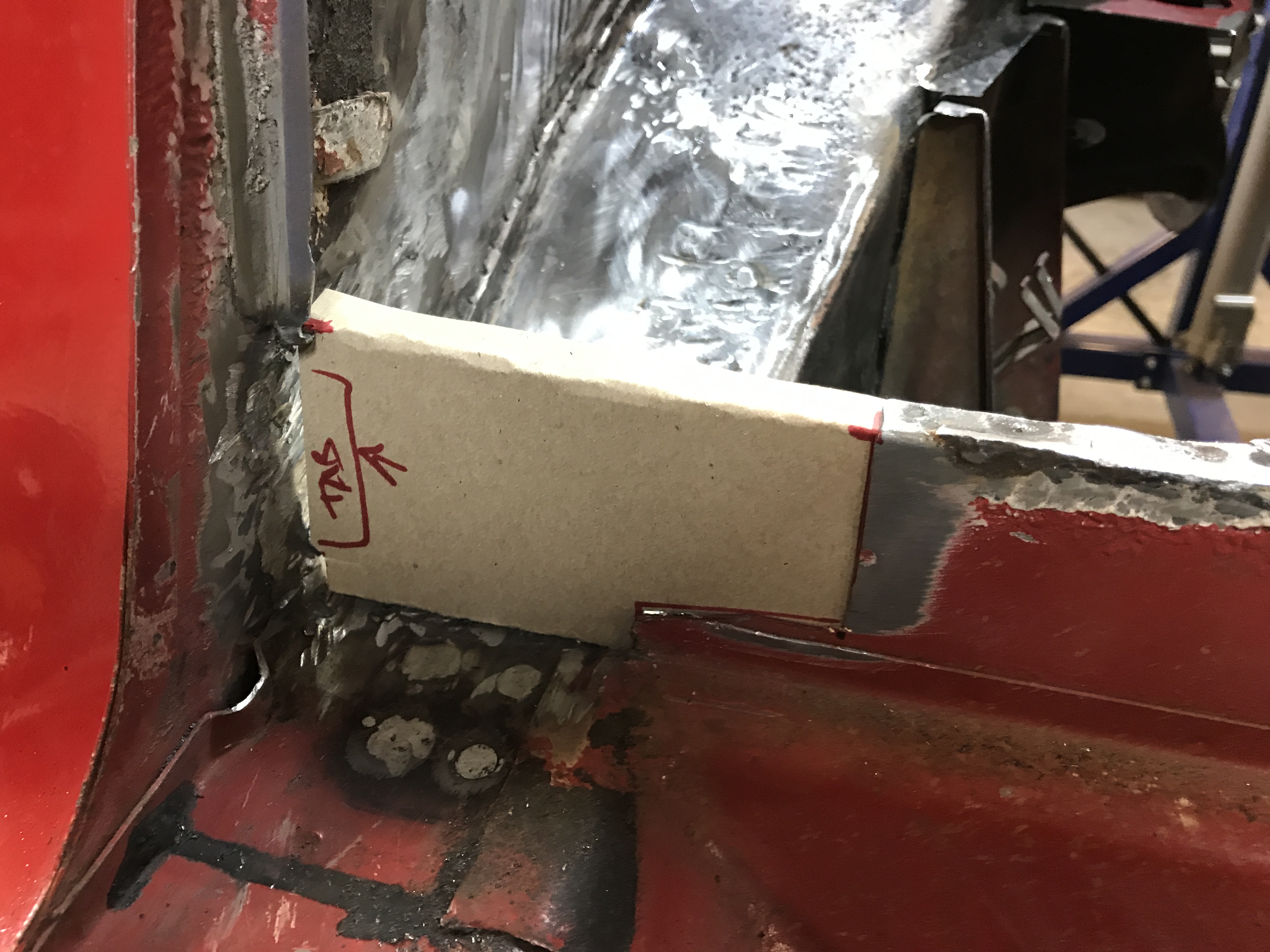

On to the firewall. Here's a cardboard template fit for the lower patch.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 4 2020, 08:44 PM
Post #310


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

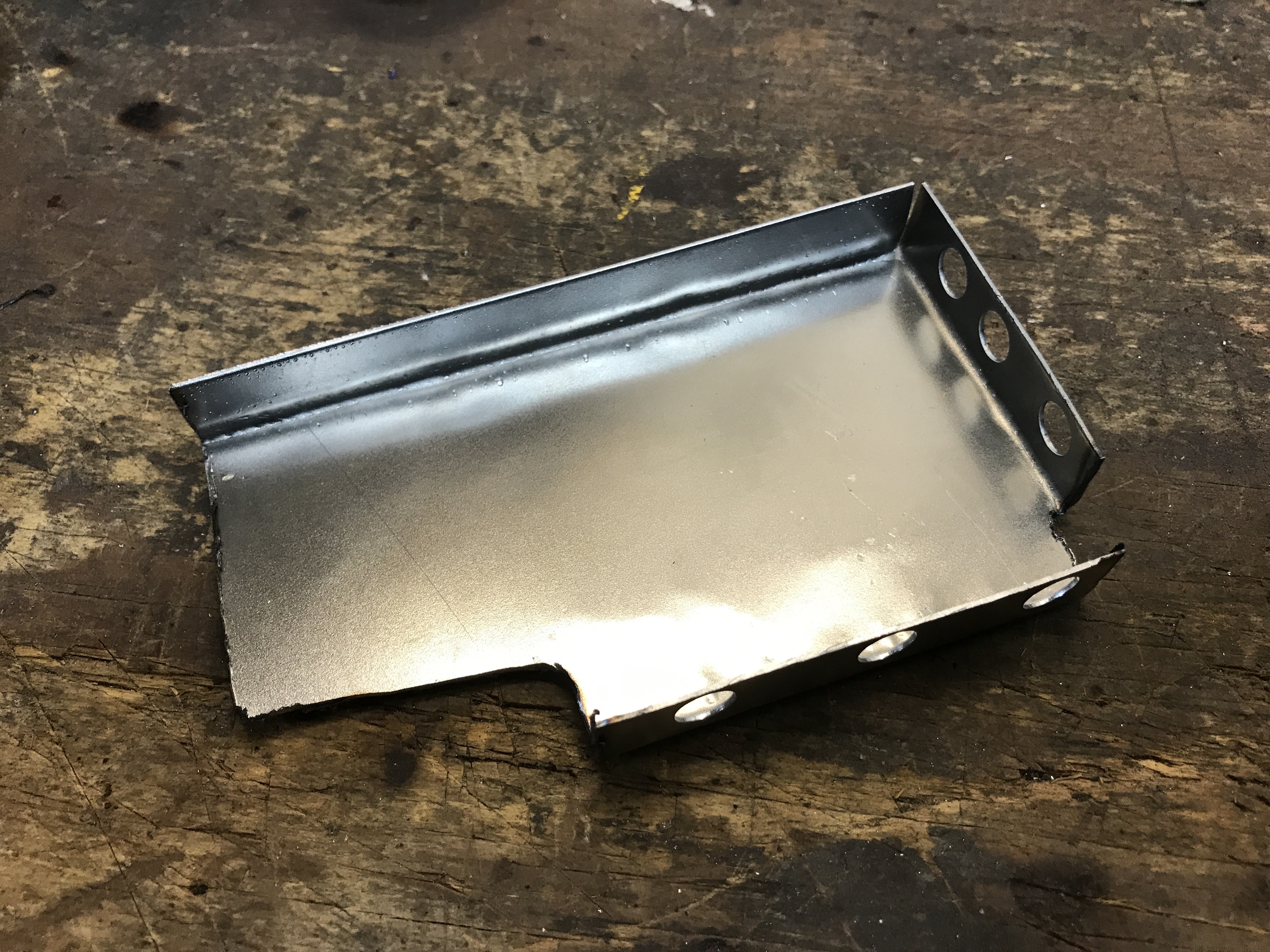

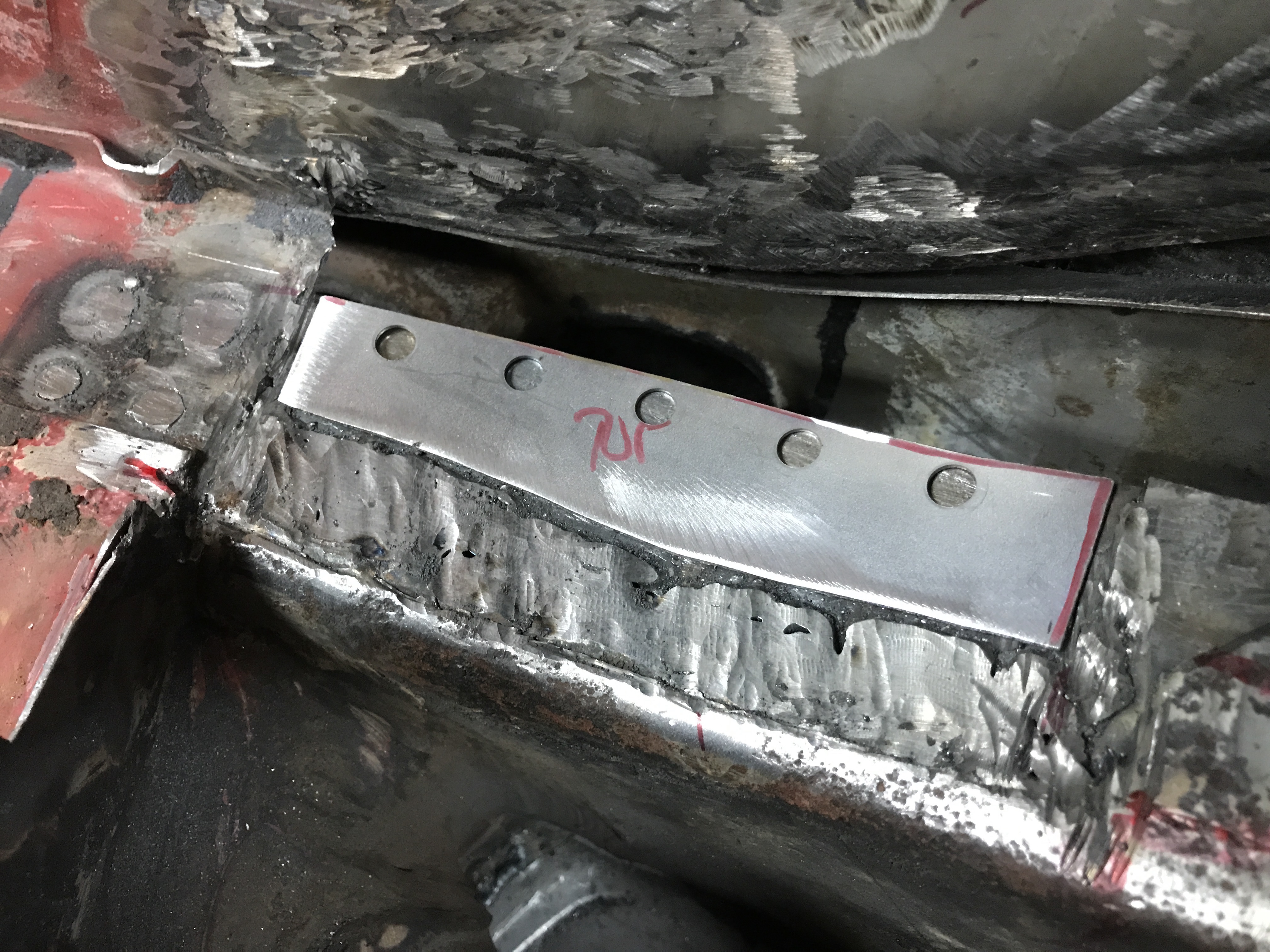

Small patch cut and formed, with holes in the flanges for plug welds.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 4 2020, 08:45 PM
Post #311


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

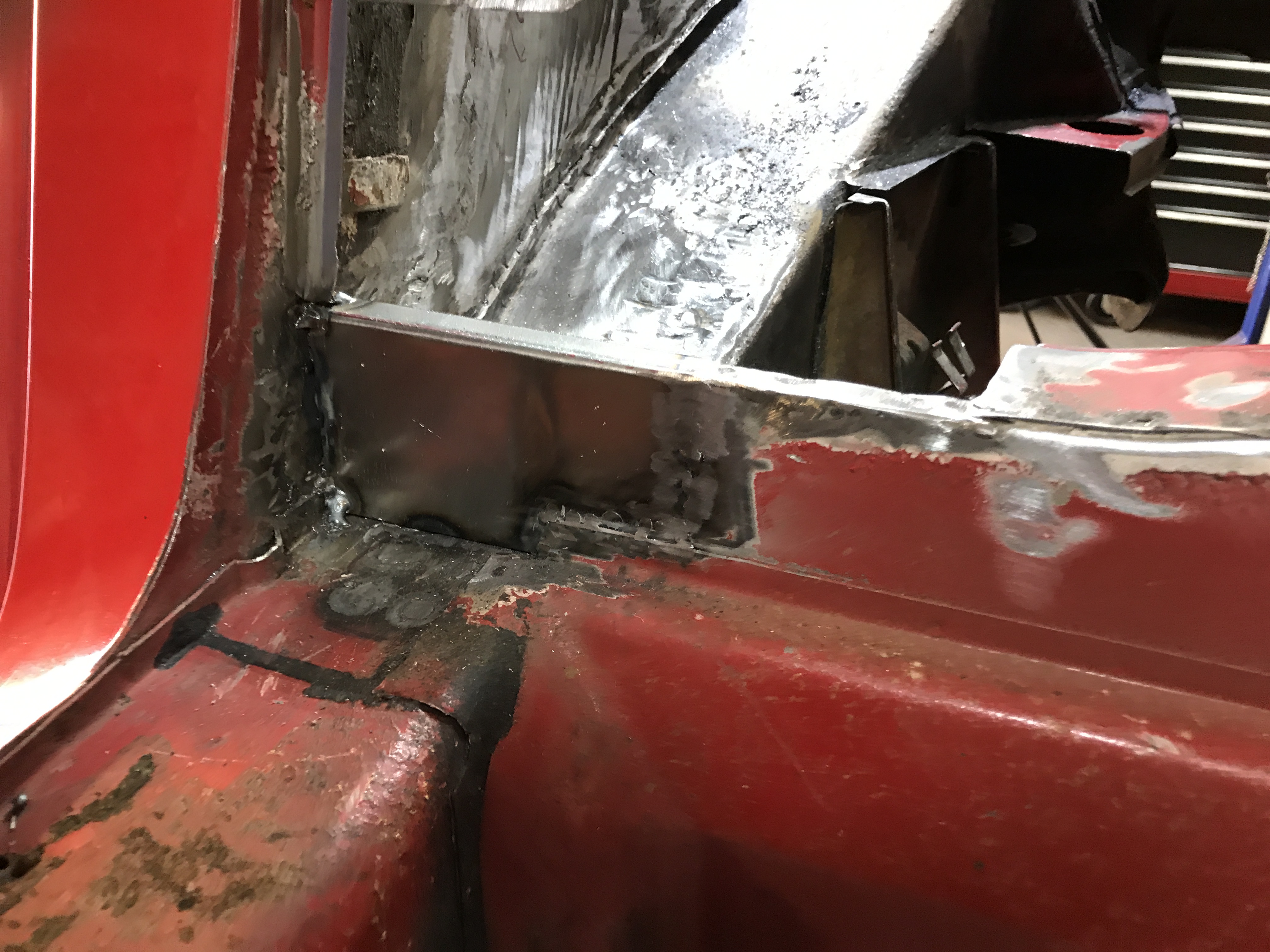

Final fit.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 4 2020, 08:46 PM
Post #312


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

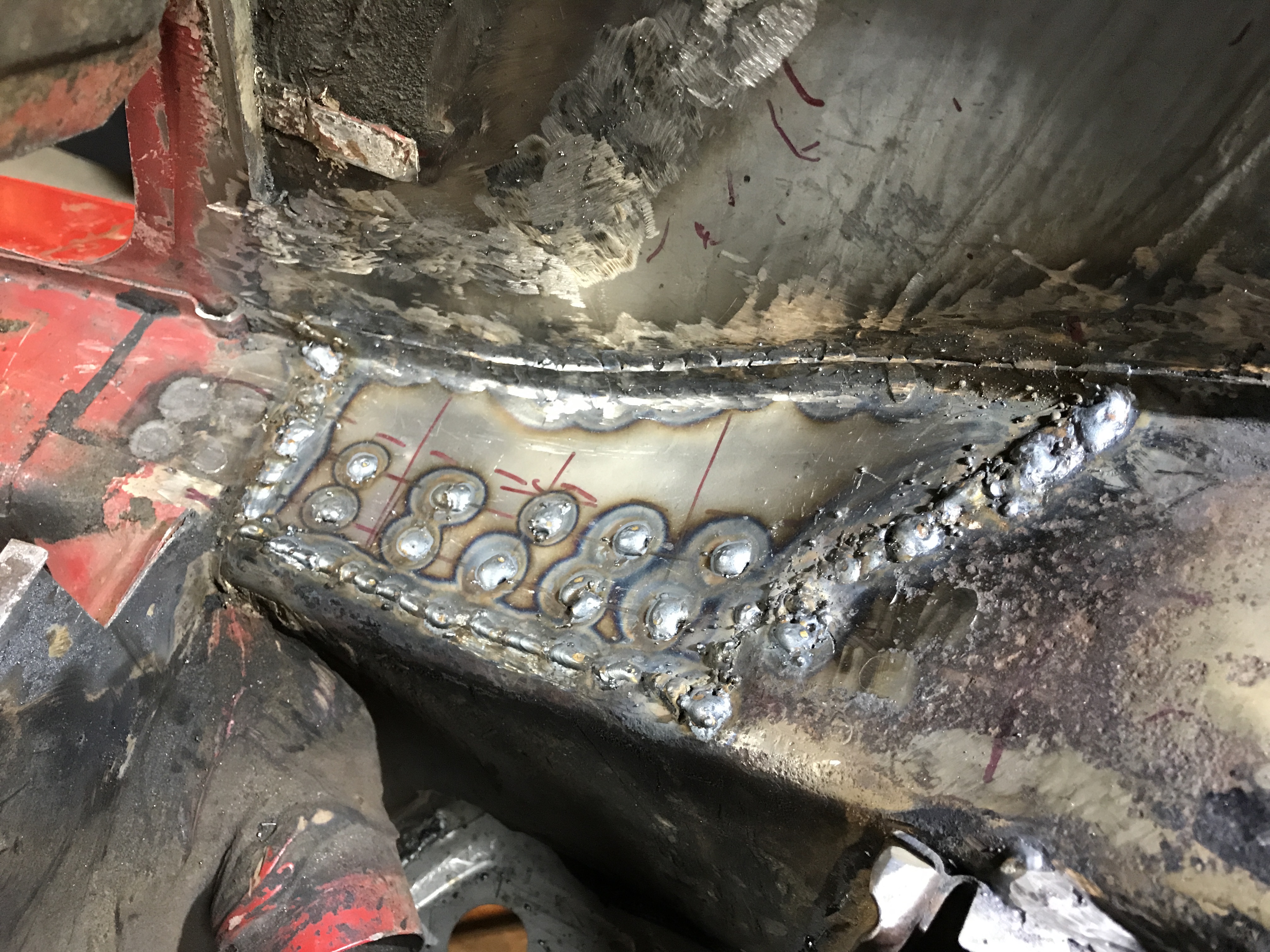

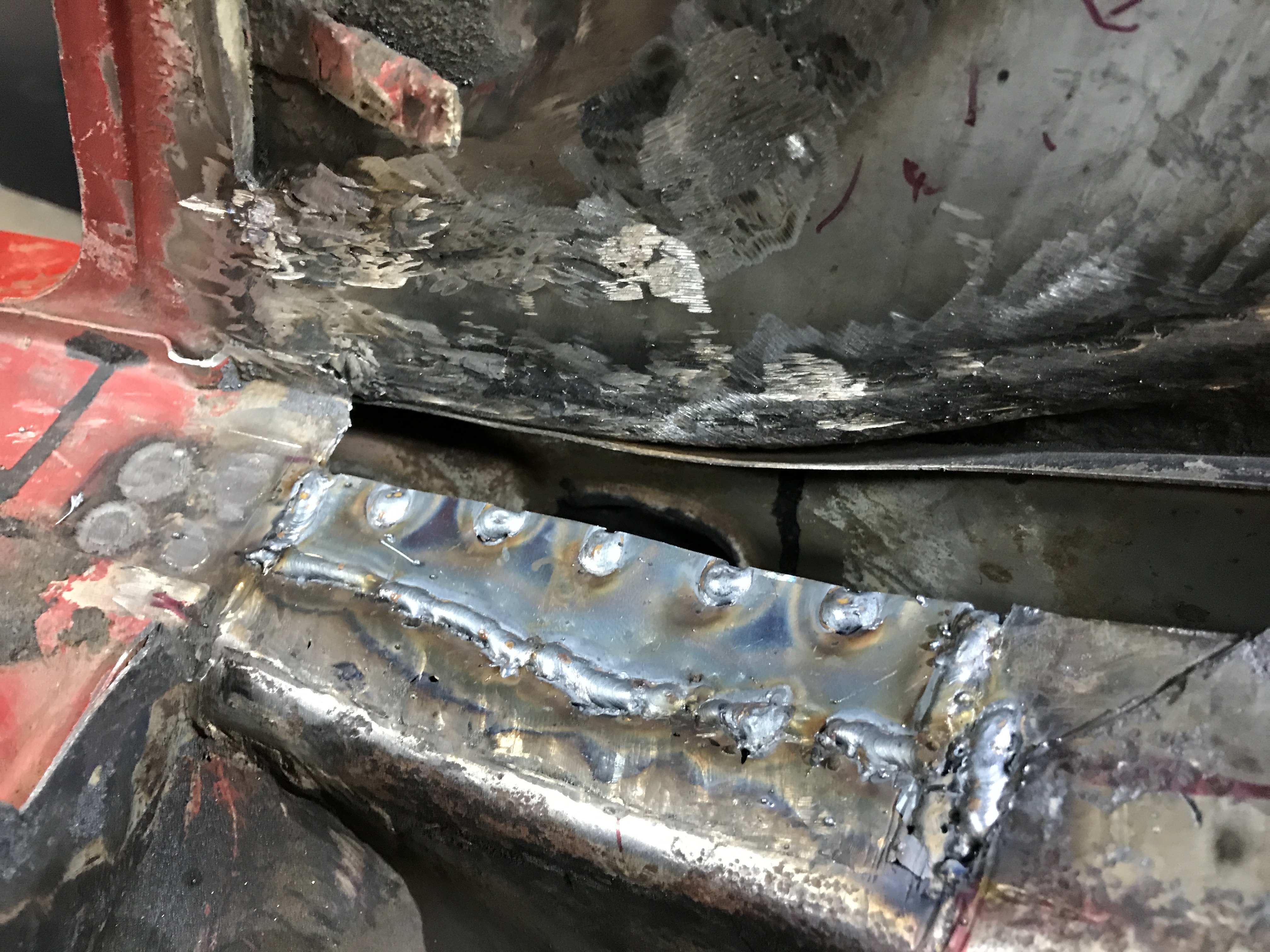

After welding and grinding. Now time for the bigger hole...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 4 2020, 08:47 PM
Post #313


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

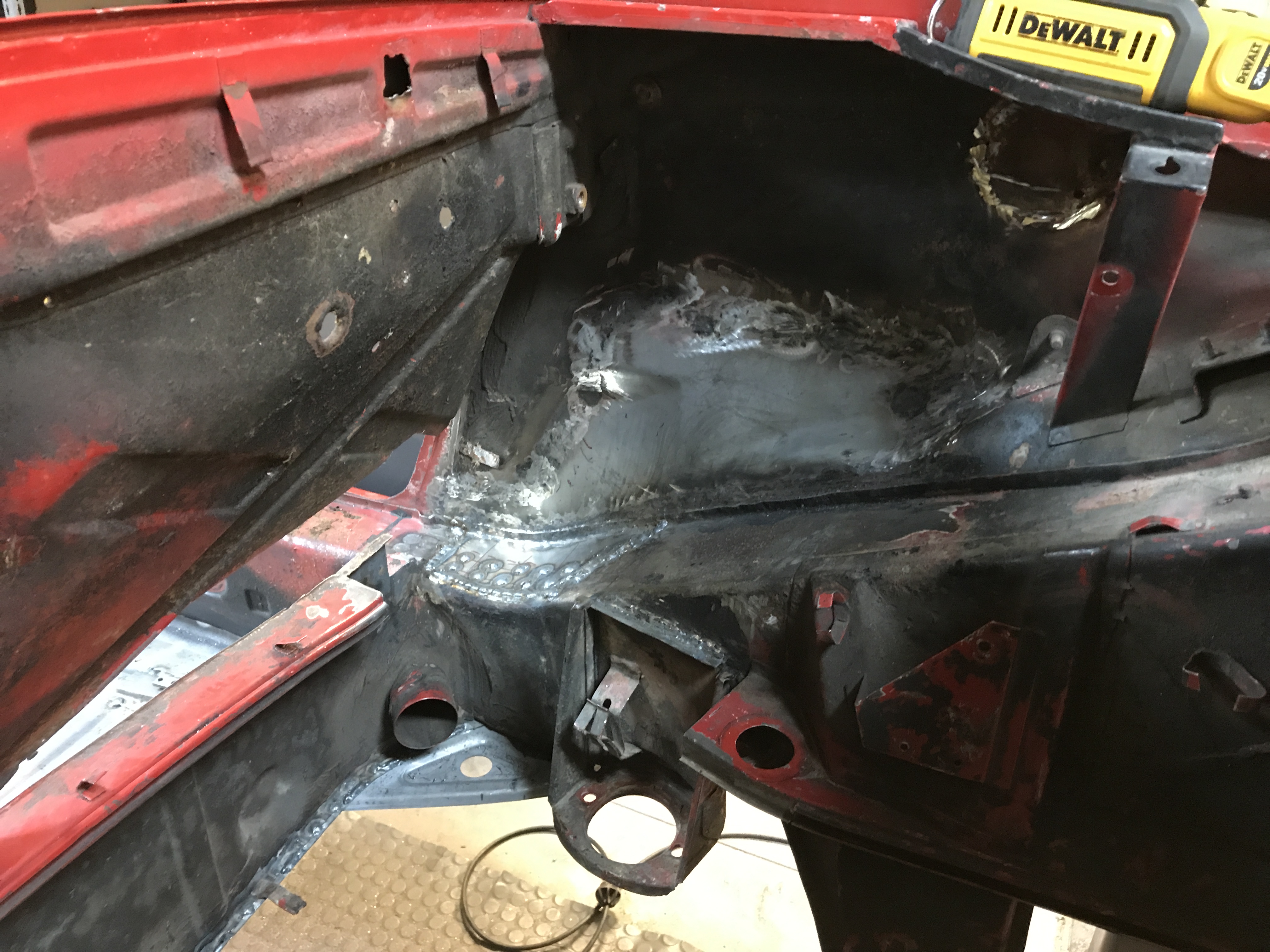

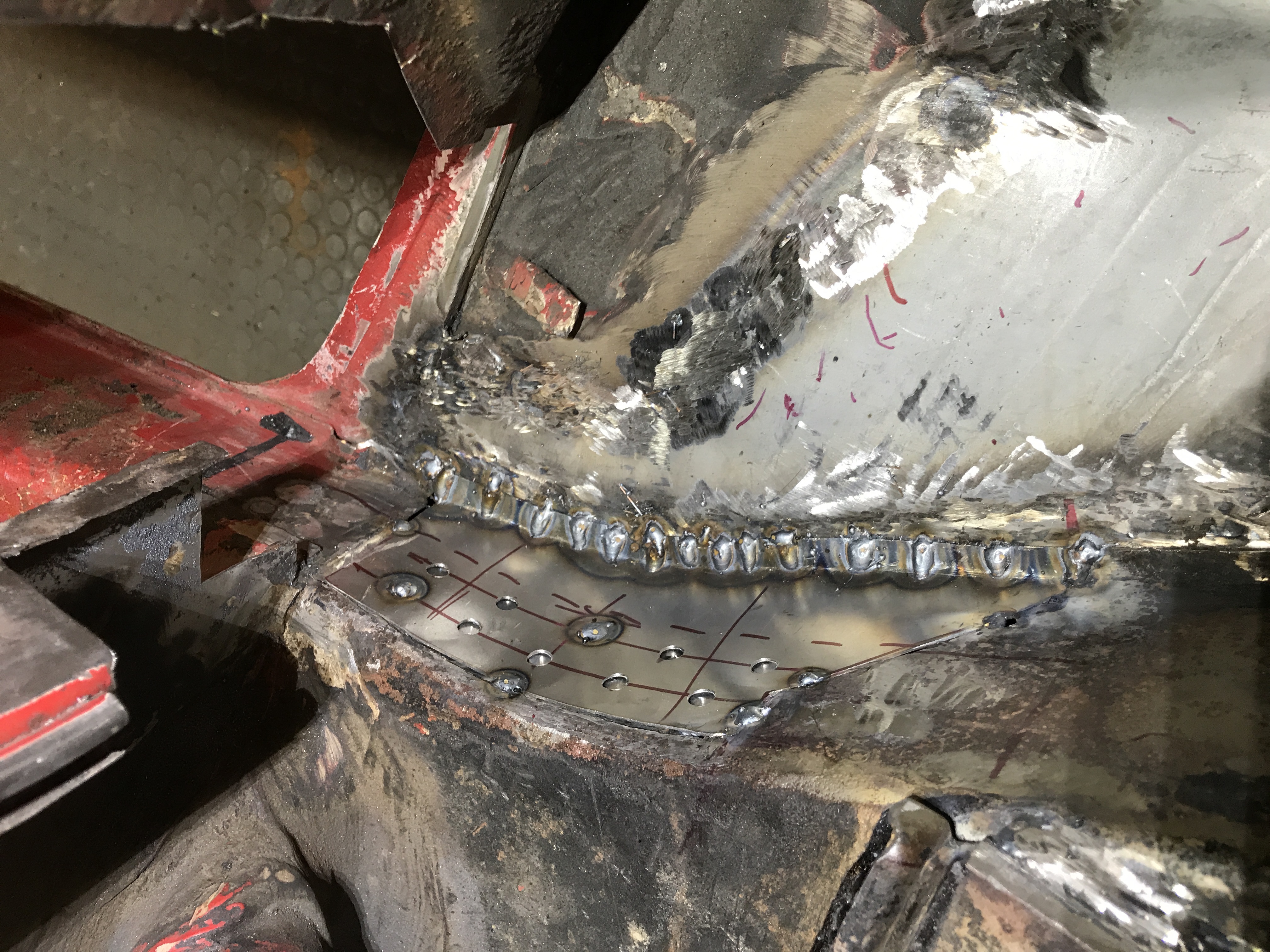

And from the engine side.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 5 2020, 10:02 PM
Post #314


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Spent about an hour today working on forming the upper firewall patch, including the diagonal raised ribs. Still needs more work in the complex corner on the right side.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
FourBlades
post Mar 6 2020, 08:13 AM
Post #315


From Wreck to Rockin
****

Group: Members
Posts: 2,054
Joined: 3-December 07
From: Brevard, FL
Member No.: 8,414
Region Association: South East States

Looking good!

You are making good progress.

John
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
9146C
post Mar 6 2020, 09:20 AM
Post #316


Member
**

Group: Members
Posts: 228
Joined: 14-September 19
From: US
Member No.: 23,460
Region Association: None
Very impressed with your fabrication work!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 6 2020, 09:26 AM
Post #317


914 Guru
*****

Group: Members
Posts: 5,290
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Fabricationlous! (IMG:style_emoticons/default/smash.gif) Nice looking patch piece. You're making great progress. (IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 6 2020, 06:03 PM
Post #318


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Thank, guys. Just a bit of time to play body shop today. The corner fold looks better, and I am ready to trim this patch.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 7 2020, 09:44 PM
Post #319


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Spent a couple of hours fitting the new patch. After the initial cut, I had it in and out about a dozen times--definitely trying to attain the Zen level of patience. Here it is near the end of fitting trials.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 7 2020, 09:45 PM
Post #320


914 Guru
*****

Group: Members
Posts: 7,756
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
And after tack-welding. Time for more patience.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
