I finished deck height and other measurements. Taking my time with many repeats, I got deck heights of .036 to 0.38 (and a few times .040). This sounds like a minimum.

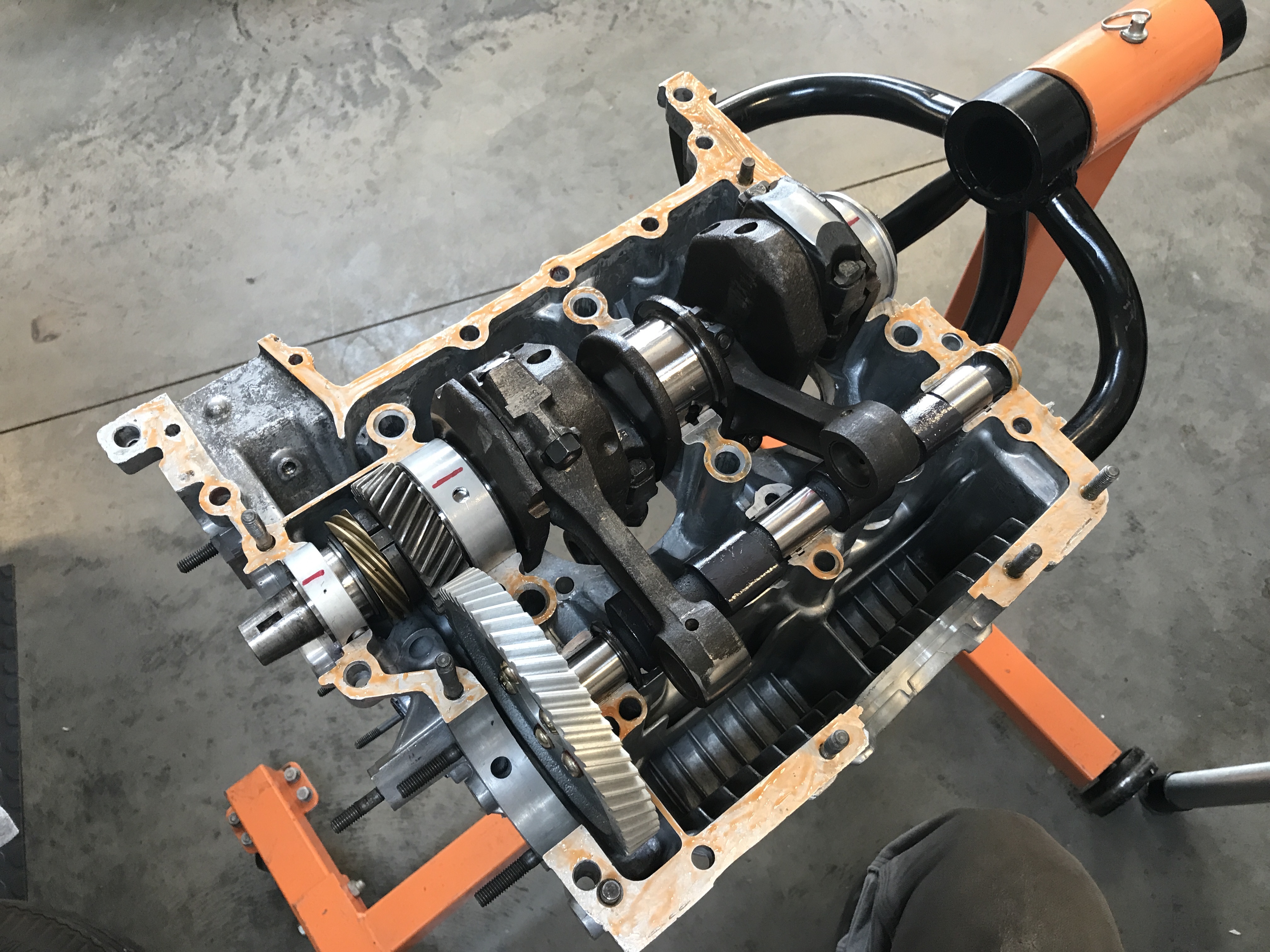

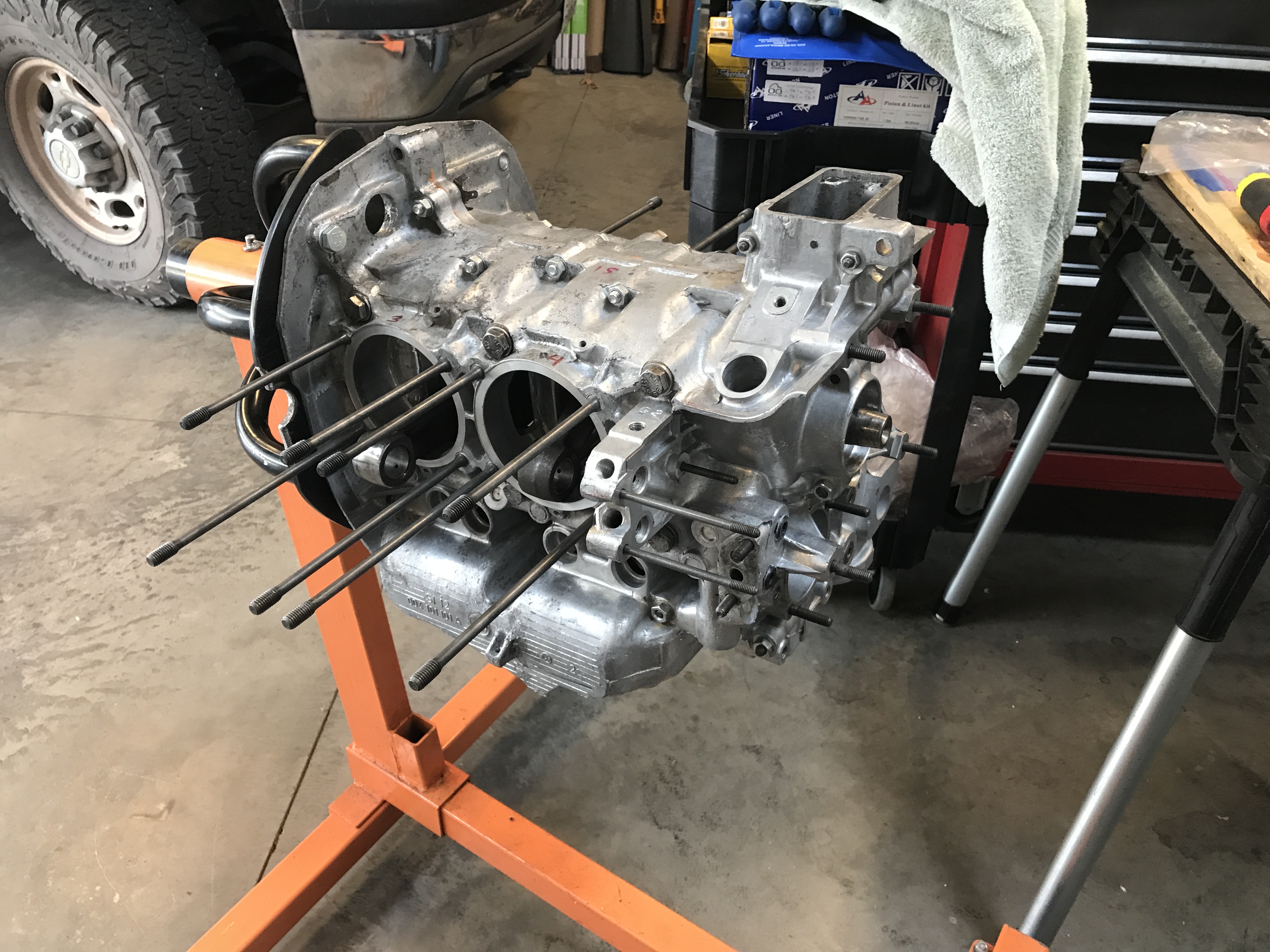

Once done measuring, I took off the cylinders and opened the case again, so I can build the engine for real. Attached thumbnail(s) |
djway |
Aug 8 2021, 10:09 PM
Post
#3522
|
Senior Member Group: Members Posts: 787 Joined: 16-October 15 From: Riverside Member No.: 19,266 Region Association: Southern California |
I like that red sealant you use. I have been using it to seal up some leaks and it has worked great. (IMG:style_emoticons/default/smile.gif)
|
bkrantz |
Aug 9 2021, 06:39 PM
Post
#3523
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Engine build 2 continued.

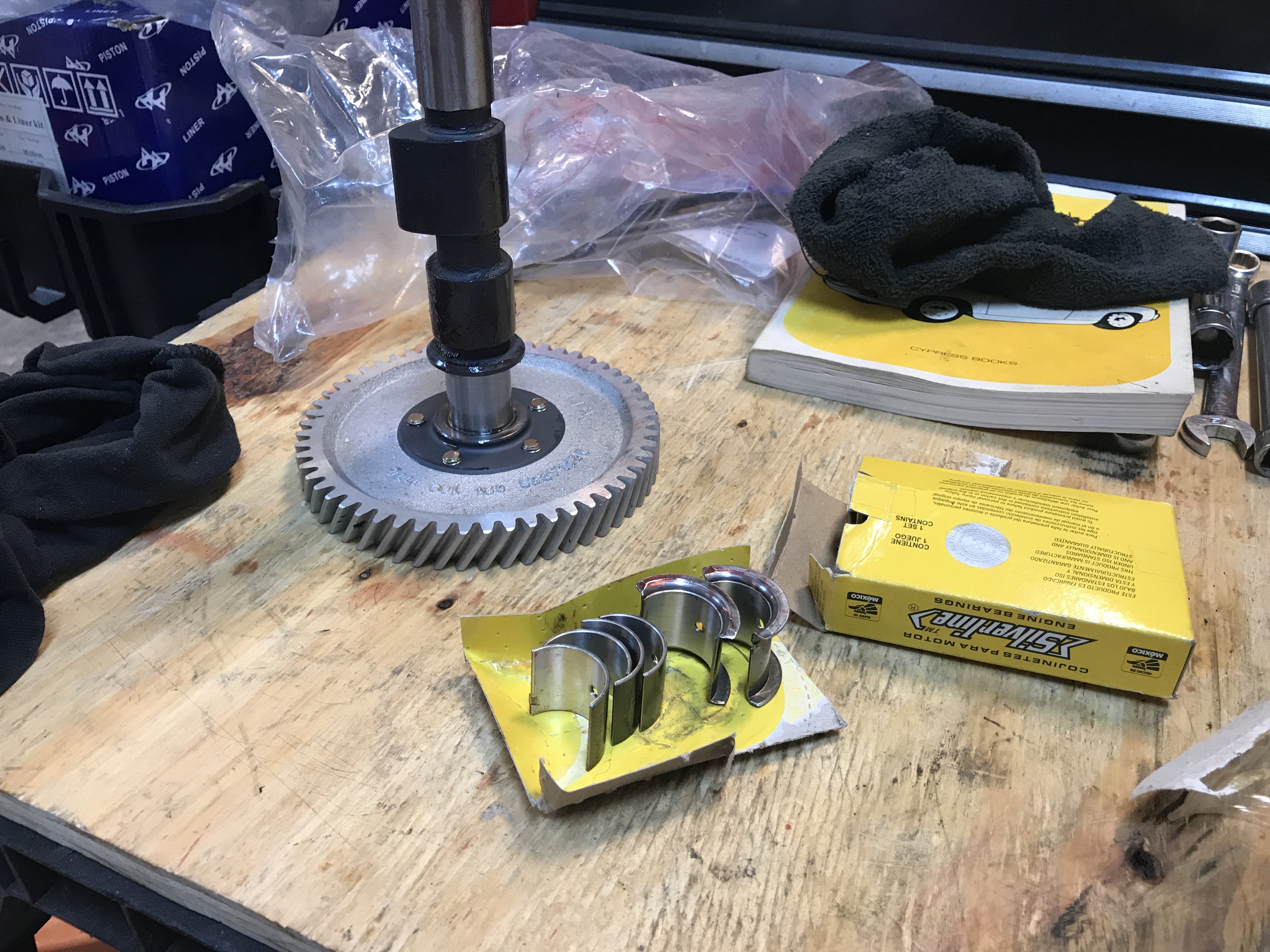

Here's the cam shaft (Web Cams #86) and bearings, including the second thrust bearing. Attached thumbnail(s) |
bkrantz |
Aug 9 2021, 06:41 PM
Post
#3524
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

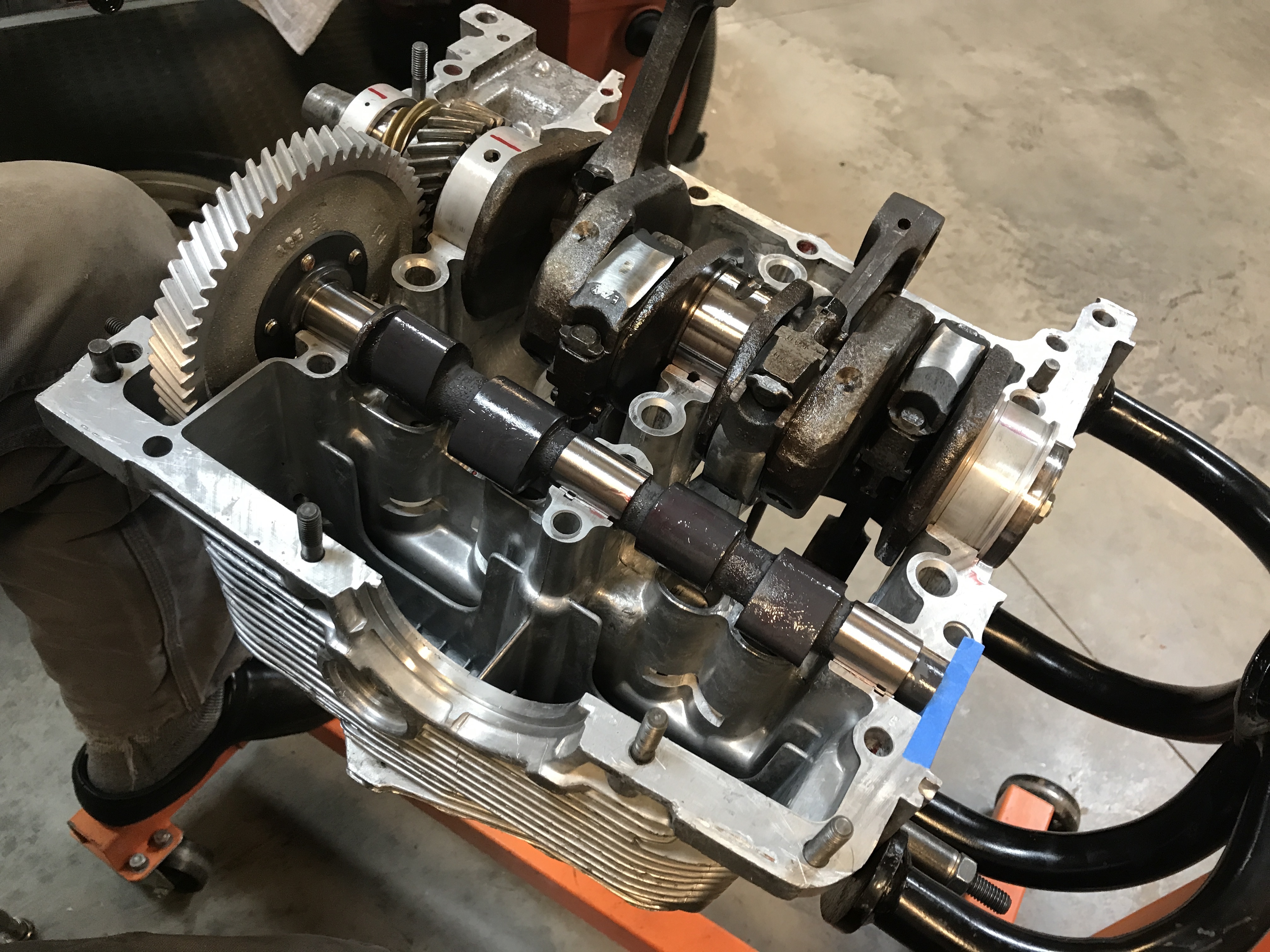

Cam bearings and shaft installed in the right half. The blue tape is a reminder to install the cam plug when I put the case halves together.
Attached thumbnail(s) |
bkrantz |
Aug 9 2021, 06:42 PM
Post
#3525
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

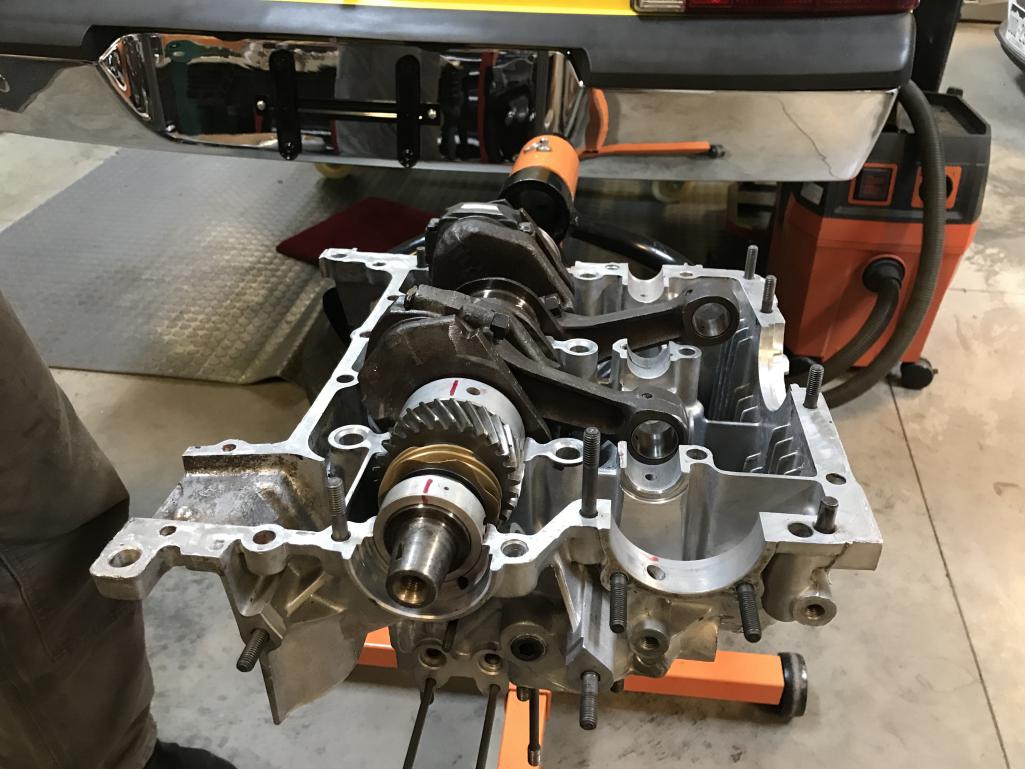

Getting the left half ready. Here are the cam bearings installed.
Attached thumbnail(s) |
bkrantz |
Aug 9 2021, 06:43 PM
Post
#3526
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

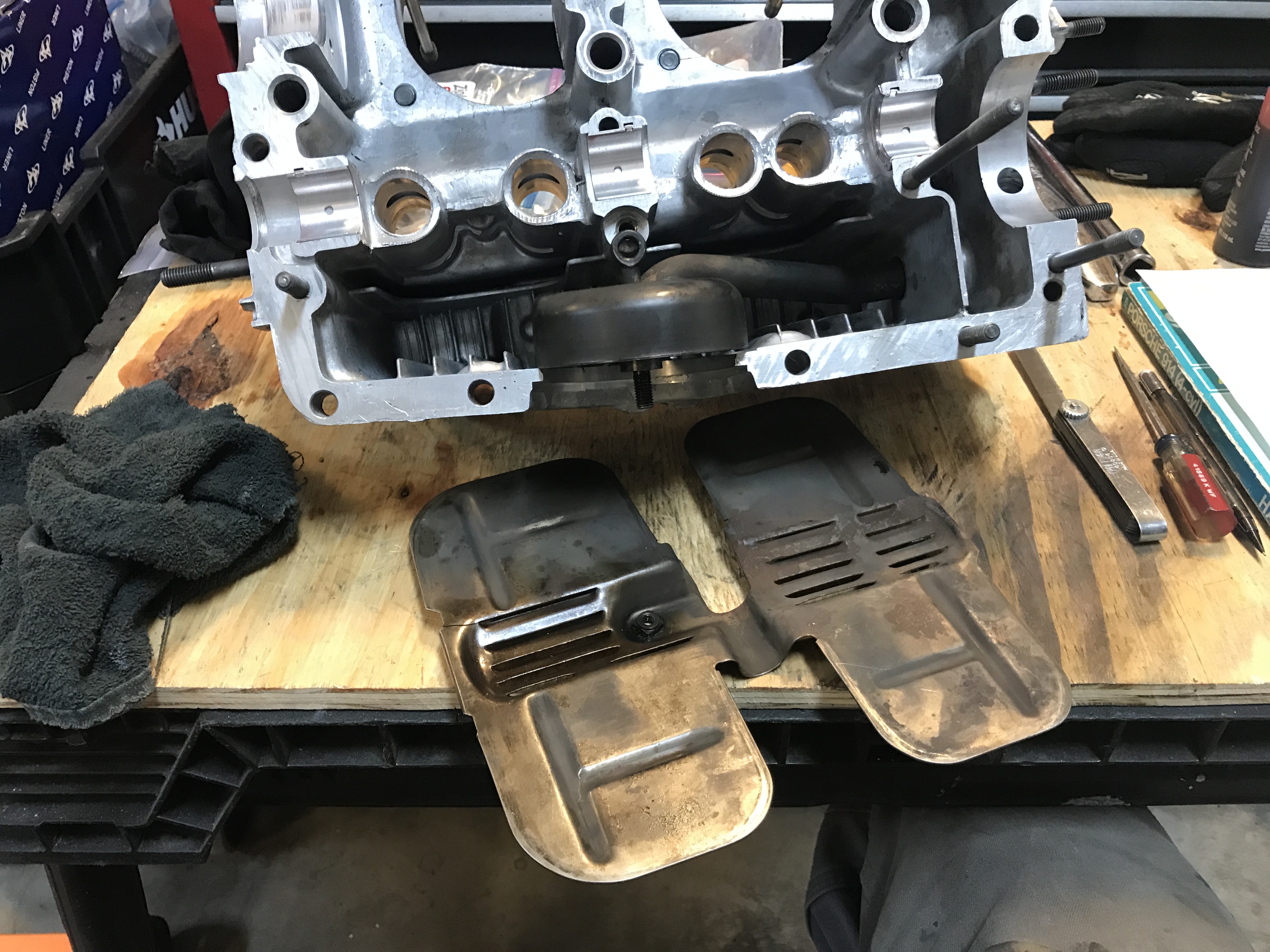

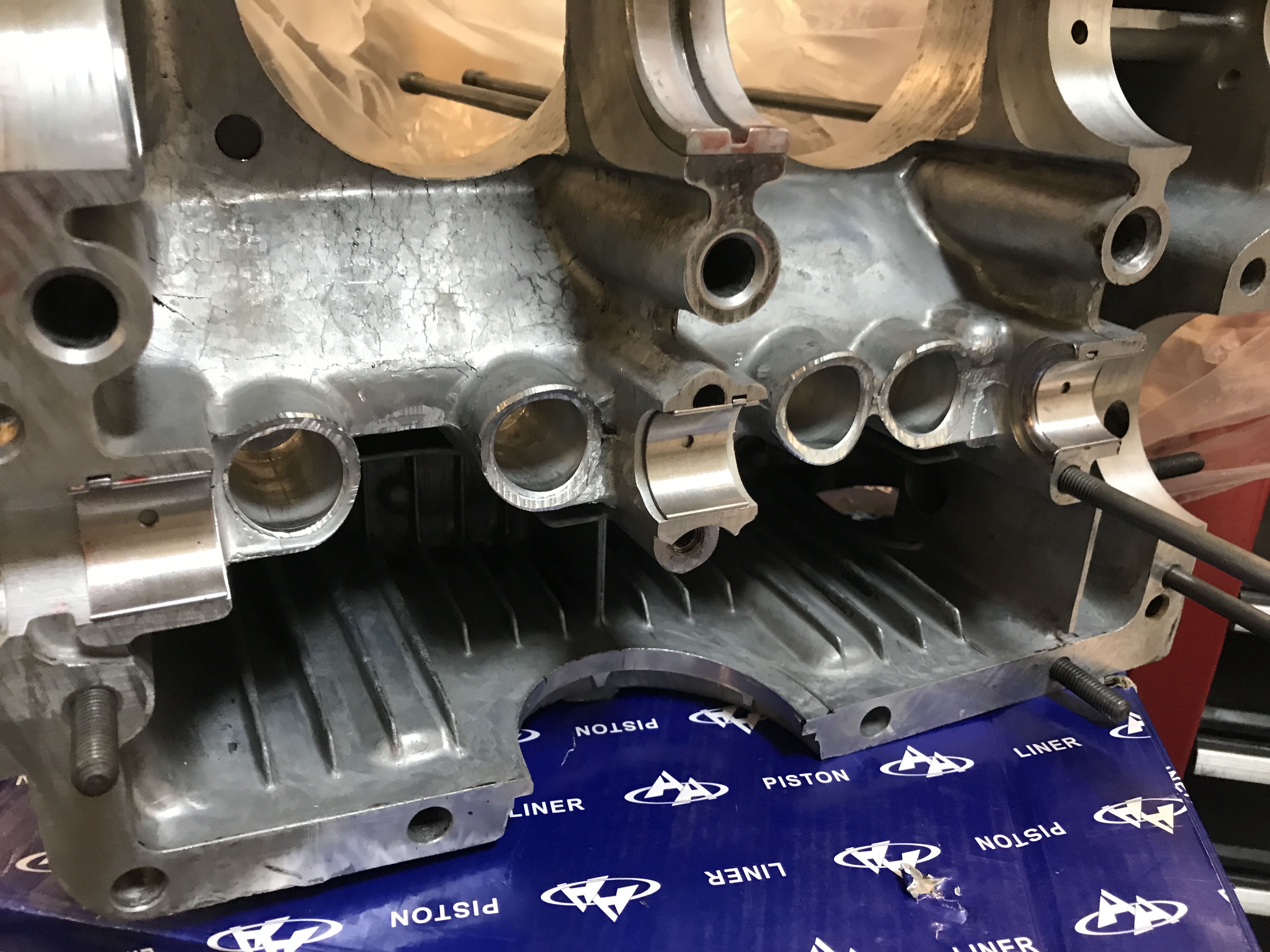

And the oil pick-up.
Attached thumbnail(s) |
bkrantz |
Aug 9 2021, 06:43 PM
Post
#3527
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

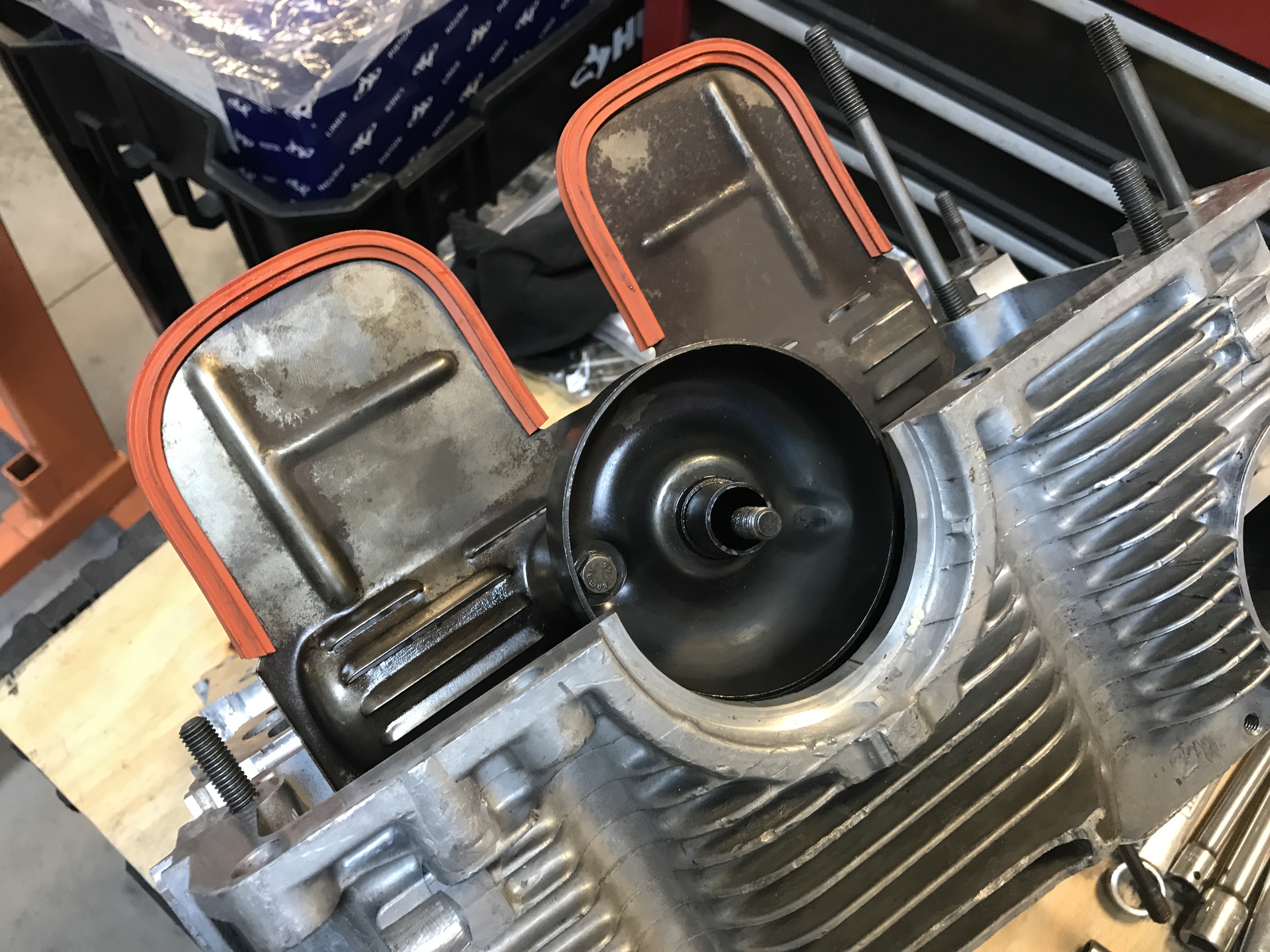

And the baffle plate with edge seals.
Attached thumbnail(s) |
bkrantz |
Aug 9 2021, 06:45 PM
Post
#3528
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

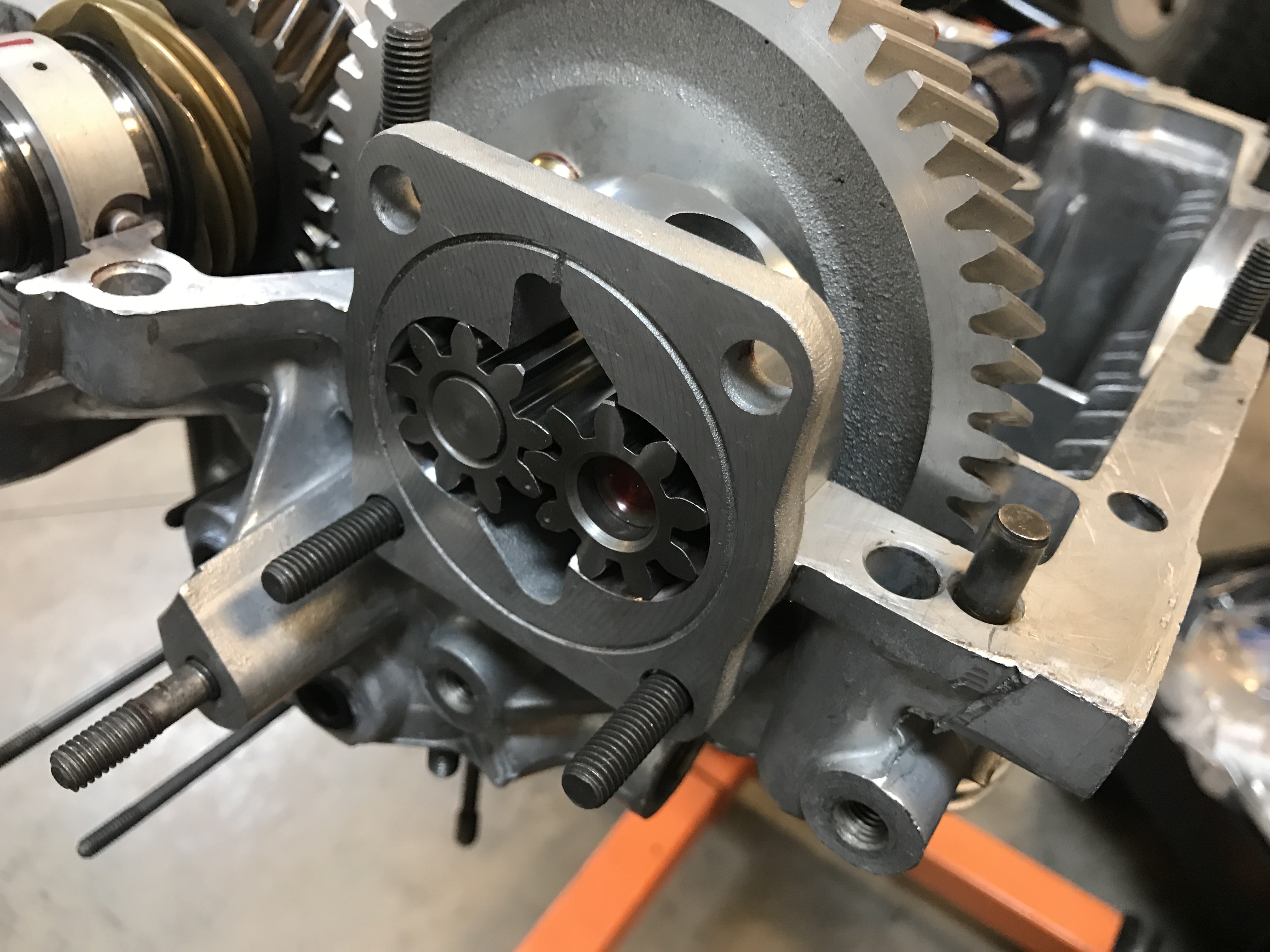

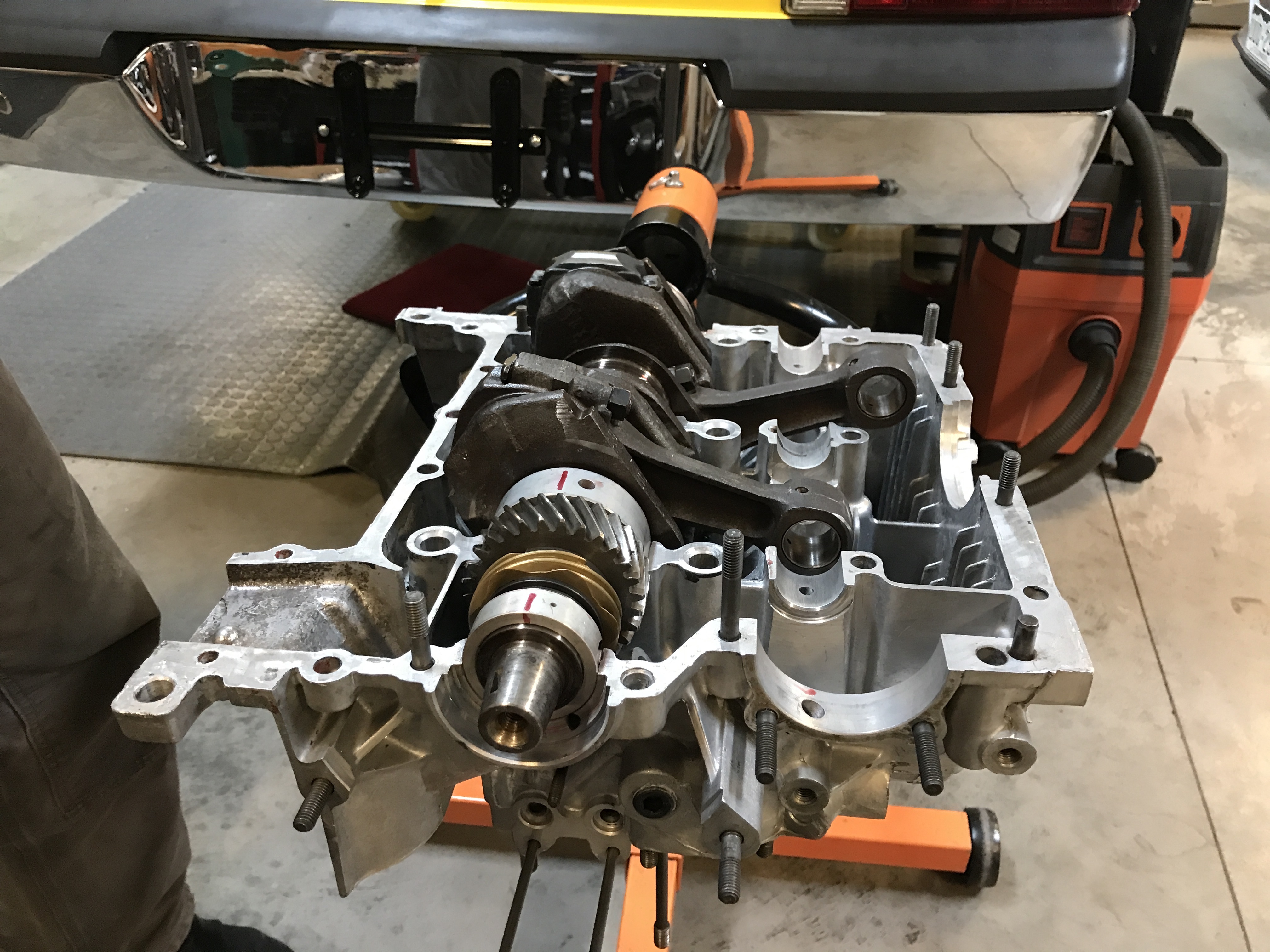

I took the opportunity to check the oil pump clearance again.
Attached thumbnail(s) |
bkrantz |
Aug 9 2021, 06:46 PM
Post
#3529
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

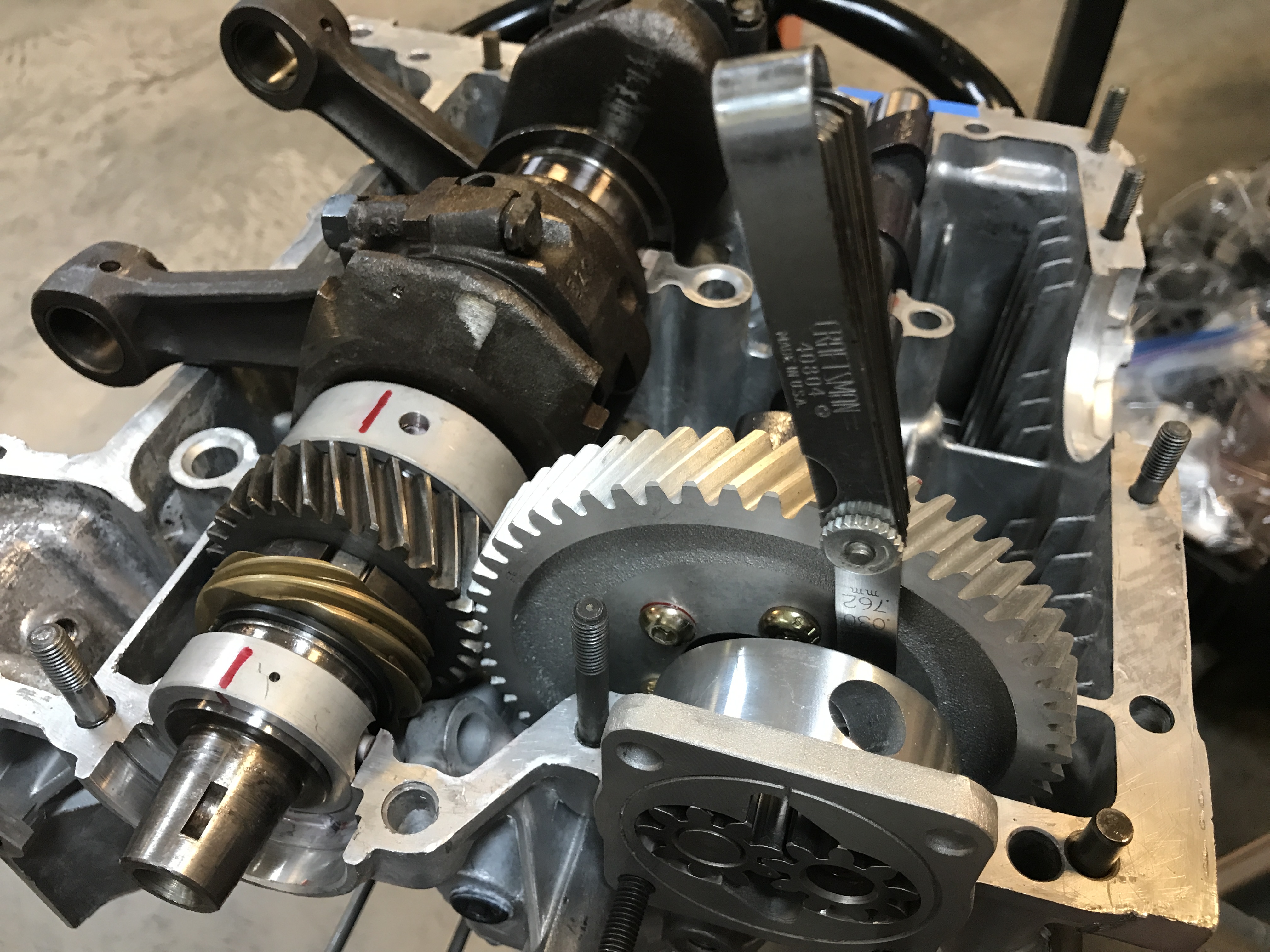

I got at least .030" between the back of the pump case and the cam gear bolts, without a gasket.
Attached thumbnail(s) |
bkrantz |
Aug 11 2021, 06:45 PM
Post
#3530
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

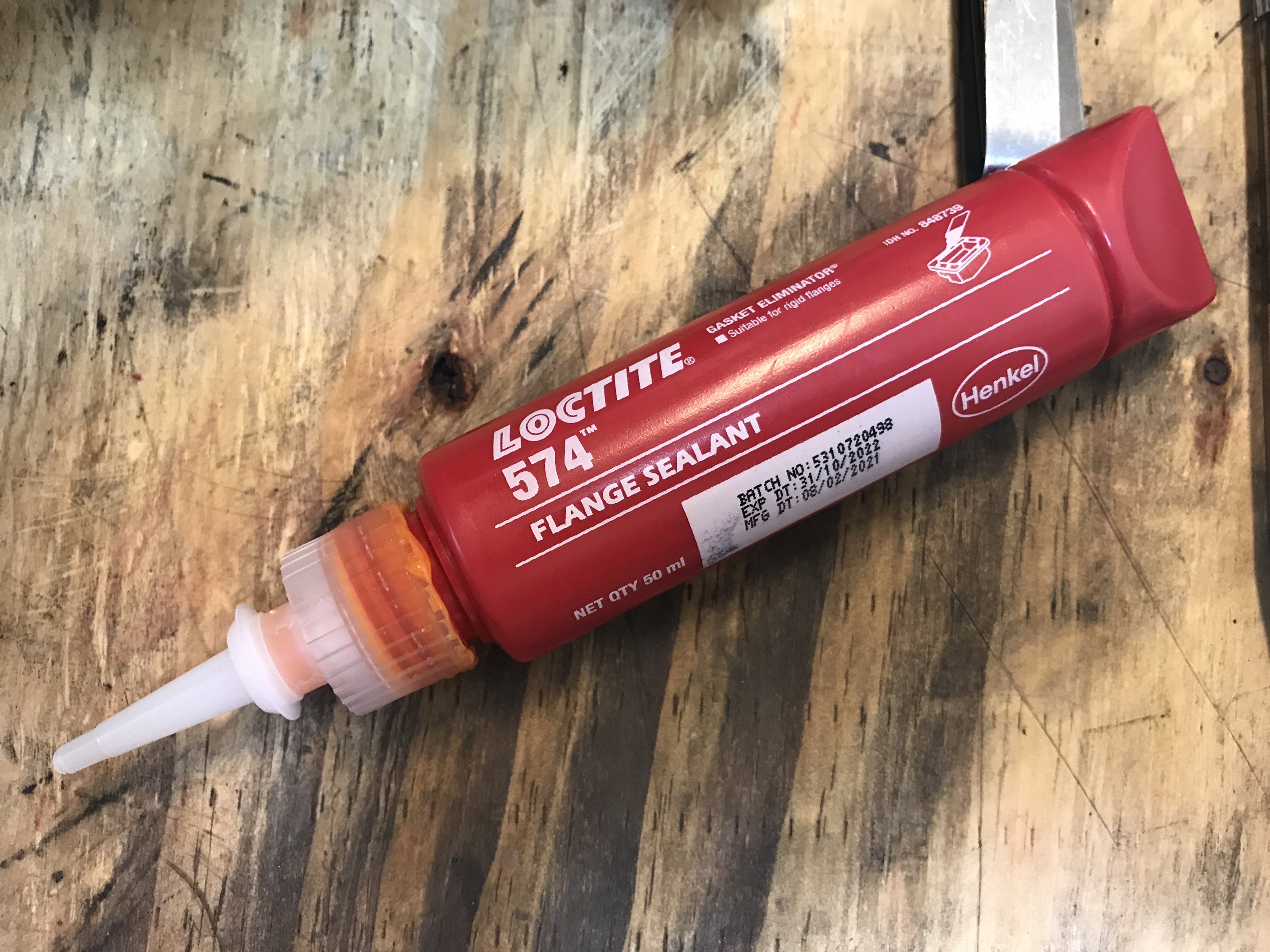

Time to put the case together for the 3rd (4th?) time. And this time I have switched to 574 sealant.
Attached thumbnail(s) |
bkrantz |
Aug 11 2021, 06:47 PM
Post
#3531
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Right case half with a thin smear of sealant, ready for the through-bolts (also with a bit of sealant this time).
Attached thumbnail(s) |
bkrantz |
Aug 11 2021, 06:49 PM
Post
#3532
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
All bolted together and torqued up. Now I need my new cylinder heads--more about them later.
Attached thumbnail(s) |
bkrantz |
Aug 11 2021, 06:53 PM
Post
#3533
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

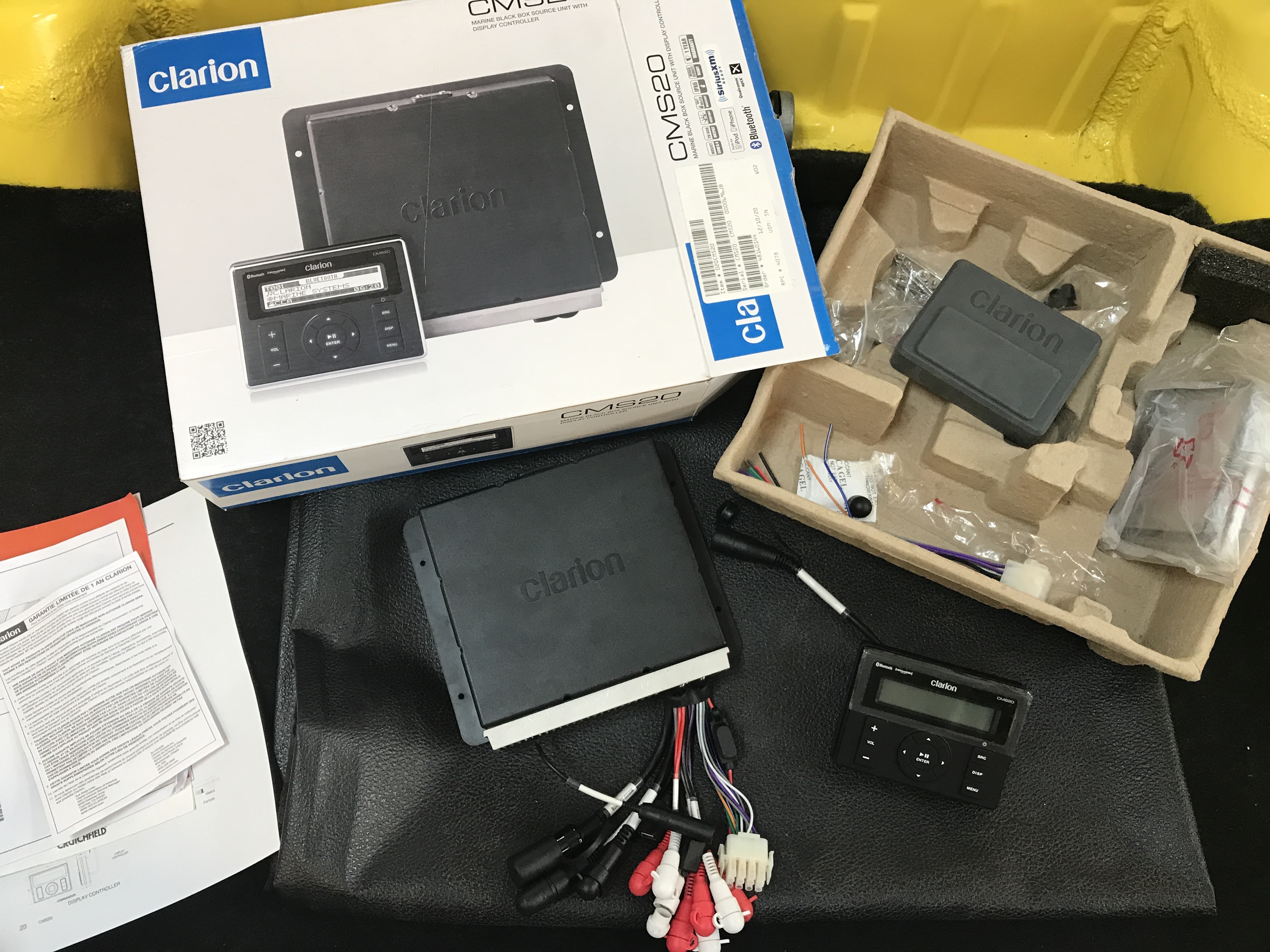

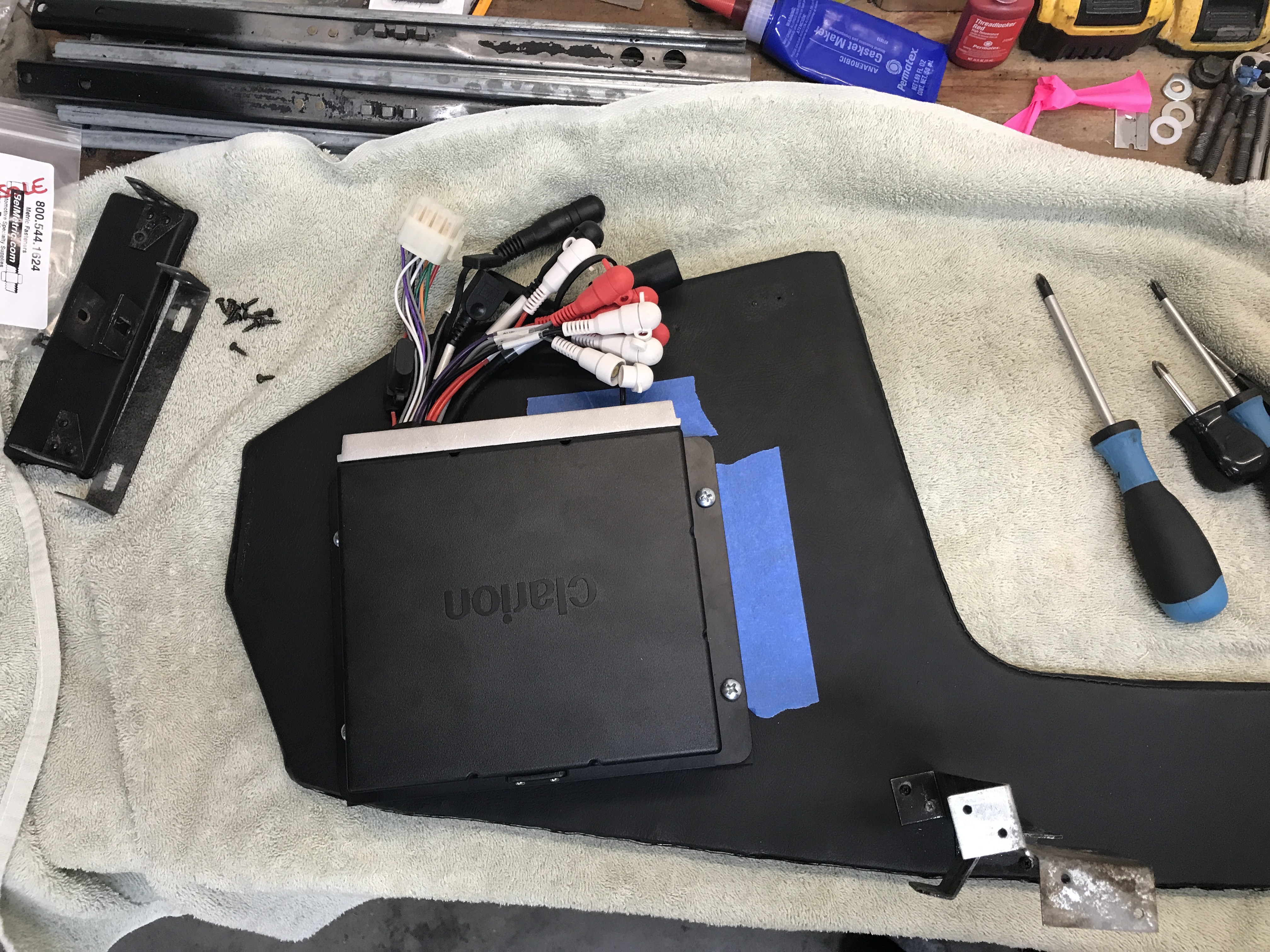

Meanwhile, I got started on another project. This is the hidden system, based on a Clarion CMS20.
Attached thumbnail(s) |
bkrantz |
Aug 11 2021, 06:55 PM
Post
#3534
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

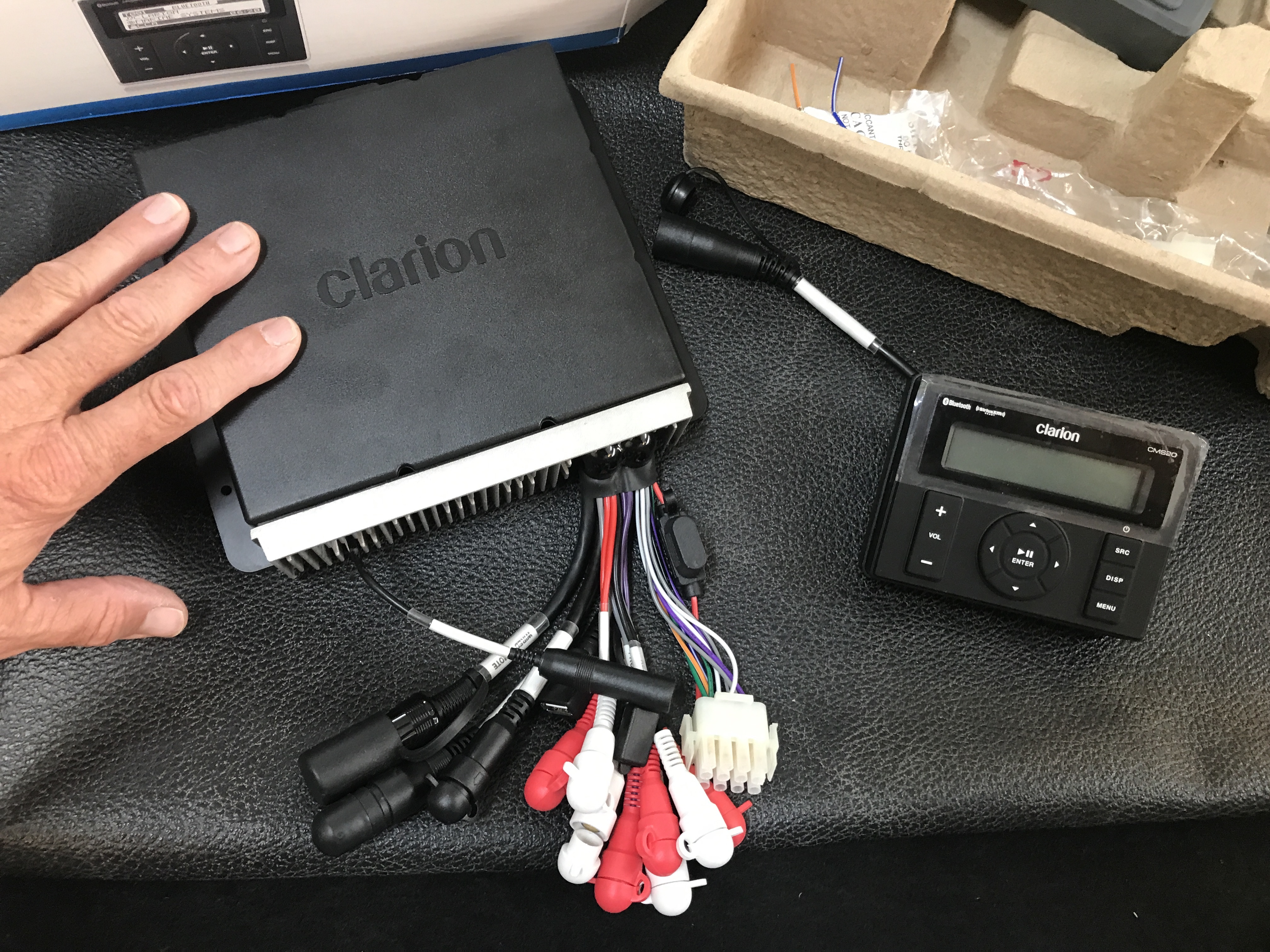

The main box is pretty light and compact, and provides AM-FM and both USB and Bluetooth streaming, and can be mounted remotely. The control box connects via cable.
Attached thumbnail(s) |
bkrantz |
Aug 11 2021, 06:56 PM
Post
#3535
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

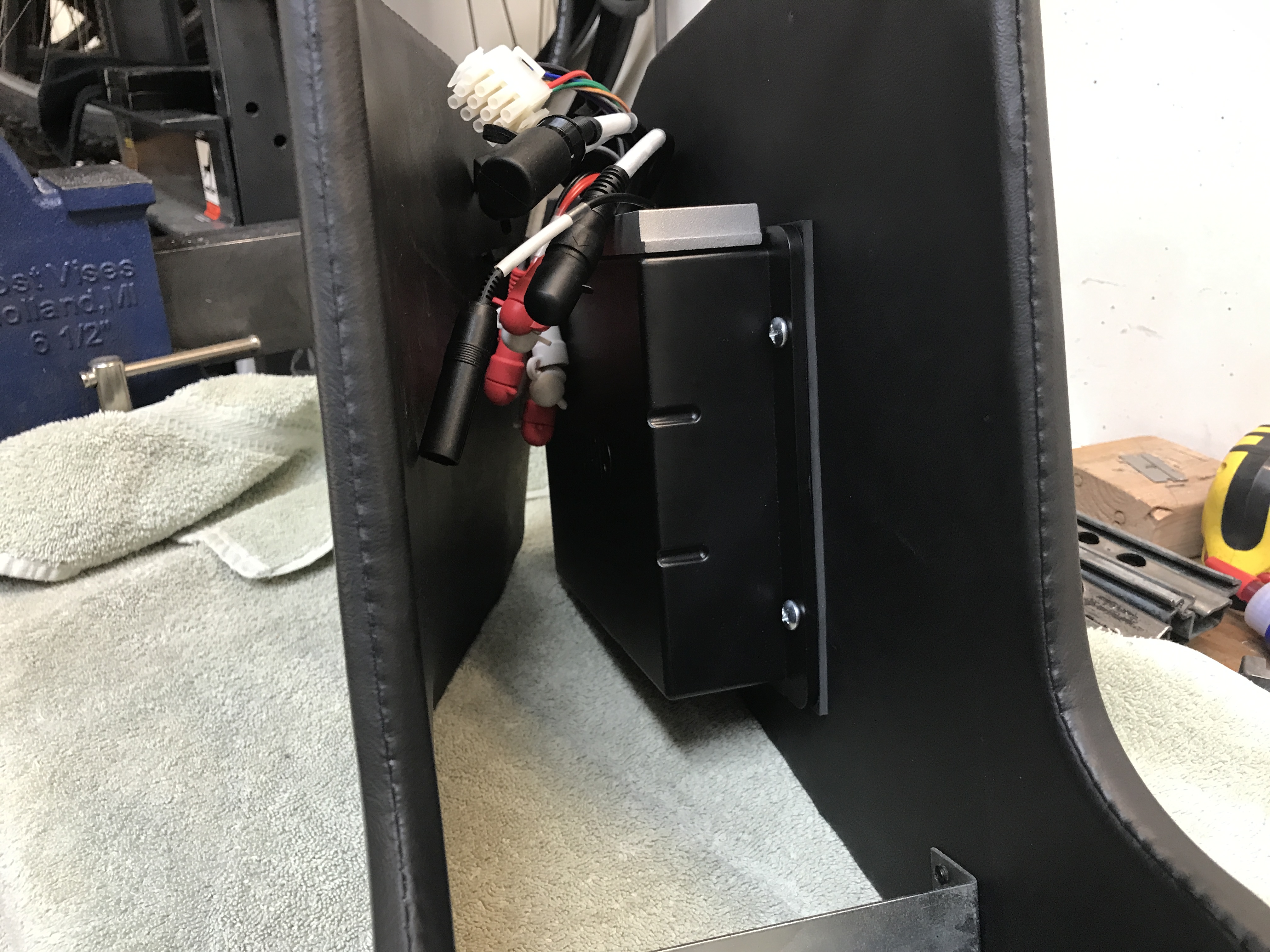

My plan so far: mount the remote box inside the center console, behind the gauges.
Attached thumbnail(s) |
bkrantz |
Aug 11 2021, 06:58 PM
Post
#3536
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
This should have plenty of clearance.
Attached thumbnail(s) |
djway |
Aug 11 2021, 09:20 PM
Post
#3537
|
Senior Member Group: Members Posts: 787 Joined: 16-October 15 From: Riverside Member No.: 19,266 Region Association: Southern California |
first song you play must be Mellow Yellow by Donovan (IMG:style_emoticons/default/smile.gif)
|
bkrantz |
Aug 12 2021, 08:43 PM
Post
#3538
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

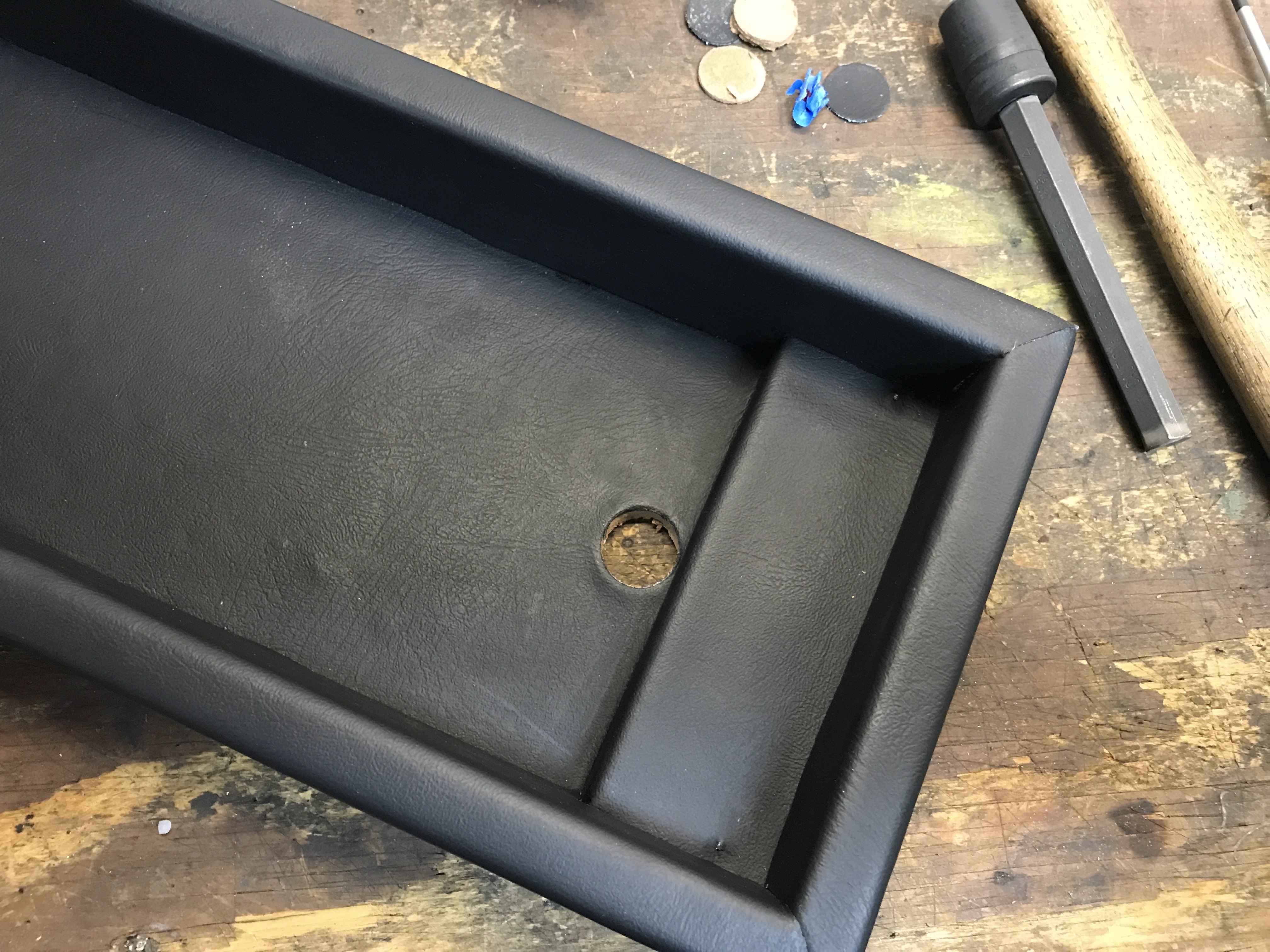

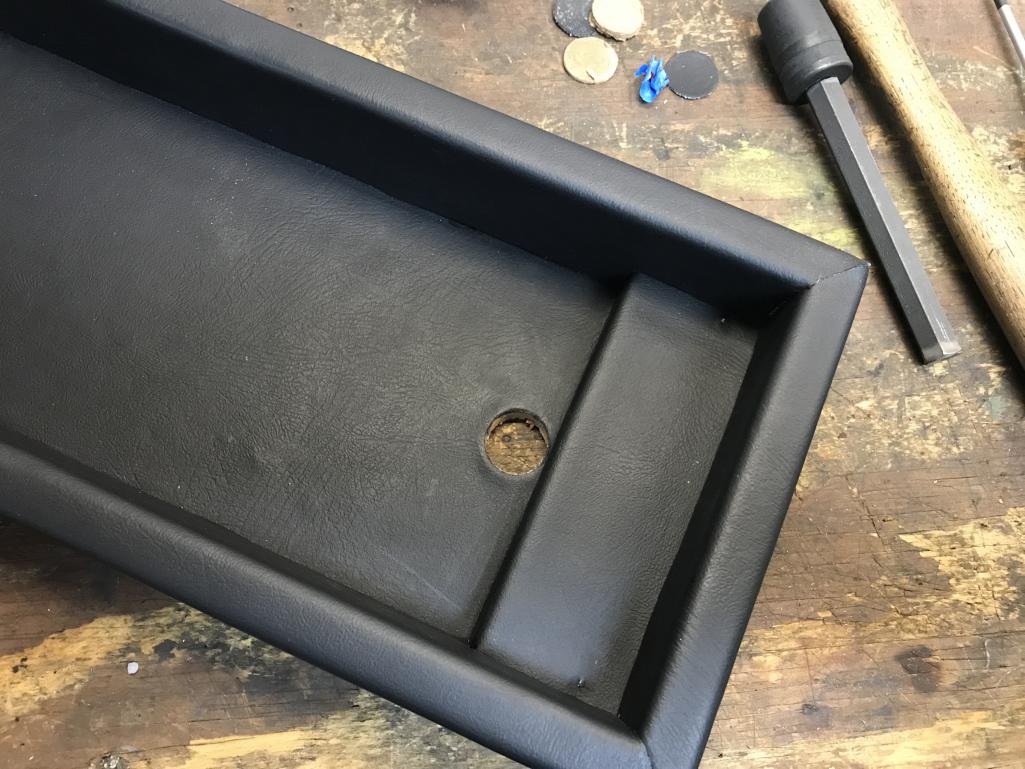

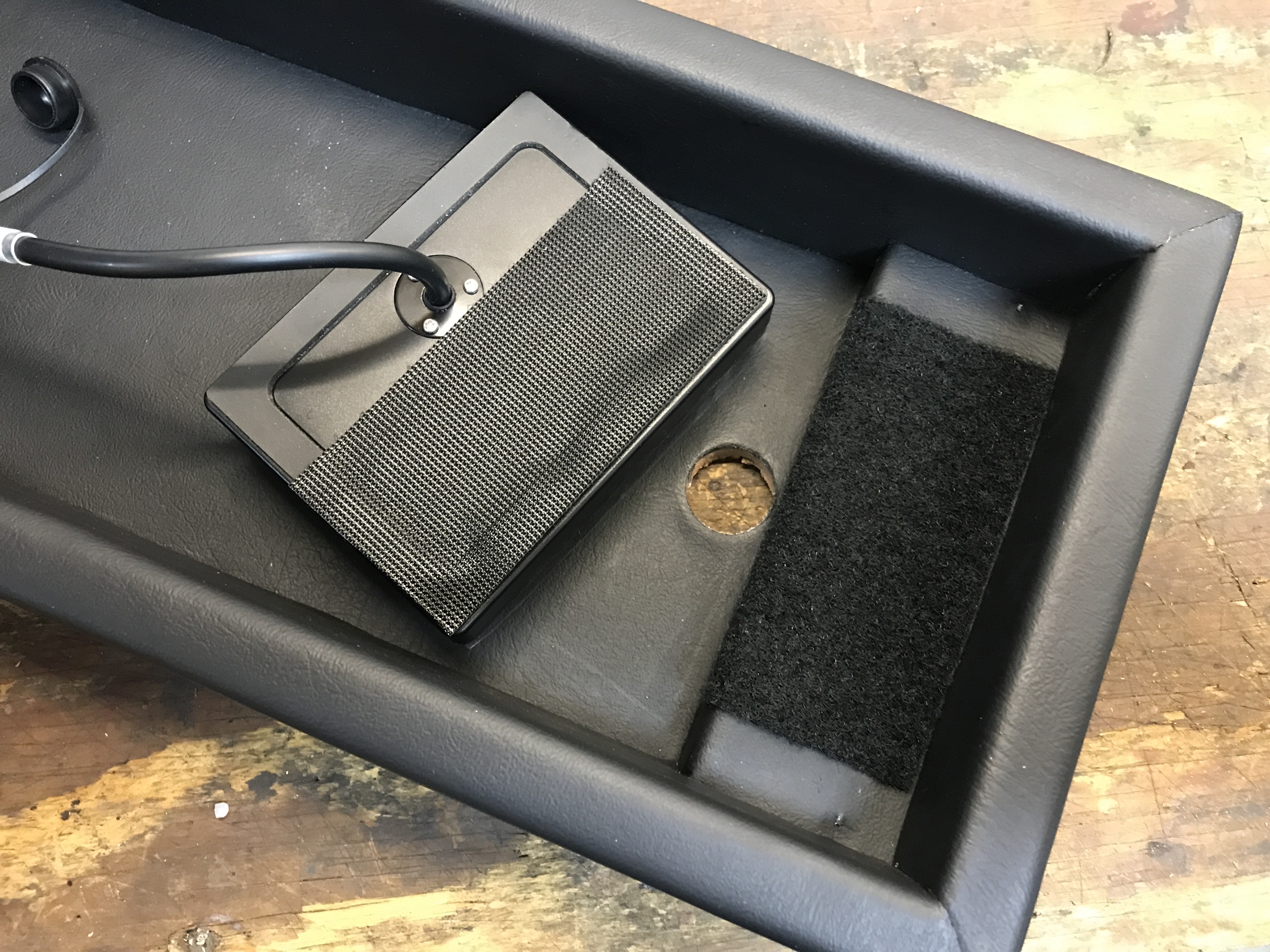

To mount the control in the arm rest I had to punch a hole in the bottom big enough for the cable plug.
Attached thumbnail(s) |
bkrantz |
Aug 12 2021, 08:45 PM
Post
#3539
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
Another chance to use my industrial Velcro.
Attached thumbnail(s) |
bkrantz |
Aug 12 2021, 08:46 PM
Post
#3540
|
914 Guru Group: Members Posts: 7,772 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

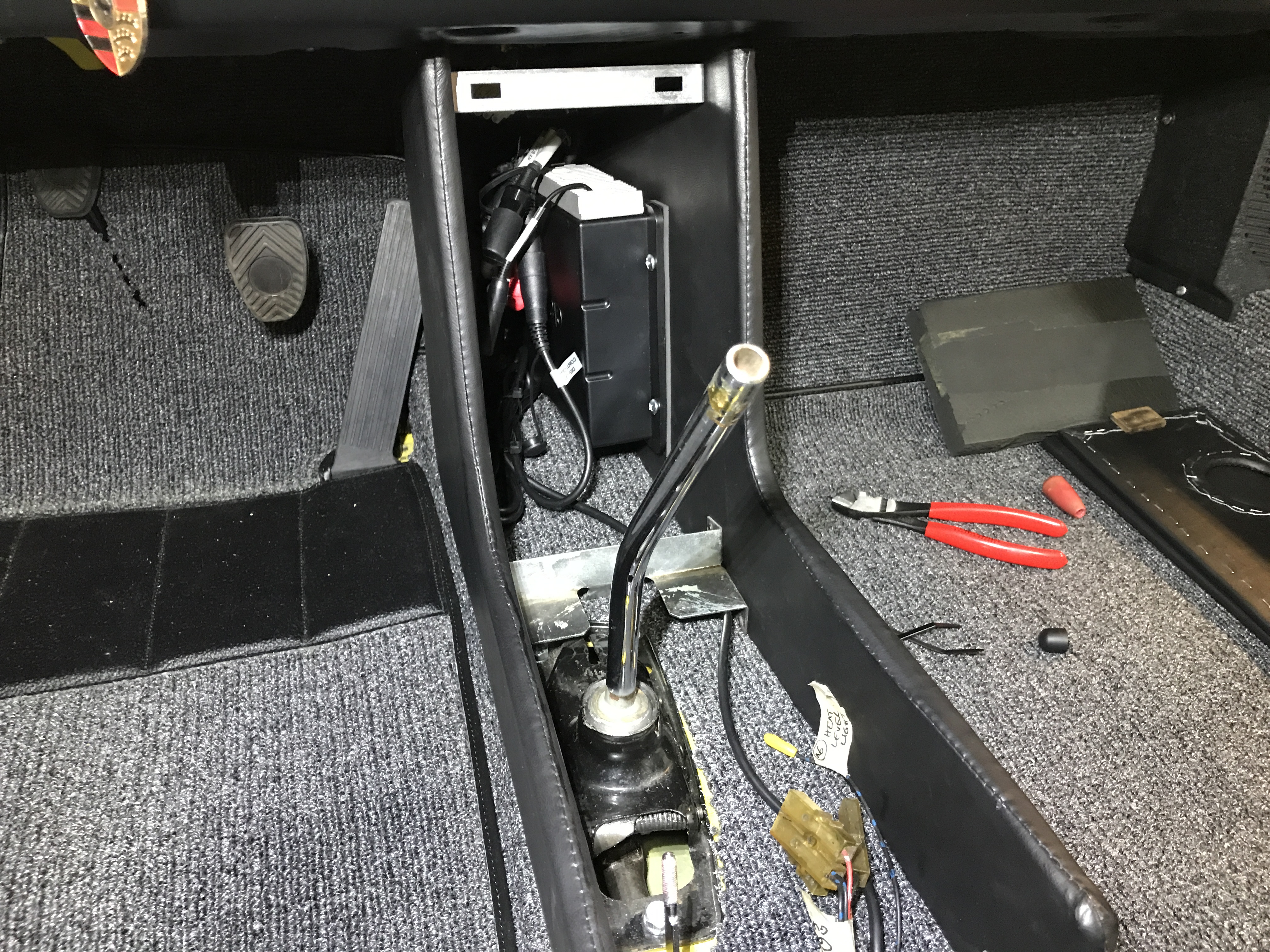

Another test fit for the console with hidden head unit.
Attached thumbnail(s) |
