> Rebuiding Inside-out
bkrantz
post Sep 11 2021, 07:11 PM
Post #3661


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

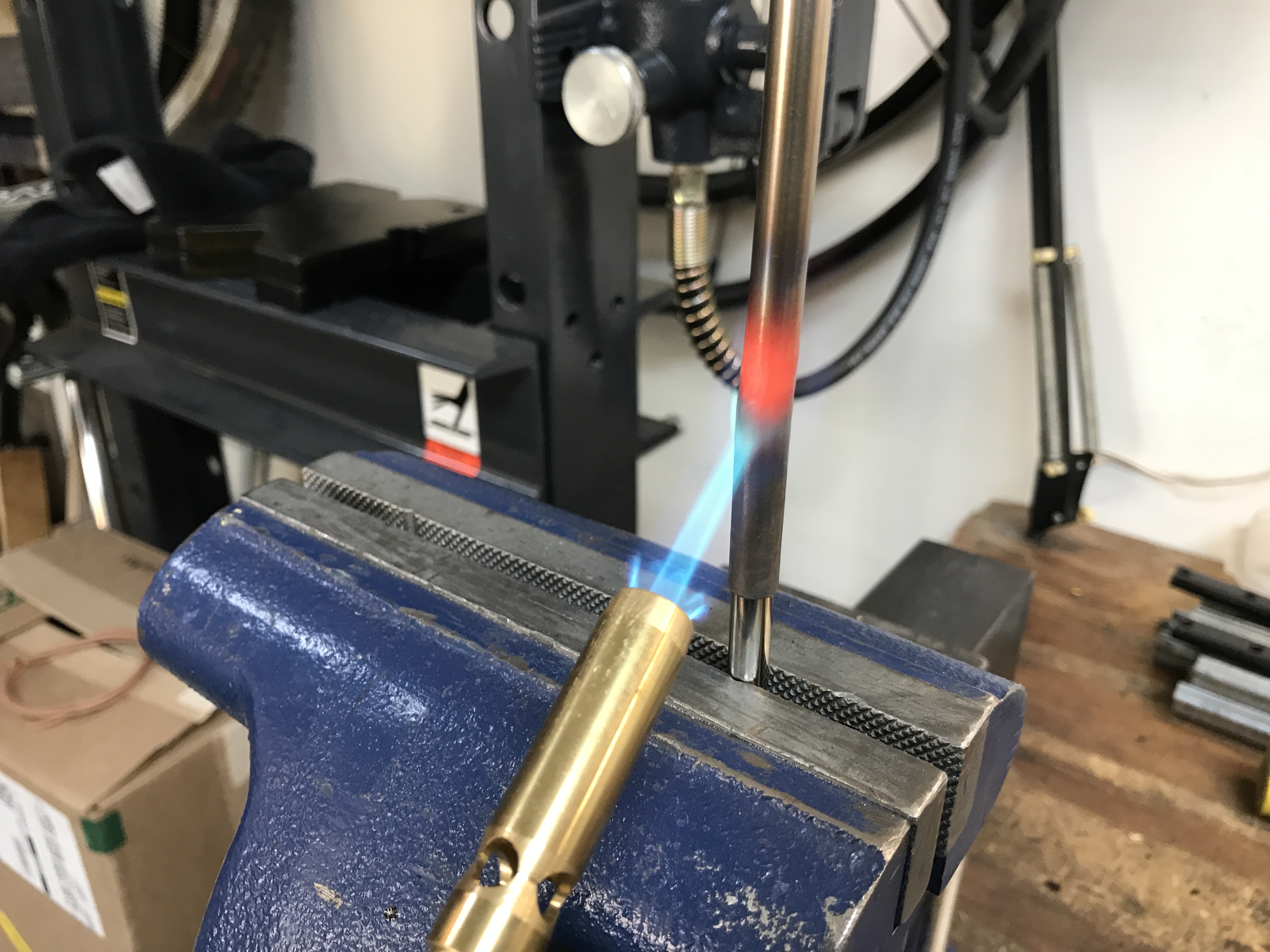

Like last time, I ground a short taper into one end of the rod, and then heated the tubing one small bit at a time while tapping it onto the rod.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 11 2021, 07:13 PM
Post #3662


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

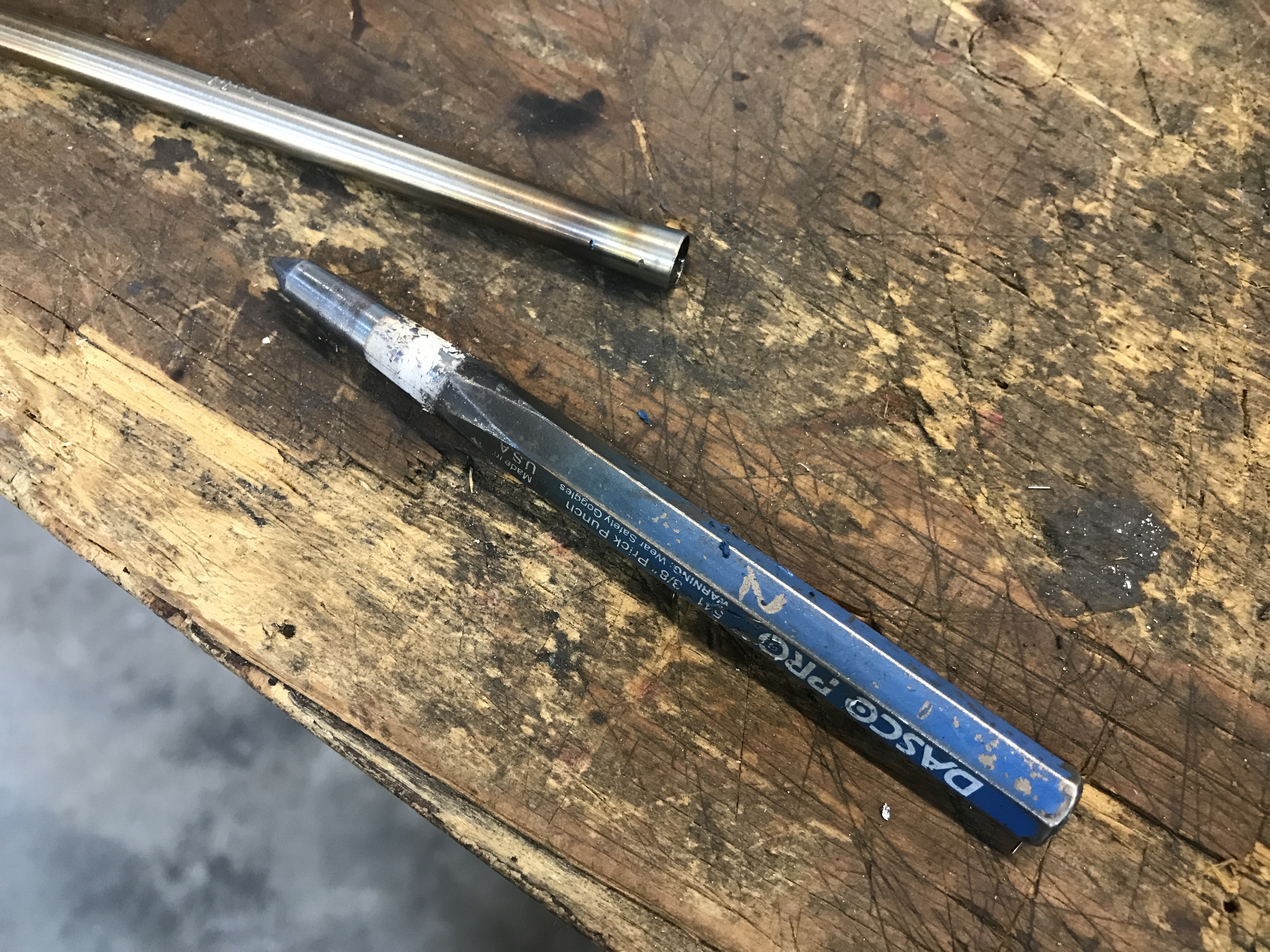

I cut the tube to length, and then made a flare at the upper end with a tapered center punch.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 11 2021, 07:13 PM
Post #3663


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

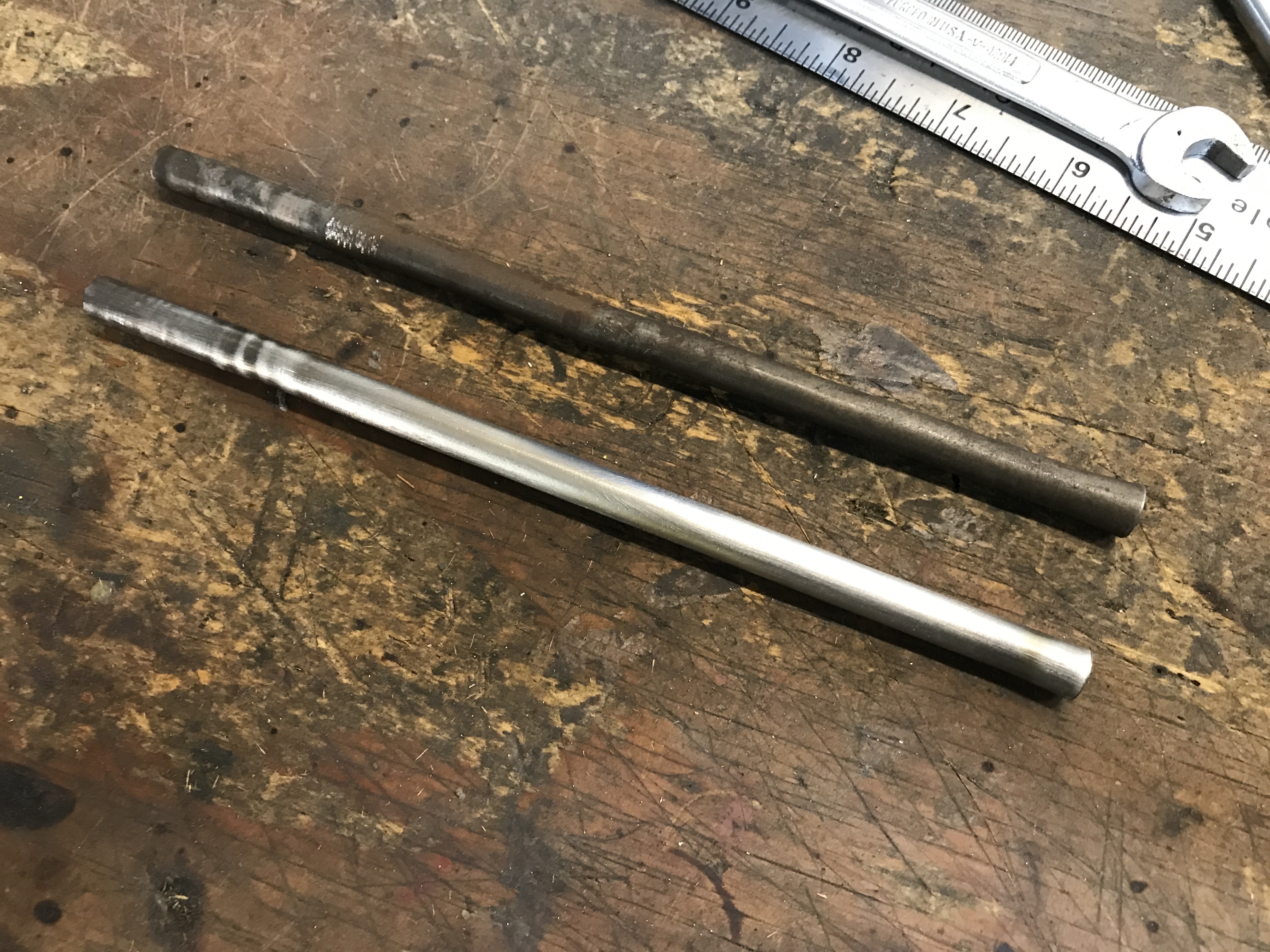

The new tube is not perfect, but I like it better than the original.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 11 2021, 07:15 PM
Post #3664


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

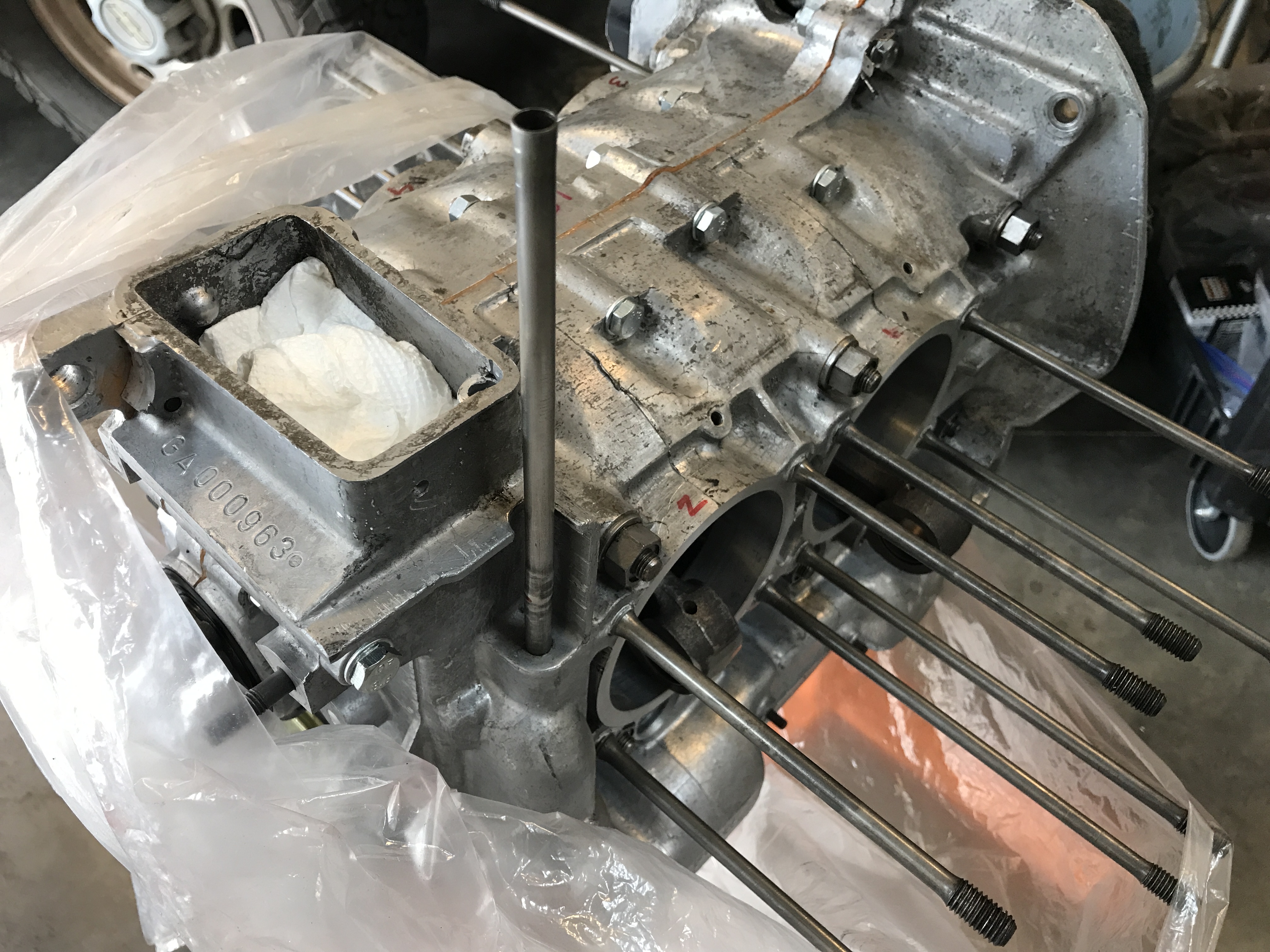

Just to test, it seems like a properly snug fit in the case hole. I will install this later when it will not be in the way.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 12 2021, 06:45 PM
Post #3665


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
A different topic today: new custom floor panel for the frunk.

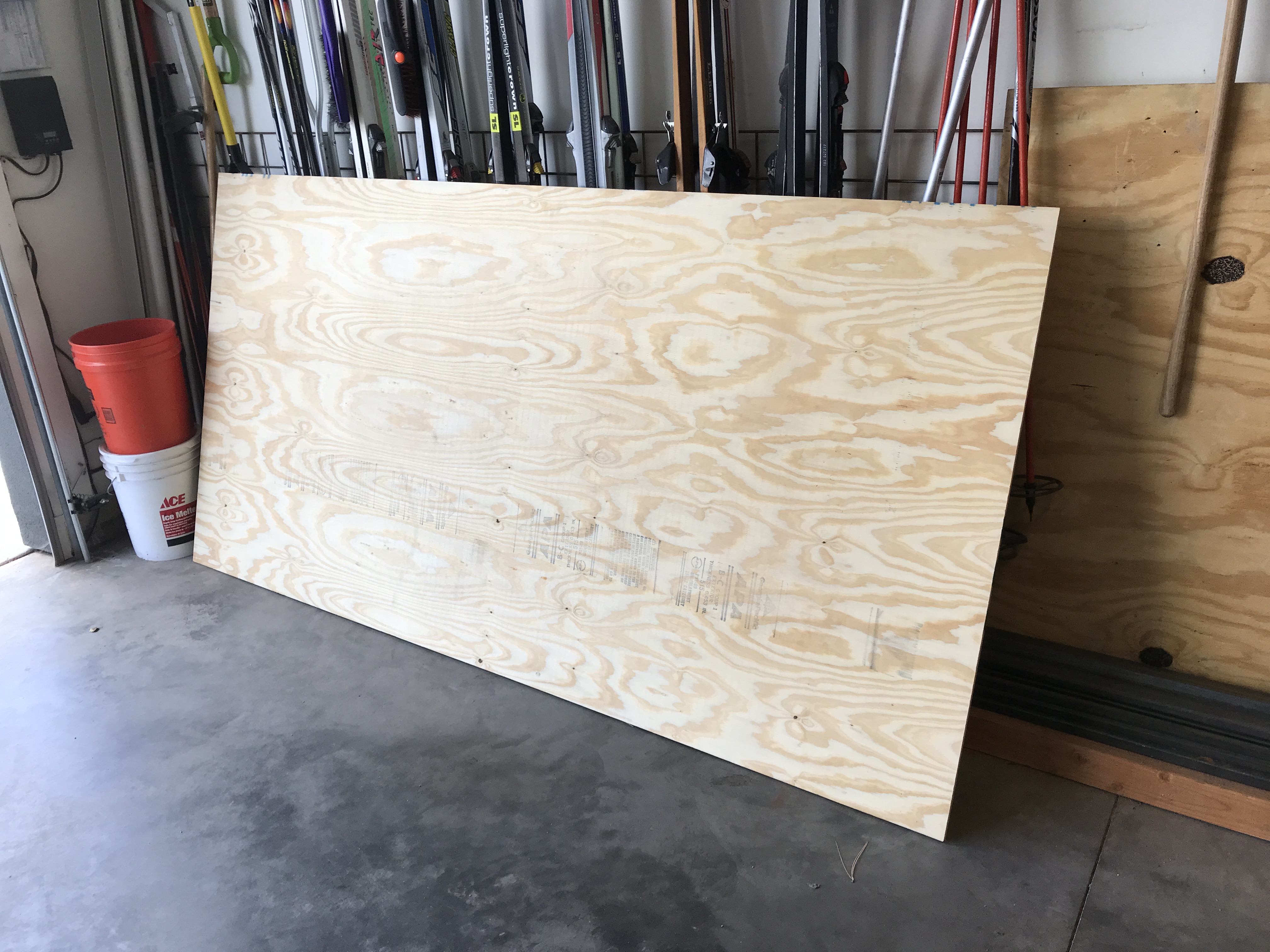

I stopped by Home Depot for a sheet of 11/32 plywood, just a bit thicker than the original. And only $4000 (kidding).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 12 2021, 06:46 PM
Post #3666


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

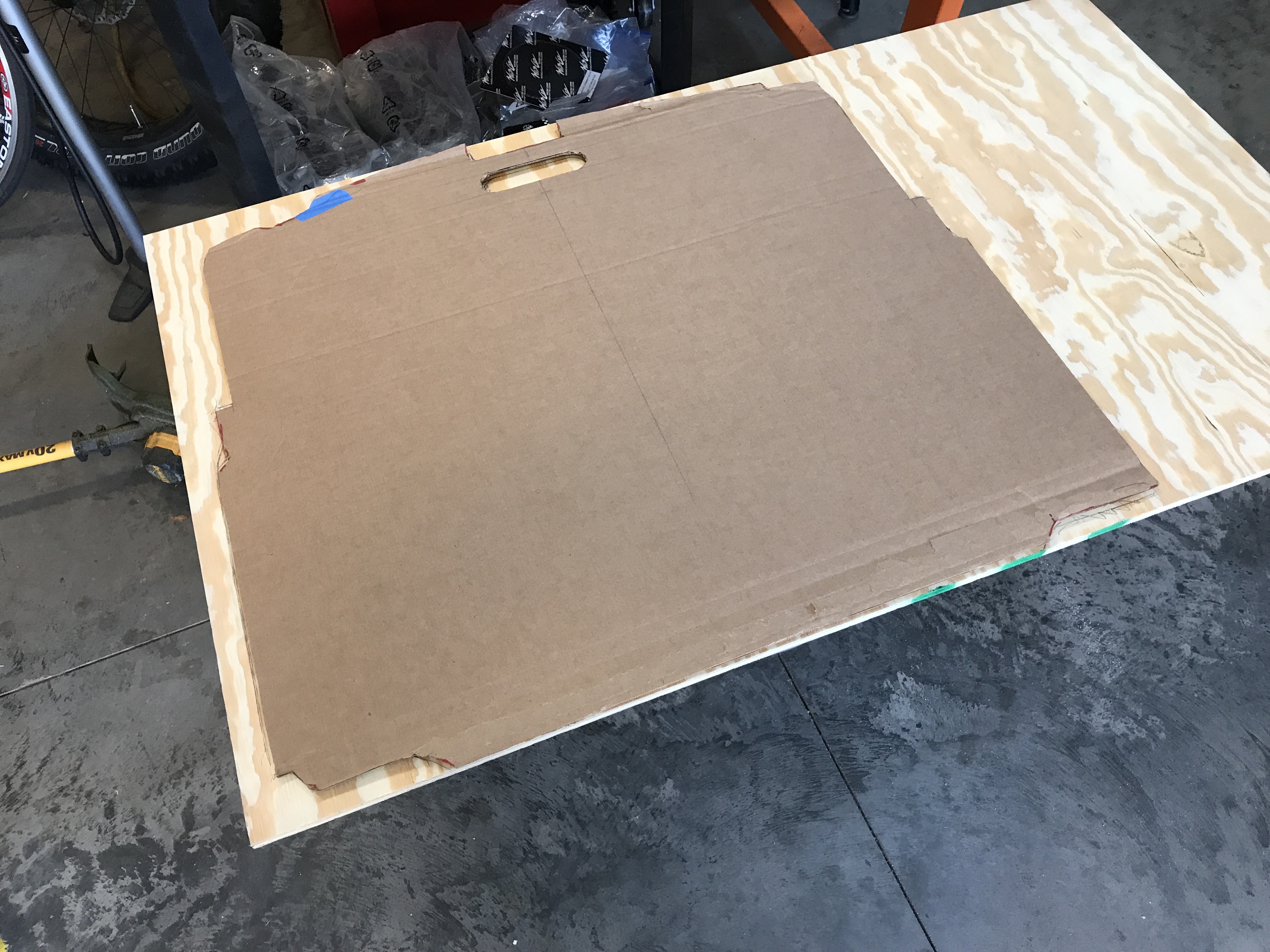

Laying out based on my cardboard template, with a few more tweaks.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 12 2021, 06:47 PM
Post #3667


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

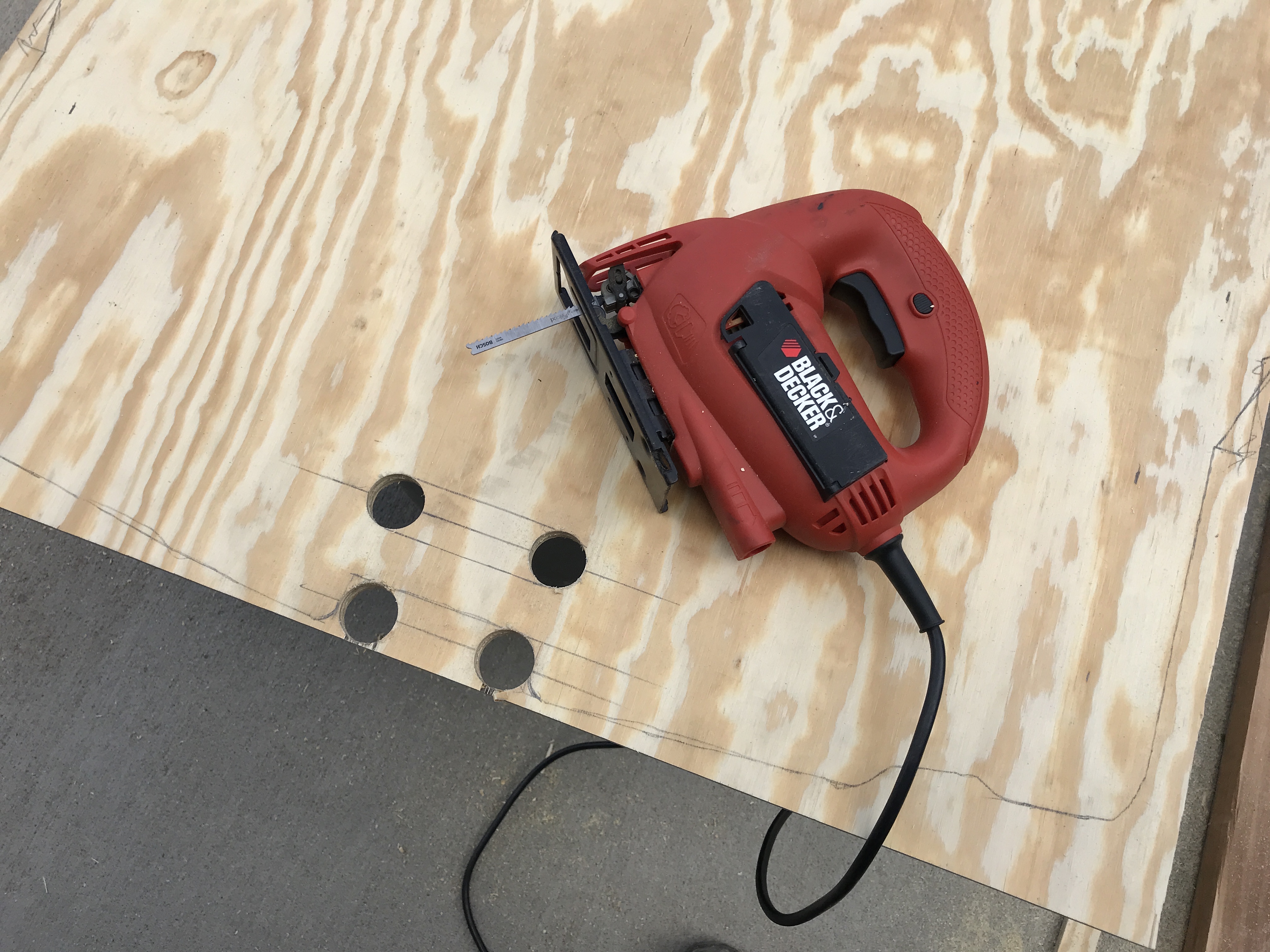

And then time to get out some tools that I seldom use: hole saws and jig saw.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 12 2021, 06:50 PM
Post #3668


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

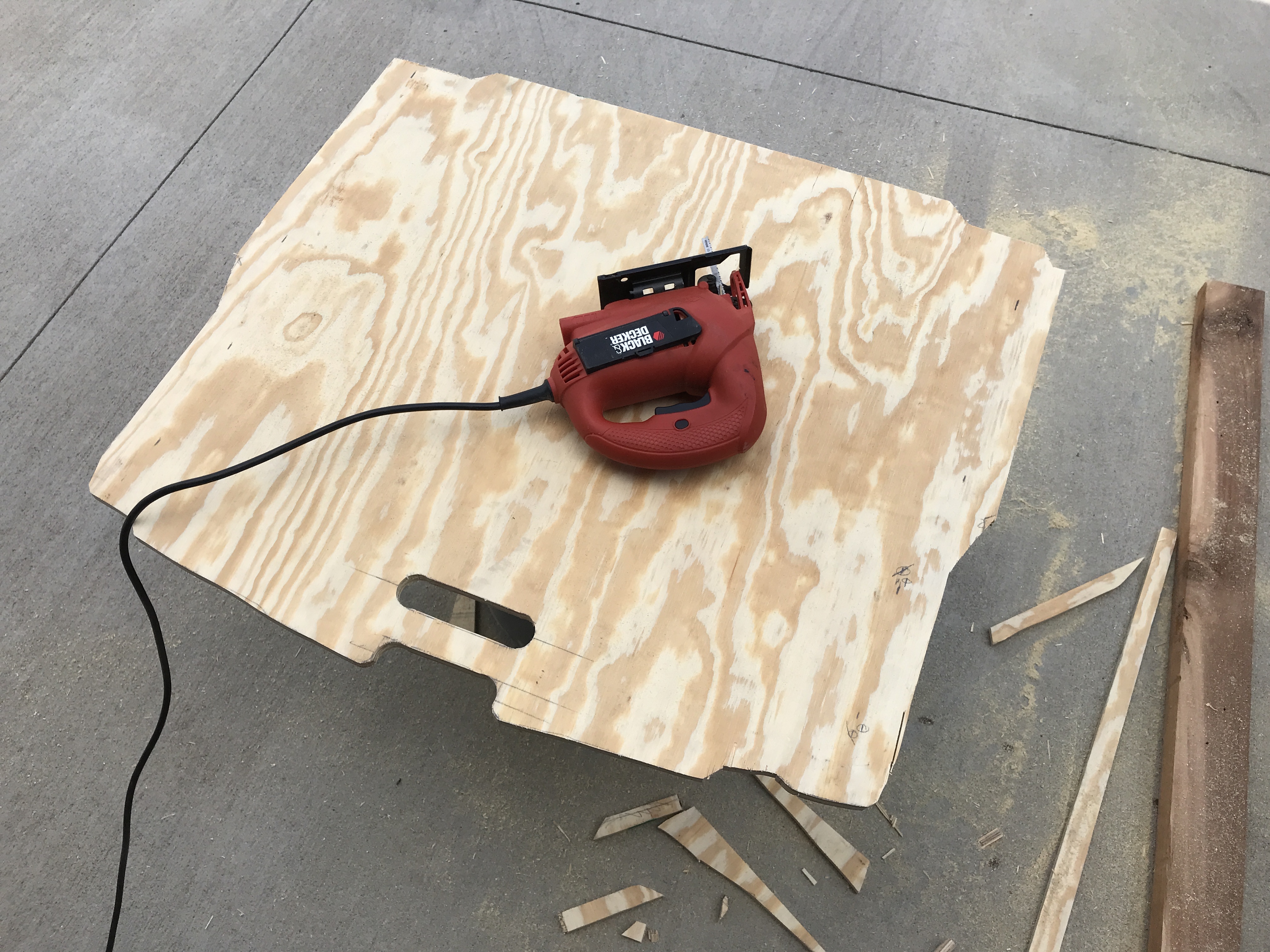

All finished with rough cutting.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 12 2021, 06:52 PM
Post #3669


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

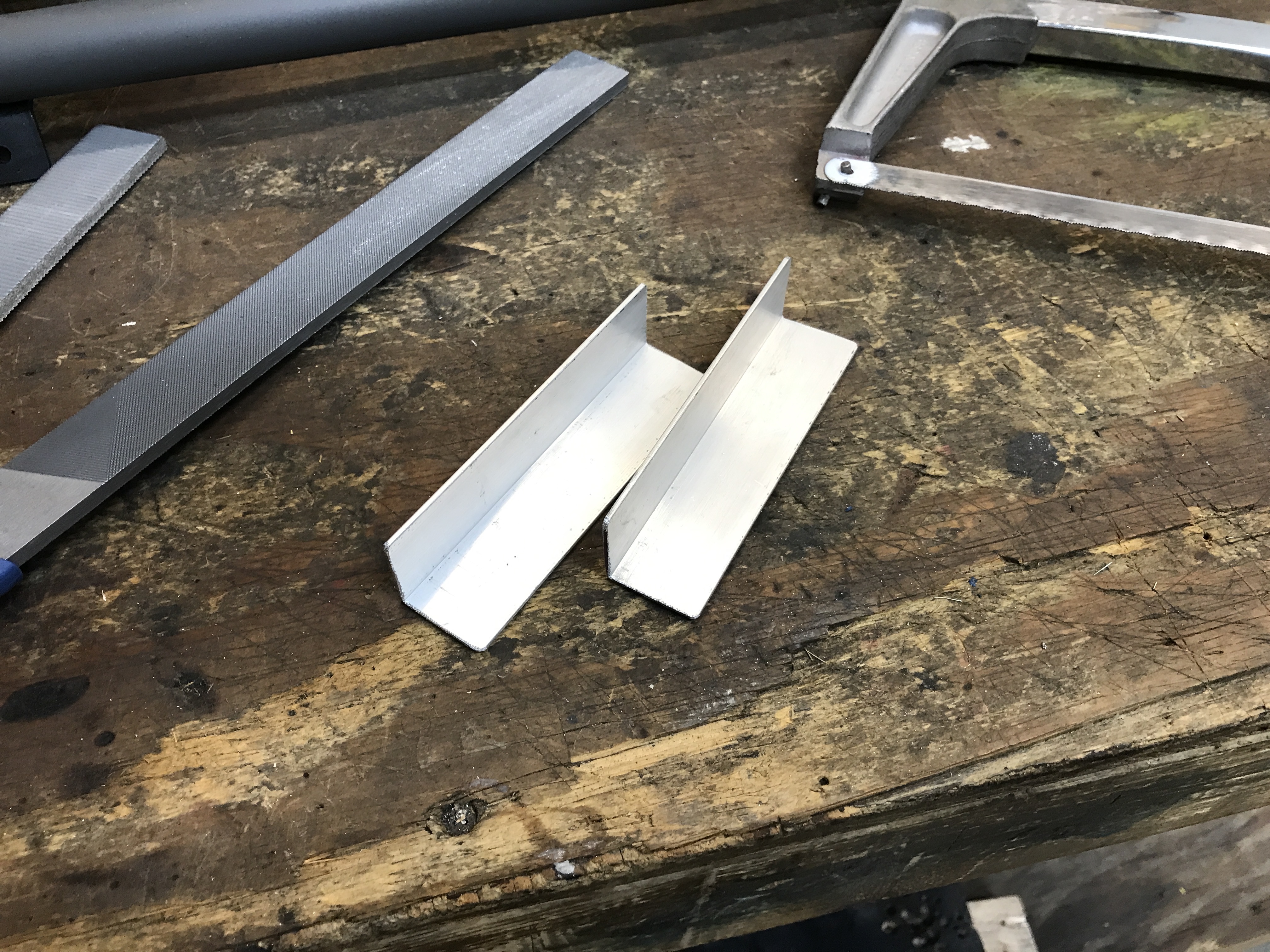

I decided to make the floor float over the spare tire, so it needs some shelf supports, made from 1" aluminum angle.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 12 2021, 06:53 PM
Post #3670


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

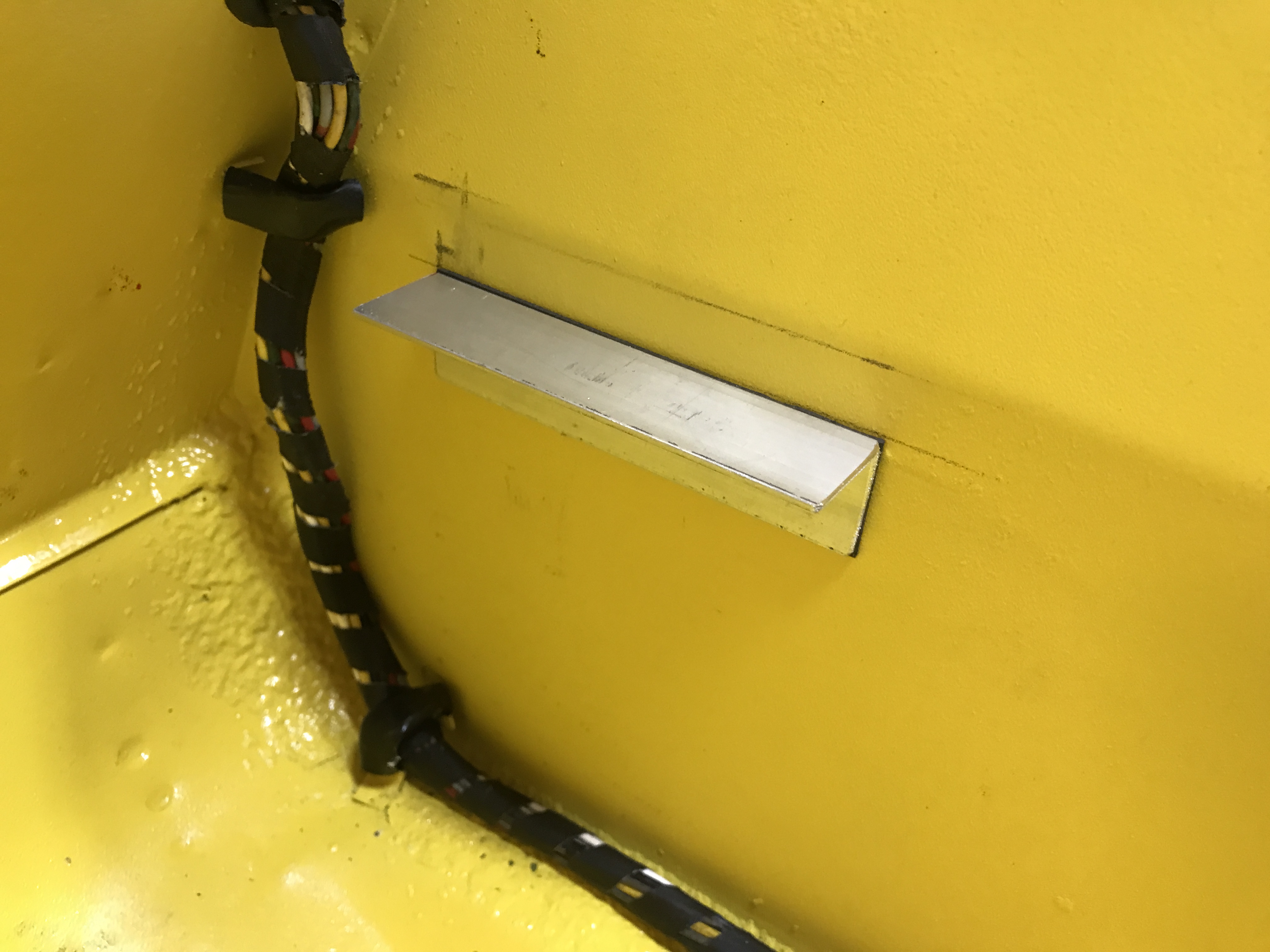

I mounted the supports on either side, with heavy duty 3M adhesive tape.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 12 2021, 06:54 PM
Post #3671


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

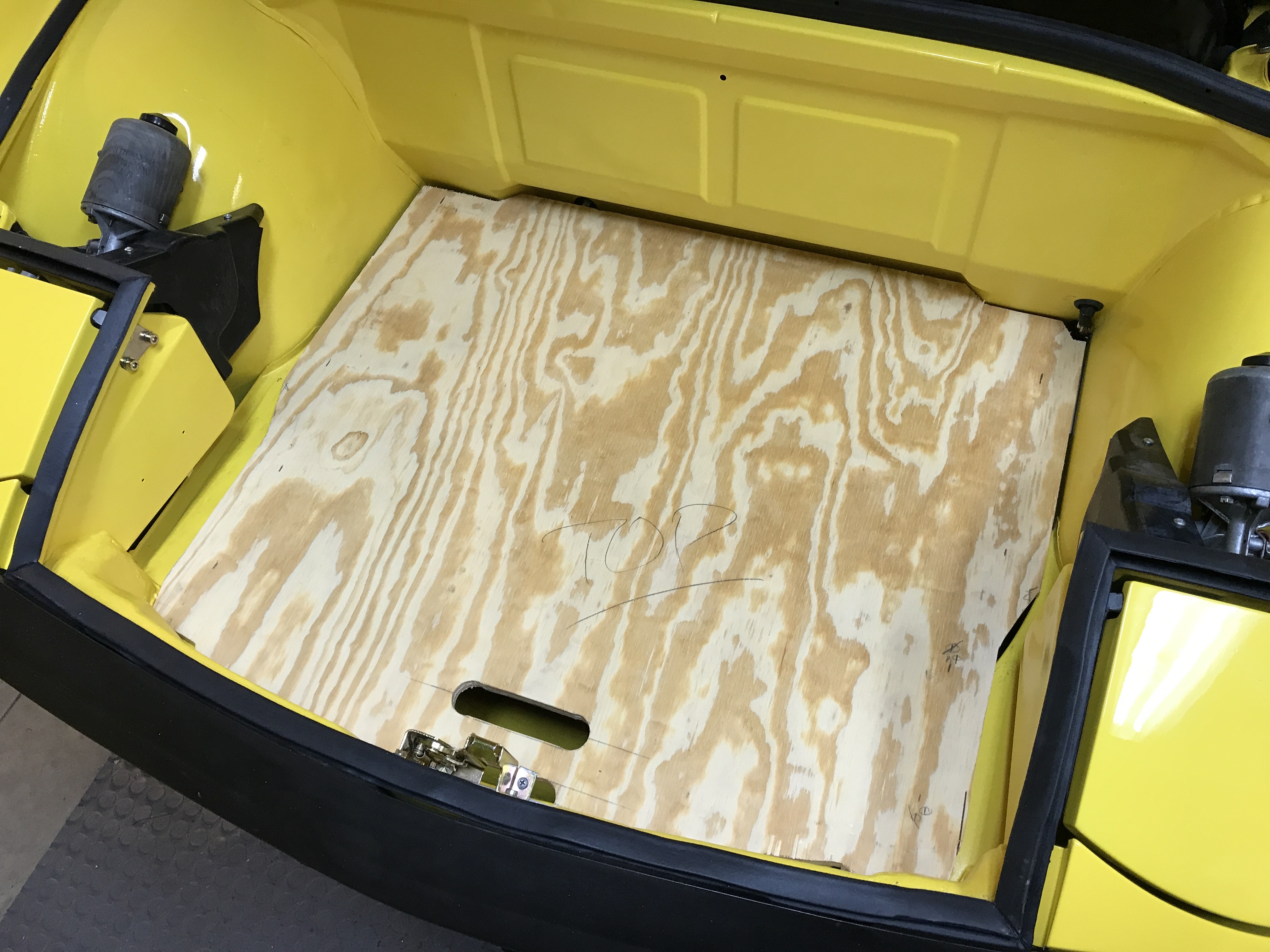

Here's how the floor panel fits. I plan to cover this with Perlon.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 12 2021, 06:56 PM
Post #3672


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

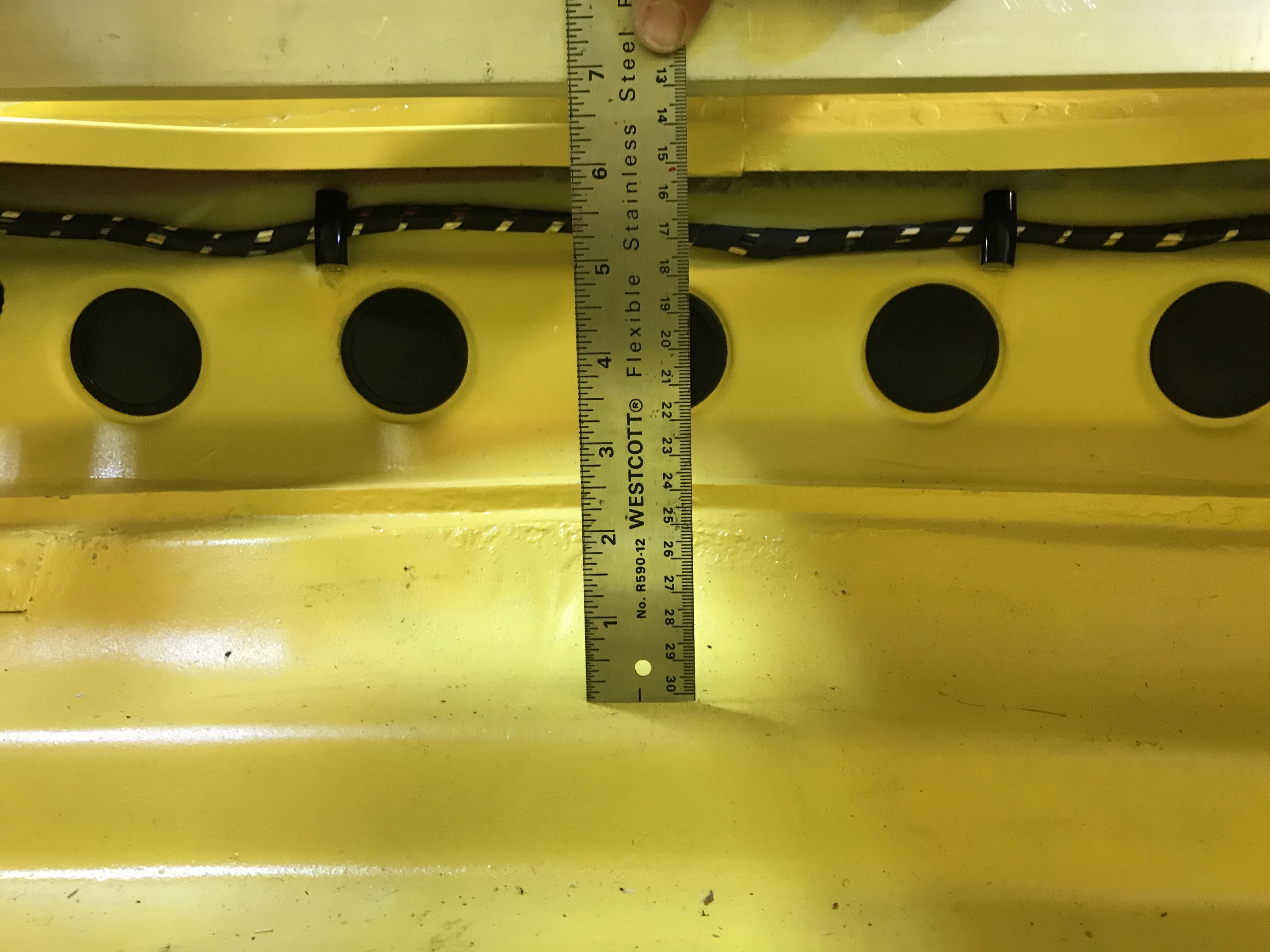

A check on the spare tire space: almost 7 inches deep.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
iankarr
post Sep 13 2021, 07:12 AM
Post #3673


The wrencher formerly known as Cuddy_K
****

Group: Members
Posts: 2,472
Joined: 22-May 15
From: Heber City, UT
Member No.: 18,749
Region Association: Intermountain Region
Awesome idea and work, as usual. You should offer these for sale!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2021, 07:03 PM
Post #3674


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Thanks, Ian. But that would be too much like work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2021, 07:07 PM
Post #3675


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

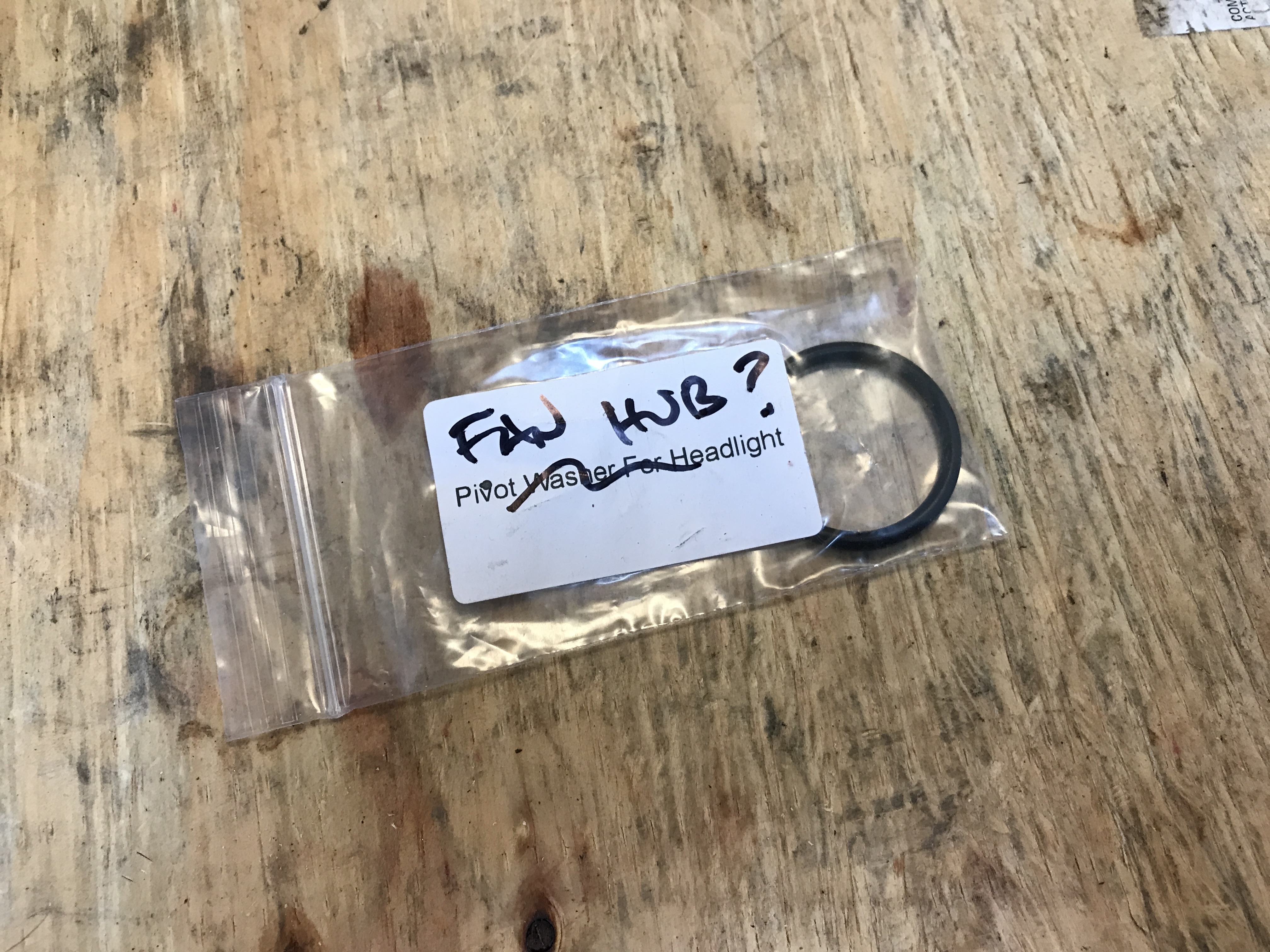

Since my new heads are due to arrive this week, I decided to get back on the engine build. Digging around in the new parts box, I found this. It fell out of the bigger bag where I have all the engine seals. At least I don't have to wait for the new one I ordered.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2021, 07:09 PM
Post #3676


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

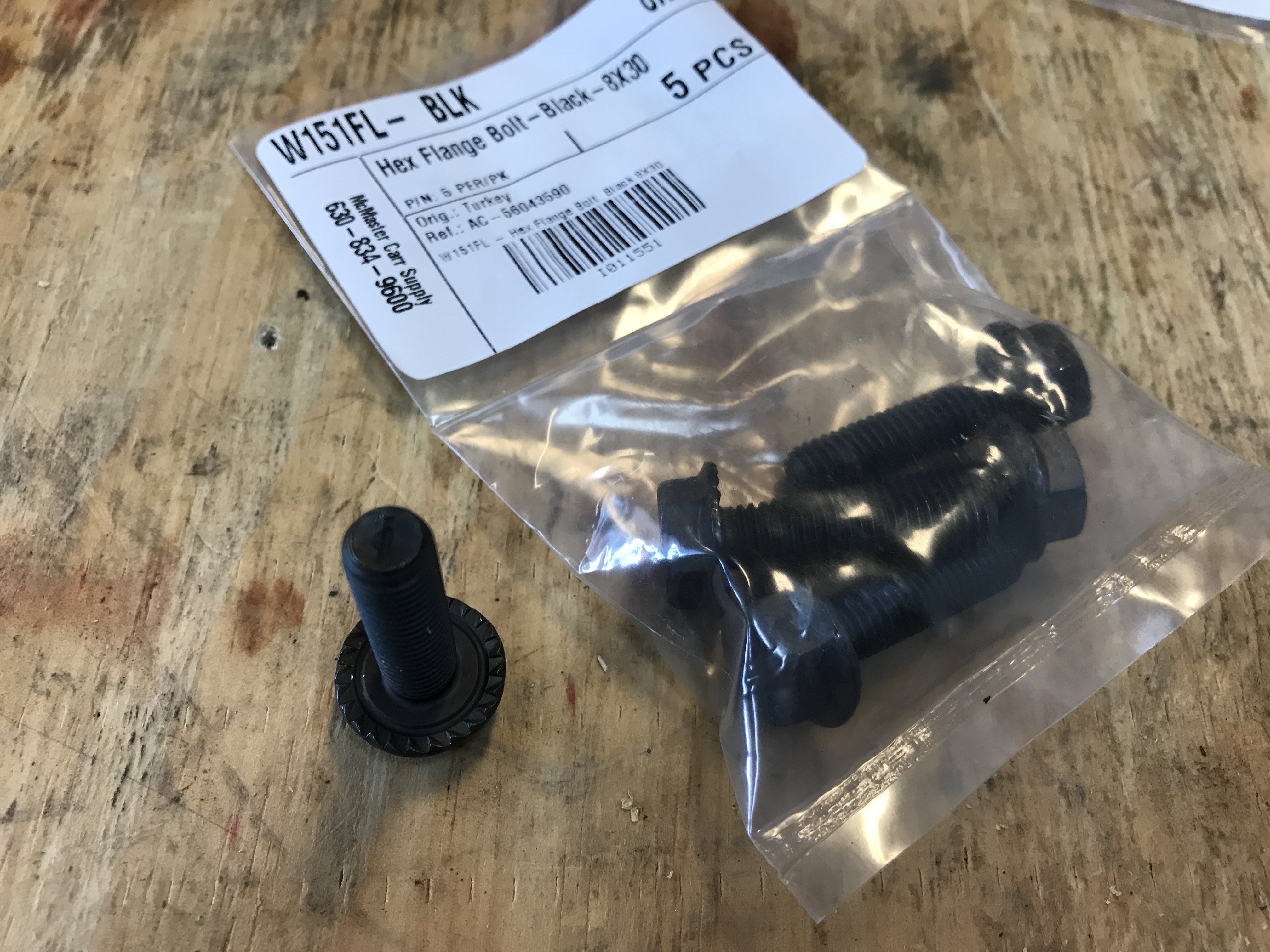

At least the new hub retaining bolts arrived, with the serrations under the head like the original. Now I have 4 spares.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2021, 07:09 PM
Post #3677


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

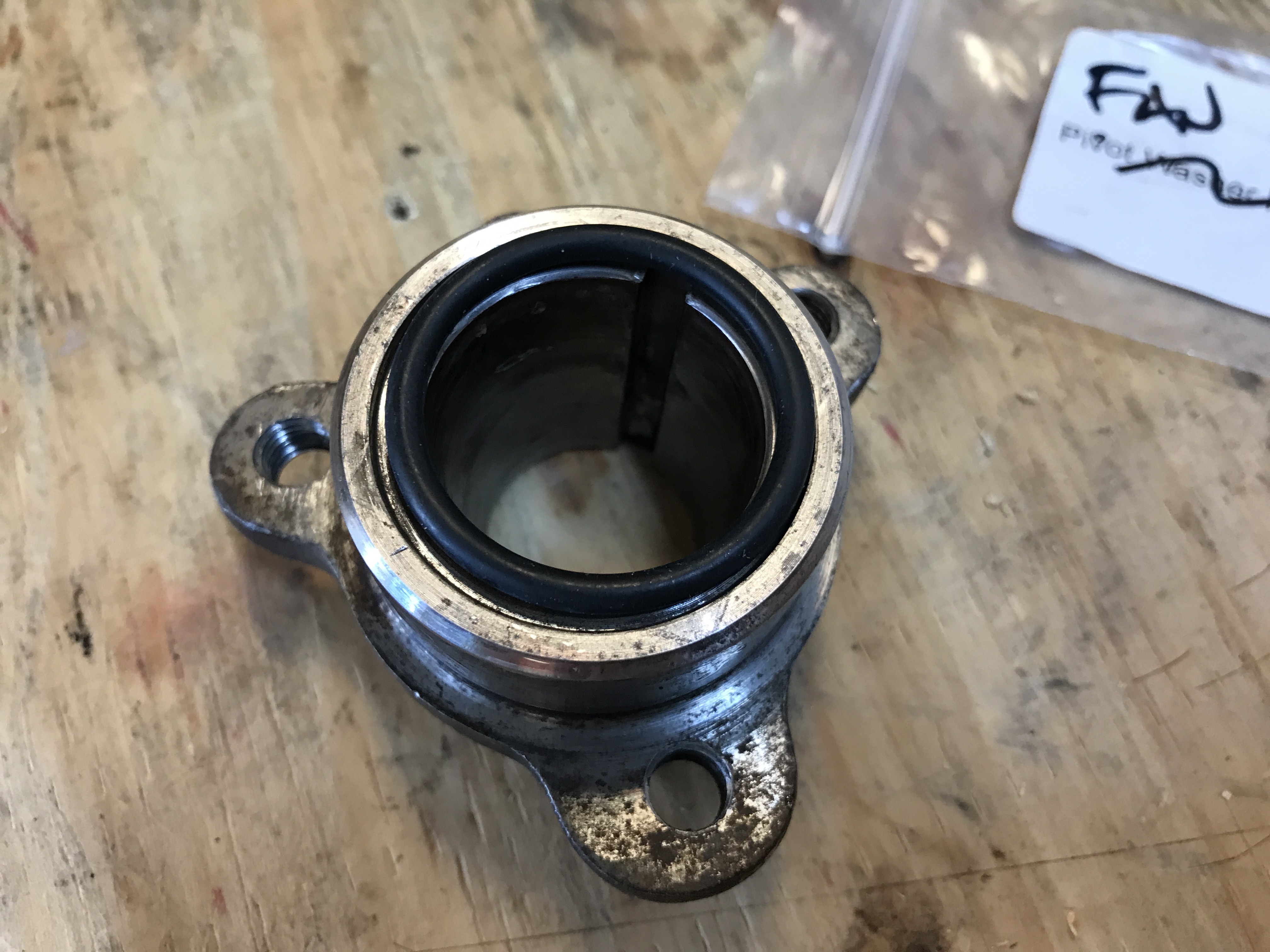

Seems like the right O-ring.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2021, 07:10 PM
Post #3678


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

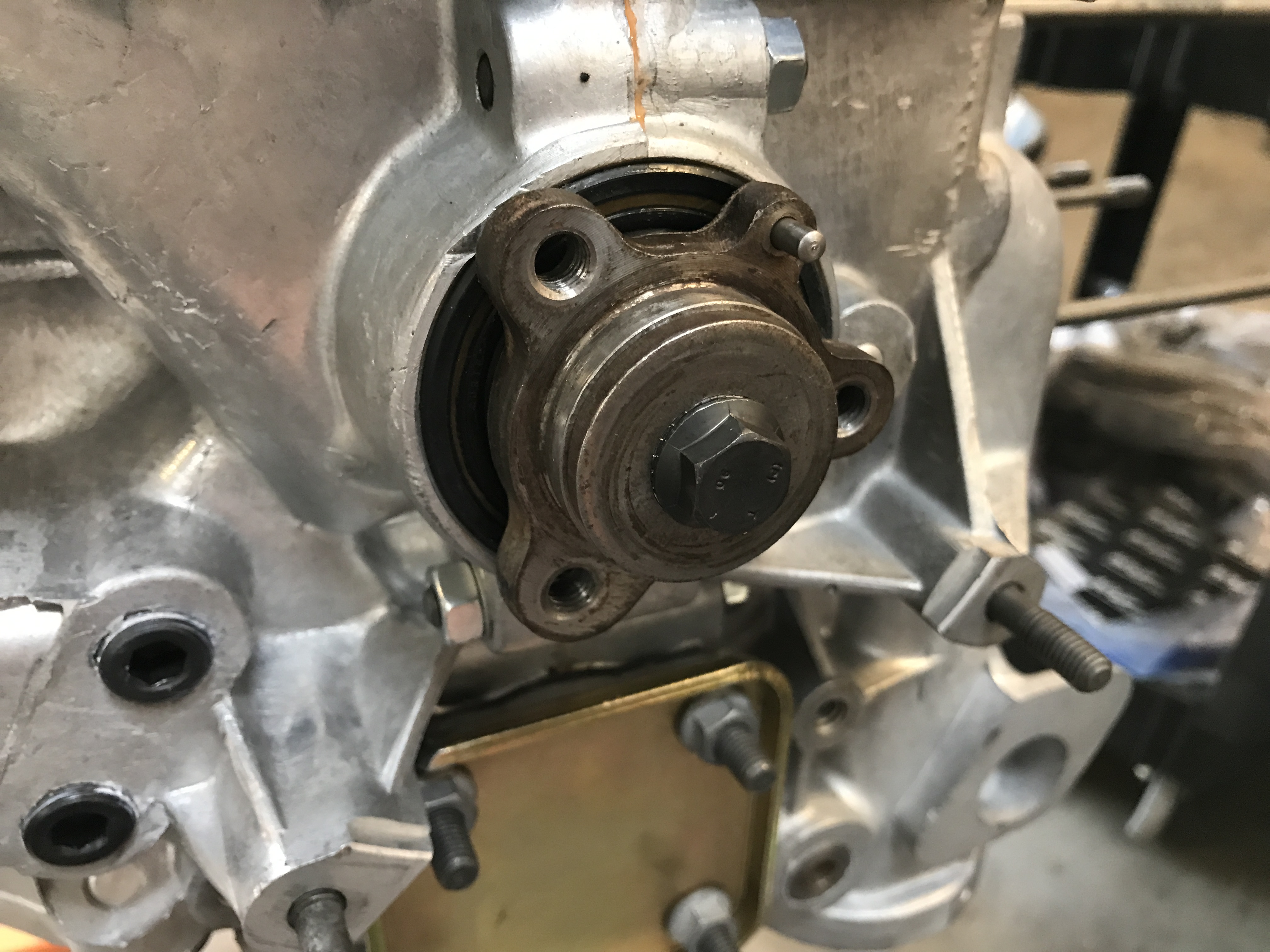

Hub installed and torqued.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2021, 07:12 PM
Post #3679


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

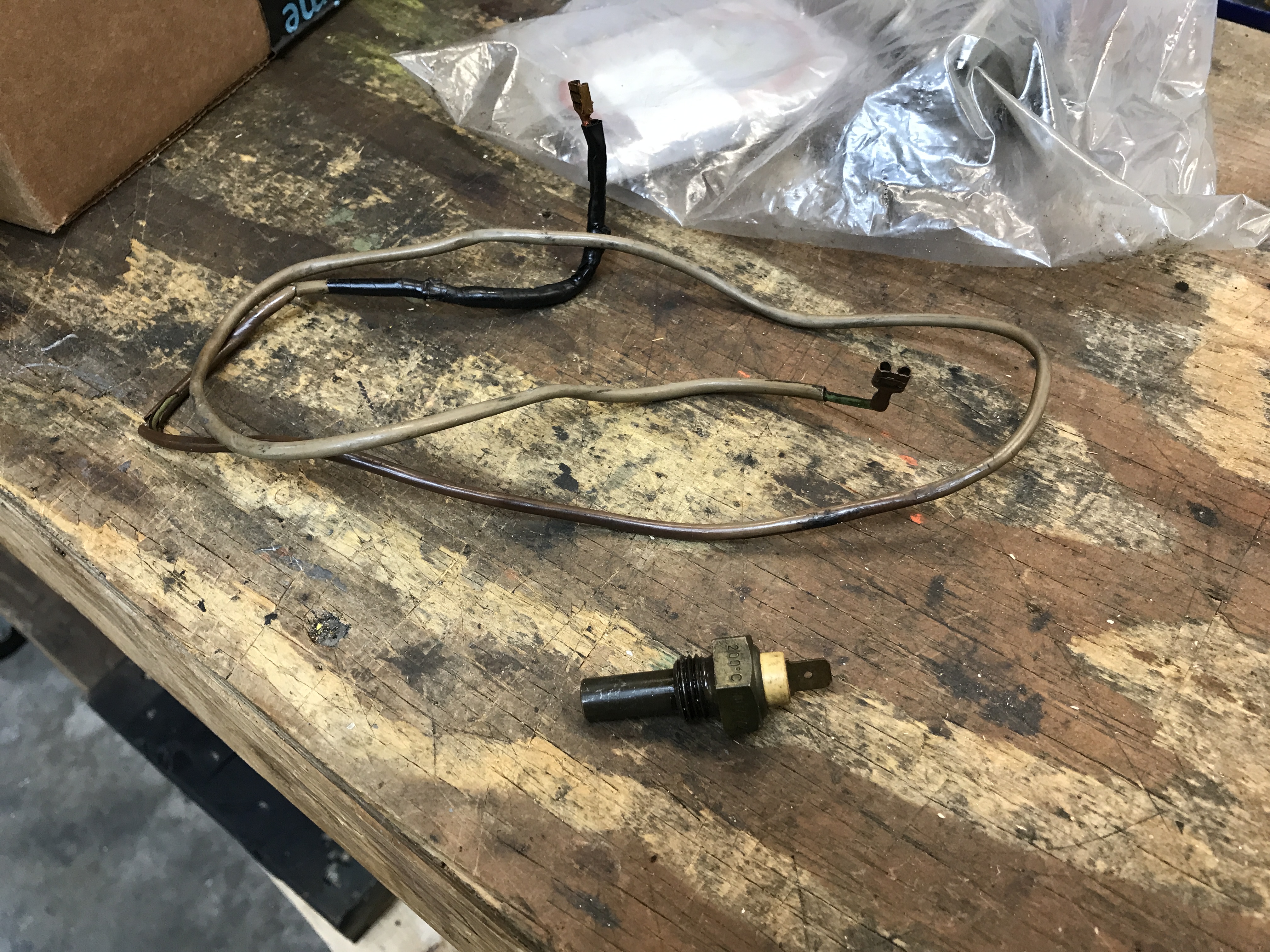

I dug around in the box of miscellaneous engine parts and came up with the oil temp sender and lead. The wire has seen better days, and I will make a new one.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 13 2021, 07:13 PM
Post #3680


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

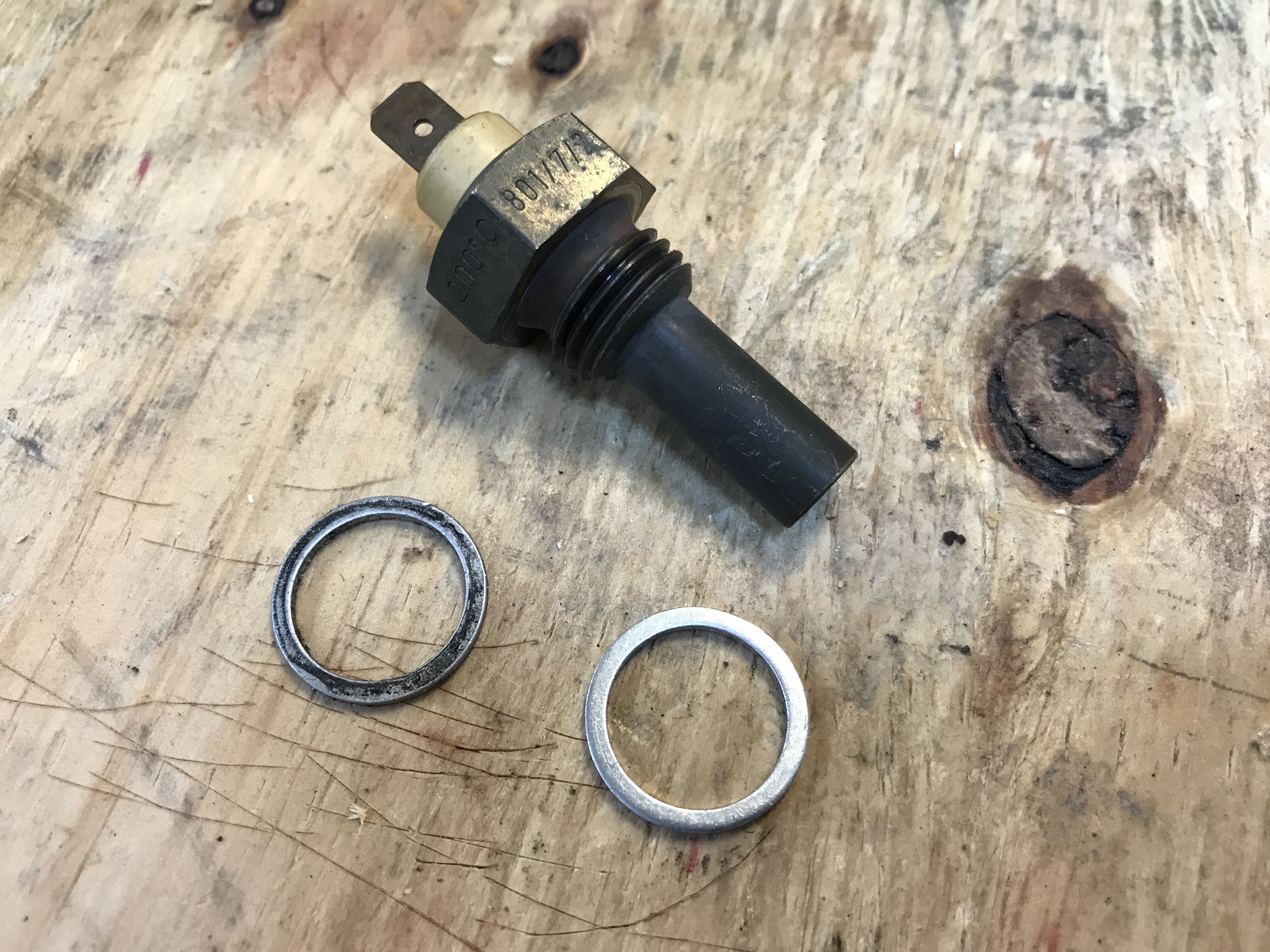

Sender, with seal rings old and new.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
