> Rebuiding Inside-out
bkrantz
post Sep 15 2021, 07:36 PM
Post #3701


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

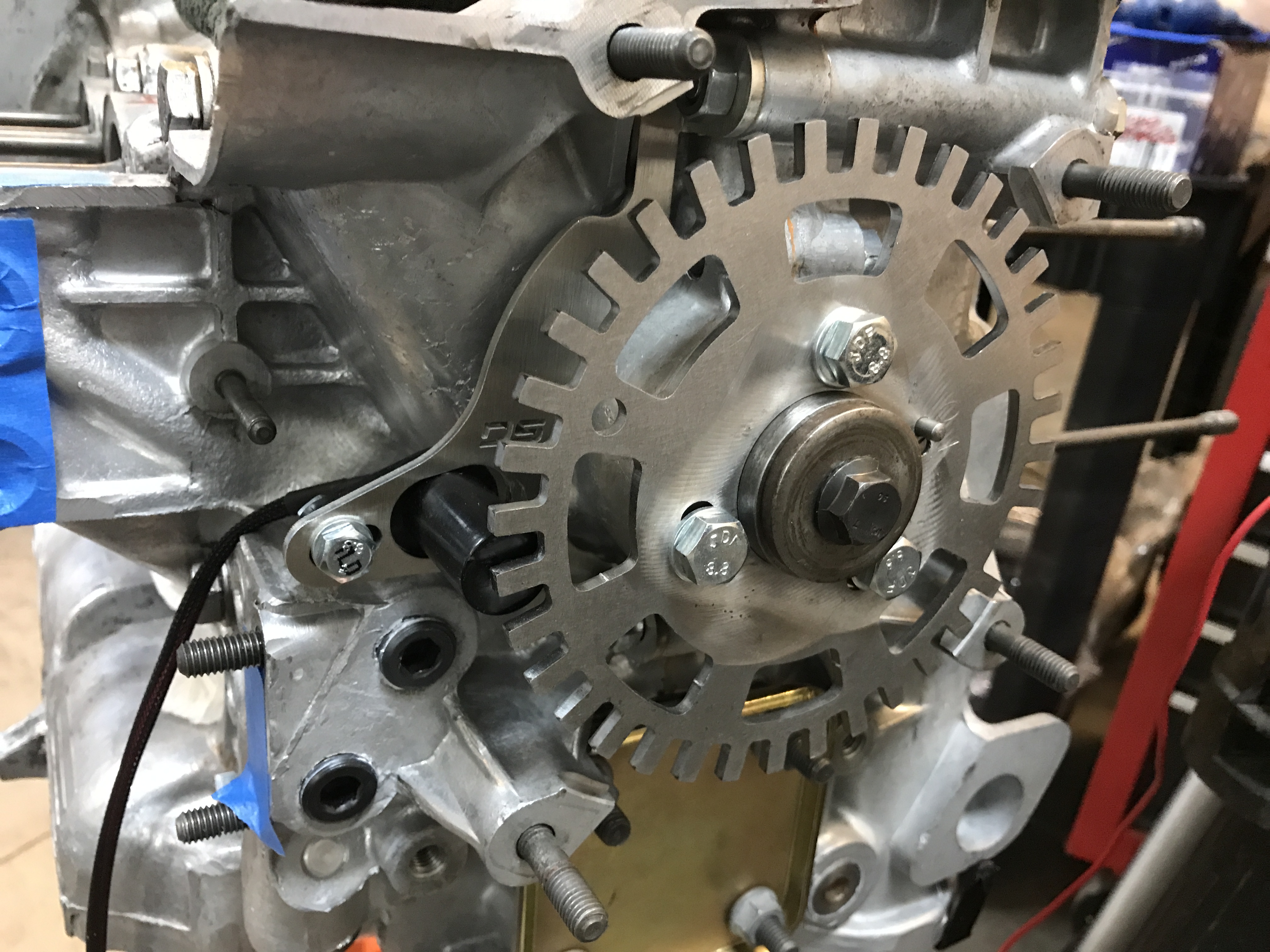

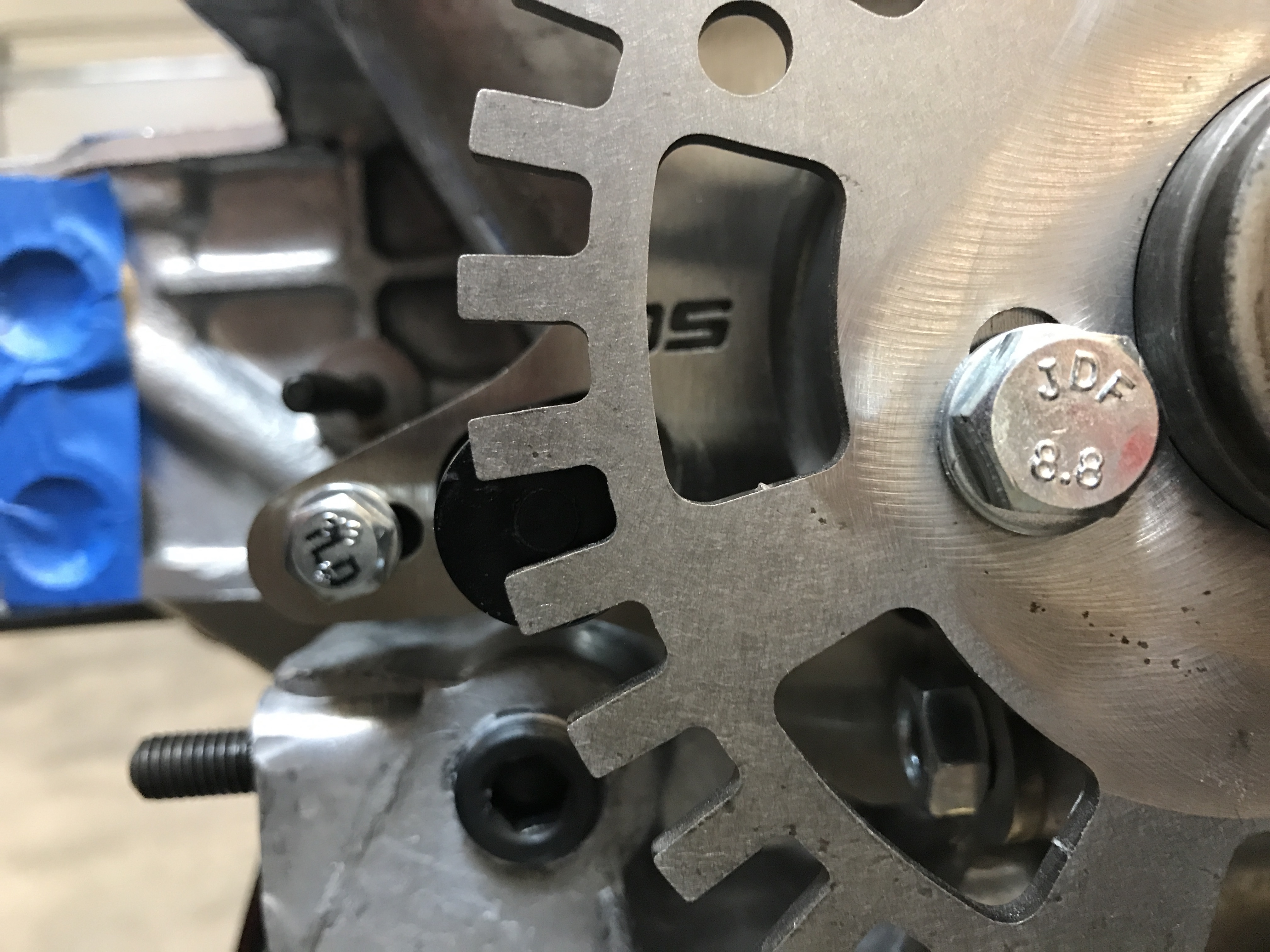

With the wheel temporarily bolted to the fan hub, its all ready for initial testing.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 07:48 PM
Post #3702


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

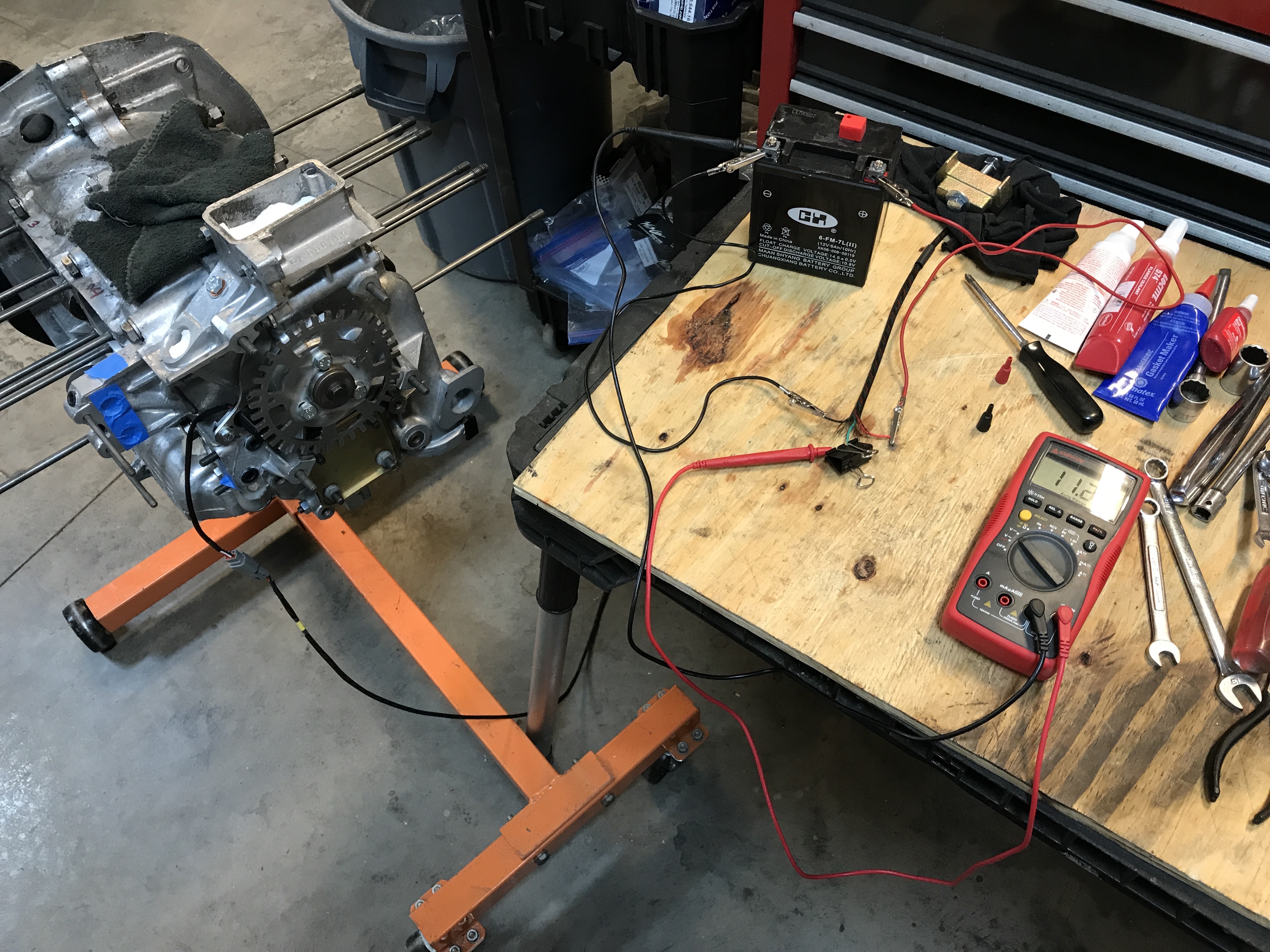

Here's the setup for testing the signal, with 12 V to the sensor, and then a voltmeter across the sensor output lead.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 07:50 PM
Post #3703


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

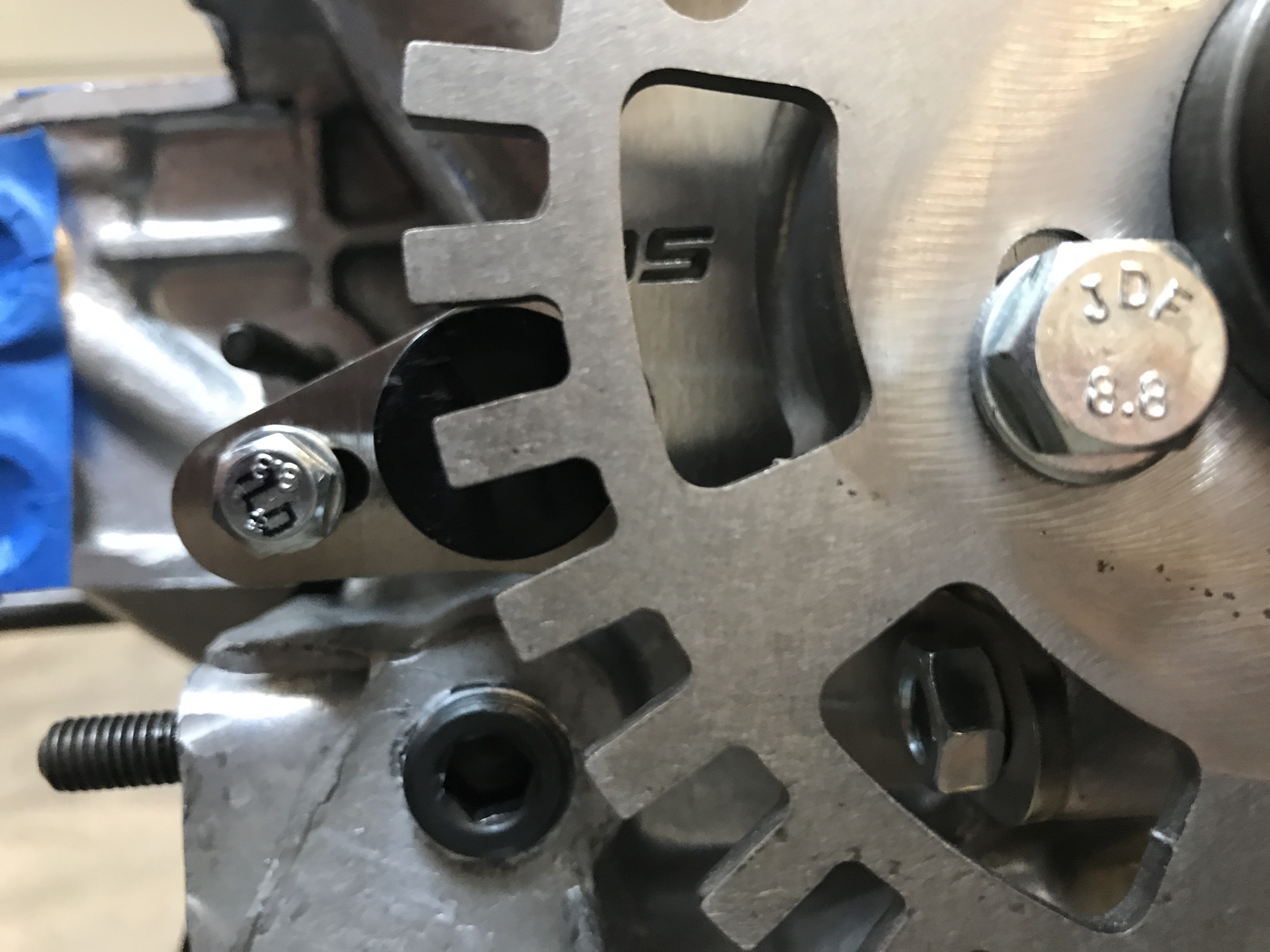

Tooth over the sensor, should be under 0.25 V.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 07:50 PM
Post #3704


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Check.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 07:51 PM
Post #3705


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Gap over the sensor, should be 12 V.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 07:52 PM
Post #3706


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

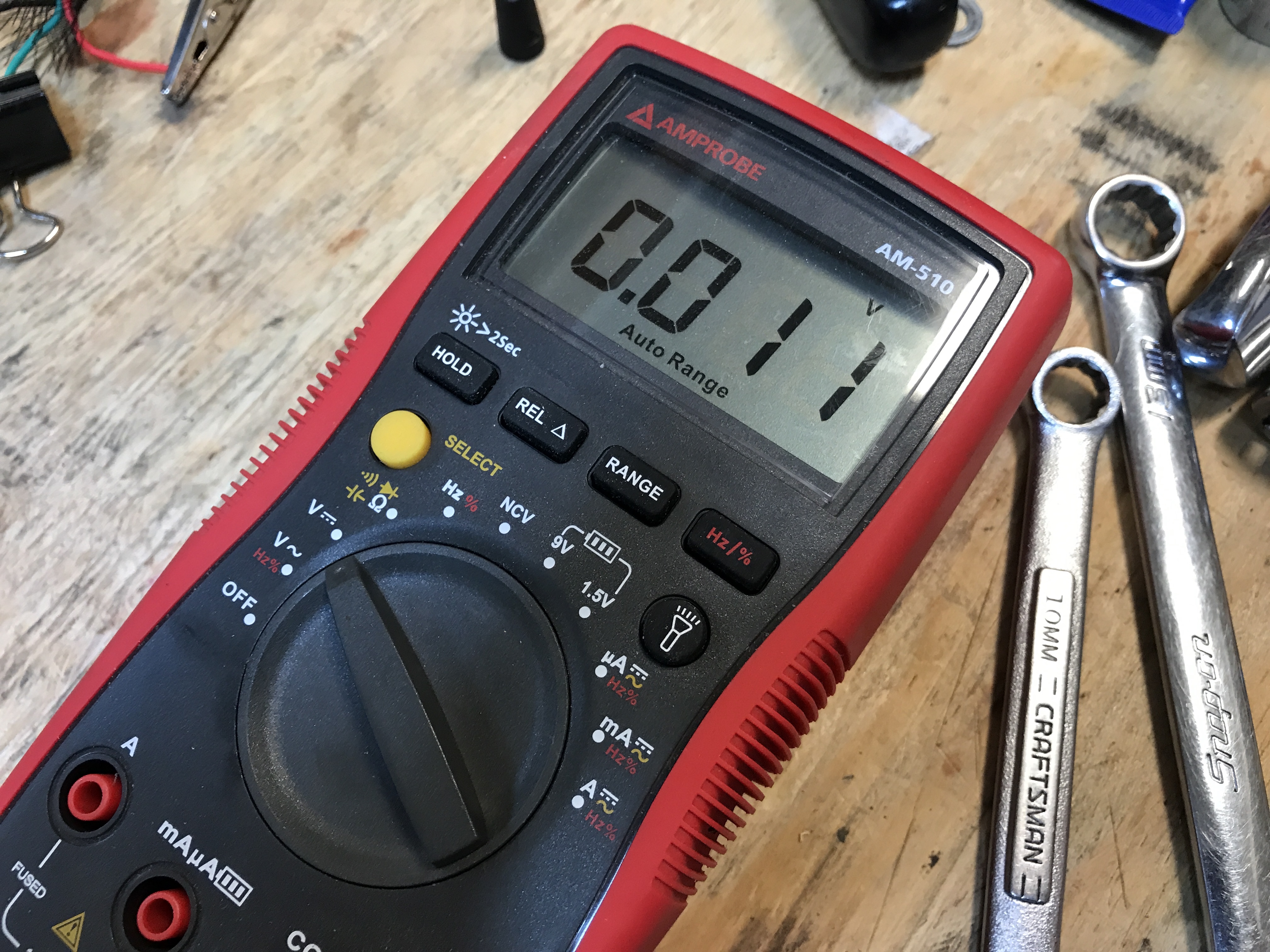

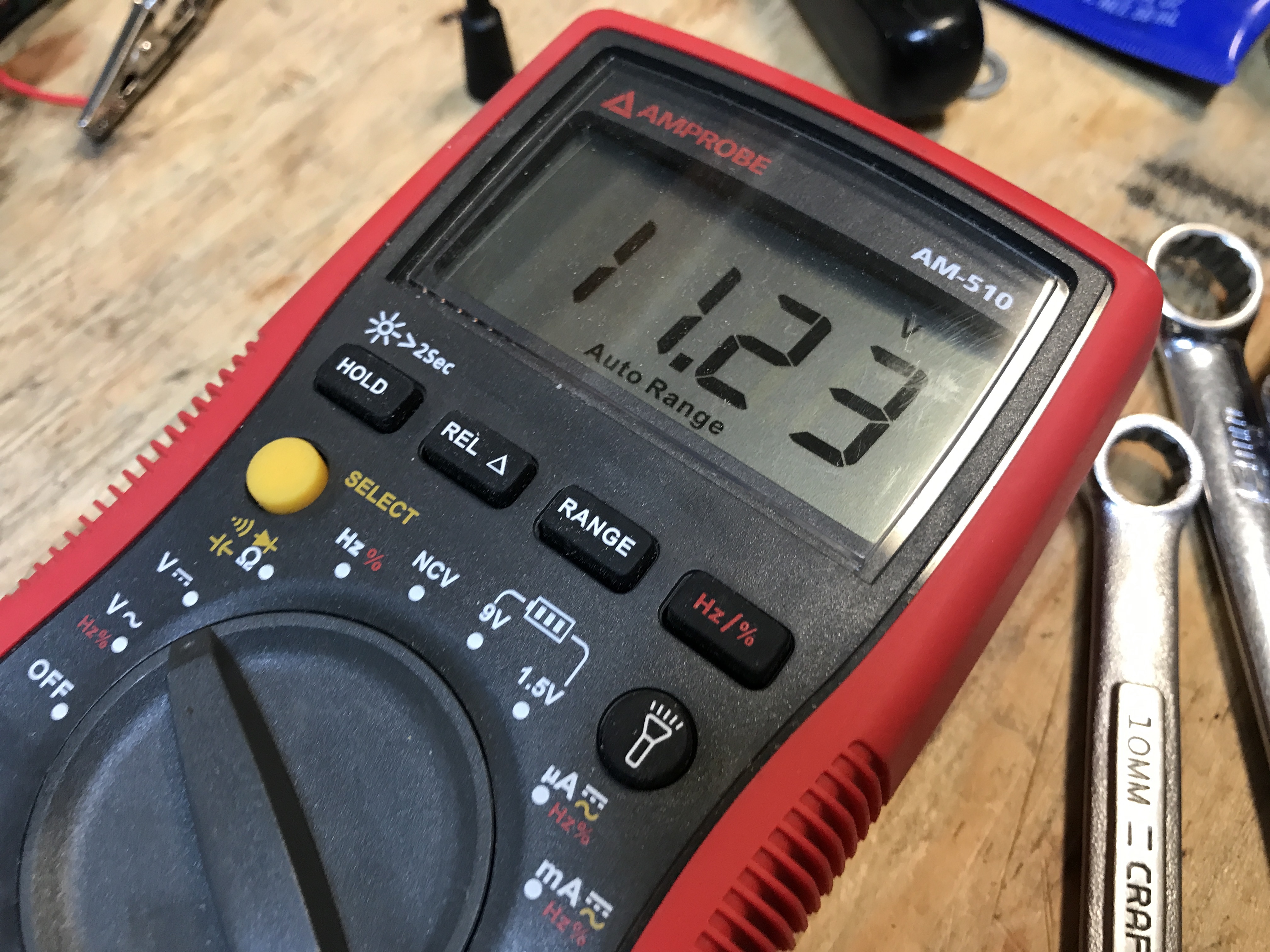

Check (the battery is a bit low).

And I cycled the entire wheel, and got consistent output.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 07:53 PM
Post #3707


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

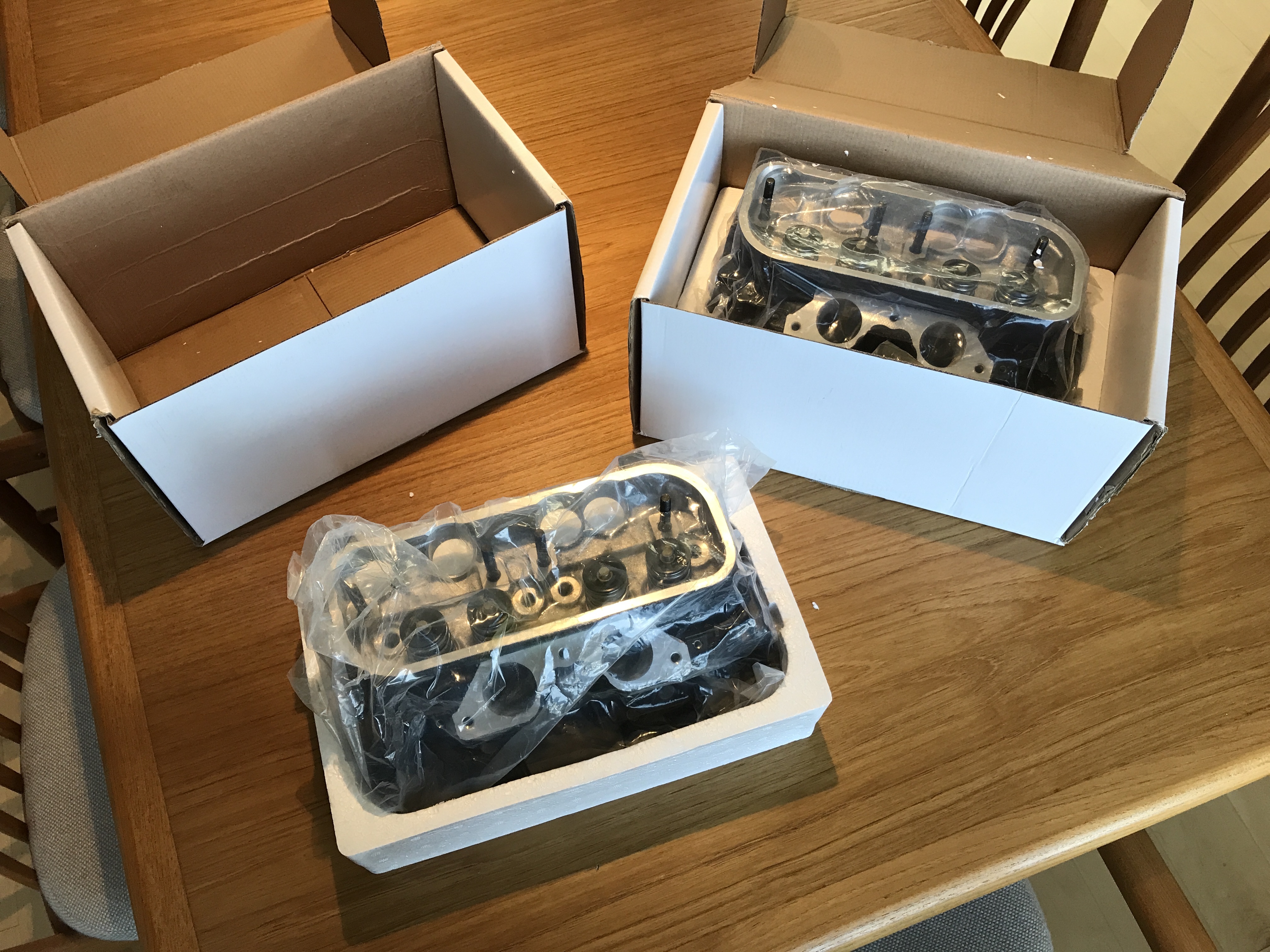

Let night, UPS brought my new Hoffman heads, by way of LN Engineering.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 07:54 PM
Post #3708


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

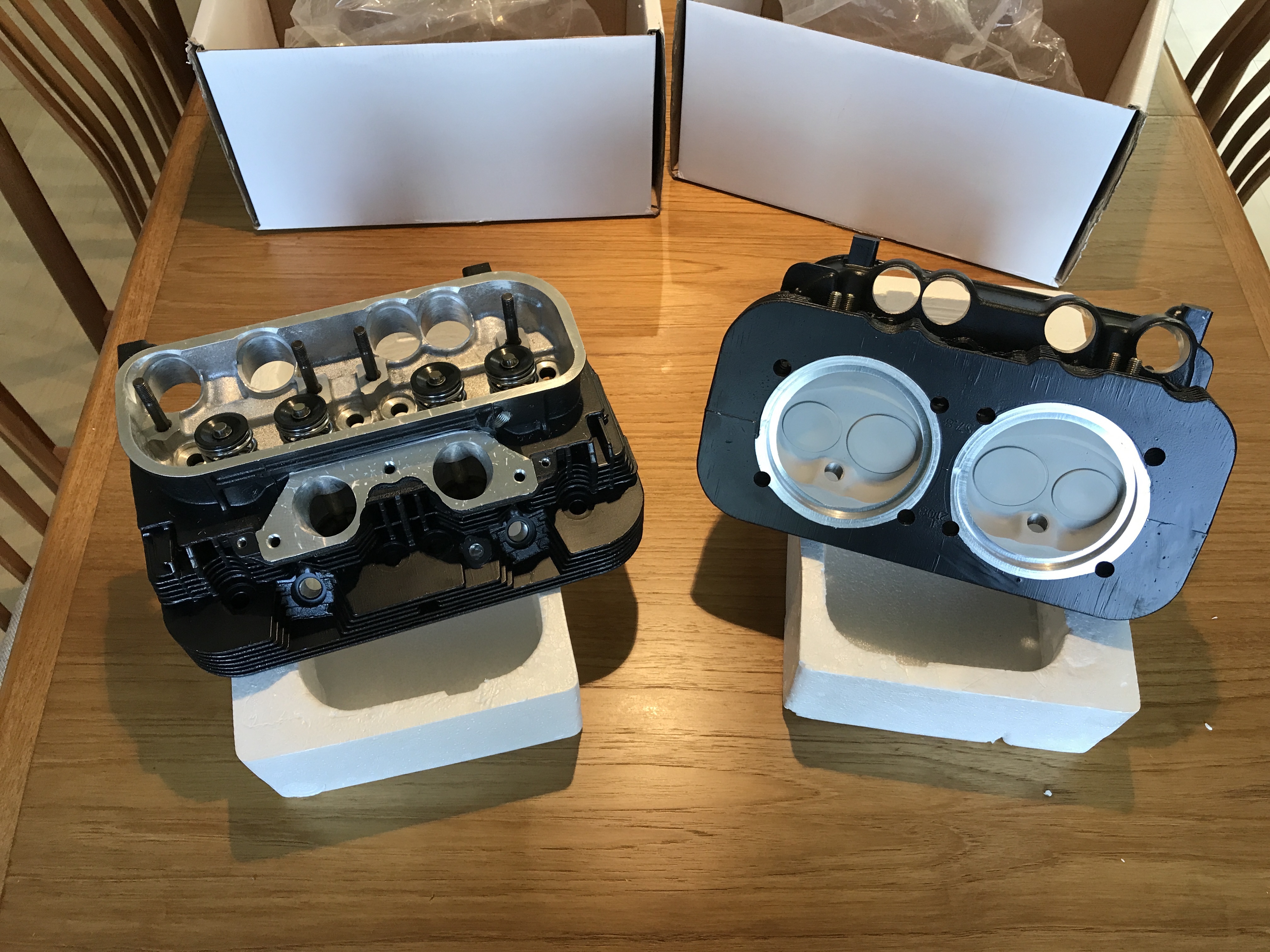

Very sexy, right?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 07:56 PM
Post #3709


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

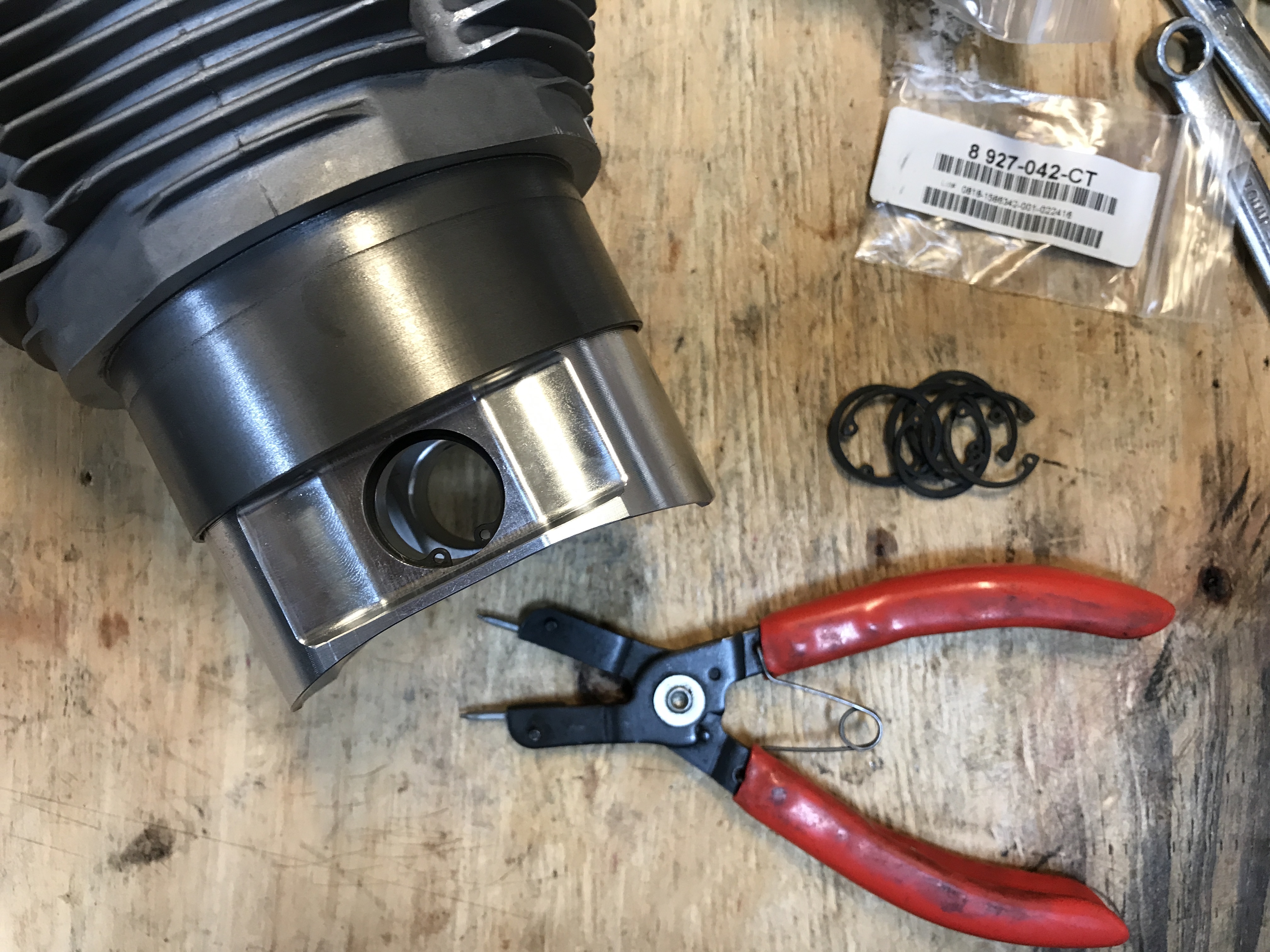

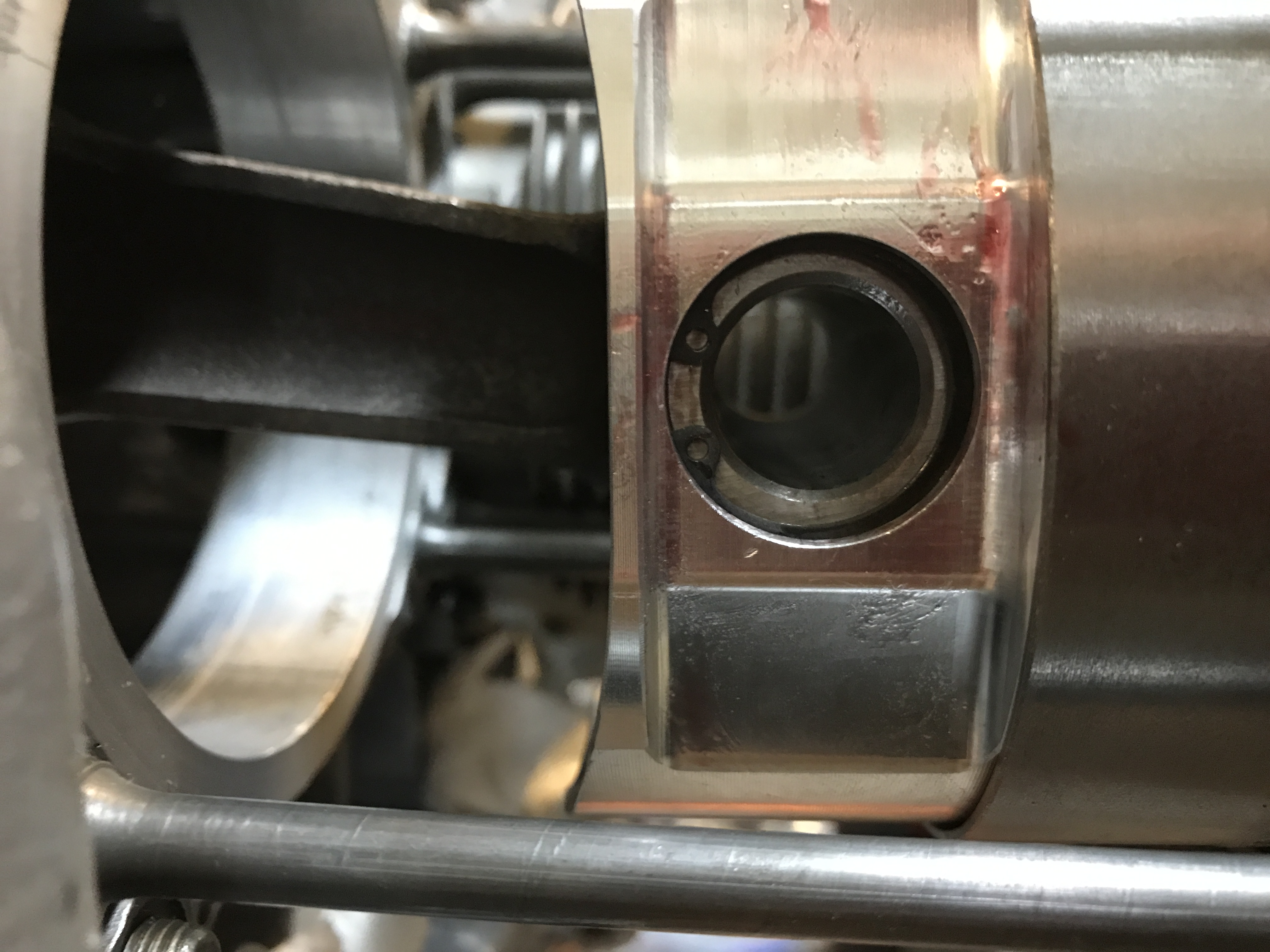

I was going to wait until Saturday, but could not resist. I checked all the fits, and rechecked the deck height, and then started putting the P&C on for real. That includes piston pin retaining clips. First one on the bench is easy.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 07:57 PM
Post #3710


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Second one is a bit harder.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 07:59 PM
Post #3711


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

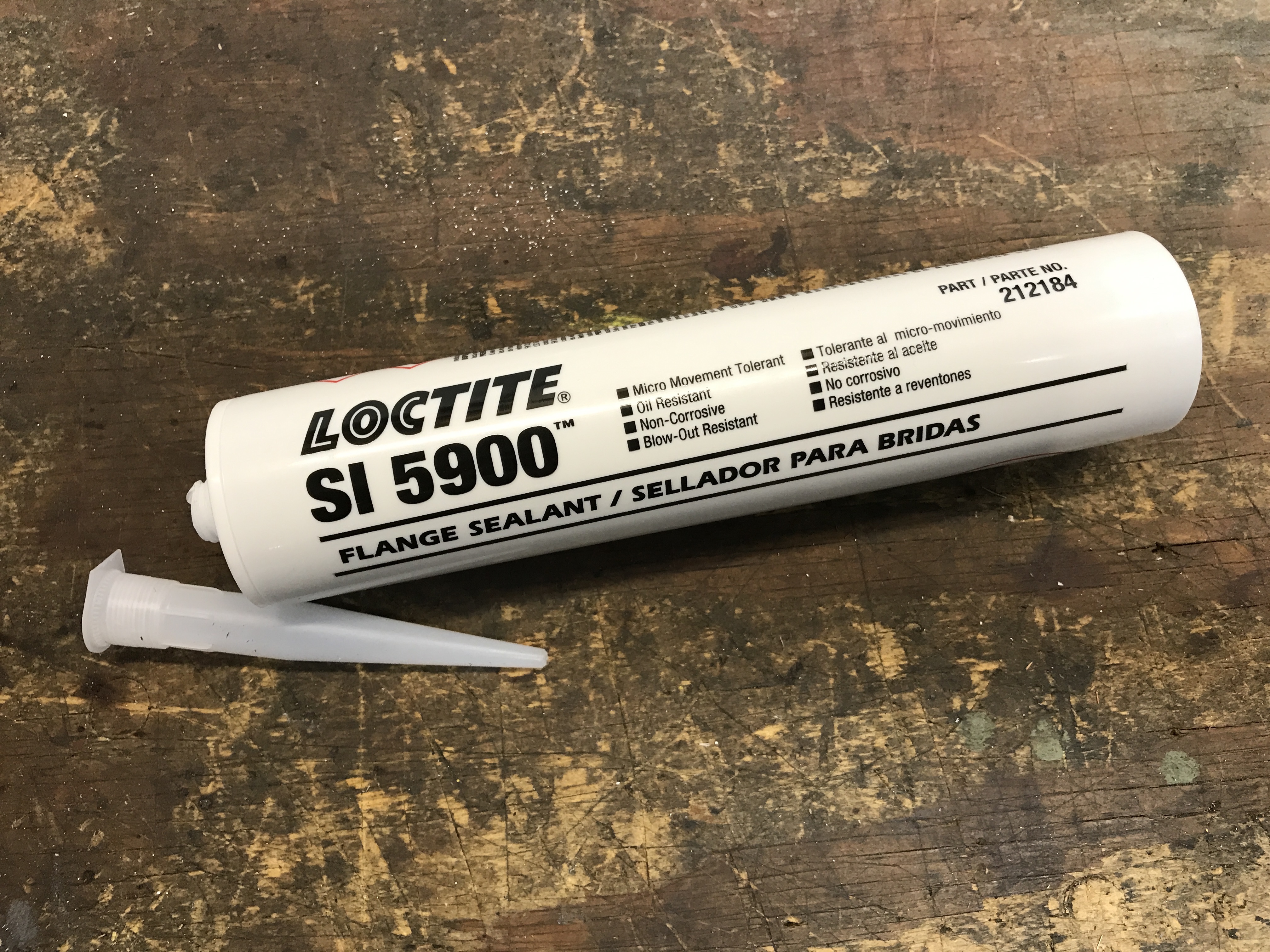

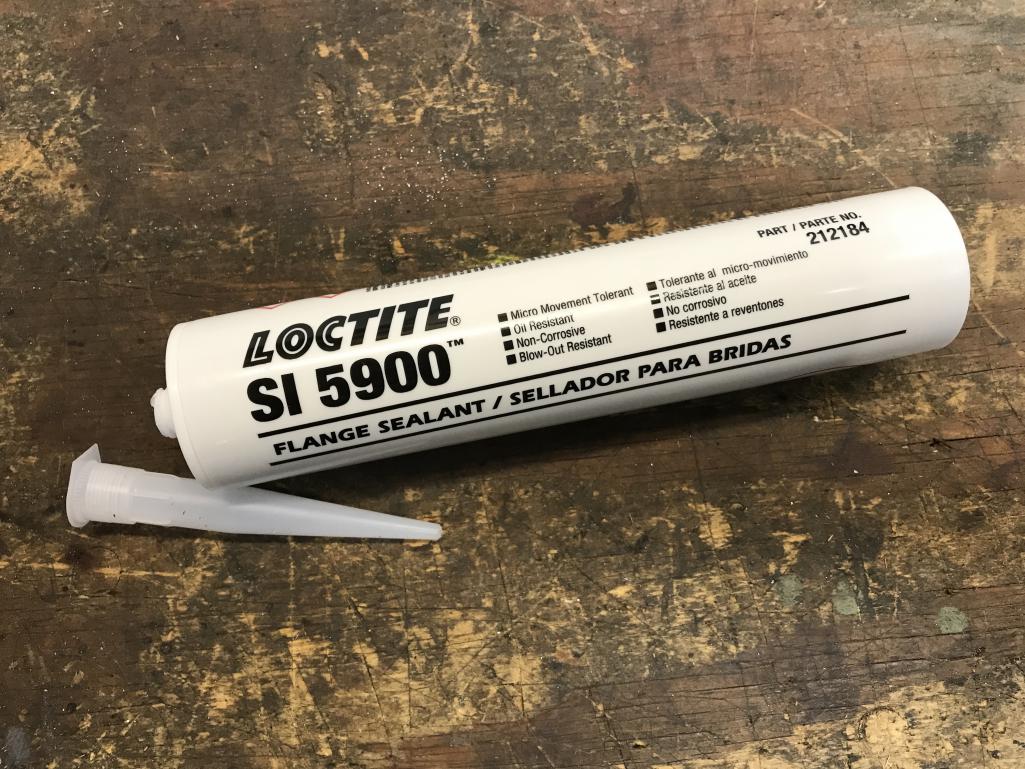

For mounting the cylinders, I used a thin smear of 5900 at the base.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 08:00 PM
Post #3712


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

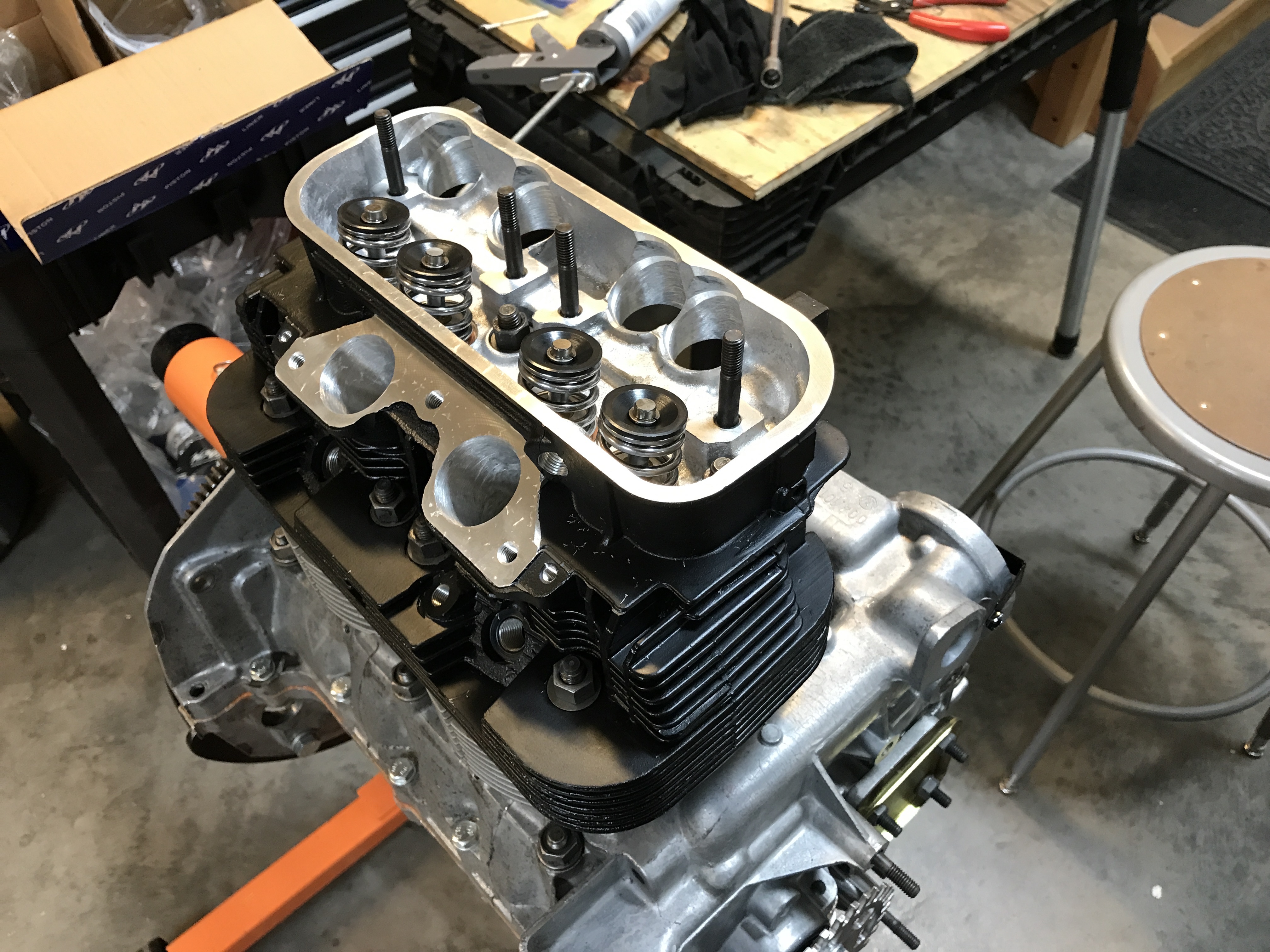

Left head mounted and torqued.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 16 2021, 08:01 PM
Post #3713


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

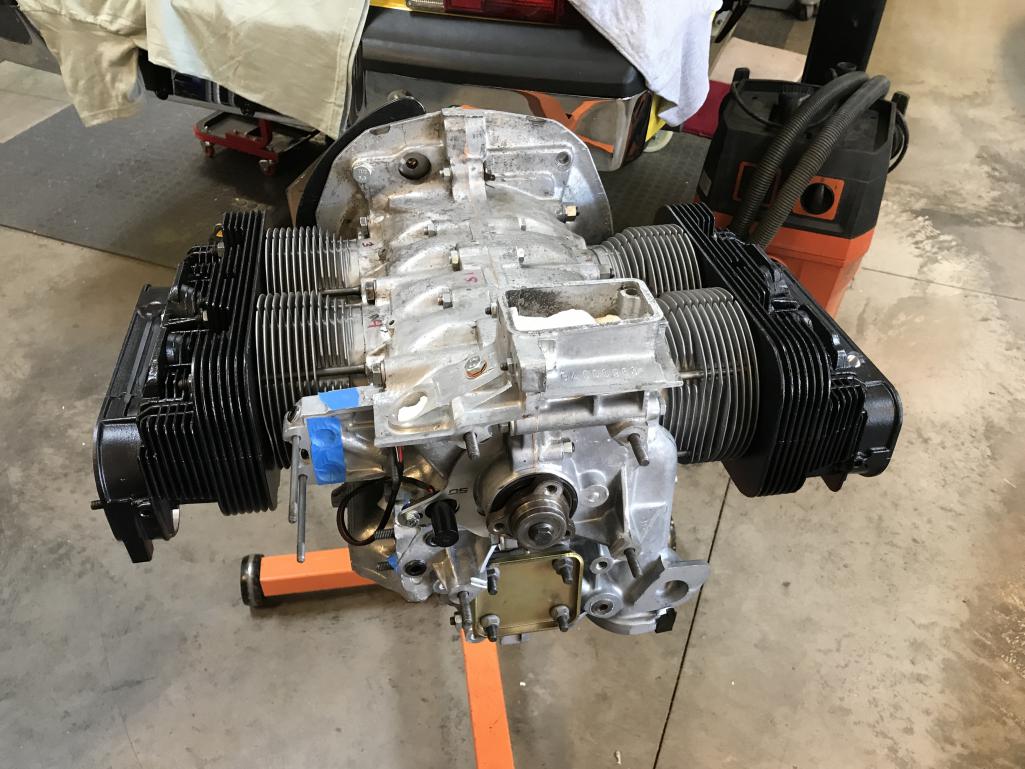

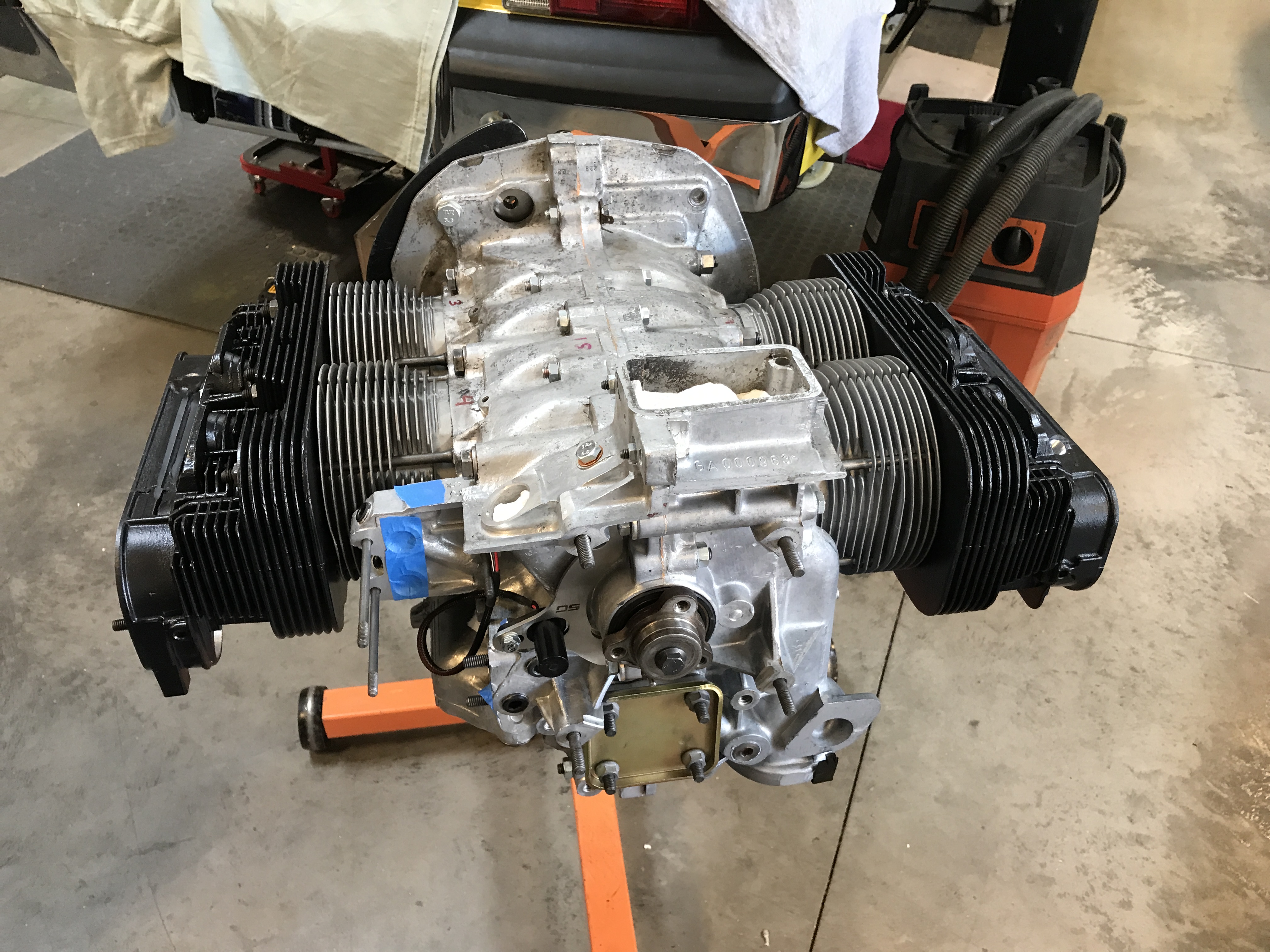

More engine!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Sep 17 2021, 06:47 AM
Post #3714


Dr. Phil
*****

Group: Members
Posts: 5,758
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
(IMG:style_emoticons/default/piratenanner.gif) looking good! are you doing 96's with those heads? (are those HAM1 heads)
good stuff for sure, i was on the list to get some on his next batch, but he kind of dropped the ball on me and i had to go a different direction. Just got my motor in the car this weekend, good luck to ya ! what is your break in proceedure for cam and bearning break in?

Phil
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 17 2021, 07:36 PM
Post #3715


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
RS+ heads, from LN.

Not sure about break in, I am still thinking about assembly!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 17 2021, 07:43 PM
Post #3716


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

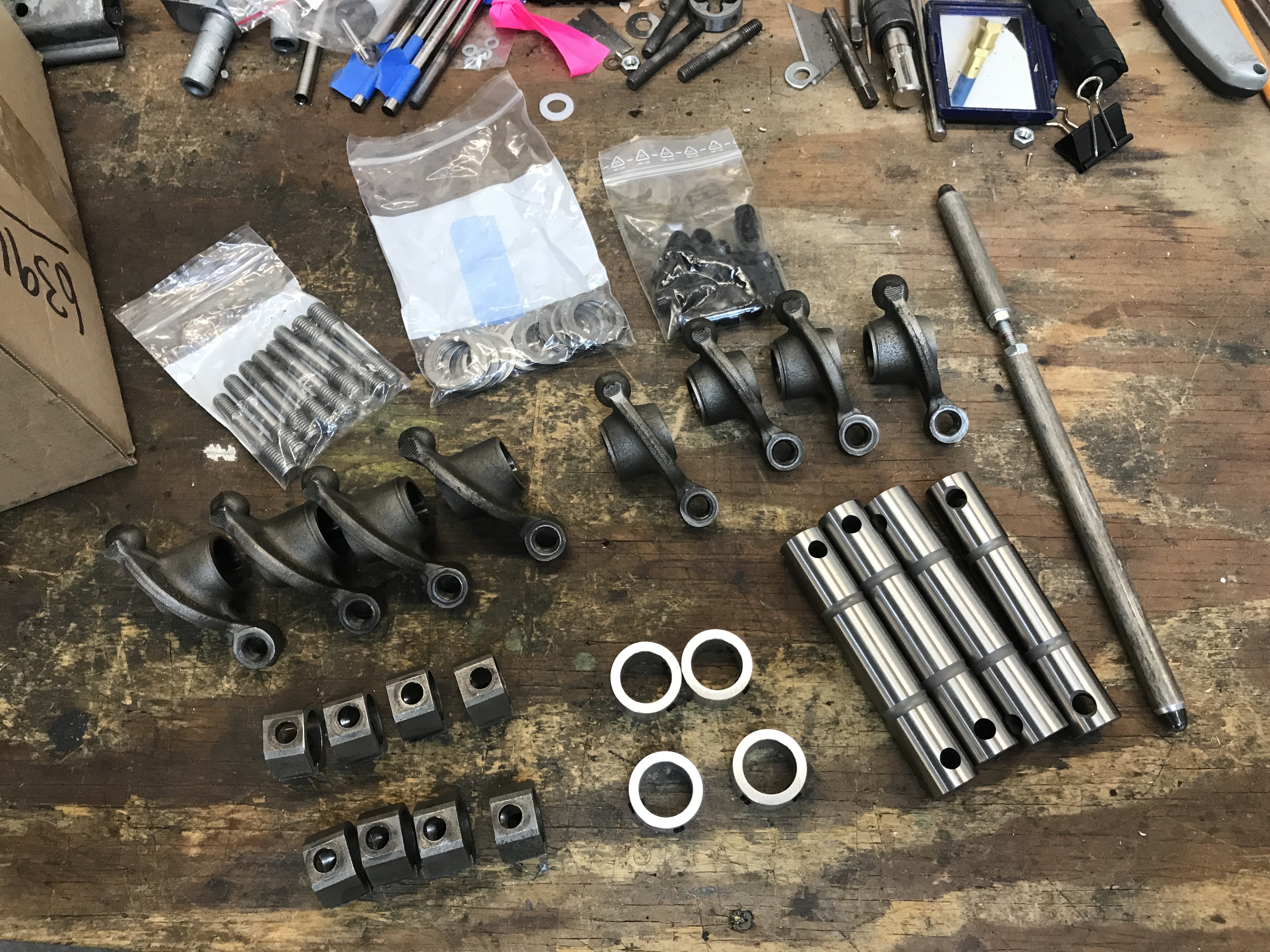

I got started on the rocker arms today. Here is the kit from Tabari Andrade, who modified my rockers and shaft supports, and supplied new swivel adjusters, shafts, and shims.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 17 2021, 07:44 PM
Post #3717


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

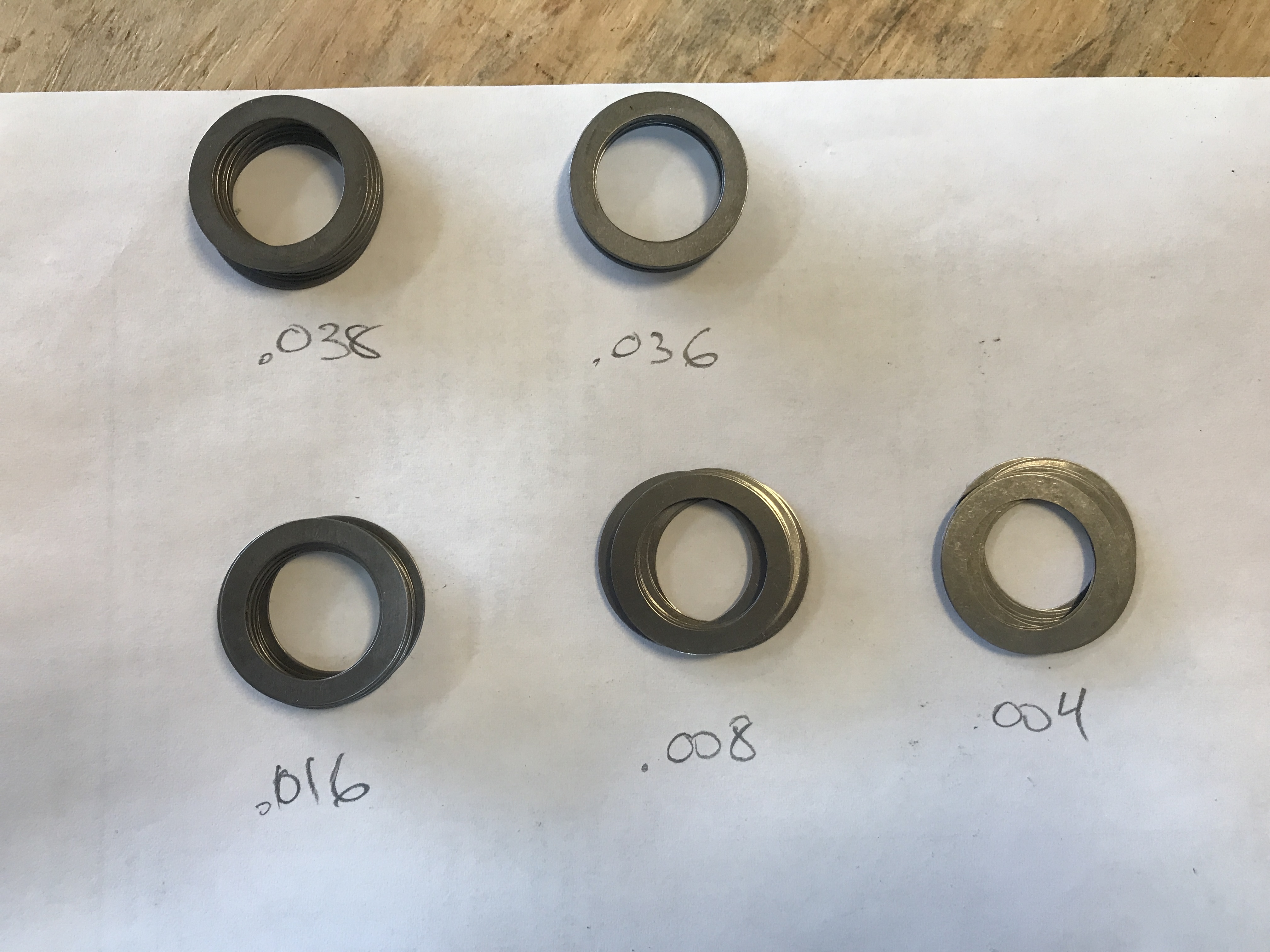

That includes several shims in various sizes.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 17 2021, 07:45 PM
Post #3718


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

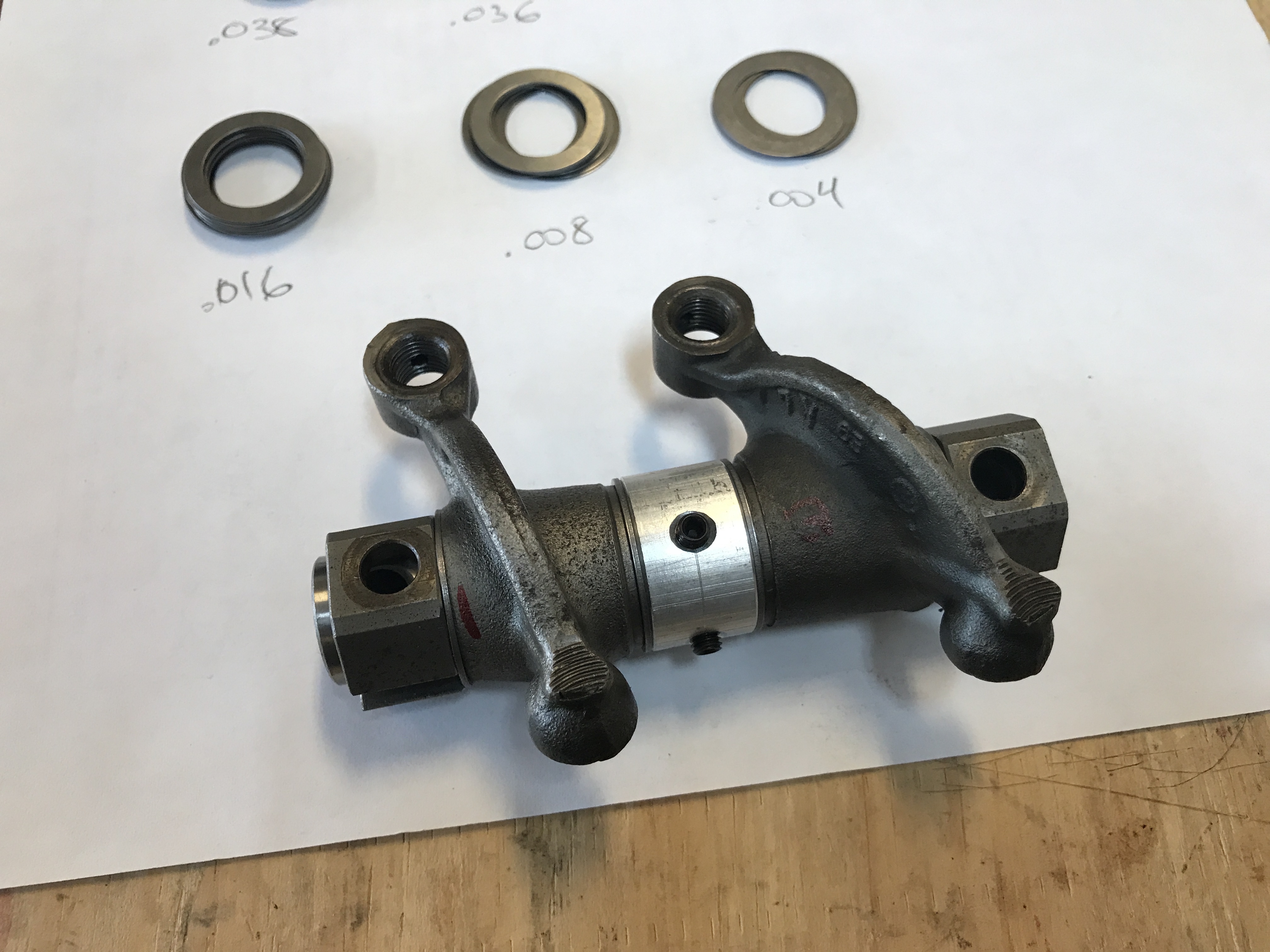

Here is the first mock-up for cylinder #1, following the rule of having a thick shim to the right of each rocker.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 17 2021, 07:46 PM
Post #3719


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

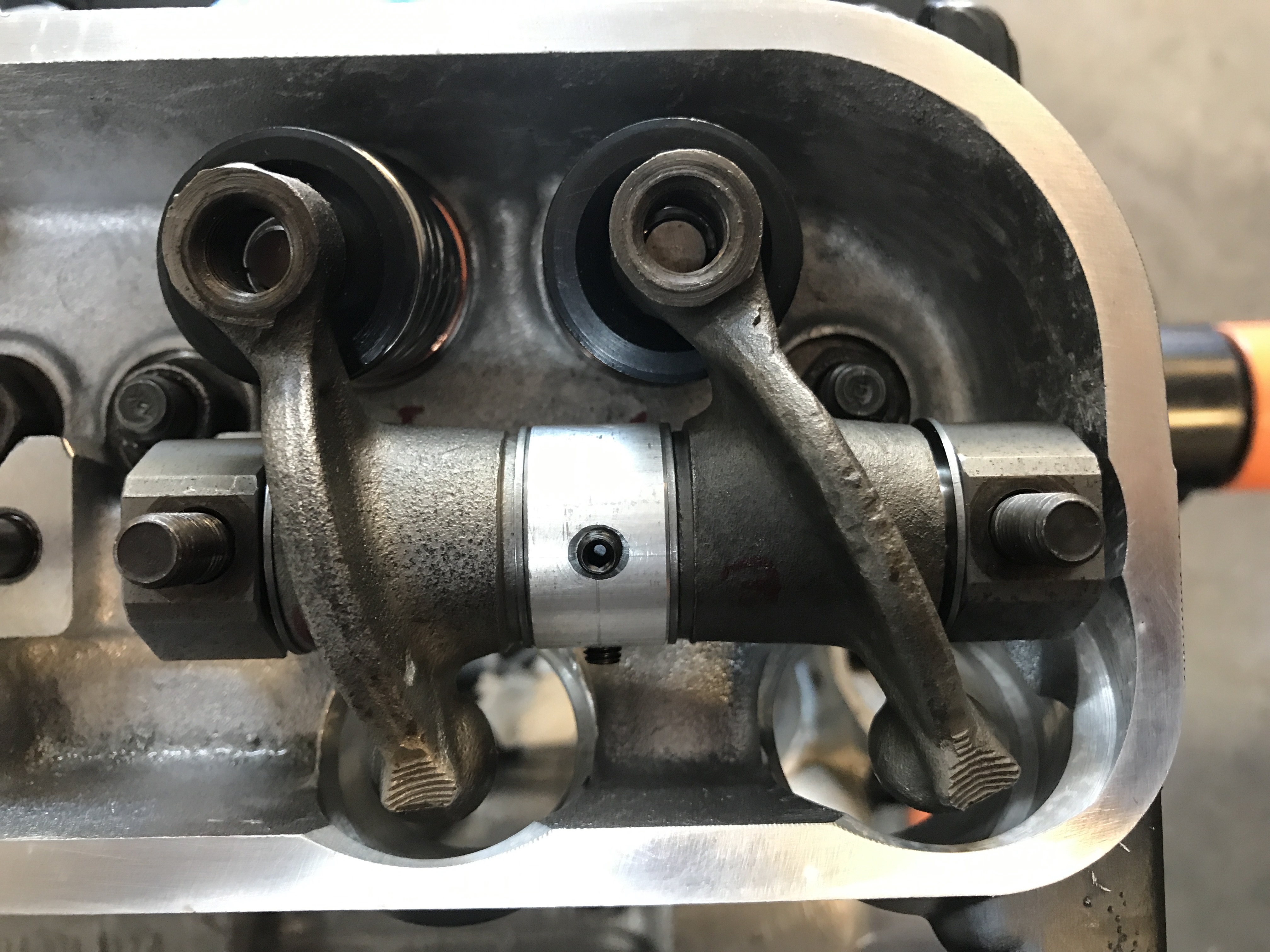

First test fit. My goal was to align each rocker just to the right of each valve stem center.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 17 2021, 07:47 PM
Post #3720


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

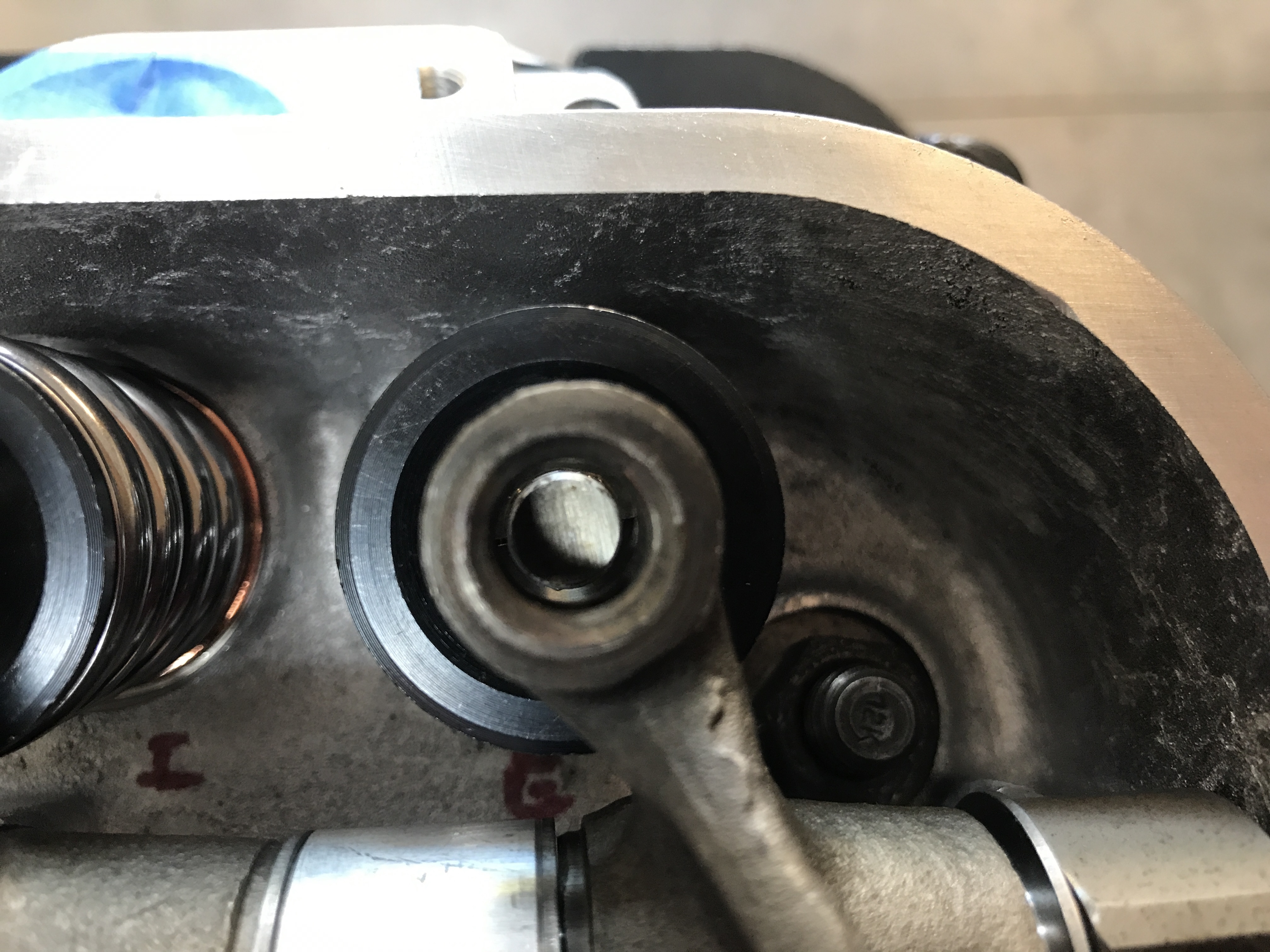

It may not look it, but the hole for the adjuster is offset a bit to the right.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
