> Rebuiding Inside-out
bkrantz
post Sep 17 2021, 07:48 PM
Post #3721


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

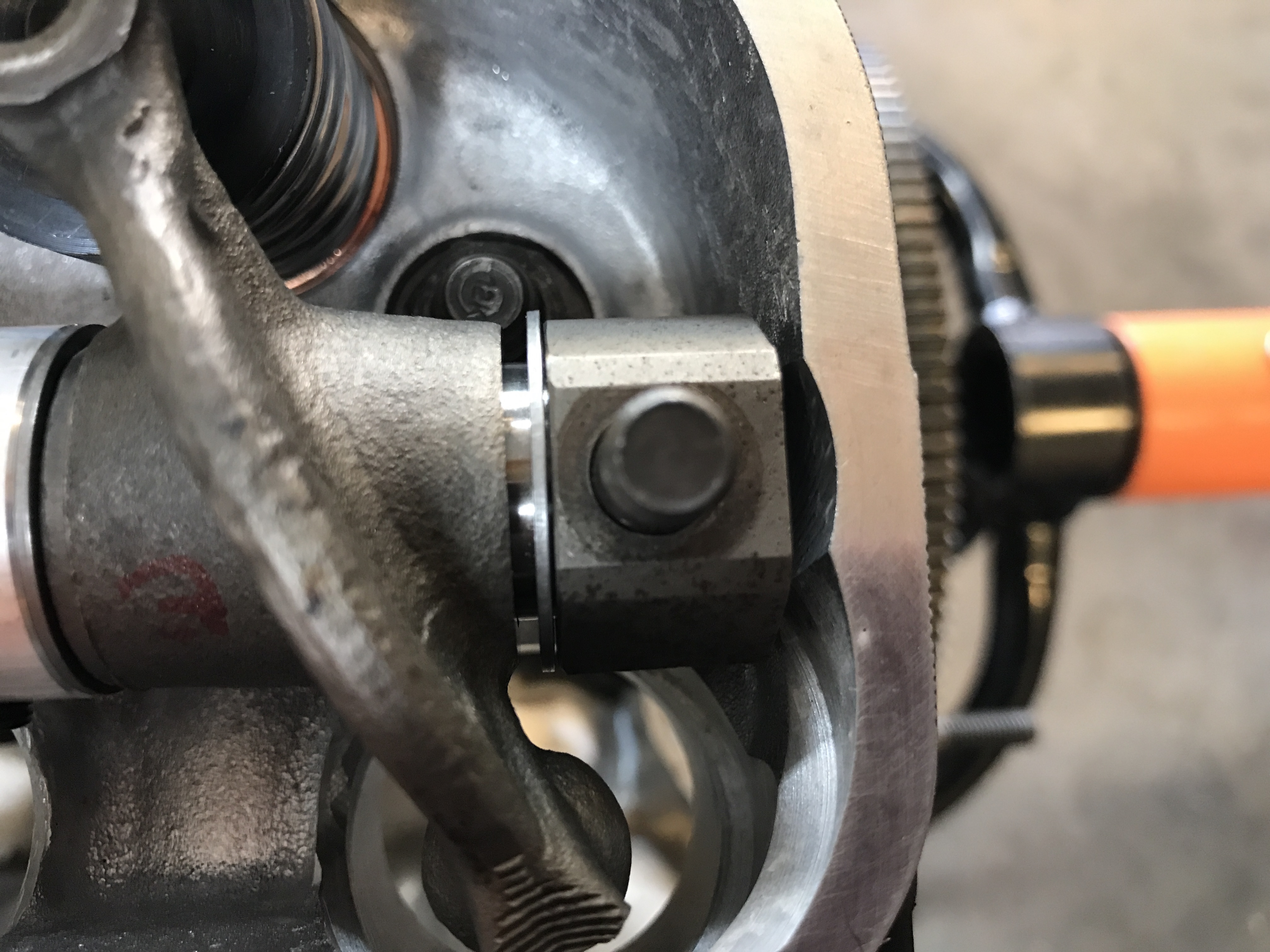

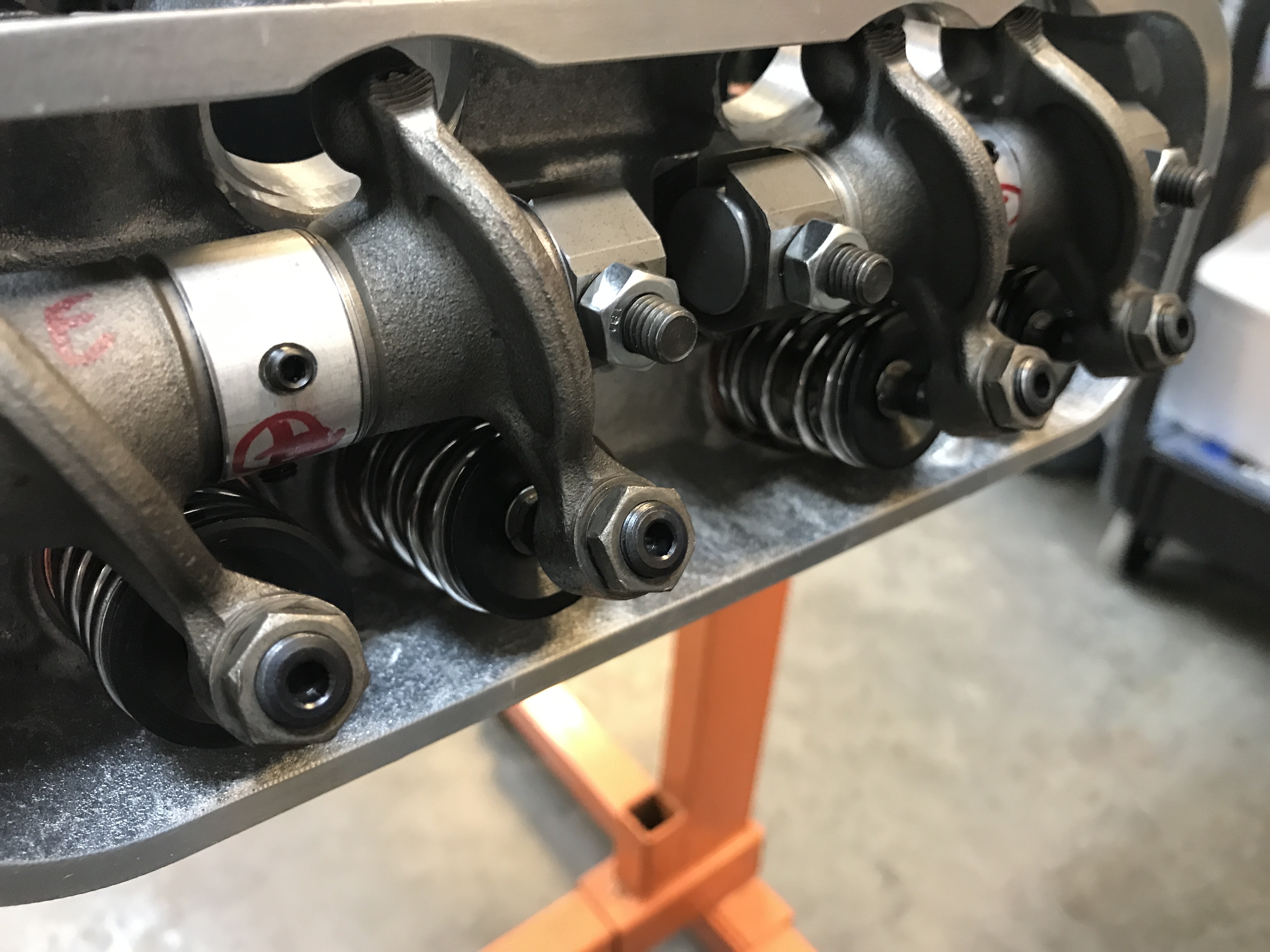

Here is the initial gap. I iterated on filling the gap with shims and maintaining the slight offset of the rocker.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 17 2021, 07:49 PM
Post #3722


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

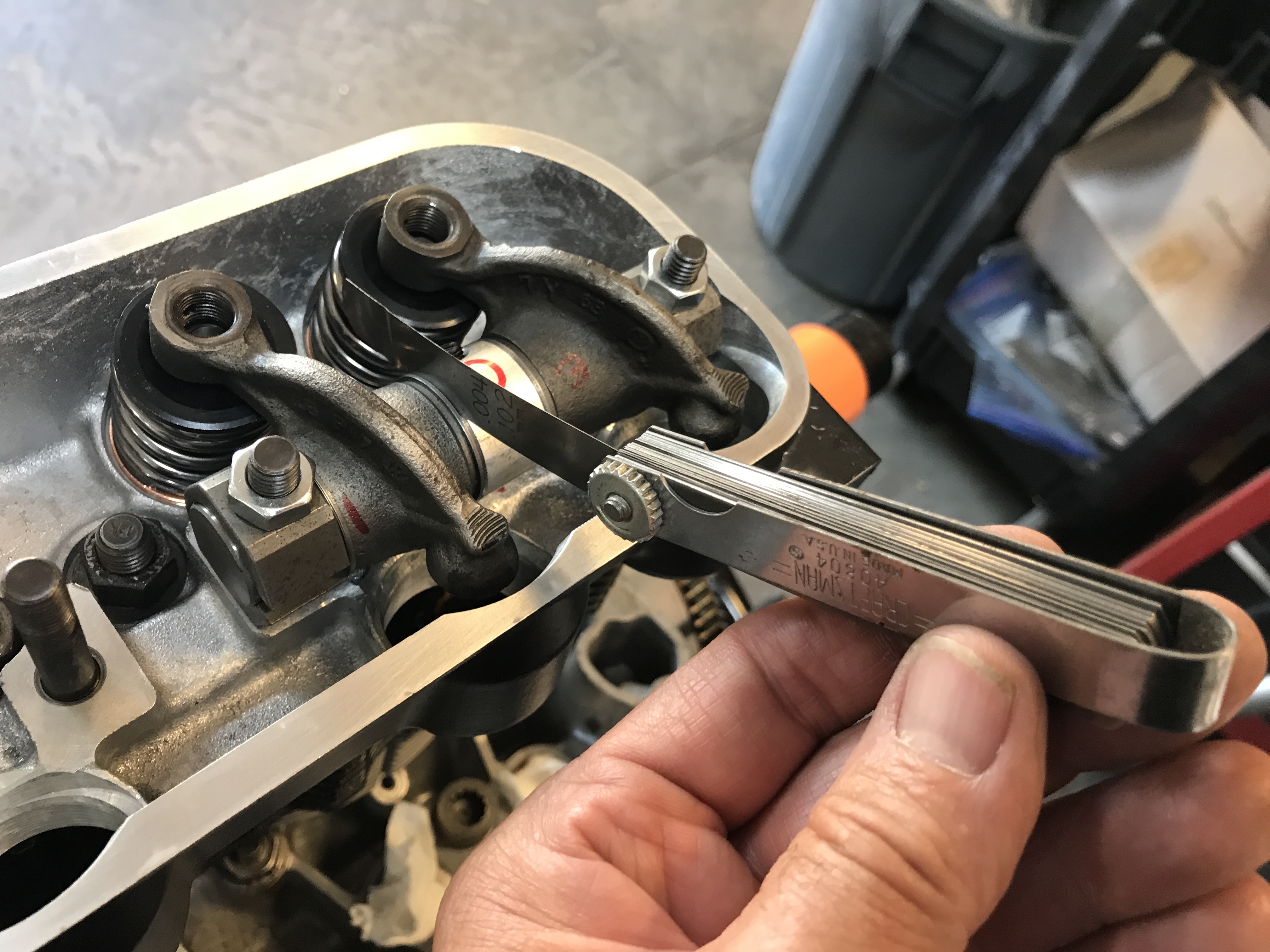

Besides the offset rocker alignment, I aimed for .004" freeplay in the entire stack of rockers and shims.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 17 2021, 07:51 PM
Post #3723


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

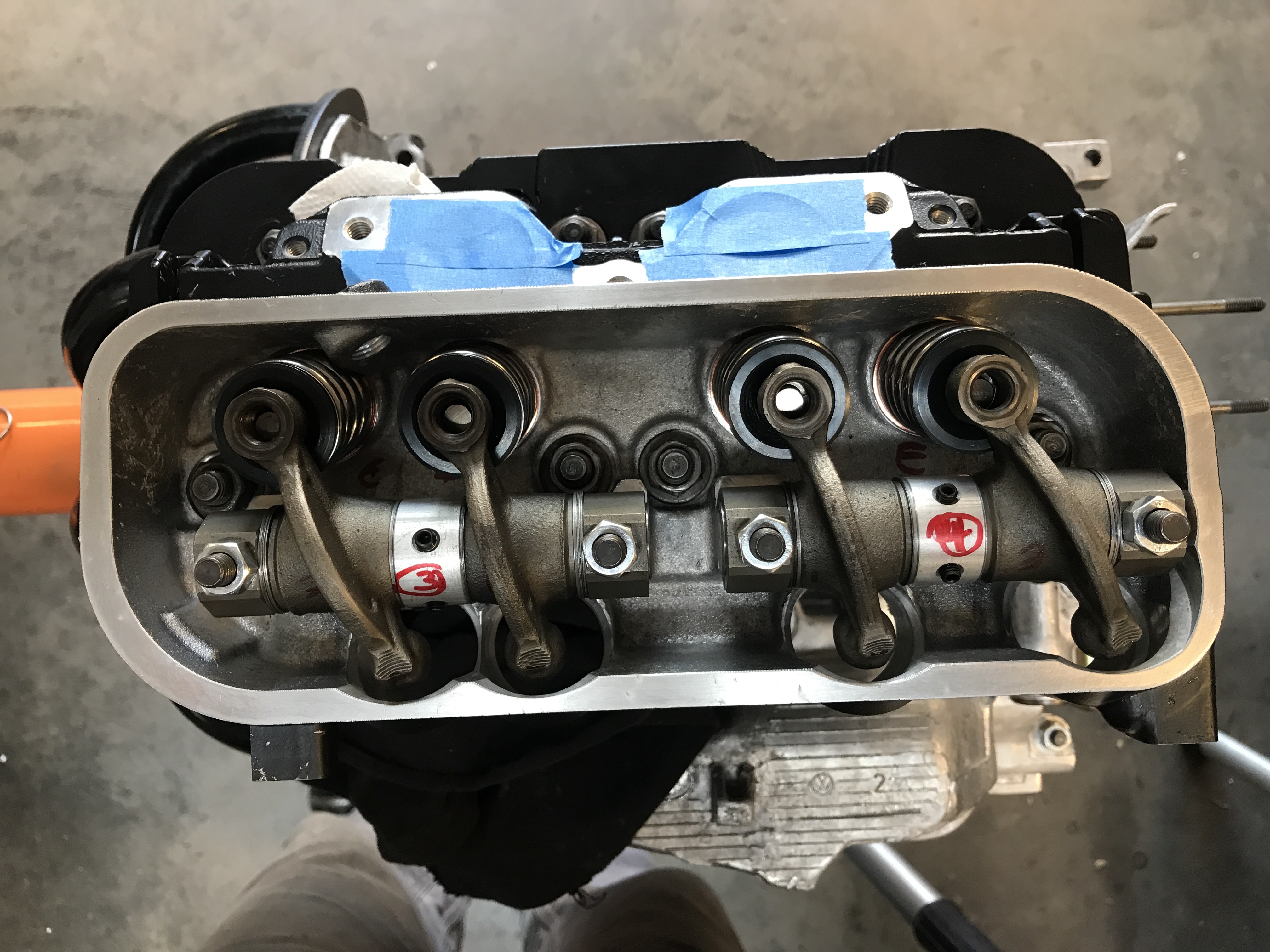

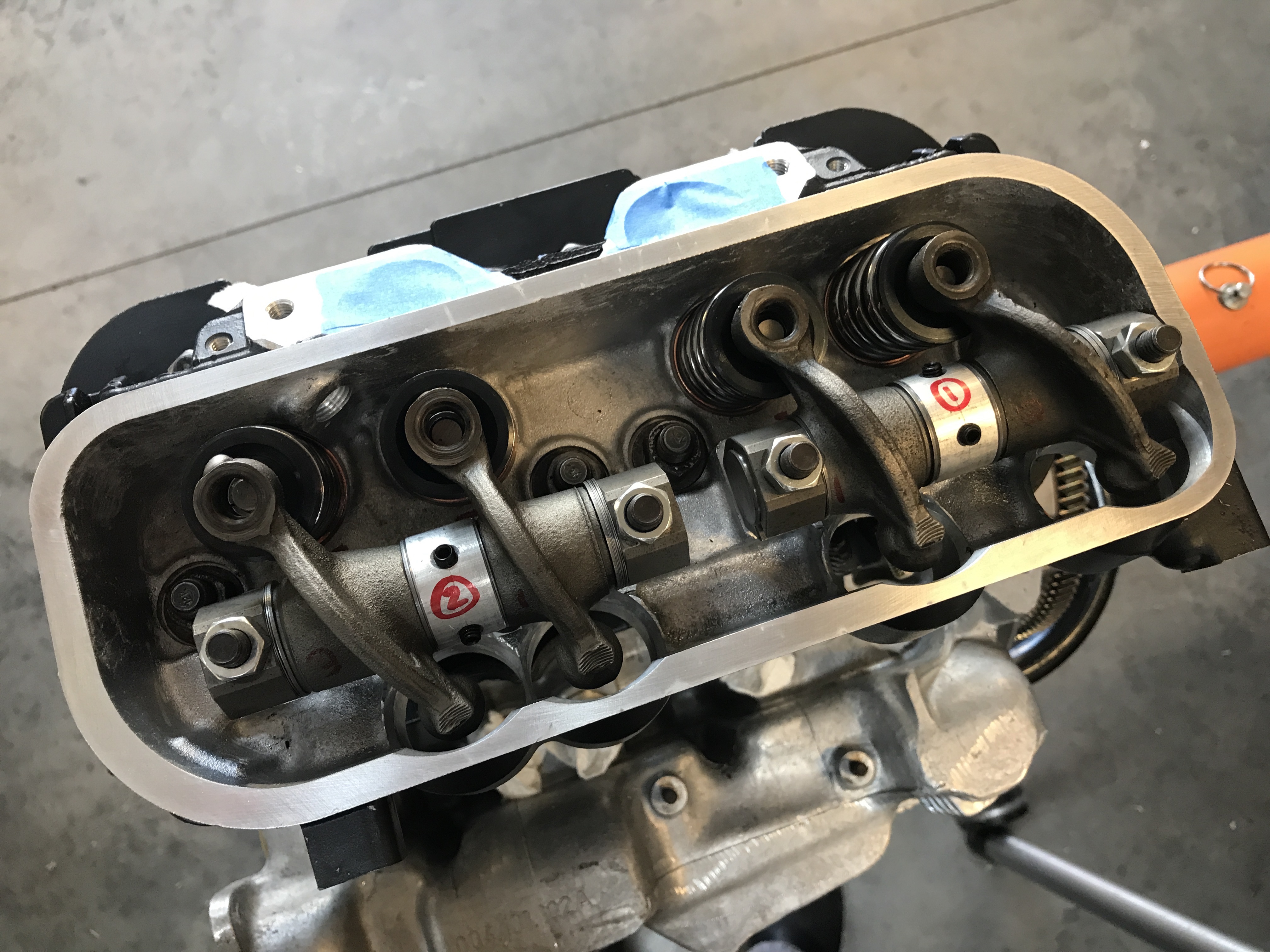

Left side done.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 17 2021, 07:52 PM
Post #3724


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

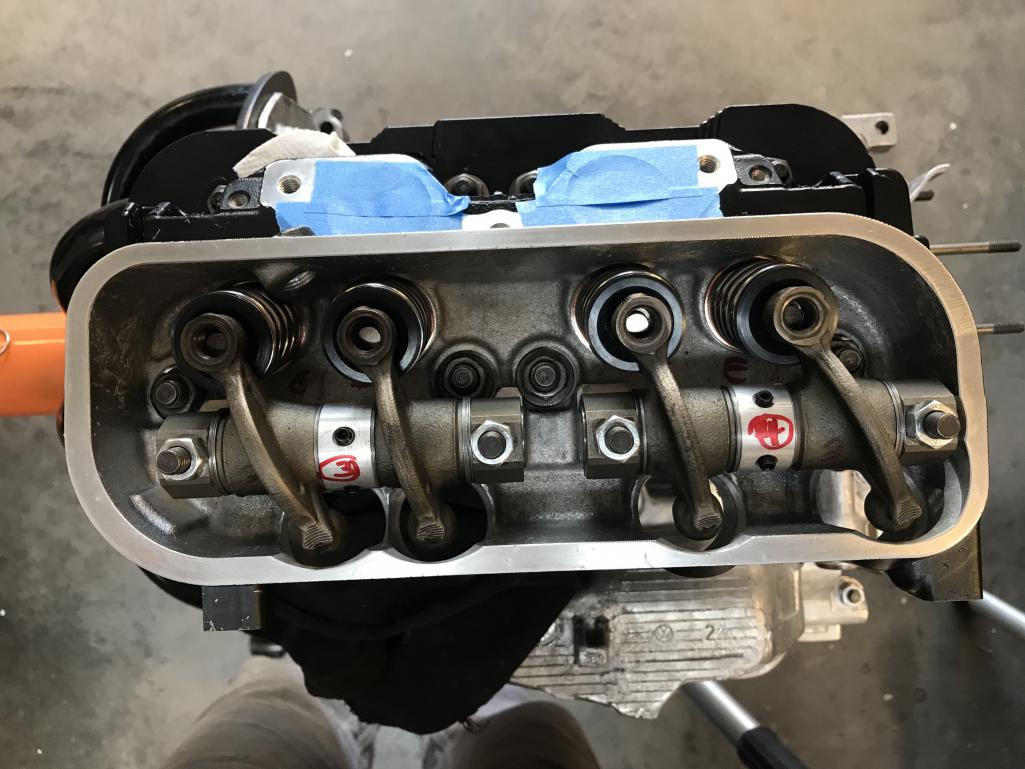

And right side.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 17 2021, 07:53 PM
Post #3725


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

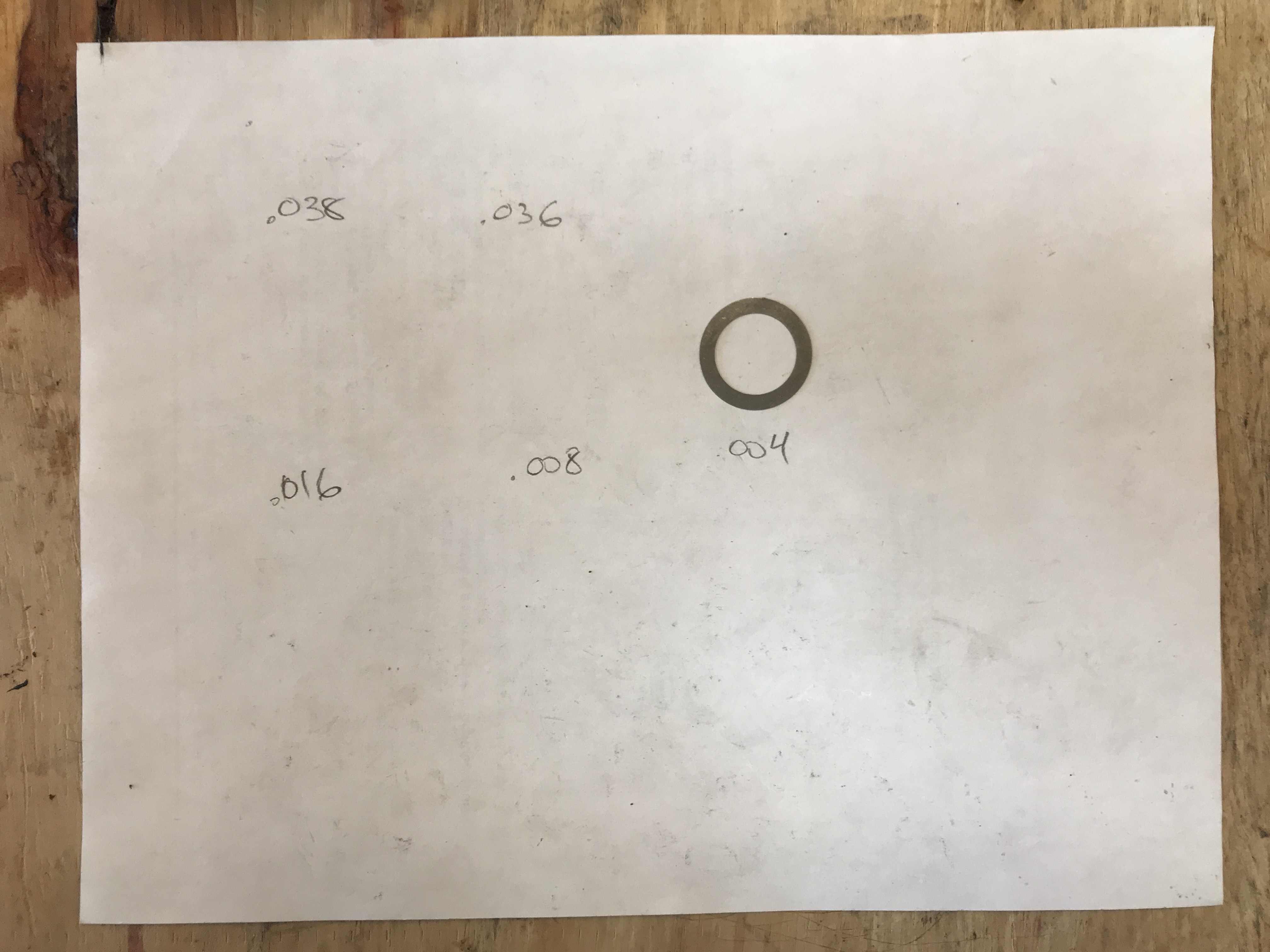

At the end, I used all the new shims except one .004", plus I had to scrounge one of my original rocker shaft shims.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:42 PM
Post #3726


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

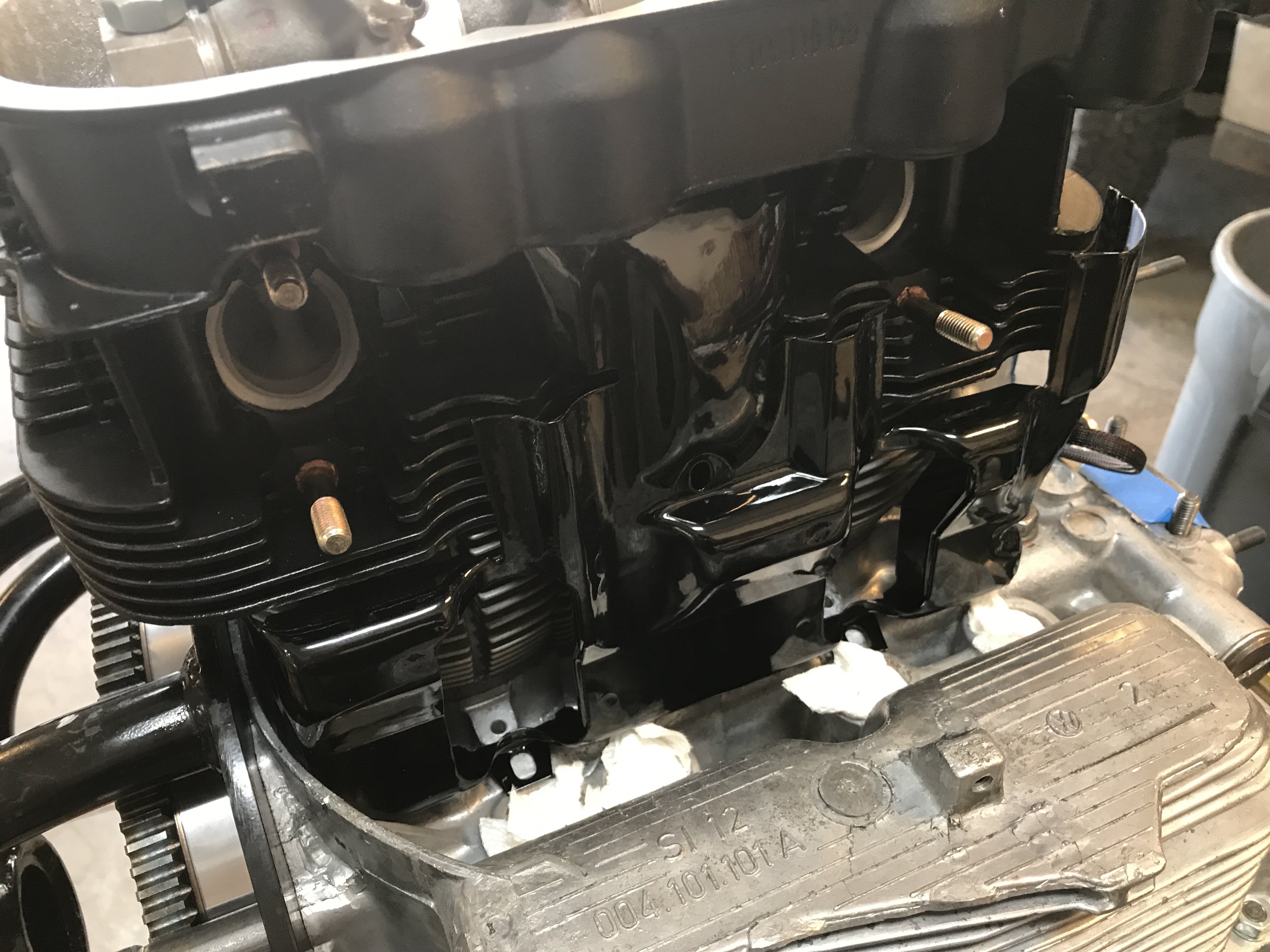

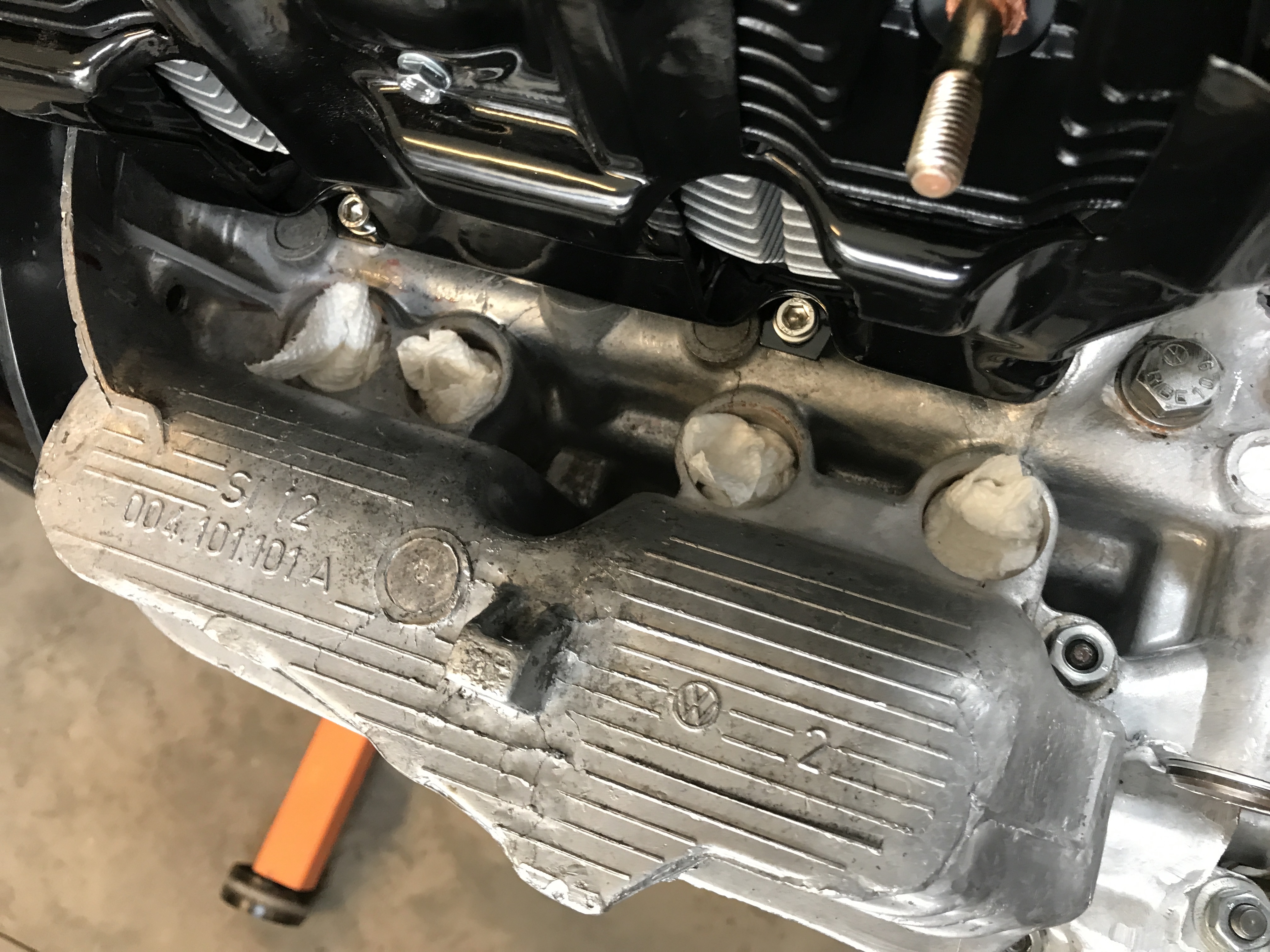

Before going further, I did remember that the sheet metal baffles for under the cylinders need to mount before push rod tubes.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:43 PM
Post #3727


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

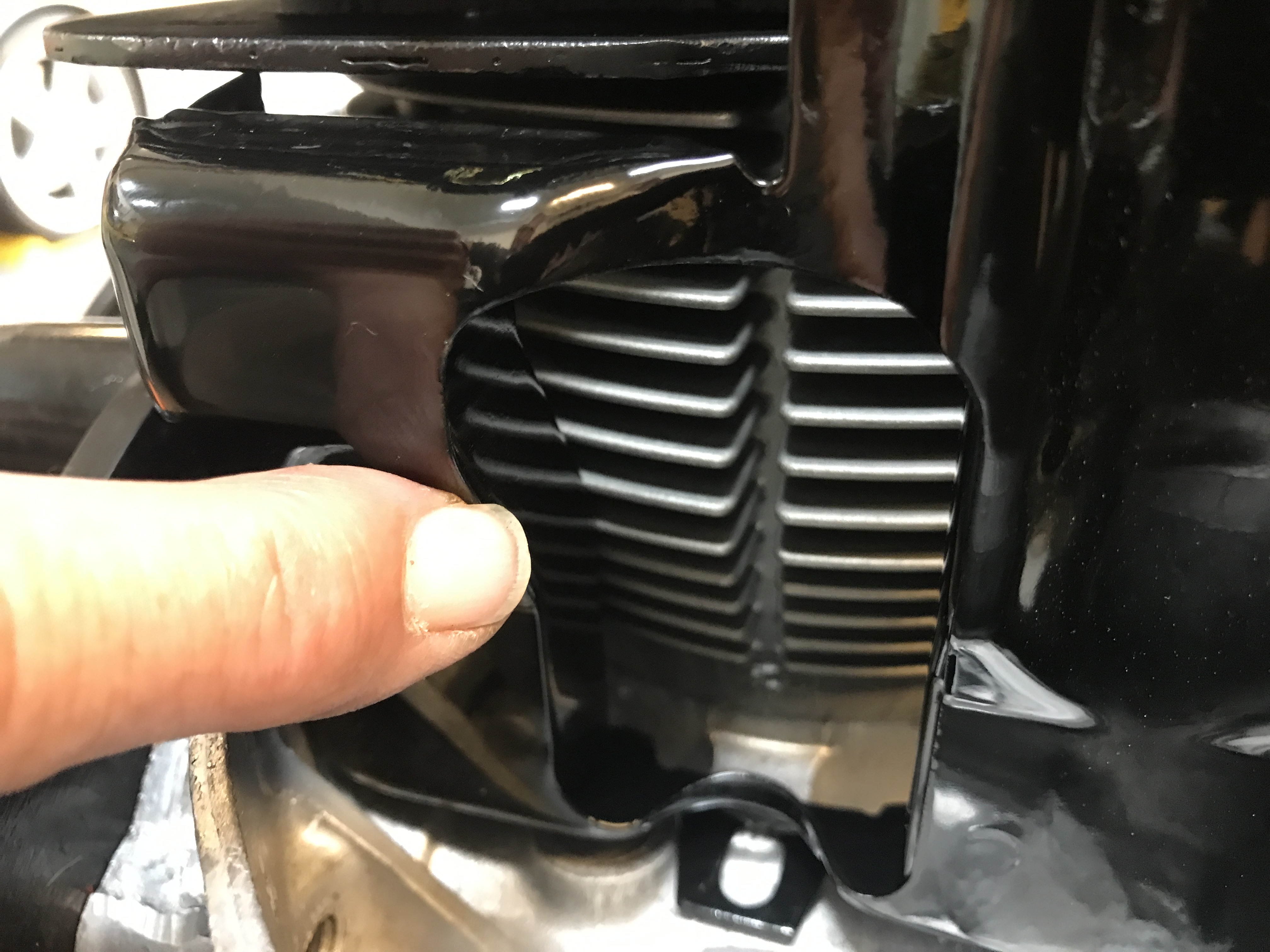

But I did not remember that the brial cylinders have wider fins, so the baffle edges interfere.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:46 PM
Post #3728


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

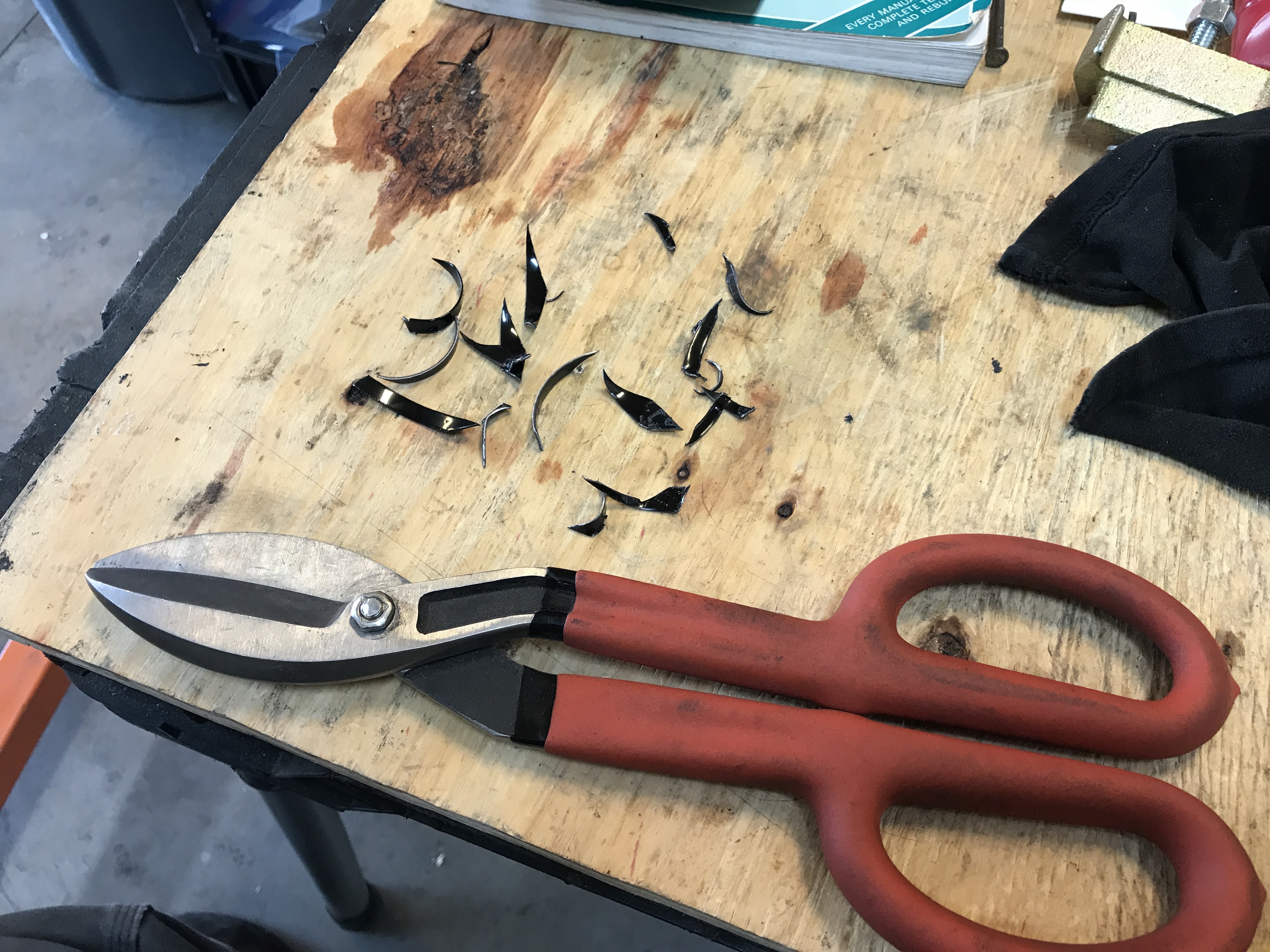

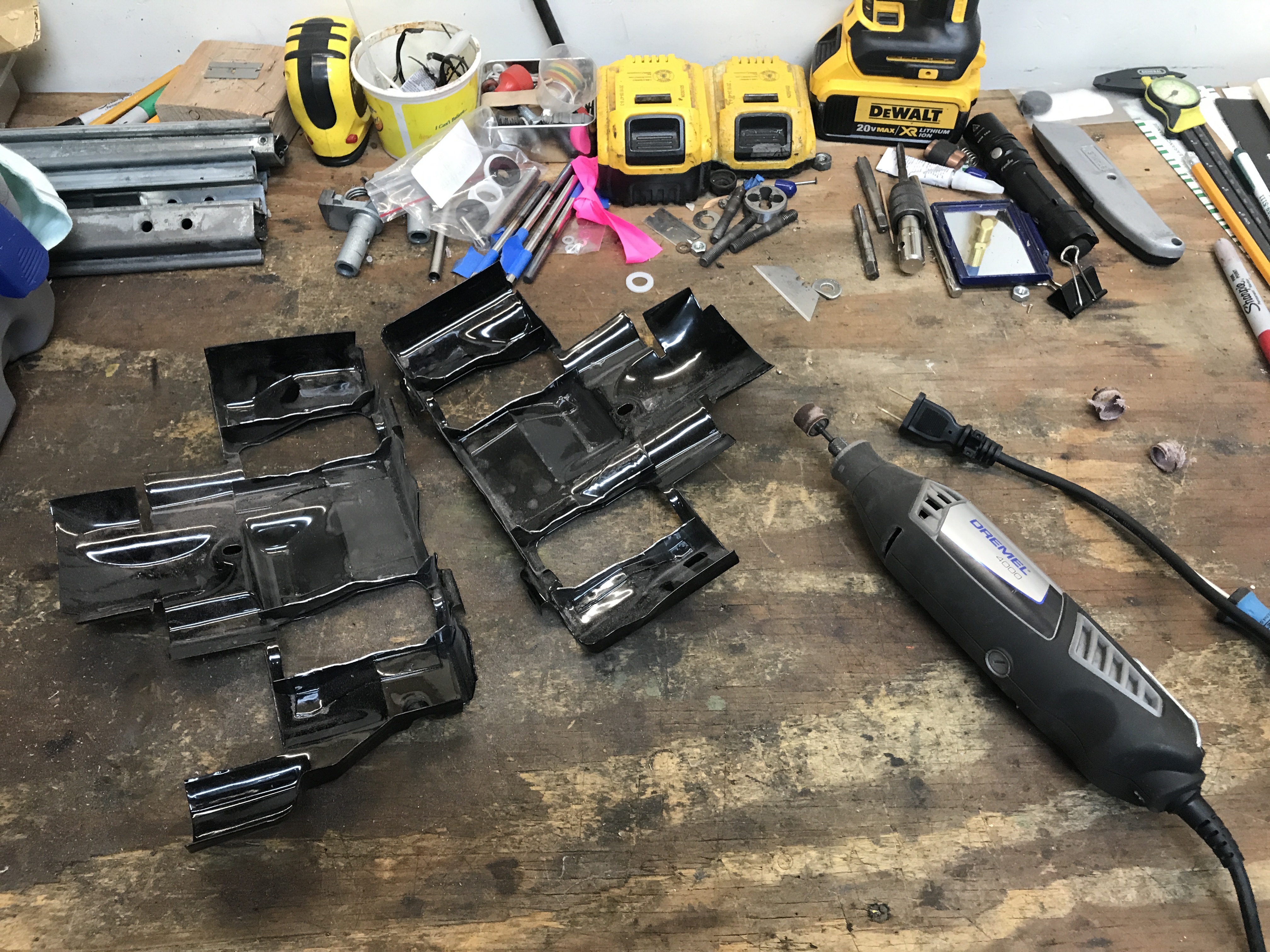

So, some quick surgery, using shears to cut to rough clearance.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:49 PM
Post #3729


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

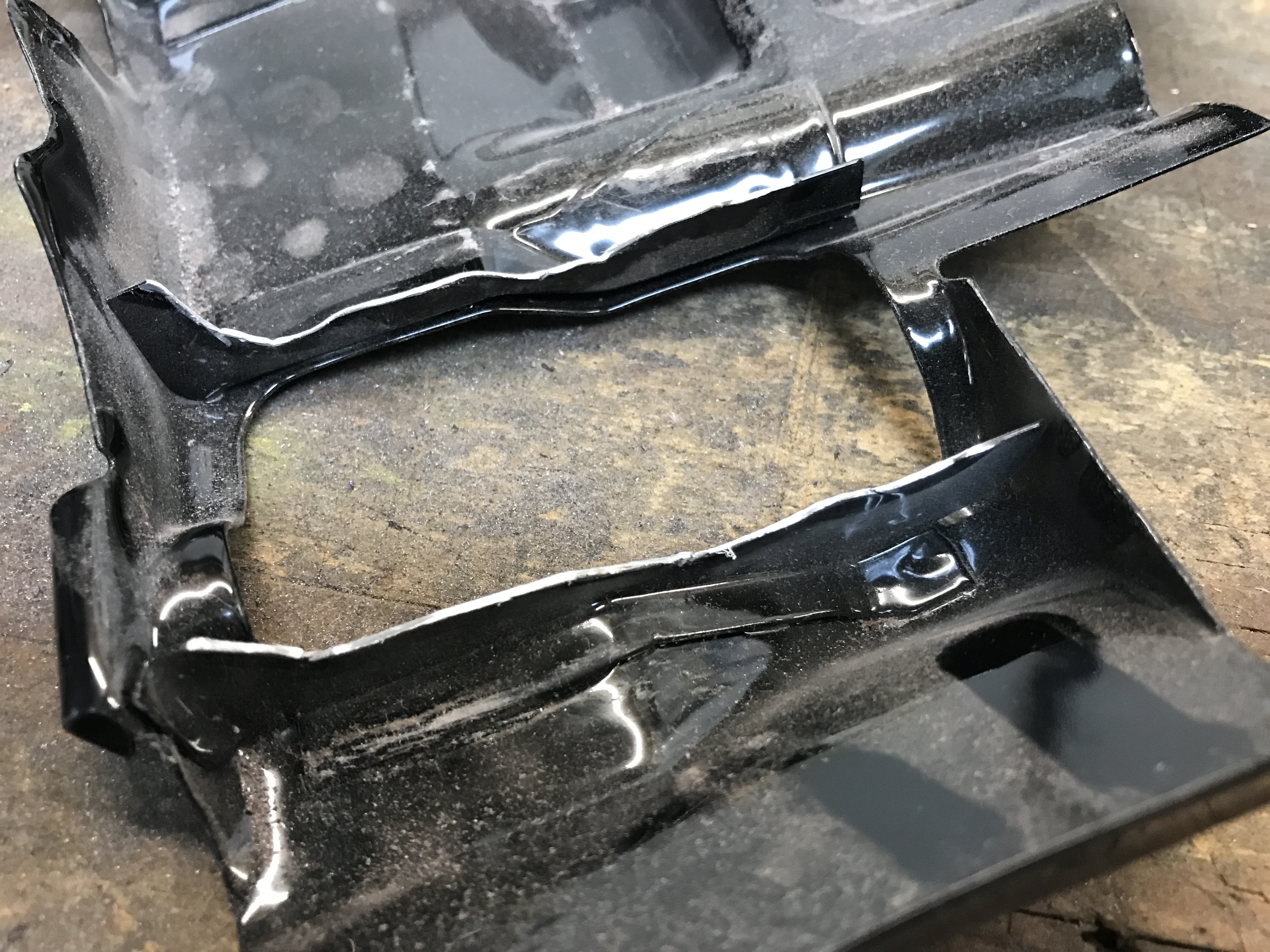

And then the mini drum sander on my Dremel.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:50 PM
Post #3730


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Getting there.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:51 PM
Post #3731


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

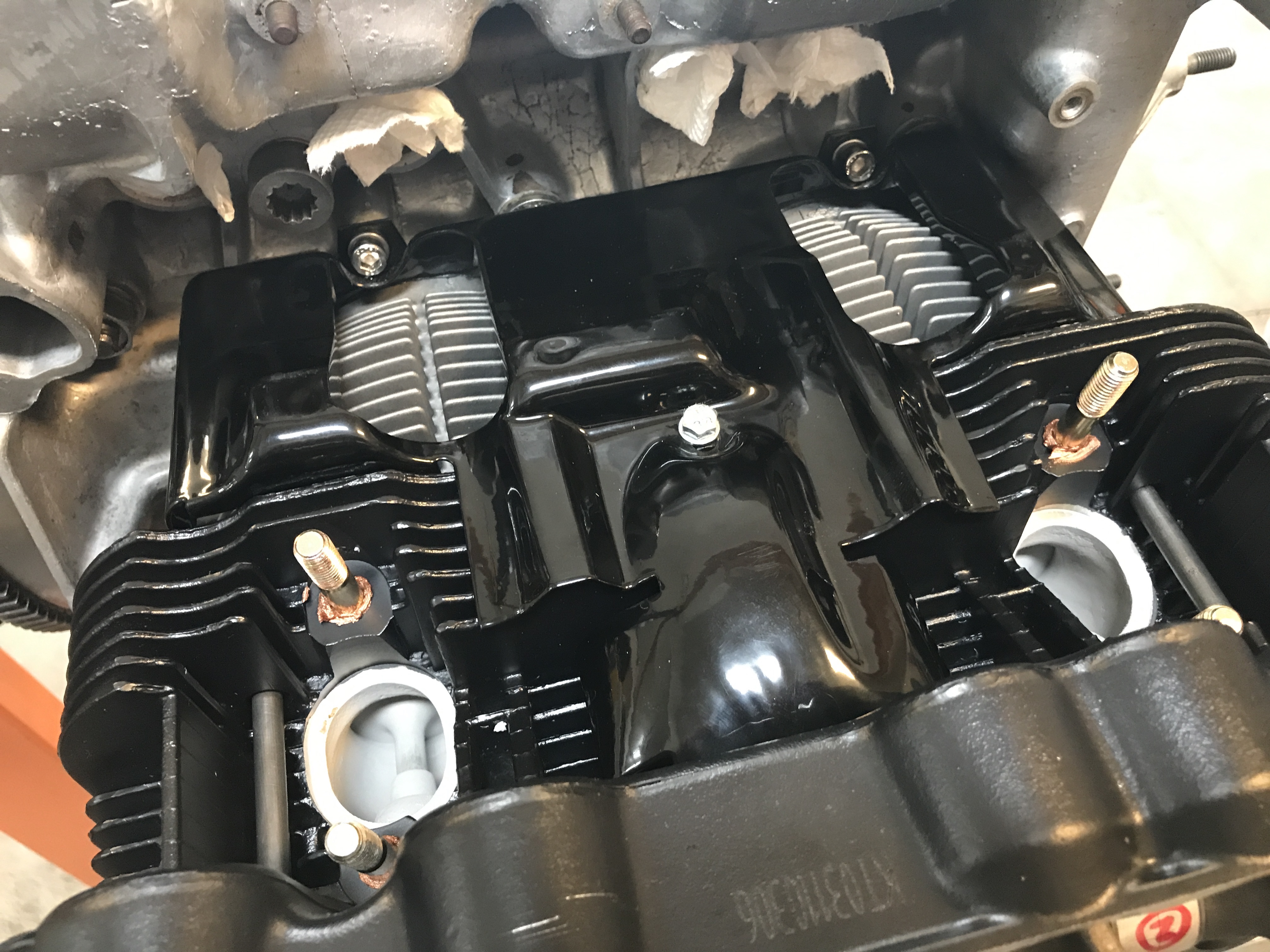

Fits!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:53 PM
Post #3732


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

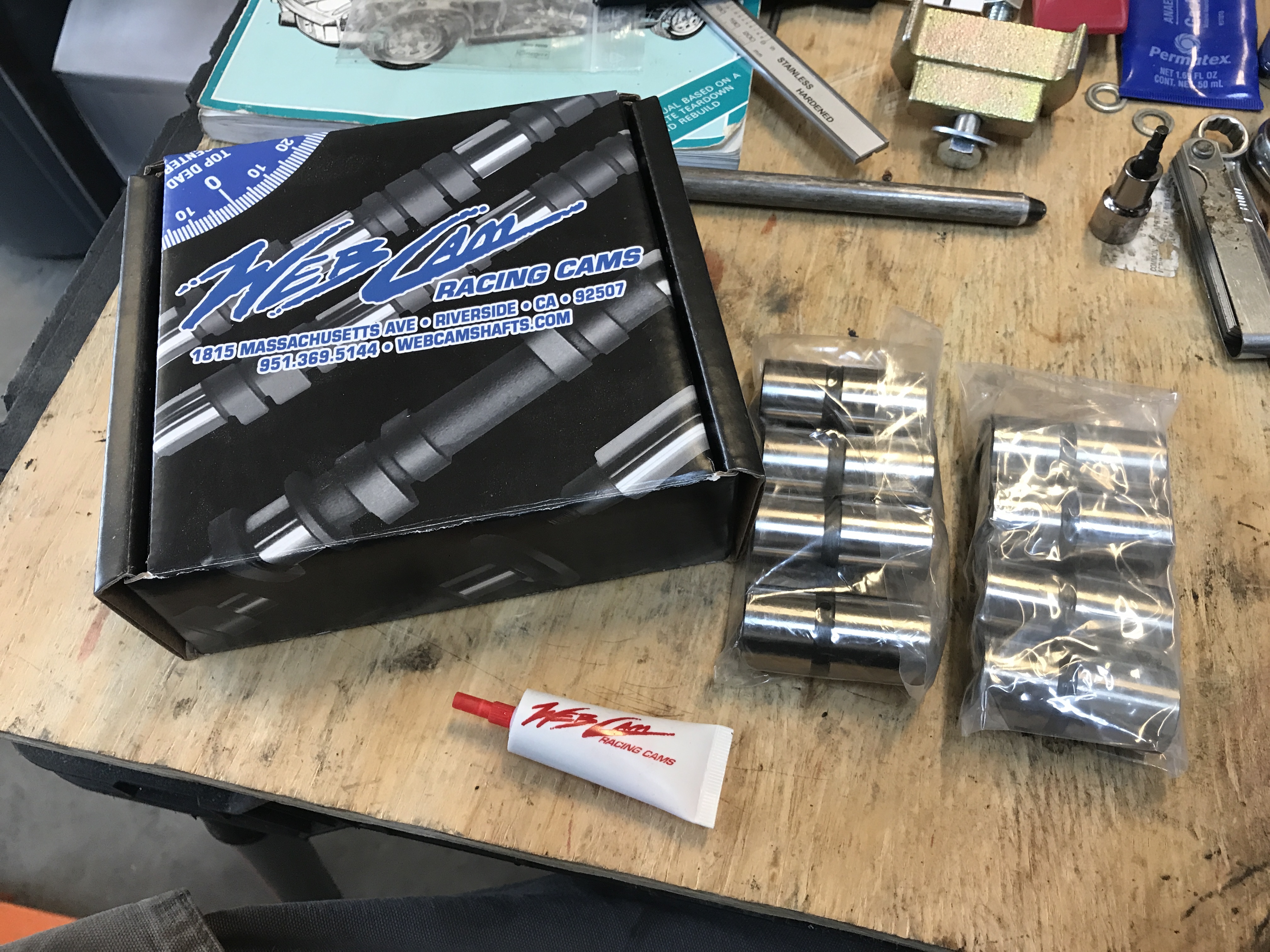

Time now for lifters!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:53 PM
Post #3733


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

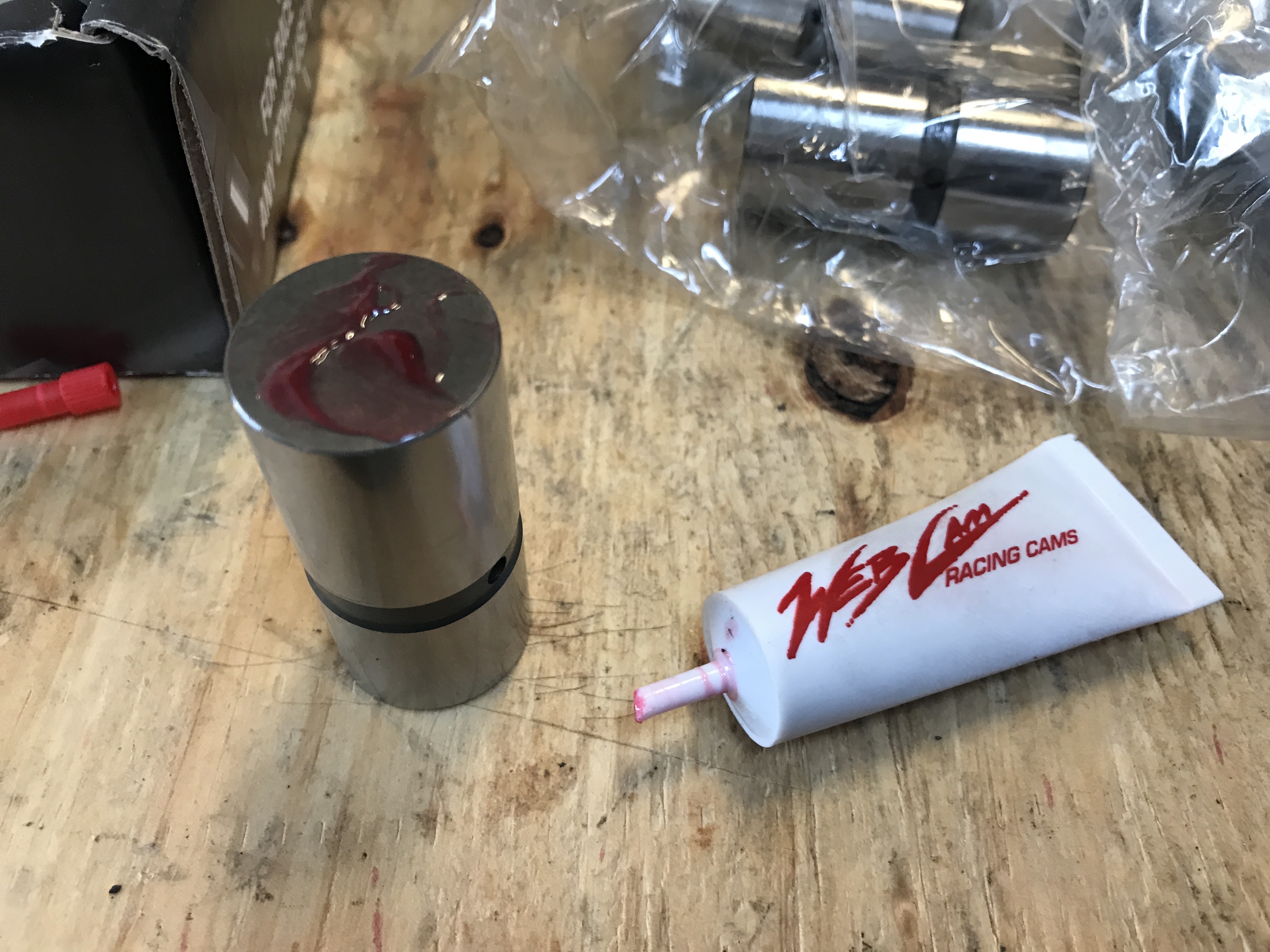

Cam lube on the end (and assembly lube on the body and bore).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:54 PM
Post #3734


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Then I dropped the lifters in.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:55 PM
Post #3735


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

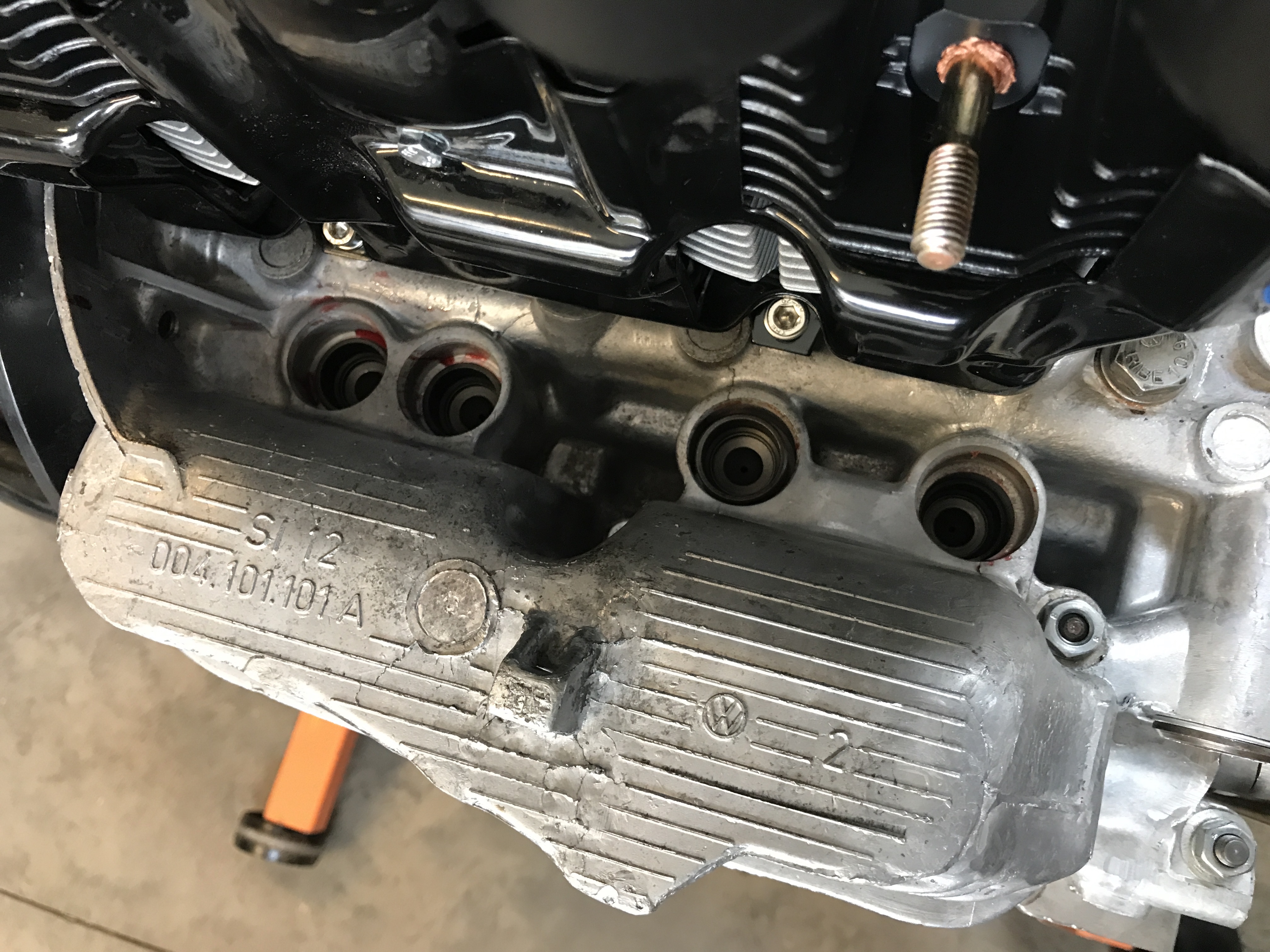

And plugged the holes.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:58 PM
Post #3736


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

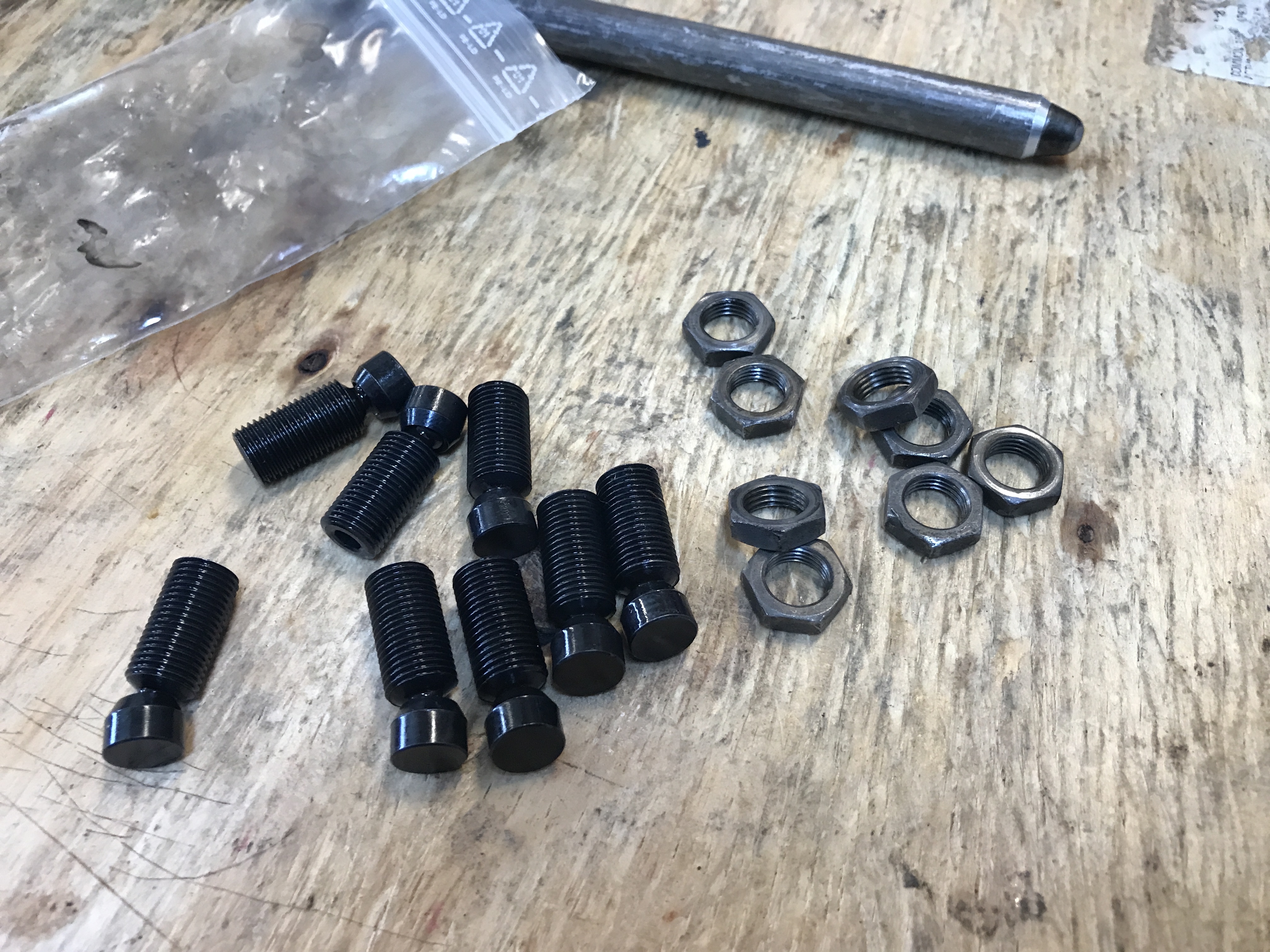

Now for adjusters, new 10 mm swivel feet. (And old nuts for now.)


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 07:59 PM
Post #3737


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Adjusters installed.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 08:02 PM
Post #3738


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

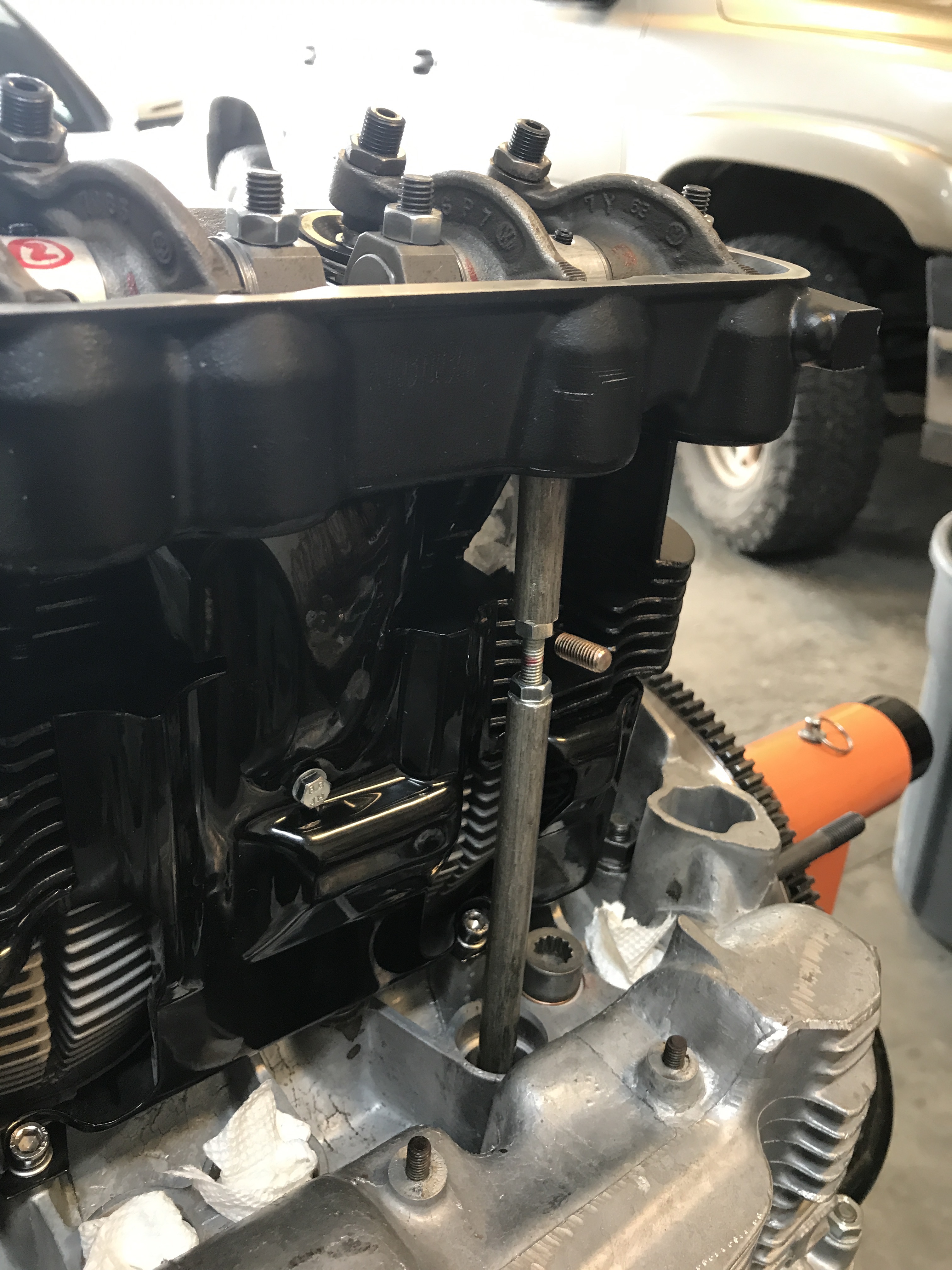

So then I started to learn about push rod tubes and optimizing length. Here is my adjustable rod in the intake for cylinder #1.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 08:06 PM
Post #3739


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

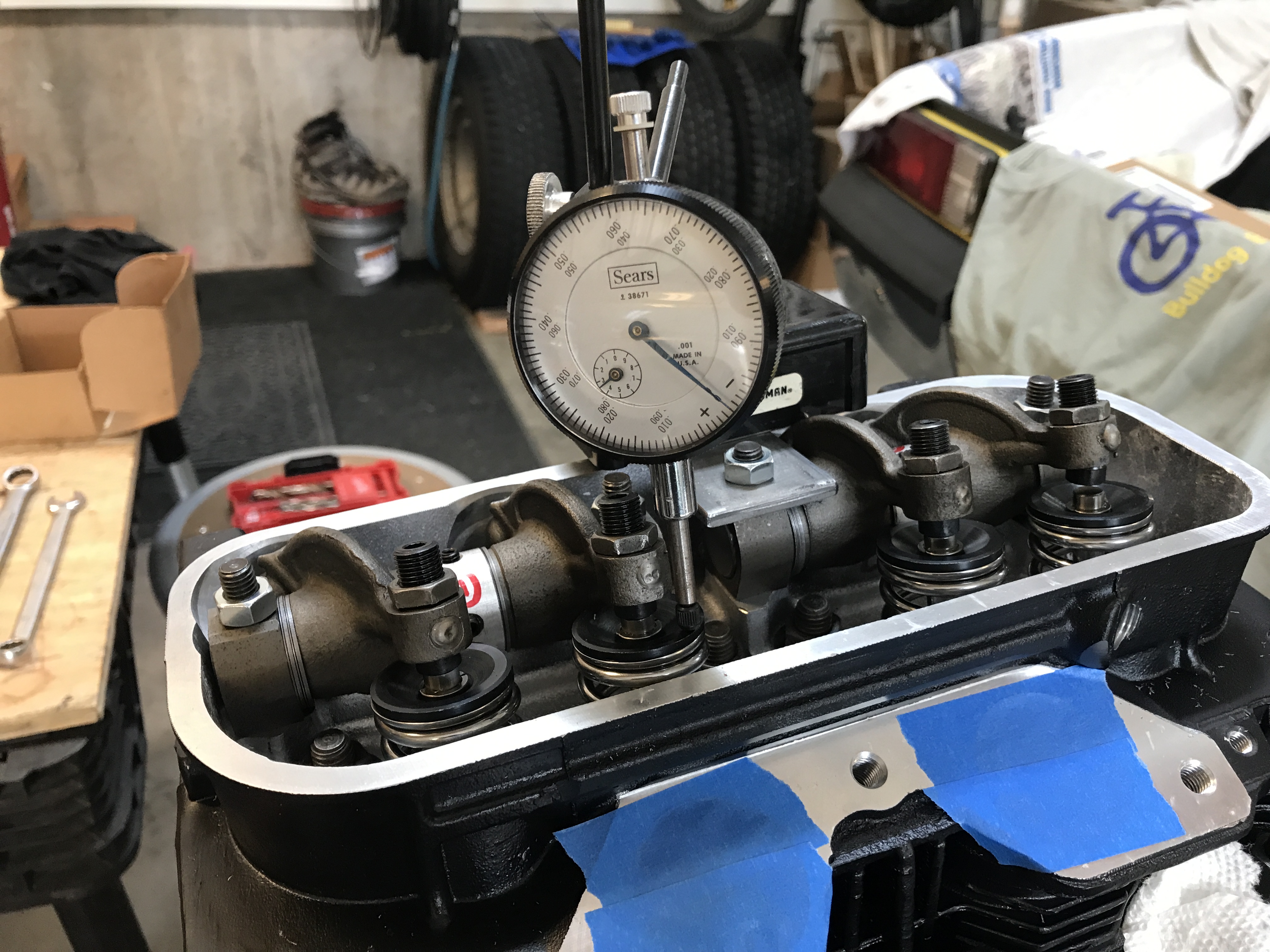

And my setup for the dial gauge on the valve spring retainer.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 08:09 PM
Post #3740


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

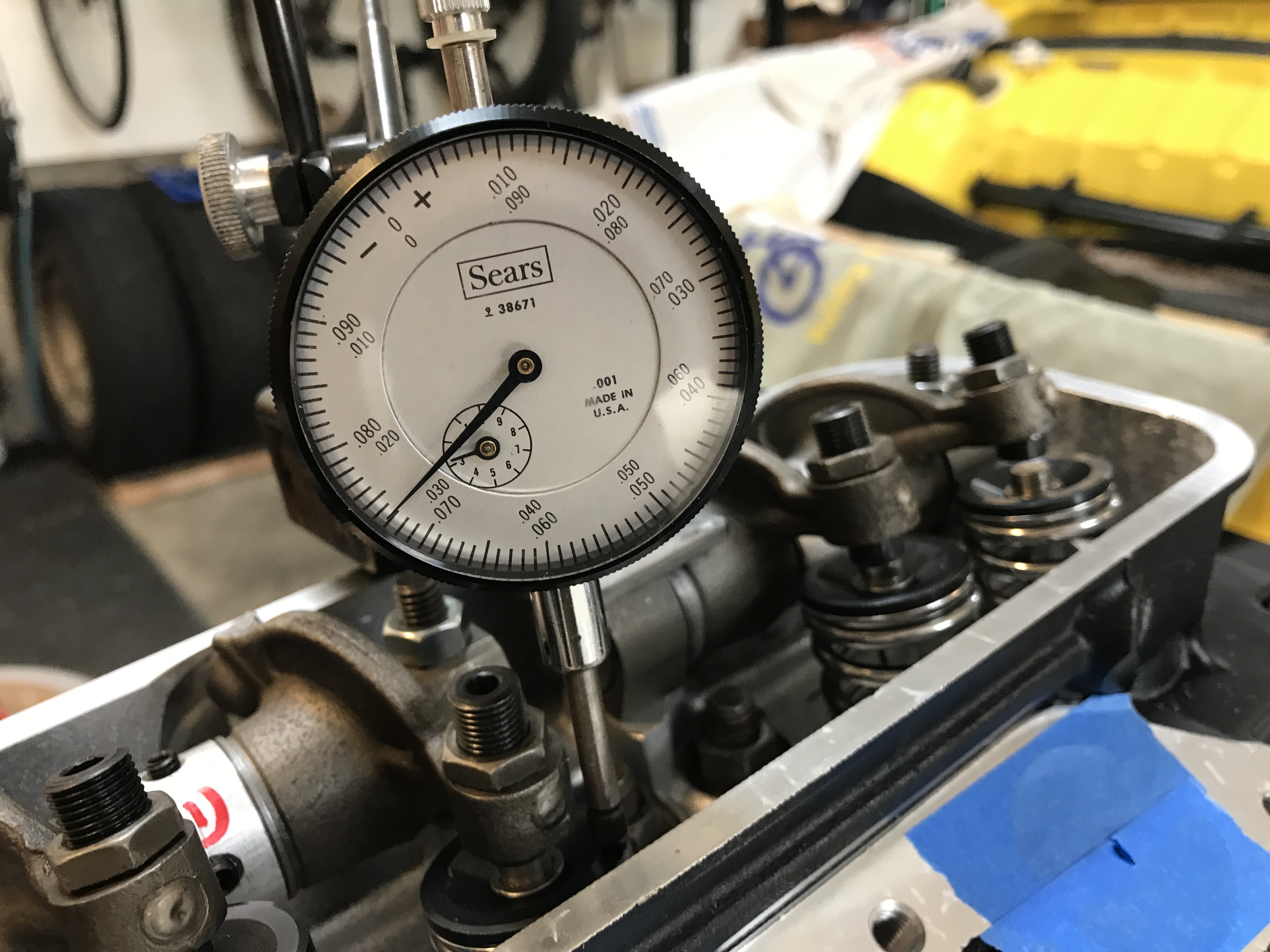

After some quick trials, I measured .427" lift. Spec lift is .423"


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
