> Rebuiding Inside-out
bkrantz
post Sep 18 2021, 08:12 PM
Post #3741


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

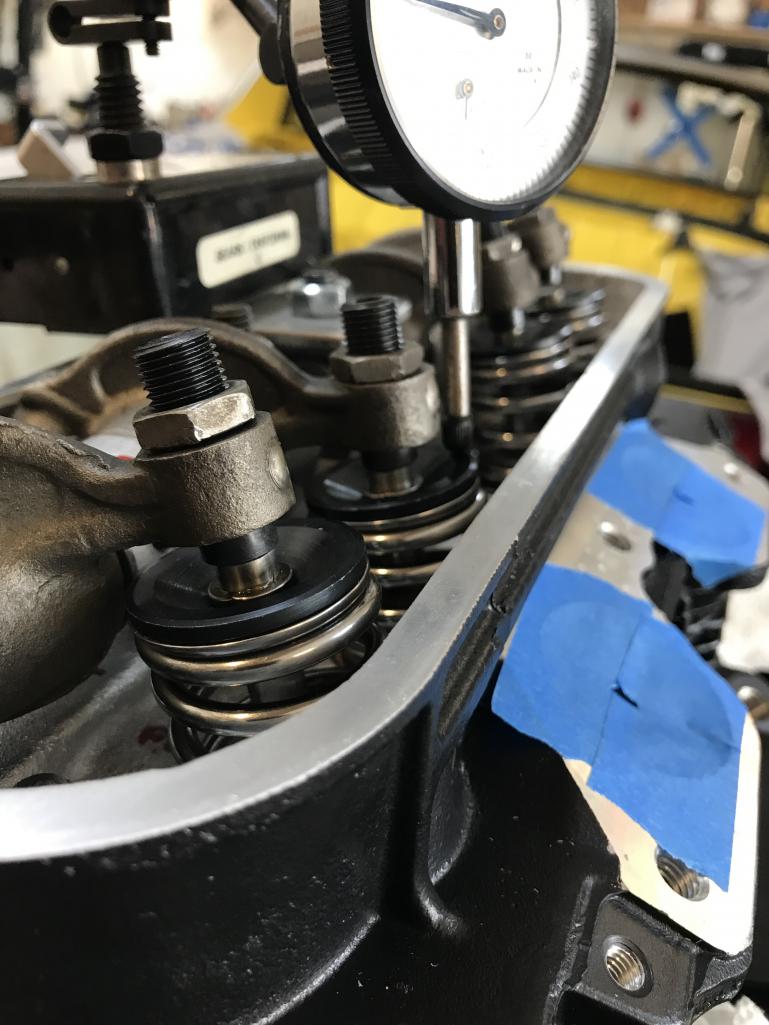

And the alignment at half-lift looks good.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 18 2021, 08:13 PM
Post #3742


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I have to catch up on keeping the list current.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2021, 07:43 PM
Post #3743


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I spent more time today in pushrod hell. See my new thread for that, and my questions.

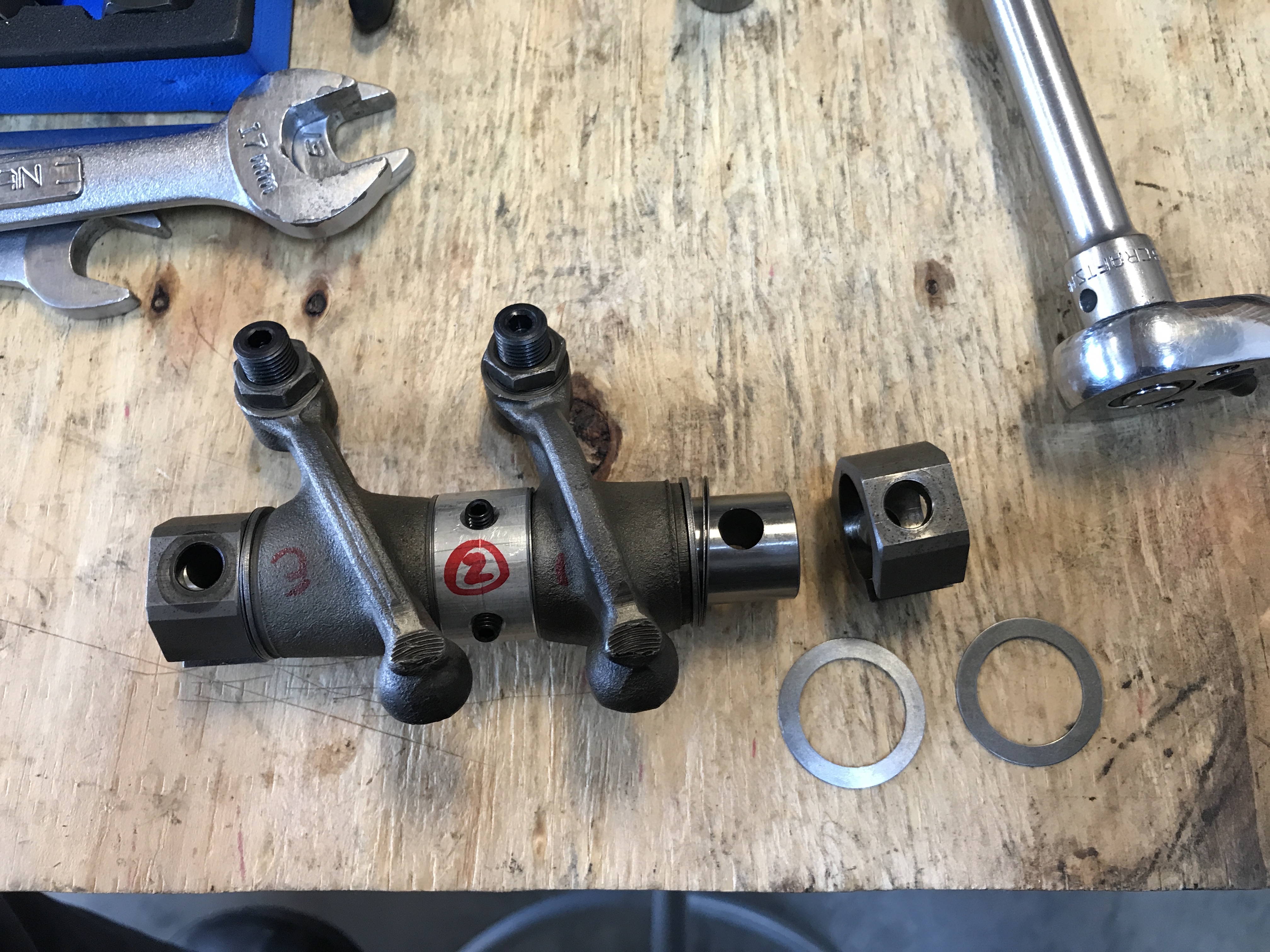

After I gave up on pushrods for today, I refined my rocker offset and spacers.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2021, 07:45 PM
Post #3744


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

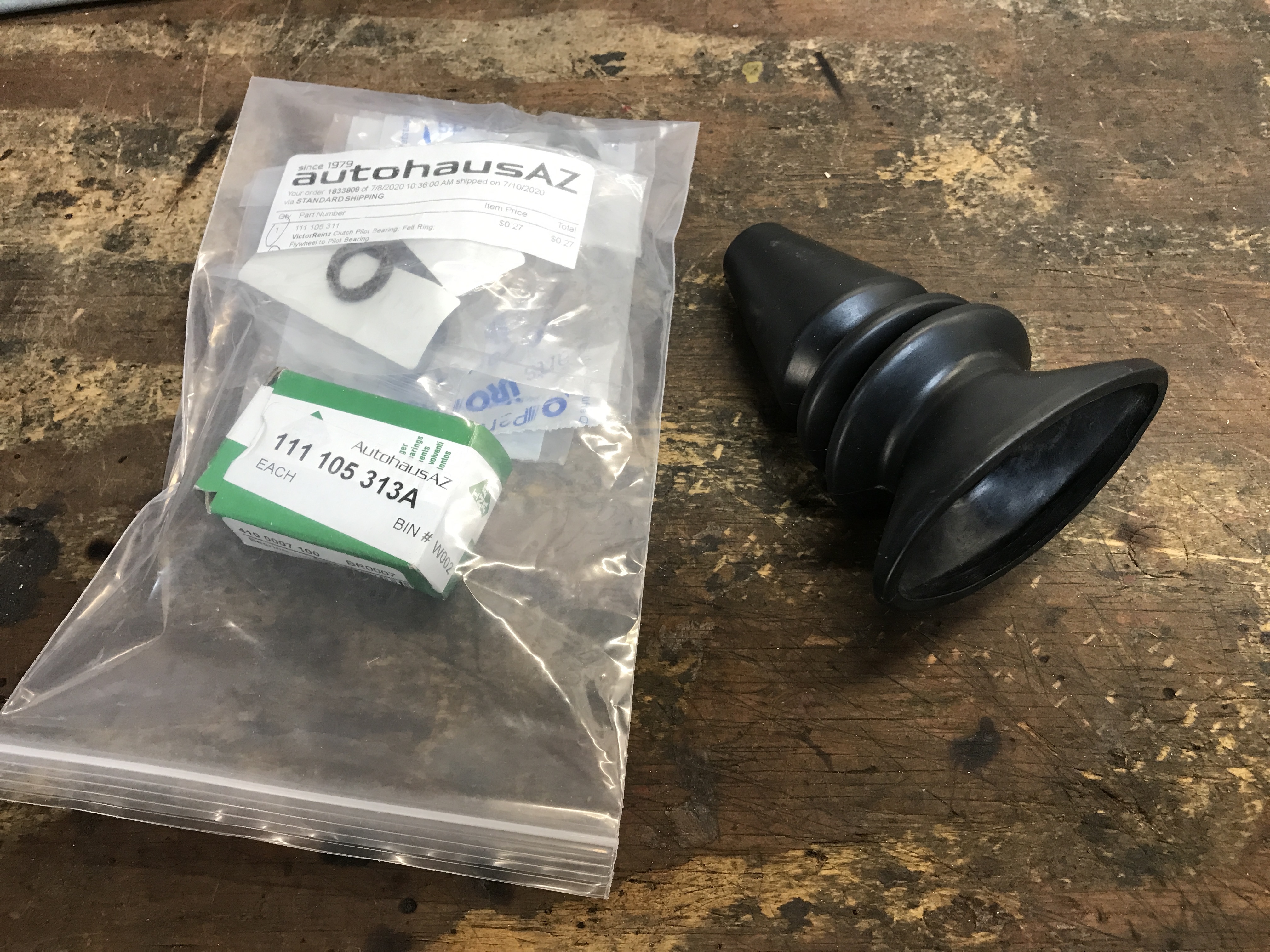

I also got a gift package from Morph914 (thanks again!).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 19 2021, 07:45 PM
Post #3745


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

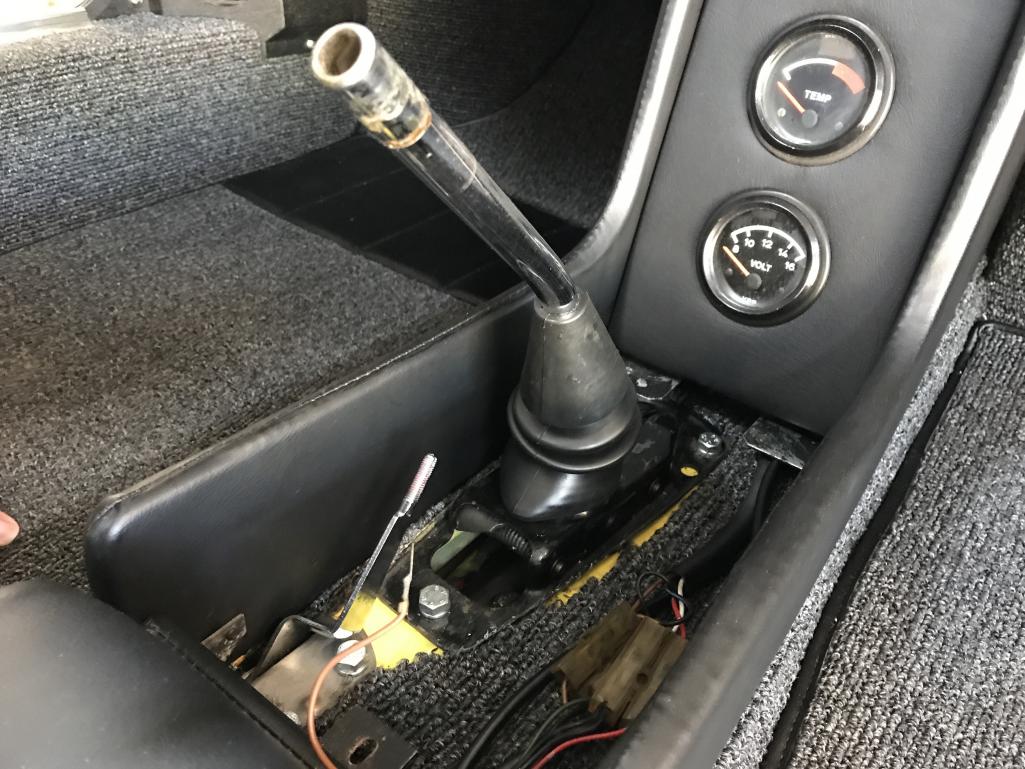

I was able to install the shift lever rubber boot!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
djway
post Sep 19 2021, 09:47 PM
Post #3746


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California
Did you get the pushrod tube spacers? I assume you need them since you are measuring for rods.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 20 2021, 09:05 PM
Post #3747


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(djway @ Sep 19 2021, 09:47 PM) *

Did you get the pushrod tube spacers? I assume you need them since you are measuring for rods.


Not sure what those are--can you elaborate?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 21 2021, 06:57 PM
Post #3748


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

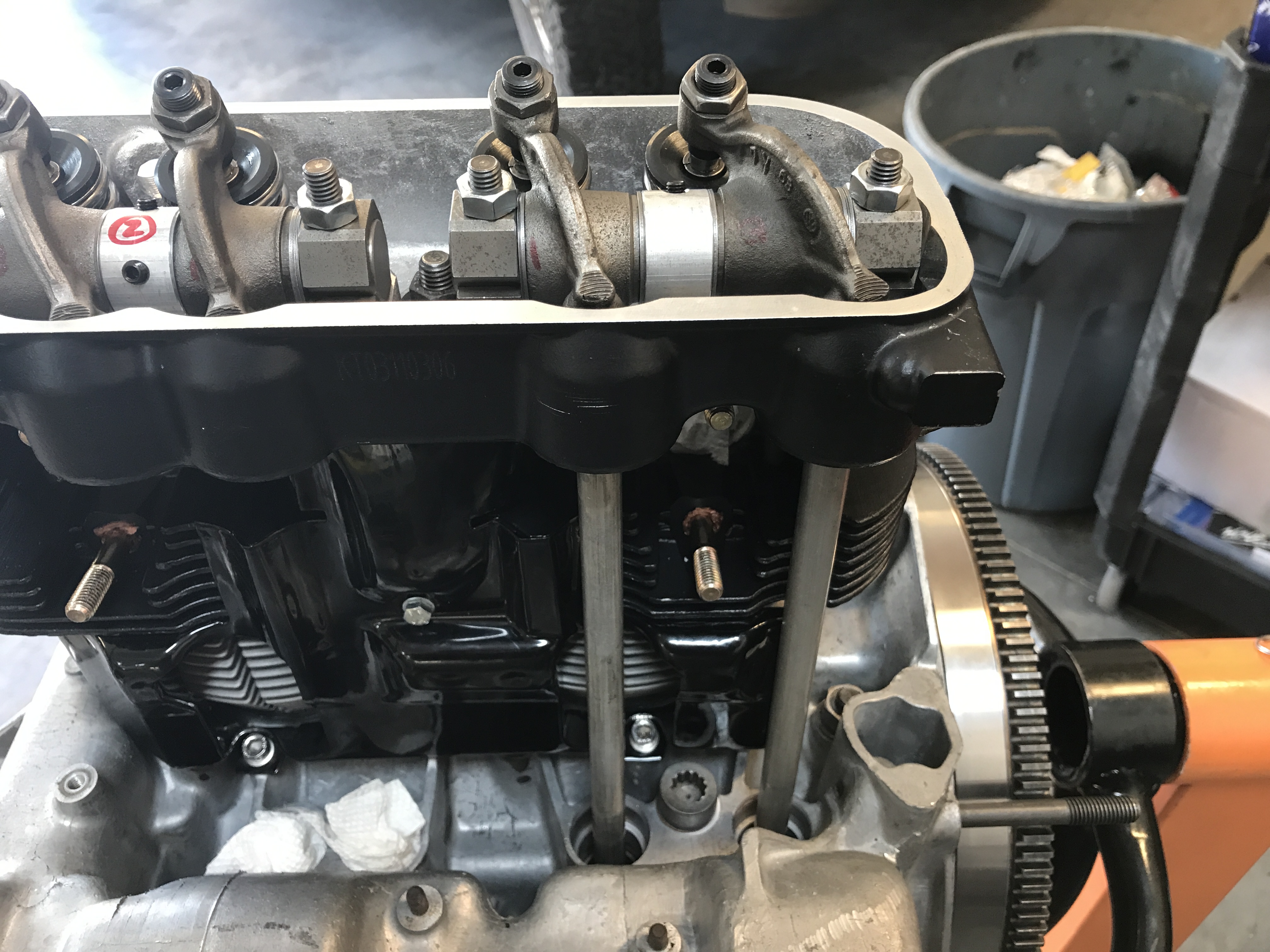

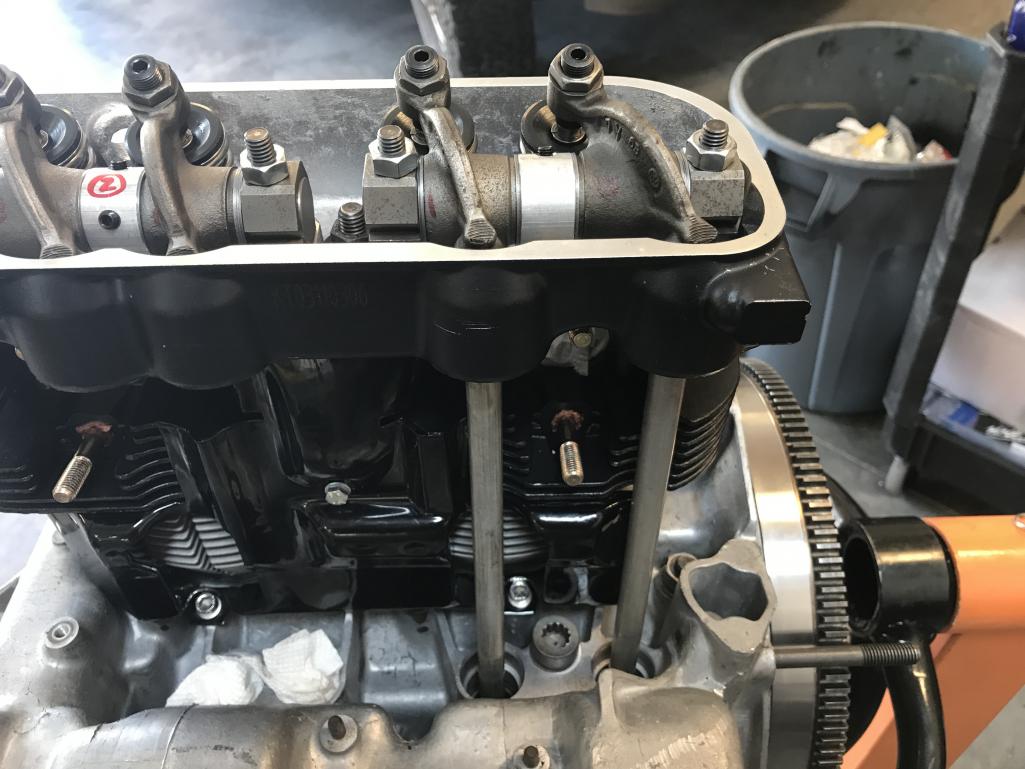

Still playing with rocker arms and pushrods. I tried using stock rods with washers acting as spacers under the shaft supports.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 07:43 PM
Post #3749


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

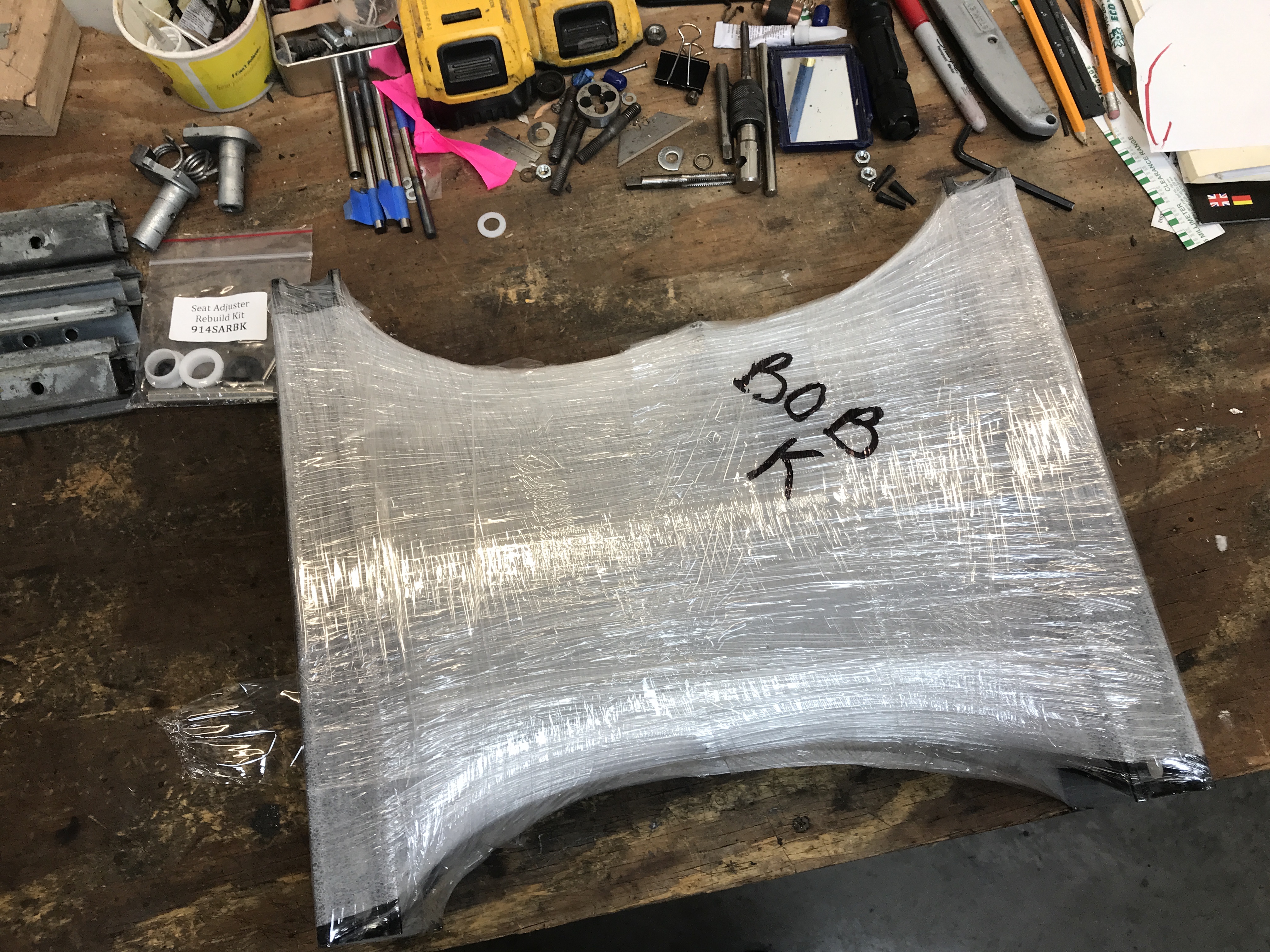

I took a break from pushrods today, and opened the latest package I got from the powder coat shop.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 07:47 PM
Post #3750


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

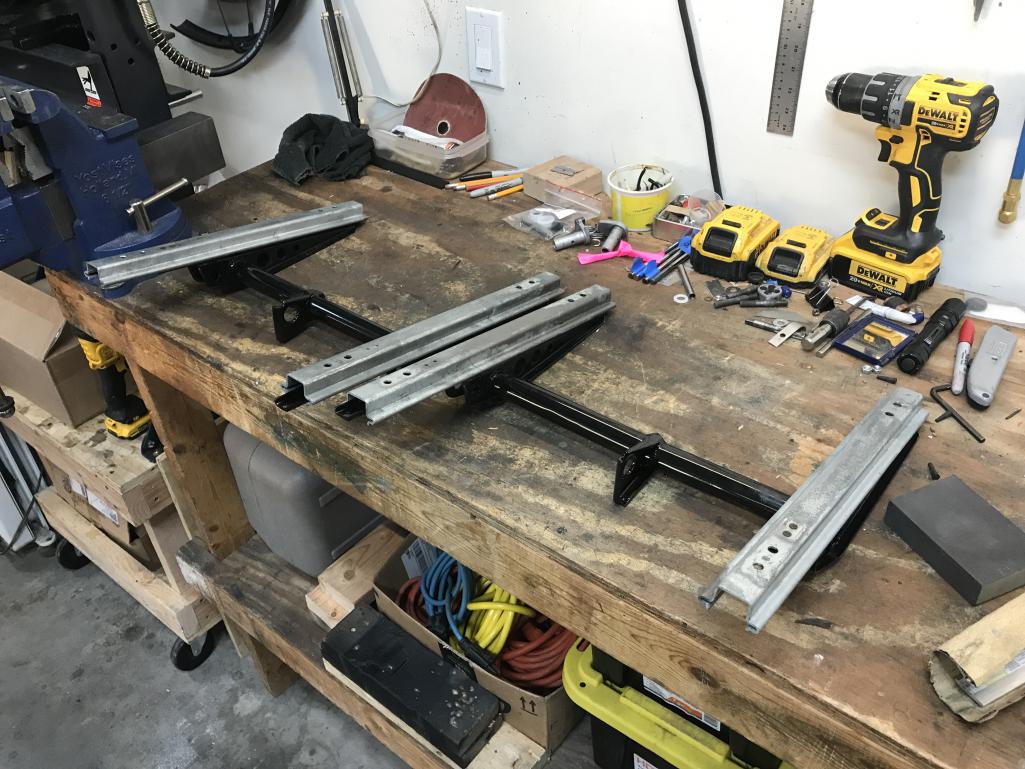

Seat bottom frames!

I had them coat everything, including the rails. Before, the fit with the sliders was a little sloppy, so I figured the coating would fill the gaps.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 07:50 PM
Post #3751


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

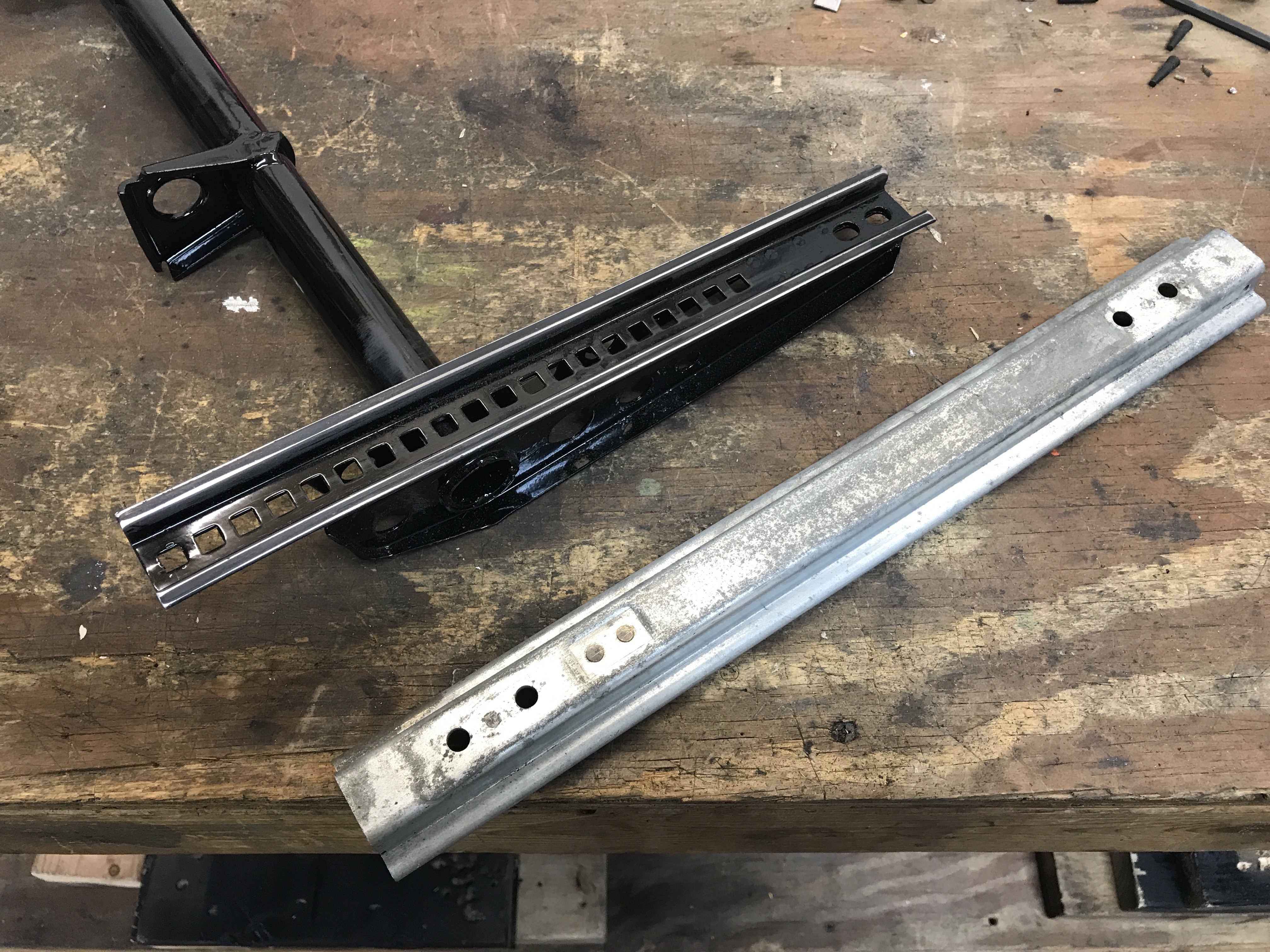

But the coating was a bit too thick, so I sanded each rail until the slider moved easily.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 07:51 PM
Post #3752


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

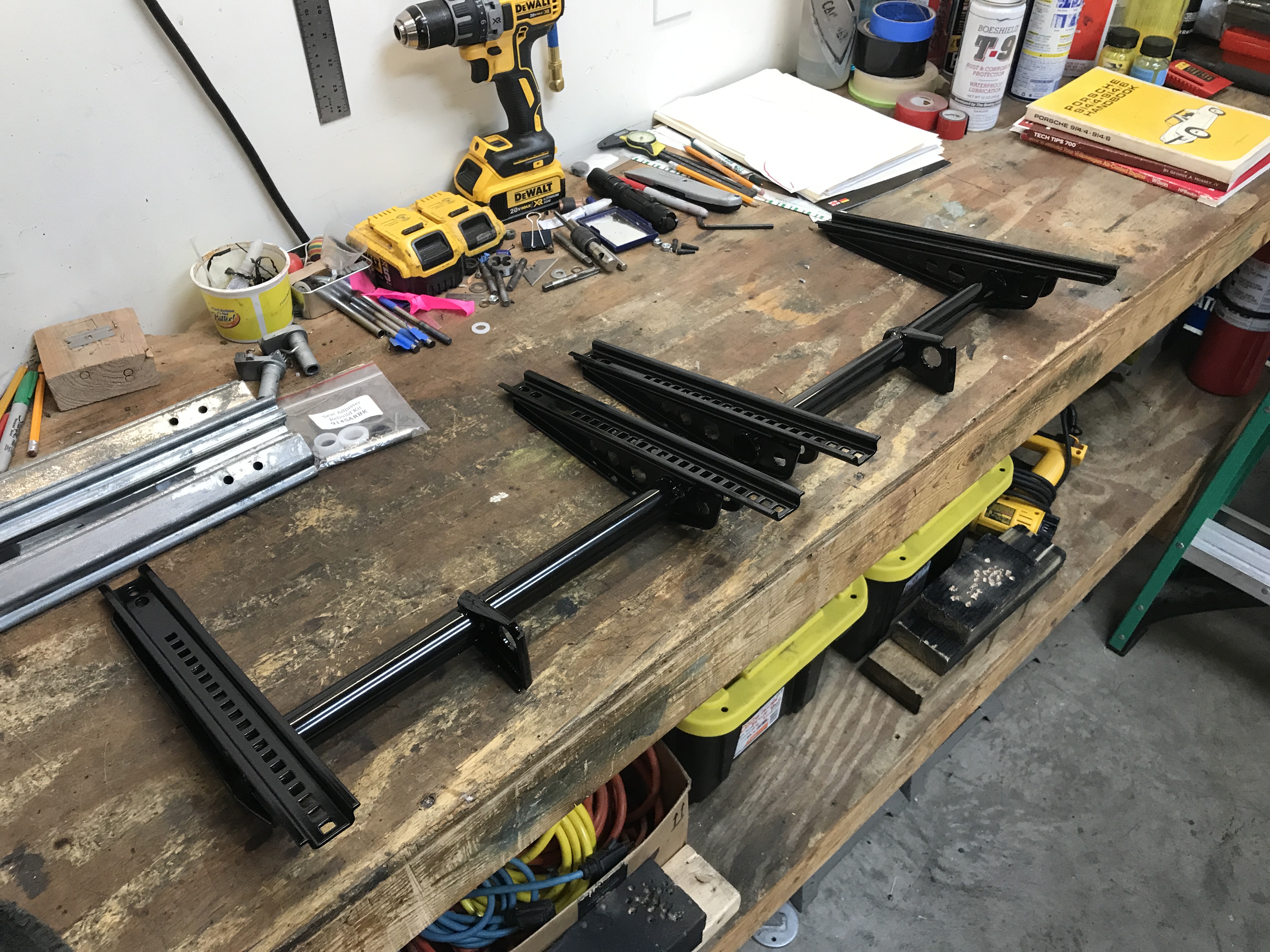

Ready to slide.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 07:52 PM
Post #3753


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

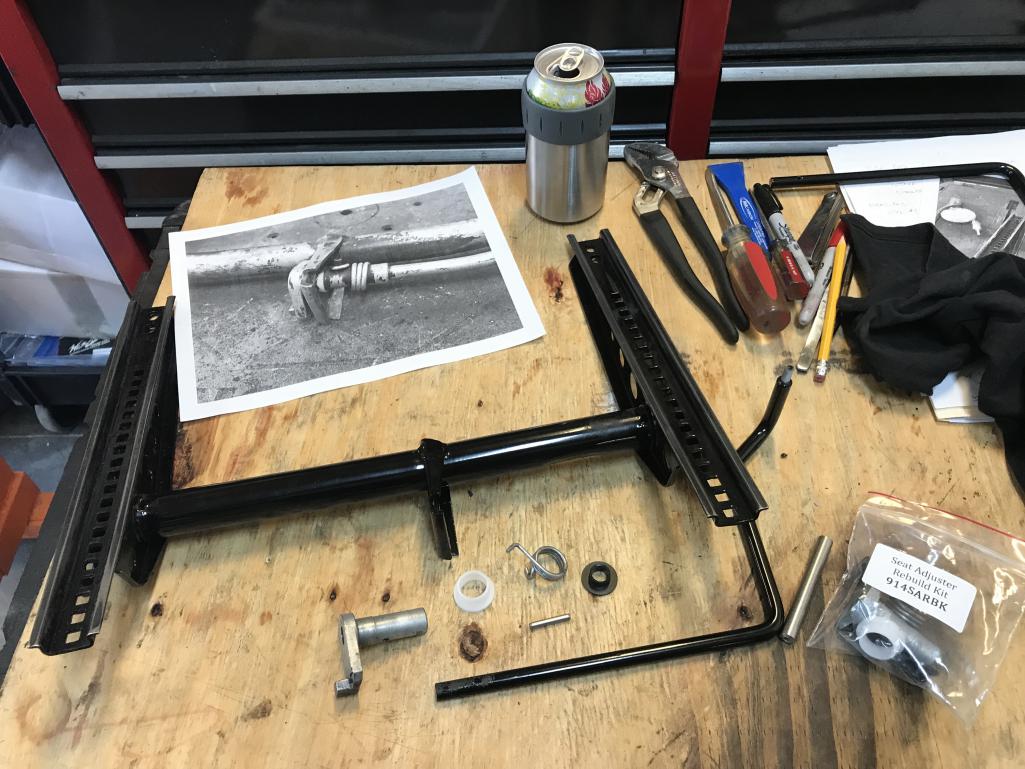

Then it was time to install the tilt control levers. Rebuild kit from 914Rubber, with inner and outer bushings, and new split pins (more about those in a minute).


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 07:54 PM
Post #3754


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

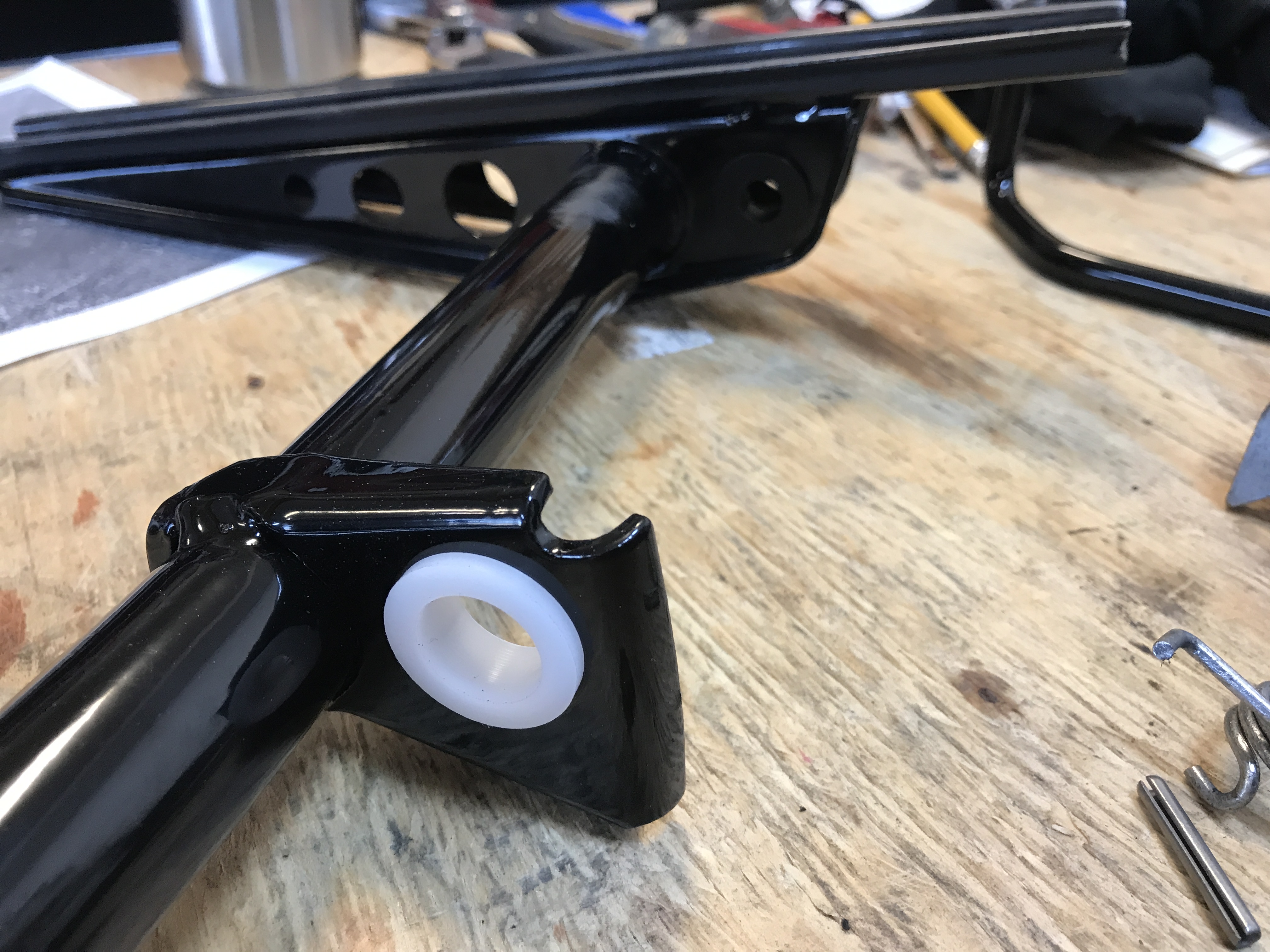

Bushings installed.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 07:56 PM
Post #3755


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

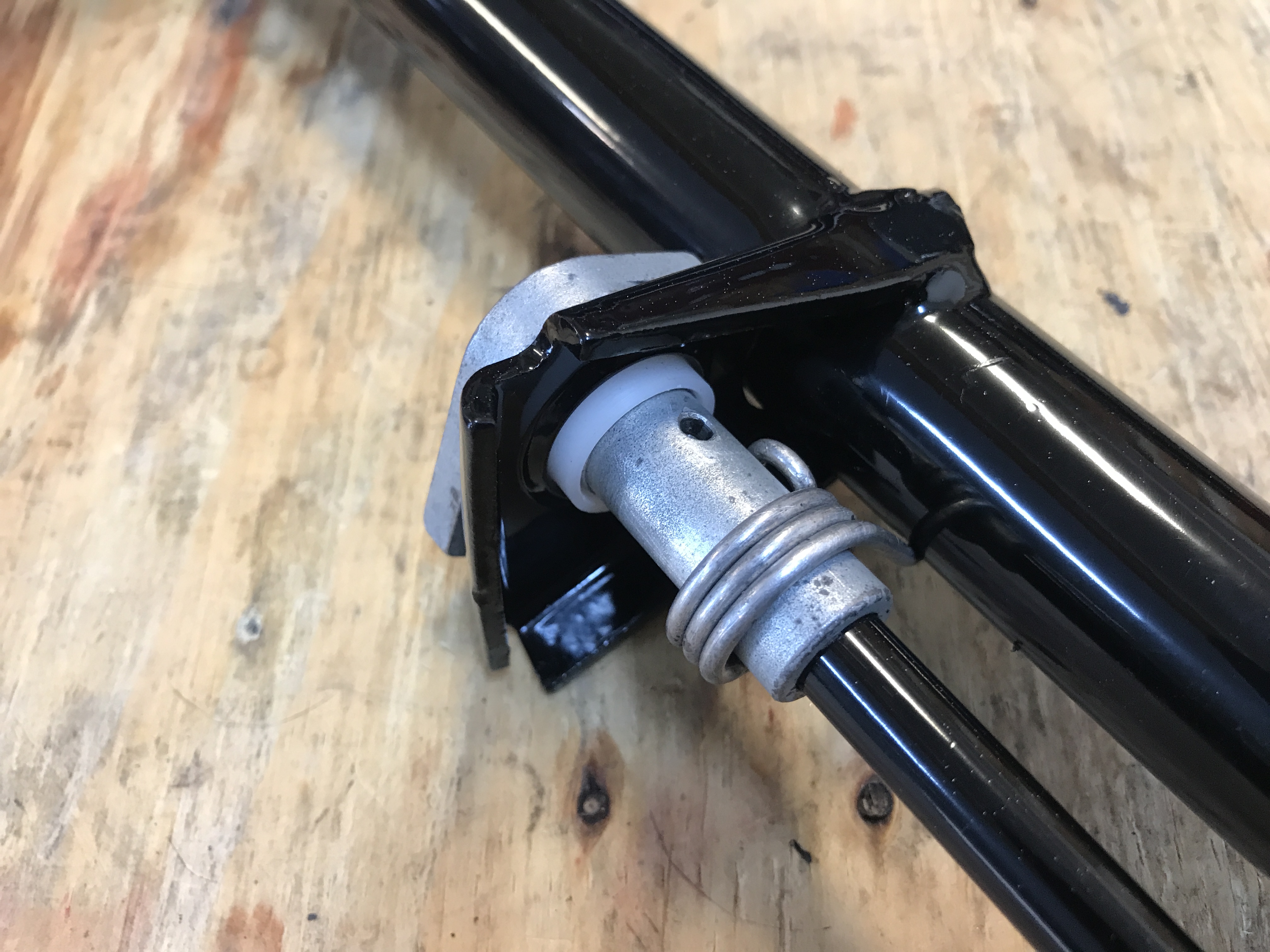

Easy to get to this point, with all the parts in place, including the spring. But how to twist the spring AND insert the split pin?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 07:57 PM
Post #3756


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

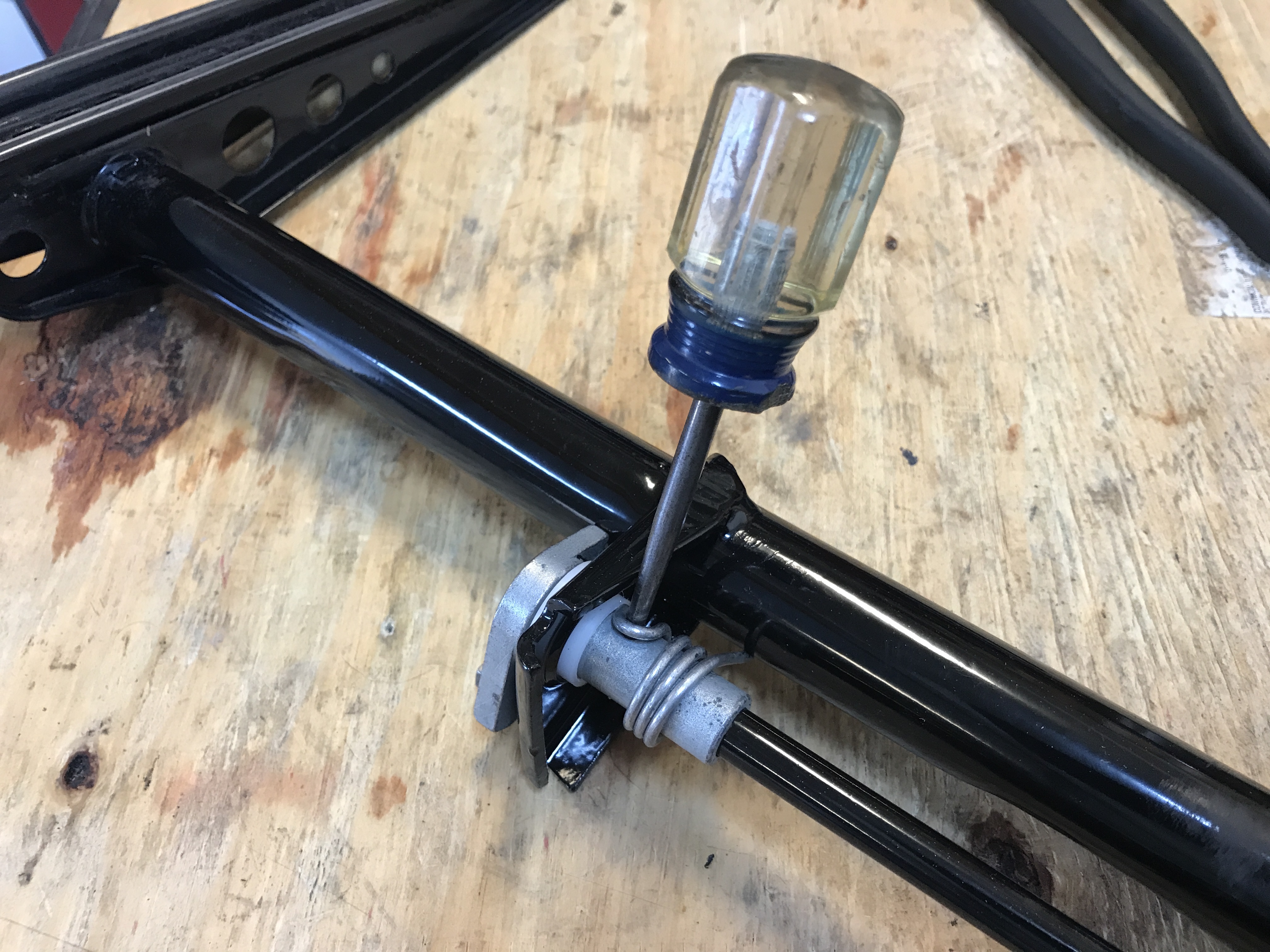

I was able to use an awl to push the spring and align it with the hole. But then I can't insert the pin.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 07:59 PM
Post #3757


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

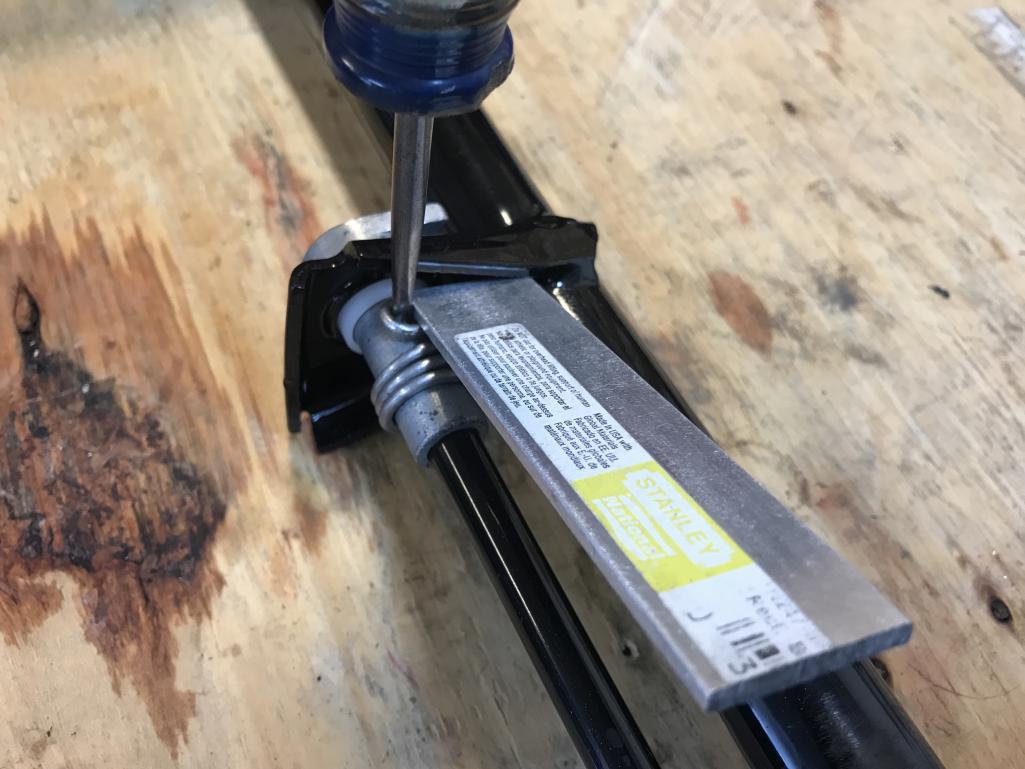

So how about a piece of 1" aluminum bar, to prop the end of the spring? OK...


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 08:02 PM
Post #3758


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

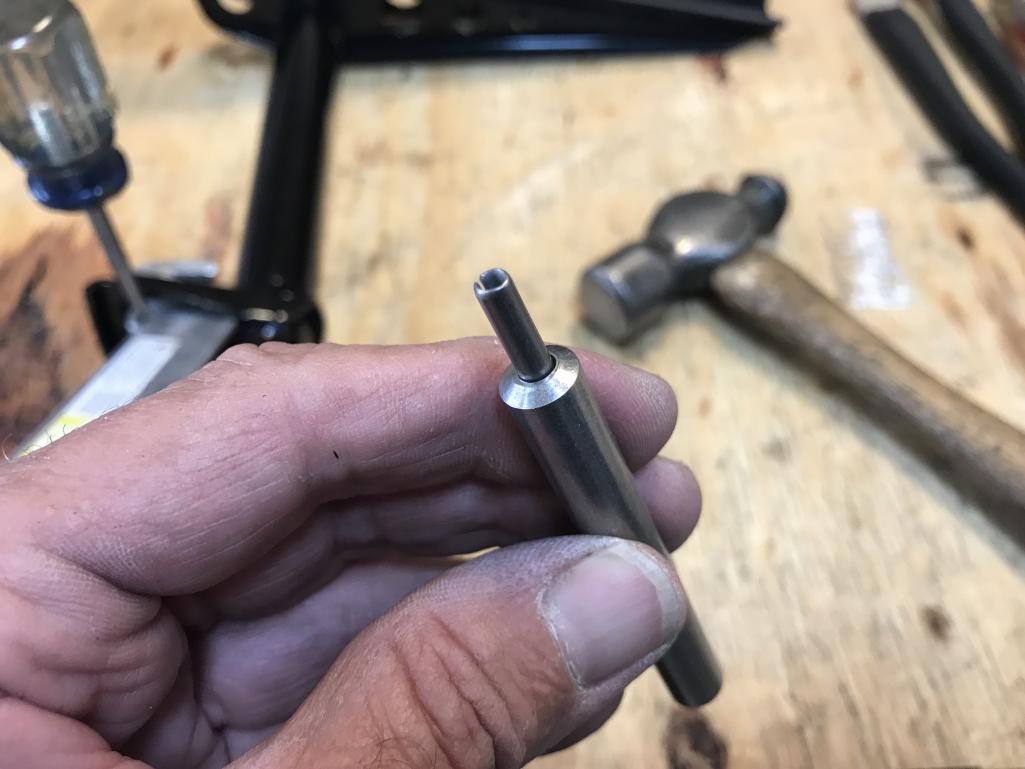

And then, while holding my breath, remove the awl and insert the spilt pin. But the new ones are a bit too large in diameter. While trying to tap and then bang it in, the aluminum prop popped out, the spring un-sprung, and the pin went flying, and is now AWOL in my garage.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 08:03 PM
Post #3759


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

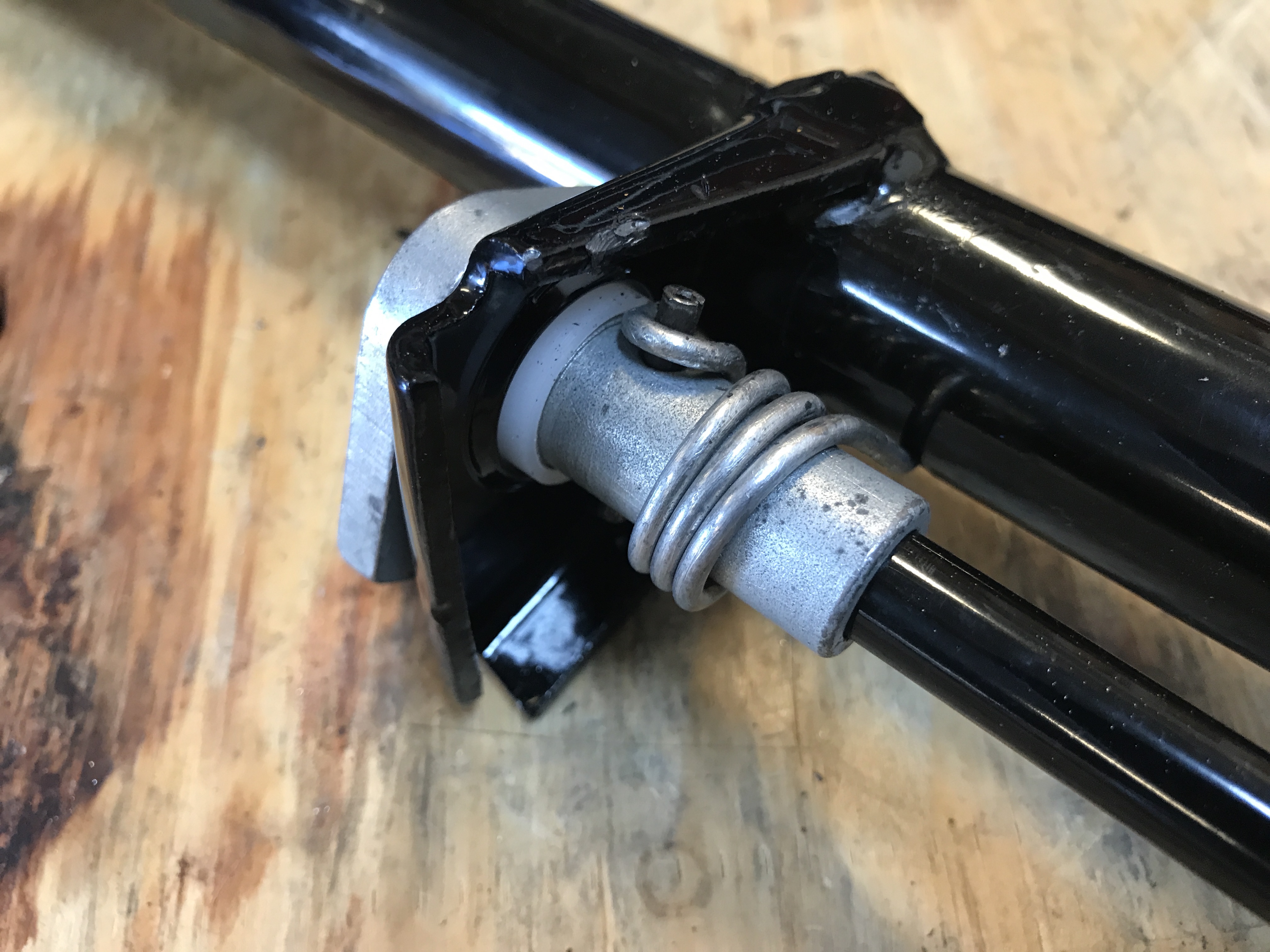

Instead, I used the original pins, that still fit tight but I was able to insert with moderate tapping.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 22 2021, 08:04 PM
Post #3760


914 Guru
*****

Group: Members
Posts: 7,732
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

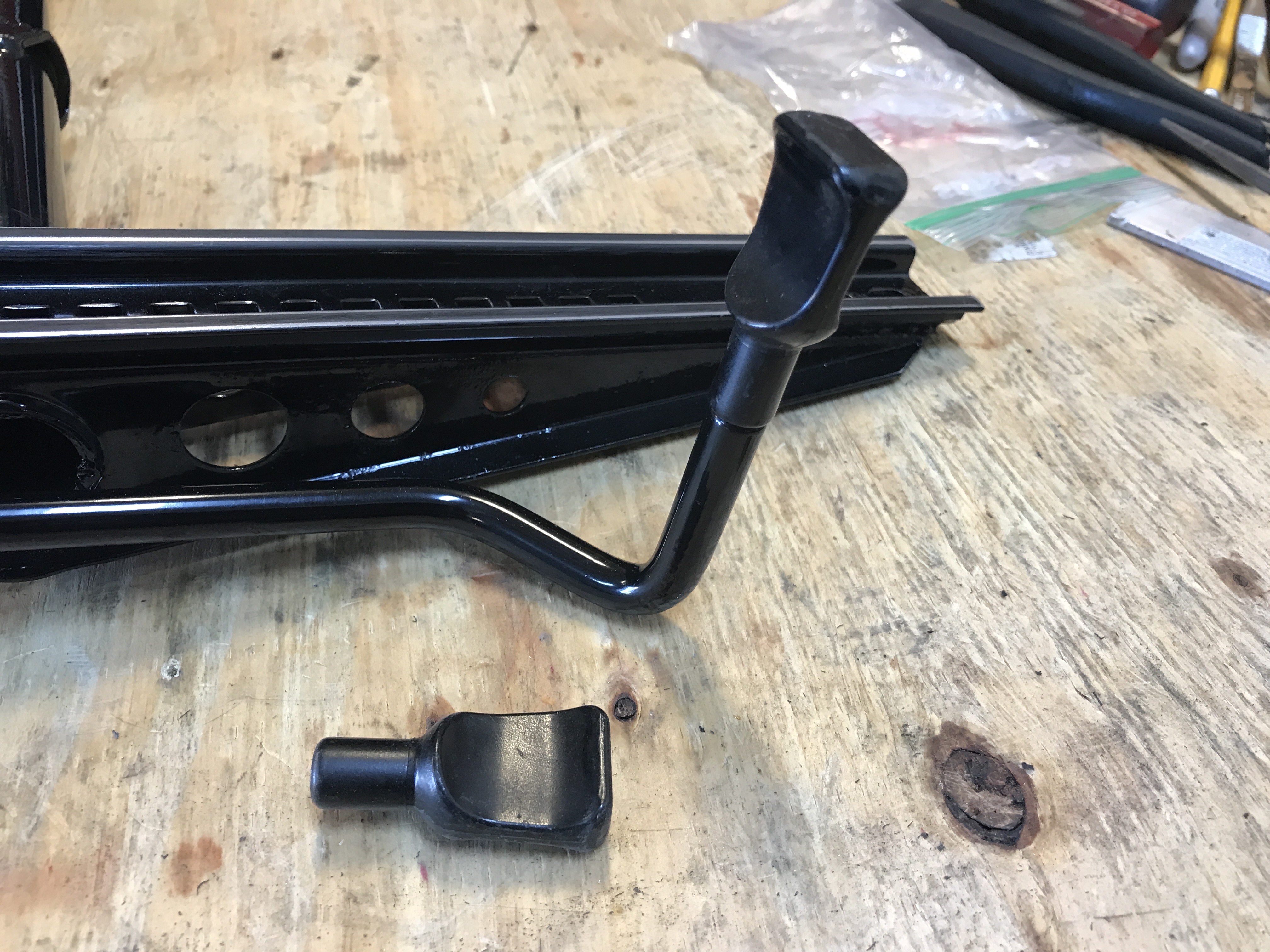

Last piece: the knob for the tilt lever.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
