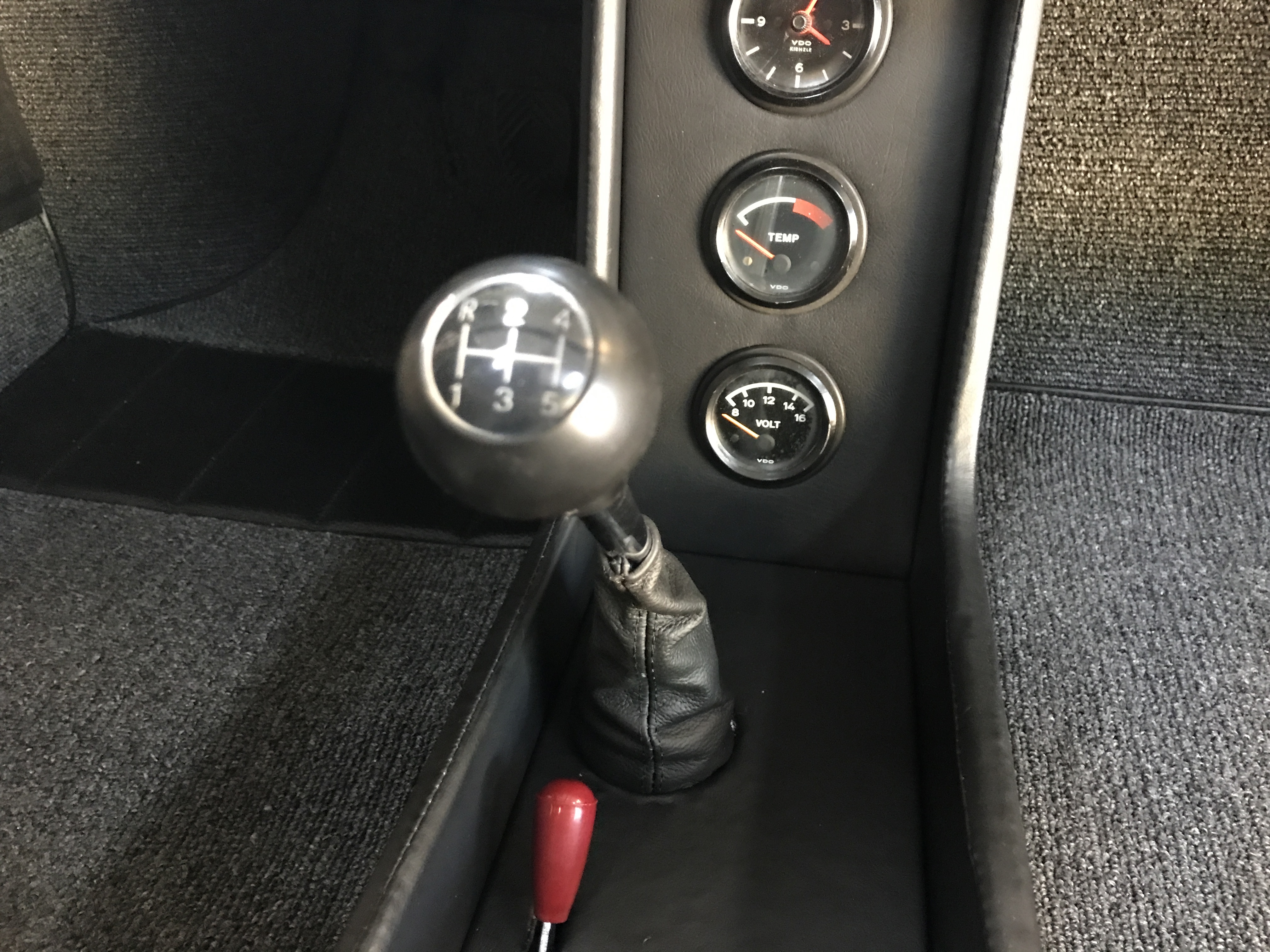

New knobs!


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 24 2021, 07:58 PM
Post #3782


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

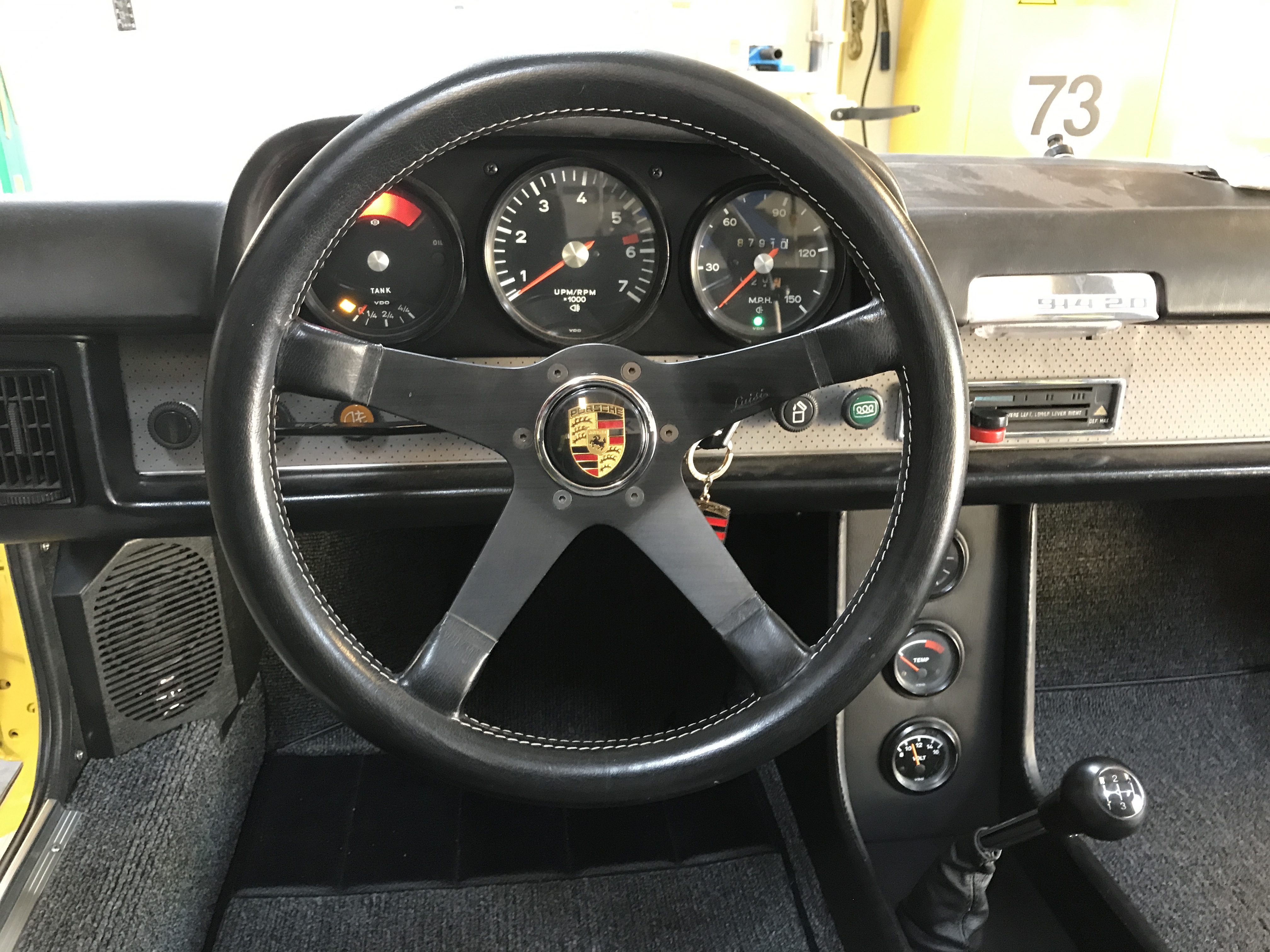

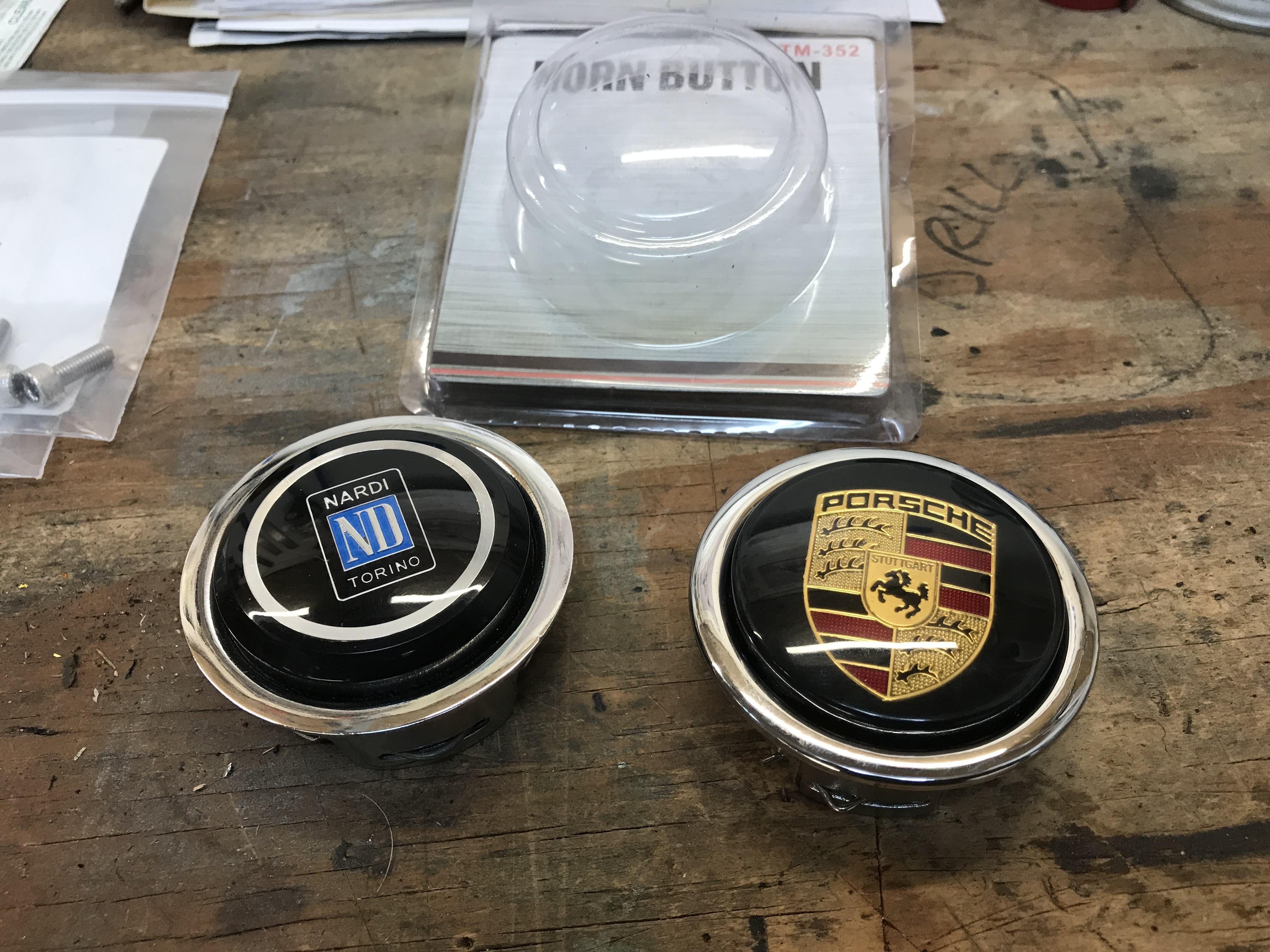

A final trinket: after many months of searching, I found a Porsche crest button for the Nardi wheel that came on the car. I know after-market steering wheels upset some people, but one of the things I changed on my first 914 was the wheel.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 24 2021, 07:59 PM
Post #3783


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
And I like this as the only Porsche crest on the car.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 24 2021, 08:01 PM
Post #3784


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

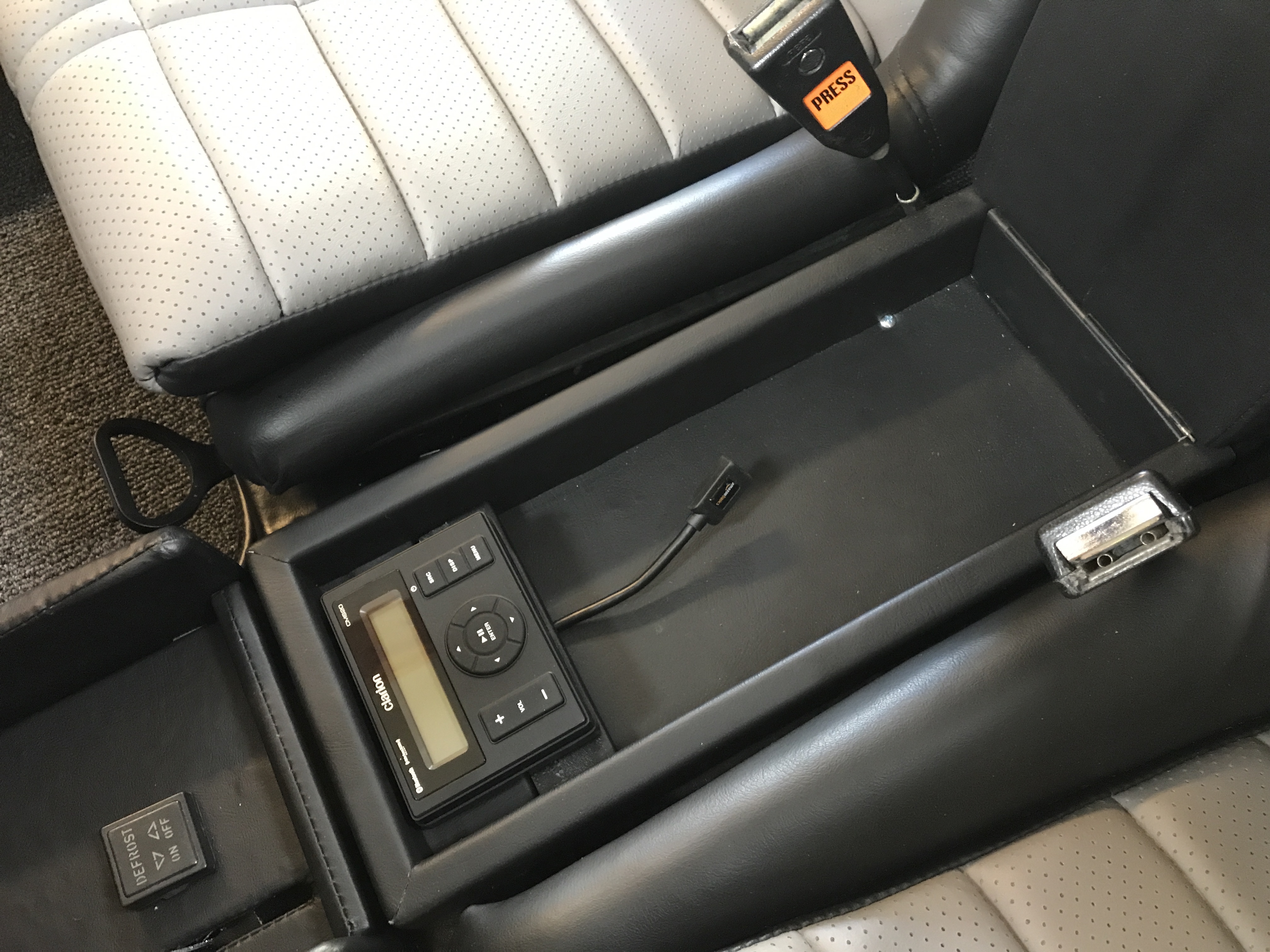

After that, I fastened down the arm rest, with the hidden control for the hidden audio system, complete with USB plug for phones.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 24 2021, 08:02 PM
Post #3785


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

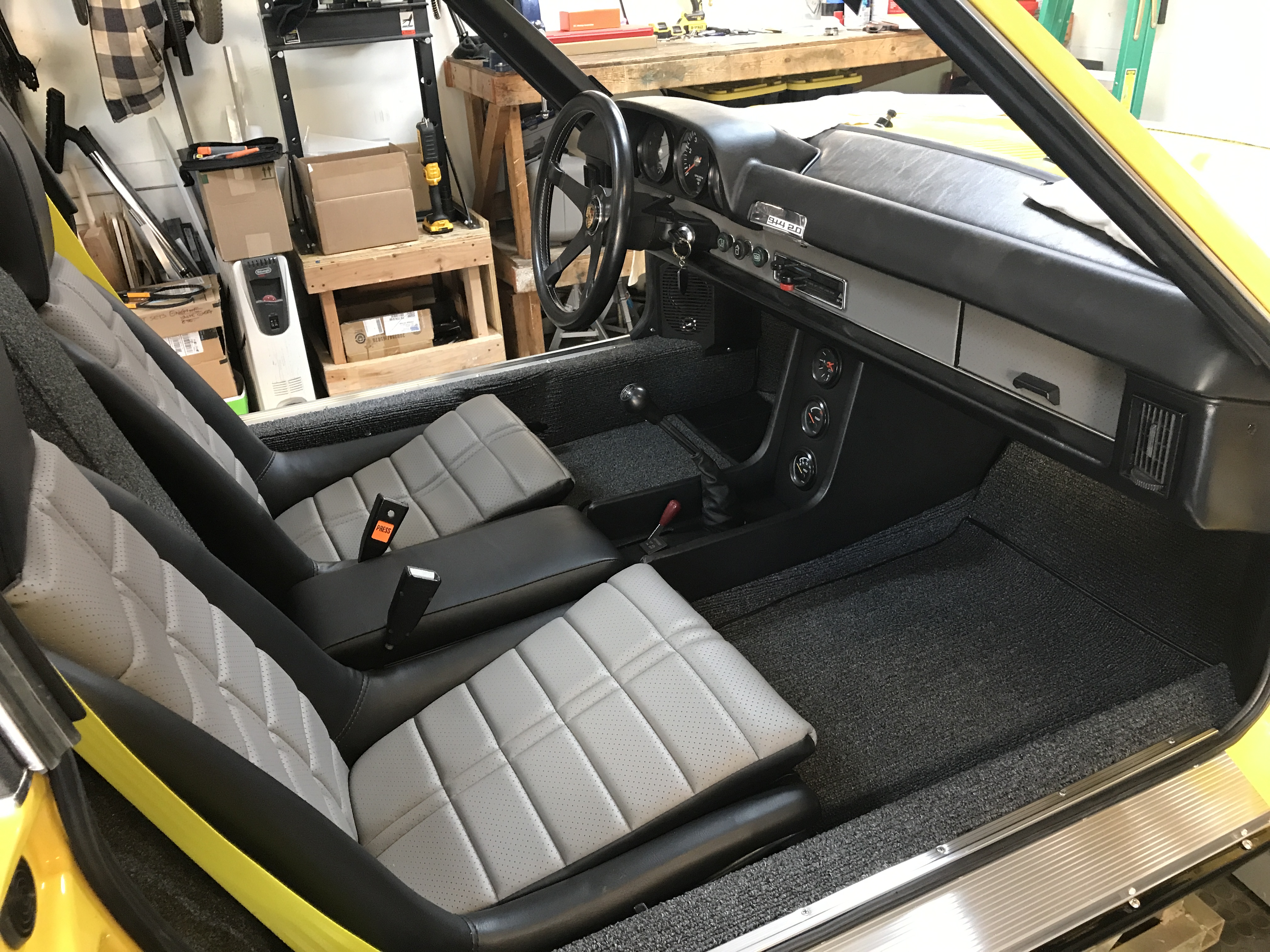

Here's a shot of the interior, complete except for doors and windshield.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
djway
post Sep 24 2021, 10:19 PM
Post #3786


Senior Member
***

Group: Members
Posts: 787
Joined: 16-October 15
From: Riverside
Member No.: 19,266
Region Association: Southern California
SWEET
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
seanpaulmc
post Sep 25 2021, 05:13 AM
Post #3787


Member
**

Group: Members
Posts: 297
Joined: 6-December 16
From: Orlando, FL
Member No.: 20,649
Region Association: South East States
QUOTE(bkrantz @ Sep 24 2021, 10:02 PM) *

Here's a shot of the interior, complete except for doors and windshield.


Outstanding!

(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 25 2021, 07:53 PM
Post #3788


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Thanks, guys. I hope all the bits stay together when I try driving.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 25 2021, 07:55 PM
Post #3789


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
More tools! Thats why we play amateur mechanic, right?

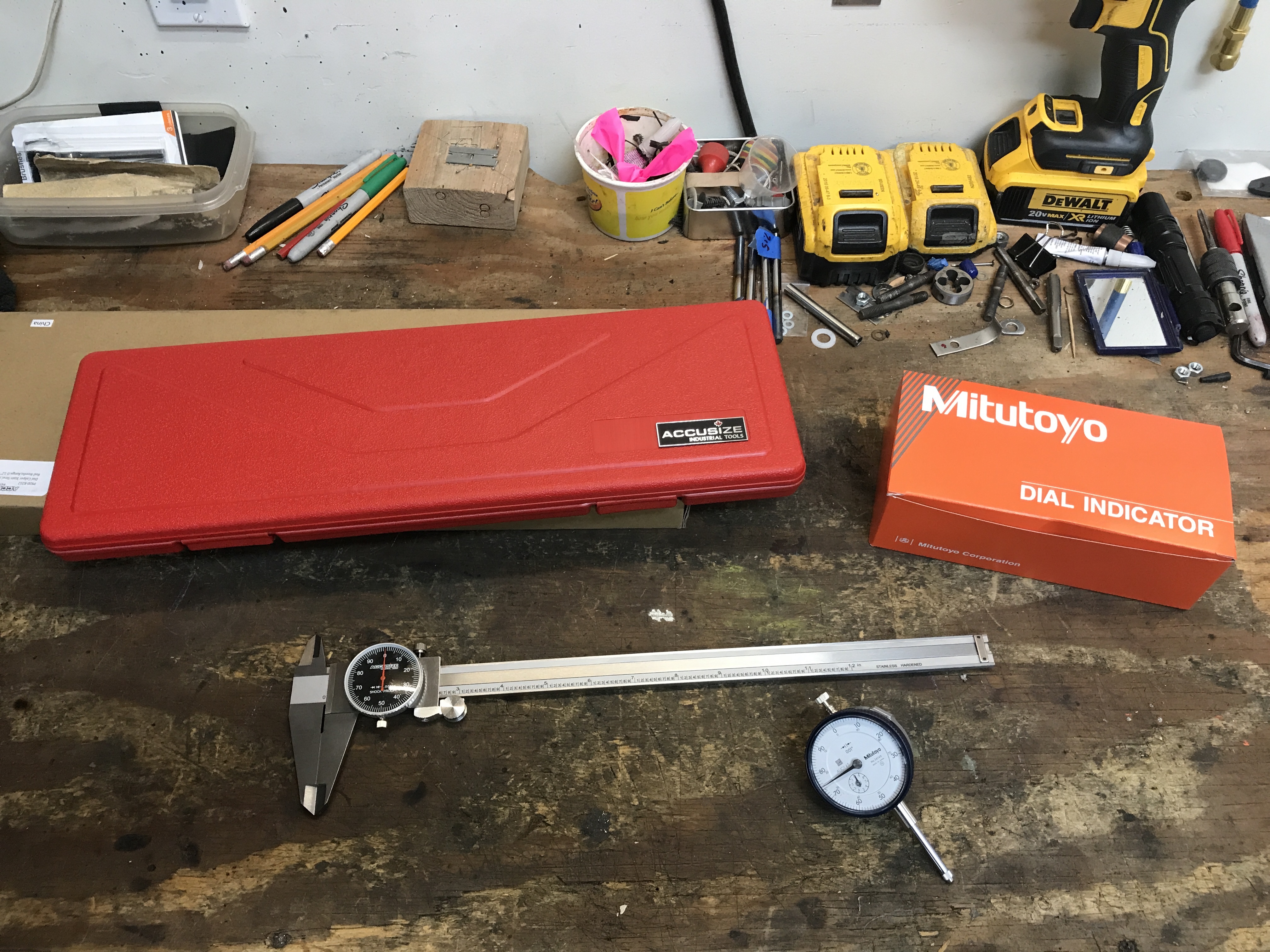

I rationalized getting a 12 inch caliper to deal with measuring push rods. And a new dial gauge since my near-antique Sears model was acting odd.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 25 2021, 07:56 PM
Post #3790


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

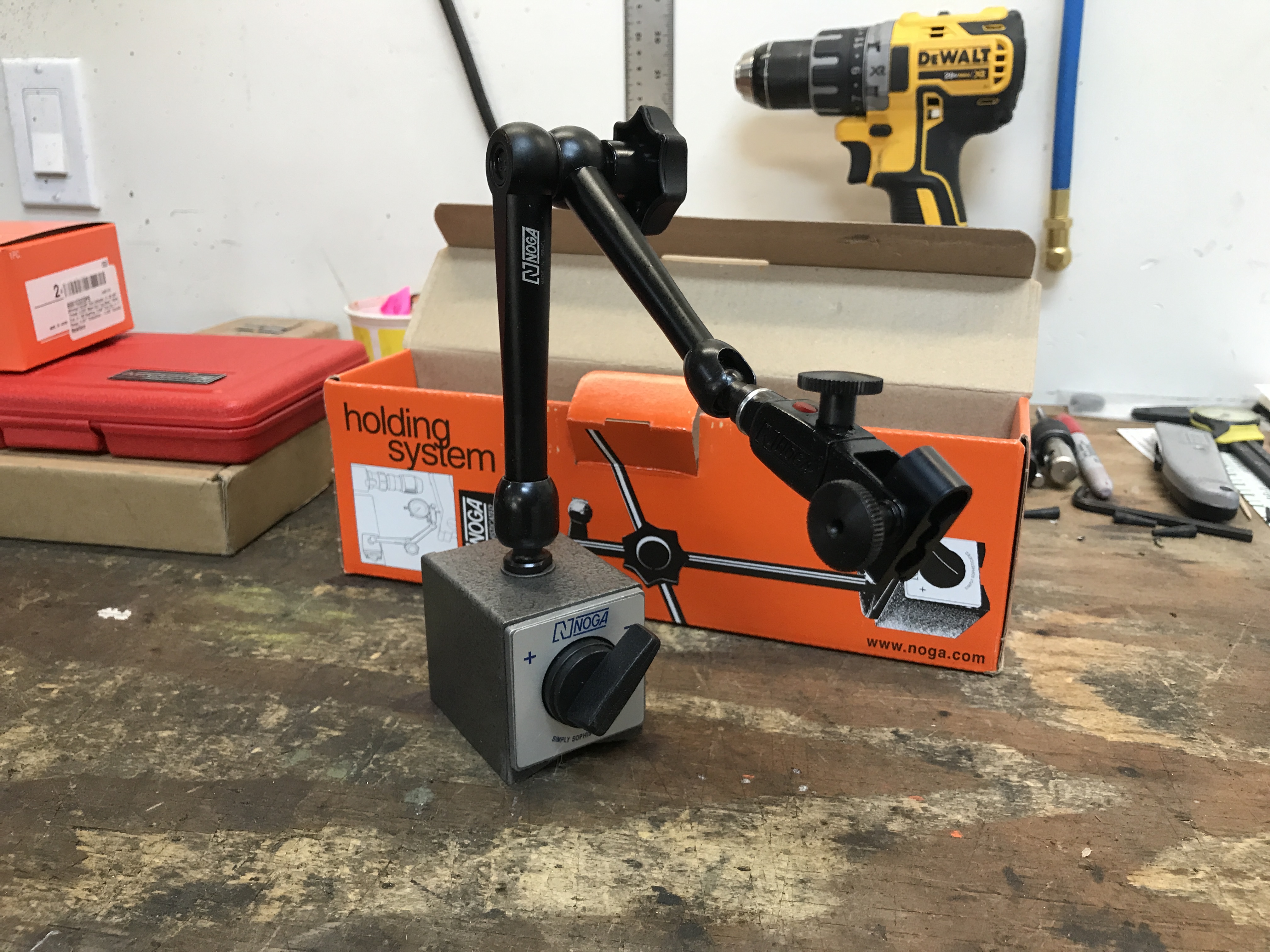

And while I was shopping, why not a better dial gauge support thing?


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 25 2021, 07:57 PM
Post #3791


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

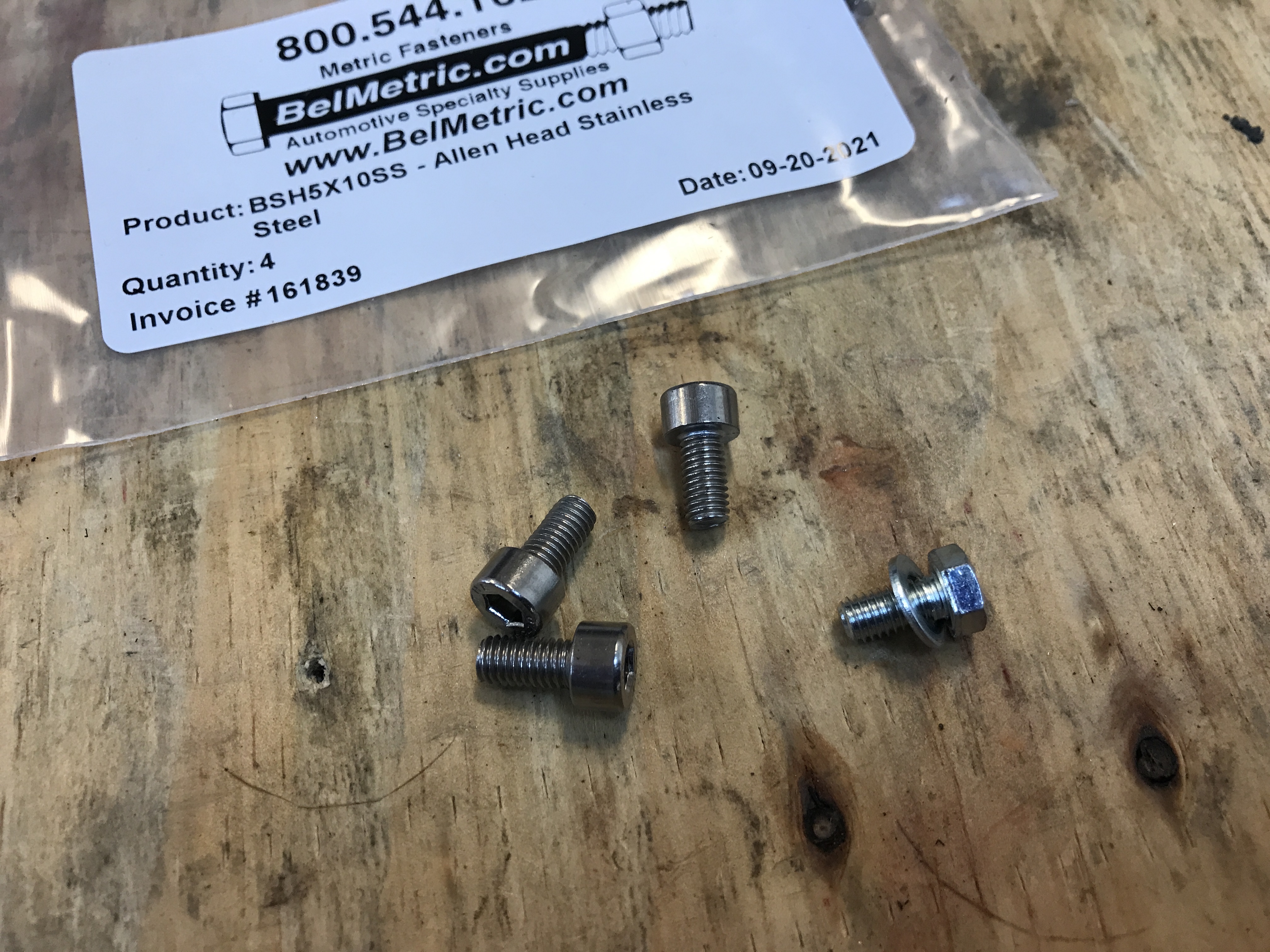

But before playing with new toys, I played with new hardware. I got some M5 Allen head bolts.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 25 2021, 07:59 PM
Post #3792


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

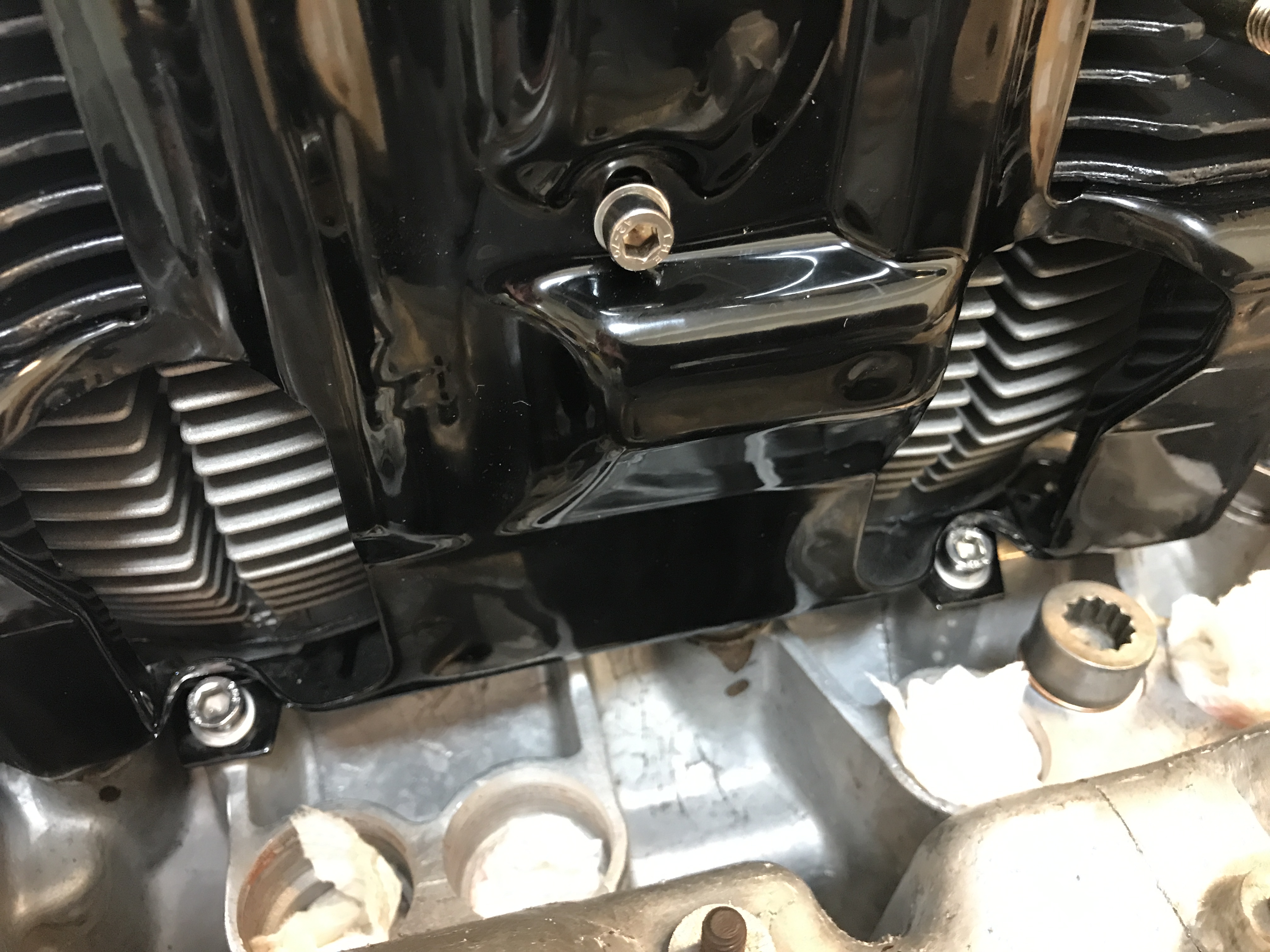

Two of these replace the temporary bolts I used in the centers of the lower sheet metal pieces. This makes my OCD happy, since they match the M6 Allen heads I used for the other spots.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 25 2021, 08:01 PM
Post #3793


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

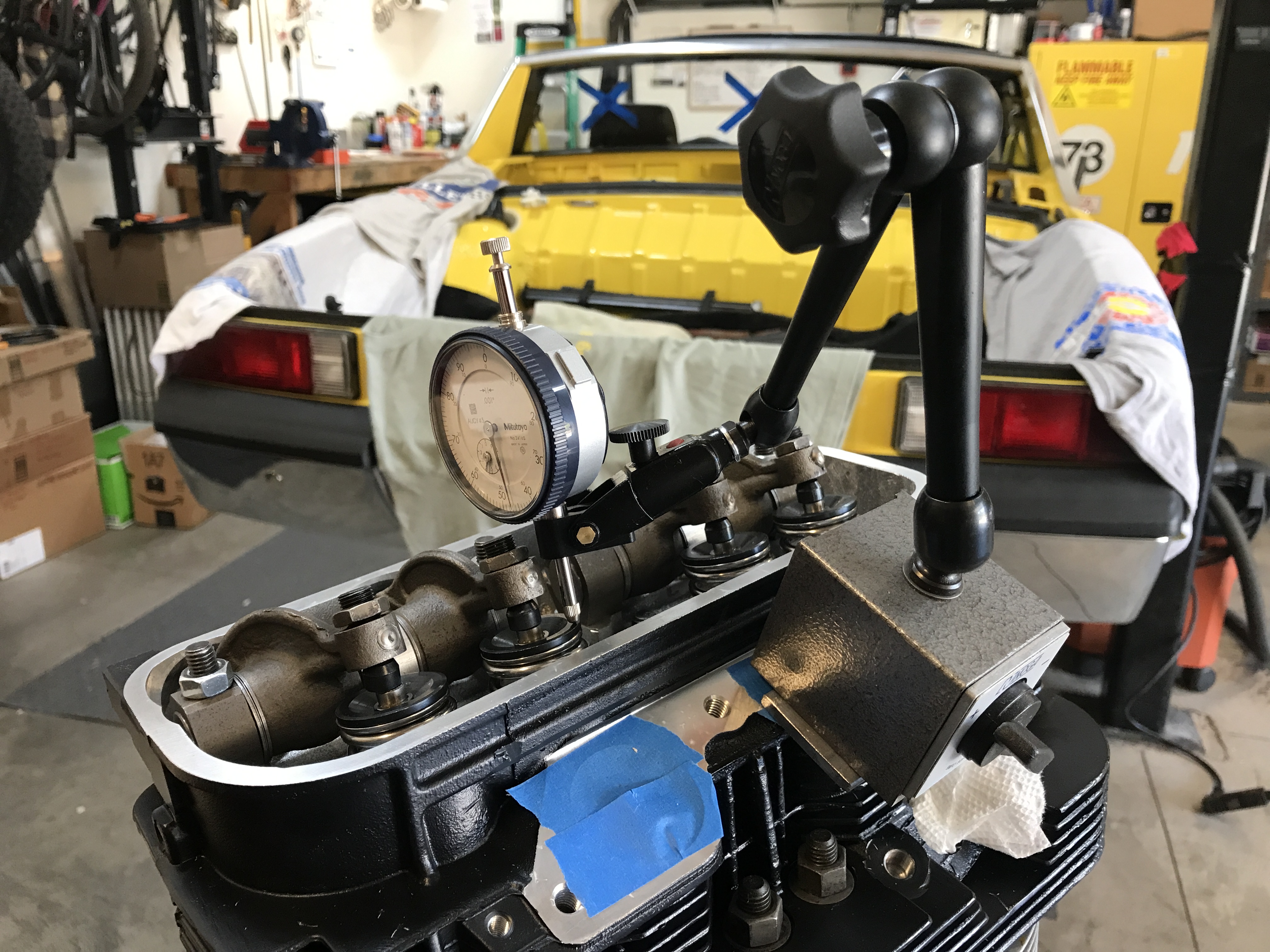

OK, time to play with the pushrod lengths again. Here is my new dial gauge set up.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 25 2021, 08:03 PM
Post #3794


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

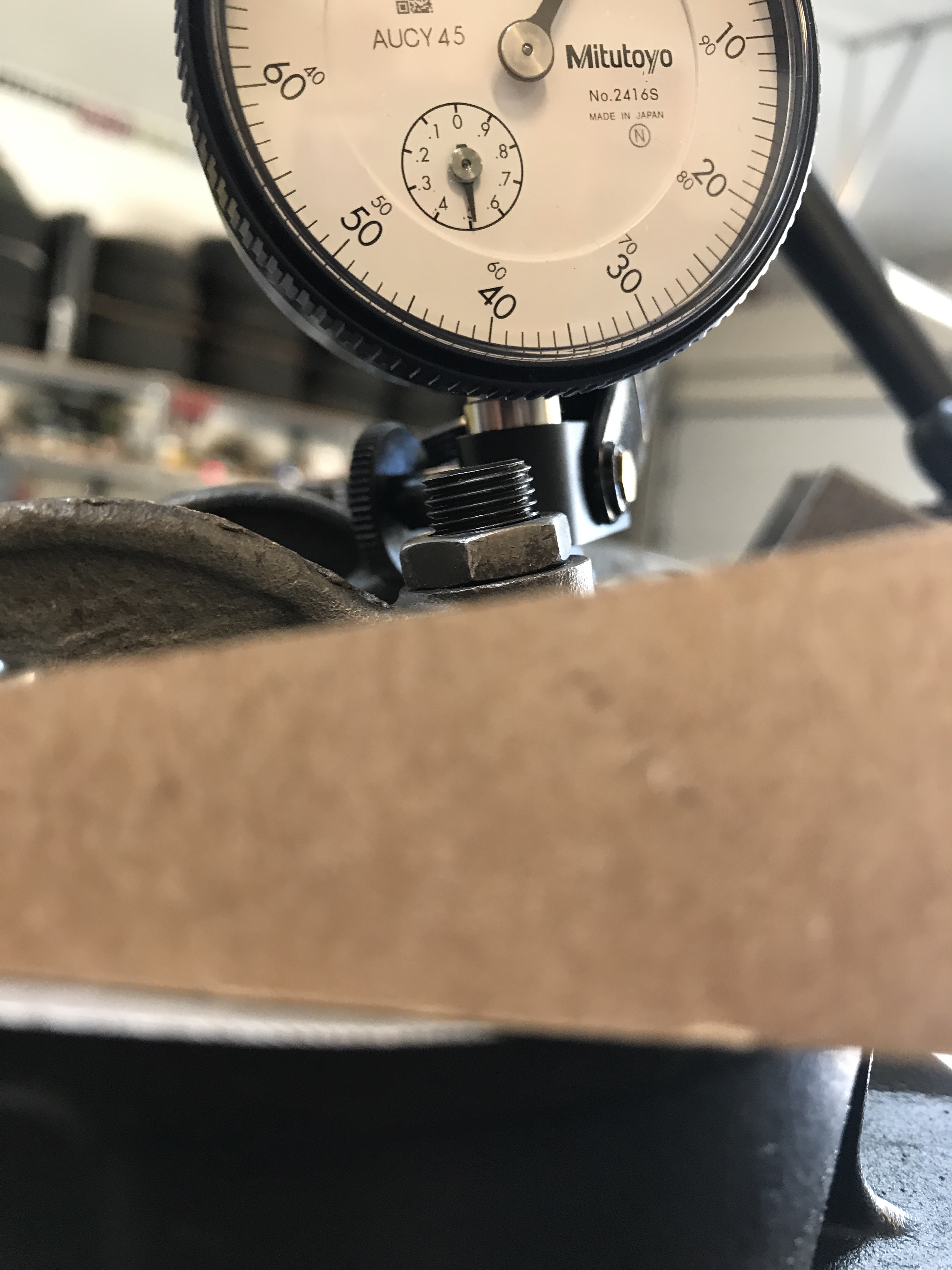

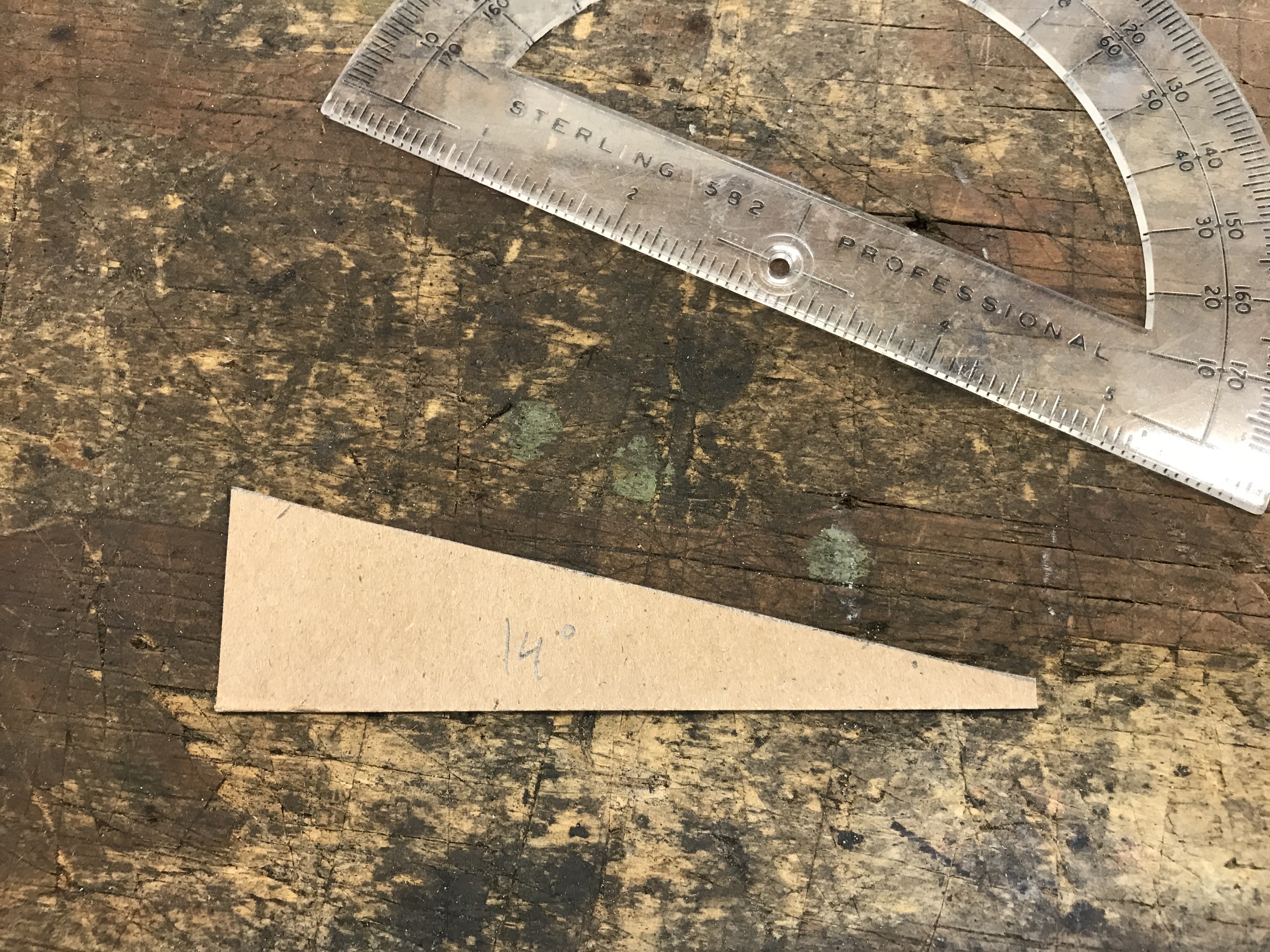

I also made a cardboard template to help with judging alignment. This wedge is 14 degrees, which matches the inclination of the valves relative to the perpendicular of the cylinder head faces.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 25 2021, 08:05 PM
Post #3795


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

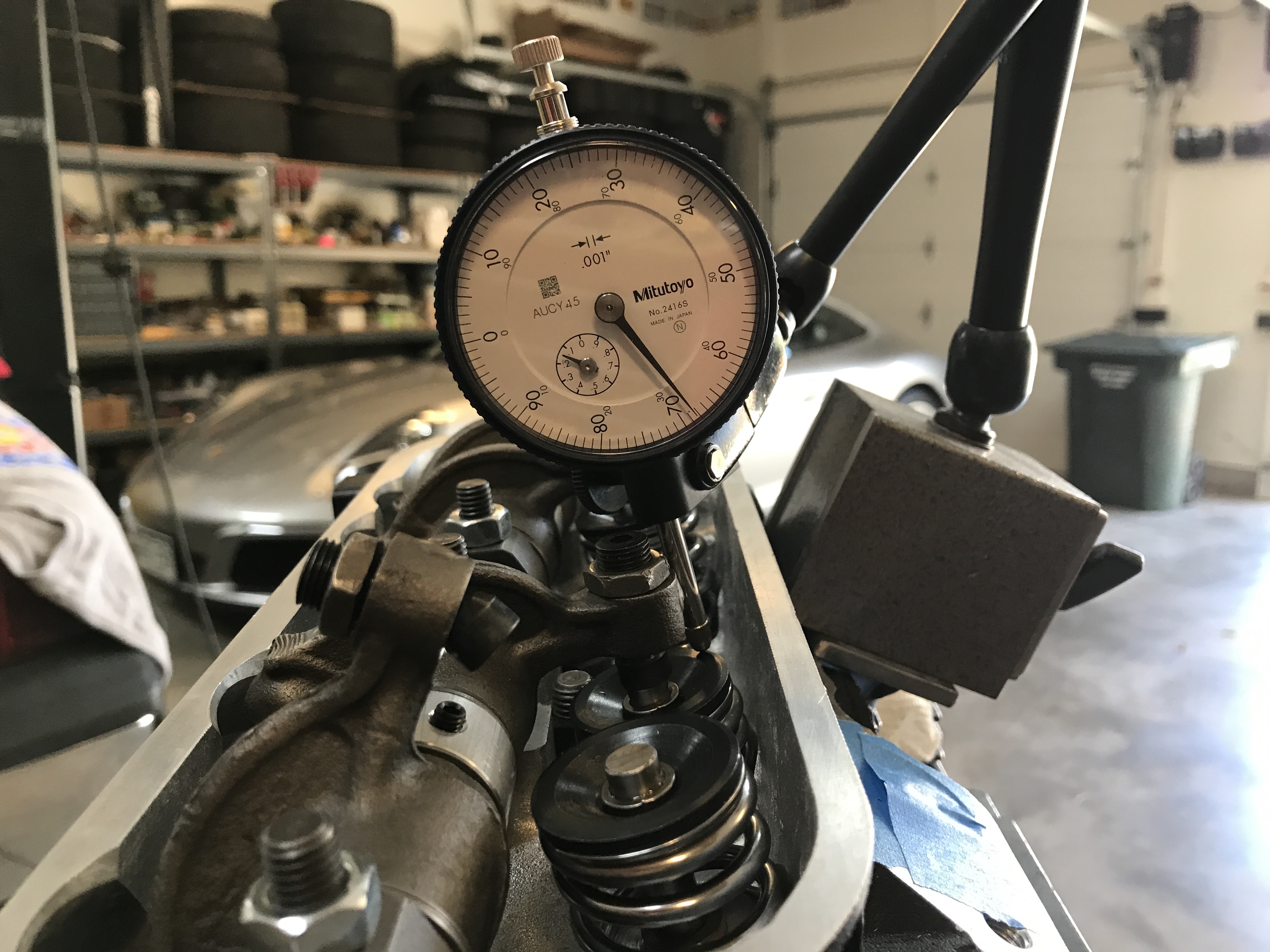

Here's a measurement of valve lift on the #1 intake, with a 268 mm push rod length. The lift is .432". I was able to repeat that multiple times.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 25 2021, 08:07 PM
Post #3796


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
And at half-lift, the rocker arm and adjuster nut line up nicely, so the adjuster and valve stem should be in a straight line.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 25 2021, 08:09 PM
Post #3797


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
On the exhaust valve, I got a max lift of .410. As expected, this is less than the intake valve lift, since the rocker arm ratios are a little different. I also got excellent alignment. Again, this was with my adjustable pushrod set to 268 mm.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 25 2021, 08:17 PM
Post #3798


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
For "fun", I installed stock 271 mm pushrods, and .074" shims under the rocker shaft supports. Still on cylinder #1, I got these results:

intake, .432" lift, excellent alignment
exhaust, .412" lift, excellent alignment

I confirmed these by putting the same shims under the rocker shaft supports for #4, with

intake, .432" lift
exhaust, .409" lift

both with excellent alignment

Now I need to decide on my solution: adjustable pushrods or shims.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Sep 26 2021, 04:21 PM
Post #3799


Senior Member
***

Group: Members
Posts: 1,271
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States
QUOTE(bkrantz @ Sep 25 2021, 09:59 PM) *

Two of these replace the temporary bolts I used in the centers of the lower sheet metal pieces. This makes my OCD happy, since they match the M6 Allen heads I used for the other spots.


Yes !!! death the cheese heads, so much easier to deal with using long allen head wrenches (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 26 2021, 07:45 PM
Post #3800


914 Guru
*****

Group: Members
Posts: 7,749
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(barefoot @ Sep 26 2021, 04:21 PM) *

QUOTE(bkrantz @ Sep 25 2021, 09:59 PM) *

Two of these replace the temporary bolts I used in the centers of the lower sheet metal pieces. This makes my OCD happy, since they match the M6 Allen heads I used for the other spots.


Yes !!! death the cheese heads, so much easier to deal with using long allen head wrenches (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif)


Agreed. Just don't say that in Wisconsin.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
