> Rebuiding Inside-out
bkrantz
post Oct 24 2021, 06:54 PM
Post #3941


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

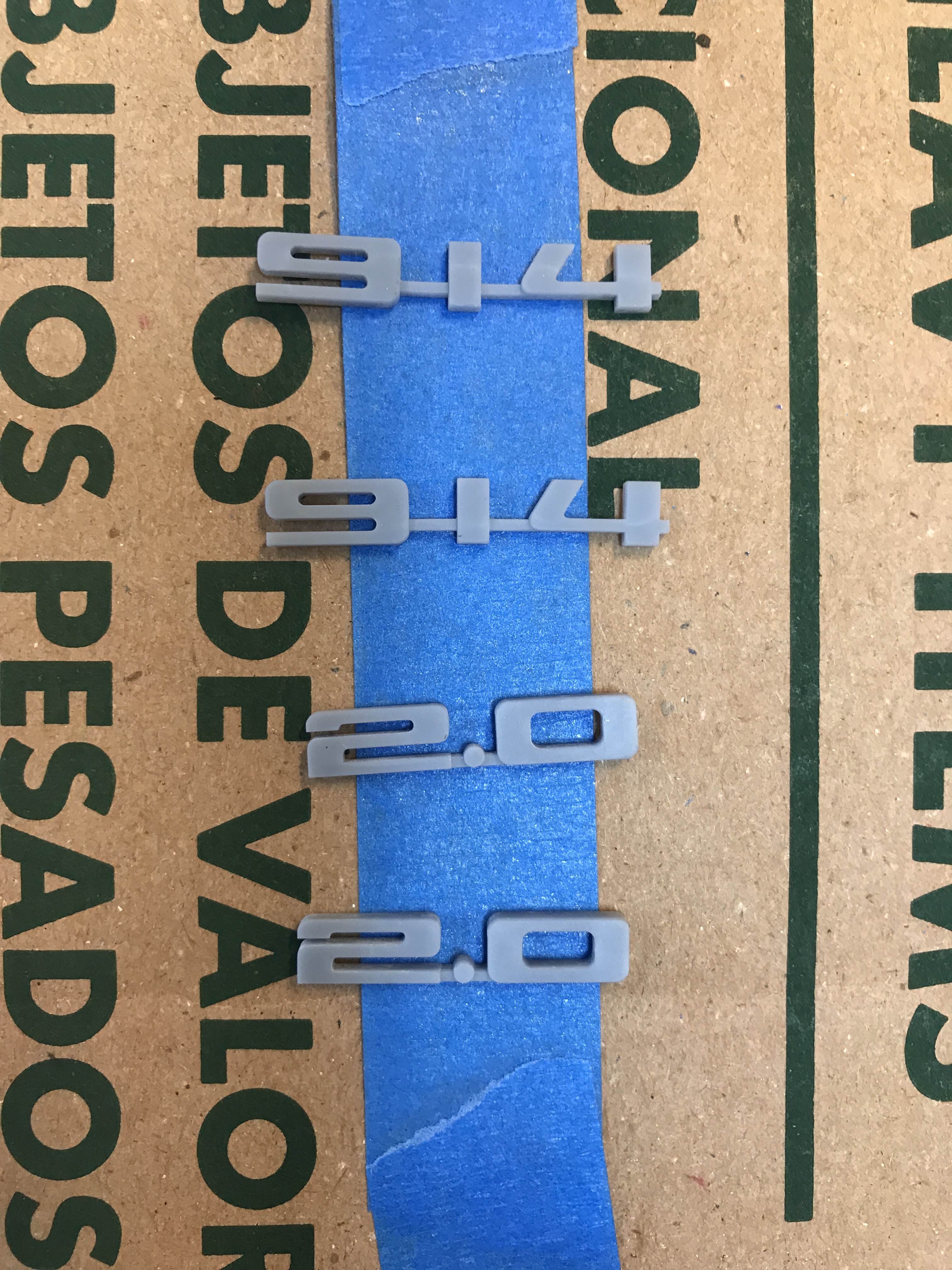

Working on my mini badges.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 06:55 PM
Post #3942


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

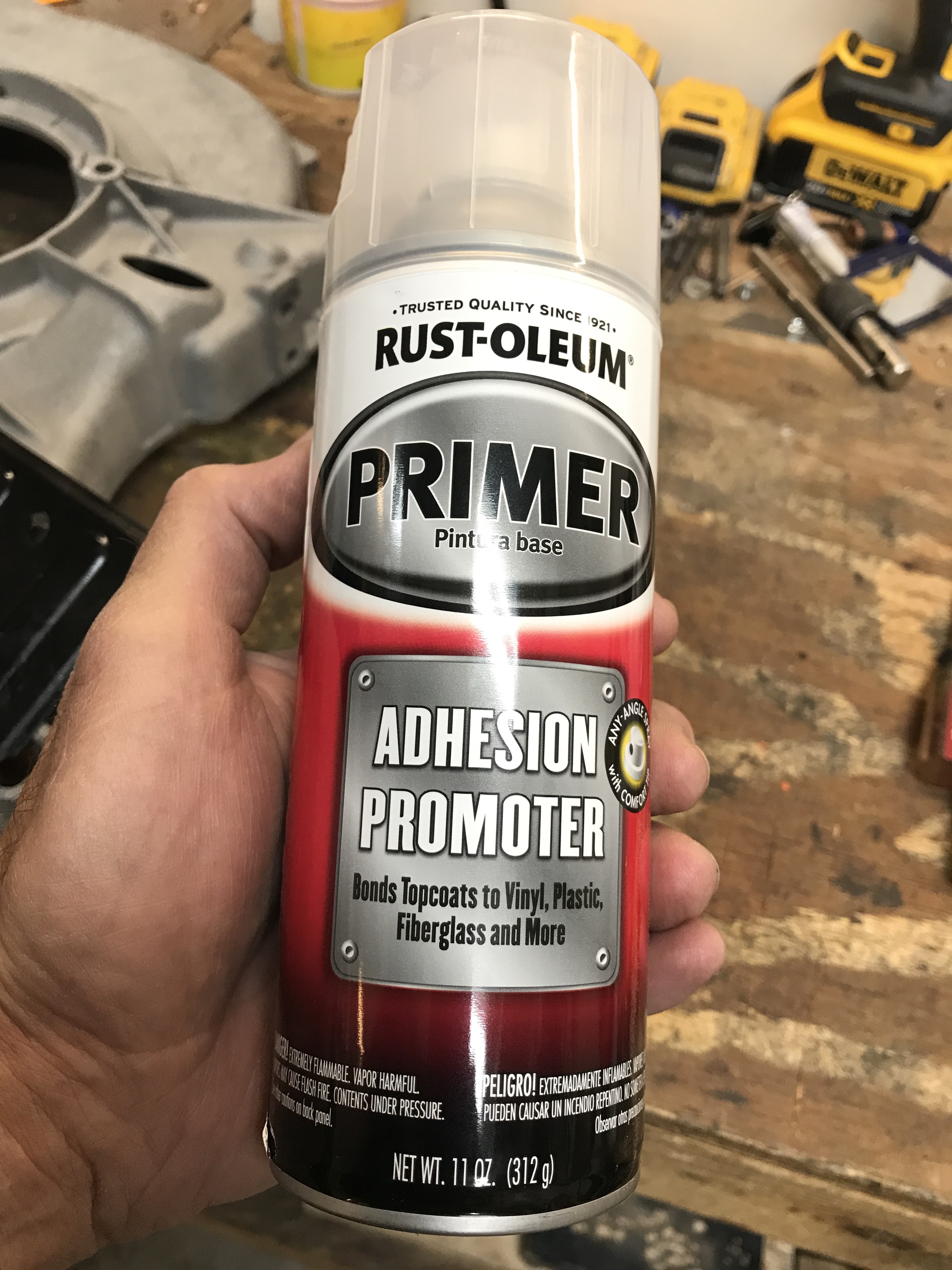

Primer for plastic. The 3D printed media claims to be like ABS.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 06:57 PM
Post #3943


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

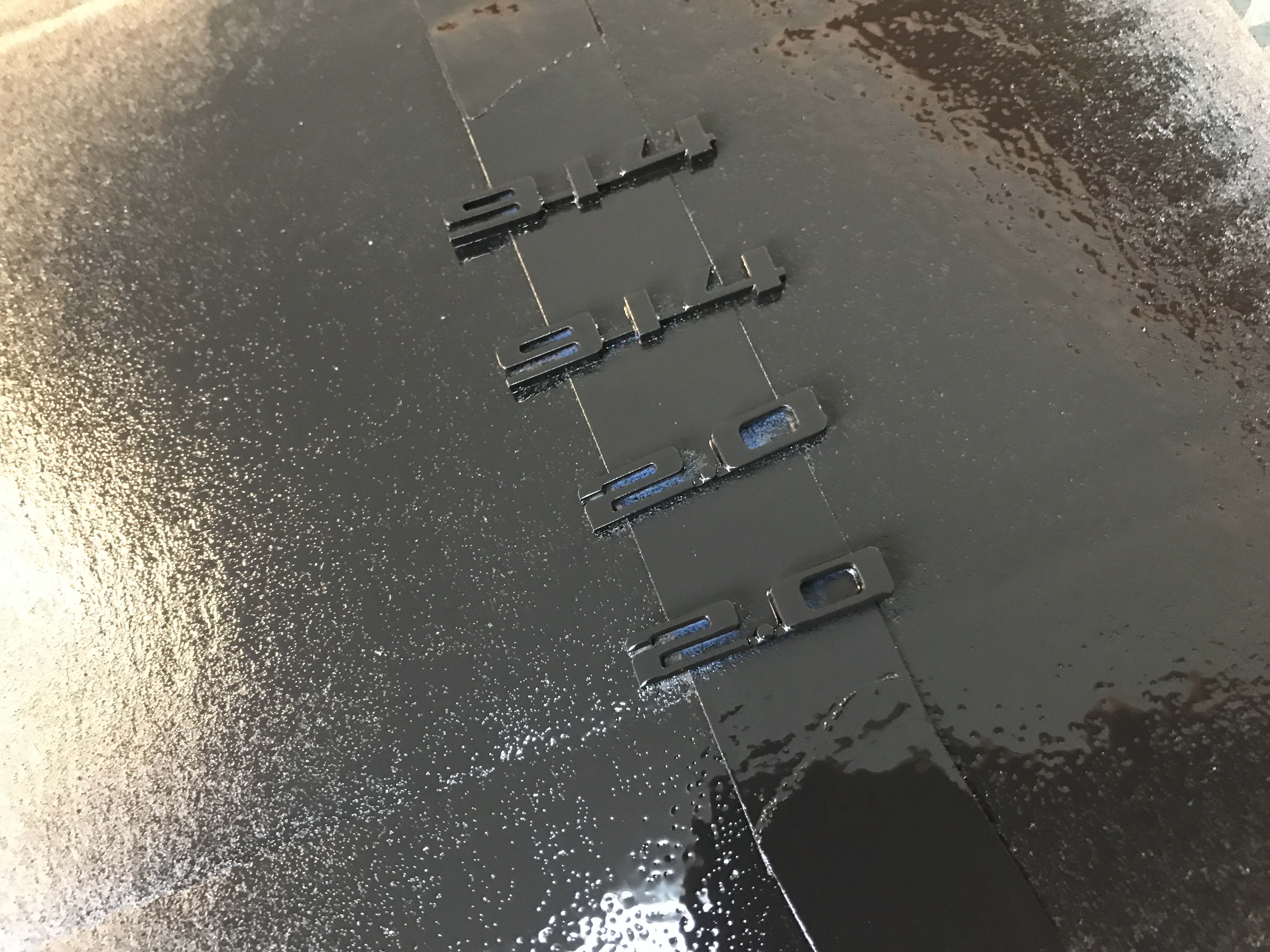

And then satin black (still wet here).


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 06:59 PM
Post #3944


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

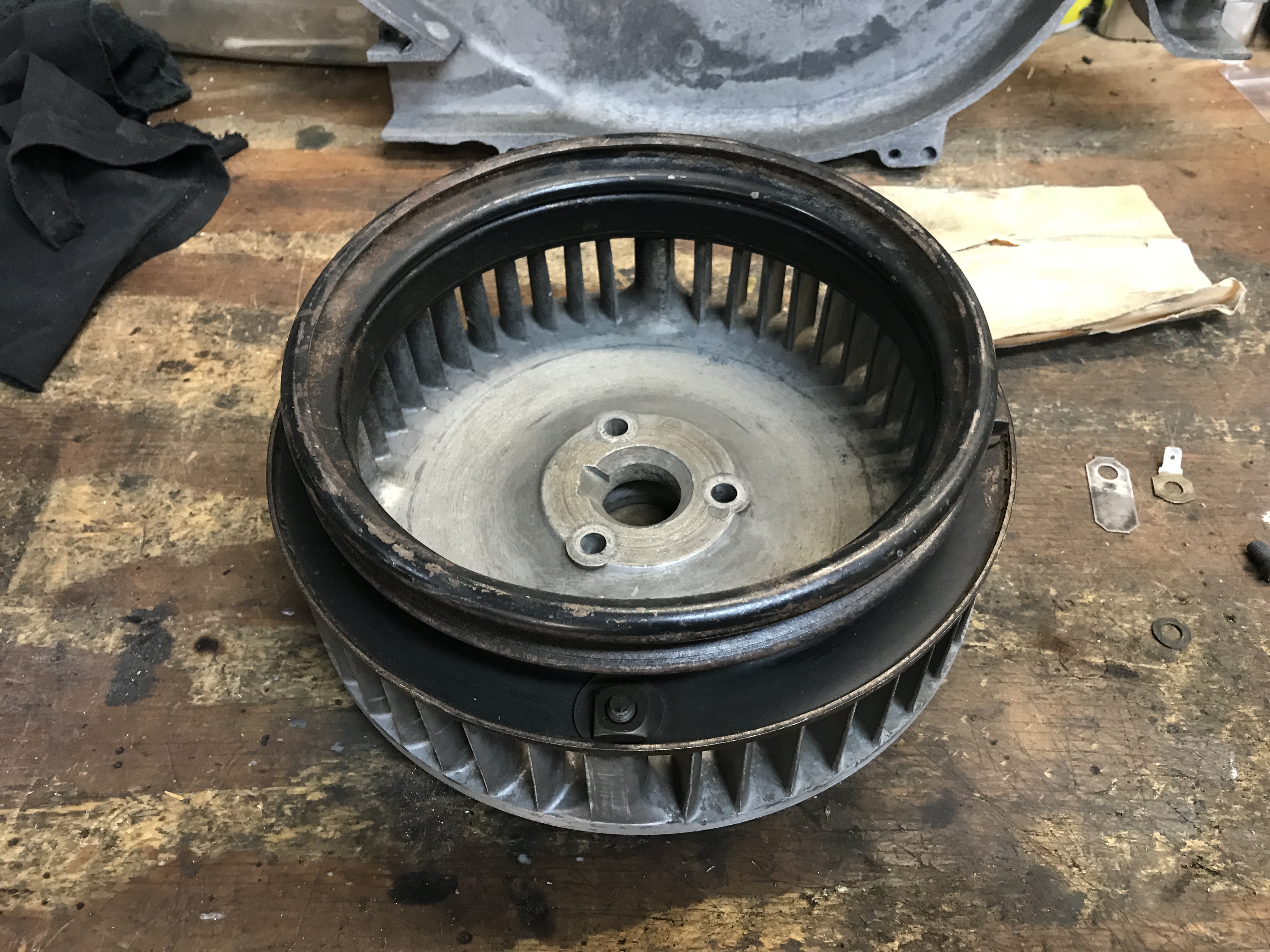

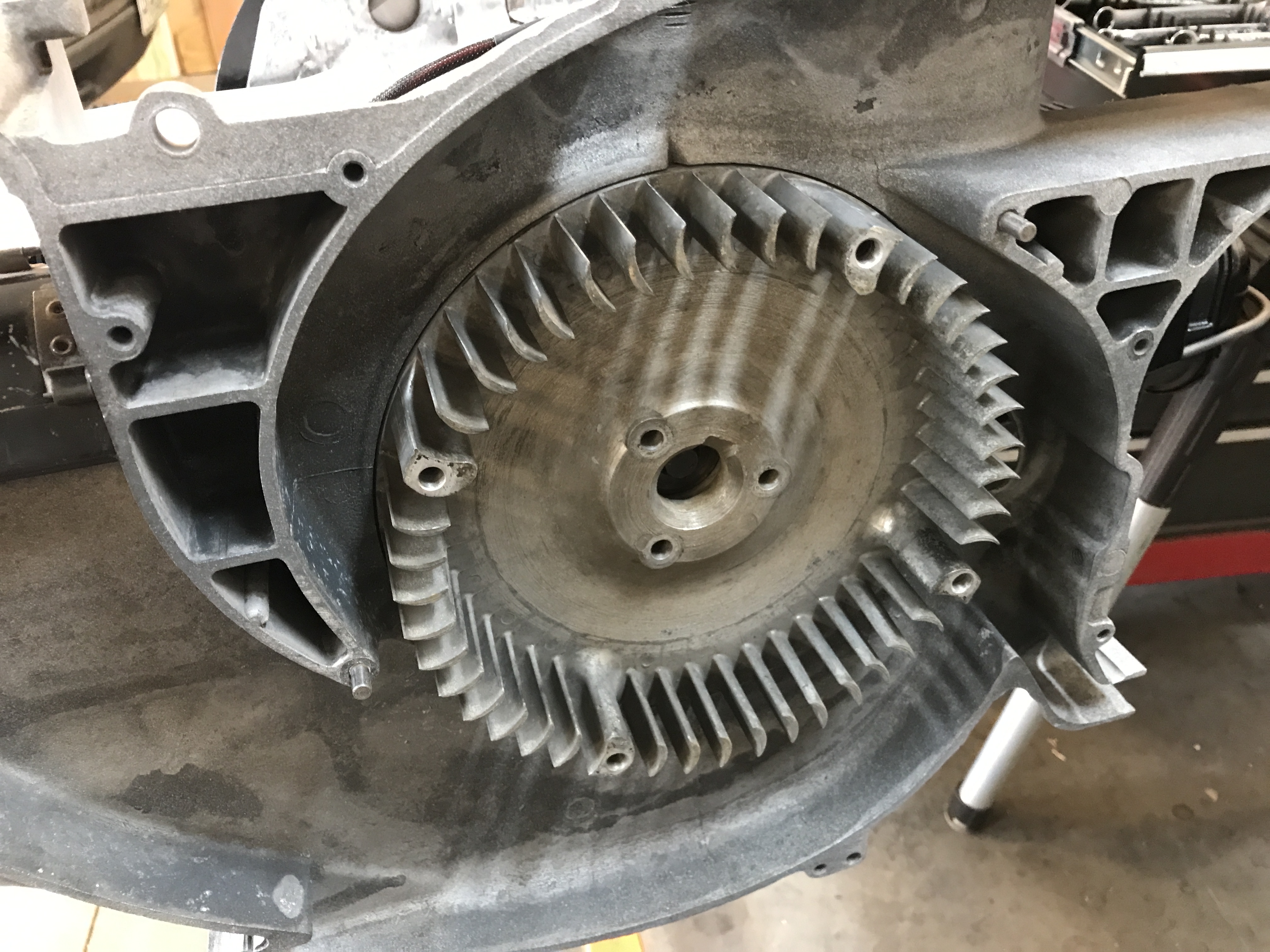

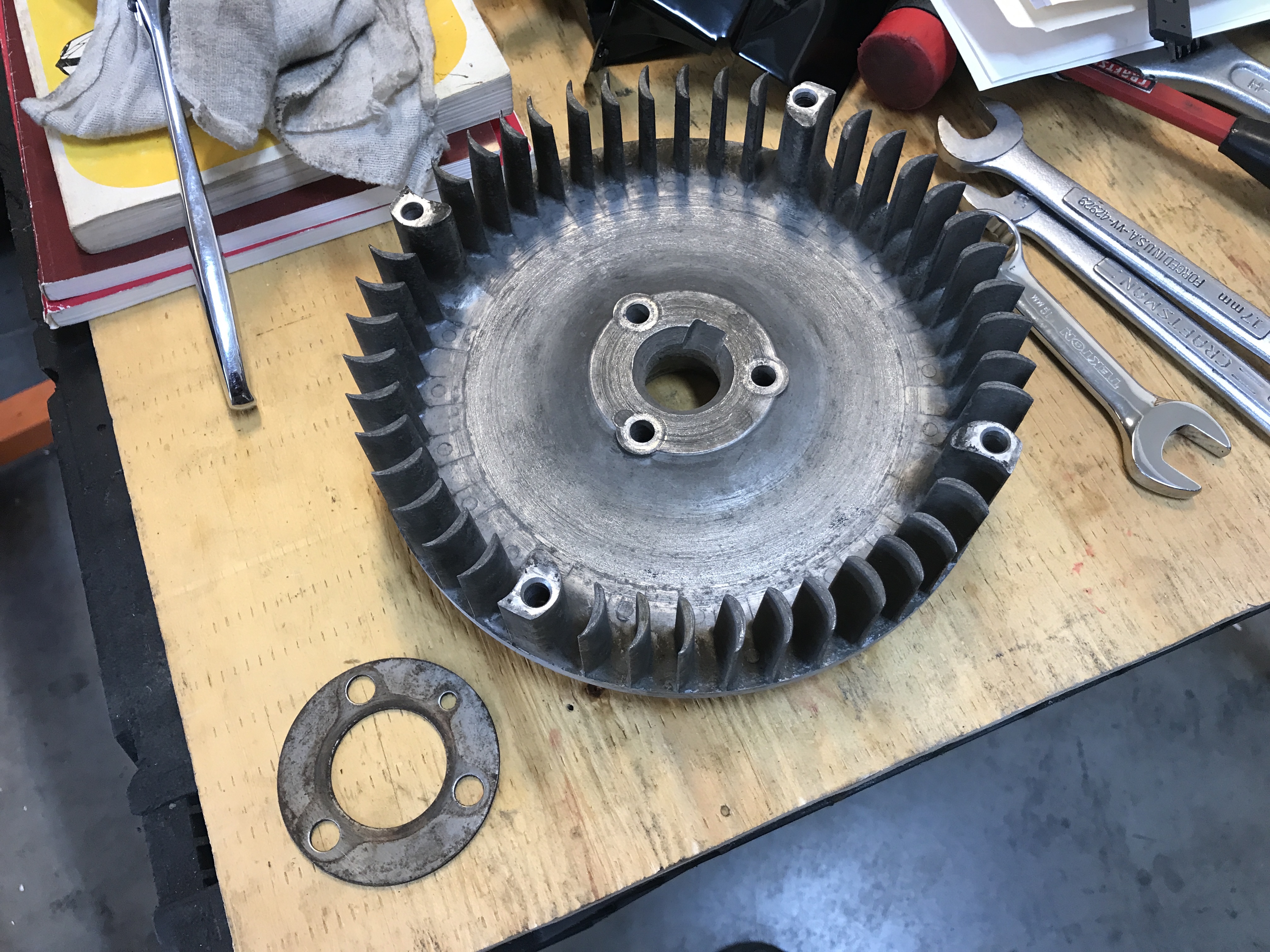

Blower fan, moderately clean. But should come apart, right?


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:00 PM
Post #3945


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

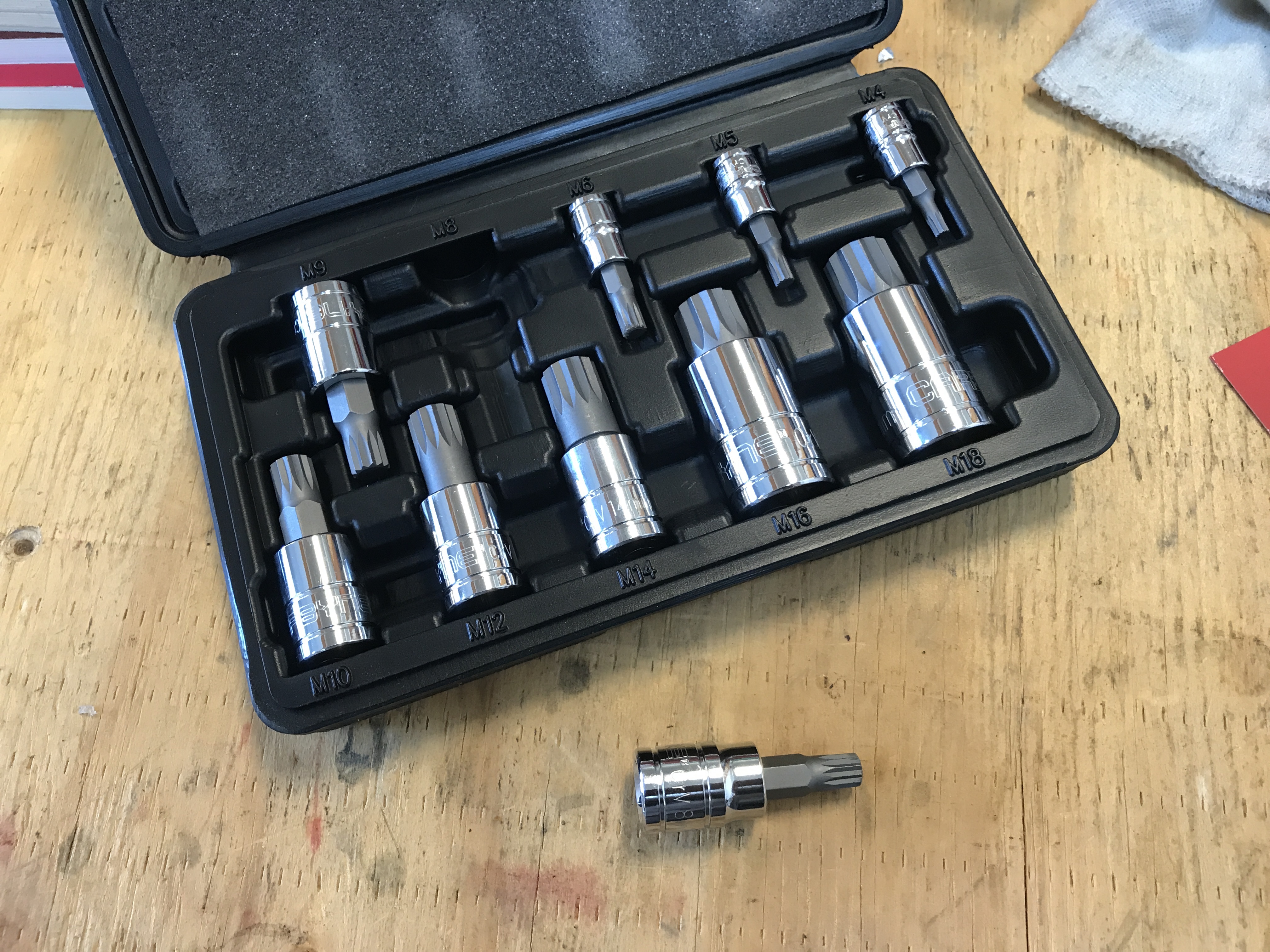

Got to use my triple-square bits again.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:01 PM
Post #3946


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

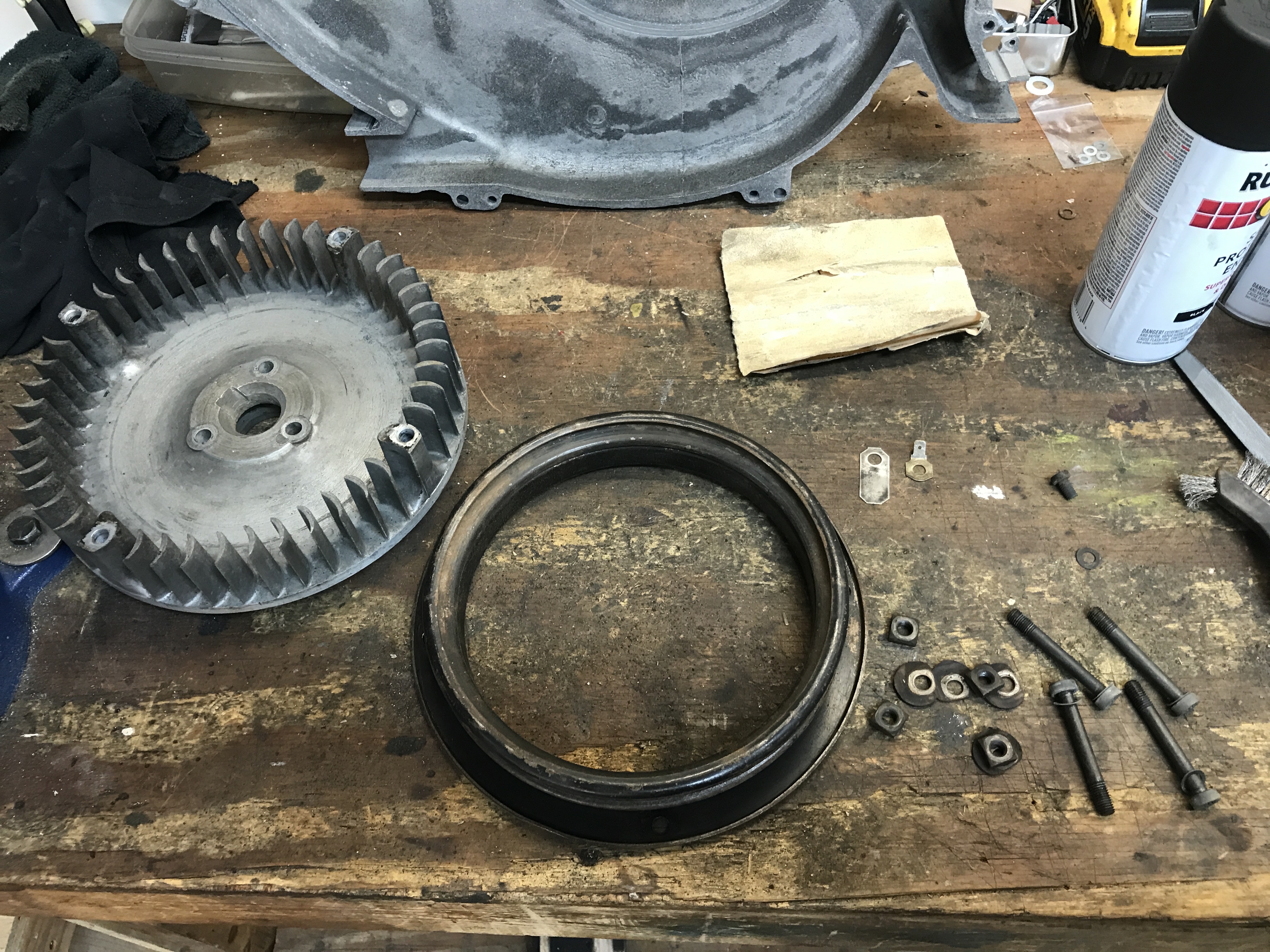

Now ready for better cleaning.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:02 PM
Post #3947


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

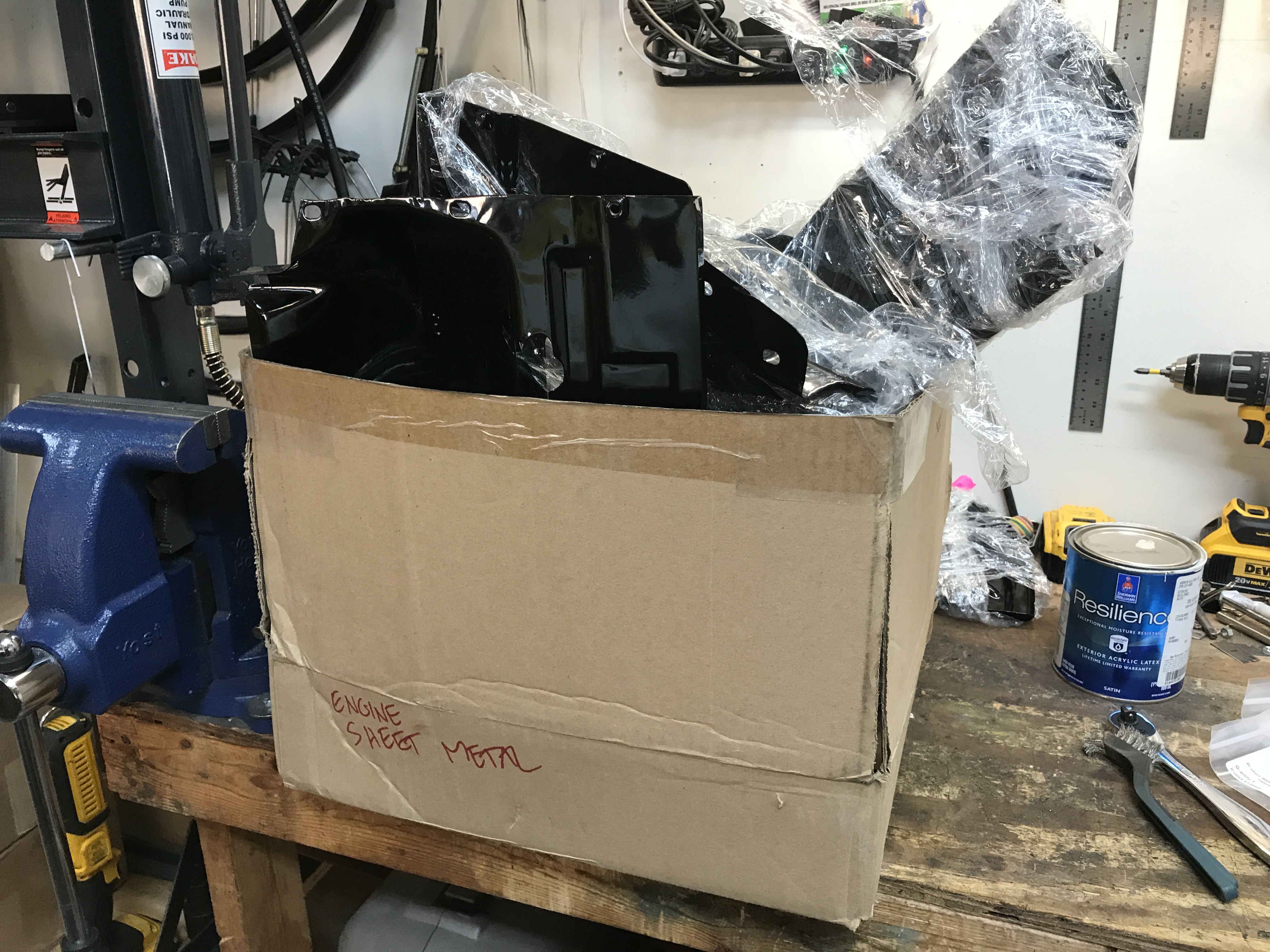

Last box of powder-coated parts, with all the engine sheet metal.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:04 PM
Post #3948


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

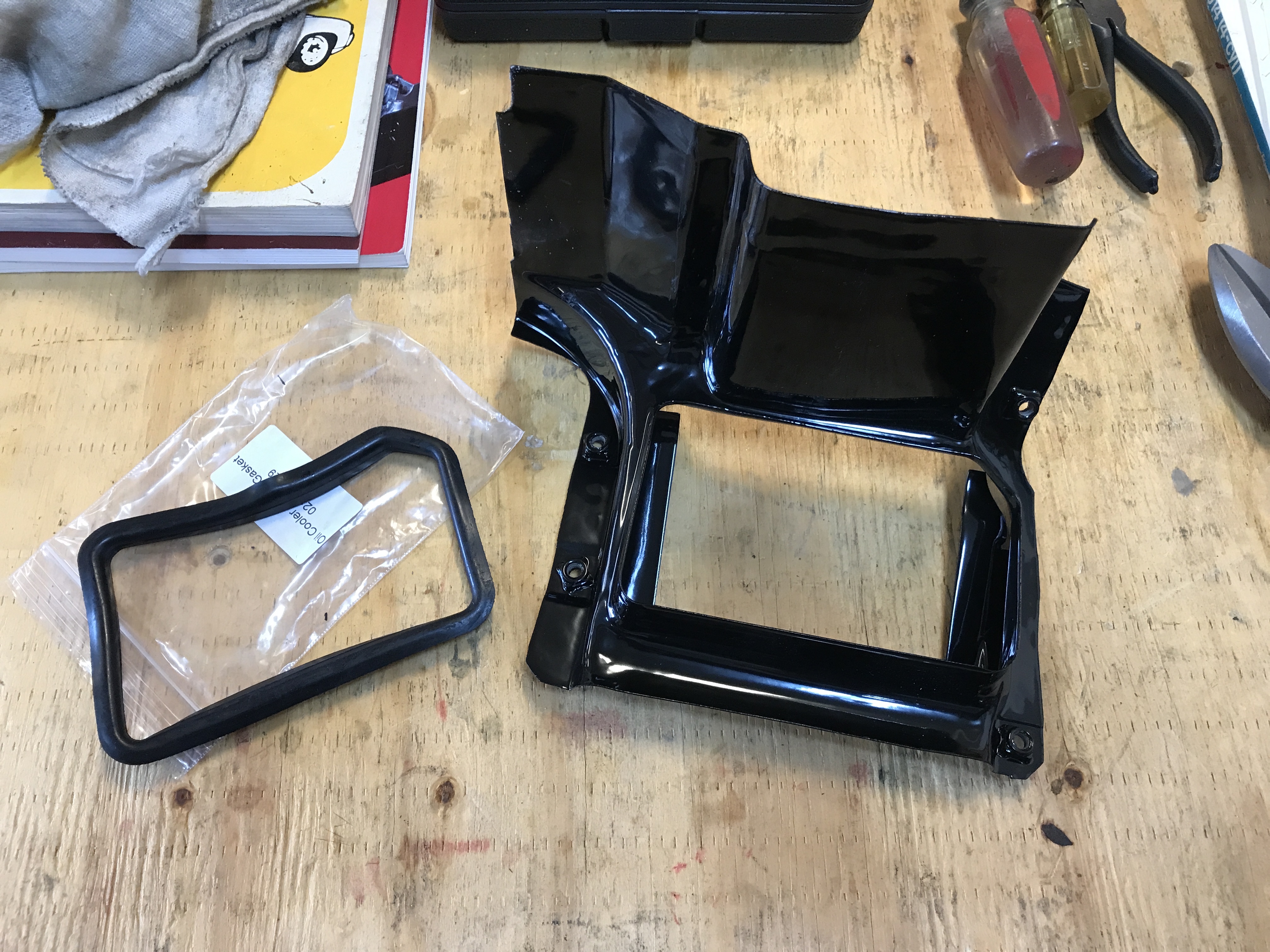

Right side duct, and new rubber gasket for the oil cooler top.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:05 PM
Post #3949


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

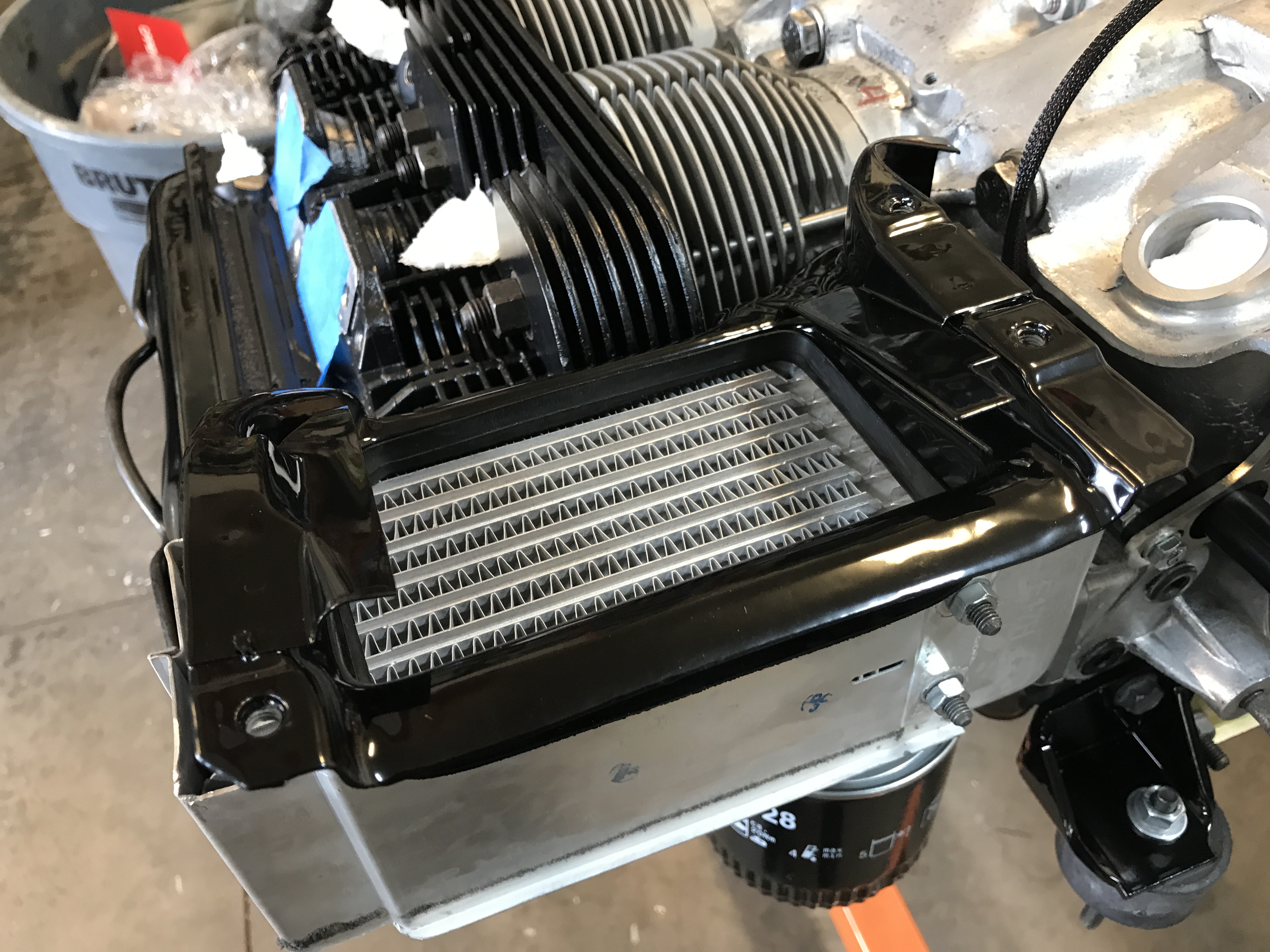

In place.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:05 PM
Post #3950


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

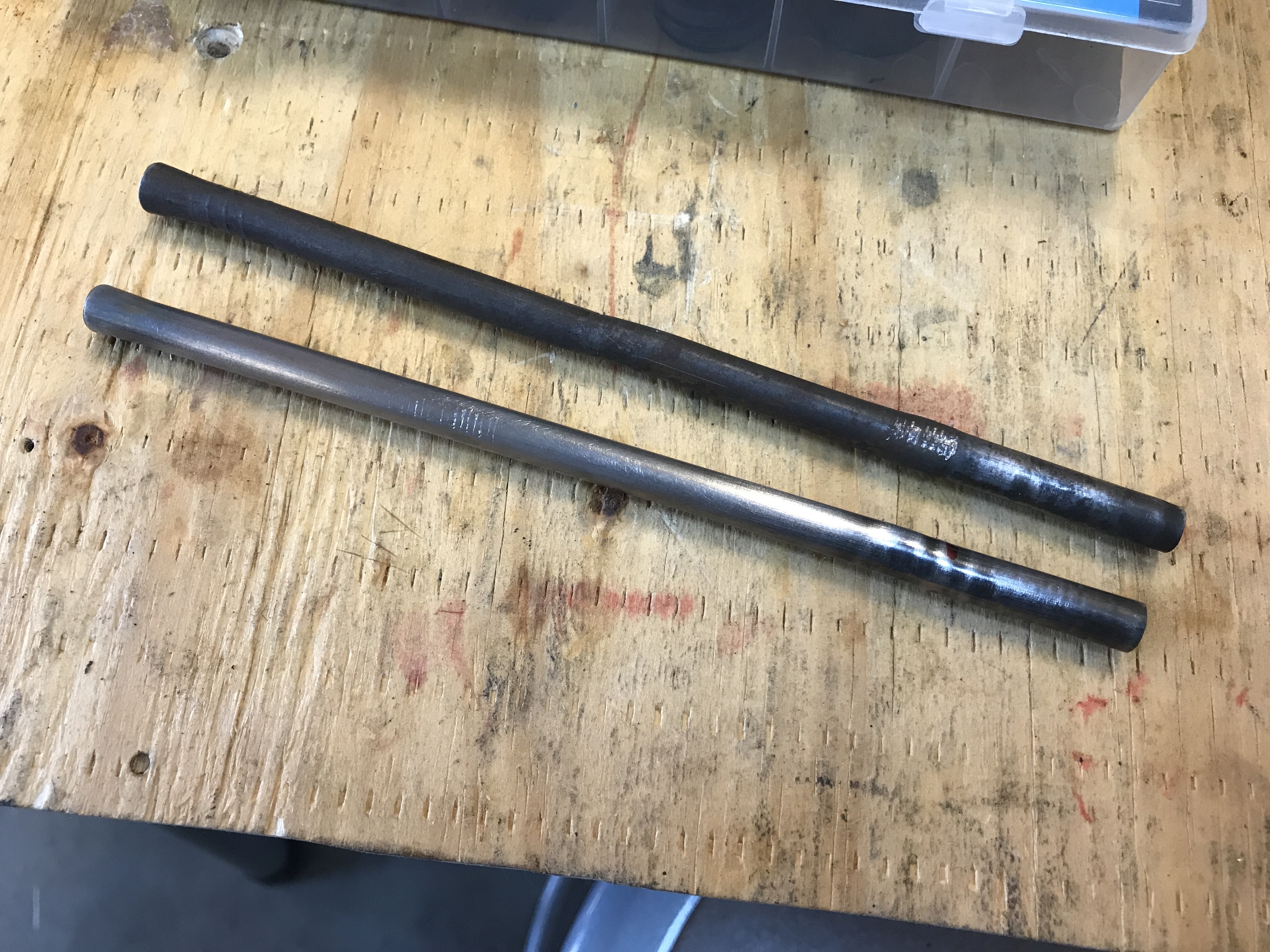

Time for the new dipstick tube (font).


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:06 PM
Post #3951


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

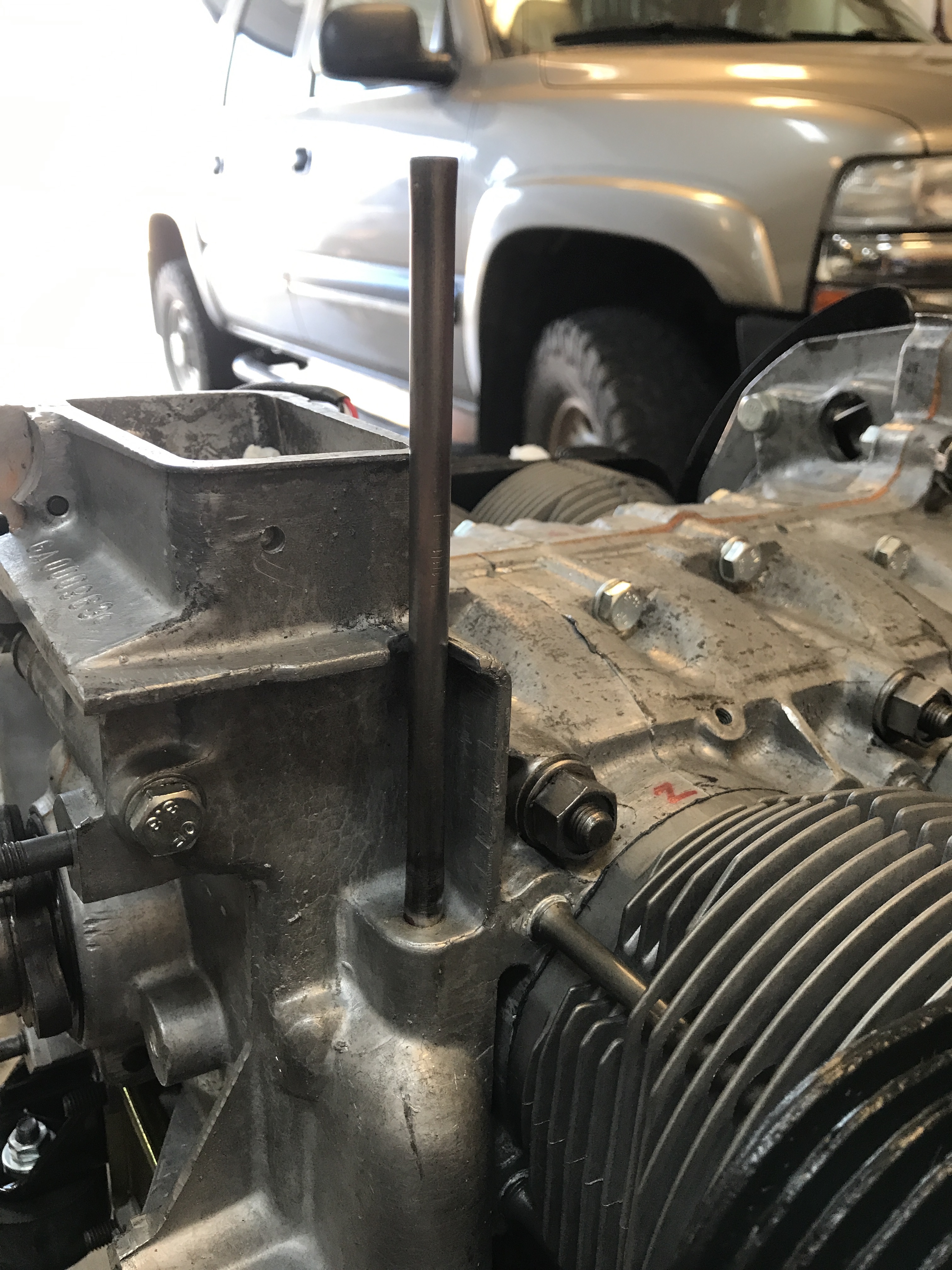

Tapped into place, within a half mm of the original height.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:07 PM
Post #3952


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

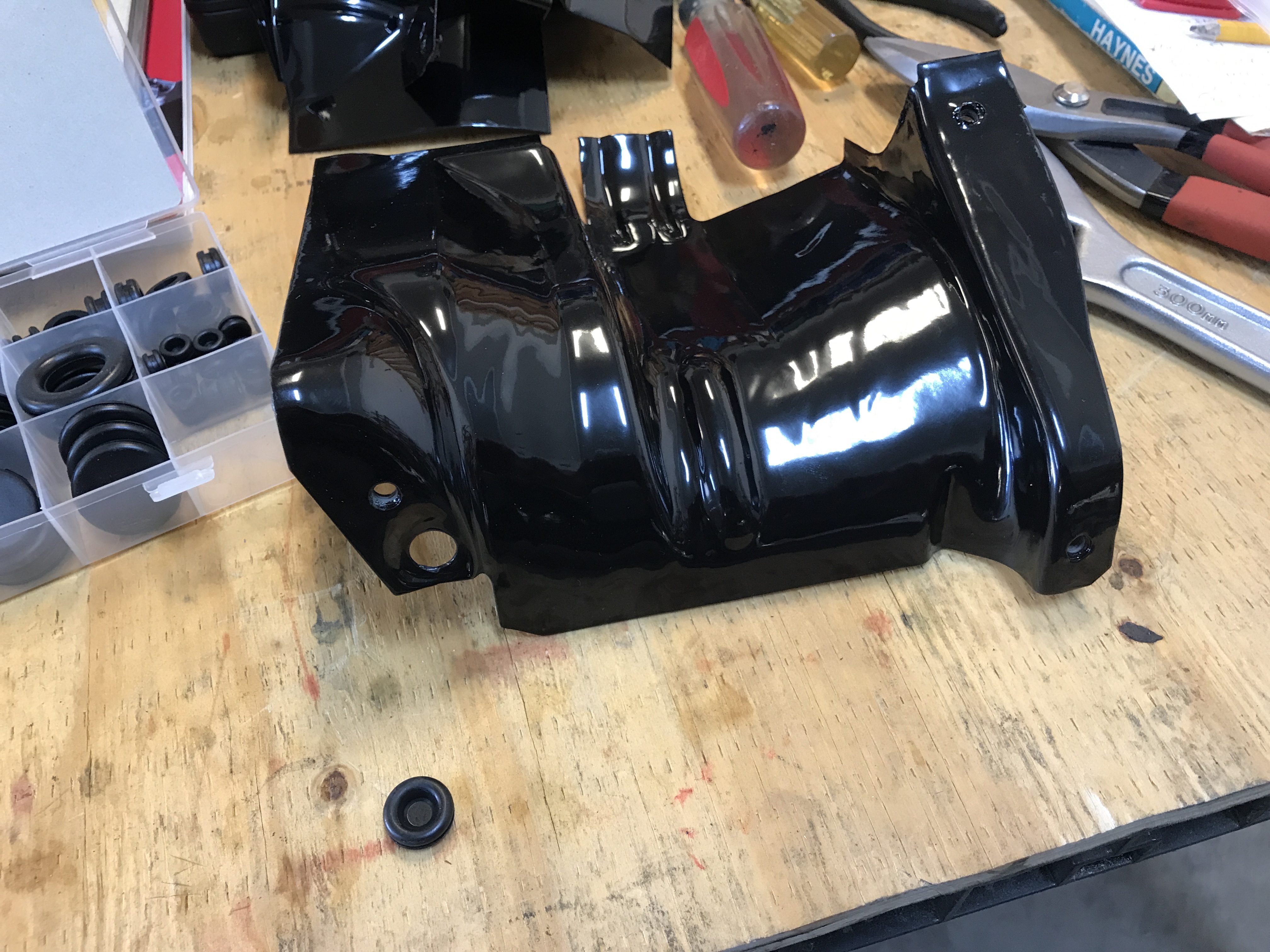

Left side front duct, and rubber grommet for thermostat cable.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:08 PM
Post #3953


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

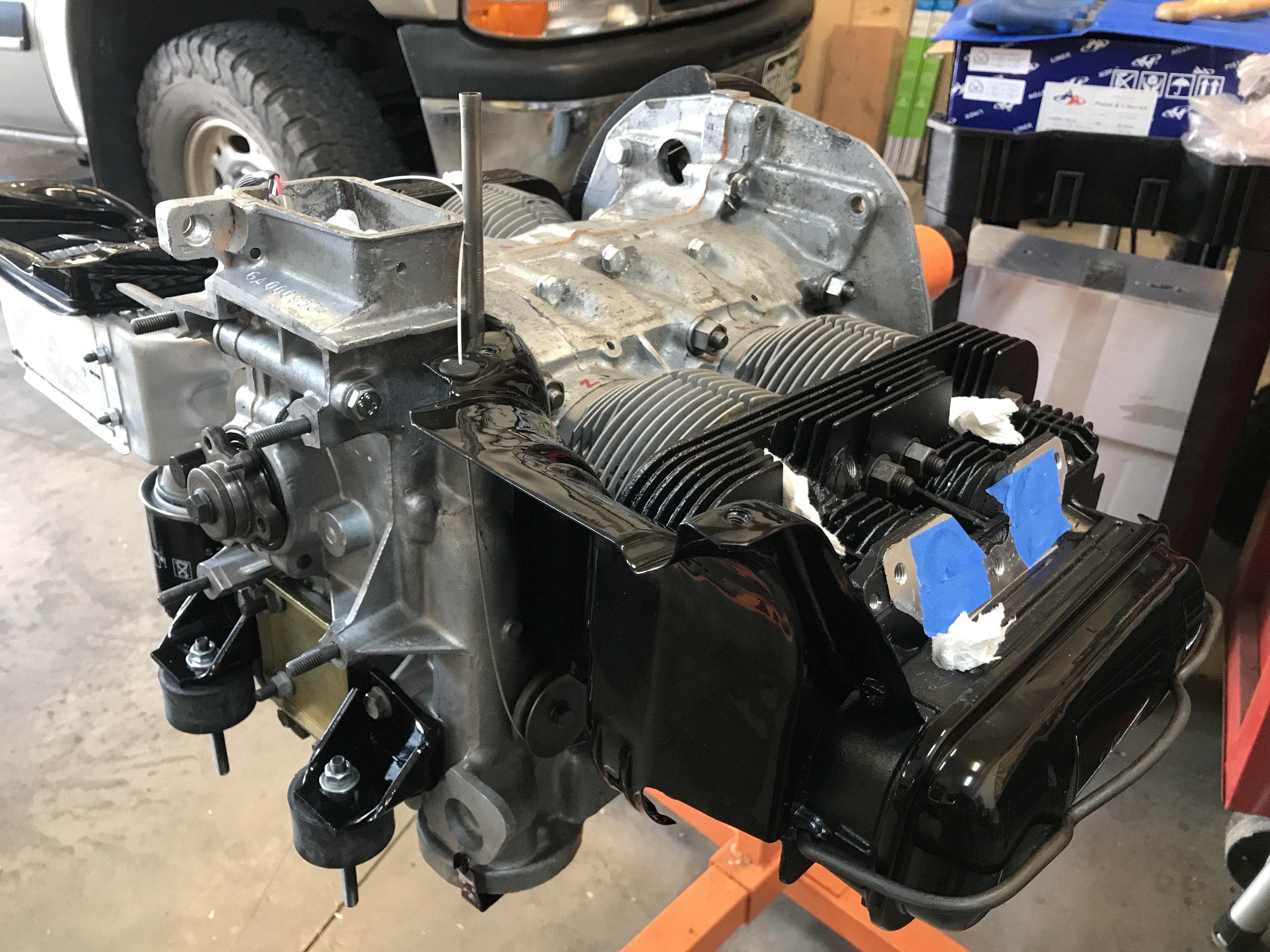

In place.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:09 PM
Post #3954


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

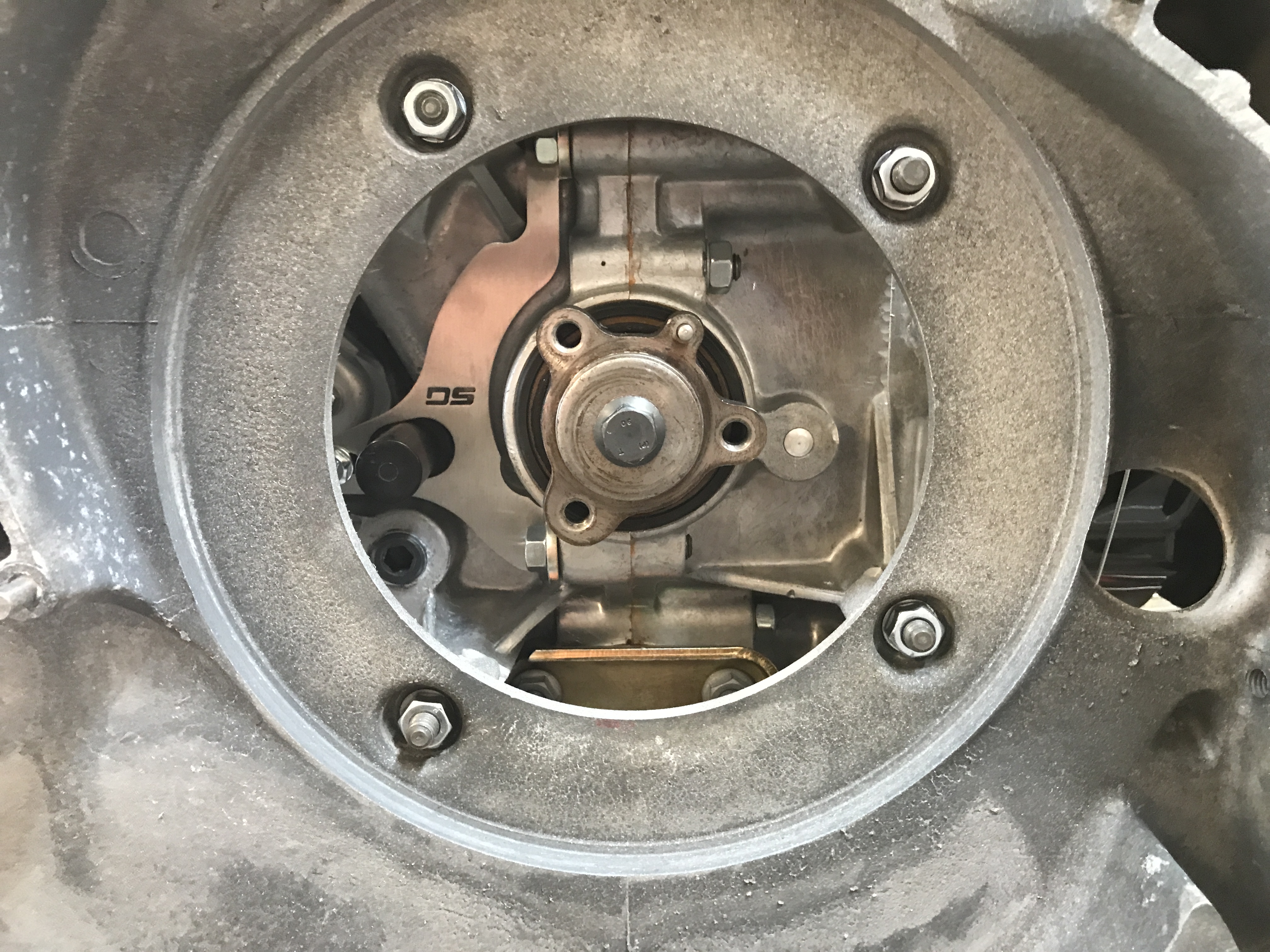

Test fit of the rear blower housing half.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:10 PM
Post #3955


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

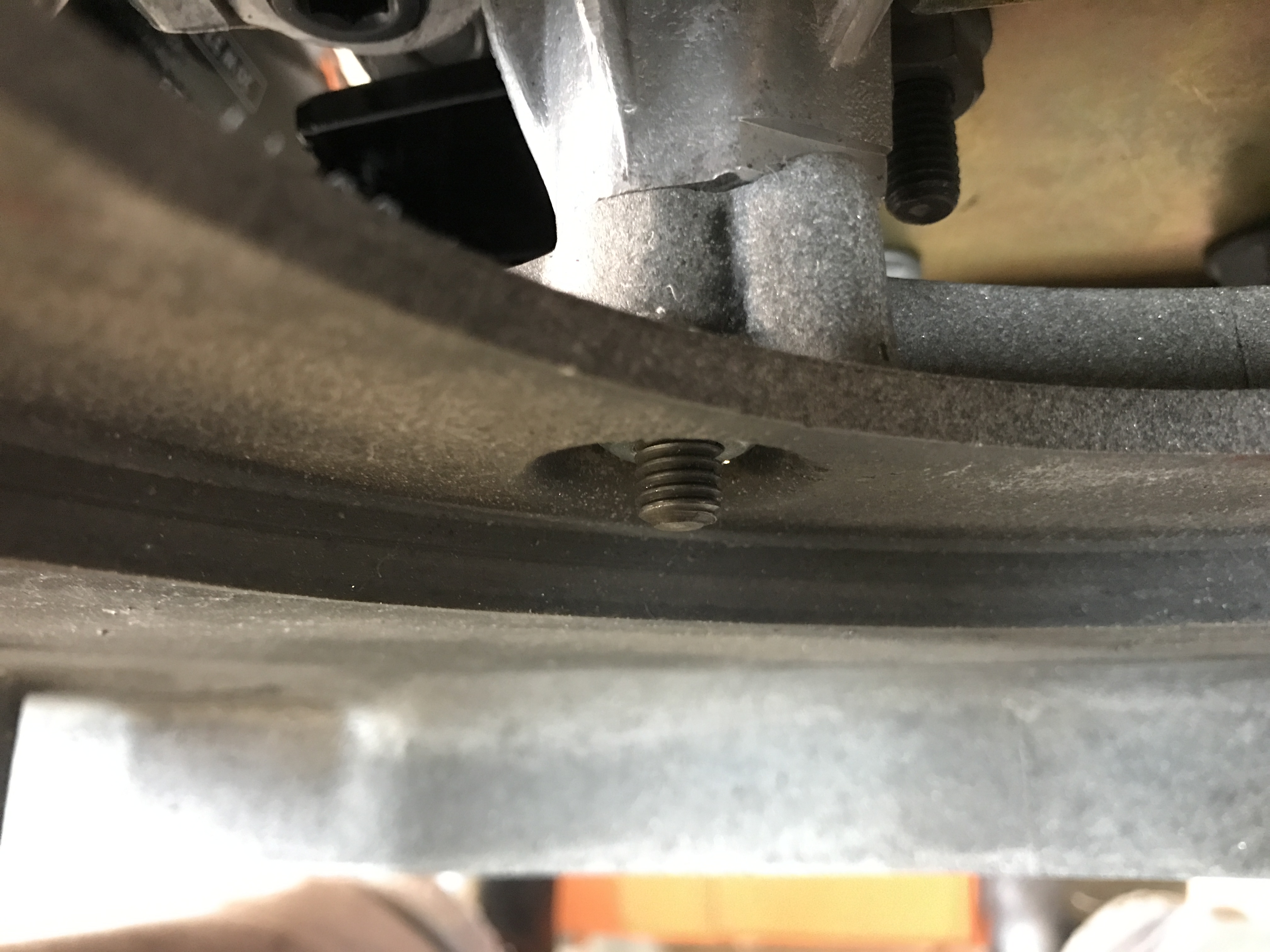

But two of the studs project out too far.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:11 PM
Post #3956


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

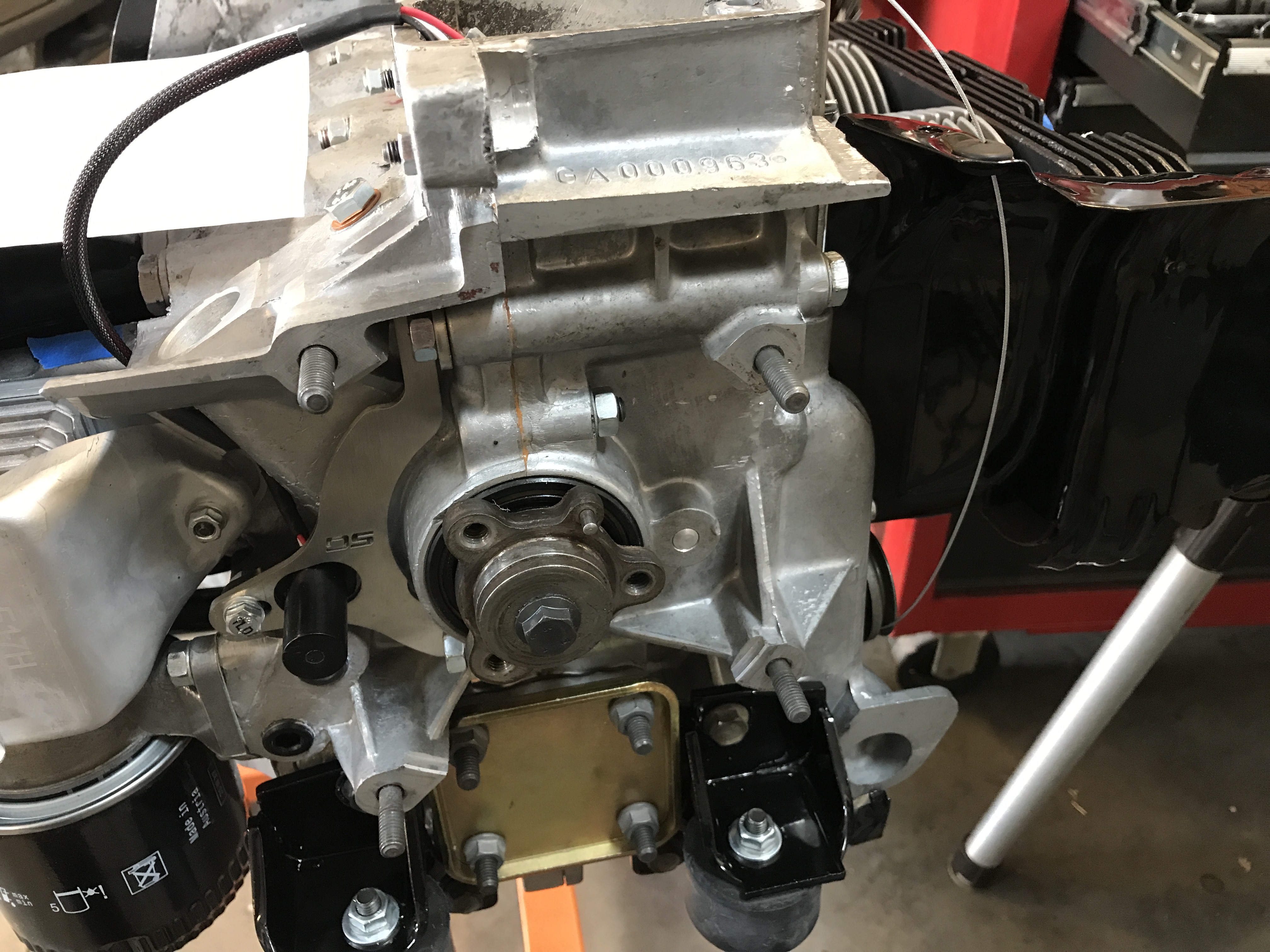

I went back to my notes, and reset all the studs so they project 22 mm.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:12 PM
Post #3957


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
All better now.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:13 PM
Post #3958


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

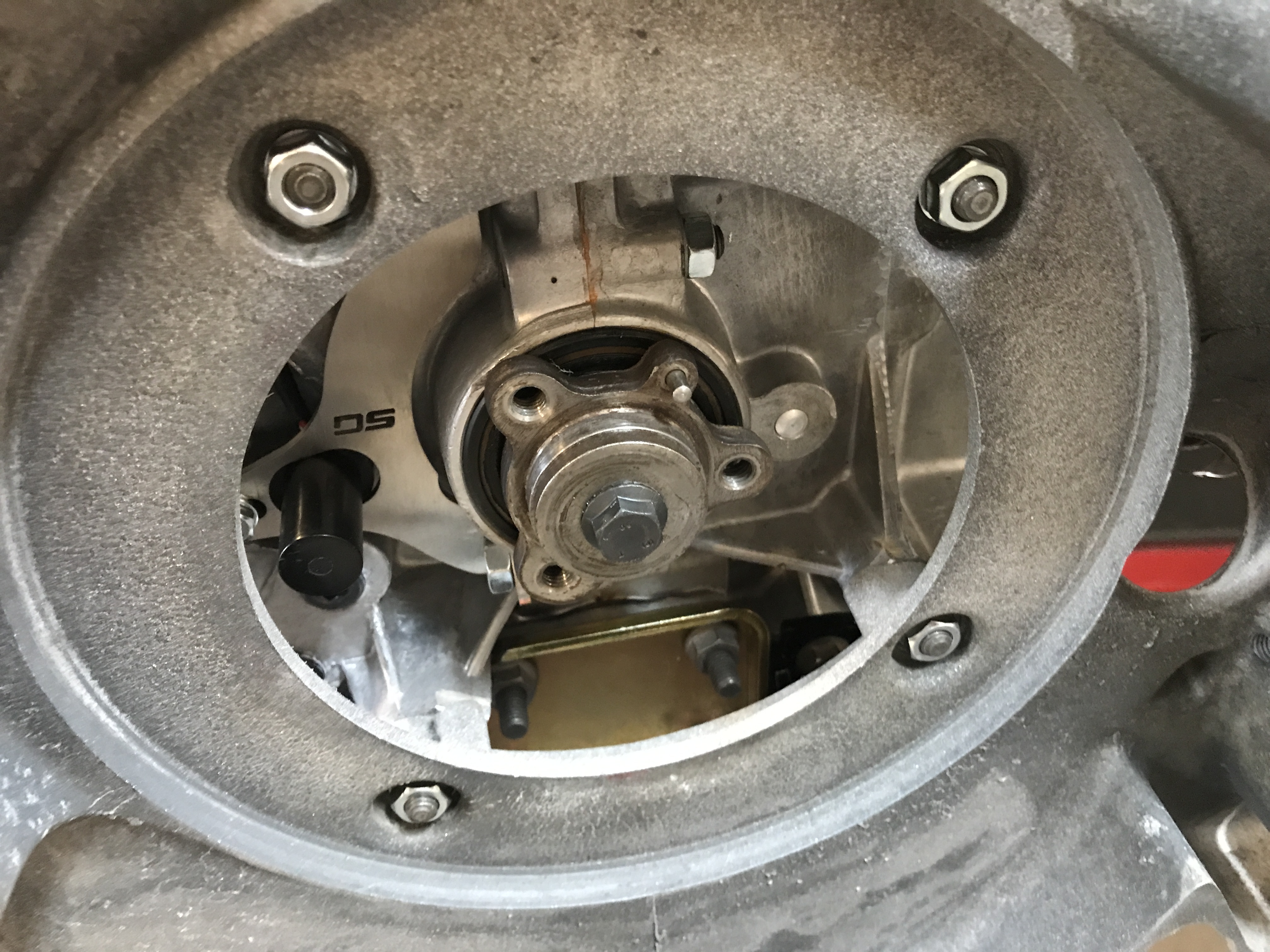

Just to test the clearance, I got the fan and the spacer.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:14 PM
Post #3959


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Seems right.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Oct 24 2021, 07:15 PM
Post #3960


914 Guru
*****

Group: Members
Posts: 7,736
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

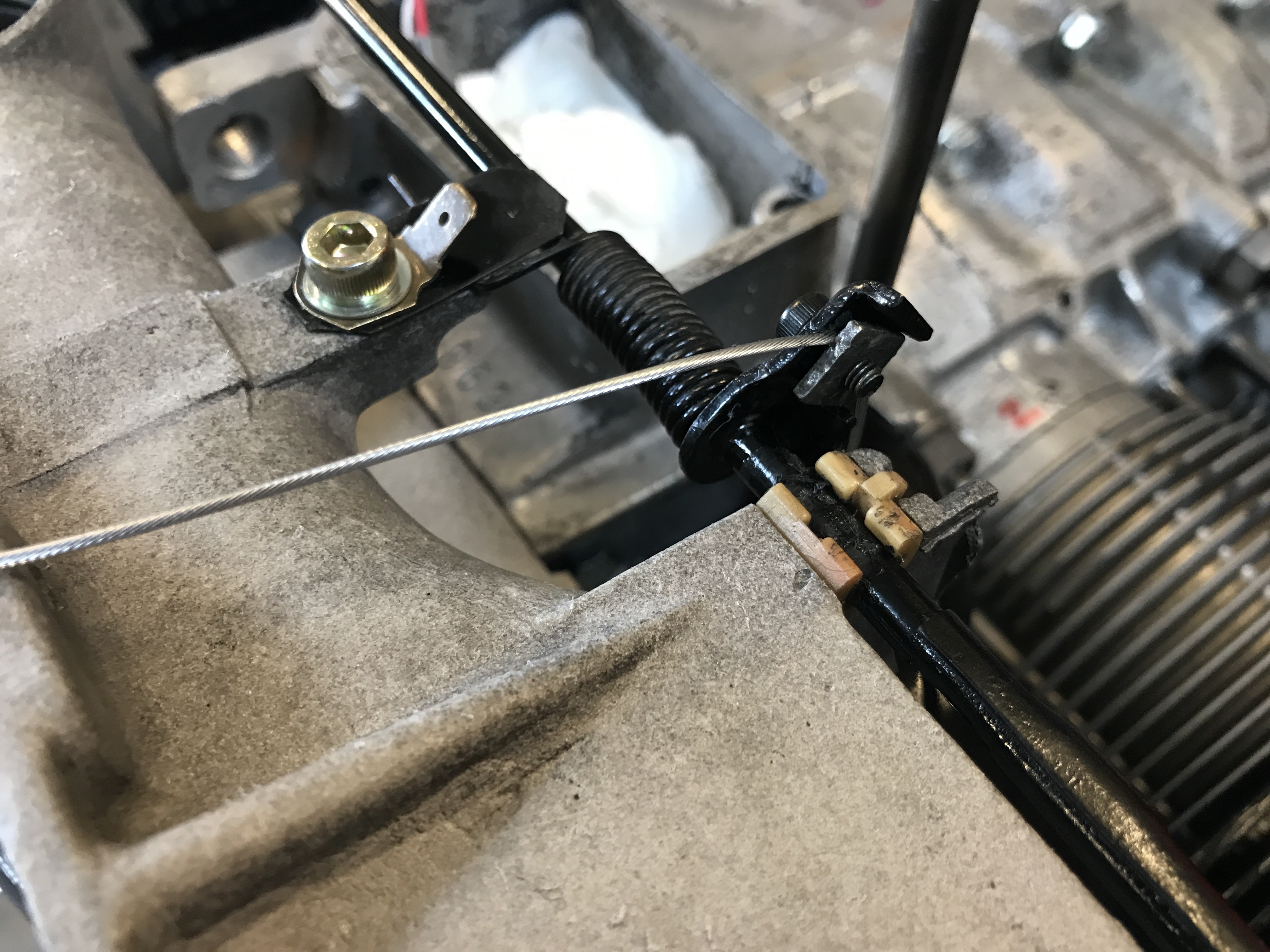

Test fit of the thermostat cable.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
