QUOTE(TX914 @ Nov 11 2021, 05:19 AM) *

QUOTE(bkrantz @ Nov 10 2021, 10:14 PM) *

The hardware furthers my quest to replace all the slotted fasteners on the engine with Allen heads. Note the big Philliips screws are not original but I used them when I first put the blower housing together.


Funny story - Many years ago I replaced every slotted fastener on the sheet metal with Allen heads because I thought they were easier to work with and looked cool. The next time I had the car in the shop the mechanic replaced every one of them with the original slotted fasteners without even asking. I guess he did not agree with that mod. (IMG:style_emoticons/default/smile.gif) I think they were not tapered and were thus harder to thread.


Or maybe he was an OEM purist. But I get the advantage of the tapered end. Some of mine were a challenge to get started.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 11 2021, 08:30 PM
Post #4123


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

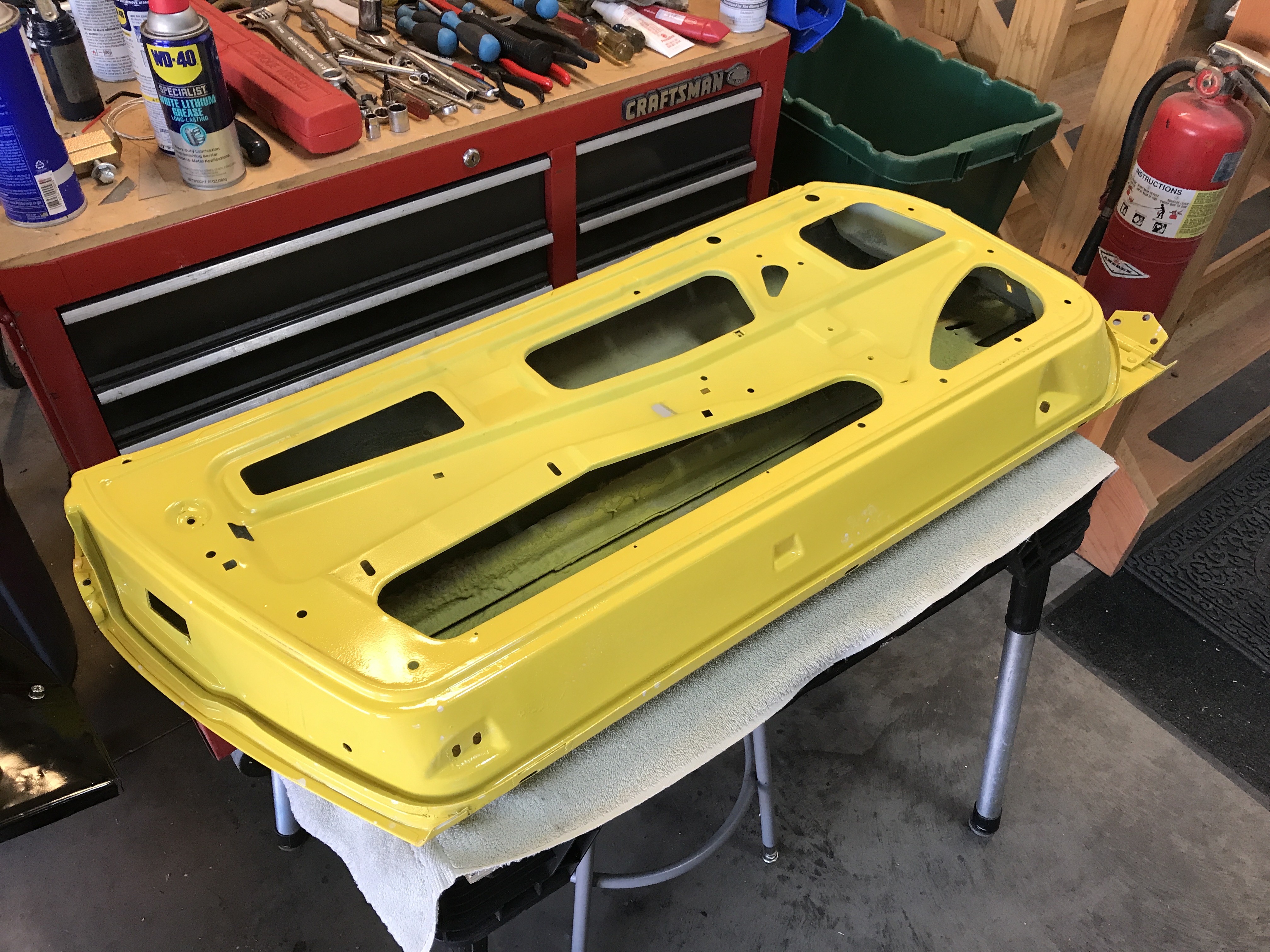

I took the left door off to get that side started.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 11 2021, 08:31 PM
Post #4124


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

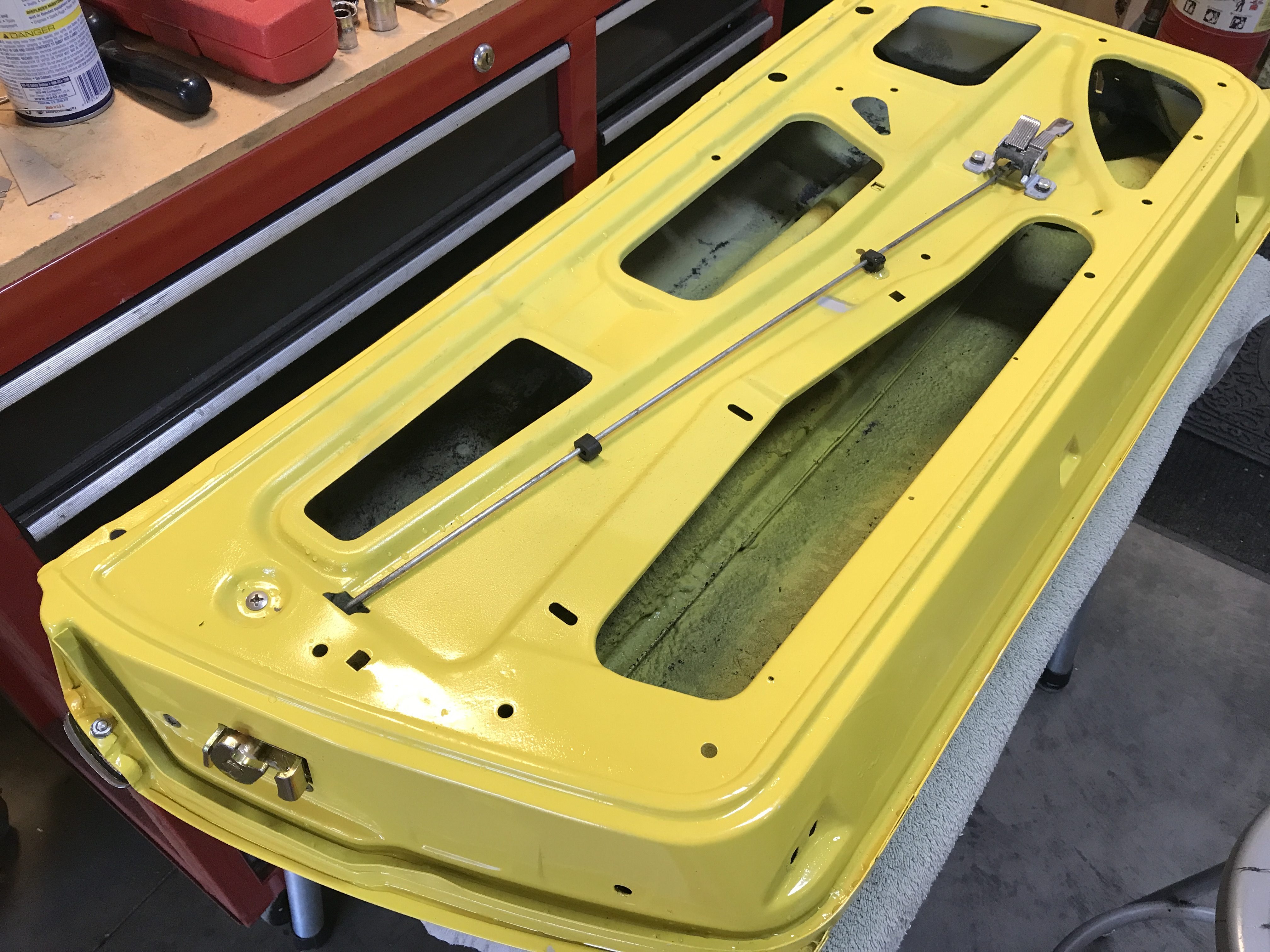

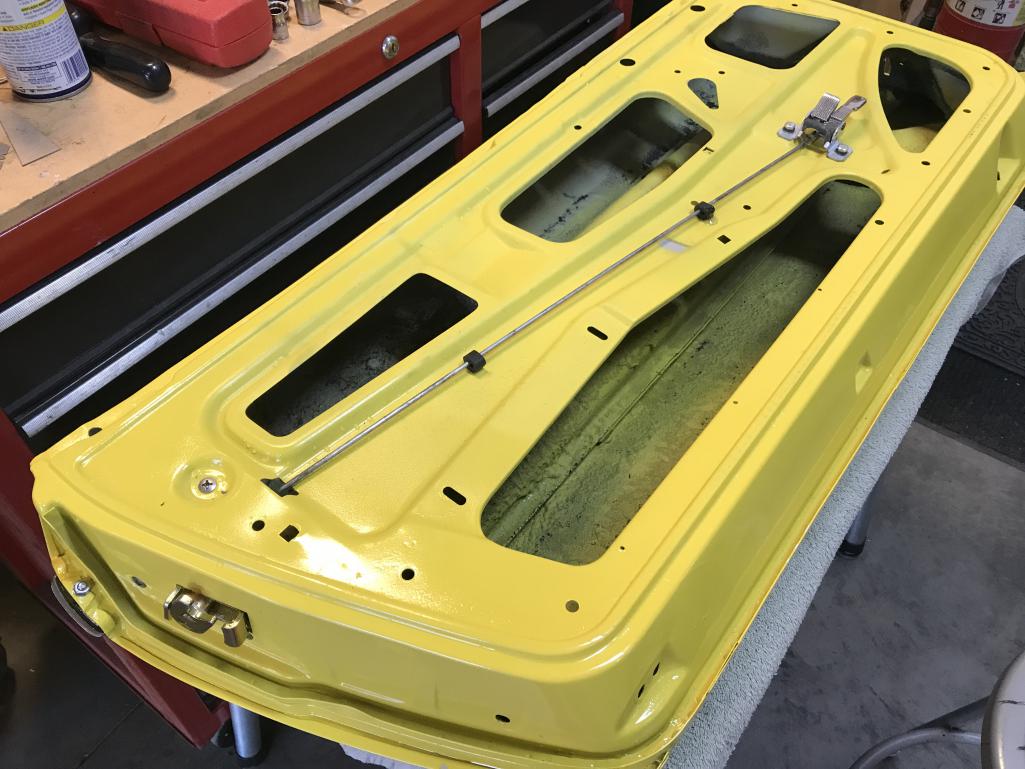

Locks and levers in place, and working.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 11 2021, 08:33 PM
Post #4125


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

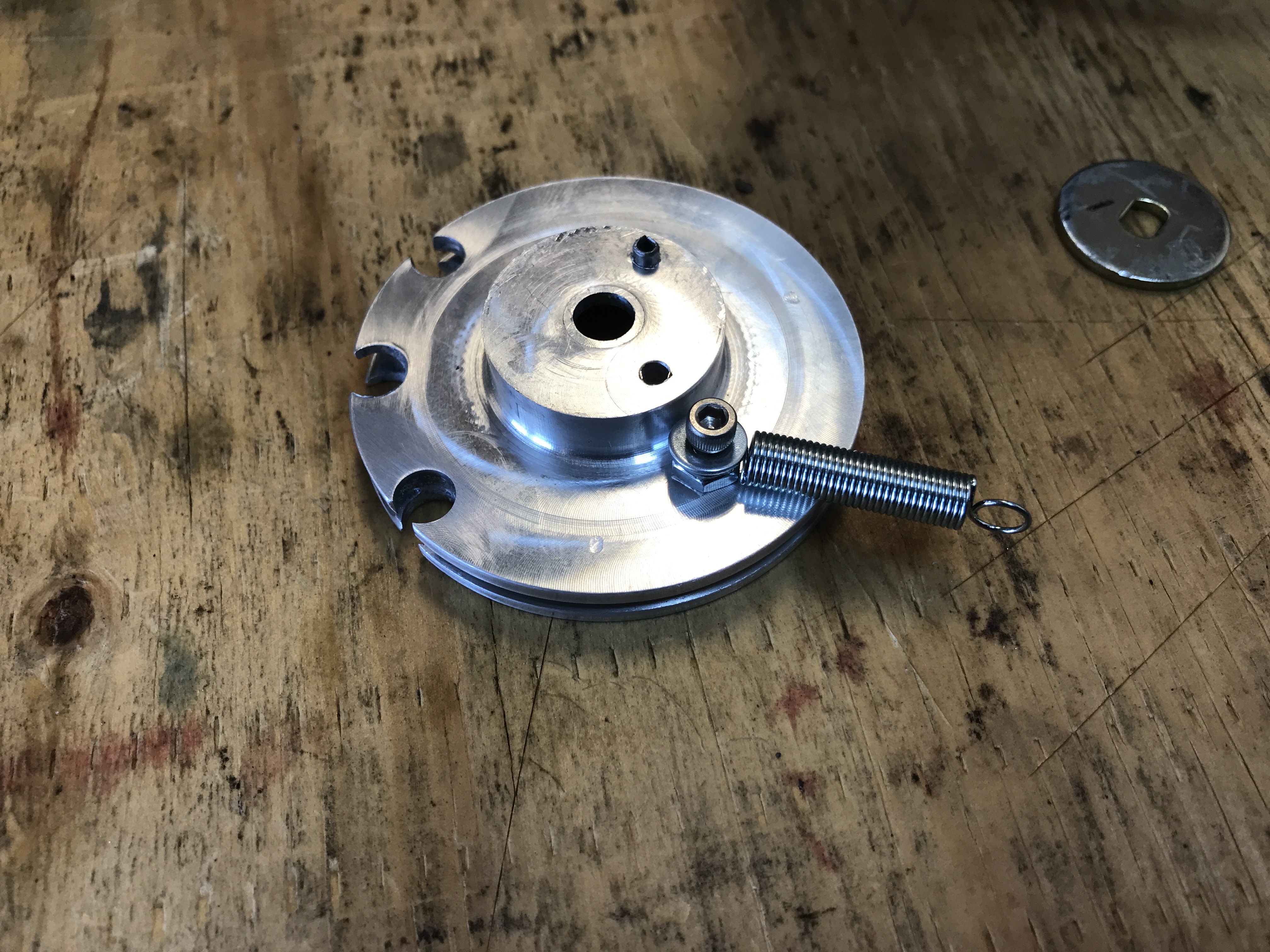

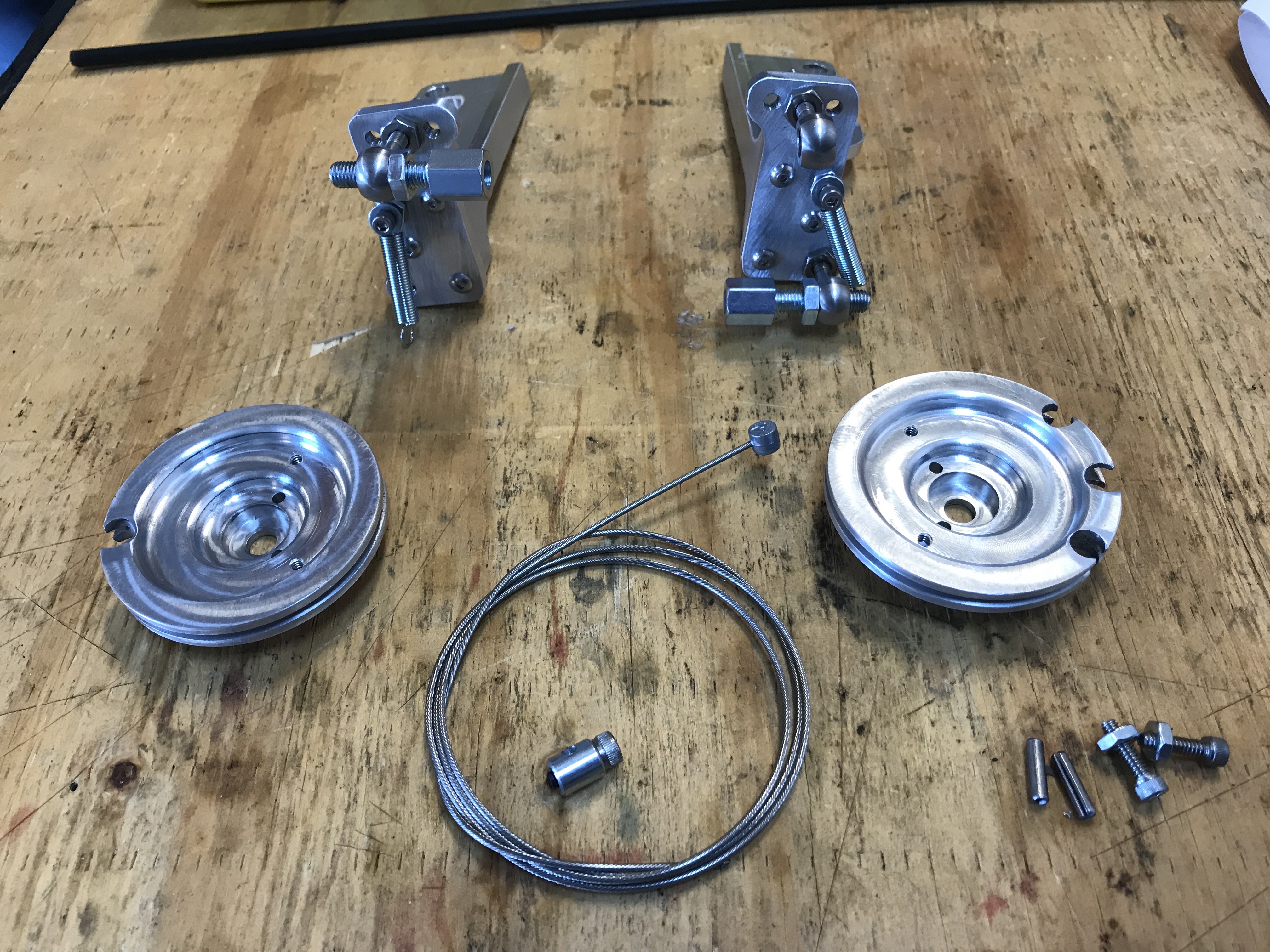

I need a few bits to finish the door, so instead I laid out my new throttle body cable system, from Tangerine Racing. Very nicely designed and made. This should be fun.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:22 PM
Post #4126


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

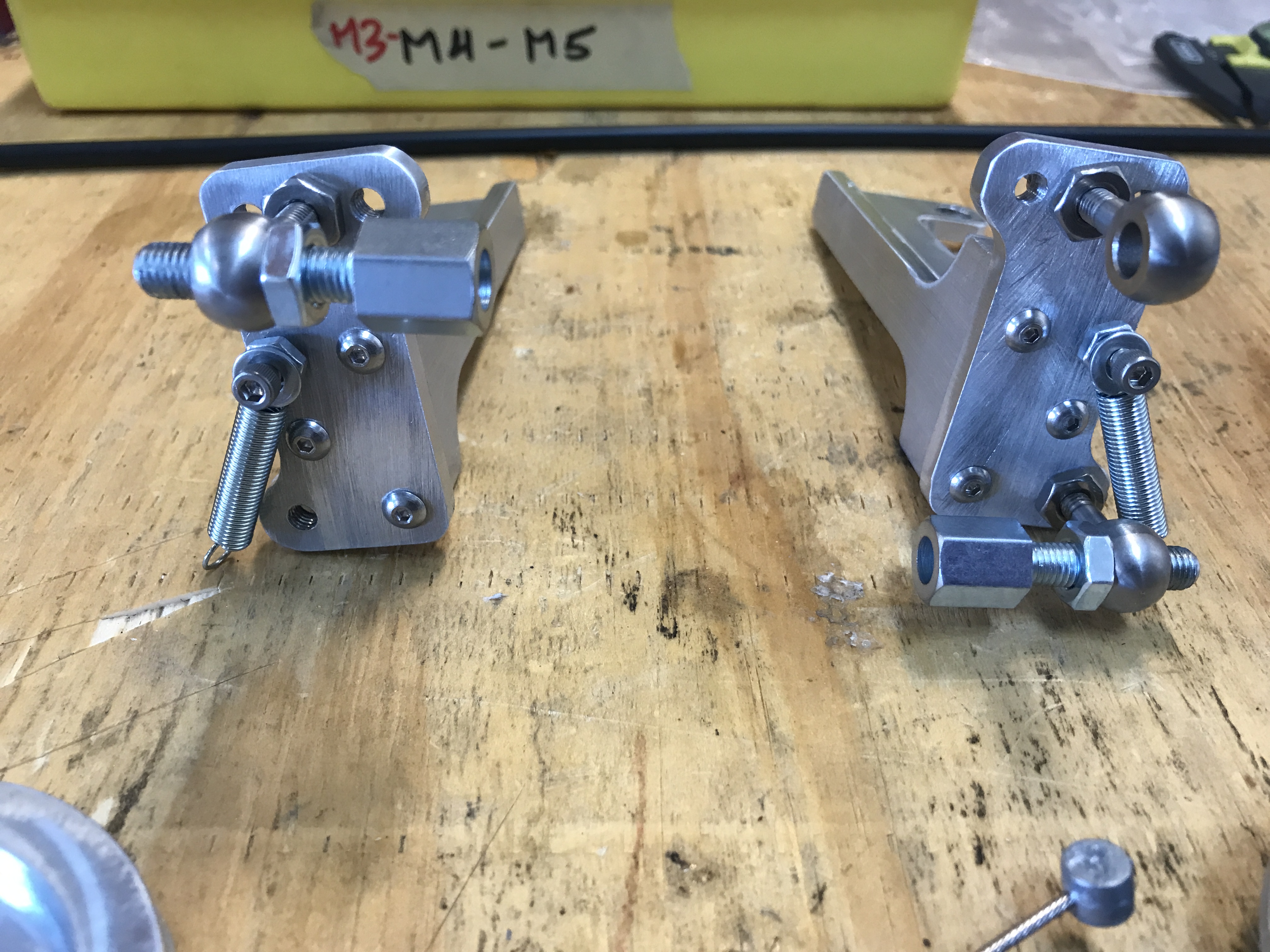

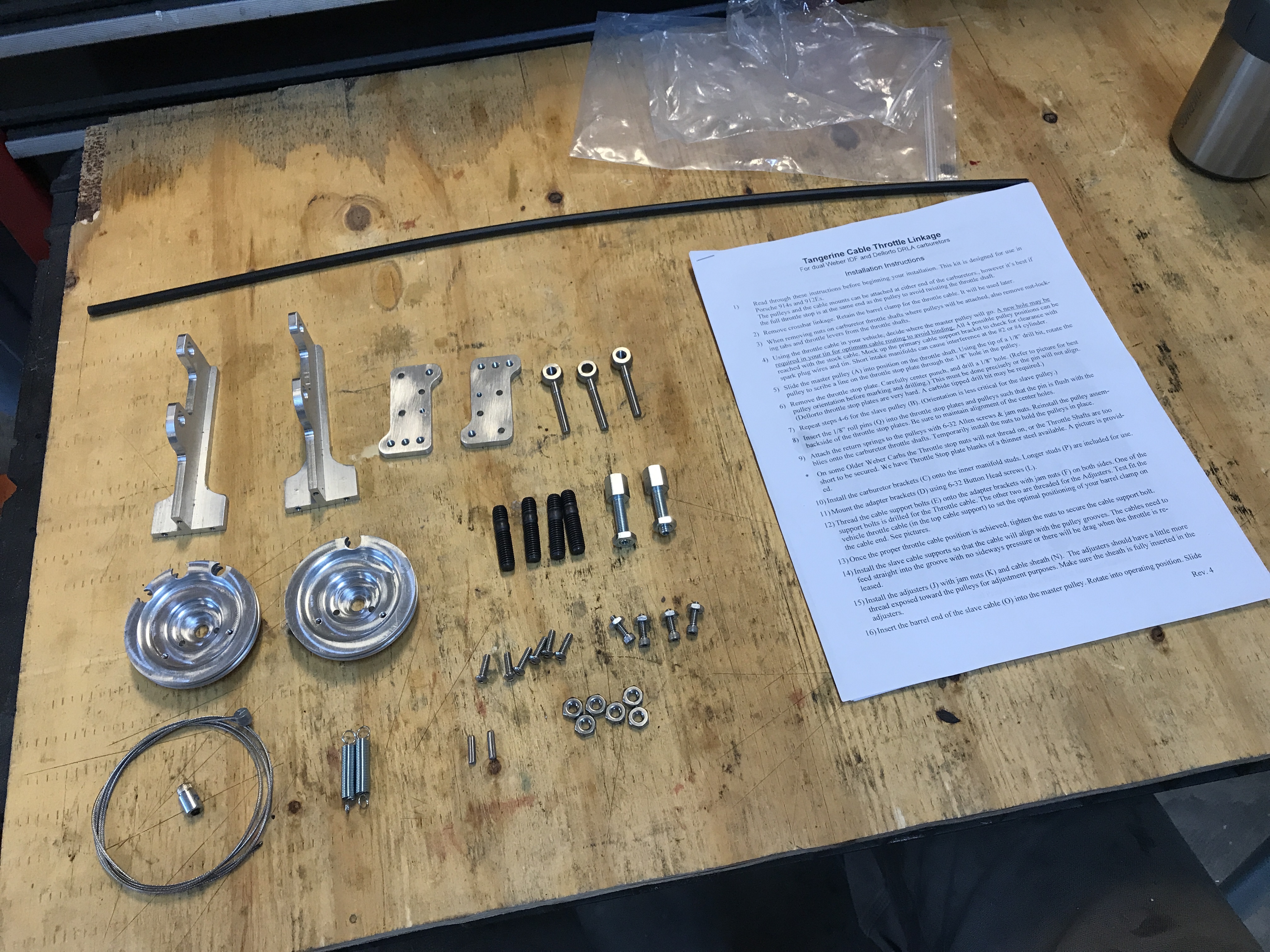

First, I made a trial assembly of the brackets and hardware. Right now, my plan is to mount the pulleys on the rear sides of the throttle bodies. In this view (looking from the rear), the master pulley is on the right and the secondary pulley is on the left.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:23 PM
Post #4127


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Close-up of the brackets. The fit and machine work is very good.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:27 PM
Post #4128


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

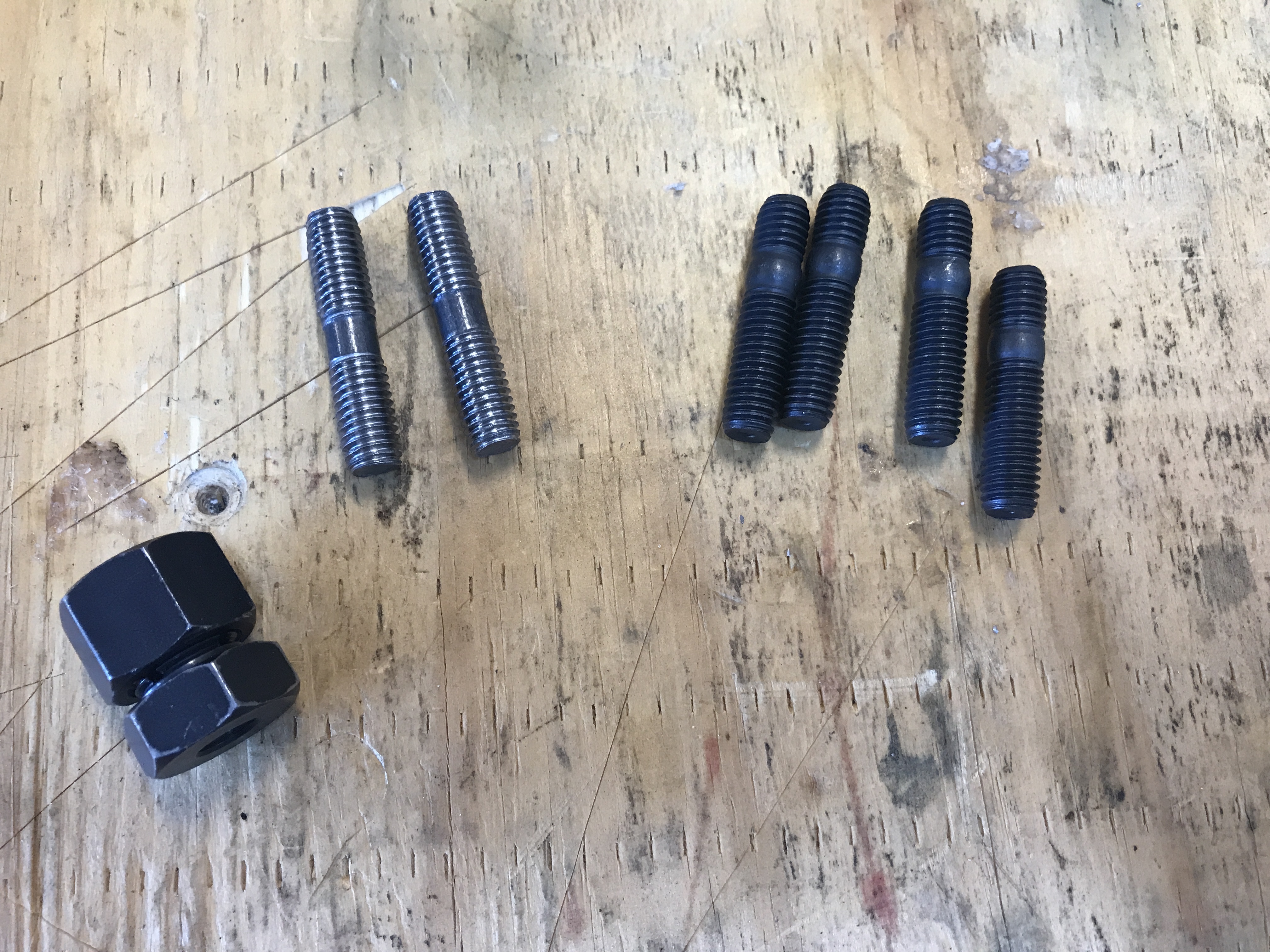

The Tangerine kit includes longer manifold studs, to accommodate the brackets. The studs are the same length overall, but have longer sides.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:29 PM
Post #4129


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

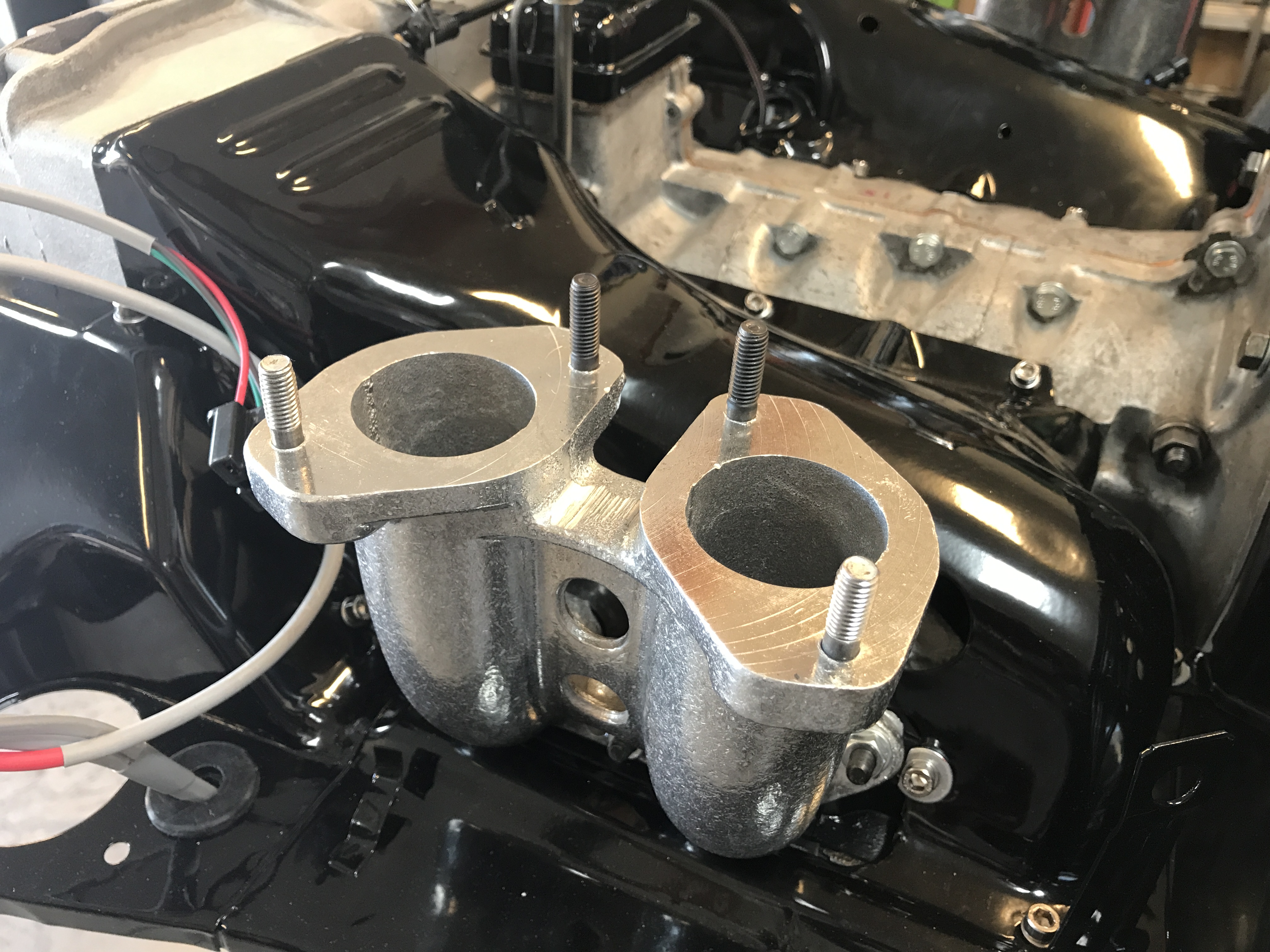

The longer studs go on the insides of the manifolds.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:30 PM
Post #4130


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

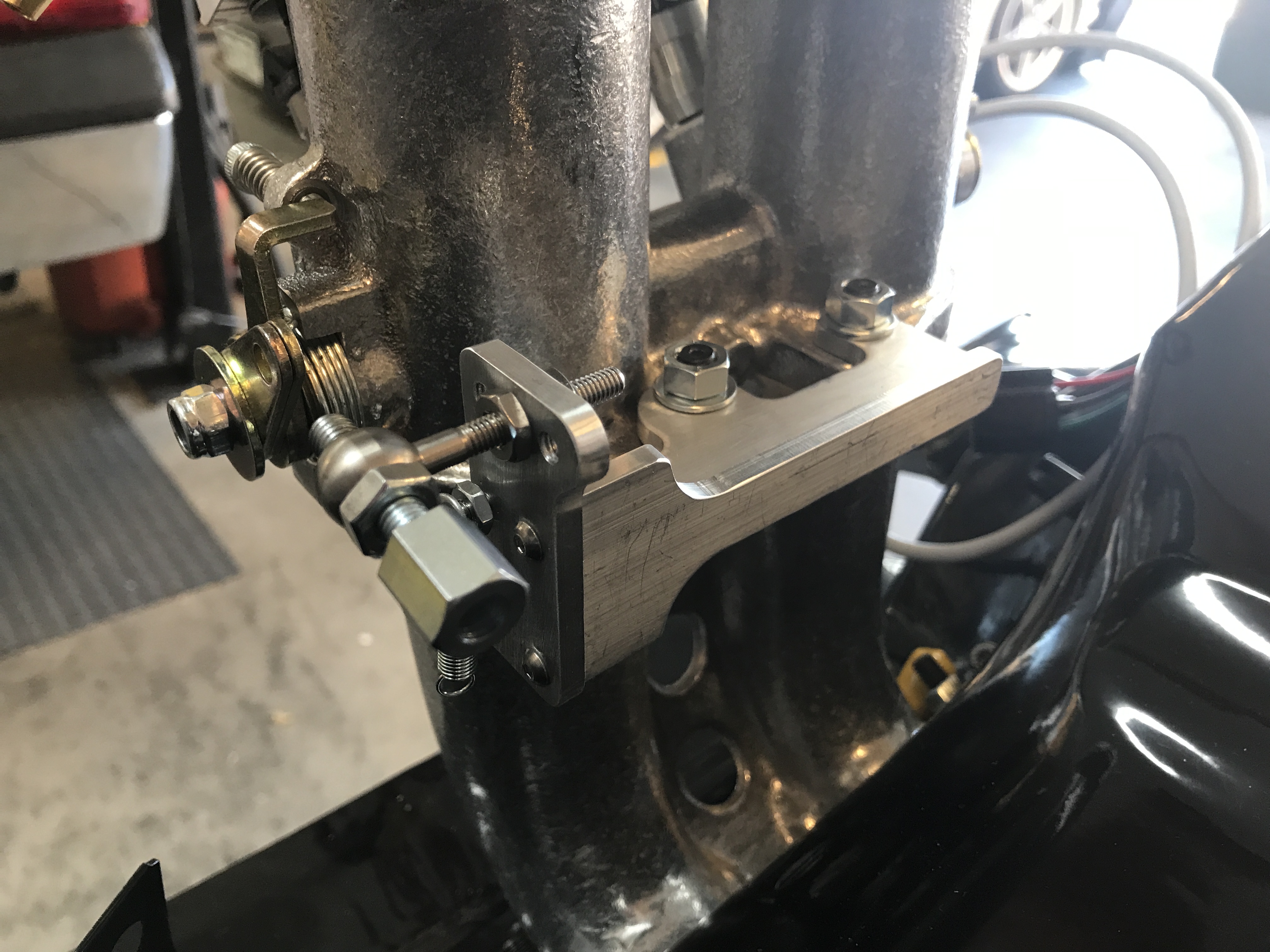

Check fit with the left throttle body and bracket.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:32 PM
Post #4131


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

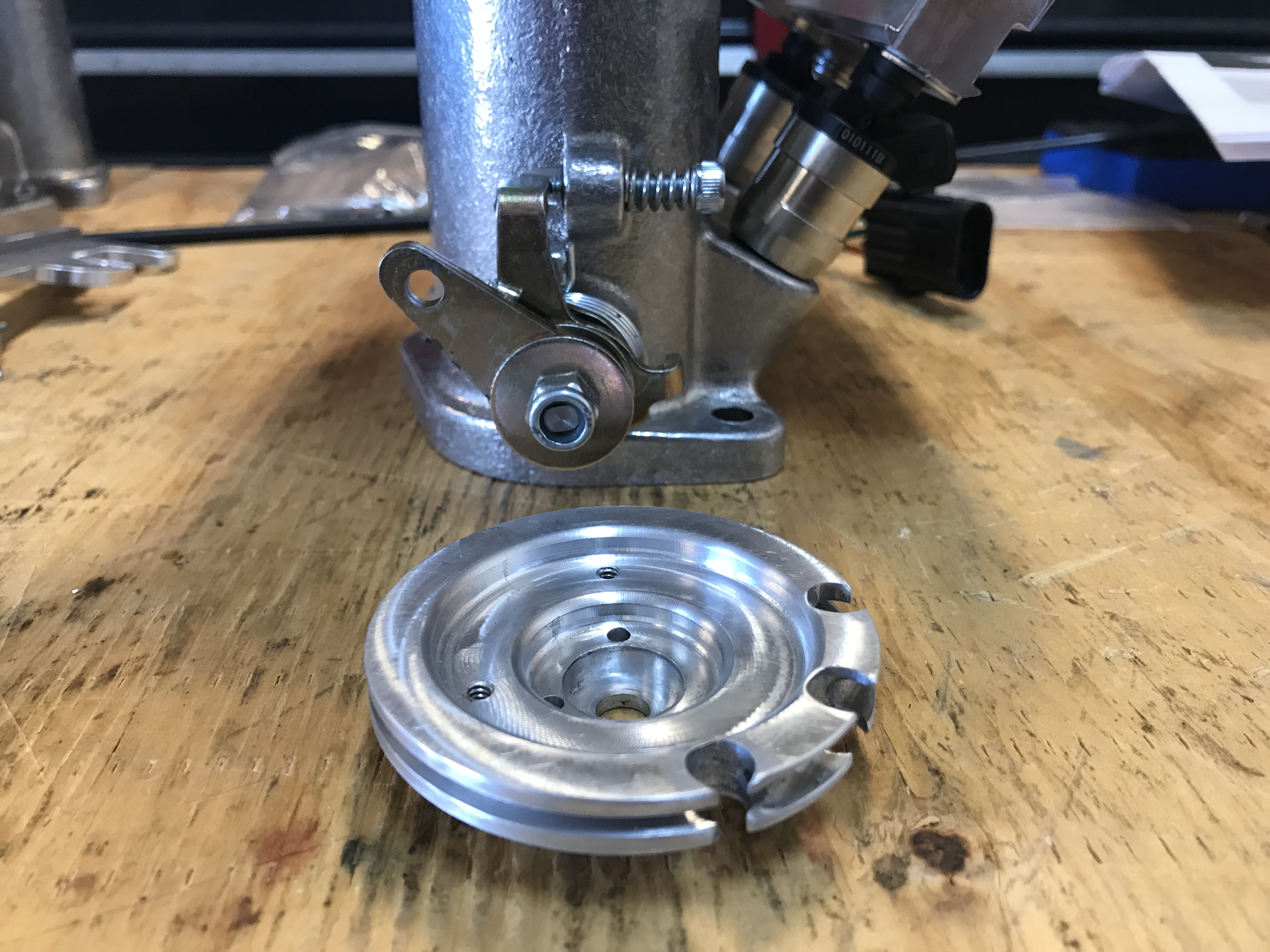

Now for some fun! Here is the right throttle body and the master pulley. This has to mount in place of the stock lever arm, and in the right orientation.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:34 PM
Post #4132


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

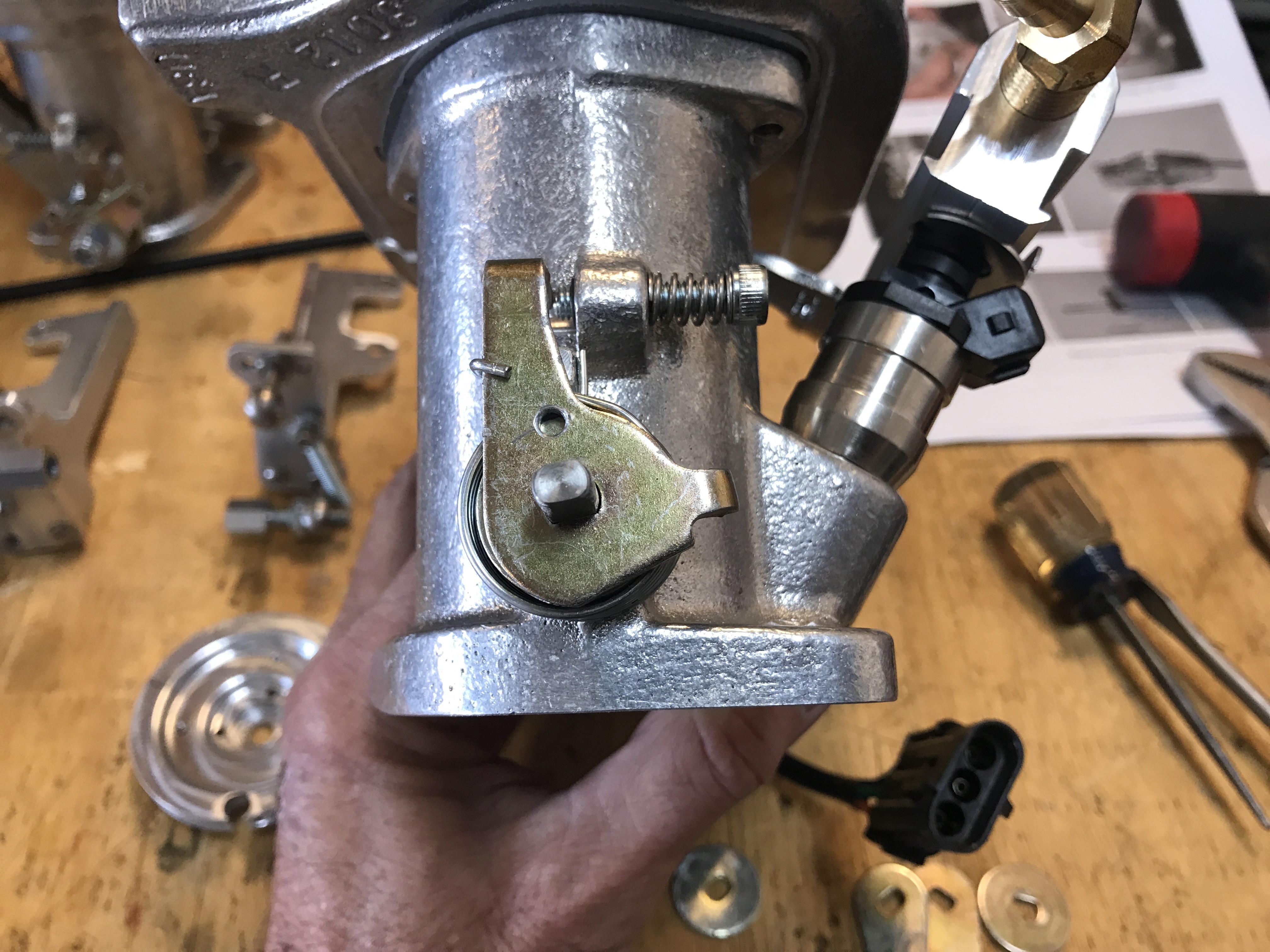

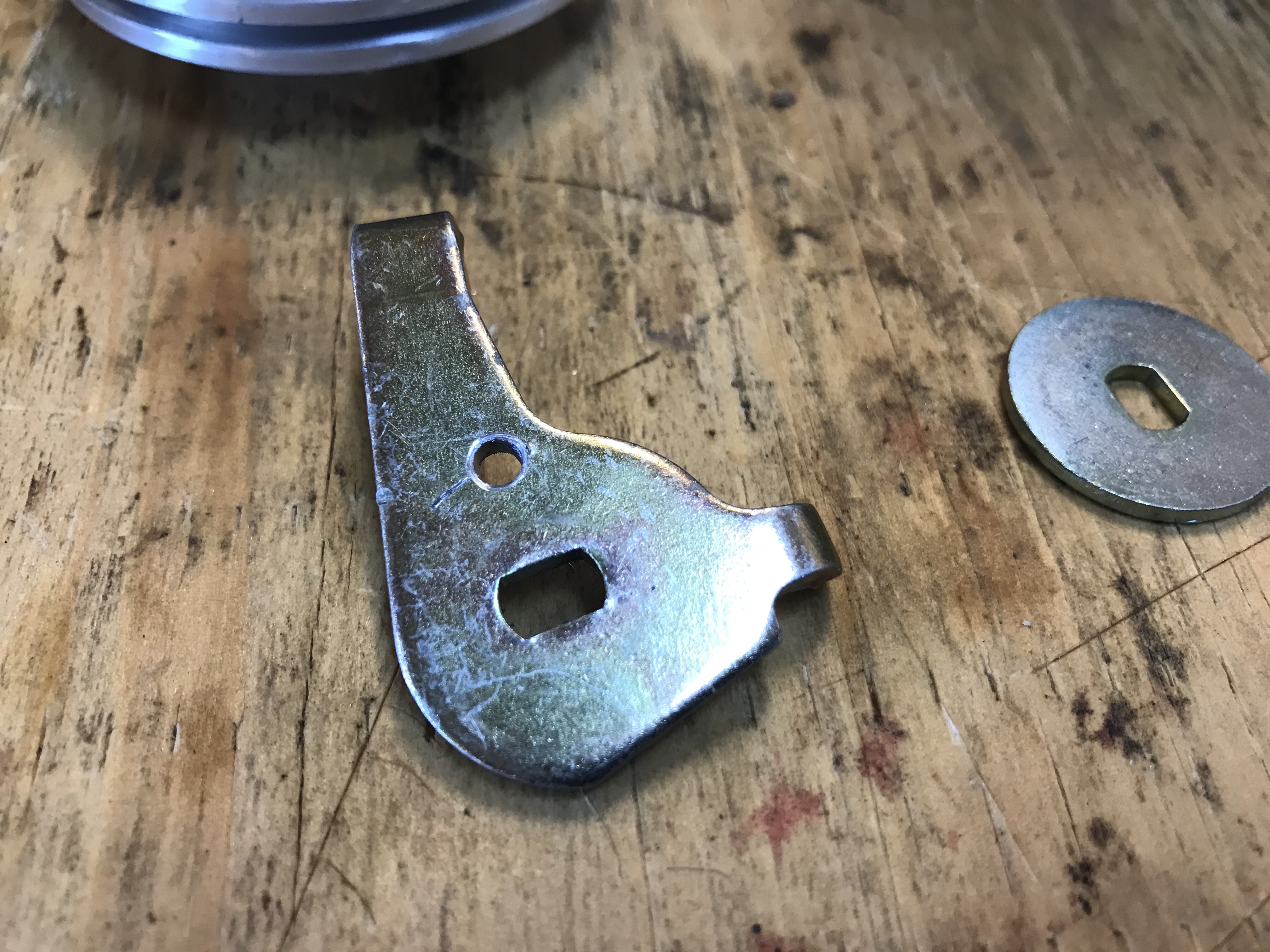

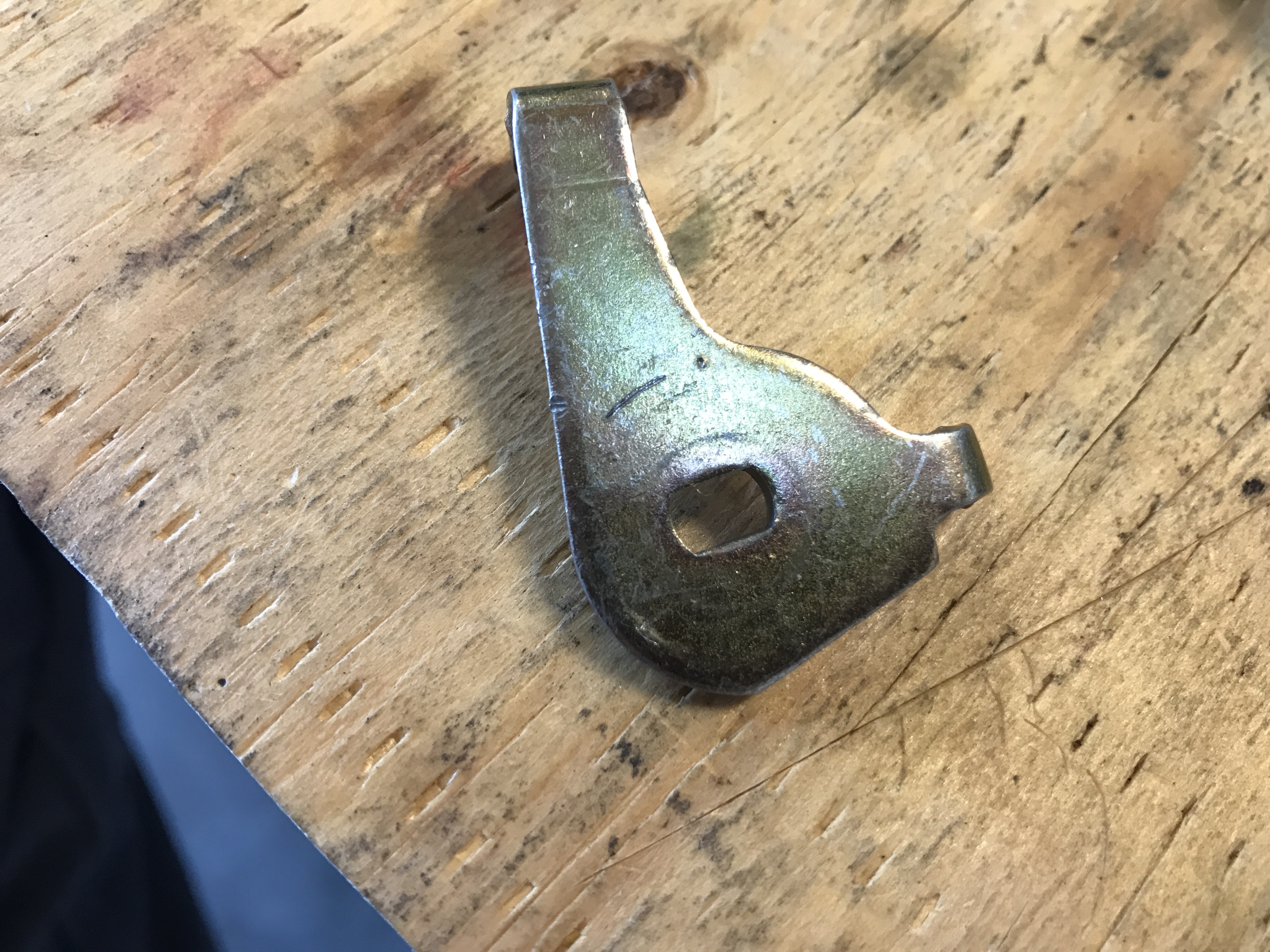

Lever arm and washers removed, and the throttle stop exposed. According to Chris Foley, the stock return spring should stay in place.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:37 PM
Post #4133


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
Here's the recommended pulley position. I plan to use the lower two holes, and the bisector of those holes should be inclined 45 degrees downward from horizontal.

Note the holes in the inner pulley recess. The upper hole will be for the locating pin that will connect the pulley and the stock throttle stop.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:42 PM
Post #4134


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
The small dimple is the pin location, marked with the pulley aligned at 45 degrees. But drilling a hole there would be too close to the edge of the throttle stop.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:43 PM
Post #4135


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
So I moved the hole position slightly to the left.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:43 PM
Post #4136


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
I then chamfered the hole so the split pin can slide in easier.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:44 PM
Post #4137


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

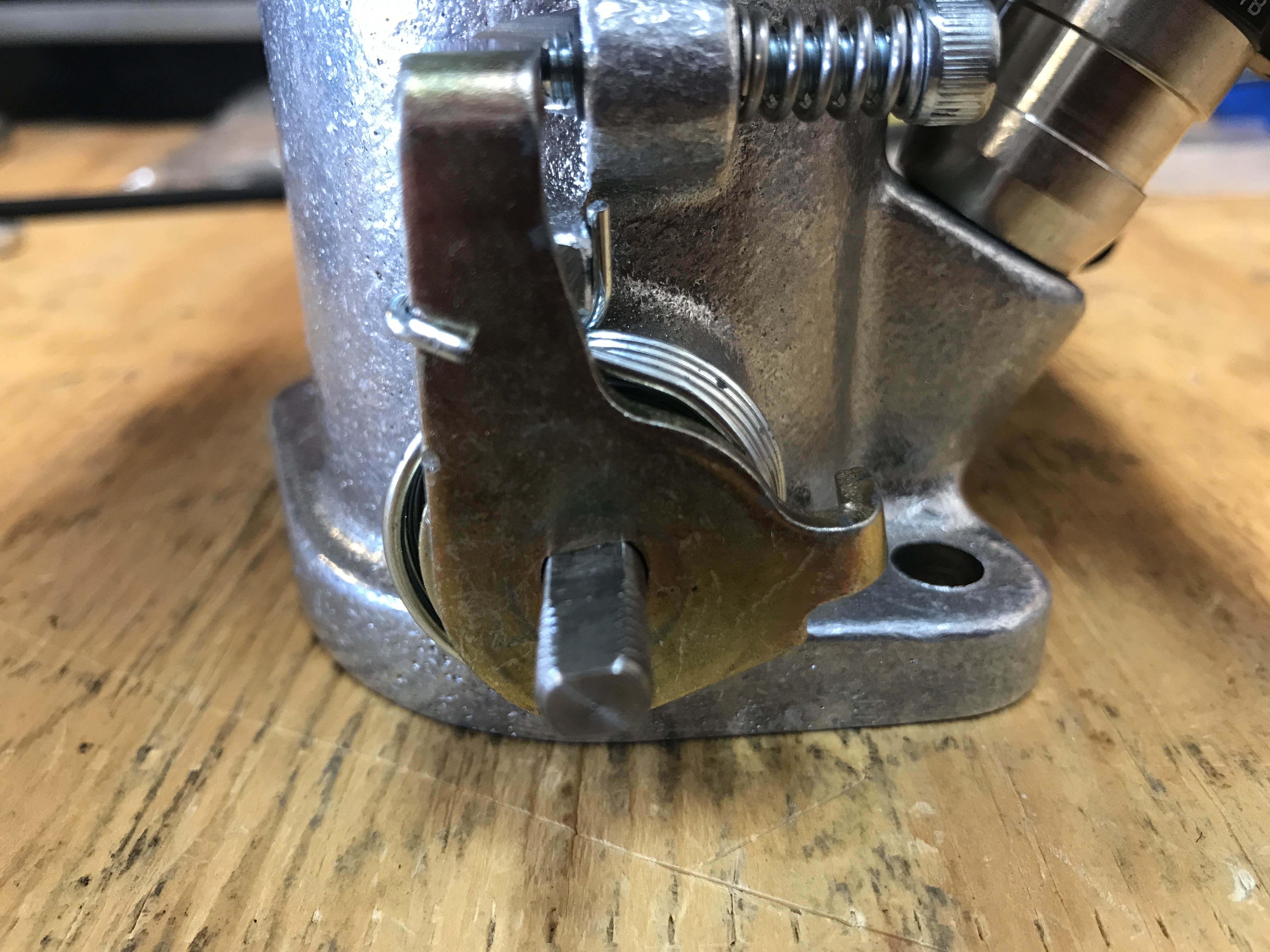

Here's the throttle stop back on the shaft, with the return spring.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:45 PM
Post #4138


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

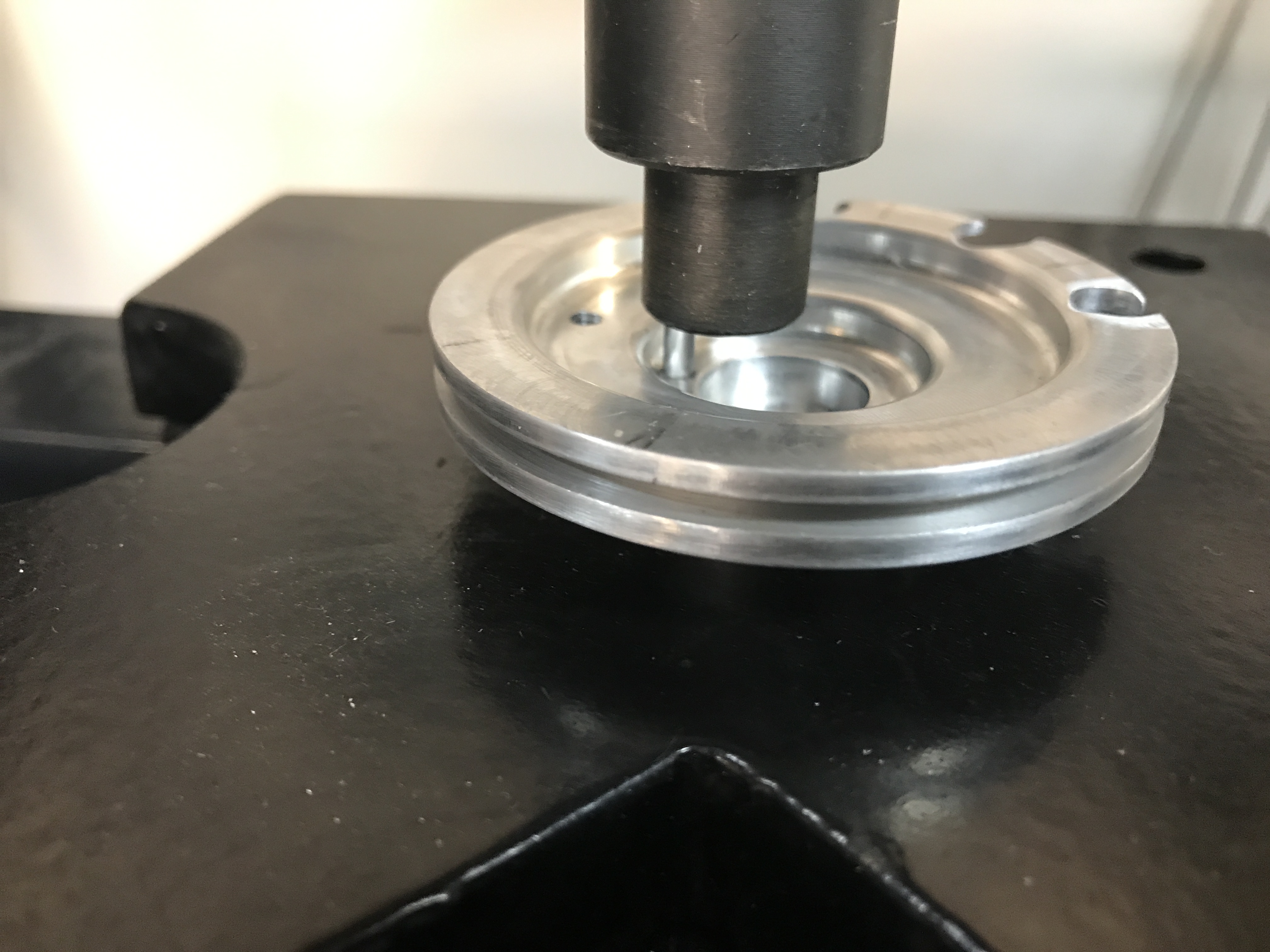

Using the press to install the split pin in the pulley.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:47 PM
Post #4139


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

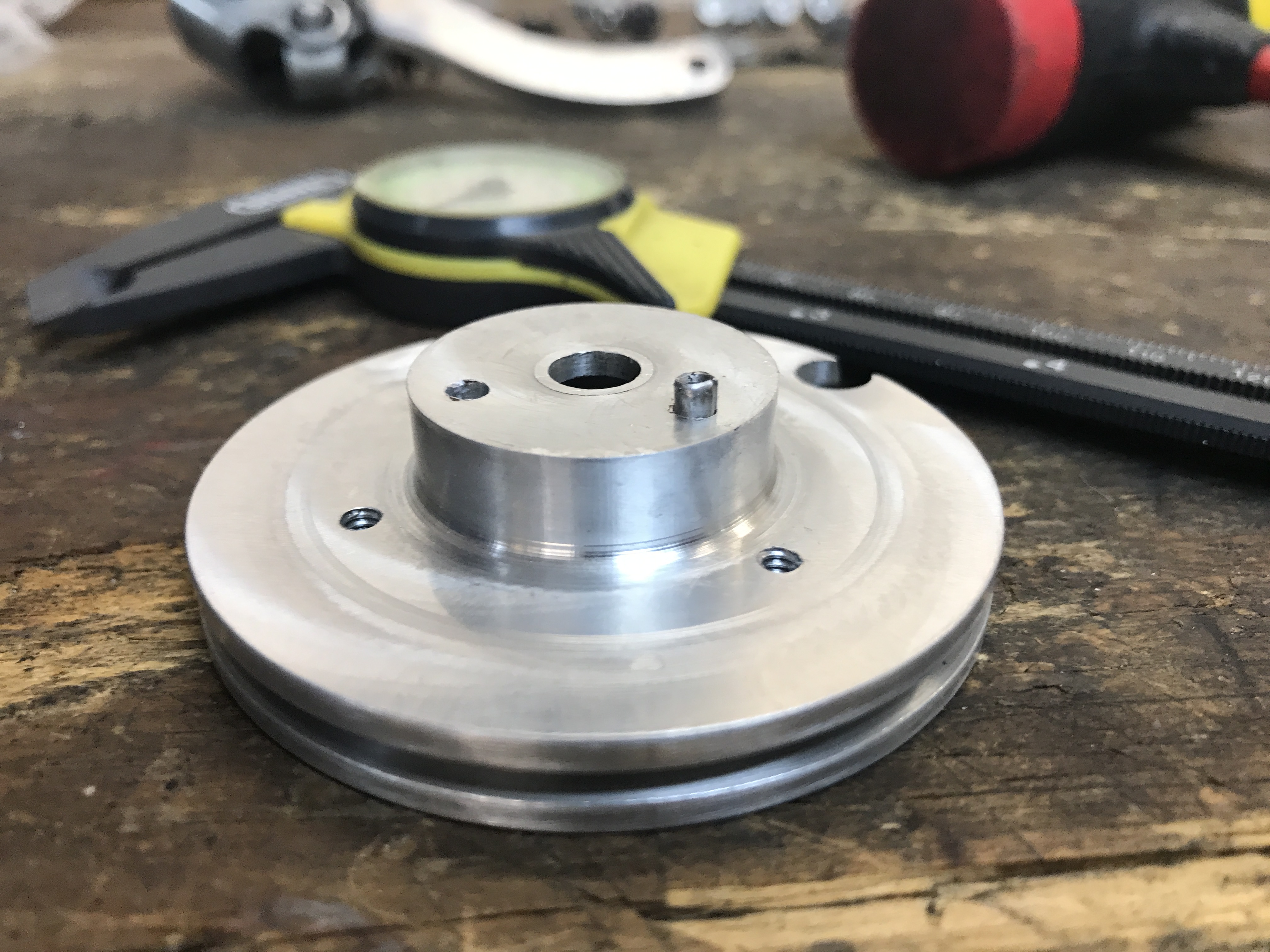

I pushed the split pin through the pulley just far enough to reach the back side of the throttle stop. Any further and it would interfere with stuff inboard of the stop.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Nov 12 2021, 08:48 PM
Post #4140


914 Guru
*****

Group: Members
Posts: 8,530
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
New return spring on the back side of the pulley.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
