I realize most rebuilds go from the inside to the outside, but I am struck by how straight and clean the outer panels, including paint, look on my 73 2.0. And all the nasty stuff is hidden underneath--which I know is also not unusual.
Any way, I bought the car knowing most of what it was: a 2.0 with all the sport and appearance group equipment, including 5 good Fuchs, and the original fuel injection. The original engine is confirmed by a COA. In contrast to the exterior the interior was mixed at best, with some funky carpet. And the front and rear trunks (and engine compartment, and interior) had been sprayed with black undercoating. So after a month, I have the car stripped to a bare shell, except for suspension and steering. I measured everything I could, and the body is very square and on spec. I need to patch some local rust spots, and replace the rear floor. And then do some minor straightening: right headlight bucket, front edge of right front fender, rear panel, etc. Attached thumbnail(s) |
bkrantz |
Jan 9 2023, 08:01 PM
Post
#6021
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

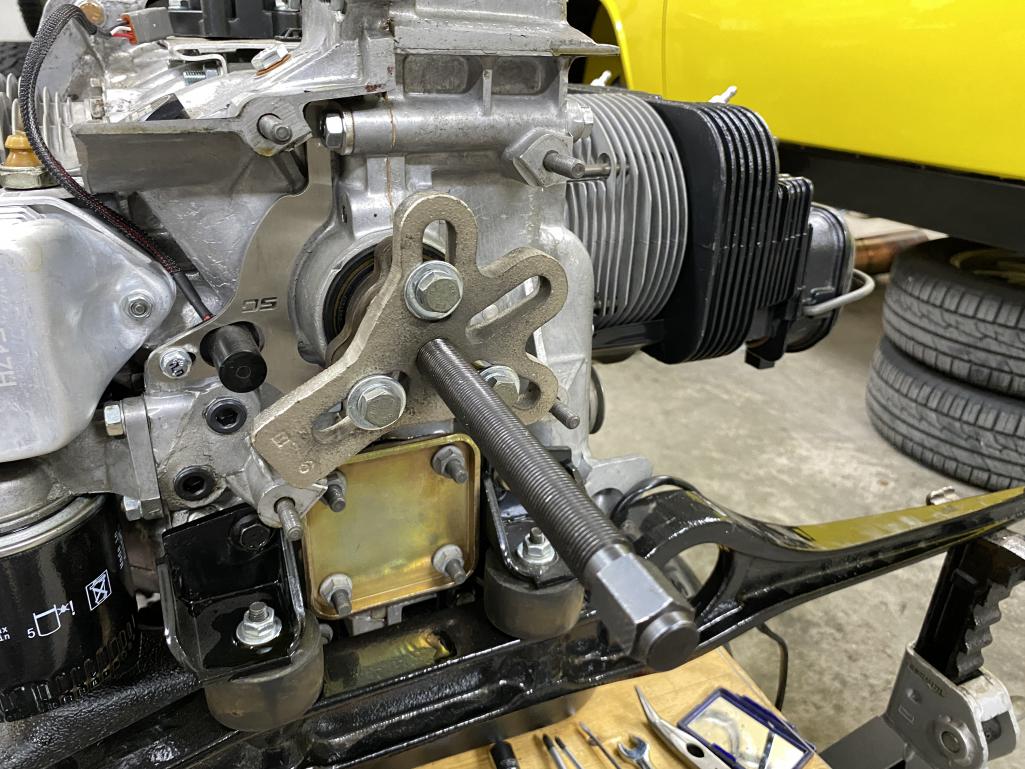

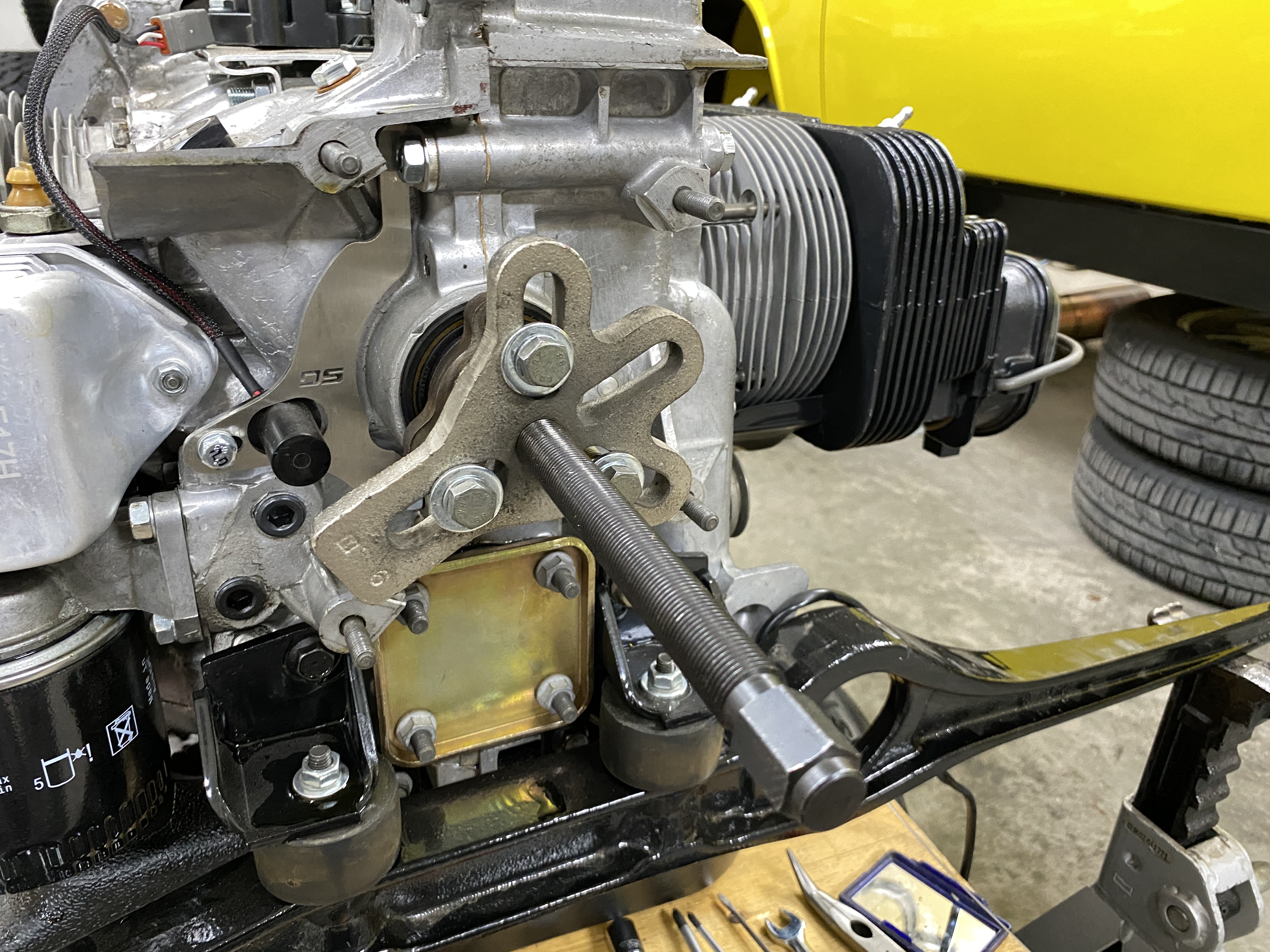

And I used a puller to take off the blower hub.
Attached thumbnail(s) |
bkrantz |
Jan 9 2023, 08:03 PM
Post
#6022
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

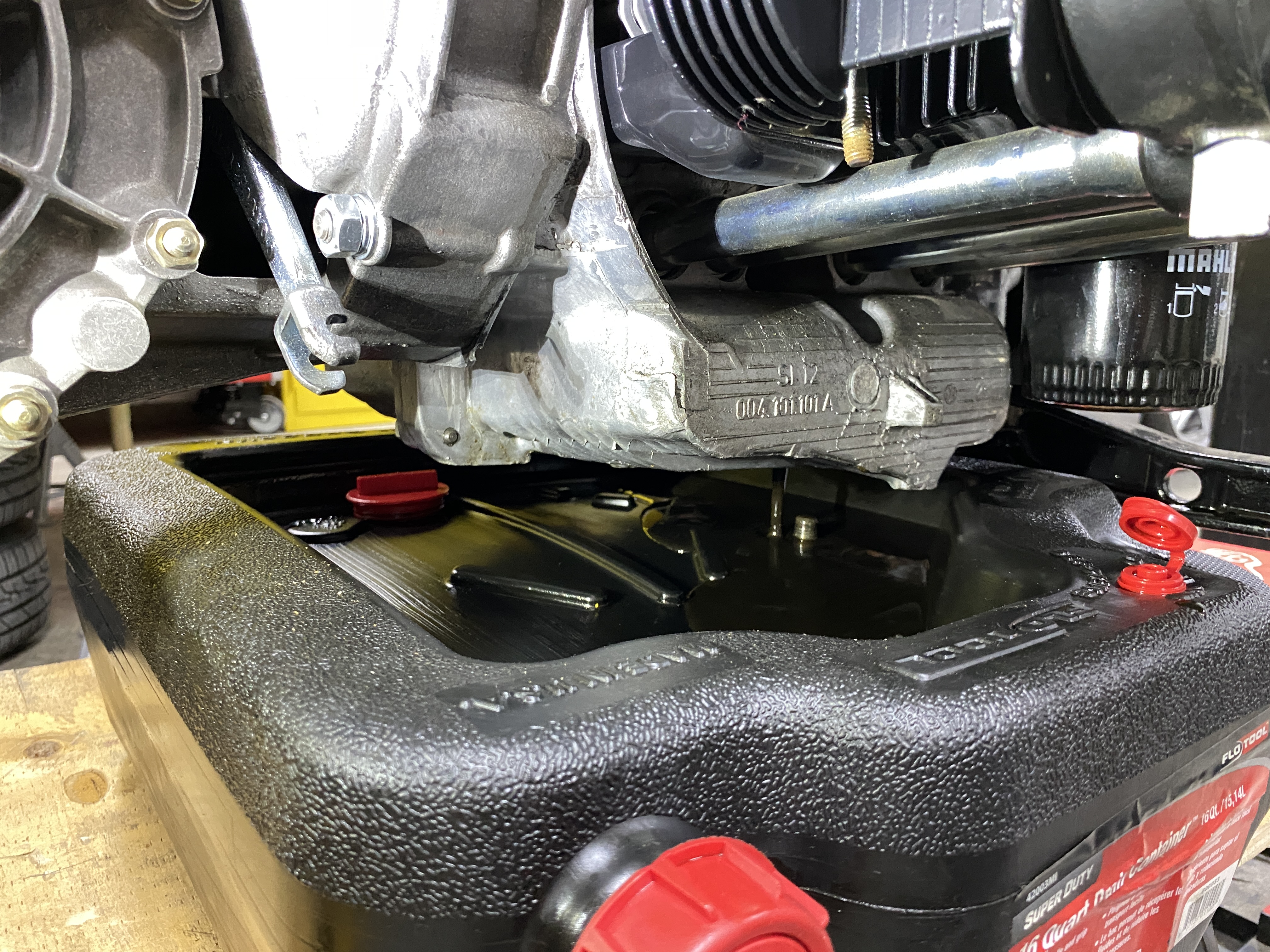

I finally drained the oil. This was the second fill after startup.
Attached thumbnail(s) |
bkrantz |
Jan 9 2023, 08:04 PM
Post
#6023
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
And with the cross bar and engine mounts, I could access the pump.
Attached thumbnail(s) |
bkrantz |
Jan 9 2023, 08:05 PM
Post
#6024
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

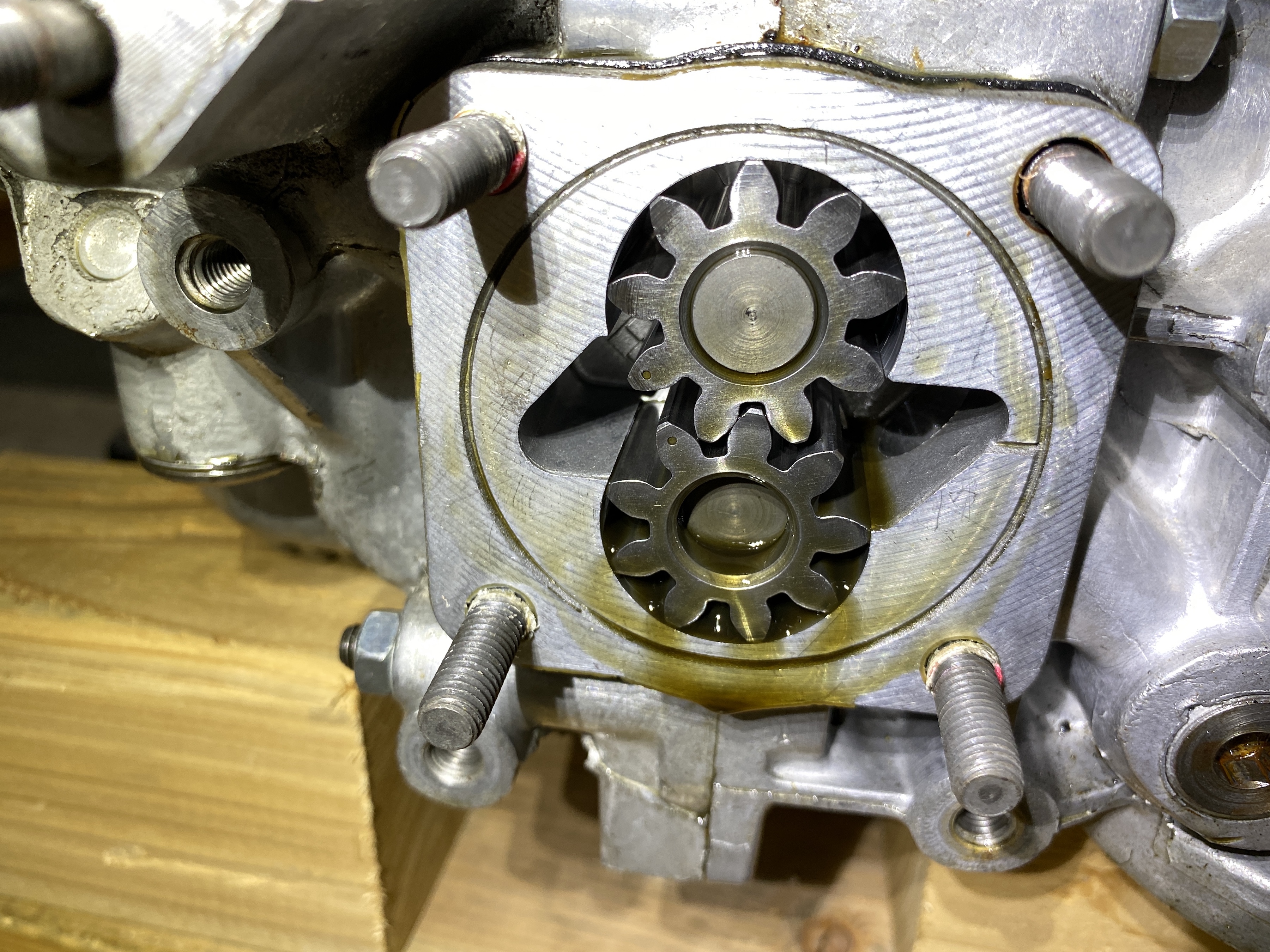

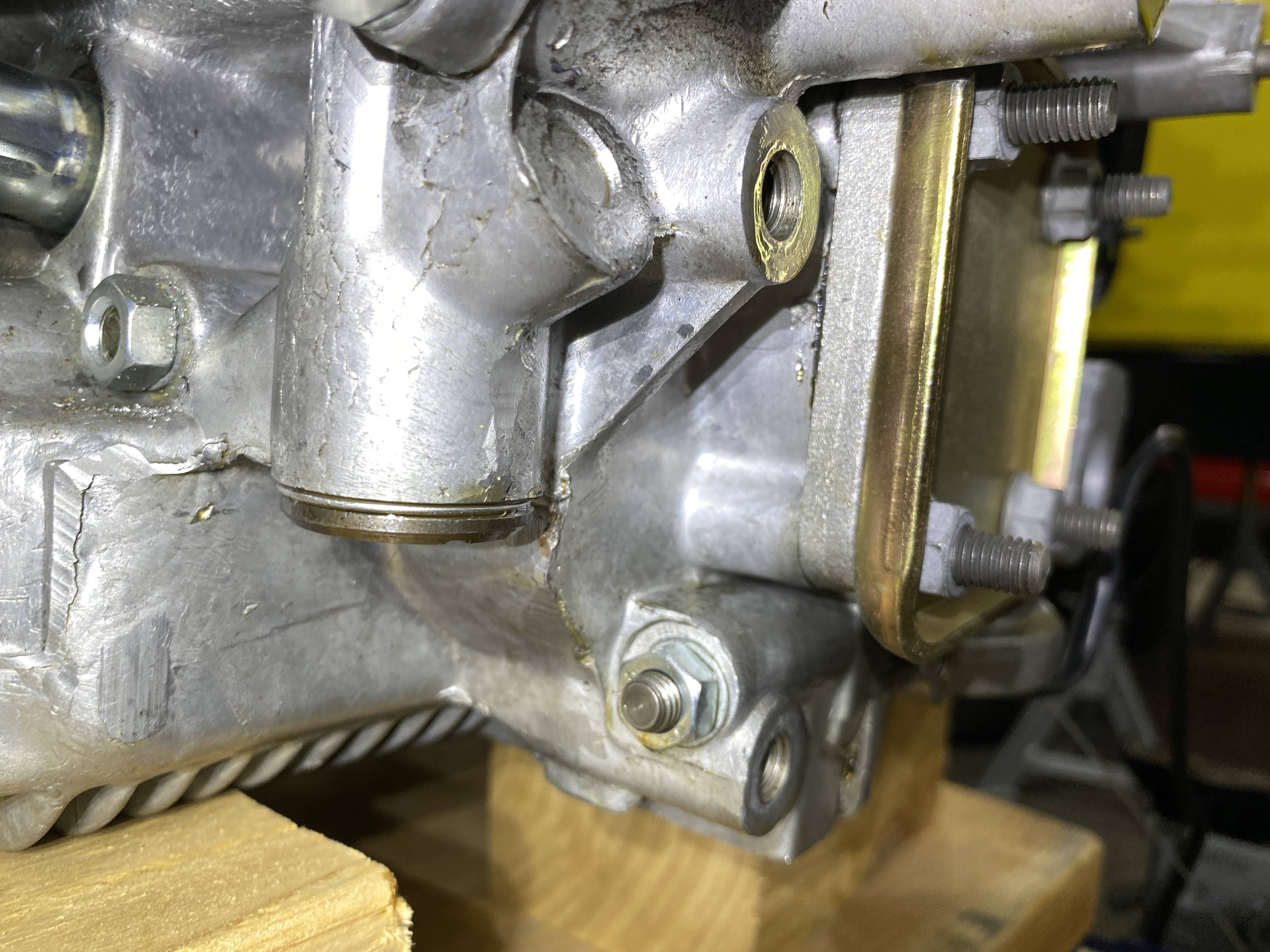

Pump cover off.
Attached thumbnail(s) |
bkrantz |
Jan 14 2023, 09:38 PM
Post
#6025
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
After some more investigation, as reported on my other thread about oil leaks, I can say (with embarrassment) that the oil filter was loose and probably responsible for much of the leaked oil.

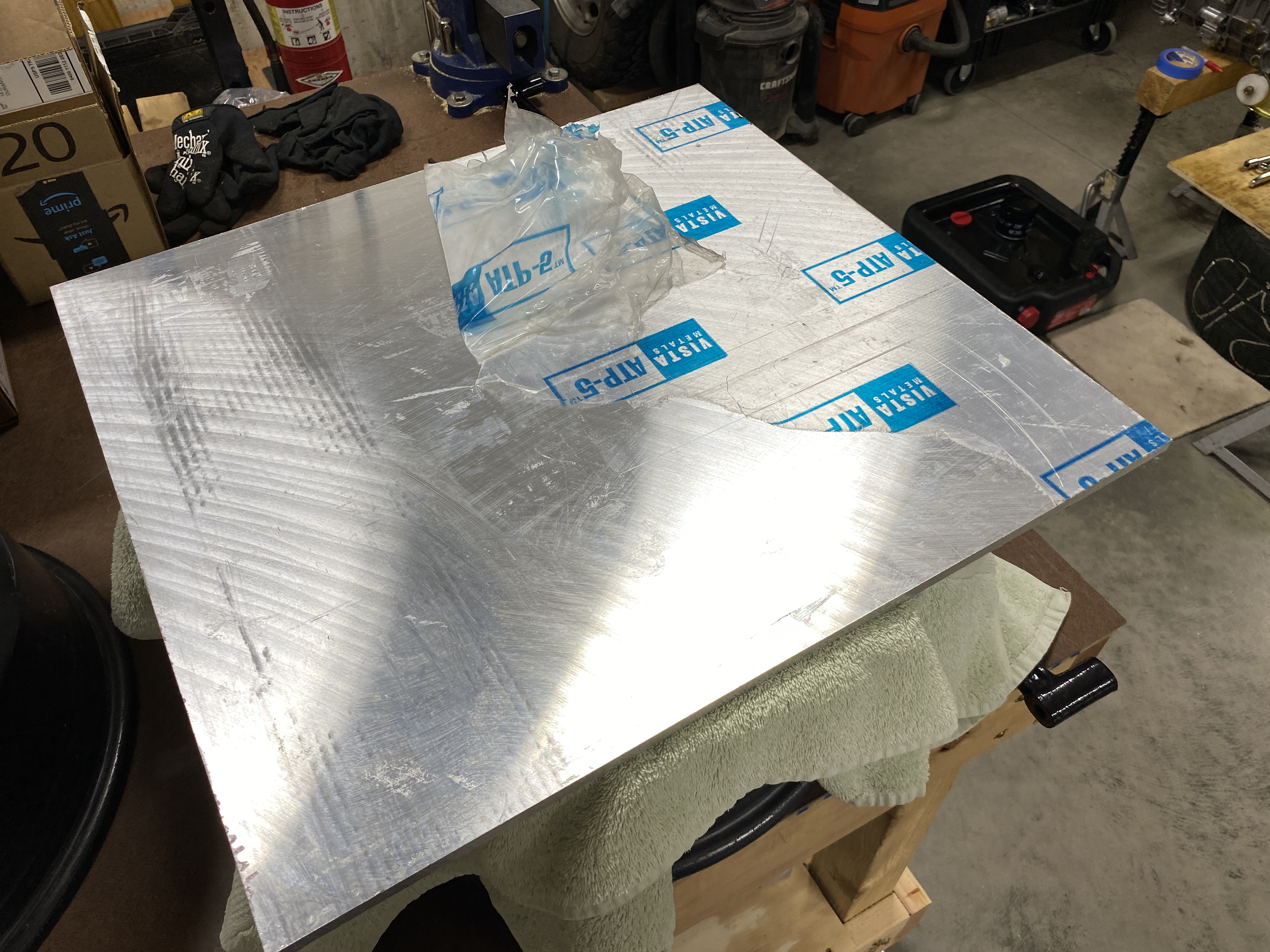

One other culprit might be the pump cover. I want to make sure the mating surface is flat. So I got out my new reference flat: a piece of machined aluminum plate. I got this at one of my favorite stores, Industrial Metal Supply, in Tucson. They sell just about any type and grade of metal, including aerospace stuff. They also have a room of cut-off pieces, sold by the pound. I paid something like $30 for this machined plate. It has a few scratches, but will serve this purpose. Attached thumbnail(s) |
bkrantz |
Jan 14 2023, 09:39 PM
Post
#6026
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

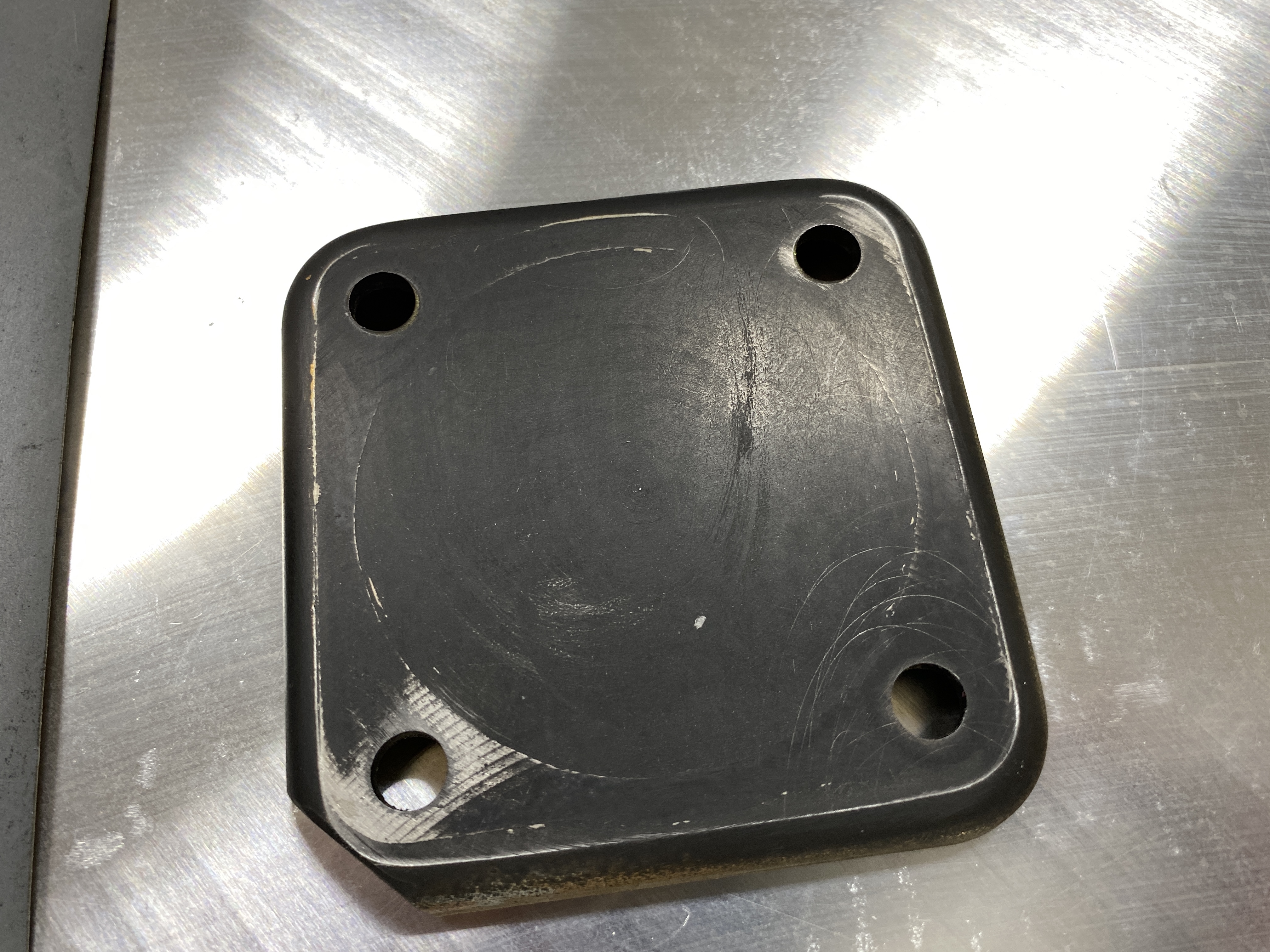

Here's the cover, cleaned up and old sealant removed. You can see some uneven scoring from the pump gear.
Attached thumbnail(s) |
bkrantz |
Jan 14 2023, 09:40 PM
Post
#6027
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

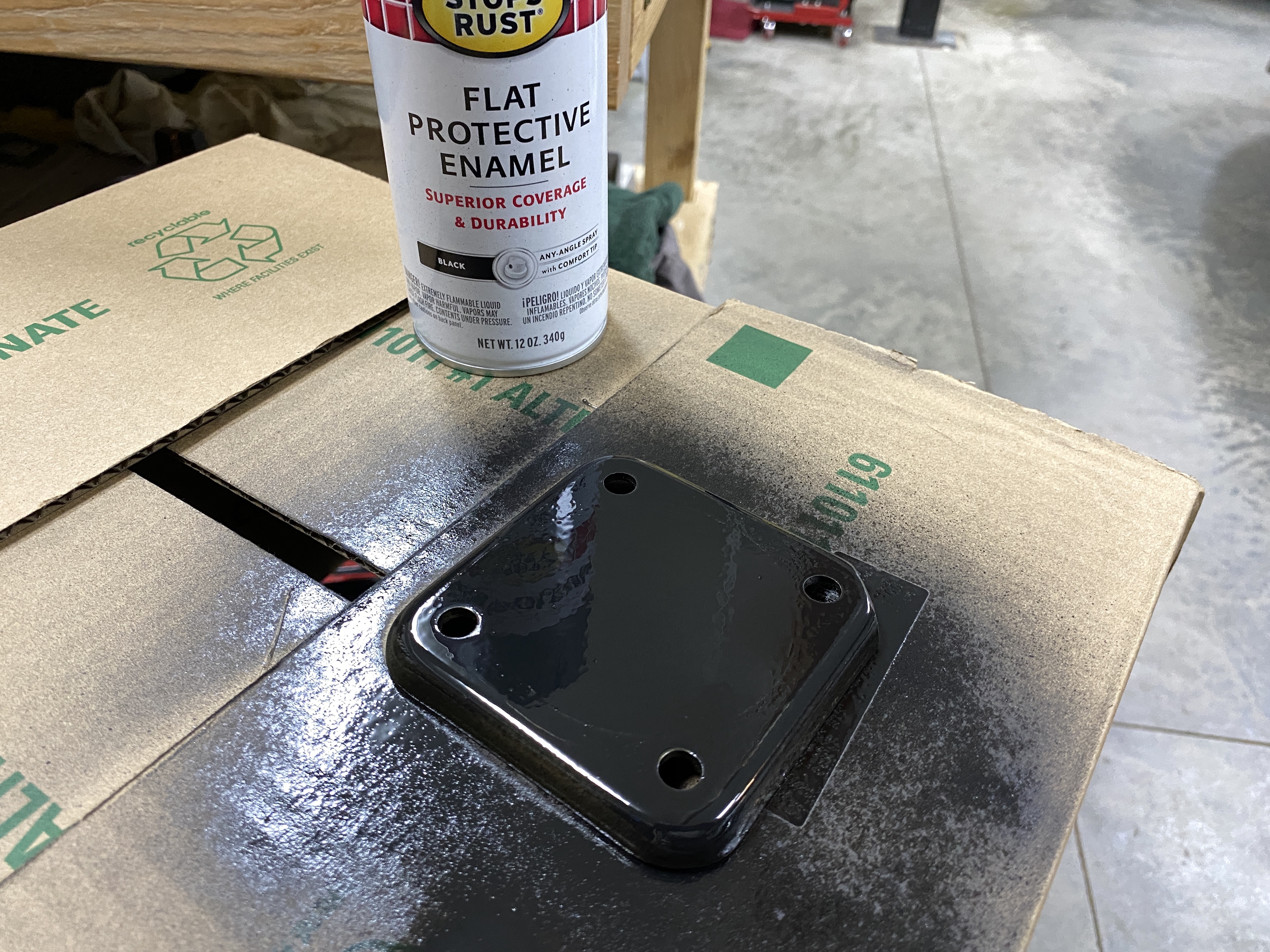

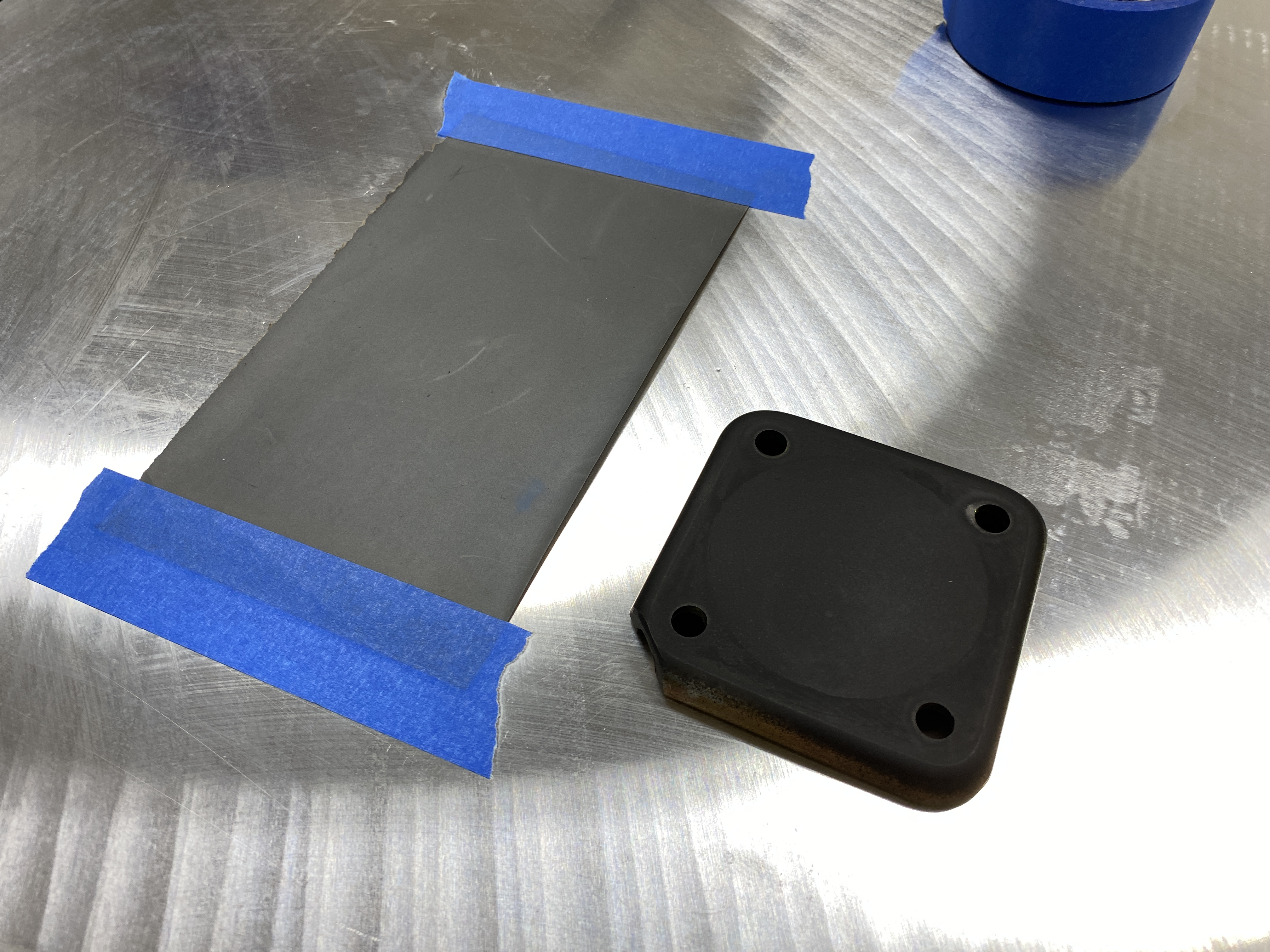

To check the cover flatness, I sprayed the mount surface with flat black.
Attached thumbnail(s) |
bkrantz |
Jan 14 2023, 09:41 PM
Post
#6028
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

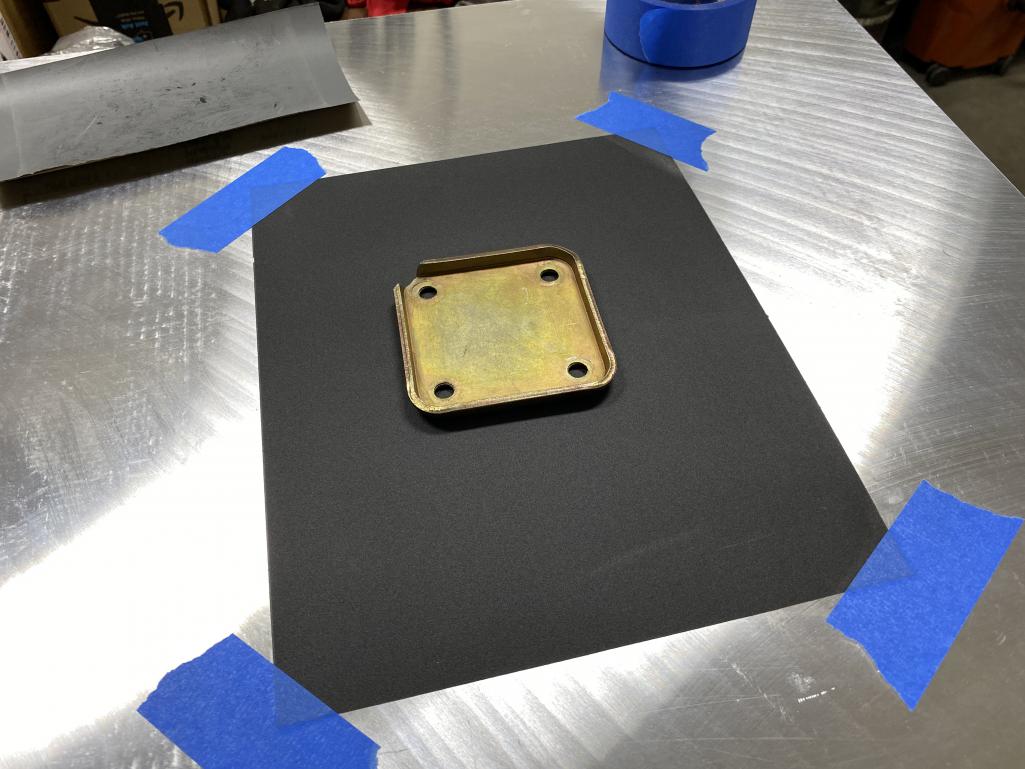

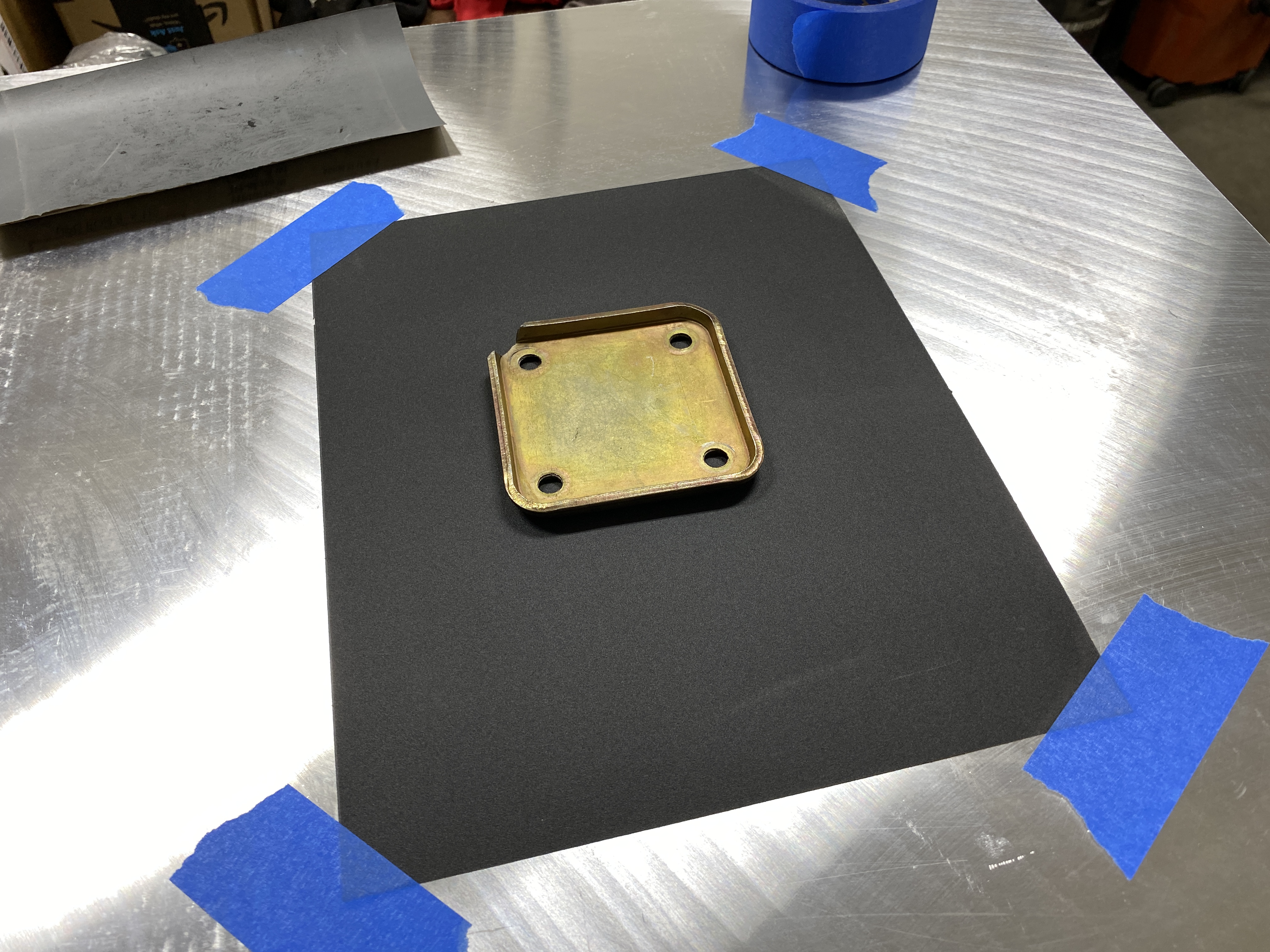

800 grit paper on the aluminum.
Attached thumbnail(s) |
bkrantz |
Jan 14 2023, 09:42 PM
Post
#6029
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

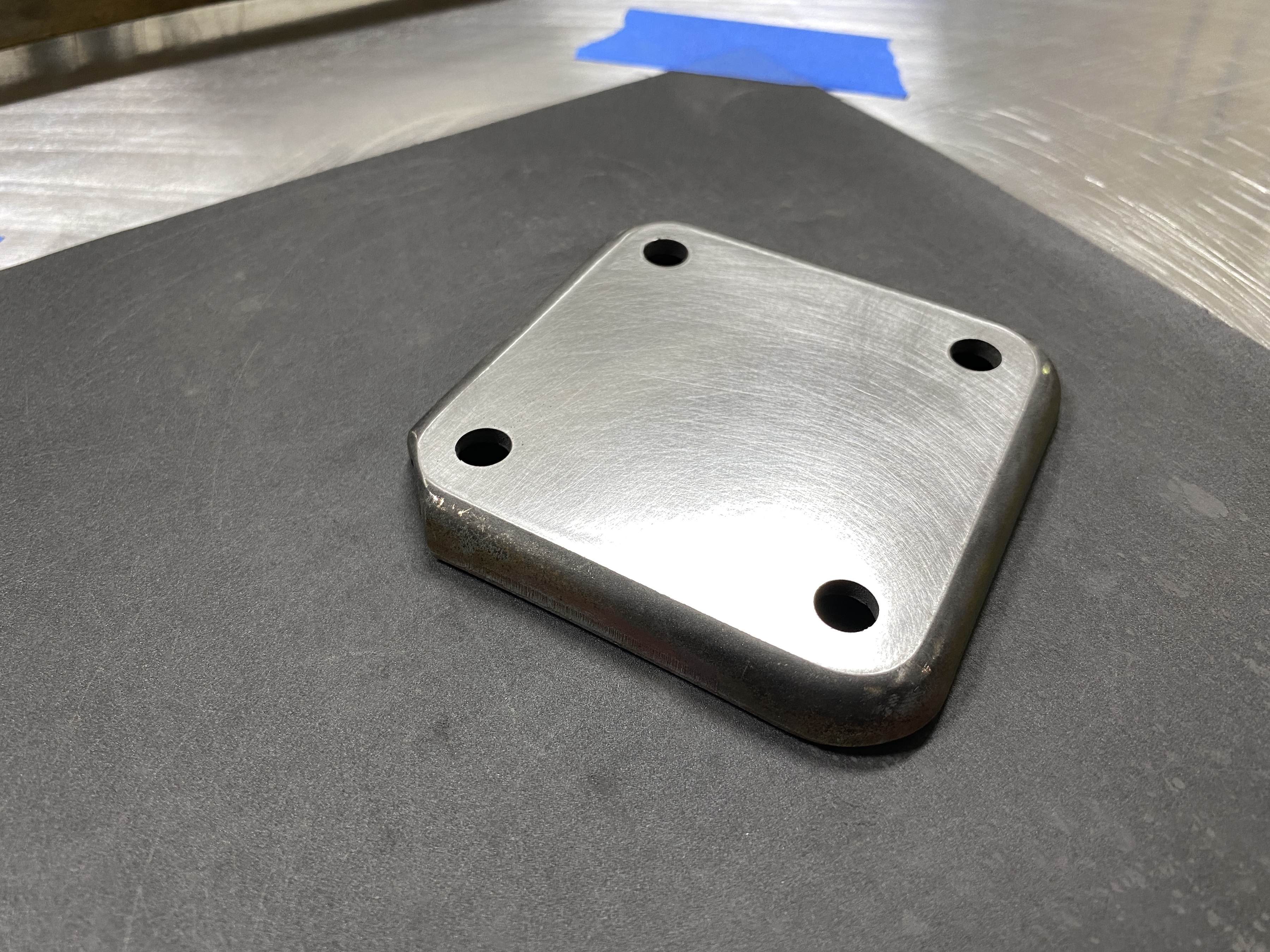

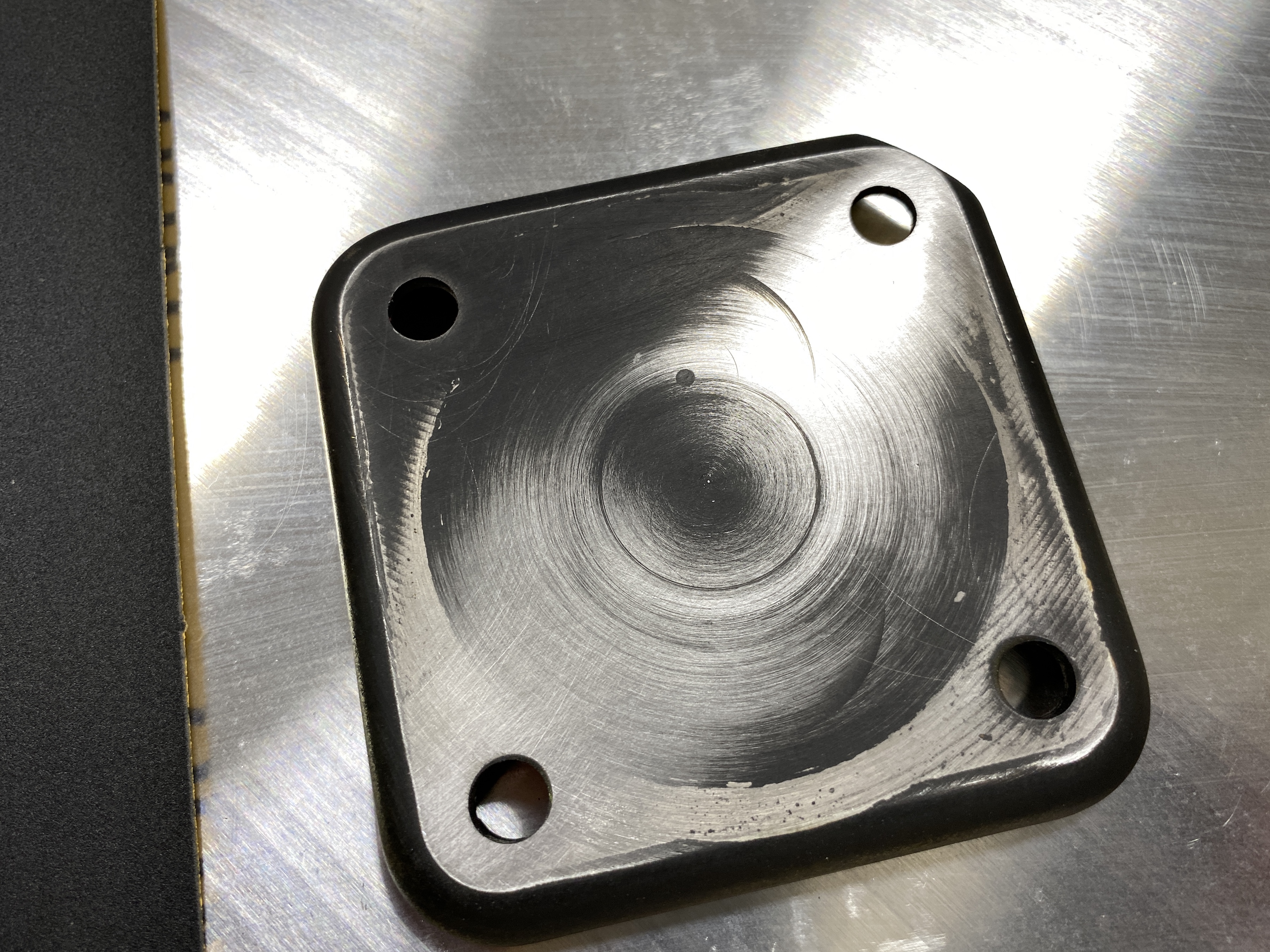

Some light sanding shows that two corners are high.
Attached thumbnail(s) |
bkrantz |
Jan 14 2023, 09:43 PM
Post
#6030
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

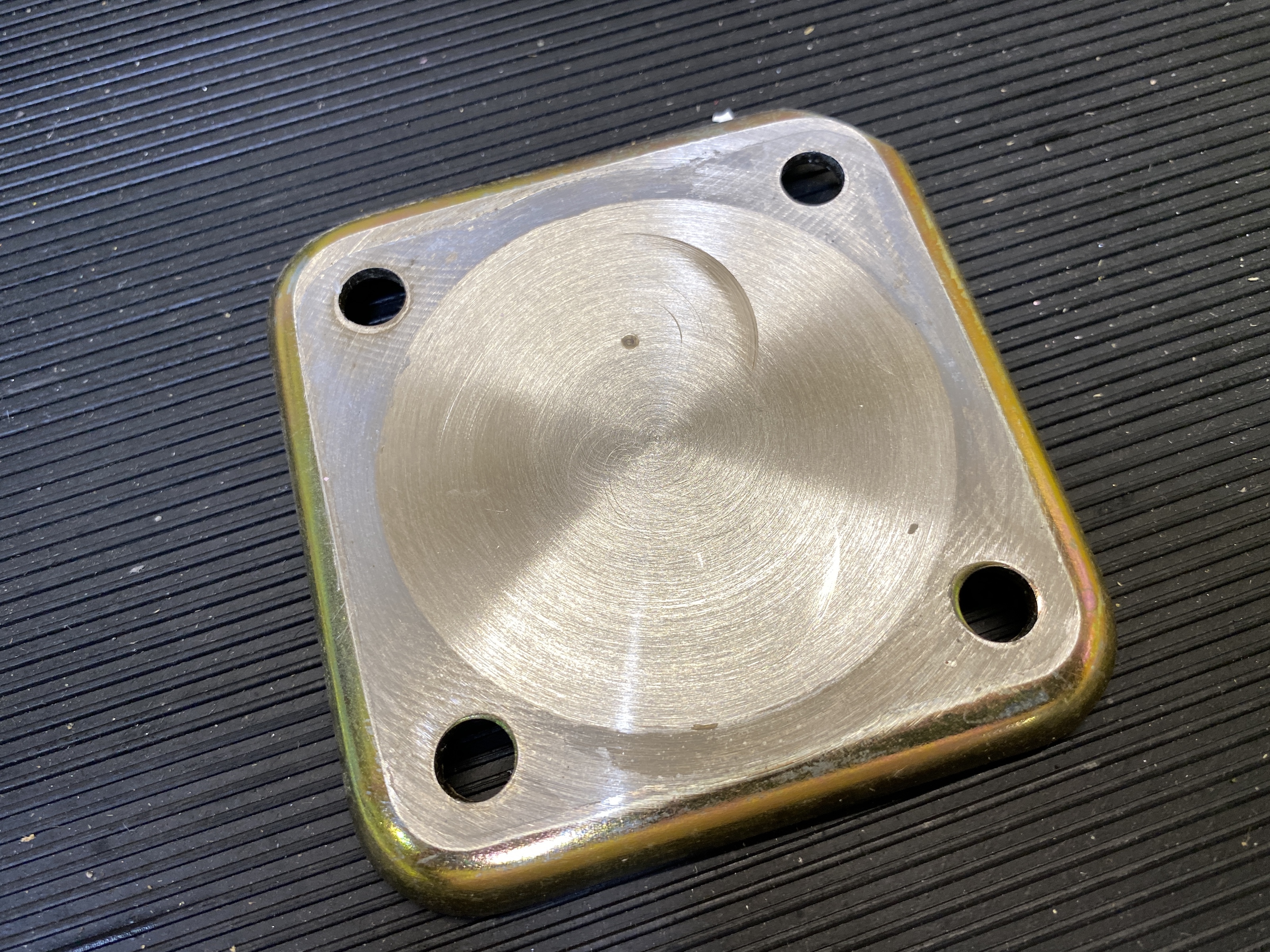

I got out some 400 grit paper, to start making the cover flat.
Attached thumbnail(s) |
bkrantz |
Jan 14 2023, 09:44 PM
Post
#6031
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
First round of sanding, and the cover sure looks uneven, and especially high from lower left to upper right.
Attached thumbnail(s) |
bkrantz |
Jan 14 2023, 09:46 PM
Post
#6032
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
After about 30 minutes, but still not quite even. But time for dinner.
Attached thumbnail(s) |
930cabman |
Jan 15 2023, 08:19 AM
Post
#6033
|
Advanced Member Group: Members Posts: 3,067 Joined: 12-November 20 From: Buffalo Member No.: 24,877 Region Association: North East States |
I would bet there is a probability for leakage at the pump cover. How much out of whack would you estimate the cover was? It looks as though it is stamped steel with rolled edges.
A loose filter could also create some mess. Thanks for the investigative work |
bkrantz |
Jan 15 2023, 08:41 PM
Post
#6034
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
I would bet there is a probability for leakage at the pump cover. How much out of whack would you estimate the cover was? It looks as though it is stamped steel with rolled edges. A loose filter could also create some mess. Thanks for the investigative work Yes, stamped steel with folded edge, and then machined. But certainly not flat when installed. |
bkrantz |
Jan 15 2023, 08:43 PM
Post
#6035
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

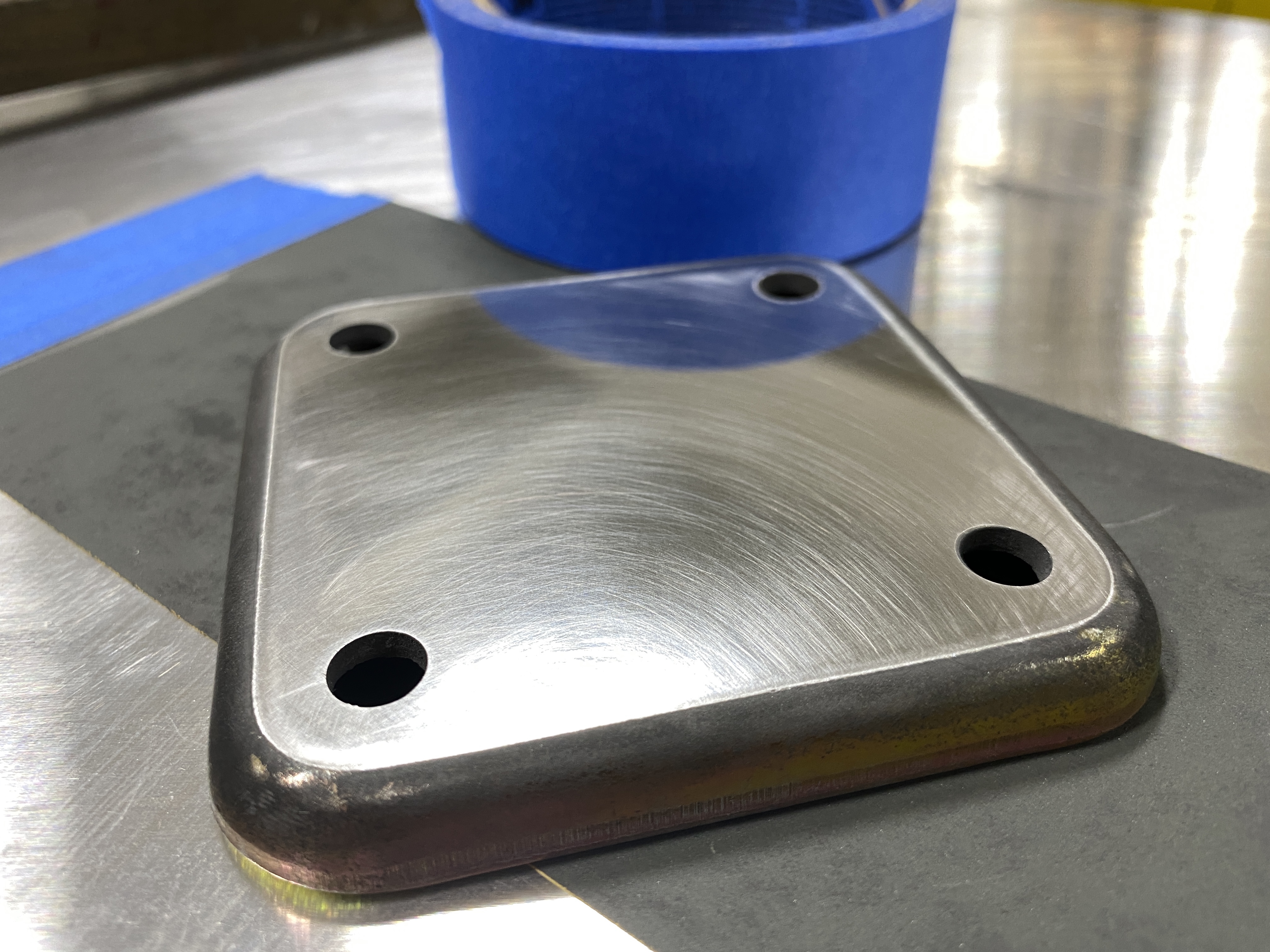

More 400 grit. Not perfect but getting tired, so good enough? (IMG:style_emoticons/default/confused24.gif)
Attached thumbnail(s) |
bkrantz |
Jan 15 2023, 08:43 PM
Post
#6036
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

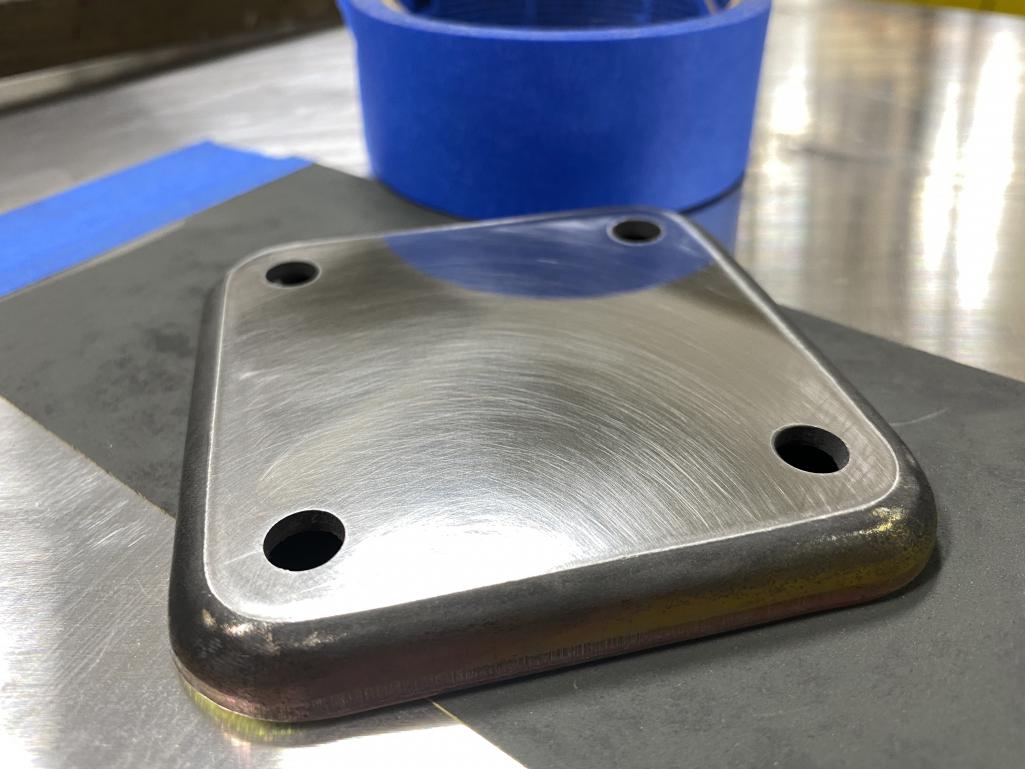

Then 800 grit.
Attached thumbnail(s) |
bkrantz |
Jan 15 2023, 08:44 PM
Post
#6037
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |

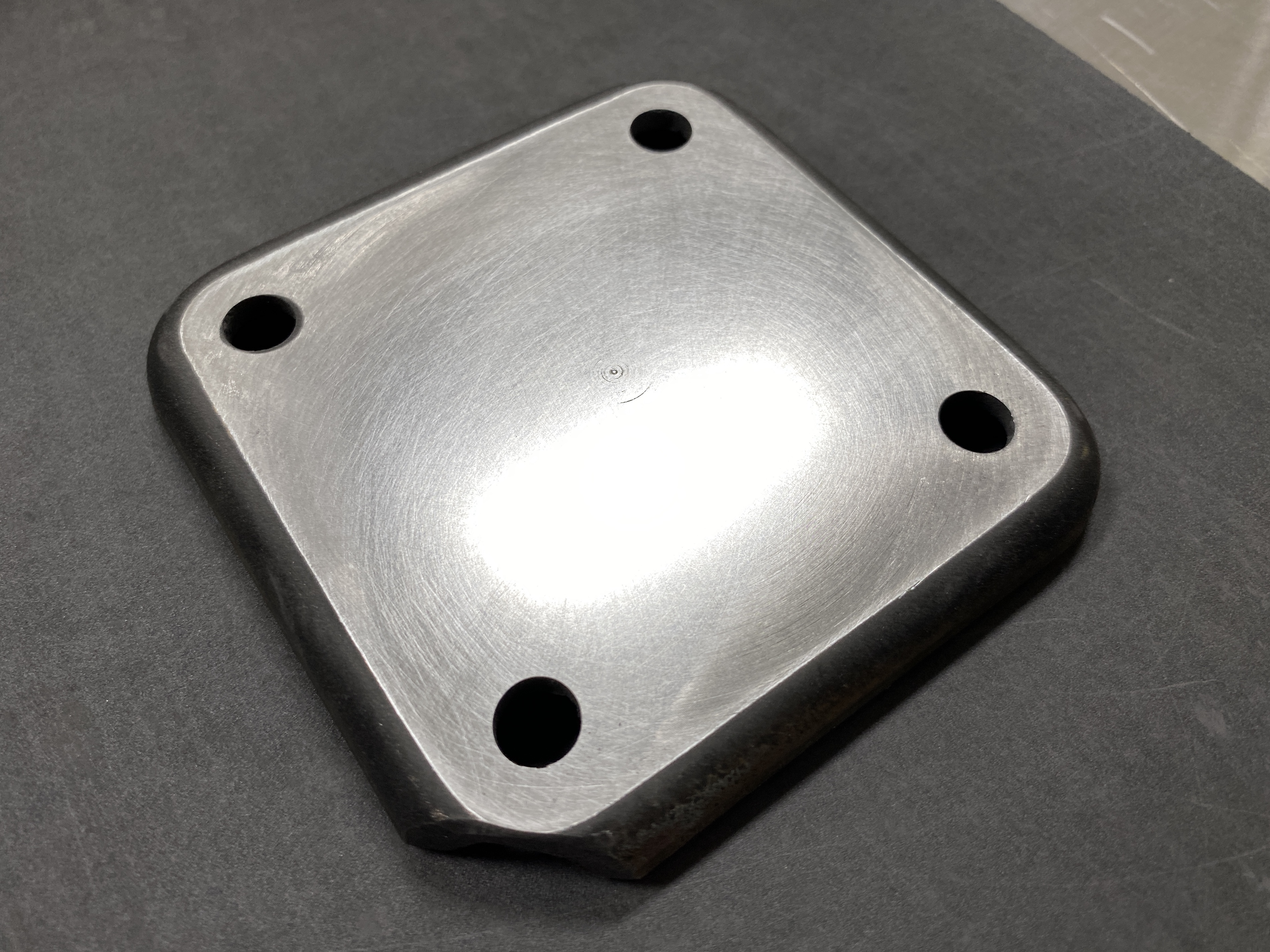

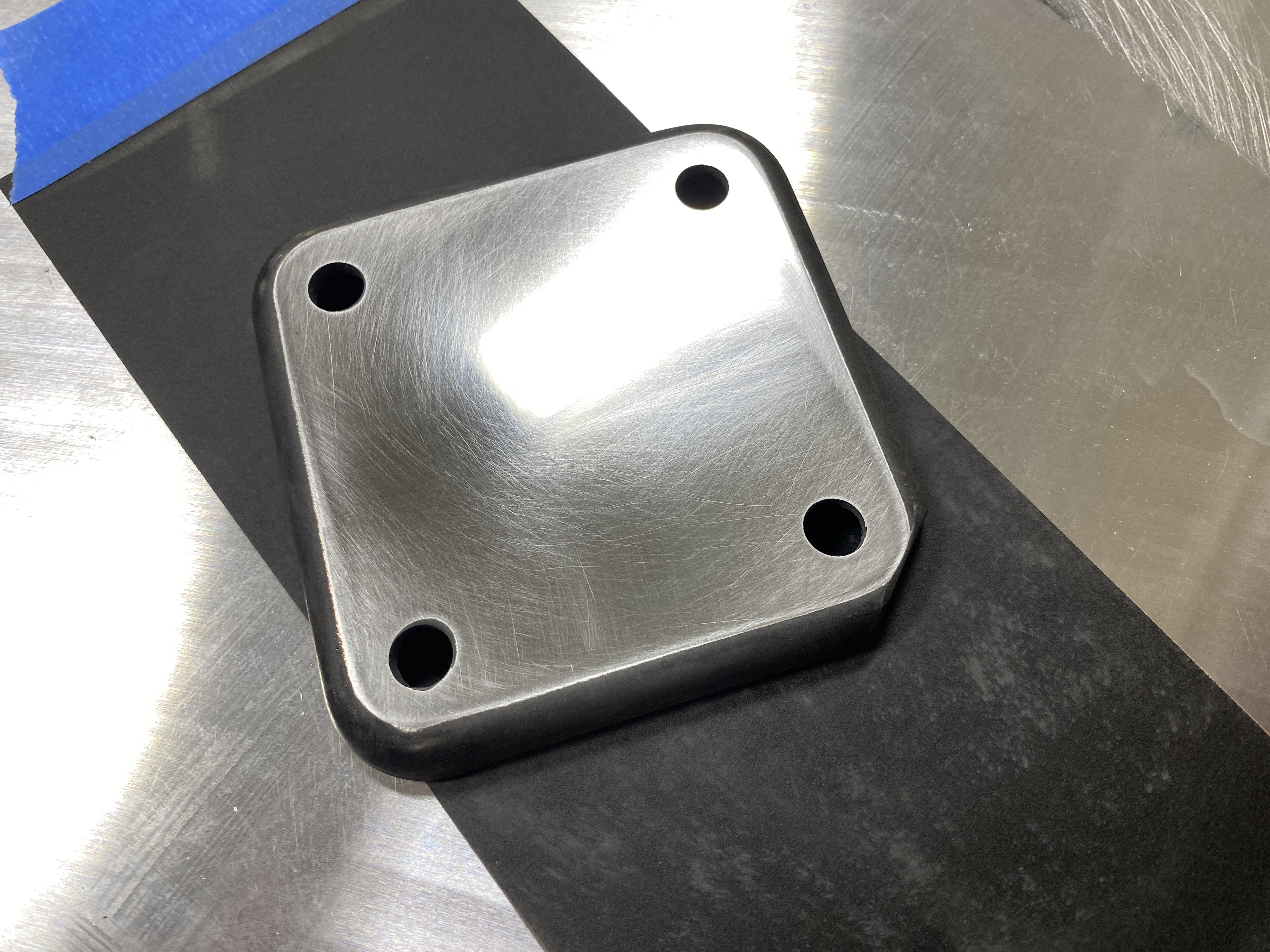

And 1000 grit. Shiny and ready.
Attached thumbnail(s) |
930cabman |
Jan 16 2023, 06:01 AM
Post
#6038
|
Advanced Member Group: Members Posts: 3,067 Joined: 12-November 20 From: Buffalo Member No.: 24,877 Region Association: North East States |
With a very thin paper gasket?
|
Puebloswatcop |
Jan 16 2023, 06:30 PM
Post
#6039
|
Senior Member Group: Members Posts: 1,389 Joined: 27-December 14 From: Mineola, Texas Member No.: 18,258 Region Association: Southwest Region |
Hoping that after all of the detective work and manual labor this is the solution......
|
bkrantz |
Jan 16 2023, 08:24 PM
Post
#6040
|
914 Guru Group: Members Posts: 7,768 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains |
|
