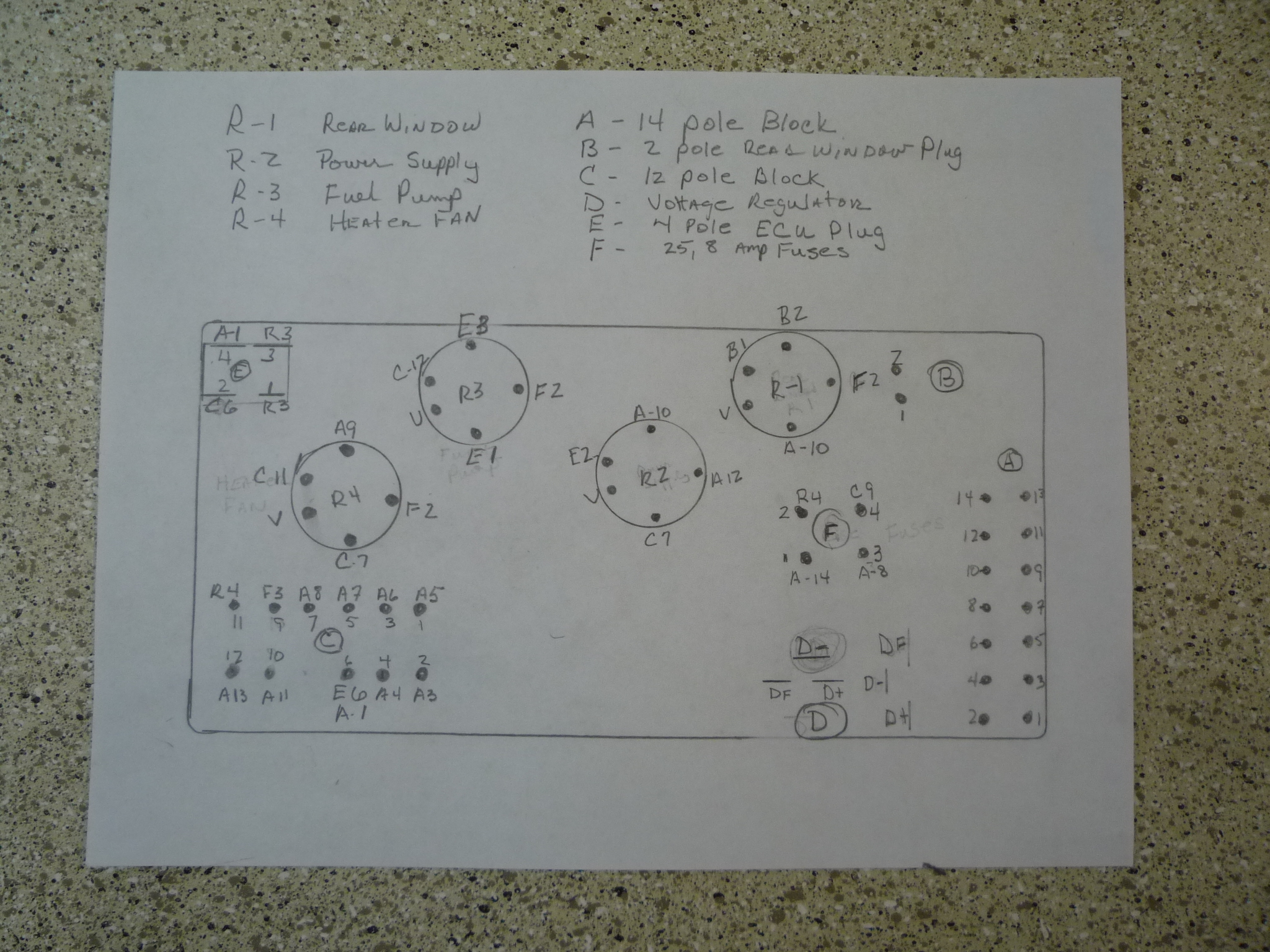

This is my simple way to check the relay board out for continuity. Key is a the top and just used for reference only. Some terminals have multiple points. Please note the circuit for the heated window is included and missing from most diagrams.
Key note: A (main 14 pole harness plug) and B (heated window plug) have no numbers because they match the other points on board. I do not have a scanner so I took a picture. Feel free to take diagram and convert it to a nice computer drawing if you want. (IMG:style_emoticons/default/biggrin.gif) Click on picture and it will enlarge enough to read it. If I missed something let me know. Attached thumbnail(s)
|
   |

|
| bbrock |
Jan 23 2020, 05:32 PM
Post
#2
|
|
914 Guru Group: Members Posts: 5,269 Joined: 17-February 17 From: Montana Member No.: 20,845 Region Association: Rocky Mountains
|
Very timely. I'm getting ready to troubleshoot why I'm not getting juice to my rear window and using this will be way easier than following traces on the schematic. (IMG:style_emoticons/default/beerchug.gif)
|
|
|
|
| ndfrigi |
Jan 23 2020, 05:47 PM
Post
#3
|
|
Advanced Member Group: Members Posts: 2,928 Joined: 21-August 11 From: Orange County Member No.: 13,474 Region Association: Southern California
|
Thank you Mark!
|
|
|
|
| johnhora |
Jan 23 2020, 05:53 PM
Post
#4
|
|
Senior Member Group: Members Posts: 866 Joined: 7-January 03 From: Derby City KY Member No.: 107 Region Association: None
|
Cool...Thanks Mark!
|
|
|
|
| raynekat |
Jan 23 2020, 10:10 PM
Post
#5
|
|
Advanced Member Group: Members Posts: 2,157 Joined: 30-December 14 From: Coeur d'Alene, Idaho Member No.: 18,263 Region Association: Pacific Northwest
|
I've got a similar diagram for the 914-6 relay boards....but it's likely too big to post here. I'll see if I can get it reduced.
|
|
|
|
|
