spyderman, who owns the really pretty gulf blue car that was in the 914 International pictures earlier has a very interesting cooling setup.

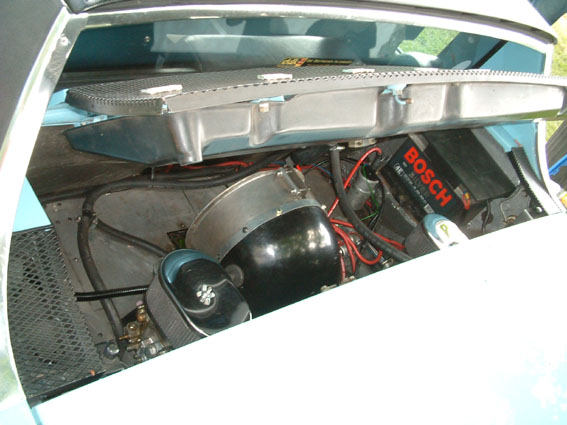

The engine is a 2.3 4 cylinder, and it has been modified to use a 911 fan and shroud. Whats interesting is that it has a duct up from underneath the car to feed air from below, that exits right in front of the fan and is then ducted over the engine. Here is a picture showing the engine bay: Attached image(s)
|
   |

|
| richardL |
Jul 4 2005, 12:27 PM
Post
#2
|
|
Senior Member Group: Members Posts: 713 Joined: 27-January 03 From: San Diego, CA Member No.: 201 Region Association: None |

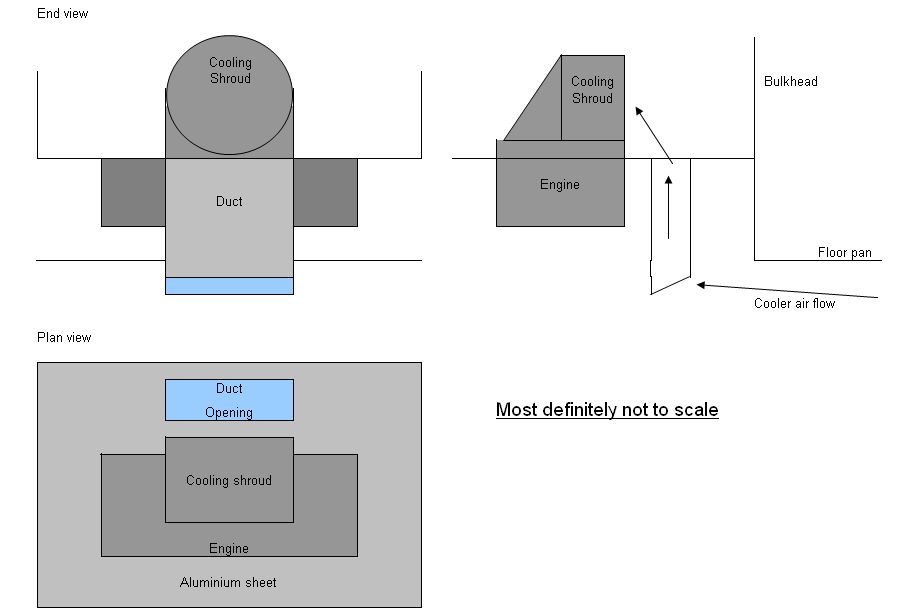

and here is a schematic showing the duct which is just visible in the photo:
Attached thumbnail(s)
|
|
|
|
| Aaron Cox |
Jul 4 2005, 12:29 PM
Post
#3
|
|
Professional Lawn Dart Group: Retired Admin Posts: 24,541 Joined: 1-February 03 From: OC Member No.: 219 Region Association: Southern California |
apparently the 911 style fans dont evely distribute air over all the cylinders....
AND you need an external oil cooler with the kits AA |
|
|
|
| richardL |
Jul 4 2005, 12:30 PM
Post
#4
|
|
Senior Member Group: Members Posts: 713 Joined: 27-January 03 From: San Diego, CA Member No.: 201 Region Association: None |
My understanding (from prior threads) is that the flaps under the bulkhead reduce air pressure under the car and then air is sucked through the grill, down through the fan, over the engine and expelled underneath into the low pressure area. Is this correct?
If so, wouldn't this setup tend to remove the pressure difference and likely actually reduce cooling efficiency. spyderman has been seeing some high oil temps when running hard (the car hasn't been running for long). Perhaps he should blank off the duct and see if that actually helps? Whats the collective wisdom? Richard |
|
|
|
| Aaron Cox |
Jul 4 2005, 12:32 PM
Post
#5
|
|
Professional Lawn Dart Group: Retired Admin Posts: 24,541 Joined: 1-February 03 From: OC Member No.: 219 Region Association: Southern California |
again - these kits dont support stock oil cooler. external is required.
i like them, lots of extra room in there now.... what do his cyl head temps look like? |
|
|
|
|
