> Since my /6 is all apart, Good opportunity to see some parts
michel richard
post Jul 5 2005, 07:53 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
One of the things that's different is the engine mount. Had a few minutes this evening, and I'd never really seen how the mount is put together on an original /6, so I shot a bunch of pictures.
Hope people feel this is good use of bandwidth.

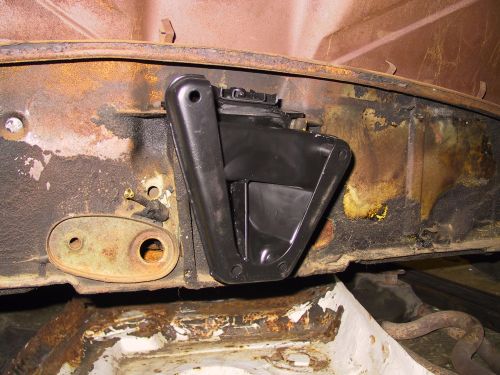

First, the bulkhead


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Jul 5 2005, 07:54 PM
Post #2


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

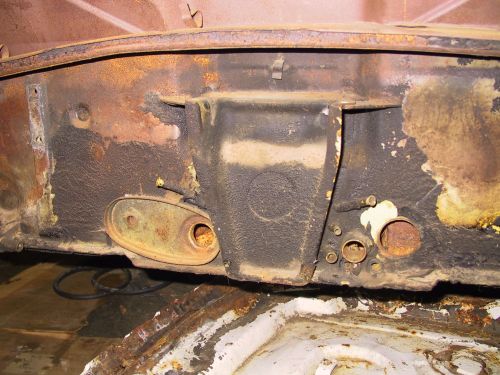

The engine mount assembly, out of the car


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Jul 5 2005, 07:54 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

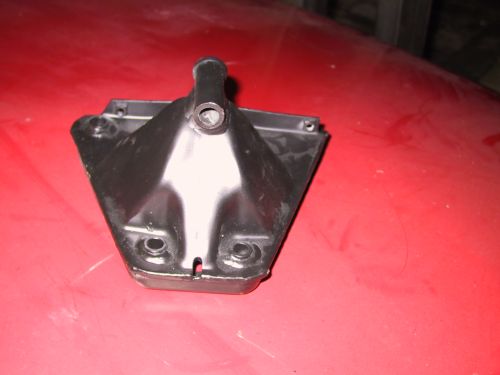

The nose cone. This is the part that bolts to the engine.



Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Jul 5 2005, 07:55 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

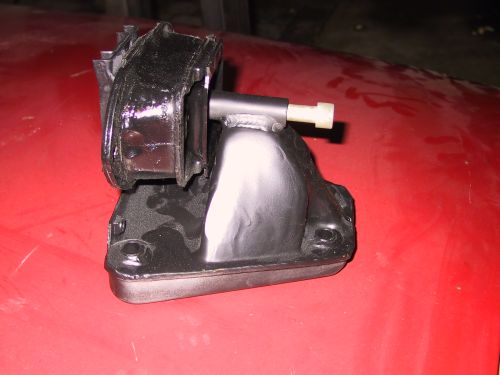

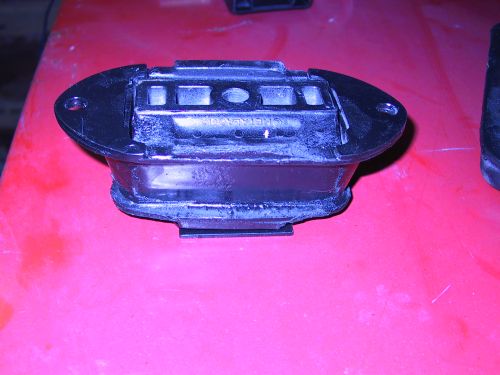

The rubber mount. It's pretty big. It bolts to the bulkhead.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Jul 5 2005, 07:56 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

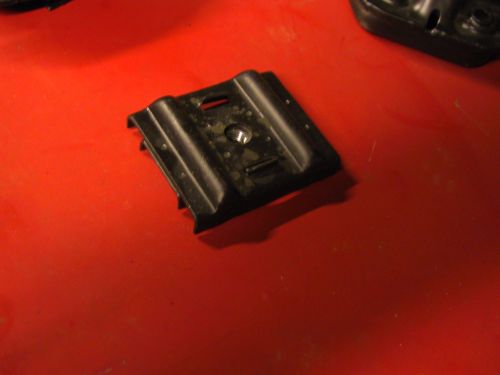

And the retainer, in which the retaining bolt goes. AKA the Jesus nut.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Jul 5 2005, 07:57 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

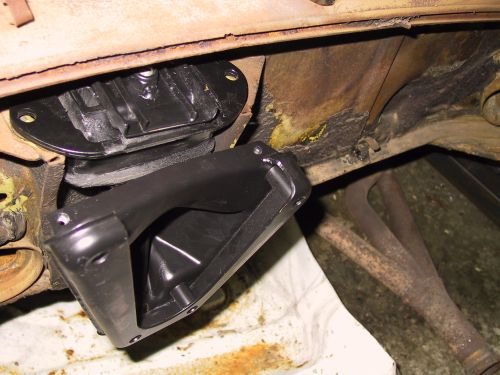

This is how it fits in the car. Note that in this and the following pictures, the bolt is not screwed in all the way.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Jul 5 2005, 07:58 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936

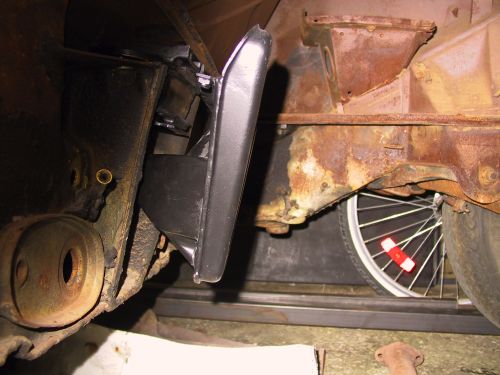

Holes are not lined-up either. Side view.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Jul 5 2005, 07:58 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
Viewed looking forward


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Jul 5 2005, 07:59 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
Hope this helped !

Michel Richard
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bondo
post Jul 5 2005, 08:03 PM
Post #10


Practicing my perpendicular parking
****

Group: Members
Posts: 4,277
Joined: 19-April 03
From: Los Osos, CA
Member No.: 587
Region Association: Central California
Cool! I didn't realize it was so complicated.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Bob
post Jul 5 2005, 08:06 PM
Post #11


Retired admin, banned a few times
***************

Group: Members
Posts: 17,427
Joined: 24-December 02
From: Boulder CO
Member No.: 5
Region Association: None
Gonna convert to side shift while you are at it?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 5 2005, 08:54 PM
Post #12


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
Good stuff. Thanks for taking the time. (IMG:http://www.914world.com/bbs2/html/emoticons/clap.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dead Air
post Jul 5 2005, 08:56 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,268
Joined: 9-May 04
From: Buffalo, NY
Member No.: 2,042
I can't even tell what I'm looking at (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 5 2005, 09:01 PM
Post #14


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None
QUOTE (Dave Eddy @ Jul 5 2005, 06:56 PM)
I can't even tell what I'm looking at (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif) (IMG:http://www.914world.com/bbs2/html/emoticons/smile.gif)

These four holes mount to the six cylinder engine. An original six car doesn't have the two mount holes welded to either side of the engine bay. The motor mounts here, center of the engine bay.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dr Evil
post Jul 5 2005, 09:01 PM
Post #15


Send me your transmission!
***************

Group: Members
Posts: 22,995
Joined: 21-November 03
From: Loveland, OH 45140
Member No.: 1,372
Region Association: MidAtlantic Region
Neat (IMG:http://www.914world.com/bbs2/html/emoticons/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bd1308
post Jul 5 2005, 09:05 PM
Post #16


Sir Post-a-lot
*****

Group: Members
Posts: 8,020
Joined: 24-January 05
From: Louisville,KY
Member No.: 3,501
dang....all that engine for what looks liek such a small mount.


woah





wow





amazing.




i want a six
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
michel richard
post Jul 6 2005, 04:20 AM
Post #17


Senior Member
***

Group: Members
Posts: 1,291
Joined: 22-July 03
From: Longueuil, Québec
Member No.: 936
QUOTE (McMark @ Jul 5 2005, 07:01 PM)

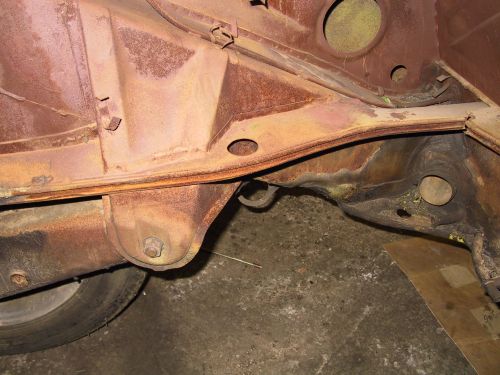

An original six car doesn't have the two mount holes welded to either side of the engine bay.

indeed


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
aircooledboy
post Jul 6 2005, 09:59 AM
Post #18


Sweet Pea's 1st ride in daddy's "vroom -vroom"
***

Group: Members
Posts: 1,672
Joined: 4-February 04
From: Rockford, IL
Member No.: 1,629
Region Association: Upper MidWest
Very cool. (IMG:http://www.914world.com/bbs2/html/emoticons/beerchug.gif)

Never seen one before.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
McMark
post Jul 6 2005, 11:42 AM
Post #19


914 Freak!
***************

Group: Retired Admin
Posts: 20,179
Joined: 13-March 03
From: Grand Rapids, MI
Member No.: 419
Region Association: None

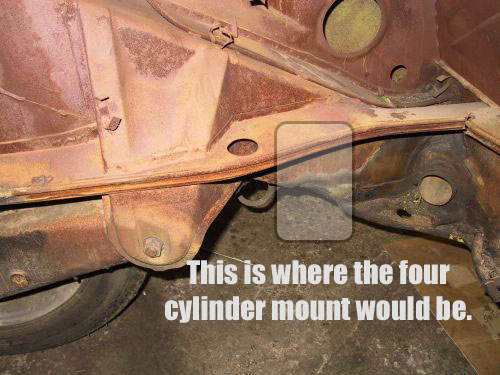

For those of you who aren't clear...


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tat2dphreak
post Jul 6 2005, 02:27 PM
Post #20


stoya, stoya, stoya
*****

Group: Benefactors
Posts: 8,797
Joined: 6-June 03
From: Wylie, TX
Member No.: 792
Region Association: Southwest Region
QUOTE (aircooledboy @ Jul 6 2005, 10:59 AM)
Very cool. (IMG:http://www.914world.com/bbs2/html/emoticons/beerchug.gif)

Never seen one before.

(IMG:http://www.914world.com/bbs2/html/emoticons/agree.gif) always wondered, never seen though.. great info!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
