Tube Chassis Subaru Engine build, Lots of new progress Options

[tazz9924]

Heres the quick break down: My old car got totaled on the side of the road, i got a good settlement out of it and with the money im building A tube frame chassis 914 with Porsche Boxster suspension and a subaru turbo motor.
The goals:
(Disclaimer some of these are really down the road and may not make the initial version 2.0, maybe 2.1 or so on and so forth. They are also goals so weather or not i achieve them, it’s something to shoot for.)

Tube frame chassis, all made of DOM tube and when all when the car is fully built it should weigh 1600 ish lbs.

The motor: It will have a subaru turbo motor. The initial version will see a 2.0 just so i can start having fun but eventually it’ll be a hybrid 2.5 making 400whp

The suspension: It will all be porsche boxster same with the brakes so it should handle all the power and lack of weight im throwing at it.

The body: It will be all fiberglass panels dzused on with the exception of the A pillar which will be a stock piece from a 914 but it will retain a vin tag. The only other stock 914 related thing will be pop up headlights which will be retained.

Aero: This thing will have an extreme aero package. From the smooth underbelly with large rear diffuser and front splitter to canards and a chassis mounted rear wing, This “car” WILL have a presence like little else.

Interior: Skip... JK this thing will have a digital dash, k tuned shifter, willwood pedal cluster, and a plaid racing seat. Thats about it, passenger seat is seen as optional at this point.

So hopefully this should be good, i dont have much time, even in the covid 19 world we currently find ourselves in right now. It may not be a fast paced build but the goal is to have a roller by june... So lets get to building!

OG car:

The Crash:

Whats Left:

I dont have many parts left, I took all the good parts off sold what i could and kept what i needed.

[tazz9924]

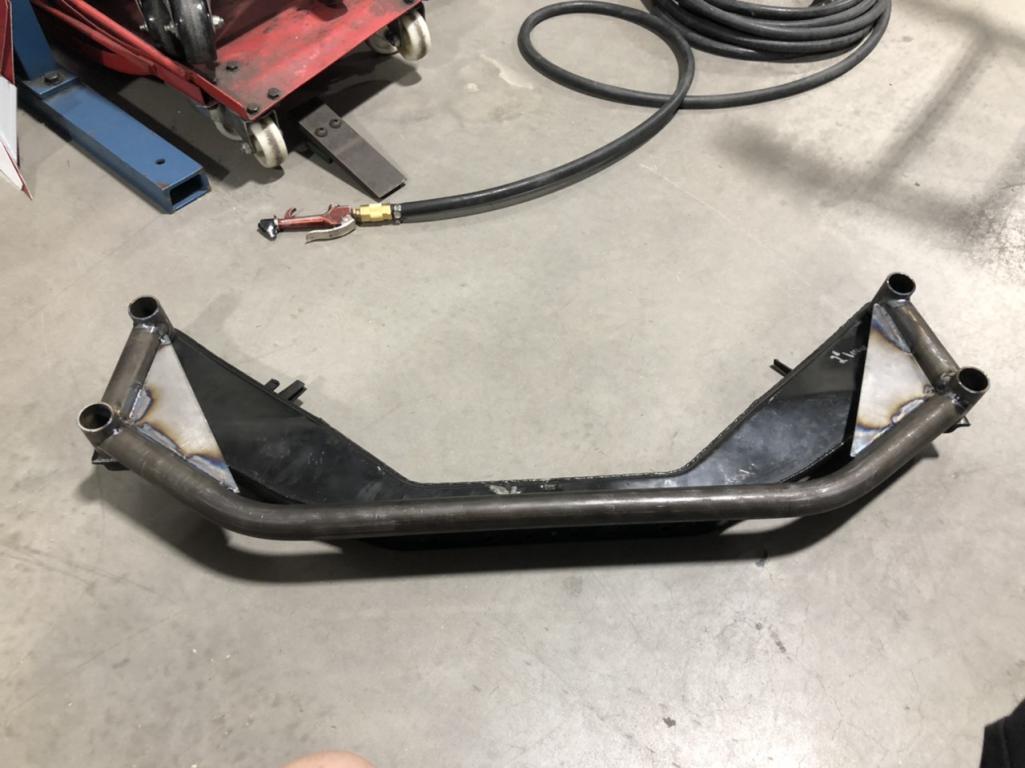

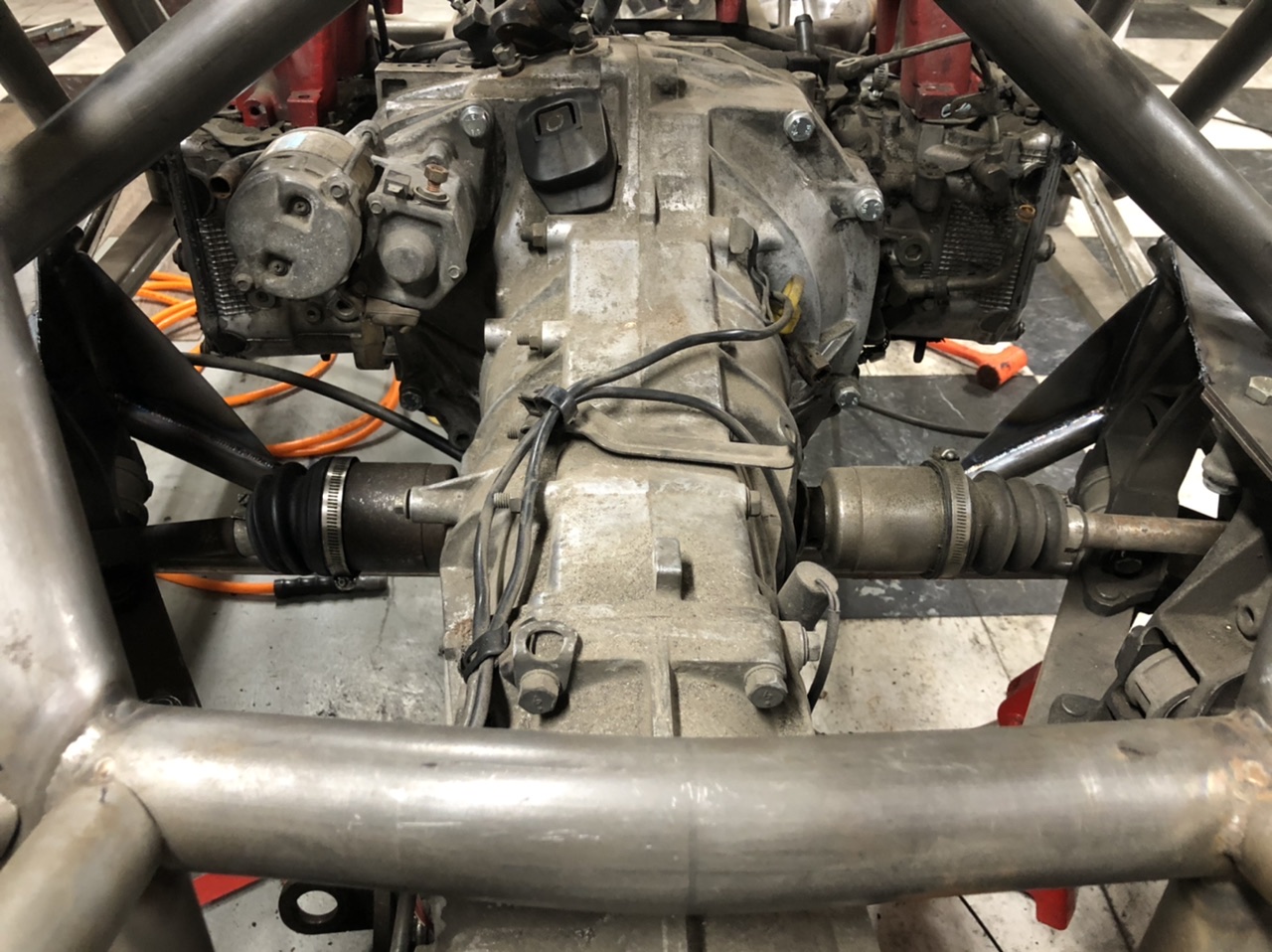

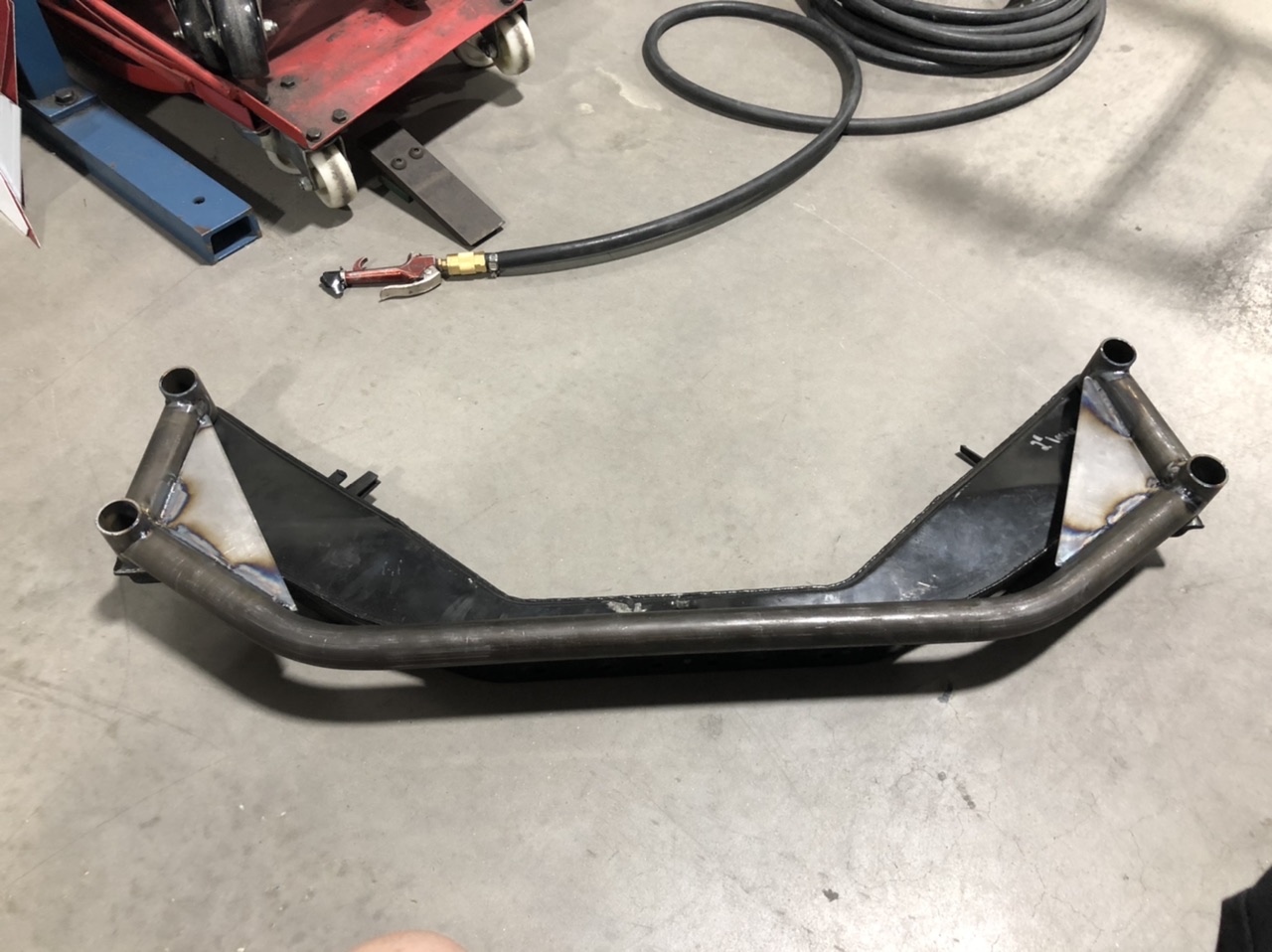

Built a replacement subframe for the rear suspension to allow my to fit my headers in there. I need extra space for a larger diameter tube than standard to allow for HP room to grow. I also think this has a better cleaner look for the car.

[djway]

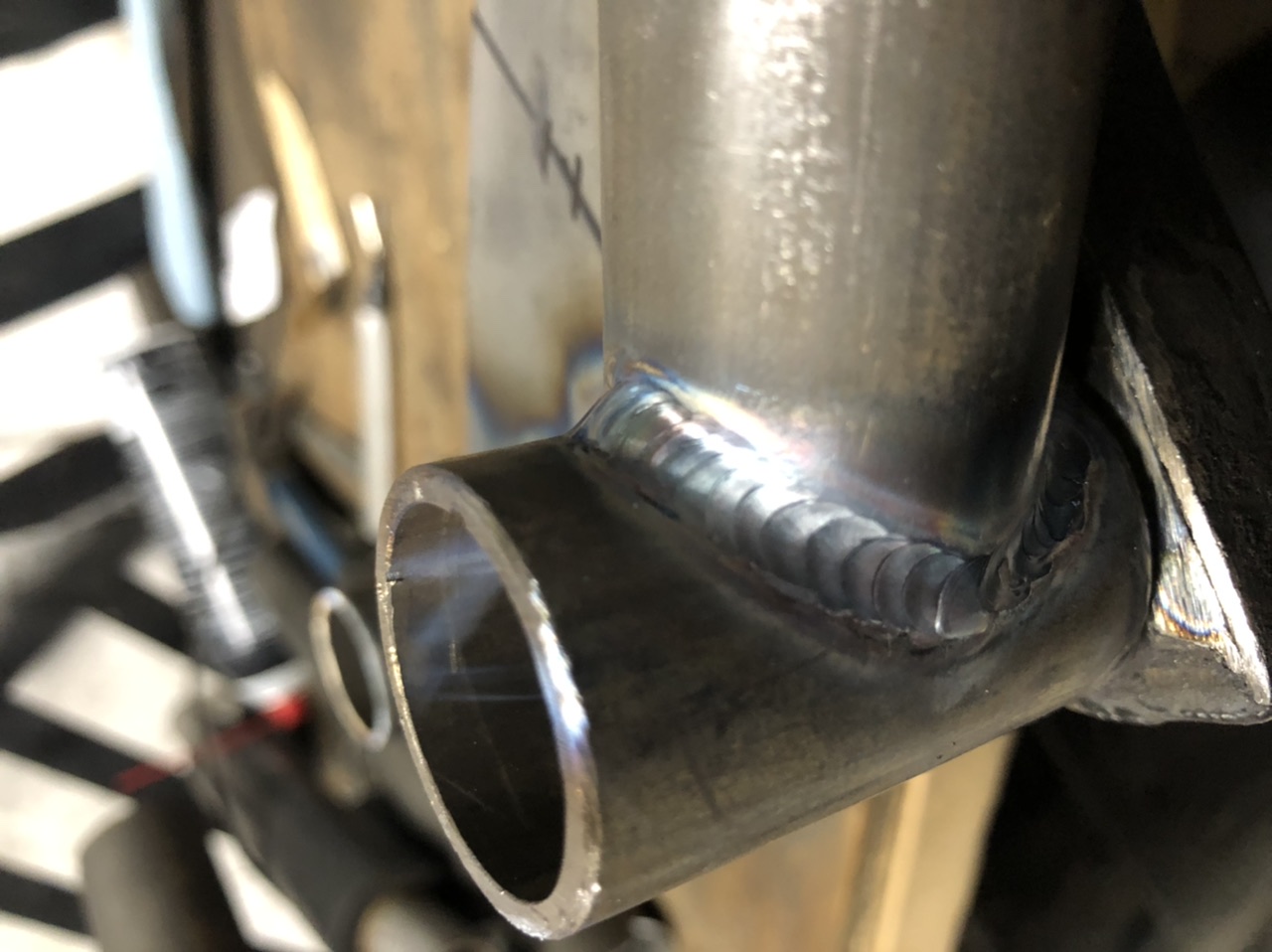

Love the welds

[tazz9924]

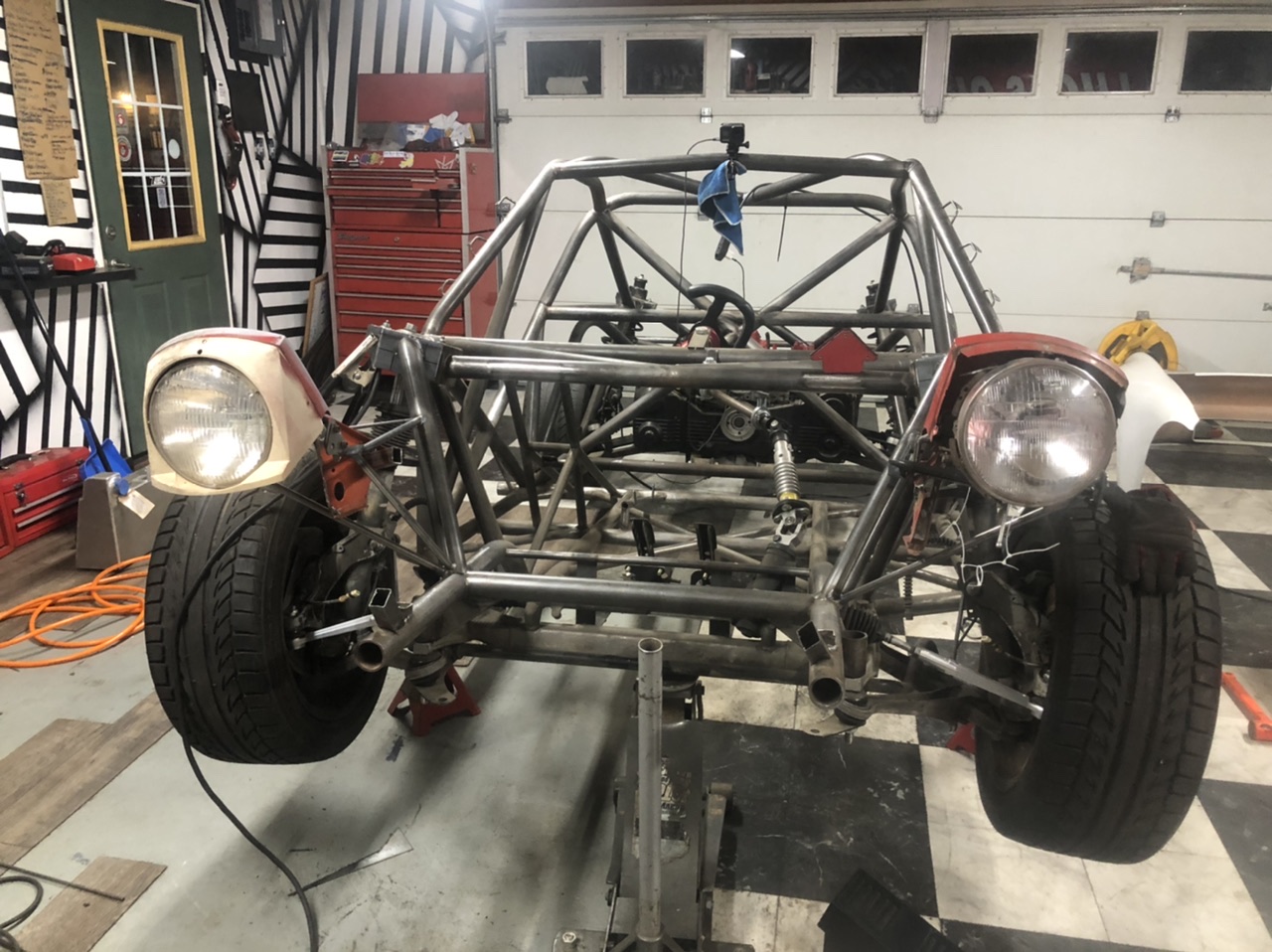

Now both of the flippy lights are in and getting ready to popup

[tazz9924]

Love the welds

(IMG:style_emoticons/default/smile.gif)

[tazz9924]

Im back again this time hopefully for a while… we will see but i have a lot to do!

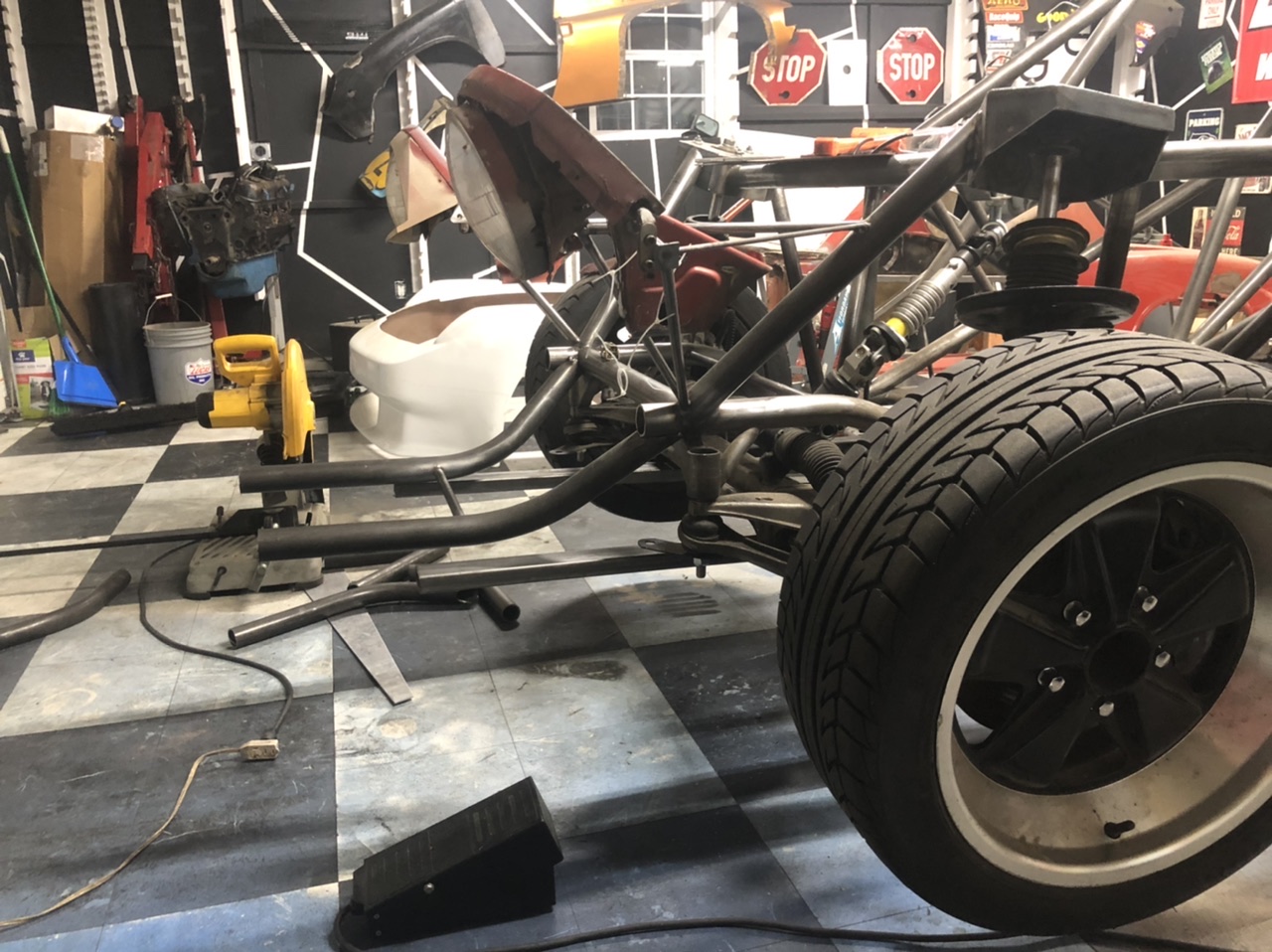

Todays work has been on starting to mount the nose and splitter. My solution is going to be mount it like our cars at work where the nose is completely removable, so that will look cool. (more on this later)
Ive grown to require what ever big tubes i put on the car must be fancy in some way. so i decided to flow with the line of the tube that comes down from the strut tower. So far so good, i had no ear plugs or safety glasses at hand today so ill notch the tubes tomorrow!
Also you will be seeing some cad, laser cut parts and a lot of cool other parts in the near future!

[mepstein]

I'm guessing "work" is a nascar shop?

[tazz9924]

promod drag racing. all the noses come off and everything is easy to work on. i am now spoiled and dont want to touch regular cars anymore (IMG:style_emoticons/default/wacko.gif) that being said i own too many of them!

[tazz9924]

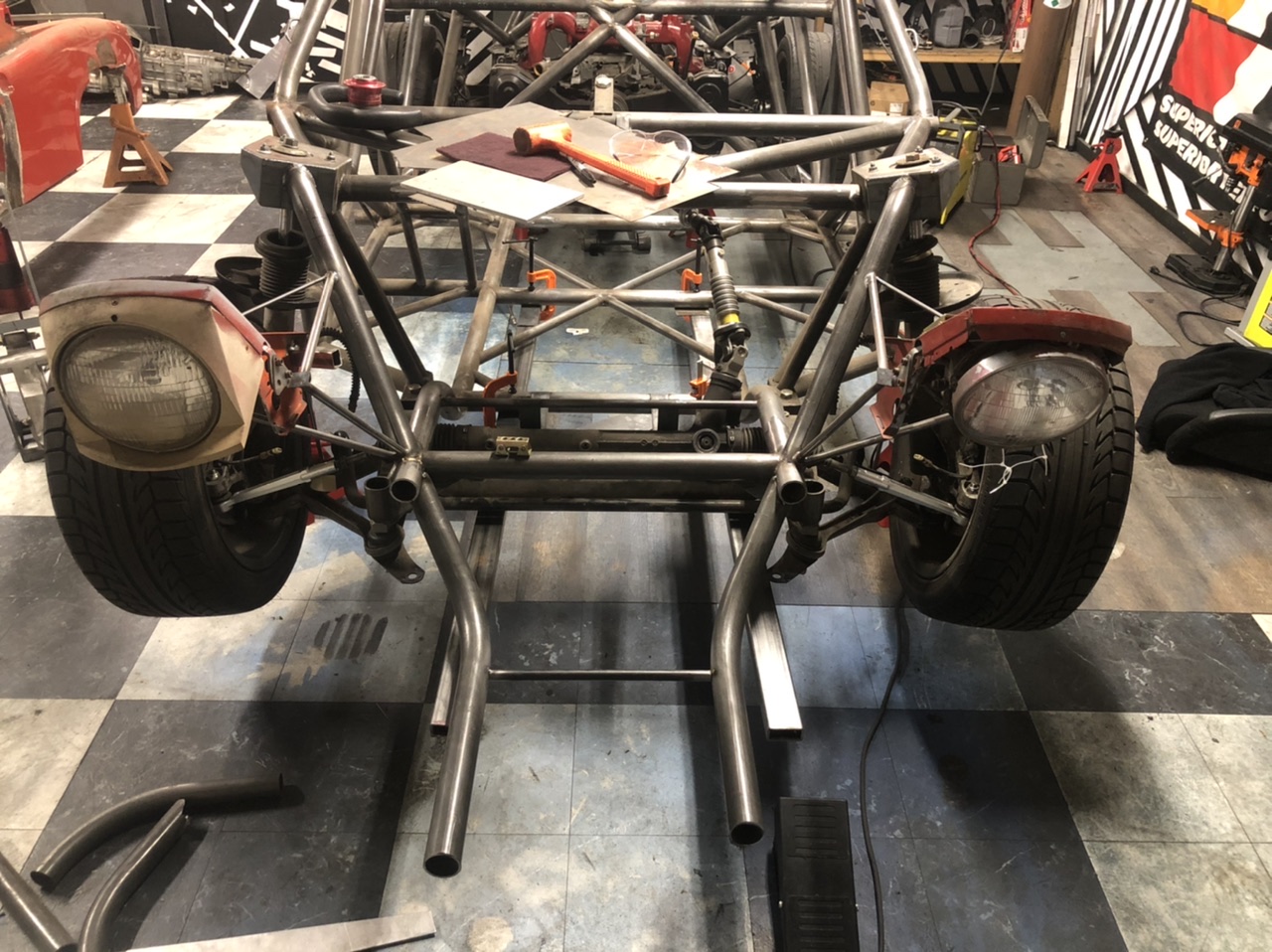

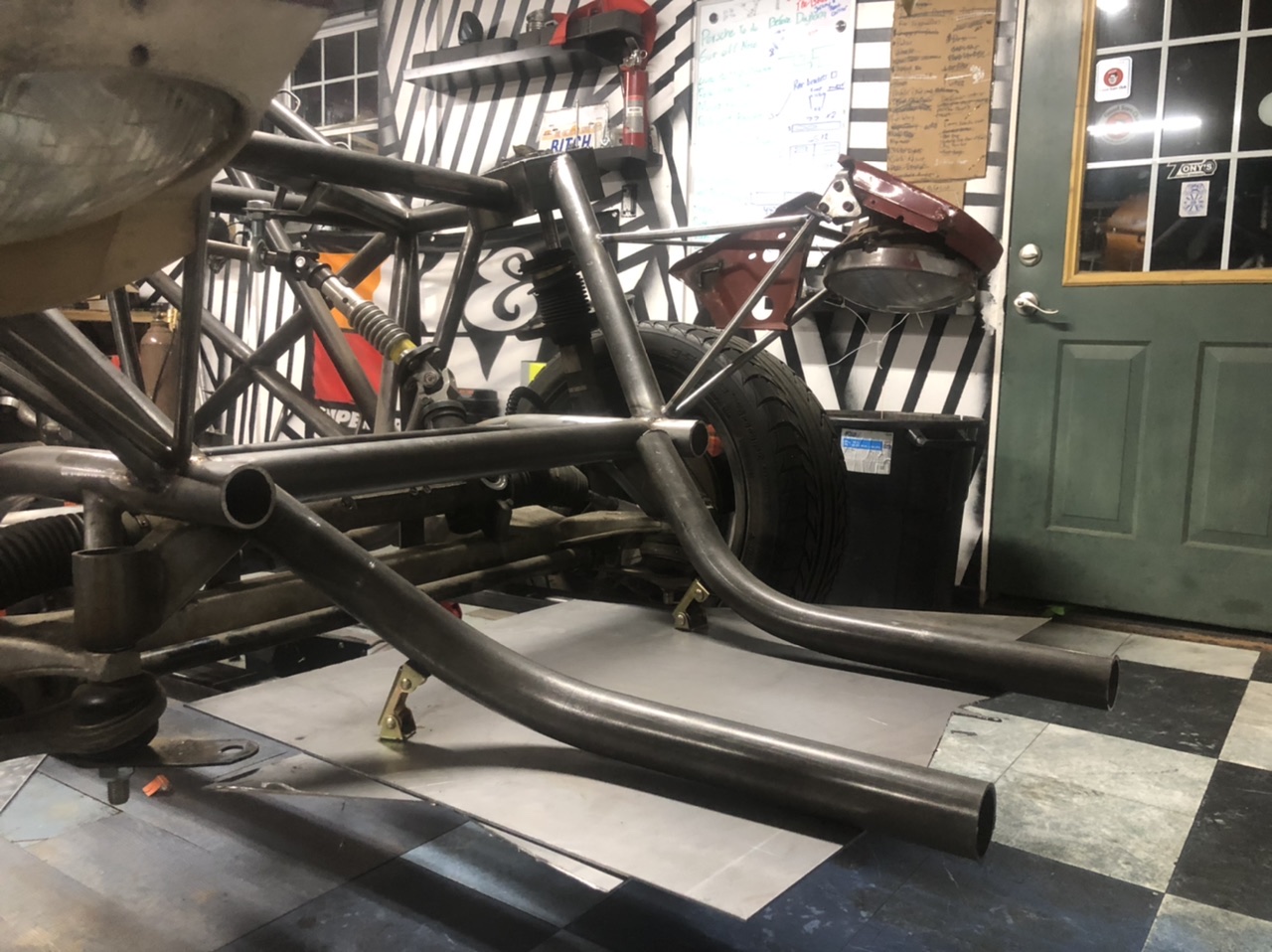

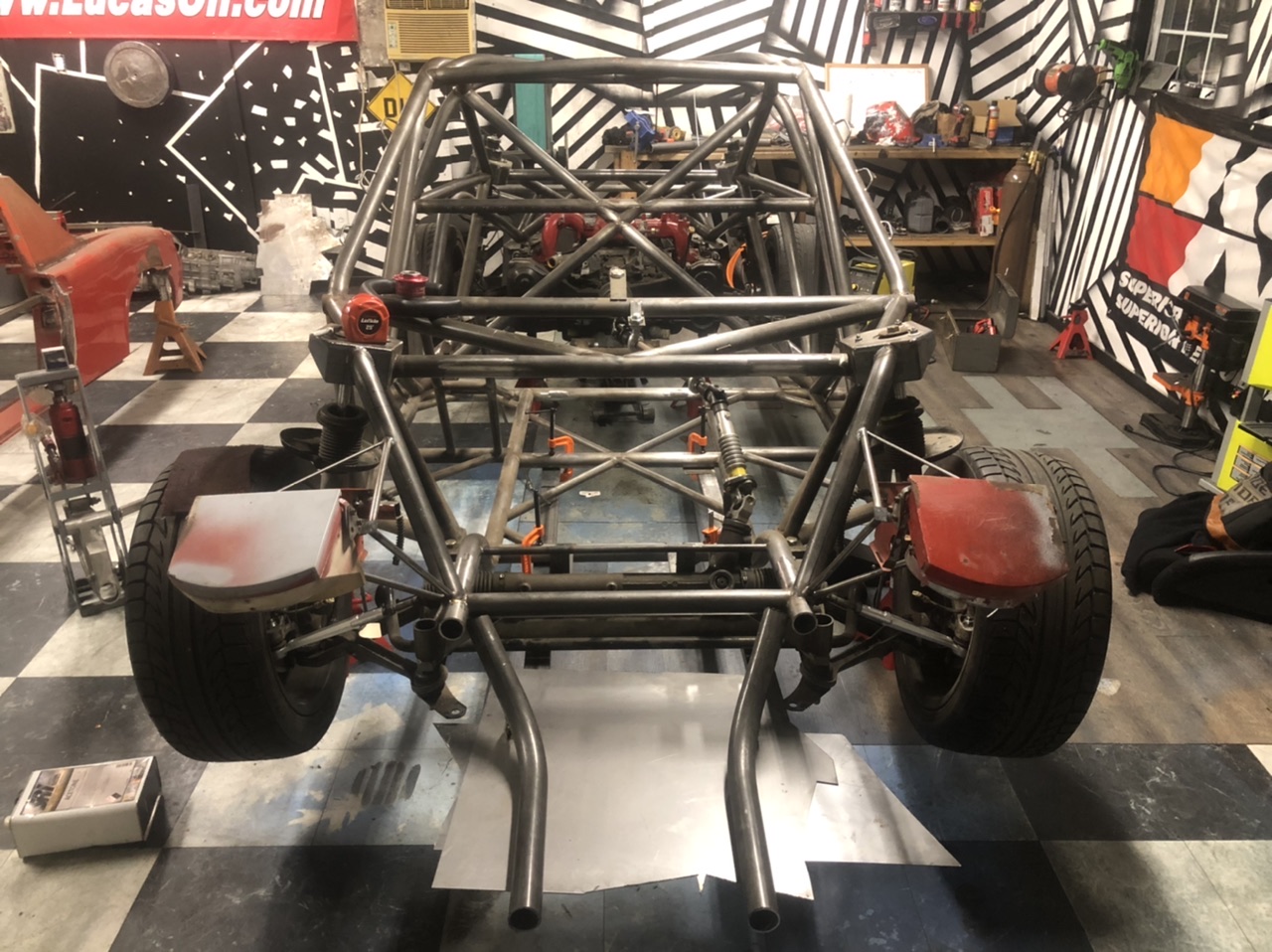

Got the tubes notched and a tube between the two. All nice and straight with tight gaps at the intersections.

[Mayne]

Nice work! I love watching this project evolve.

[tygaboy]

Wish I lived closer. It'd be fun to watch and/or be your shop helper.

[tazz9924]

Wish I lived closer. It'd be fun to watch and/or be your shop helper.

Oh the minutia we would tackle would be glorious, we wouldnt ever get anything done!

[tazz9924]

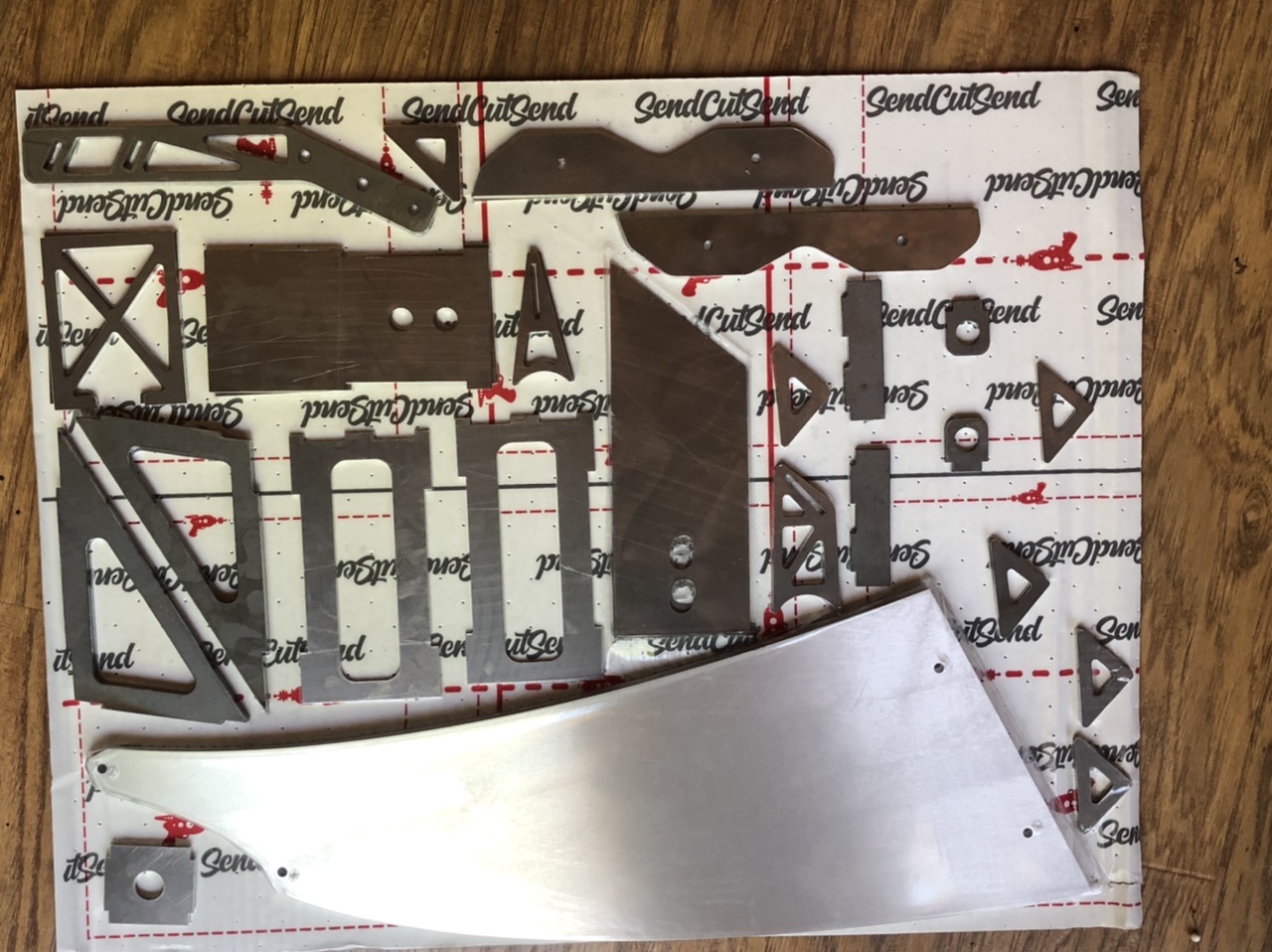

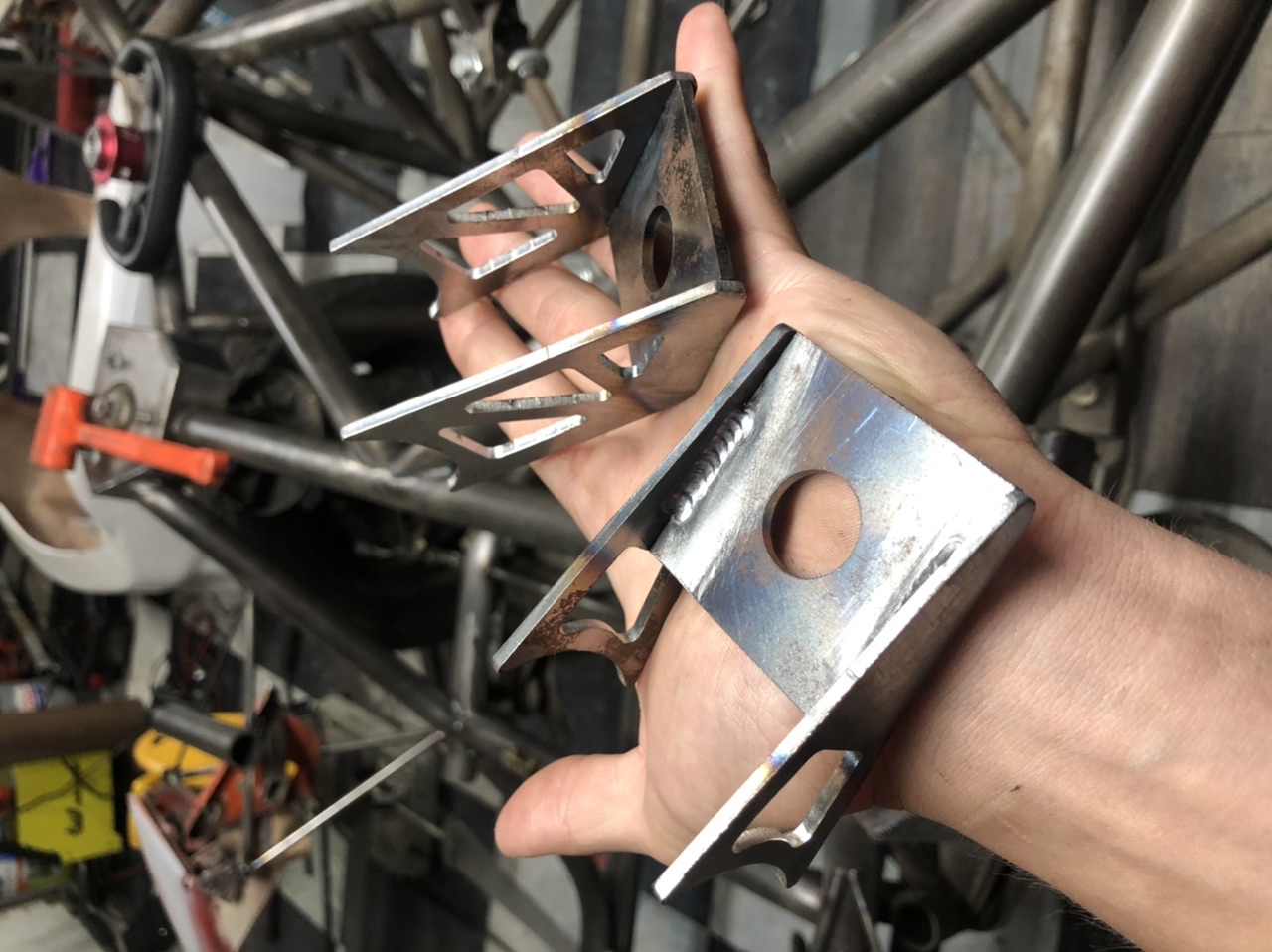

So this is the detail orientation ive been talking about. I downloaded fusion 360 and with a free personal use license from there i designed many pieces that have been on my mind for some time now. I made things from wing uprights to steering shaft brackets, to the mounts for my fuel cell and more! I went crazy for at least a week and i still have a ton more things to design. From there i sent all my designs to a company called sendcutsend who laser cuts all the parts out. And you get a great little package LIKE THIS:

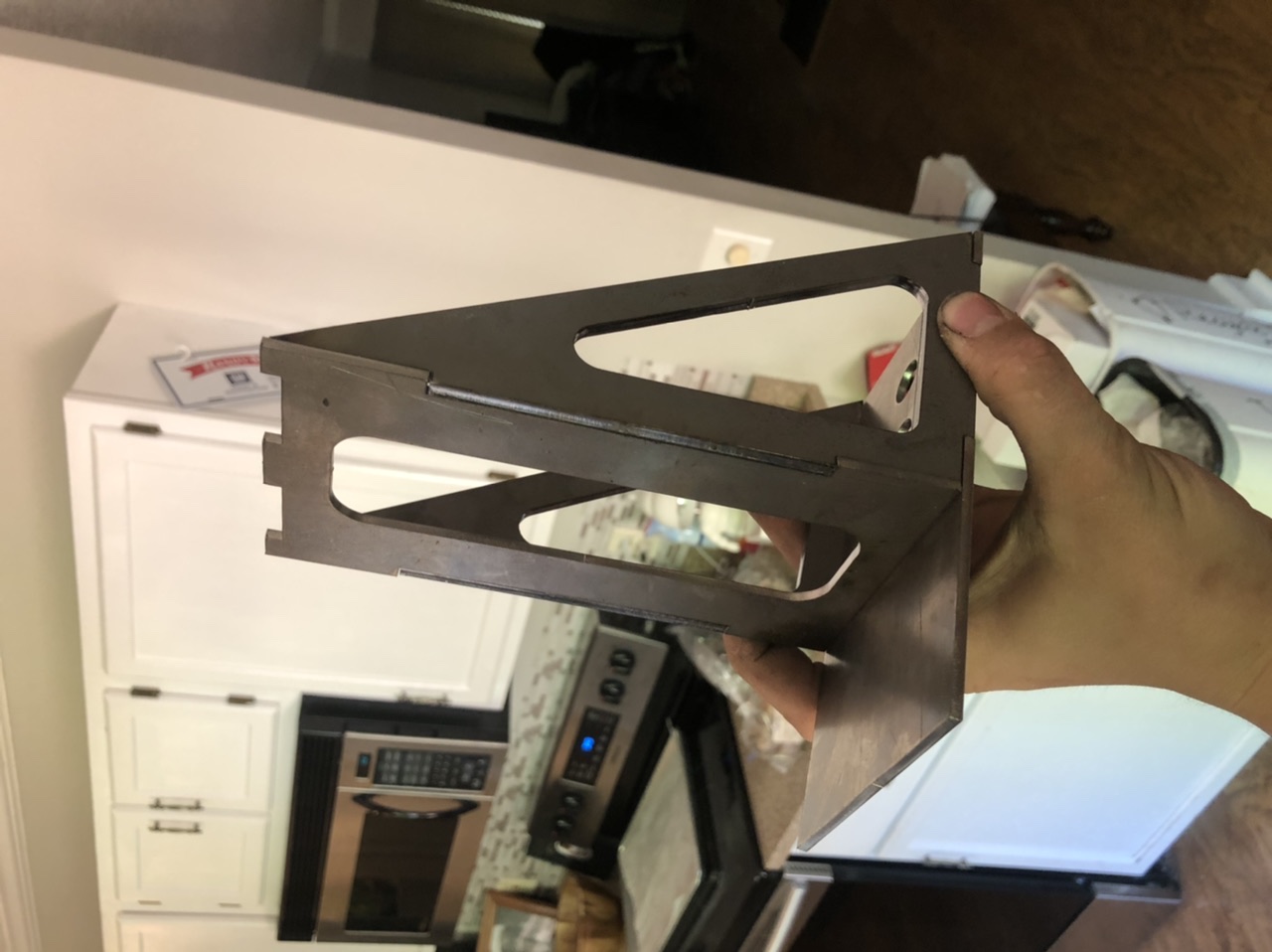

I made a lot of these with a tab and slot design so with no welding done yet, they stick together pretty well:

More details to come!

[tygaboy]

SendCutSend is very cool stuff. Be proud you're able to "get it done in one". I'd be worried they'd ban me for making them cut every part at least 3 times. (IMG:style_emoticons/default/biggrin.gif)
Gotta say, it make the plasma cut stuff look a bit tatty...
I'm looking forward to seeing all these puzzle pieces come together! Nice stuff, keep it coming.

[tazz9924]

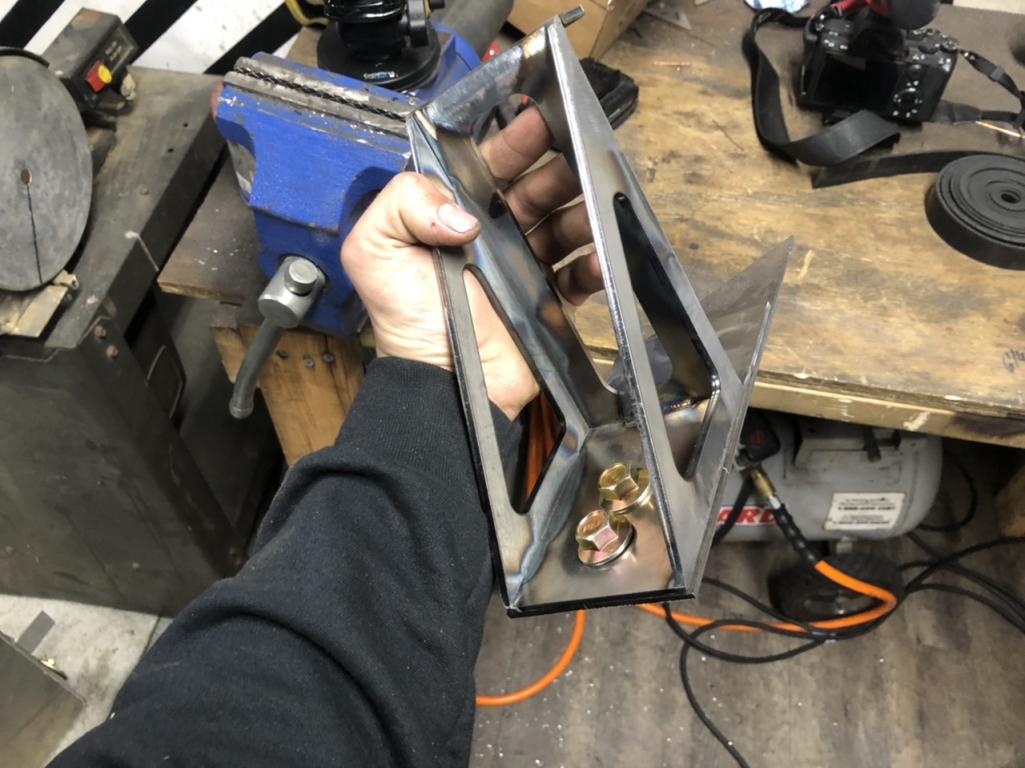

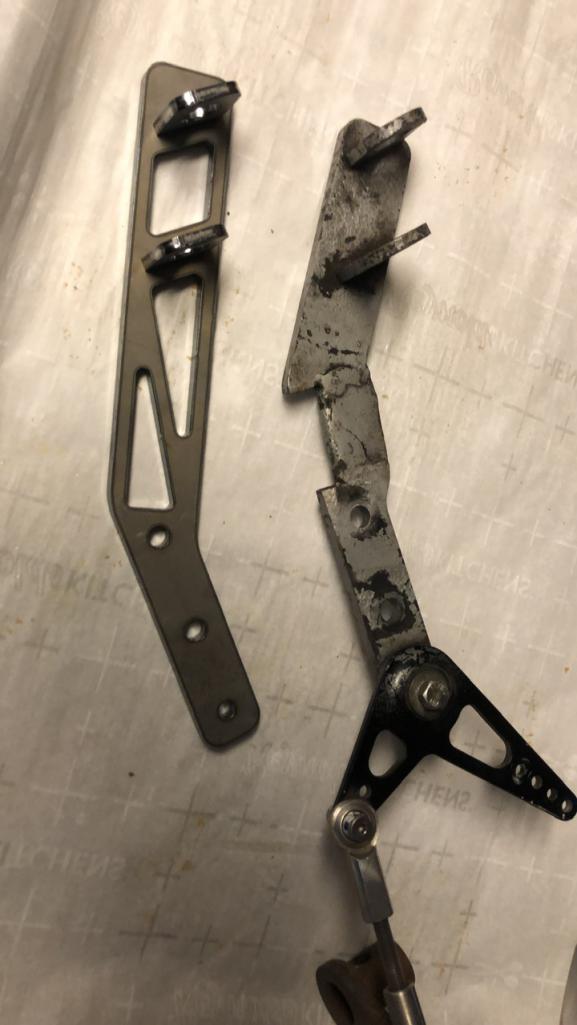

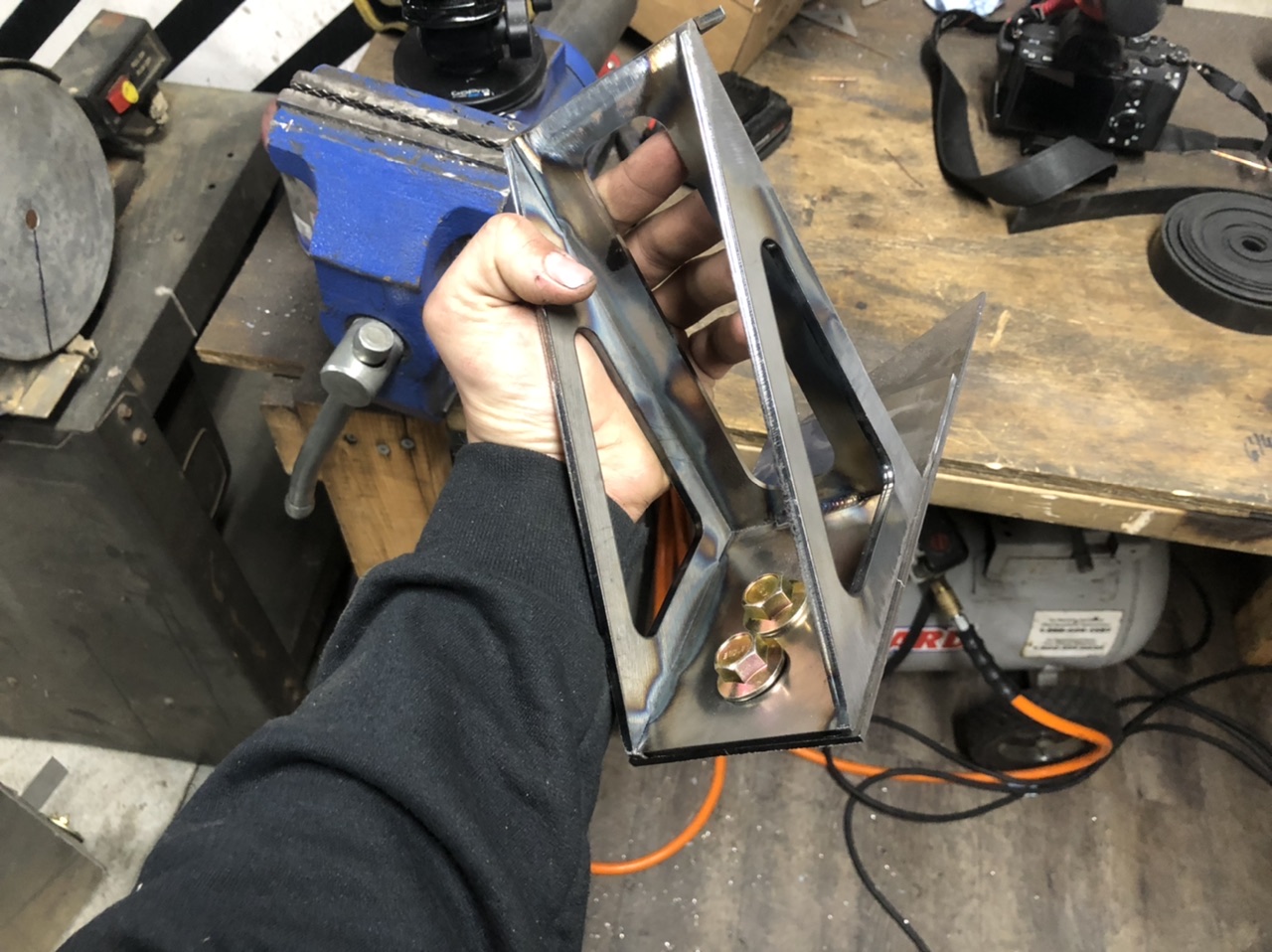

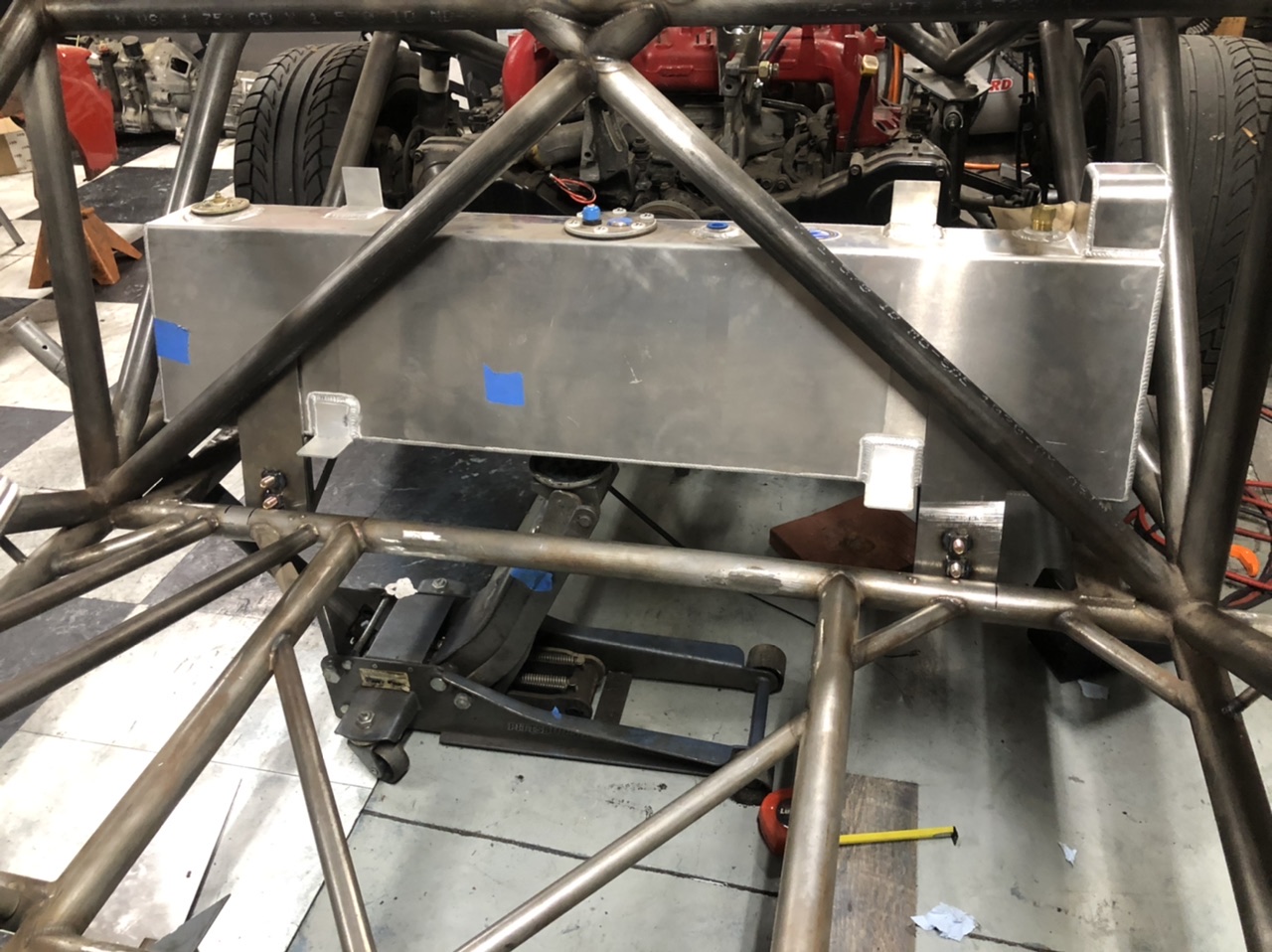

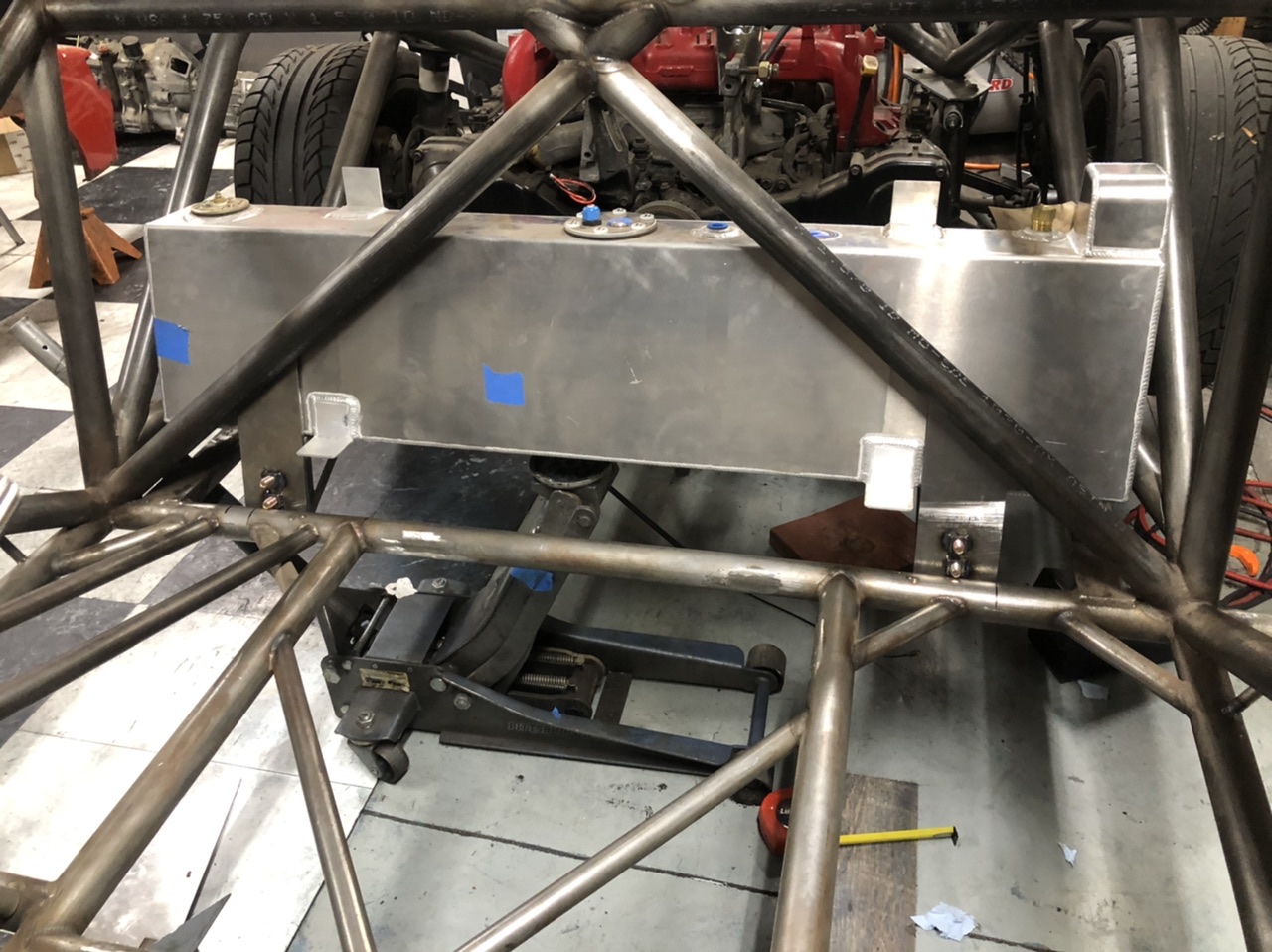

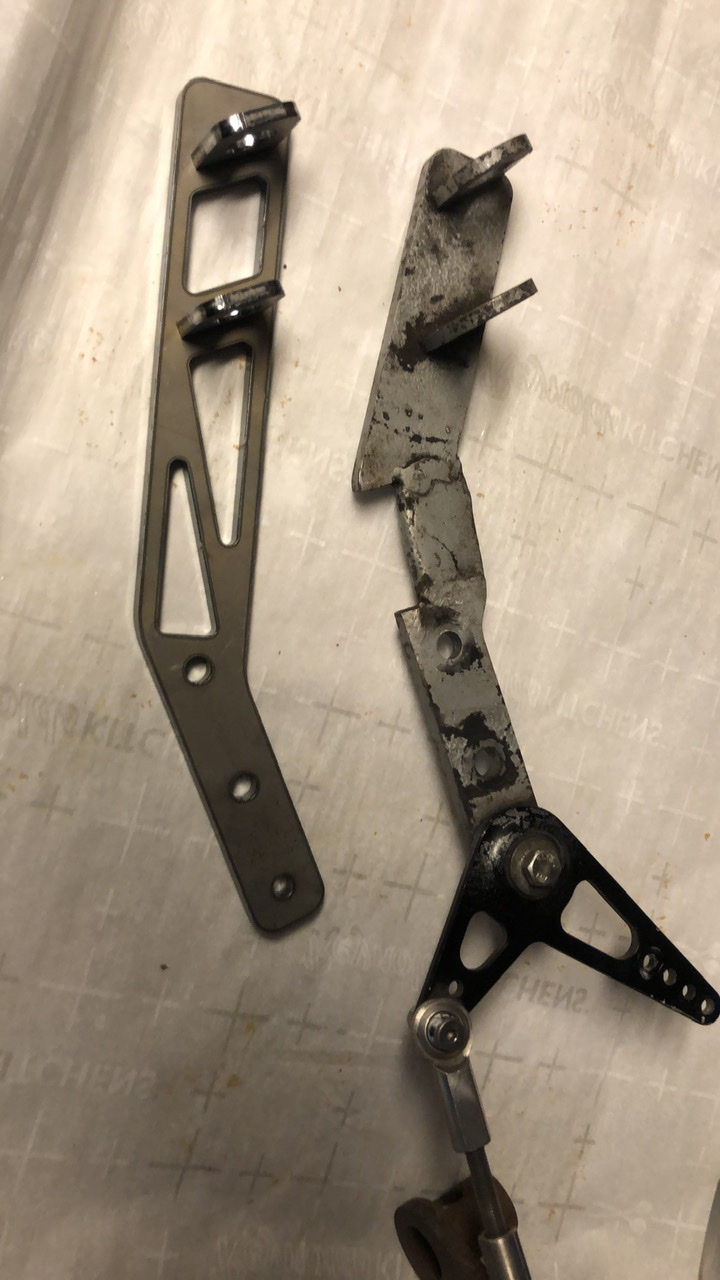

So ive assembled a lot of my parts and im really liking the results! The first parts on my list were my fuel cell mounts, and my fancy revised shifter bracket. The original was a modified version of the coldwater one that allows me to use off the shelf cables from a website i have to remember. Results look very good. I also finally got the fuel cell mounted up in place which has been an area of great stress, but the road forward seems clear!



Also a fun ps, i bought a lawnmower, so instead of working on the porsche on sunday i decided to see just how good i can make it wheelie. The results speak for themselves (IMG:style_emoticons/default/lol-2.gif)

[tazz9924]

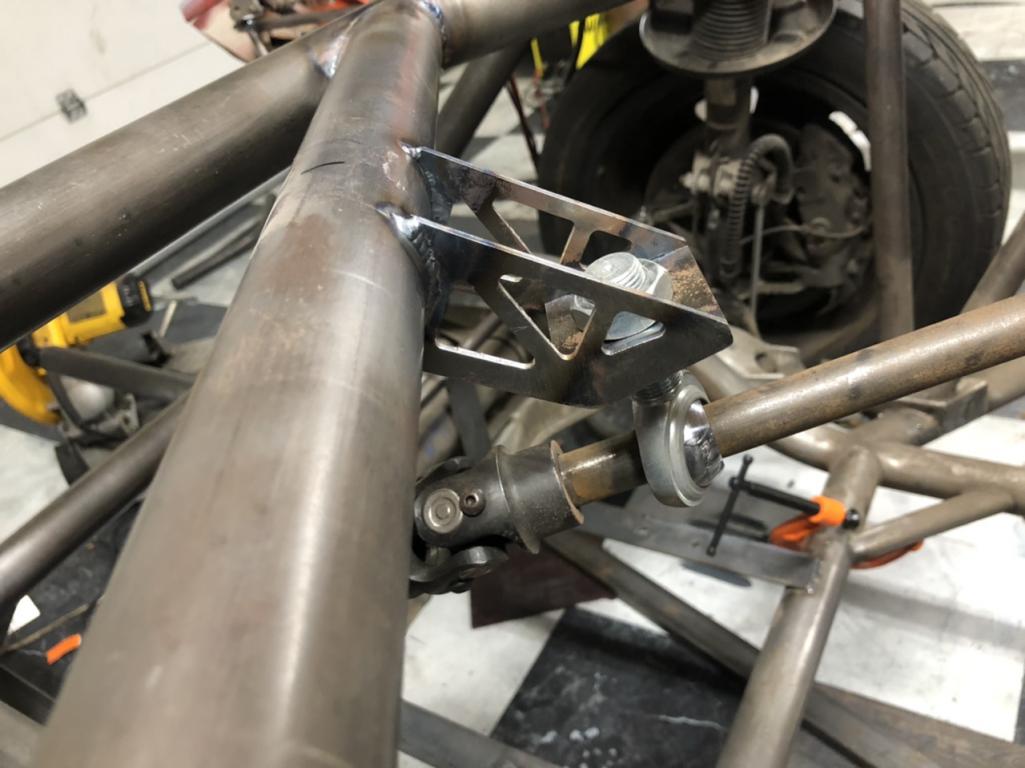

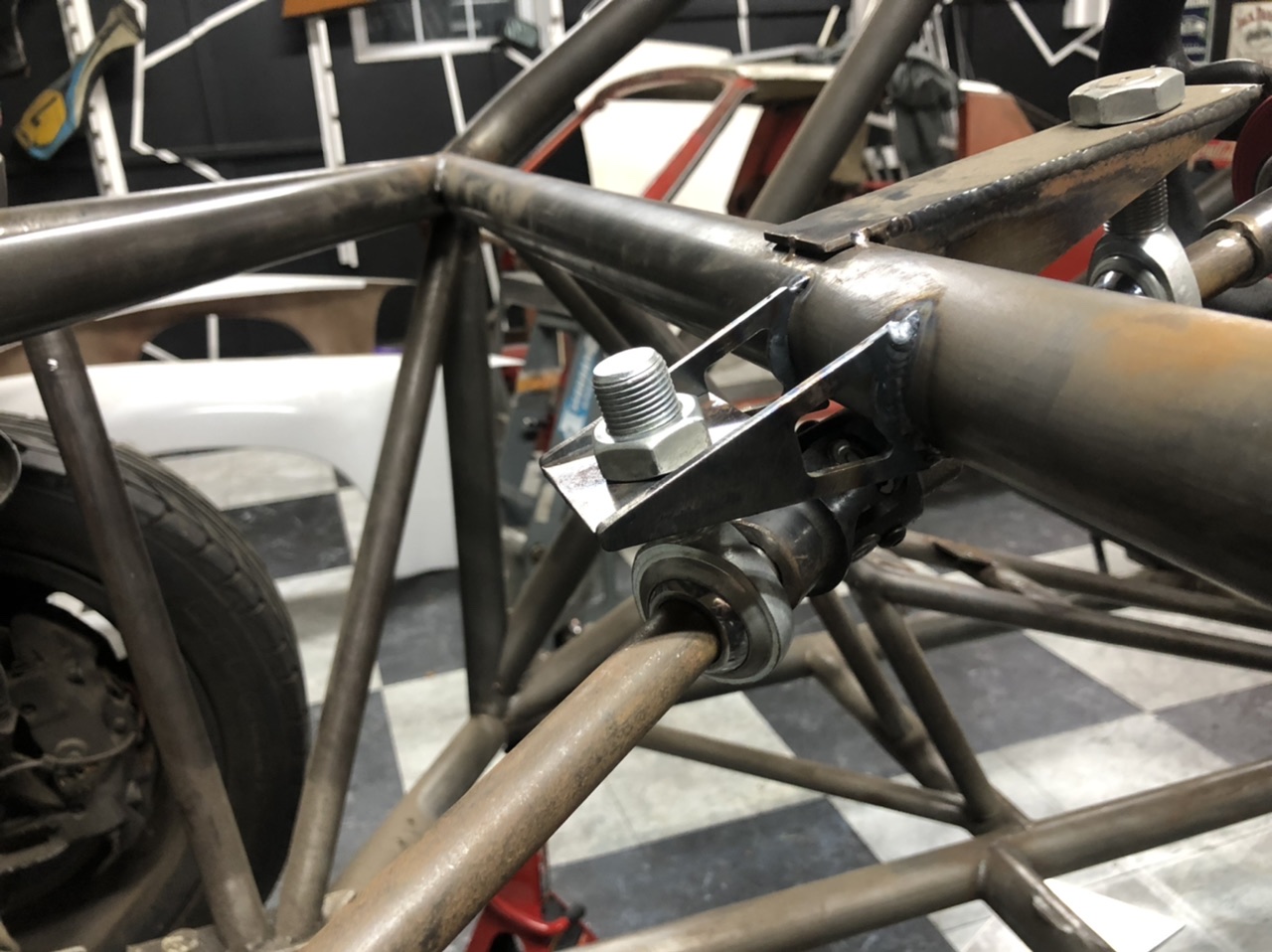

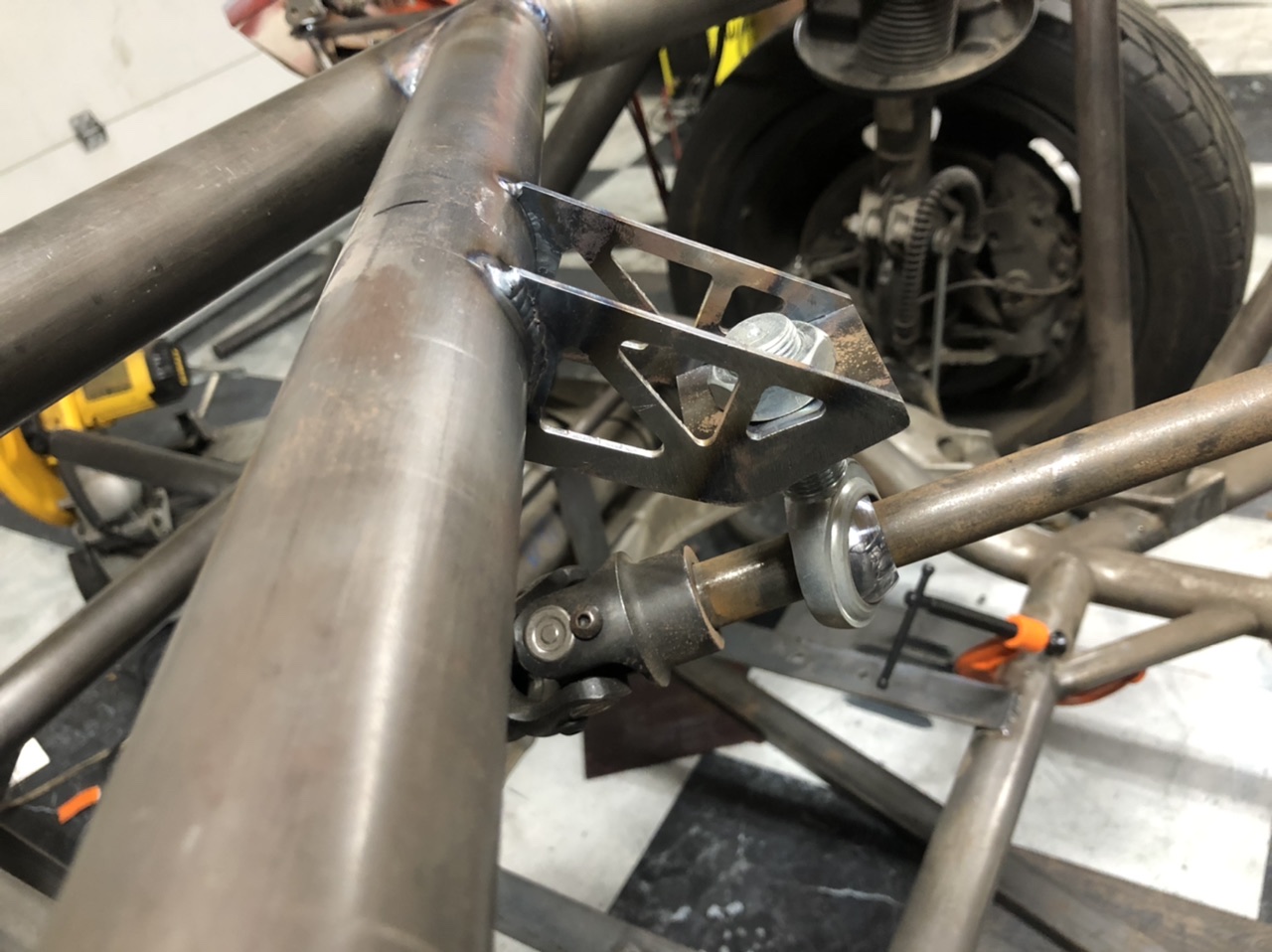

Re-did my temporary steering supports with a little sendcutsend action and it turned out great!

[tazz9924]

Its been a while again since ive posted but bot for a lack of working on the car as ive gotten some big stuff accomplished, in my eyes at least..

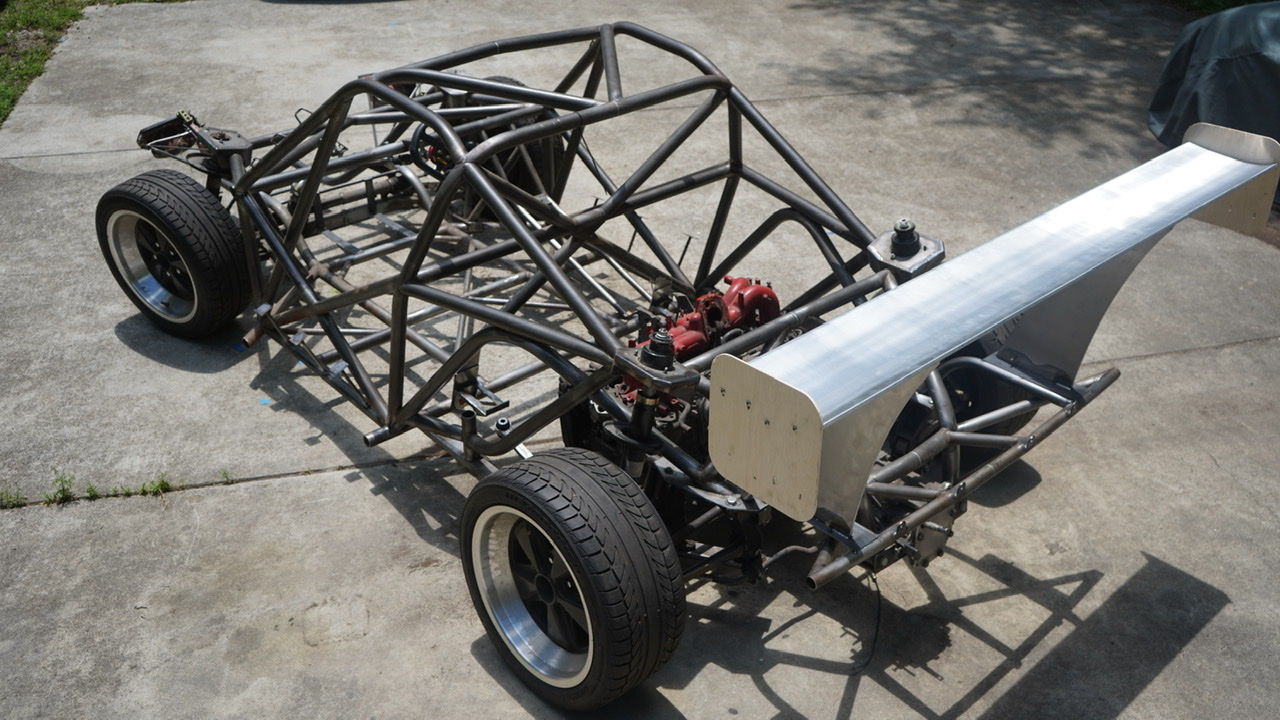

I got the wing installed, its a 9lives racing dual element, though it currently sits as a single element wing. Once its all together it’ll make 700lbs of downforce at 150mph but ill have plenty more to accommodate that. The rear will get some more reinforcements to keep the bumper from bending. I’ll sprinkle some more posts sharing what else i have finished recently!

[tygaboy]

That's a fair bit of rear downforce. I'm assuming there are plans for a rear diffuser and a splitter up front? Anything you can share at this point?

Looks killer, btw! Keep up the crazy-awesome work.

[tazz9924]

That's a fair bit of rear downforce. I'm assuming there are plans for a rear diffuser and a splitter up front? Anything you can share at this point?

Looks killer, btw! Keep up the crazy-awesome work.

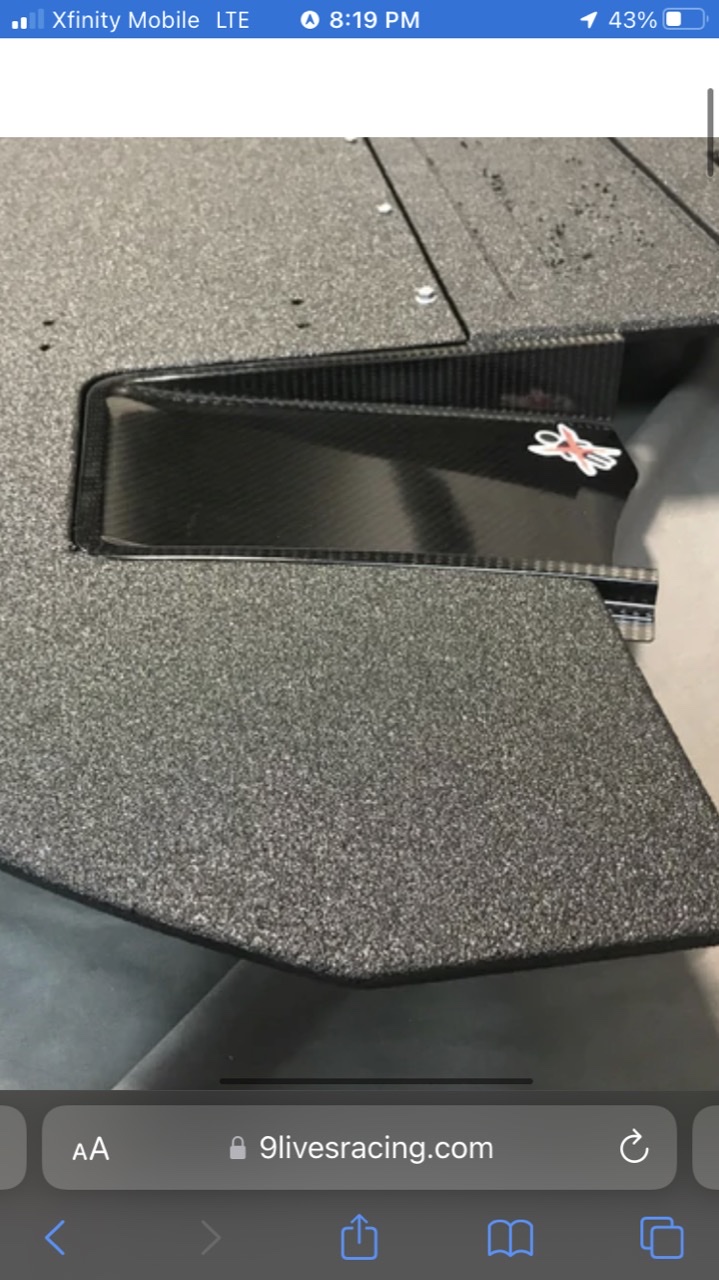

Yeah the rear of the chassis has been made in such a way to maximize diffuser space, the front will have a sizeable front splitter with splitter diffusers which i learned about a few months ago and already picked up a set. They work the same way as a diffuser at the back but vents to the area between the tire and the chassis. Supposedly it increases front downforce a lot.. But i am but a monkey with a computer and a welder (IMG:style_emoticons/default/welder.gif)

-splitter diffuser, not mine. im too cheap for carbon usually

[Rider914]

So ive assembled a lot of my parts and im really liking the results! The first parts on my list were my fuel cell mounts, and my fancy revised shifter bracket. The original was a modified version of the coldwater one that allows me to use off the shelf cables from a website i have to remember. Results look very good. I also finally got the fuel cell mounted up in place which has been an area of great stress, but the road forward seems clear!



Also a fun ps, i bought a lawnmower, so instead of working on the porsche on sunday i decided to see just how good i can make it wheelie. The results speak for themselves (IMG:style_emoticons/default/lol-2.gif)

I think I randomly ran across that lawnmower video on youtube the other week and left a thumbs up and comment. Small world lol...

[tazz9924]

So ive assembled a lot of my parts and im really liking the results! The first parts on my list were my fuel cell mounts, and my fancy revised shifter bracket. The original was a modified version of the coldwater one that allows me to use off the shelf cables from a website i have to remember. Results look very good. I also finally got the fuel cell mounted up in place which has been an area of great stress, but the road forward seems clear!



Also a fun ps, i bought a lawnmower, so instead of working on the porsche on sunday i decided to see just how good i can make it wheelie. The results speak for themselves (IMG:style_emoticons/default/lol-2.gif)

I think I randomly ran across that lawnmower video on youtube the other week and left a thumbs up and comment. Small world lol...

haha its much appreciated! it was a good day (IMG:style_emoticons/default/laugh.gif)
