> my battery tray and hell hole, advice?
pt_700
post Sep 26 2020, 03:18 PM
Post #1


Senior Member
***

Group: Members
Posts: 1,022
Joined: 4-March 10
From: san jose, ca
Member No.: 11,430
Region Association: Northern California



given the caliber of 914 stewardship here, i kind of already know...

i'm in the midst of installing a "new to me" 1.7. not intended to be the "end all, be all" powertrain, this is more of a "tide me over" until i do my long intended small block conversion. as expected, i'm doing a lot of "while i'm in there..." work.

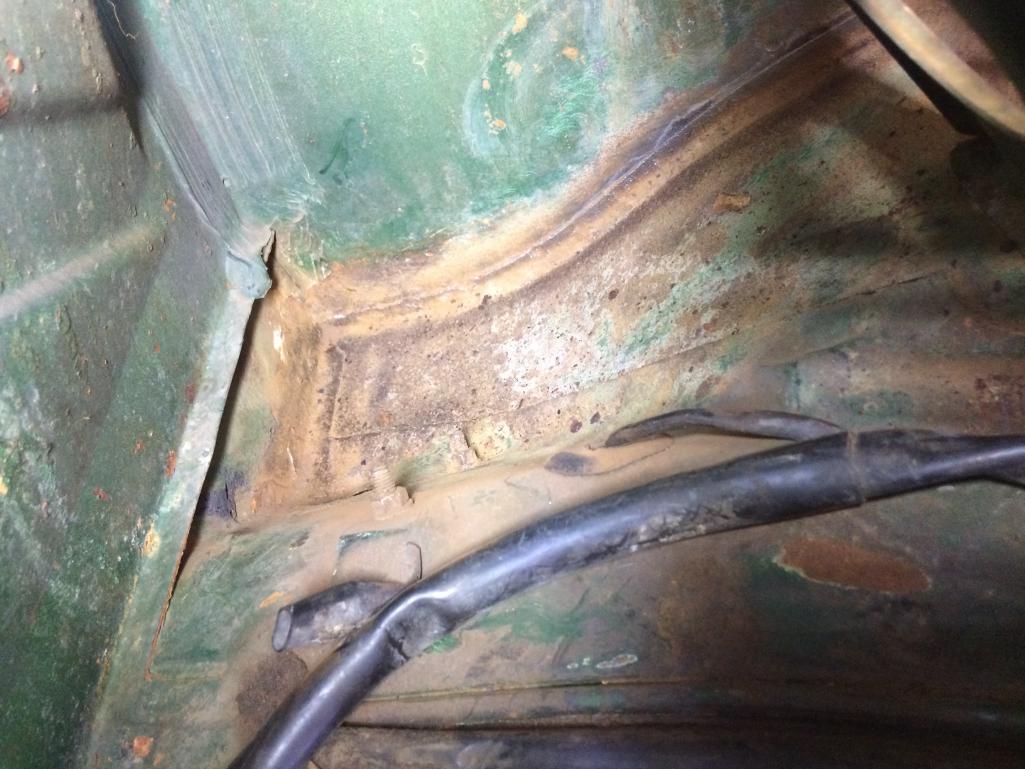

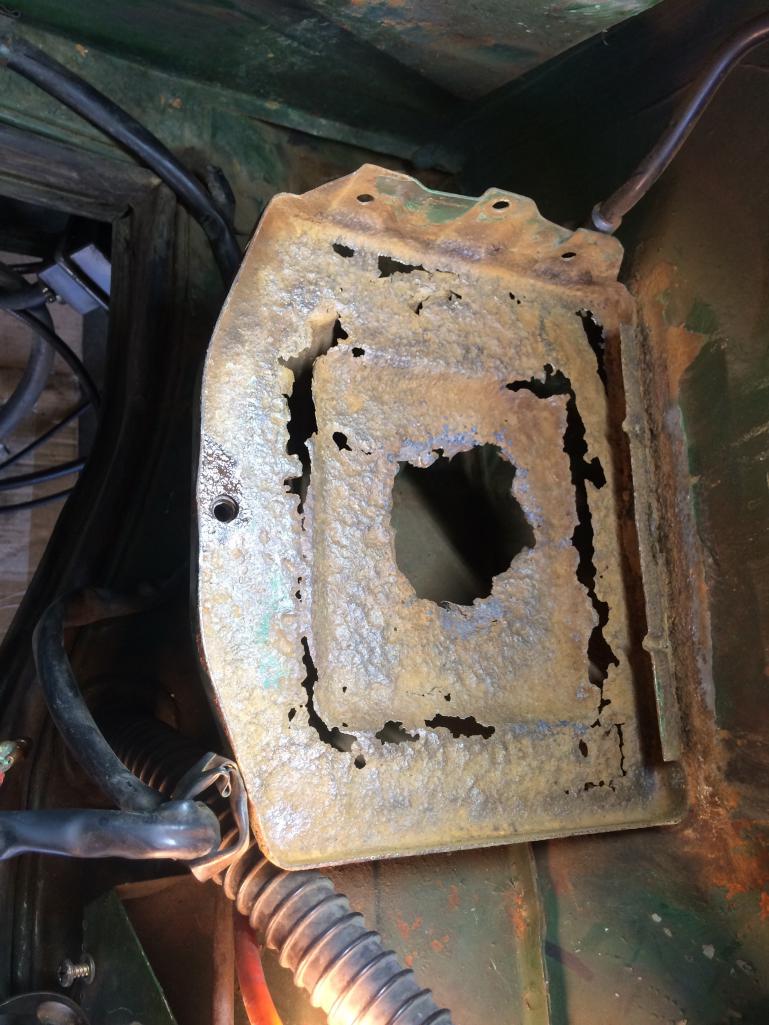

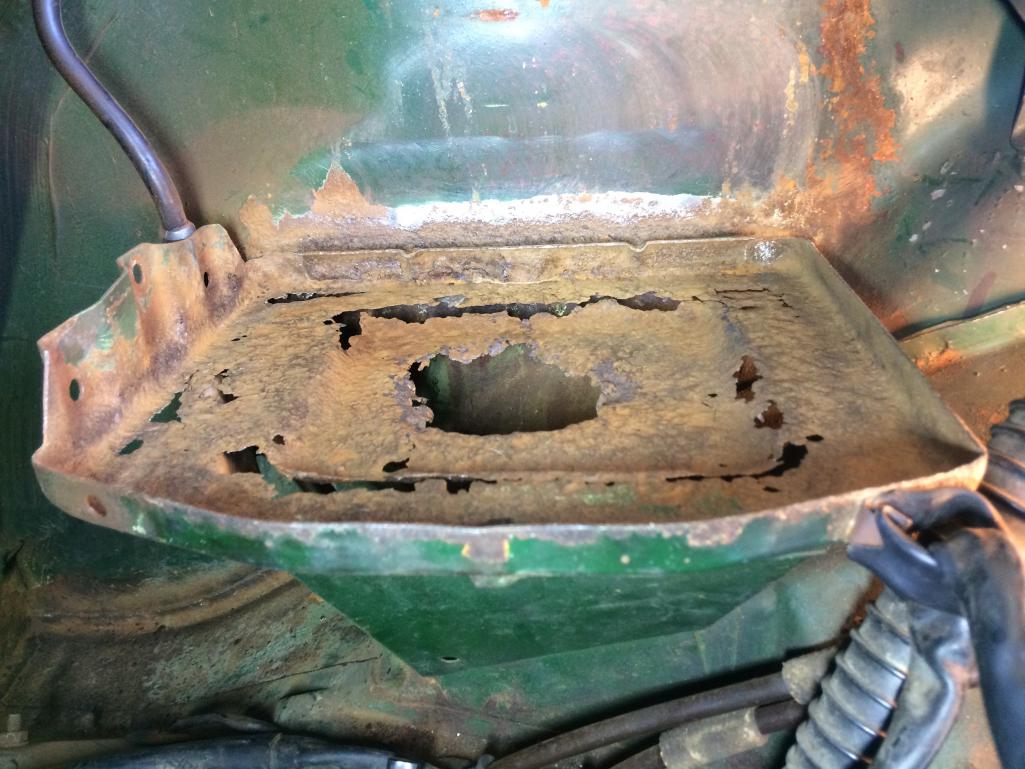

after taking a wire wheel to my battery tray and hell hole, there's more of "less" in the former, while the later is still solid. battery tray support is also still solid. tray itself feels solid, i've been using it as a step to get in and out of the engine bay to do things like body to motor mount bar brackest, upgrade firewall shifter bushing, fuel lines (while i'm in there stuff) etc...

is replacing the battery tray an "i can't believe you haven't done this already?!", or can i put it off a few more years (until the engine upgrade) with rust treatment? the car will almost never see rain, will be driven very occasionally and lives in a garage. anybody have a battery go "walkabout" while driving due to such a tray?

if i'm convinced i should replaced the battery tray now, what's a ballpark figure for that welding job? i have a few friends that weld but, it's a bit more of a favor than i'm comfortable asking, unless my favor balance was well into the black... these particular friends have already helped me way more than i've been able to help them, my conscience dictates monetary payment.

Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
2 Pages V  1 2 >
Reply to this topicStart new topic
Replies(1 - 19)
914Sixer
post Sep 26 2020, 05:56 PM
Post #2


914 Guru
*****

Group: Members
Posts: 6,997
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region



Really nice, simple battery tray replacement. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
BillC
post Sep 26 2020, 07:22 PM
Post #3


Member
**

Group: Members
Posts: 421
Joined: 24-April 15
From: Silver Spring, MD
Member No.: 18,667
Region Association: MidAtlantic Region



I would replace the battery tray, especially while the engine is out.

If you remove rest of the old tray and pre-fit the new one -- including drilling holes for plug welds -- your friend should be able to weld in the new tray in less than half an hour.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Coondog
post Sep 26 2020, 07:27 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,845
Joined: 24-September 15
From: Apple Valley Calif
Member No.: 19,195
Region Association: Southern California



Consider yourself lucky....... (IMG:style_emoticons/default/first.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Sep 26 2020, 08:32 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,701
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains



One other option: surgically remove the old tray, leaving the inner fender wall and the support intact. Then install a new tray bolted to the fender wall and support. Others have done this before so that the tray is removable.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cary
post Sep 26 2020, 10:28 PM
Post #6


Advanced Member
****

Group: Members
Posts: 3,794
Joined: 26-January 04
From: Sherwood Oregon
Member No.: 1,608
Region Association: Pacific Northwest



Be careful removing / detaching tray from the wall. You have some degradation, but it looks like its still solid enough to weld too. But be careful.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Sep 27 2020, 08:42 AM
Post #7


Advanced Member
****

Group: Members
Posts: 2,098
Joined: 25-August 18
From: The Motor City
Member No.: 22,428
Region Association: Galt's Gulch

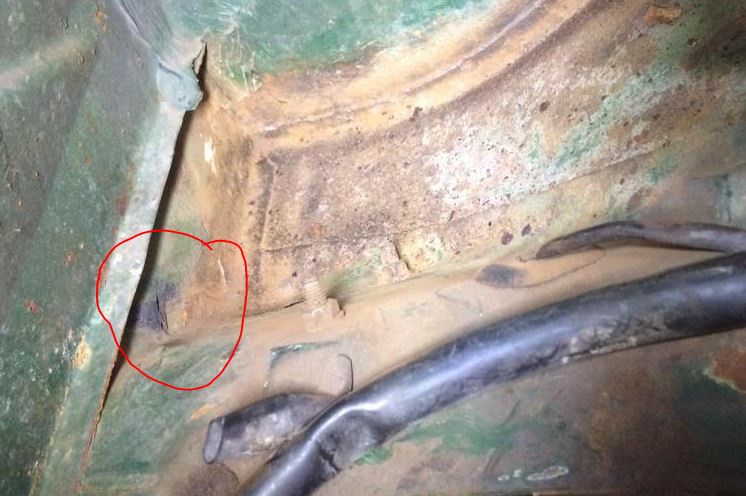

Not sure if it is just shadowing but I think I see two small black pinholes on the firewall (left side in the hell hole pocket).

Attached Image

Check carefully.

When pinholes start here, they allow water to enter the cabin. That in turn leads to floorpan rust inside the cabin.

If there are pinholes, I wouln't get into deep metal work at this point. Clean, neutralize with Ospho or similar, cover with seam sealer, paint to match.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pt_700
post Sep 27 2020, 11:25 AM
Post #8


Senior Member
***

Group: Members
Posts: 1,022
Joined: 4-March 10
From: san jose, ca
Member No.: 11,430
Region Association: Northern California



thankfully superhawk, those are just shadows, it's all still solid.

thanks all for convincing me to do right by my 914. i'll order a tray and have reached out to an old friend who has a welding business to see if he is (or knows somebody) who could use a little job.

QUOTE(Superhawk996 @ Sep 27 2020, 07:42 AM) *

Not sure if it is just shadowing but I think I see two small black pinholes on the firewall (left side in the hell hole pocket).

Attached Image

Check carefully.

When pinholes start here, they allow water to enter the cabin. That in turn leads to floorpan rust inside the cabin.

If there are pinholes, I wouln't get into deep metal work at this point. Clean, neutralize with Ospho or similar, cover with seam sealer, paint to match.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Sep 27 2020, 11:28 AM
Post #9


Advanced Member
****

Group: Members
Posts: 2,861
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None



Are you sure those are shadows? Think @superhawk996 found an issue.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rjames
post Sep 27 2020, 11:39 AM
Post #10


I'm made of metal
****

Group: Members
Posts: 3,046
Joined: 24-July 05
From: Shoreline, WA
Member No.: 4,467
Region Association: Pacific Northwest



Like others have said, just remove the battery tray. It doesn't look like you'll need to remove the support, just the tray. But...
(IMG:style_emoticons/default/agree.gif) with Superhawk. Those aren't shadows. Have you looked at the entire firewall behind the passenger seat and the longs on this car yet?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ndfrigi
post Sep 27 2020, 01:04 PM
Post #11


Advanced Member
****

Group: Members
Posts: 2,343
Joined: 21-August 11
From: Orange County
Member No.: 13,474
Region Association: Southern California



QUOTE(pt_700 @ Sep 27 2020, 10:25 AM) *

thankfully superhawk, those are just shadows, it's all still solid.

thanks all for convincing me to do right by my 914. i'll order a tray and have reached out to an old friend who has a welding business to see if he is (or knows somebody) who could use a little job.

QUOTE(Superhawk996 @ Sep 27 2020, 07:42 AM) *

Not sure if it is just shadowing but I think I see two small black pinholes on the firewall (left side in the hell hole pocket).

Attached Image

Check carefully.

When pinholes start here, they allow water to enter the cabin. That in turn leads to floorpan rust inside the cabin.

If there are pinholes, I wouln't get into deep metal work at this point. Clean, neutralize with Ospho or similar, cover with seam sealer, paint to match.



For battery tray, I think Jeffery ( @914_7T3 ) has one for sale.

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
VaccaRabite
post Sep 27 2020, 06:35 PM
Post #12


En Garde!
**********

Group: Admin
Posts: 12,293
Joined: 15-December 03
From: Dallastown, PA
Member No.: 1,435
Region Association: MidAtlantic Region



Just get the part from Restoration Design.

The parts are EXCELLENT. I have one of them in my own car.

Zach
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
pt_700
post Sep 27 2020, 10:37 PM
Post #13


Senior Member
***

Group: Members
Posts: 1,022
Joined: 4-March 10
From: san jose, ca
Member No.: 11,430
Region Association: Northern California



tray's been ordered from restoration designs.

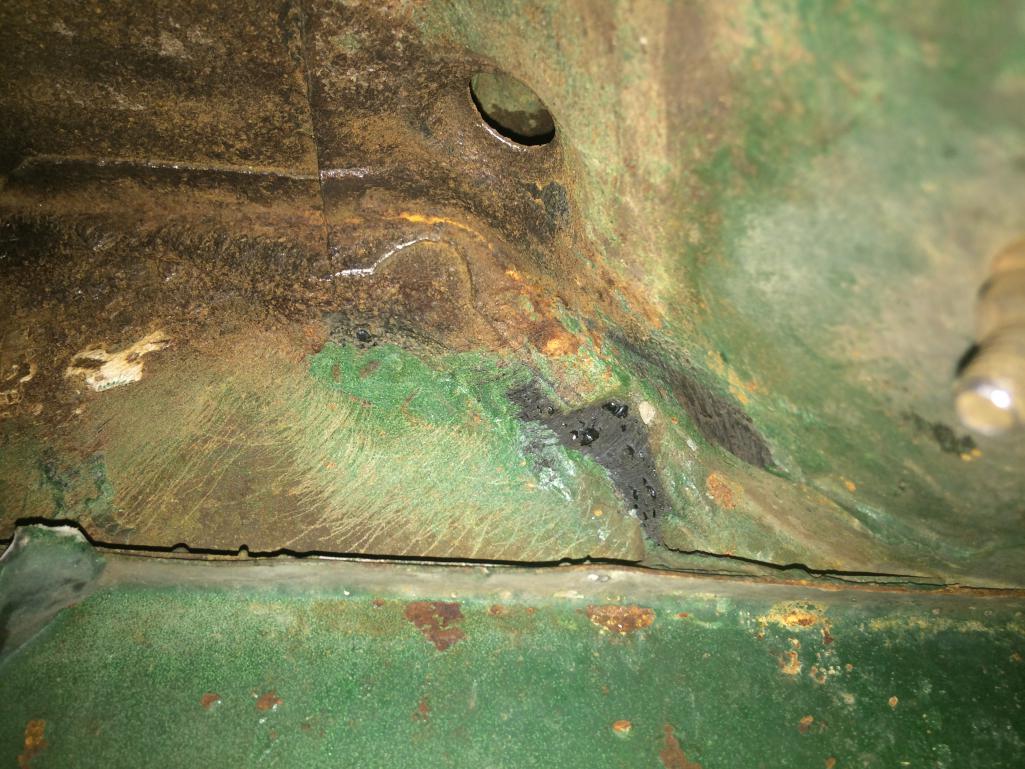

i appreciate the concern about the possible pin holes. here's a better pic (sorry for the orientation). seems i missed a bit of seam sealer when having at it with my wire wheel... after i cleaned up, i realized my right angle cordless drill might have allowed me a bit more access...

at some point, i'll get to the interior and have a closer look at the firewall and floorpans. please understand, i'm a blue collar schmuck and have a limited budget and even more limited time to enjoy my 914 (not to mention several other old machines in the stable, all needing my attention...). i'm often in awe of the caliber of work many of you are able to put into you cars. my car's destined to be a "driver" while in my stewardship. i endeavor to leave someone else a good foundation when i can no longer enjoy her!

(IMG:style_emoticons/default/beerchug.gif)

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ctc911ctc
post Sep 29 2020, 03:25 PM
Post #14


Senior Member
***

Group: Members
Posts: 642
Joined: 9-June 18
From: boston
Member No.: 22,206
Region Association: North East States



You have no idea how lucky you are!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Frankvw
post Sep 30 2020, 12:51 AM
Post #15


working on my first 914 !
***

Group: Members
Posts: 596
Joined: 13-April 16
From: Holland, the Netherlands
Member No.: 19,896
Region Association: Europe



in case you are going for the 'top-tray-only' replacement, I hope you shoot some pics to show us. Good you have people around you that that can help with the welding !
Good luck with the work .
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Tdskip
post Sep 30 2020, 07:03 AM
Post #16


Advanced Member
****

Group: Members
Posts: 2,861
Joined: 1-December 17
From: soCal
Member No.: 21,666
Region Association: None



QUOTE(pt_700 @ Sep 27 2020, 11:37 PM) *

tray's been ordered from restoration designs.

i appreciate the concern about the possible pin holes. here's a better pic (sorry for the orientation). seems i missed a bit of seam sealer when having at it with my wire wheel... after i cleaned up, i realized my right angle cordless drill might have allowed me a bit more access...

at some point, i'll get to the interior and have a closer look at the firewall and floorpans. please understand, i'm a blue collar schmuck and have a limited budget and even more limited time to enjoy my 914 (not to mention several other old machines in the stable, all needing my attention...). i'm often in awe of the caliber of work many of you are able to put into you cars. my car's destined to be a "driver" while in my stewardship. i endeavor to leave someone else a good foundation when i can no longer enjoy her!

(IMG:style_emoticons/default/beerchug.gif)

Attached Image


No need to apologize for being a real human, and it is your car to do with as best you can / as you see fit.

Wire brushing everything and repeated soaking with phosphoric acid won’t cost more than $20 and will help preserve that area.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
malcolm2
post Sep 30 2020, 07:13 AM
Post #17


Advanced Member
****

Group: Members
Posts: 2,569
Joined: 31-May 11
From: Nashville
Member No.: 13,139
Region Association: South East States



My 2 cents on the rust.... Some people like the stuff, so people hate it. I have precisely followed the directions for POR15 with their Cleaner, their Metal Ready and the Paint. No issues. That stuff turns to a super hard coating. I used it on this exact same spot. Patched a VW gas tank with it and some fiberglass mat.

Looking at your pictures, I think POR was made for this exact problem.

Good Luck.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Sep 30 2020, 08:34 AM
Post #18


Advanced Member
****

Group: Members
Posts: 2,098
Joined: 25-August 18
From: The Motor City
Member No.: 22,428
Region Association: Galt's Gulch



I'd love for that hell hole to have been my starting point.

Great job confirming the shadows.

You've got a great starting point that won't be too hard to fix up.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rjames
post Sep 30 2020, 10:15 AM
Post #19


I'm made of metal
****

Group: Members
Posts: 3,046
Joined: 24-July 05
From: Shoreline, WA
Member No.: 4,467
Region Association: Pacific Northwest



QUOTE(malcolm2 @ Sep 30 2020, 06:13 AM) *

My 2 cents on the rust.... Some people like the stuff, so people hate it. I have precisely followed the directions for POR15 with their Cleaner, their Metal Ready and the Paint. No issues. That stuff turns to a super hard coating. I used it on this exact same spot. Patched a VW gas tank with it and some fiberglass mat.

Looking at your pictures, I think POR was made for this exact problem.

Good Luck.


If used properly it works very well. Too many people just apply POR15 without any prep and then complain that the product doesn't work.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mlindner
post Sep 30 2020, 10:18 AM
Post #20


Senior Member
***

Group: Members
Posts: 618
Joined: 11-November 11
From: Merrimac, WI
Member No.: 13,770
Region Association: Upper MidWest



Last replace with a gel battery/ non-acid.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
