 12 Pin connector under dash. Help?, Cannot find on bowlsby or Haynes. |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| jaredmcginness |
 Nov 29 2020, 07:11 PM
Post
#1
|
|
...  Group: Members Posts: 509 Joined: 12-June 19 From: Baltimore Member No.: 23,209 Region Association: MidAtlantic Region
 |
Hey guys,

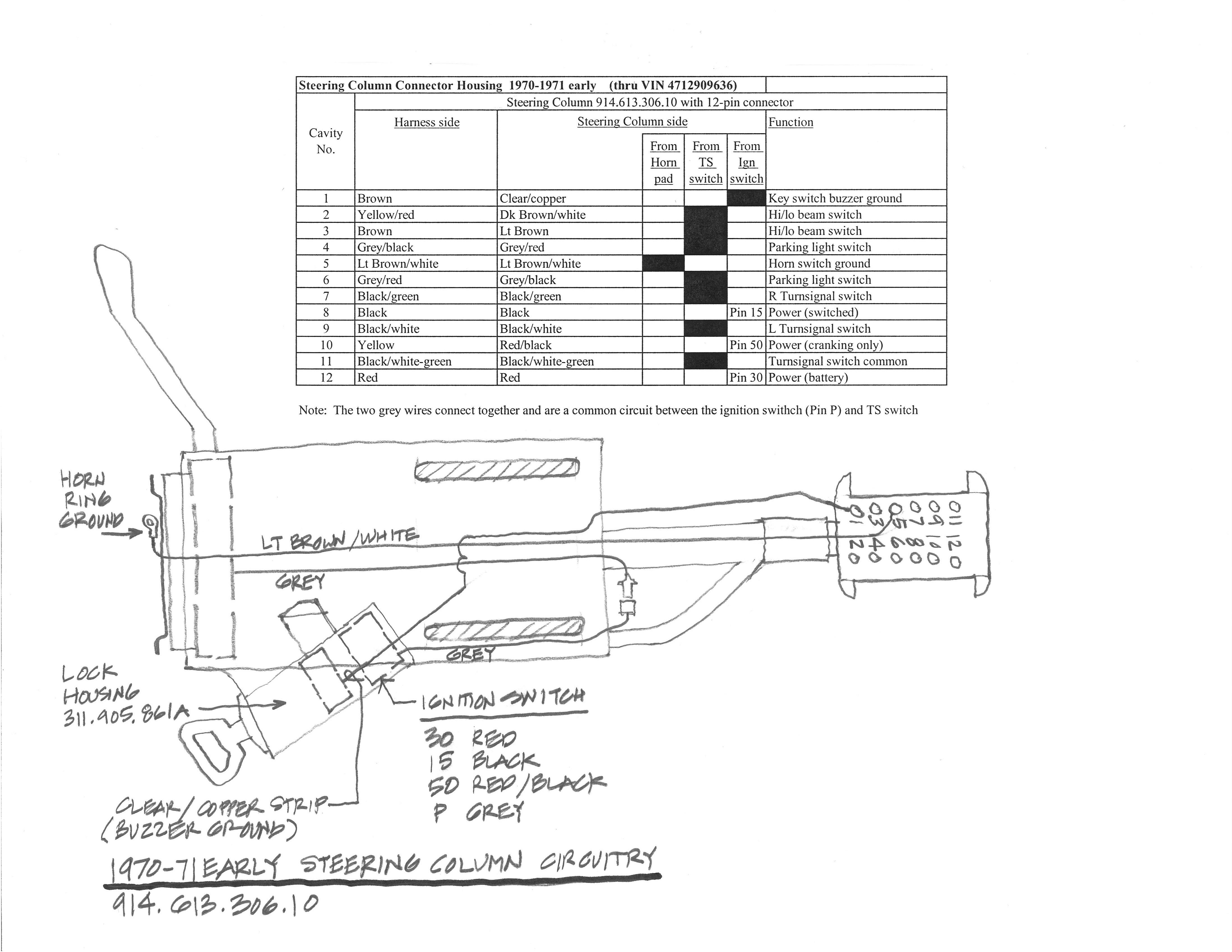

Buttoning some stuff up, this 12 pin connector under the dash is a mess, want to make sure everything is in the right place before I cap it off. Car is '71 I believe these are originating from the turn signal stalk and such. As is, some of these are not the same color combo in one side to the other. One side: (IMG:http://www.914world.com/bbs2/uploads_offsite/i.imgur.com-23209-1606698714.1.jpg) Other side: (IMG:http://www.914world.com/bbs2/uploads_offsite/i.imgur.com-23209-1606698715.2.jpg) I've been looking all over for a diagram. Having trouble pin pointing in the Haynes. Any advice? |
   |

|
| JeffBowlsby |
Nov 29 2020, 07:44 PM
Post
#2
|
|
914 Wiring Harnesses & Beekeeper Group: Members Posts: 8,982 Joined: 7-January 03 From: San Ramon CA Member No.: 104 Region Association: None
|

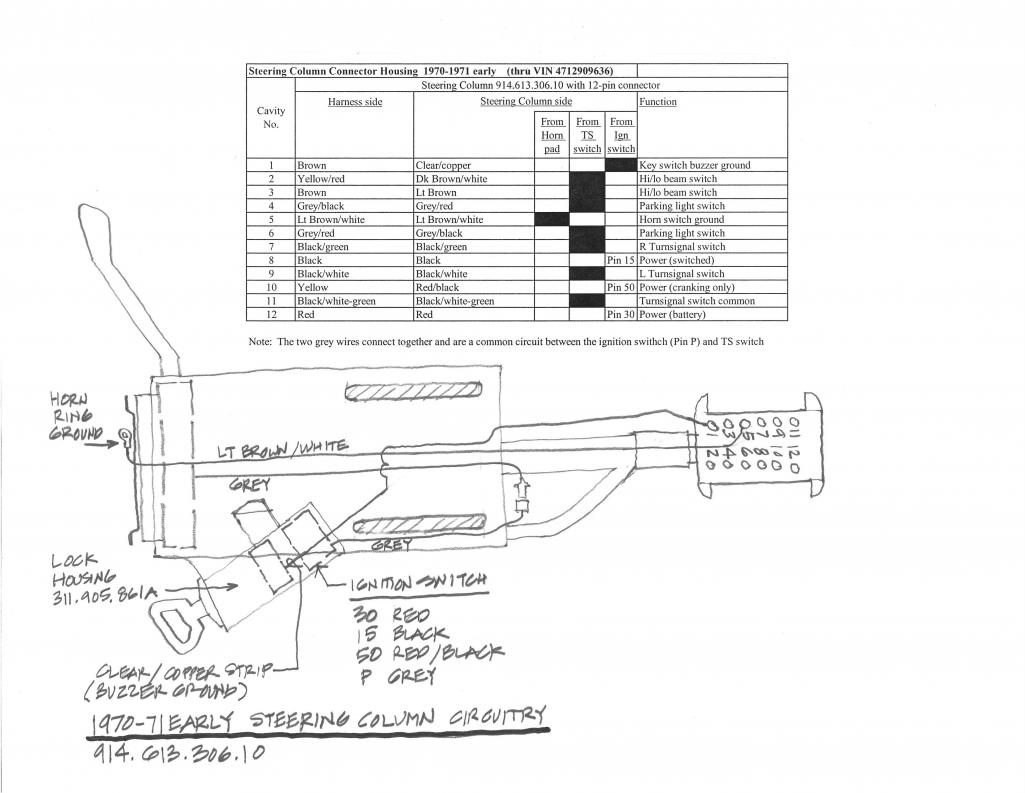

Here you go. I had posted it before here in the garage but its not on my harness website...should be i guess.
Attached thumbnail(s)
|
 |
|
| jaredmcginness |
Nov 29 2020, 08:27 PM
Post
#3
|
|
... Group: Members Posts: 509 Joined: 12-June 19 From: Baltimore Member No.: 23,209 Region Association: MidAtlantic Region
|
Thank you so much Jeff. That will be a huge help. (IMG:style_emoticons/default/smiley_notworthy.gif)
|
|
|
|
|
