> Shift linkage fix -6 conversion:, back on the road
Retroracer
post Dec 6 2020, 03:47 PM
Post #1


Senior Member
***

Group: Members
Posts: 612
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest
All - so on the way home from WCR2020 I noticed issues with shifting in the 1st/reverse plane, accompanied by what felt like metal / metal contact (grinding). For reference, its an early chassis (1970) previously converted (in a former life) to side shift. I made it home and found the following:

The link rod as it sits in the bulkhead has a 24.8mm dia., and when I did the -6 conversion I replaced the nylon bushing with a new one and assumed all was well....! The recent failure seemed to be the new bushing had deformed/worn, allowing the front linkage to scrape internally when the shift lever was pushed hard over to the left.

I ordered one of the Tangerine Racing spherical bushings, which - on the surface - seemed like the perfect part for the job. When the part arrived, it was clearly designed for a narrower diameter shaft at the bulkhead exit. I extracted the front linkage to examine, and it has been modified with what looks like an outer tube welded over the narrower internal bar - so the bigger diameter is only for 6" or so. So - questions the group brain for best solution:

1) Do I have to de-modify (in other words find a stock) front shift linkage to make it work with the TR spherical bush? Don't think having the outer turned down in a lathe is a great idea...
2) Is there an alternate larger dia bushing that lasts longer than the 6000 miles of the nylon one from a known good source? Then I can keep the front linkage bar as is....
3) should that front linkage actually be straight? Or should there be some kind of kink in it to avoid that internal interference in the central tunnel? (and hence less pressure/wear on the bushing)
4) Should I try and ream out the TR spherical bushing to accept the larger tube? <grimace emoji> Am hesitant to try this as I think the front shaft is the issue not the bushing design.

Any and all wisdom and/or pointers to reference posts welcome

- Tony

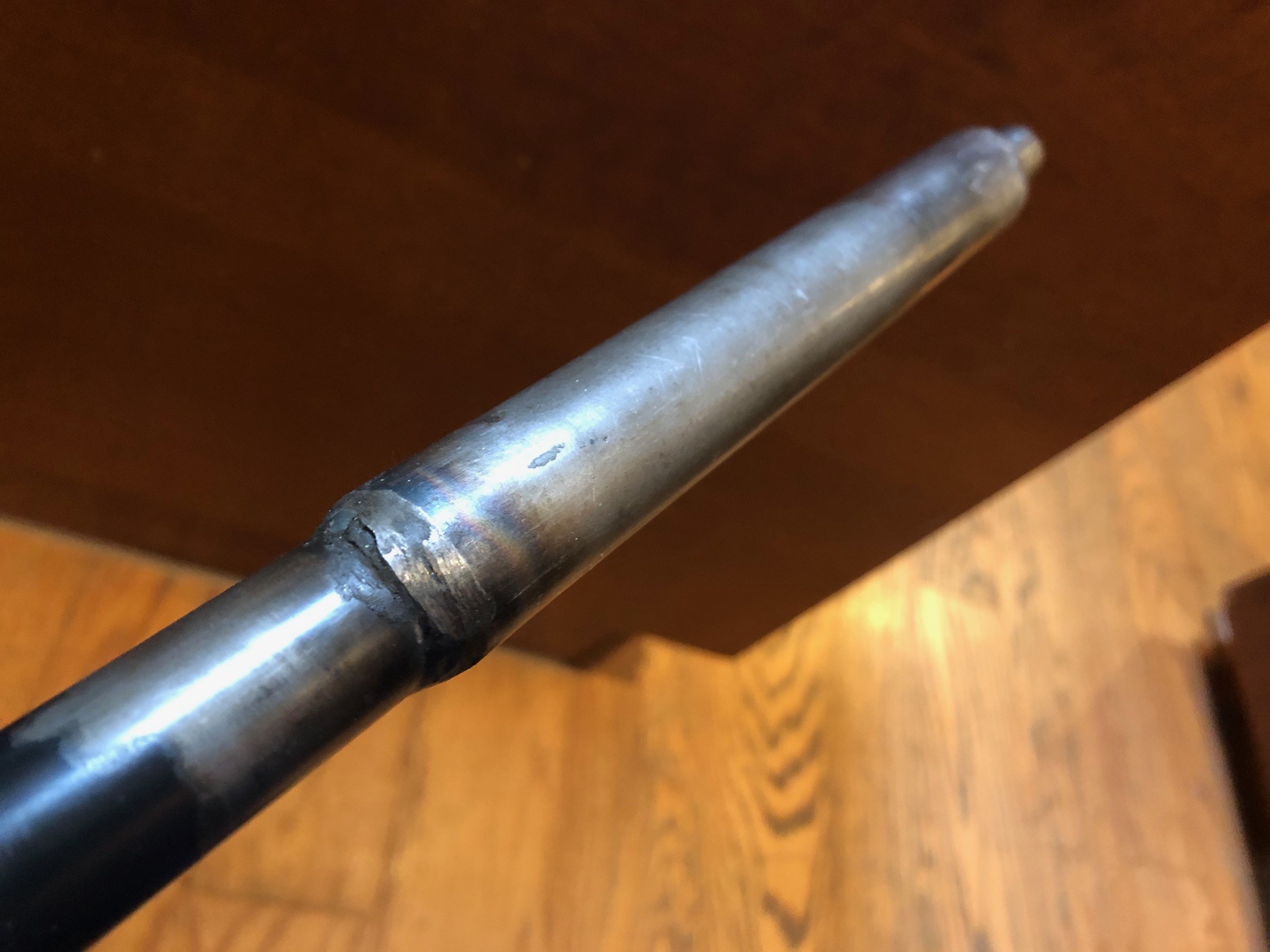

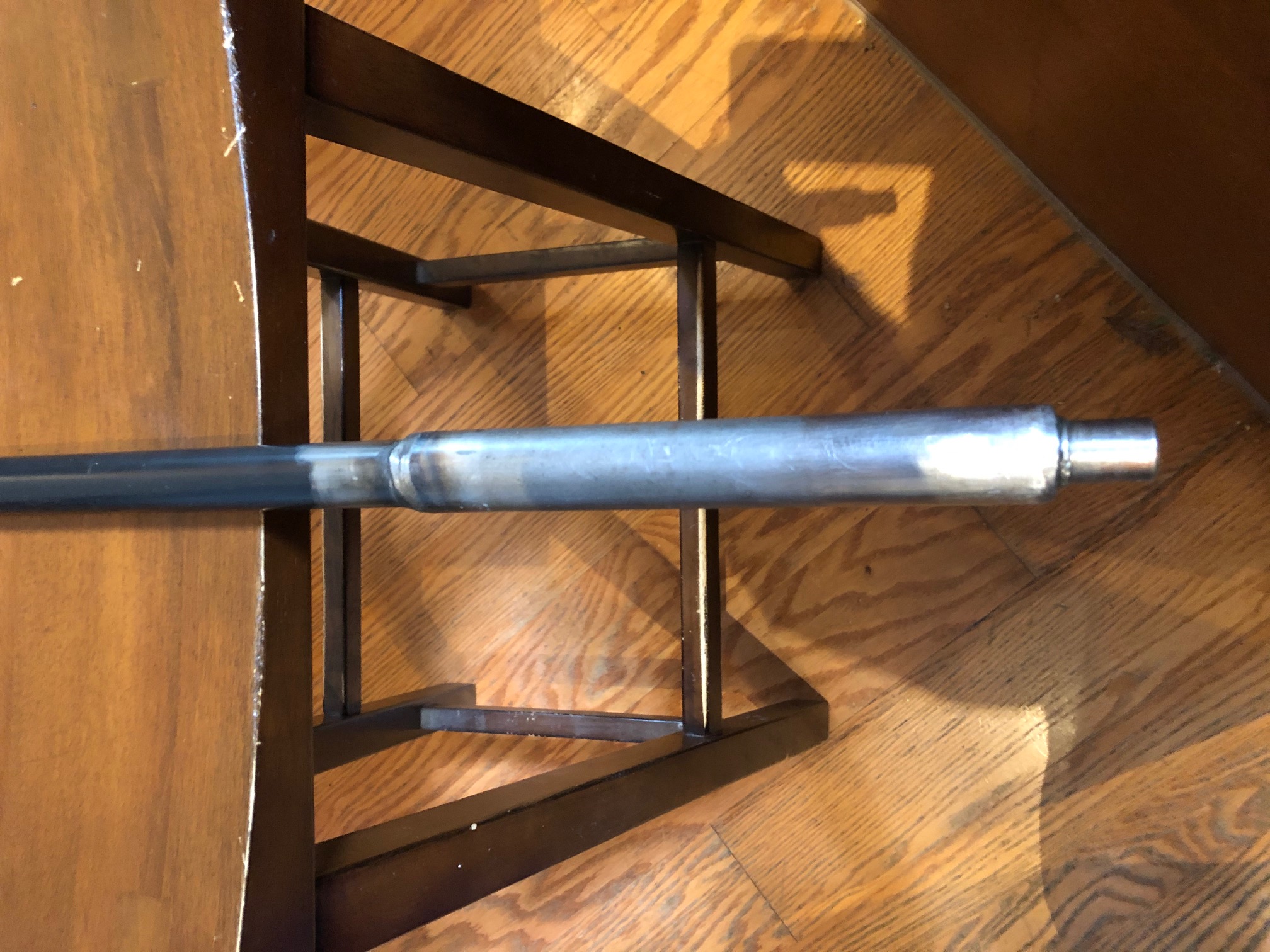

Pics of the modified front link for reference:

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Dec 7 2020, 09:58 AM
Post #2


I am Tangerine Racing
*****

Group: Members
Posts: 7,925
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
That looks like part of an early tailshift rod, which would have fit ok in one of the tailshift firewall bushings.
What you need is a stock sideshift tunnel rod.
I don't think my bearing can be opened up that far.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Retroracer
post Dec 7 2020, 09:59 AM
Post #3


Senior Member
***

Group: Members
Posts: 612
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest
Or... in the above photos: is that tube likely just slid over the original shift rod and welded at each end? So if I grind the welds off can I just remove it, assuming the rod below it is in one piece?

HELP! Advice needed....

- Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Retroracer
post Dec 7 2020, 10:00 AM
Post #4


Senior Member
***

Group: Members
Posts: 612
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest
QUOTE(ChrisFoley @ Dec 7 2020, 07:58 AM) *

That looks like part of an early tailshift rod, which would have fit ok in one of the tailshift firewall bushings.
What you need is a stock sideshift tunnel rod.
I don't think my bearing can be opened up that far.


Perfect - thx Chris.

So - anyone have a spare early tail shift front rod they want to sell?

- Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Luke M
post Dec 7 2020, 10:14 AM
Post #5


Senior Member
***

Group: Members
Posts: 1,371
Joined: 8-February 05
From: WNY
Member No.: 3,574
Region Association: North East States
QUOTE(Retroracer @ Dec 7 2020, 09:00 AM) *

QUOTE(ChrisFoley @ Dec 7 2020, 07:58 AM) *

That looks like part of an early tailshift rod, which would have fit ok in one of the tailshift firewall bushings.
What you need is a stock sideshift tunnel rod.
I don't think my bearing can be opened up that far.


Perfect - thx Chris.

So - anyone have a spare early tail shift front rod they want to sell?

- Tony



Pm Bruce @ bdstone914

I purchased one from him a few months ago.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 7 2020, 10:29 AM
Post #6


914-6 GT in waiting
***************

Group: Members
Posts: 19,271
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(Retroracer @ Dec 7 2020, 11:00 AM) *

QUOTE(ChrisFoley @ Dec 7 2020, 07:58 AM) *

That looks like part of an early tailshift rod, which would have fit ok in one of the tailshift firewall bushings.
What you need is a stock sideshift tunnel rod.
I don't think my bearing can be opened up that far.


Perfect - thx Chris.

So - anyone have a spare early tail shift front rod they want to sell?

- Tony

If you don't find one local, I'll pull the one out of my parts car and sell it for the cost of shipping. PM me if you want it.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Dec 7 2020, 04:54 PM
Post #7


I am Tangerine Racing
*****

Group: Members
Posts: 7,925
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(Retroracer @ Dec 7 2020, 11:59 AM) *

is that tube likely just slid over the original shift rod and welded at each end? So if I grind the welds off can I just remove it, assuming the rod below it is in one piece?

Not likely.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Dec 7 2020, 04:55 PM
Post #8


I am Tangerine Racing
*****

Group: Members
Posts: 7,925
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(Retroracer @ Dec 7 2020, 12:00 PM) *


So - anyone have a spare early tail shift front rod they want to sell?

- Tony

Sideshift!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 7 2020, 05:04 PM
Post #9


914-6 GT in waiting
***************

Group: Members
Posts: 19,271
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
I might have the side shift rod. I’ll check tomorrow
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rhodyguy
post Dec 7 2020, 05:10 PM
Post #10


Chimp Sanctuary NW. Check it out.
***************

Group: Members
Posts: 22,080
Joined: 2-March 03
From: Orion's Bell. The BELL!
Member No.: 378
Region Association: Galt's Gulch
The rest of the linkage assem is SS?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Retroracer
post Dec 7 2020, 06:07 PM
Post #11


Senior Member
***

Group: Members
Posts: 612
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest
@ChrisFoley - oops, thx for the correction.

@mepstein - thanks for the offer, pursuing one through Mr Stone who says he has one.

@rhodyguy - the rest of the linkage is PMS side shift, with a bronze bushing in the console.

- Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Dec 7 2020, 06:43 PM
Post #12


Michael
*****

Group: Members
Posts: 9,758
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
I second Bruce - I just returned a set of shift rods for a side-shifter to him that I did not need.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 8 2020, 04:56 PM
Post #13


914-6 GT in waiting
***************

Group: Members
Posts: 19,271
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Tony- here’s what I have. Tell me what you want and pm me your address and I’ll get it in the mail. Mark

@Retroracer


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Dec 8 2020, 05:00 PM
Post #14


I am Tangerine Racing
*****

Group: Members
Posts: 7,925
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
The two ziptied together don't belong together.
The three black ones are side-shift tunnel rods.
The two bottom ones are tail-shift tunnel rods.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Retroracer
post Dec 8 2020, 08:28 PM
Post #15


Senior Member
***

Group: Members
Posts: 612
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest
@ChrisFoley - thx for the ID'ing the line up there

@mepstein - Mark, the third from the bottom looks like what's needed. Really appreciate you doing this.

Love this forum!

- Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 8 2020, 09:41 PM
Post #16


914-6 GT in waiting
***************

Group: Members
Posts: 19,271
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
Tony - Sounds good.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
JmuRiz
post Dec 9 2020, 10:27 AM
Post #17


914 Guru
*****

Group: Members
Posts: 5,426
Joined: 30-December 02
From: NoVA
Member No.: 50
Region Association: MidAtlantic Region
Mark, feel like getting rid of one of the side-shift conversion rods?

I haven't gotten/made one yet (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Retroracer
post Dec 24 2020, 05:01 PM
Post #18


Senior Member
***

Group: Members
Posts: 612
Joined: 7-July 13
From: Bend OR
Member No.: 16,100
Region Association: Pacific Northwest
Follow up: so the new front link rod arrived from @mepstein - many thanks Mark - and fits the Tangerine Racing bushing perfectly. So after some analysis and re-engineering, am happy to report that shifting is now possible again!

The rear linkage I bought from PMS (I guess) was intended for later cars, and the alignment of it in my car never really looked right. I ended up re-drilling the shift cup alignment hole, effectively "clocking" the rear linkage by 90deg, which made all the difference. Clearances to a couple of spots on the engine were close before, now much better.

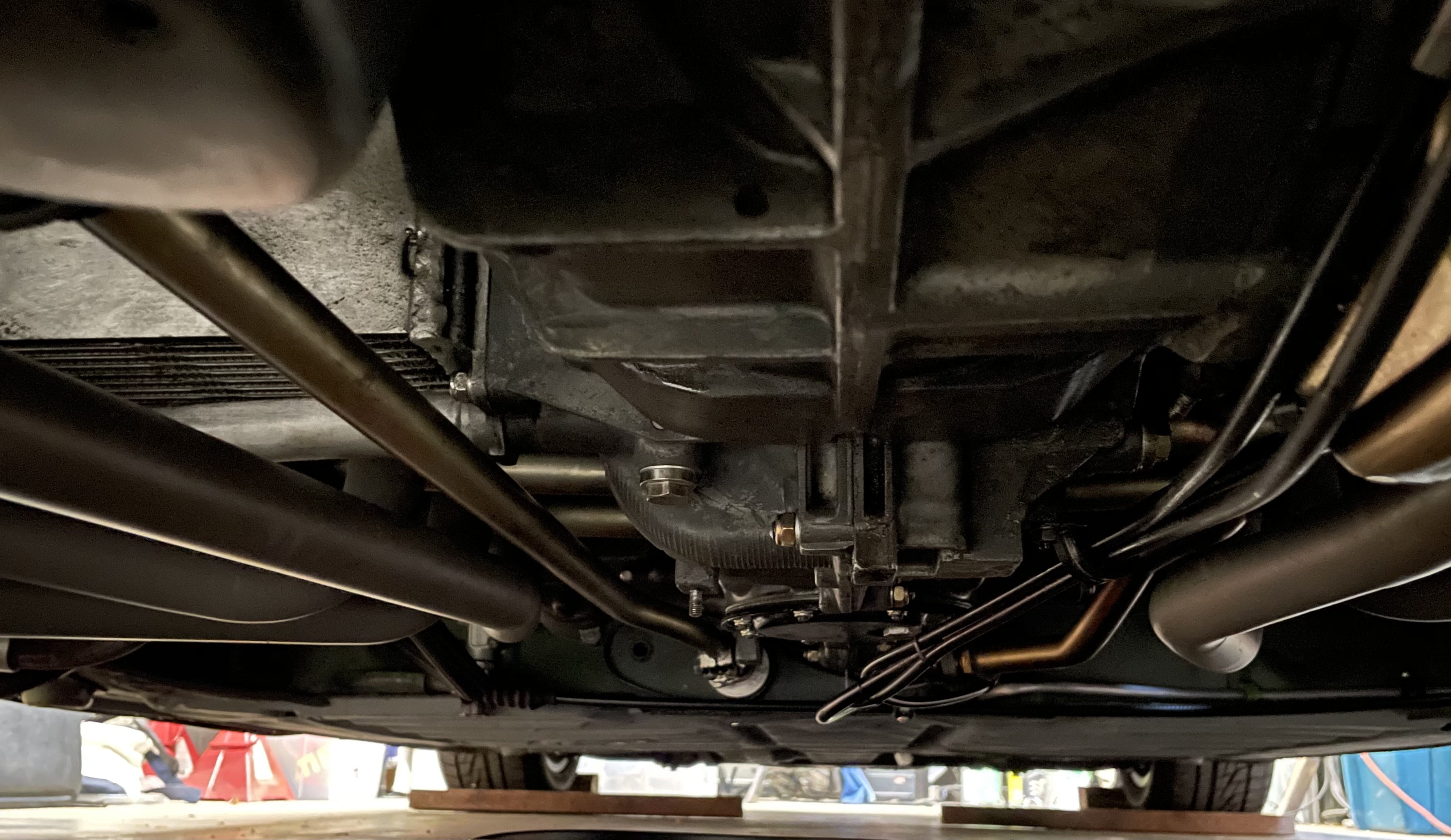

Some pics (I should have taken before I took it off the axle stands <slaps forehead>):

Attached Image

Attached Image


Back on the road. Thanks to @ChrisFoley and all who contributed.

- Tony
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 24 2020, 05:30 PM
Post #19


914-6 GT in waiting
***************

Group: Members
Posts: 19,271
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(JmuRiz @ Dec 9 2020, 11:27 AM) *

Mark, feel like getting rid of one of the side-shift conversion rods?

I haven't gotten/made one yet (IMG:style_emoticons/default/biggrin.gif)


Nathan -Sorry, I missed your post. Just let me know what you need and your address and I'll send it over.
@JmuRiz
User is online!Profile CardPM
Go to the top of the page
+Quote Post
mepstein
post Dec 24 2020, 05:35 PM
Post #20


914-6 GT in waiting
***************

Group: Members
Posts: 19,271
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
BTW, Jim Kelly from Delaware gave me the shift rods and a couple side shift engine bars. So I'm not selling them, just passing them along to people who need them.

(IMG:style_emoticons/default/beerchug.gif) @jimkelly
User is online!Profile CardPM
Go to the top of the page
+Quote Post
