> Charging light anomaly **UPDATE**
whiterabbit
post Mar 30 2021, 12:59 PM
Post #1


Rust Saver
*

Group: Members
Posts: 28
Joined: 10-March 20
From: Northwest Ohio
Member No.: 24,014
Region Association: Upper MidWest
I've been browsing this site for awhile, as I restore my '75 914. I'm mostly done, just working on finishing touches and some drivability issues. You guys have been a huge help but the details of my current issue has me stumped. Below is a summary of the issue:

1-With key OUT of the ignition the charging light is "ON" (IMG:style_emoticons/default/WTF.gif)
2- Key in on position, the charging light turns "OFF", oil light turns "ON"
3- Engine Running, charging light is "OFF"
4- Engine running, voltage regulator plugged in, voltage at battery reads 12.4 volts (not charging).
5- Engine running, voltage regulator unplugged & jumper between D+/DF voltage at battery reads 12.6-12.8 volts (still not really charging).
6-Occasionally, ignition key needs to be cycled several times before the starter is triggered to start the car (probably unrelated?)
7-Charging light turns "OFF" when alternator plug (specifically DF connection) is disconnected from relay board.

Background info: New alternator 100 miles ago, belt tight, newer voltage regulator, new alternator wiring harness, newer ignition switch, transmission to trunk floor ground strap clean and tight. 20 miles ago, the charging system was working as it should.

My theory: Alternator failure! But I don't want to throw parts at the situation if there are other clues in points 1-7 above.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Mar 30 2021, 01:08 PM
Post #2


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,469
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Before condemning the alternator, verify you have +12V at the D+ pin. If you don't, your full field alternator test is invalid. You can just run a wire from the positive battery post to the DF connection on the relay board and see if it charges.

Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
whiterabbit
post Mar 30 2021, 01:28 PM
Post #3


Rust Saver
*

Group: Members
Posts: 28
Joined: 10-March 20
From: Northwest Ohio
Member No.: 24,014
Region Association: Upper MidWest
Thanks Clay!!

Update: I verified that I have +12V at the D+ pin. Running a test wire from + battery post to DF connection and start engine, voltage at D+ changes to 12.9V.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Mar 30 2021, 02:50 PM
Post #4


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,469
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Now that you have verified everything else, I think you can just get another alternator.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
whiterabbit
post Mar 30 2021, 03:08 PM
Post #5


Rust Saver
*

Group: Members
Posts: 28
Joined: 10-March 20
From: Northwest Ohio
Member No.: 24,014
Region Association: Upper MidWest
Thanks for the confirmation. (IMG:style_emoticons/default/beerchug.gif) I'll report back any findings after I replace the alternator.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Mar 31 2021, 05:09 AM
Post #6


Jerry
*****

Group: Members
Posts: 6,978
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(whiterabbit @ Mar 30 2021, 02:59 PM) *

1-With key OUT of the ignition the charging light is "ON" (IMG:style_emoticons/default/WTF.gif)
2- Key in on position, the charging light turns "OFF"...


This is really weird and exactly opposite of what you would expect. In this diagram, the GEN light is powered by fuse F9. F9 is switched from the battery (not shown in the diagram).

One way the GEN light would be ON with the key off and OFF with the key on is if one of the 3 diodes connected to B+ of the alternator has died and shorted out.

You can test this by removing the cable from the alternator to the relay board and measuring the voltage on the cable D+ wire. If it's close to the battery voltage, it is likely that one of the diodes has died and the alternator needs replacing.

Did you do anything to the electrical system after installing and getting the new alternator running? Did you disconnect the battery with the engine running?

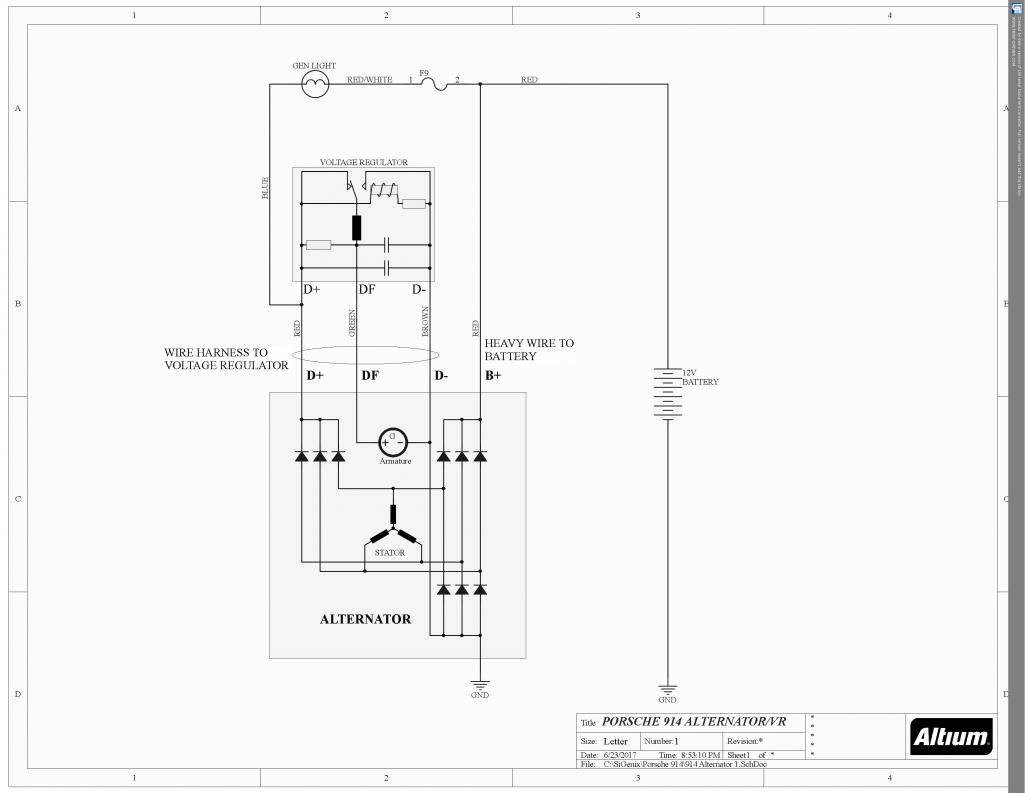

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
whiterabbit
post Mar 31 2021, 06:32 AM
Post #7


Rust Saver
*

Group: Members
Posts: 28
Joined: 10-March 20
From: Northwest Ohio
Member No.: 24,014
Region Association: Upper MidWest
I also found items # 1 and 2 strange. At first I thought it was a failure in the ignition switch but that wouldn't explain the oil light turning "ON" as it should.

I didn't do any additional electrical work after the alternator was replaced nor did I disconnect the battery while the engine was running. I replaced the alternator last fall just before putting the car away for the winter. I drove the car about 80 miles over a couple weeks time. The day I parked it for long term winter storage, I shut off the engine, removed the key and noticed that the charge light was still on. I disconnected the battery and decided I'd deal with it in the spring...and here we are.

I'll report back on the results of Spokes suggested test. ...and here's a photo of my 914.

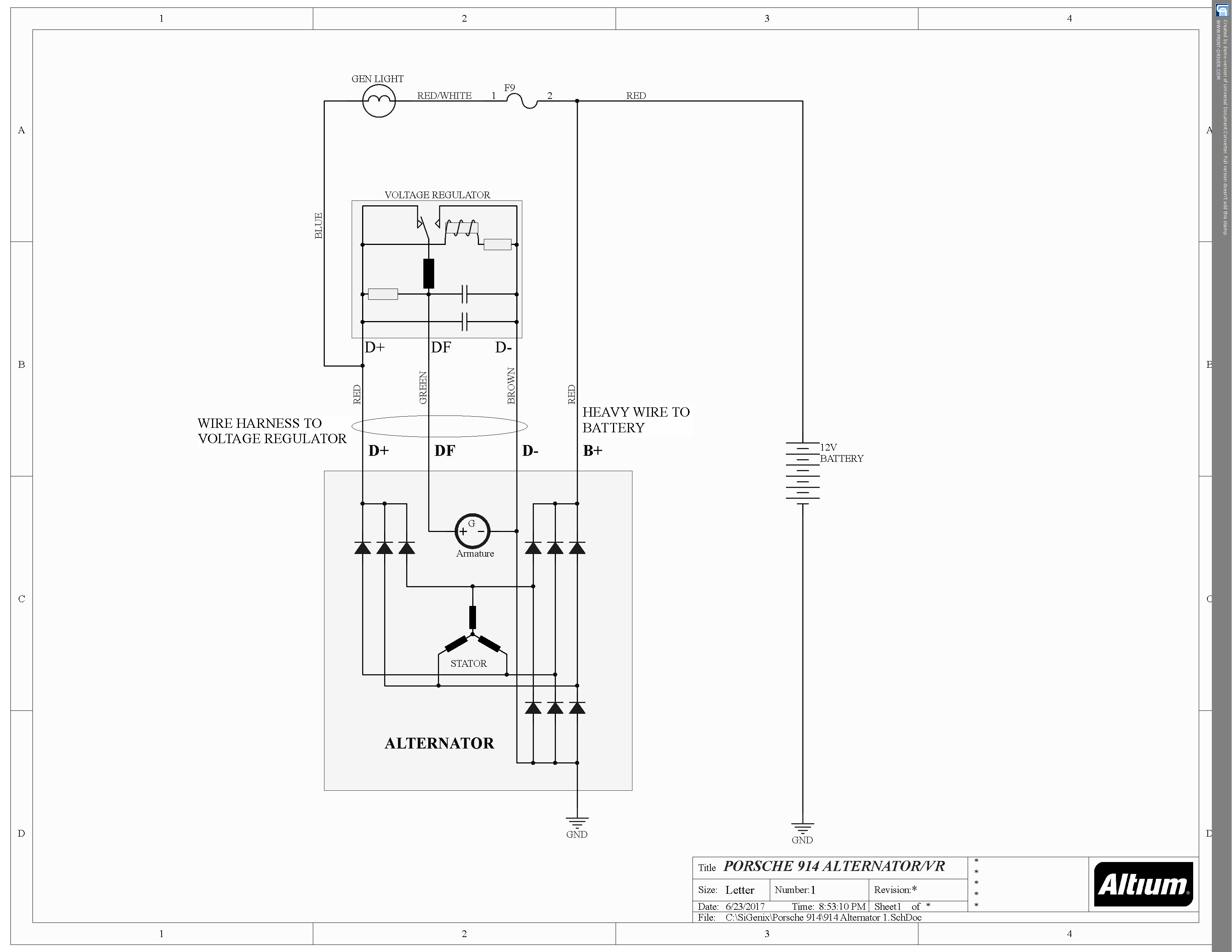

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Mar 31 2021, 07:06 AM
Post #8


Advanced Member
****

Group: Members
Posts: 2,302
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States
Remember, the light comes on by a differential in voltage...regardless of the direction.

I thought it strange too, but it's certainly possible that an internally-shorted alternator could provide the hot side, and something in the keyed hot circuit could find a ground somewhere.

I'd start by disconnecting the three-prong plug from the relay plate and seeing if the GEN light stays off. If so, then you have a clue that that end is suspect.

Pulling the alternator is such a god-forsaken PITA hassle that once out, just get the damned thing rebuilt so you don't have to do it again, even if it checks good.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
whiterabbit
post Mar 31 2021, 09:00 AM
Post #9


Rust Saver
*

Group: Members
Posts: 28
Joined: 10-March 20
From: Northwest Ohio
Member No.: 24,014
Region Association: Upper MidWest
Agreed! I did confirm that removal of the alternator plug from the relay board turns the light "OFF", so the short must be in the alternator assembly.

+1 on alternator R&R being a PITA...on your back, working by feel only, contortionist arms/wrist/fingers...UGH!

I'm dropping off a spare alternator to a local rebuilder today. The one that failed was a re-man bosch unit from AutohausAZ.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
whiterabbit
post Apr 6 2021, 09:35 AM
Post #10


Rust Saver
*

Group: Members
Posts: 28
Joined: 10-March 20
From: Northwest Ohio
Member No.: 24,014
Region Association: Upper MidWest
Just an update on this charging light issue:

I replaced the alternator. Then I had a new set of symptoms.

1-With key OUT of the ignition the charging light is "OFF"
2- Key in on position, the charging light is "OFF", oil light turns "ON"
3- Engine Running, charging light is "OFF"
4- Engine running, voltage regulator plugged in, voltage at battery reads 12.4 volts (not charging).
5- Engine running, voltage regulator unplugged & jumper between D+/DF: voltage at battery reads 16.4 volts (battery is charging, VR failed??).

Replaced voltage regulator with spare and charging system is working as it should. So, it looks as though the alternator and voltage regulator both failed resulting in the symptoms of my original post.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Apr 6 2021, 10:24 AM
Post #11


Dr. Phil
*****

Group: Members
Posts: 5,766
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States
QUOTE(whiterabbit @ Apr 6 2021, 11:35 AM) *

Just an update on this charging light issue:

I replaced the alternator. Then I had a new set of symptoms.

1-With key OUT of the ignition the charging light is "OFF"
2- Key in on position, the charging light is "OFF", oil light turns "ON"
3- Engine Running, charging light is "OFF"
4- Engine running, voltage regulator plugged in, voltage at battery reads 12.4 volts (not charging).
5- Engine running, voltage regulator unplugged & jumper between D+/DF: voltage at battery reads 16.4 volts (battery is charging, VR failed??).

Replaced voltage regulator with spare and charging system is working as it should. So, it looks as though the alternator and voltage regulator both failed resulting in the symptoms of my original post.

what are the chances of that happening? did one cause the other? i am always curious of the "why" not just what.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Apr 6 2021, 10:56 AM
Post #12


Jerry
*****

Group: Members
Posts: 6,978
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(whiterabbit @ Apr 6 2021, 11:35 AM) *

Just an update on this charging light issue:

I replaced the alternator. Then I had a new set of symptoms.

1-With key OUT of the ignition the charging light is "OFF"
2- Key in on position, the charging light is "OFF", oil light turns "ON"
3- Engine Running, charging light is "OFF"
4- Engine running, voltage regulator plugged in, voltage at battery reads 12.4 volts (not charging).
5- Engine running, voltage regulator unplugged & jumper between D+/DF: voltage at battery reads 16.4 volts (battery is charging, VR failed??).

Replaced voltage regulator with spare and charging system is working as it should. So, it looks as though the alternator and voltage regulator both failed resulting in the symptoms of my original post.


Good to hear. What is the battery voltage now with engine at idle and 2k RPM?

It is possible that one item died and took the other with it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
whiterabbit
post Apr 6 2021, 12:56 PM
Post #13


Rust Saver
*

Group: Members
Posts: 28
Joined: 10-March 20
From: Northwest Ohio
Member No.: 24,014
Region Association: Upper MidWest
Voltage at battery, at idle speed and 2000 RPM is 14.5 volts. It does not change as the engine speed increases.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Apr 6 2021, 02:13 PM
Post #14


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,469
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(whiterabbit @ Apr 6 2021, 01:56 PM) *

Voltage at battery, at idle speed and 2000 RPM is 14.5 volts. It does not change as the engine speed increases.


That is exactly how it is supposed to work.

Congrats!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
whiterabbit
post Apr 6 2021, 06:46 PM
Post #15


Rust Saver
*

Group: Members
Posts: 28
Joined: 10-March 20
From: Northwest Ohio
Member No.: 24,014
Region Association: Upper MidWest
Anyone have any suggestions on how to run a postmortem on the voltage regulator? (IMG:style_emoticons/default/sawzall-smiley.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Apr 6 2021, 10:52 PM
Post #16


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,469
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(whiterabbit @ Apr 6 2021, 07:46 PM) *

Anyone have any suggestions on how to run a postmortem on the voltage regulator? (IMG:style_emoticons/default/sawzall-smiley.gif)


Why bother? They are cheap, and disposable.

Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
