> Heat/Defrost Mixer Valve Removal, How does this come out ?
jim_hoyland
post Sep 8 2021, 07:19 AM
Post #1


Goldfish - since 1983
*****

Group: Members
Posts: 8,045
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



How is that valve removed from under the cowling. My plan is to pull the gas tank for better access first; then replace the driver side heat/defrost valve. The re-install the control cables.
Any tips will be appreciated…

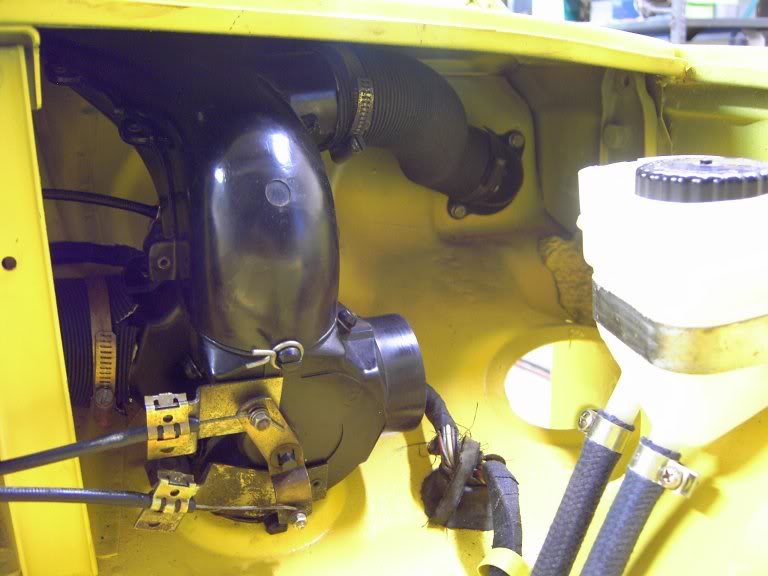

( see sample photo, not my car )


Attached image(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
barefoot
post Sep 8 2021, 07:46 AM
Post #2


Senior Member
***

Group: Members
Posts: 1,015
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States



This might help: Be very careful

https://914electric.wordpress.com/2011/03/18/take-the-heat/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Sep 8 2021, 09:20 AM
Post #3


Goldfish - since 1983
*****

Group: Members
Posts: 8,045
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



QUOTE(barefoot @ Sep 8 2021, 06:46 AM) *

Thanks, that’s an excellent explanation of where each cable goes; I’m looking for tips on removing the driver side valve with the defroster nozzle attached
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914werke
post Sep 8 2021, 10:14 AM
Post #4


"I got blisters on me fingers"
*****

Group: Members
Posts: 6,626
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest



QUOTE(jim_hoyland @ Sep 8 2021, 08:20 AM) *
QUOTE(barefoot @ Sep 8 2021, 06:46 AM) *
Thanks, that’s an excellent explanation of where each cable goes; I’m looking for tips on removing the driver side valve with the defroster nozzle attached

Jim not really possible. At least Ive never been able to accomplish it (IMG:style_emoticons/default/smile.gif)
The valve protrudes down through the sheetmetal of the cowl so you have to seperate the valve from the vent by removing the spring clips x2.
BE VERY CAREFUL,
The bakealite /plastic is old & fragile & the .5 posts on either piece that those clip surround, aren't supported well & snap easily. The front one is fairly easy to do but the back one will test your mettle. (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
IronHillRestorations
post Sep 8 2021, 10:44 AM
Post #5


I. I. R. C.
*****

Group: Members
Posts: 6,475
Joined: 18-March 03
From: West TN
Member No.: 439
Region Association: None



+1 on extreme care with old plastic parts.

You also want to ID the cables and where they connect before you take them off. My first (personal) restoration, I didn't do that and the ventilation controls were not correct for years.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Sep 8 2021, 11:51 AM
Post #6


Goldfish - since 1983
*****

Group: Members
Posts: 8,045
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



No problem with the cables: they are sorted out.I am going to pull the mixer, the black valve that sits under the cowling on the driver side. Somewhere I read it’s attached from inside the cabin as well as from the trunk area…
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914werke
post Sep 8 2021, 12:16 PM
Post #7


"I got blisters on me fingers"
*****

Group: Members
Posts: 6,626
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest



Correct, under the dash are a pair of ovid vents. Those mate to the valve that protrudes through the cowl.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Sep 8 2021, 02:08 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,015
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States



In re-installing mine, I ground a chamfer on the front bottom of the mixer valve & was able to install with the defrost duct attached. Also remove the little brace next to the mixer & push up on the cowl with a helper.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Sep 8 2021, 03:36 PM
Post #9


Goldfish - since 1983
*****

Group: Members
Posts: 8,045
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



QUOTE(barefoot @ Sep 8 2021, 01:08 PM) *

In re-installing mine, I ground a chamfer on the front bottom of the mixer valve & was able to install with the defrost duct attached. Also remove the little brace next to the mixer & push up on the cowl with a helper.

Thanks, will do; did it come out easier than the re-install?
I am pulling the fuel tank to gain access and leaving the fresh air into as ke box in place
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Sep 14 2021, 04:15 PM
Post #10


Goldfish - since 1983
*****

Group: Members
Posts: 8,045
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



Got the valve out, came out pretty easy. The hard part was removing the clips that hold the cable. I’m hoping I can reassemble the valve with deforest nozzle and reattach the cables. Tight fit !
Any tips ?
I did unscrew the bolt to the post.


Attached thumbnail(s)
Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914_teener
post Sep 14 2021, 04:19 PM
Post #11


Advanced Member
****

Group: Members
Posts: 4,789
Joined: 31-August 08
From: So. Cal
Member No.: 9,489
Region Association: Southern California



Hey Jim.......


I'm in Moab for the next week but I did this one time by myself.


Putting that back on is probably a two person job.


I'd be happy to help you if you like but I'd be back in Cali next week. Let me know.


And....It is harder to get back in then take out unfortunately.

Rob
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Sep 14 2021, 06:34 PM
Post #12


Goldfish - since 1983
*****

Group: Members
Posts: 8,045
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



QUOTE(914_teener @ Sep 14 2021, 03:19 PM) *

Hey Jim.......


I'm in Moab for the next week but I did this one time by myself.


Putting that back on is probably a two person job.


I'd be happy to help you if you like but I'd be back in Cali next week. Let me know.


And....It is harder to get back in then take out unfortunately.

Rob

Thanks Rob. That’s gonna help( Bob Duffy has volunteered. I won’t try doing it solo.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
PanelBilly
post Sep 14 2021, 09:52 PM
Post #13


914 Guru
*****

Group: Members
Posts: 5,432
Joined: 23-July 06
From: Kent, Wa
Member No.: 6,488
Region Association: Pacific Northwest



If I can remember correctly fly I attached the control wires before I bolted the unit to the car.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
DRPHIL914
post Sep 15 2021, 12:11 PM
Post #14


Dr. Phil
****

Group: Members
Posts: 4,906
Joined: 9-December 09
From: Bluffton, SC
Member No.: 11,106
Region Association: South East States



QUOTE(jim_hoyland @ Sep 8 2021, 09:19 AM) *

How is that valve removed from under the cowling. My plan is to pull the gas tank for better access first; then replace the driver side heat/defrost valve. The re-install the control cables.
Any tips will be appreciated…
( see sample photo, not my car )

Jim why are you pulling it out, for cleaning or replacing seals and cables?

Phil
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Sep 16 2021, 04:04 AM
Post #15


Goldfish - since 1983
*****

Group: Members
Posts: 8,045
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



QUOTE(DRPHIL914 @ Sep 15 2021, 11:11 AM) *

QUOTE(jim_hoyland @ Sep 8 2021, 09:19 AM) *

How is that valve removed from under the cowling. My plan is to pull the gas tank for better access first; then replace the driver side heat/defrost valve. The re-install the control cables.
Any tips will be appreciated…
( see sample photo, not my car )

Jim why are you pulling it out, for cleaning or replacing seals and cables?

Phil


I wasn’t able to get window defrost heat, only floor heat on the driver side. Removal of the valve showed the heat-side flapper was broken in half. How that happened ? No idea.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Rob-O
post Sep 16 2021, 05:00 PM
Post #16


Senior Member
***

Group: Members
Posts: 1,139
Joined: 5-December 03
From: Mansfield, TX
Member No.: 1,419
Region Association: Southwest Region



Beyond the loosening of the two bolts that hold the cowl down, you may also want to remove the four nuts under the cowl that hold the dash on. Then inside the car there are two screws in the area by the door (believe knee pad has to come out to access those) to the sides of the vents (assuming a post ‘72 built car). One other bolt under the dash around the heat/vent controls and the whole dash could be moved quite a bit.

Once the dash is moved upwards (or removed completely) it’s amazing how much space there is in that area. It allows you to tilt that mix valve up without the defrost vent hitting the dash or the bottom part of the valve getting caught in the hole in the firewall.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Sep 16 2021, 05:35 PM
Post #17


Goldfish - since 1983
*****

Group: Members
Posts: 8,045
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California



QUOTE(Rob-O @ Sep 16 2021, 04:00 PM) *

Beyond the loosening of the two bolts that hold the cowl down, you may also want to remove the four nuts under the cowl that hold the dash on. Then inside the car there are two screws in the area by the door (believe knee pad has to come out to access those) to the sides of the vents (assuming a post ‘72 built car). One other bolt under the dash around the heat/vent controls and the whole dash could be moved quite a bit.

Once the dash is moved upwards (or removed completely) it’s amazing how much space there is in that area. It allows you to tilt that mix valve up without the defrost vent hitting the dash or the bottom part of the valve getting caught in the hole in the firewall.


Good Tip !
User is online!Profile CardPM
Go to the top of the page
+Quote Post
