> Third Brake Light, Best Wiring Location
jdamiano
post Jan 14 2022, 03:51 PM
Post #1


Member
**

Group: Members
Posts: 303
Joined: 18-March 18
From: Jacksonville
Member No.: 21,981
Region Association: South East States



I’m adding a third brake light on the inside of the rear window. Can anyone save me some time with my multimeter under the dash and tell me the best place to pick up the brake lights wiring?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rjames
post Jan 14 2022, 04:00 PM
Post #2


I'm made of metal
****

Group: Members
Posts: 3,476
Joined: 24-July 05
From: Shoreline, WA
Member No.: 4,467
Region Association: Pacific Northwest



I just ran the wires under the roof and sail chrome trim, into the engine bay and along the wires in the trunk, and then made the connections directly at the tail light connection using a dual spade connector. Wiring is out of sight and easily undone if need be.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
StarBear
post Jan 14 2022, 04:26 PM
Post #3


Senior Member
***

Group: Members
Posts: 1,186
Joined: 2-September 09
From: NJ
Member No.: 10,753
Region Association: North East States



(IMG:style_emoticons/default/agree.gif) Yep; me, too. Easy. Cheap. The 914 way!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
barefoot
post Jan 14 2022, 06:06 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,107
Joined: 19-March 13
From: Charleston SC
Member No.: 15,673
Region Association: South East States



With the backed removed, easy access to brake light wires in the tunnel easy to conceal wiring (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Geezer914
post Jan 15 2022, 06:26 AM
Post #5


Senior Member
***

Group: Members
Posts: 737
Joined: 18-March 09
From: Salem, NJ
Member No.: 10,179
Region Association: None



You can splice into the brake light wires that run under the relay board instead of going all the way back to the tail light.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jan 15 2022, 07:17 AM
Post #6


Jerry
*****

Group: Members
Posts: 6,705
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None

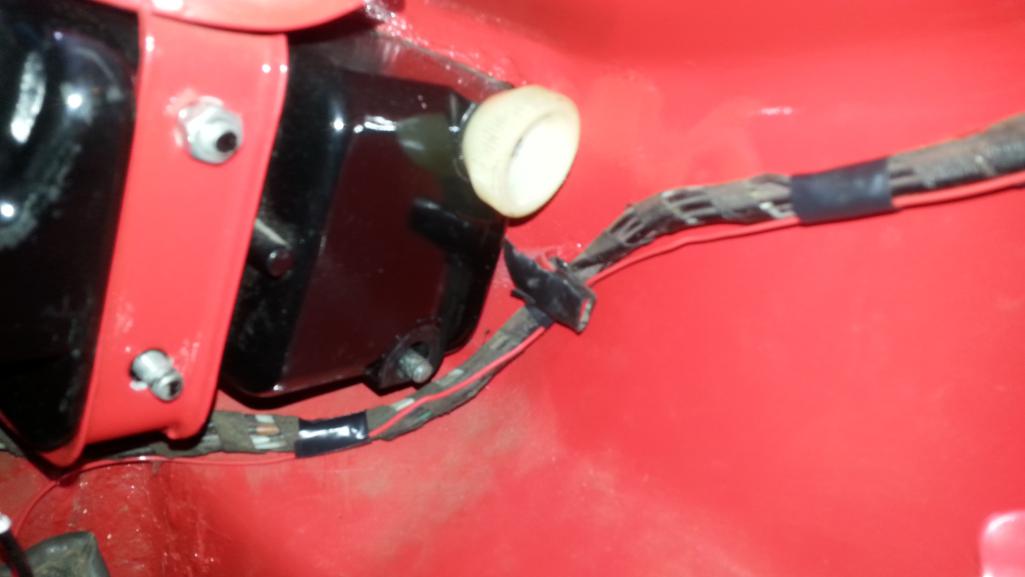

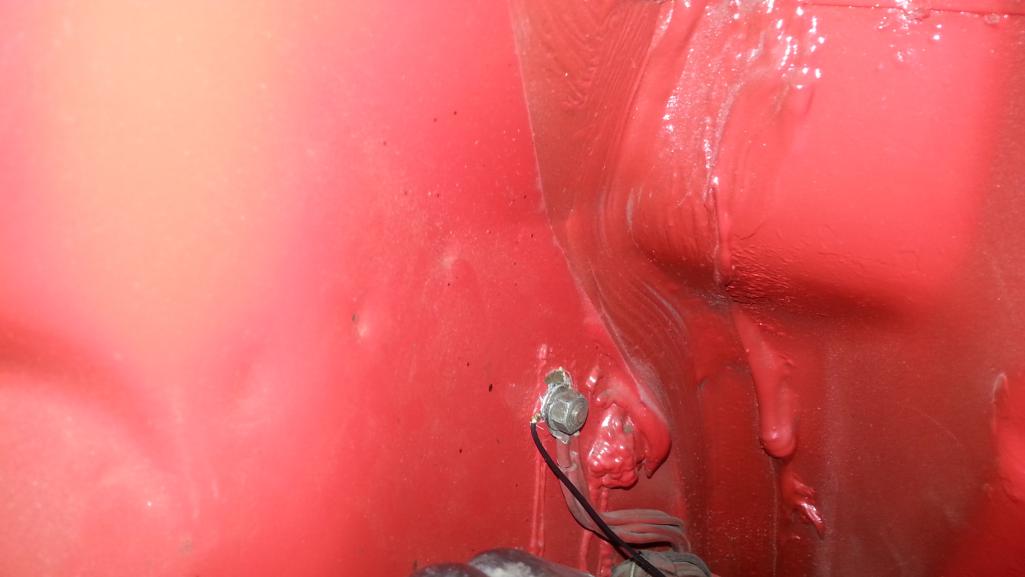

I picked up the brake signal at the driver side rear light fixture. Used a spade connector and a 2:1 male-female connector to make the connection. Taped the new wire to the existing wire loom. Connected the ground on the chassis lug behind the relay board.


Attached image(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Jan 15 2022, 07:48 AM
Post #7


Senior Member
***

Group: Members
Posts: 1,397
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States



I cannot recall the thread, but if you look for "BBrock" he added one to his 914 project.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
rjames
post Jan 15 2022, 01:35 PM
Post #8


I'm made of metal
****

Group: Members
Posts: 3,476
Joined: 24-July 05
From: Shoreline, WA
Member No.: 4,467
Region Association: Pacific Northwest



QUOTE(jdamiano @ Jan 14 2022, 01:51 PM) *

I’m adding a third brake light on the inside of the rear window. Can anyone save me some time with my multimeter under the dash and tell me the best place to pick up the brake lights wiring?



Where you put the wiring will depend on where you put the light. I'd recommend mounting it outside of the cabin, otherwise you're going to get reflection off of the rear window- especially at night.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
StarBear
post Jan 15 2022, 02:04 PM
Post #9


Senior Member
***

Group: Members
Posts: 1,186
Joined: 2-September 09
From: NJ
Member No.: 10,753
Region Association: North East States



QUOTE(rjames @ Jan 15 2022, 02:35 PM) *

QUOTE(jdamiano @ Jan 14 2022, 01:51 PM) *

I’m adding a third brake light on the inside of the rear window. Can anyone save me some time with my multimeter under the dash and tell me the best place to pick up the brake lights wiring?



Where you put the wiring will depend on where you put the light. I'd recommend mounting it outside of the cabin, otherwise you're going to get reflection off of the rear window- especially at night.

(IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve
post Jan 15 2022, 02:20 PM
Post #10


Advanced Member
****

Group: Members
Posts: 4,974
Joined: 14-June 03
From: Orange County, CA
Member No.: 822
Region Association: Southern California



QUOTE(Spoke @ Jan 15 2022, 05:17 AM) *

I picked up the brake signal at the driver side rear light fixture. Used a spade connector and a 2:1 male-female connector to make the connection. Taped the new wire to the existing wire loom. Connected the ground on the chassis lug behind the relay board.

(IMG:style_emoticons/default/agree.gif) I did the same thing. Much easier than going through the tunnel.
I mounted a corvette convertible / 944 light to the top of my engine lid. I added a connector, to make it easy to remove the engine lid.
https://www.google.com/search?q=corvette+3r...=r8KXQMC5aeyQ1M
