> 914 GT 3.6 Ferrari Build, - Wiring underway!
Shivers
post Dec 30 2024, 12:10 PM
Post #1301


Senior Member
****

Group: Members
Posts: 2,974
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
Nice car. Looks like you have the rainbow spaghetti maker
Working great now. My word.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TC 914-8
post Dec 31 2024, 08:44 AM
Post #1302


Senior Member
***

Group: Members
Posts: 830
Joined: 23-May 08
From: Sequim, WA
Member No.: 9,090
Region Association: Pacific Northwest
[quote name='tygaboy' date='Dec 29 2024, 08:25 AM' post='3183759']
Wiring, continued. At least I get to drill some holes and mount the connectors.
There have been a few distractions around The Red Barn that kept me from the build: this Cayman GTS 4.0 followed me home and my wife said we could keep it!
OK, OK so we ordered it a while back and picked it up on 12/27.
And I can now safely state that all the review videos on these things are true. It is wonderful - and I can't rev it over 4k rpm yet!

Wow Chris !!! congratulations on your new Cayman GTS !!! Hope it doesn’t distract you from your day job (IMG:style_emoticons/default/sawzall-smiley.gif) (IMG:style_emoticons/default/driving.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 23 2025, 06:55 PM
Post #1303


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

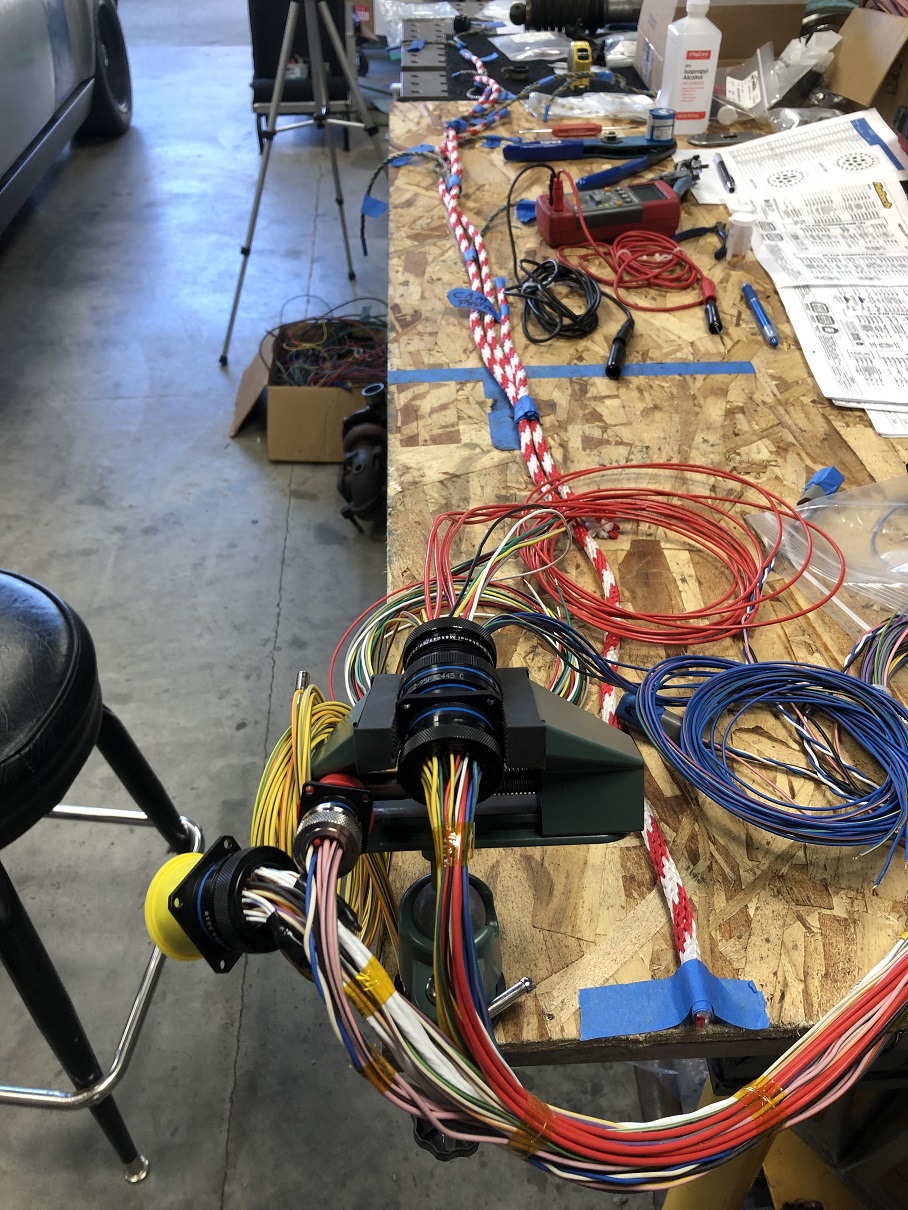

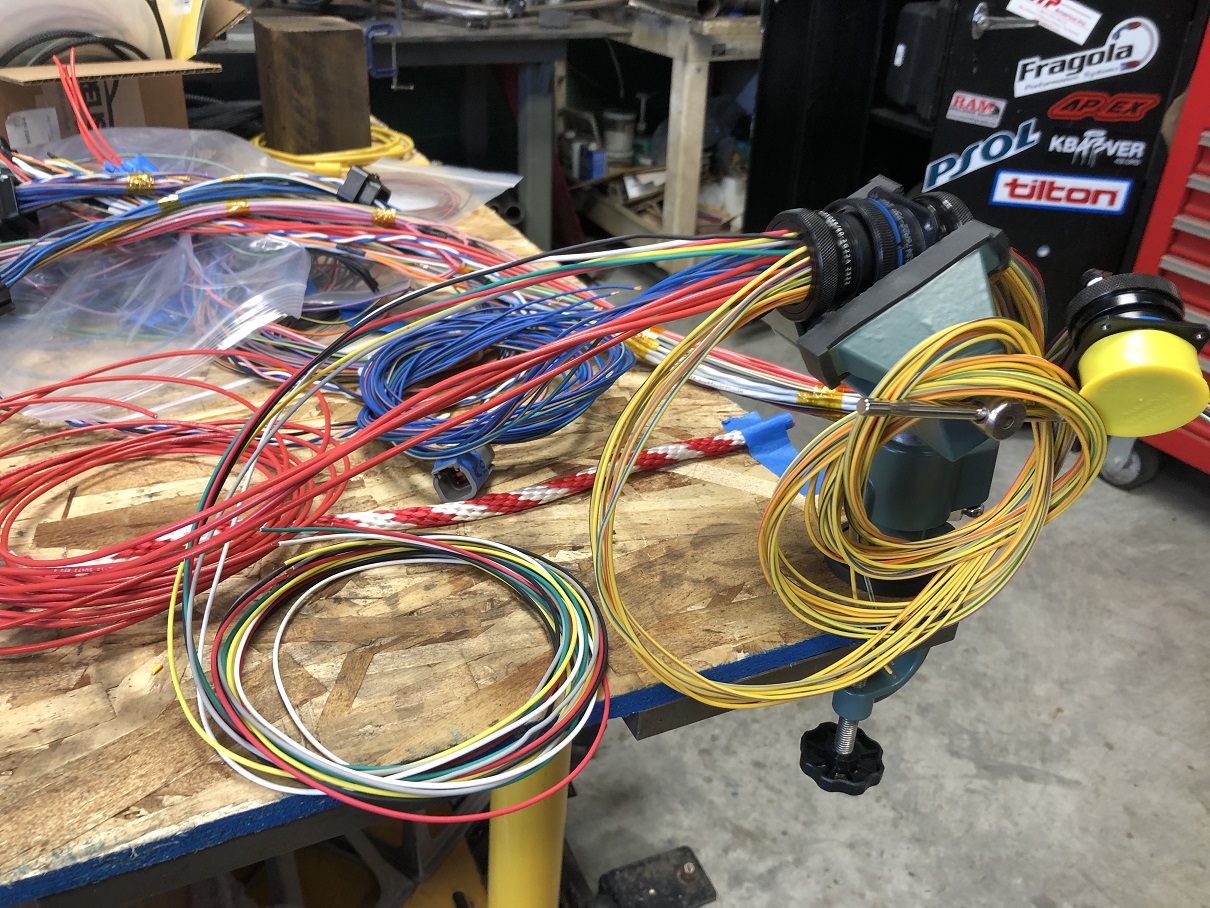

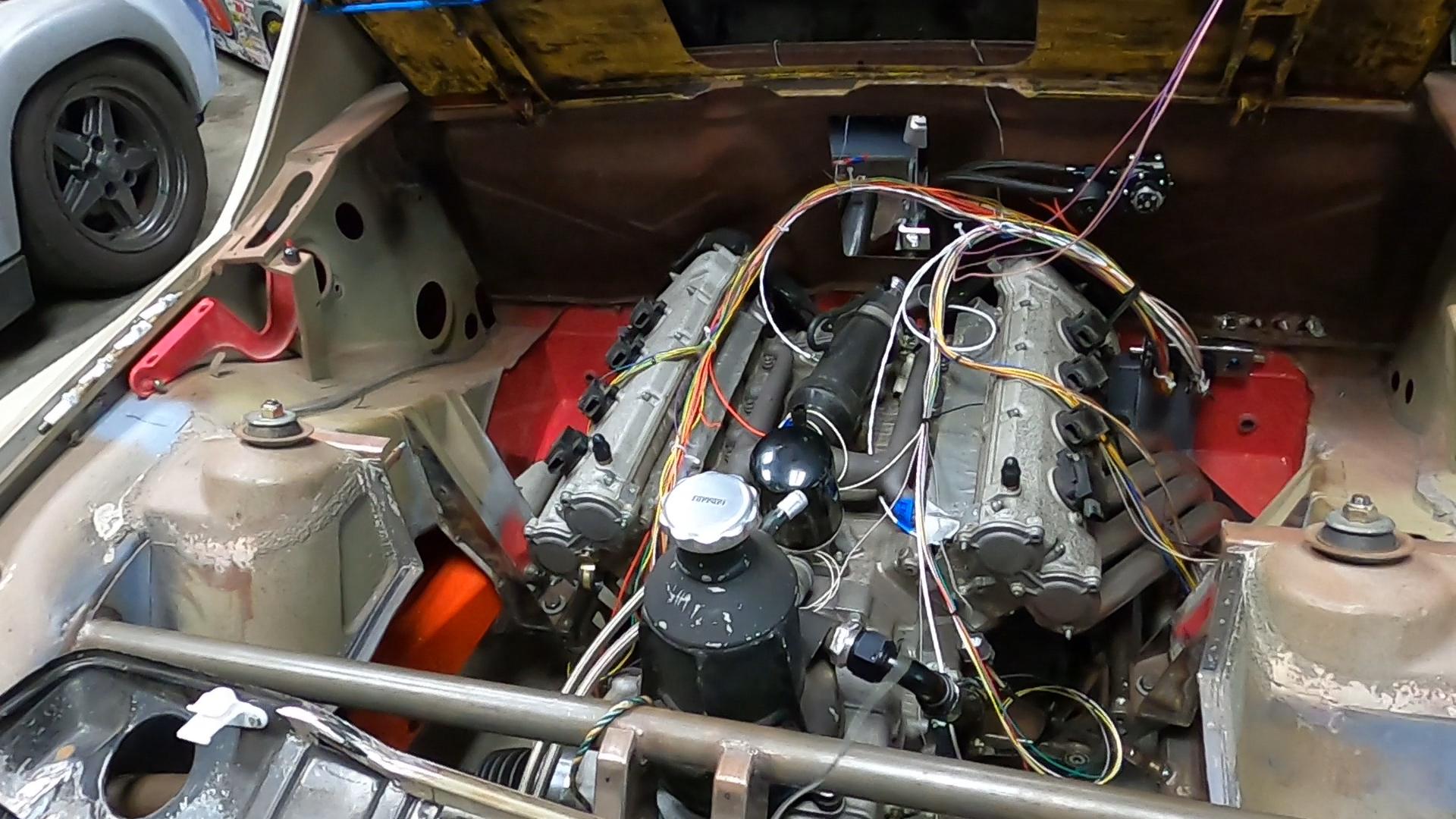

Back on the wiring after some other, short-term projects. Here's the first of the engine-side harness runs with the lengths rough trimmed. You can see the candy cane mock up that I use to set the base lengths of each circuit. Connections are end-to-end tested as I go and everything shown here is working as planned.
I needed to order a few additional bits that are due to arrive tomorrow so I should be good to complete the engine harness wiring in the next week or so.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Jan 23 2025, 09:14 PM
Post #1304


914 Guru
*****

Group: Members
Posts: 8,360
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
That's a few more wires than in a Model T.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dion
post Jan 24 2025, 08:14 AM
Post #1305


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Congrats on the Cayman Chris. Looks awesome. Keep the vids coming. Always learning something. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Jan 24 2025, 08:23 AM
Post #1306


Michael
**********

Group: Members
Posts: 10,311
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
(IMG:style_emoticons/default/popcorn[1].gif) (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 24 2025, 09:38 AM
Post #1307


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Dion @ Jan 24 2025, 06:14 AM) *

Congrats on the Cayman Chris. Looks awesome. Keep the vids coming. Always learning something. (IMG:style_emoticons/default/beerchug.gif)

@Dion - Thanks Dion! Gotta say, the Cayman is everthing the reviewers say it is. Driving it has been a contributing factor to the slow down on this build!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jan 24 2025, 12:31 PM
Post #1308


914 Guru
*****

Group: Members
Posts: 7,021
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
I apologize if I’ve missed it in videos or other posts - what software (if any) are you using for wiring diagram and keeping track of circuit pin outs?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 24 2025, 02:53 PM
Post #1309


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Superhawk996 @ Jan 24 2025, 10:31 AM) *

I apologize if I’ve missed it in videos or other posts - what software (if any) are you using for wiring diagram and keeping track of circuit pin outs?

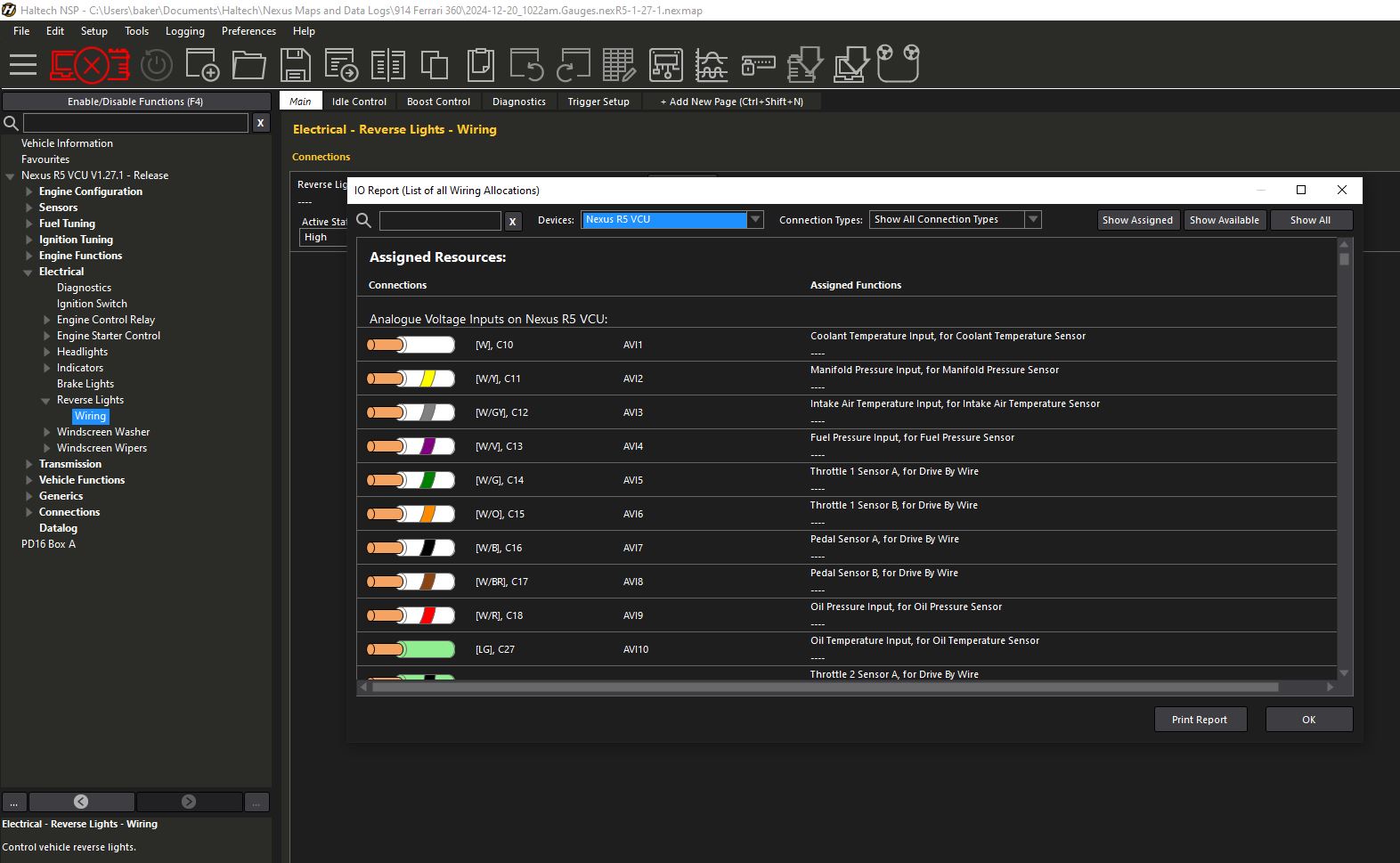

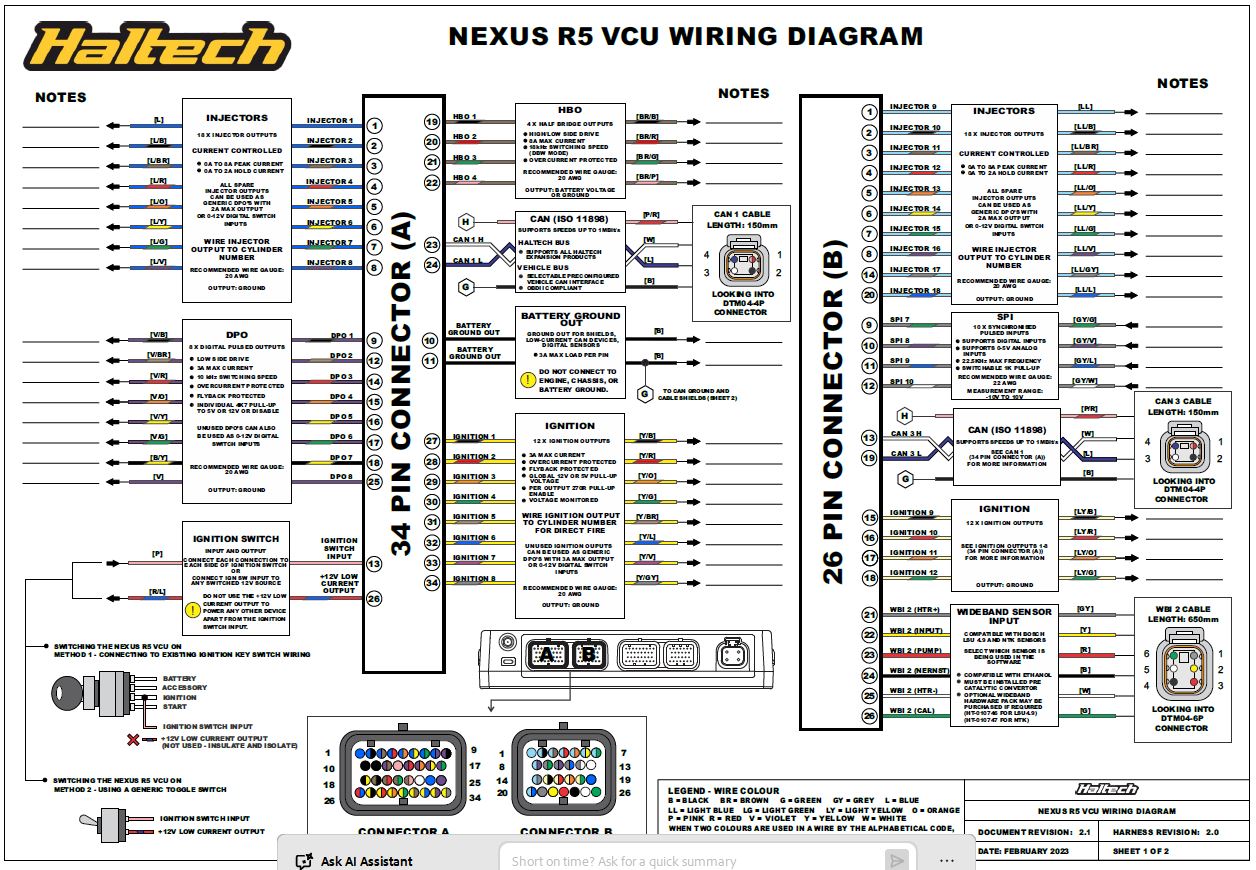

@Superhawk996 - Haltech does a great job providing easy access to the needed info. Beyond the expected generic wiring schematics, the ECU has a built-in I/O (input/output) report capability. Once you've set up which pins do what (outside of the hard coded stuff like ignition, injection, O2, etc.) you can generate a report. I find this REALLY handy when I'm building the harness as I can reference not just a pin # but an easy way to double check I'm working with the correct wire.

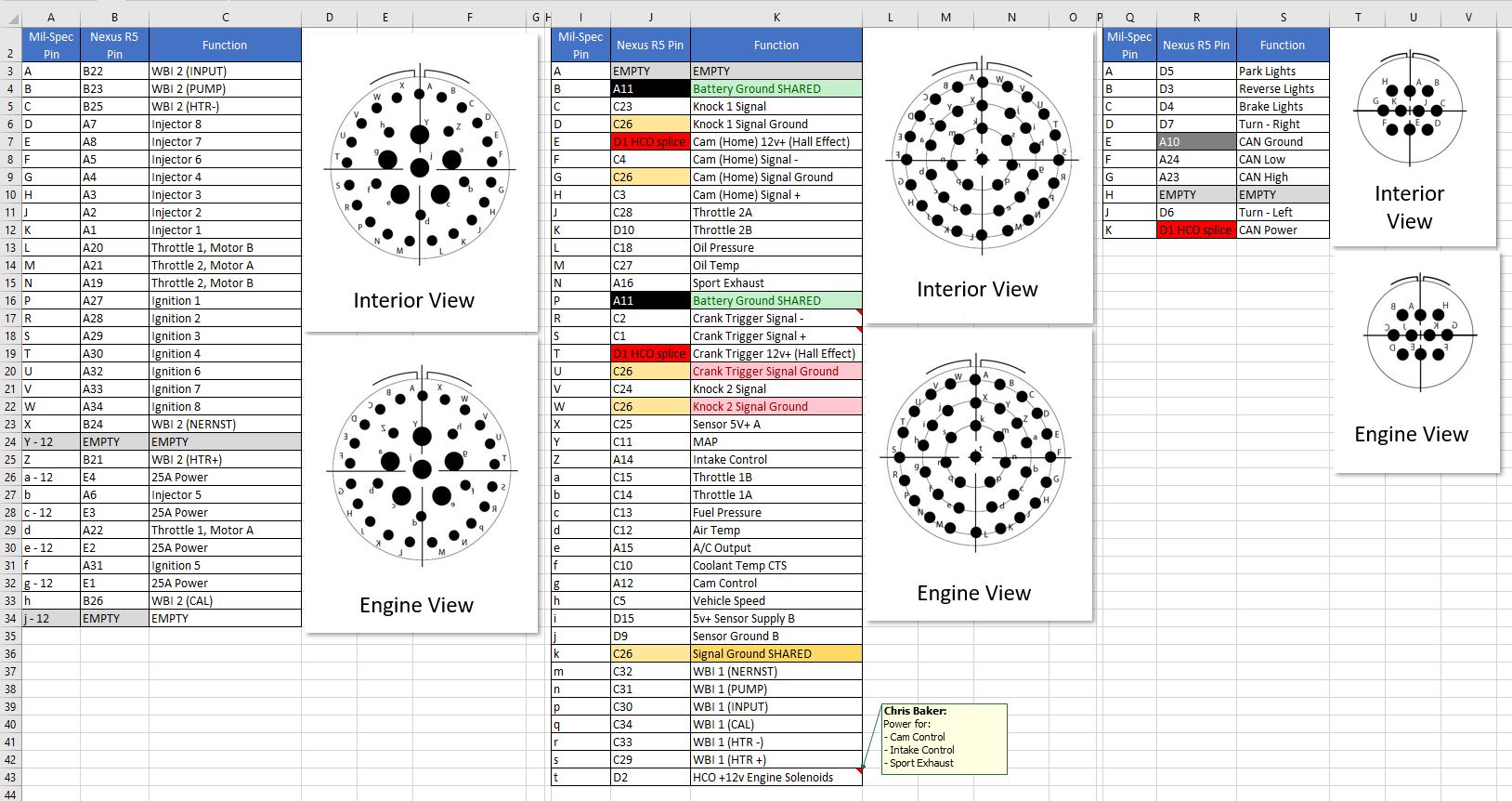

Then, for the specifics of my build, I simply created a spreadsheet to document the connections from the ECU to the bulk head.
Add up all these references and I have everything I need. And pretty much anyone who's done even a little wiring could look at all this and be able to understand it.


Attached thumbnail(s)
Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jan 24 2025, 03:49 PM
Post #1310


Life's been good to me so far.....
***************

Group: Admin
Posts: 16,300
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
Looks like you forgot the yellow wire to the starter. (IMG:style_emoticons/default/poke.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
technicalninja
post Jan 24 2025, 04:52 PM
Post #1311


Advanced Member
****

Group: Members
Posts: 2,531
Joined: 31-January 23
From: Granbury Texas
Member No.: 27,135
Region Association: Southwest Region
QUOTE(tygaboy @ Jan 24 2025, 02:53 PM) *

QUOTE(Superhawk996 @ Jan 24 2025, 10:31 AM) *

I apologize if I’ve missed it in videos or other posts - what software (if any) are you using for wiring diagram and keeping track of circuit pin outs?

@Superhawk996 - Haltech does a great job providing easy access to the needed info. Beyond the expected generic wiring schematics, the ECU has a built-in I/O (input/output) report capability. Once you've set up which pins do what (outside of the hard coded stuff like ignition, injection, O2, etc.) you can generate a report. I find this REALLY handy when I'm building the harness as I can reference not just a pin # but an easy way to double check I'm working with the correct wire.
Then, for the specifics of my build, I simply created a spreadsheet to document the connections from the ECU to the bulk head.
Add up all these references and I have everything I need. And pretty much anyone who's done even a little wiring could look at all this and be able to understand it.


Factory service manuals should be like that!
Super nice documentation!

Make DAMN sure to print hard copies occasionally.

If you have the information outside of digital storage, then you NEVER have a problem with the digital stuff.

If it's exclusively on digital...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 24 2025, 07:22 PM
Post #1312


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(ClayPerrine @ Jan 24 2025, 01:49 PM) *

Looks like you forgot the yellow wire to the starter. (IMG:style_emoticons/default/poke.gif)

@ClayPerrine Clay, You need to give me a little more credit. (IMG:style_emoticons/default/smile.gif) The wire to the starter is unlabeled in the current doc. It's one of the 12 ga, 25A wires. The other unlabeled 25A power wires are for the H2O pump, the coils and the injectors.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Jan 24 2025, 07:25 PM
Post #1313


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(technicalninja @ Jan 24 2025, 02:52 PM) *


Make DAMN sure to print hard copies occasionally.
If you have the information outside of digital storage, then you NEVER have a problem with the digital stuff.

If it's exclusively on digital...

@technicalninja - Yep, I print a copy or two of everything for the "user manual". Imagine the next person who works on this thing: (IMG:style_emoticons/default/confused24.gif) (IMG:style_emoticons/default/blink.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Jan 24 2025, 07:47 PM
Post #1314


Life's been good to me so far.....
***************

Group: Admin
Posts: 16,300
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
If you really want it to be Ferrari authentic, the wiring diagrams need to be hand drawn in pencil, and labeled in Italian. Then they need to not match the car. That's how the Ferrari factory did it in the 308 I worked on years ago.

Oh.. and that starter wire needs to change color and gauge 3 times between the ignition switch and the starter. And it has to have a cold solder joint in it too.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
technicalninja
post Jan 24 2025, 10:53 PM
Post #1315


Advanced Member
****

Group: Members
Posts: 2,531
Joined: 31-January 23
From: Granbury Texas
Member No.: 27,135
Region Association: Southwest Region
I was one of the last factory "authorized" Fiat technicians in the early 80's when they were getting the HELL out of the United States...

The "Authorization" included a Catholic like Blessing of the cross on your body.

Every bit as disturbing as it sounds, creepy as shit...

Ninja proverb: (IMG:style_emoticons/default/ninja.gif)

The wire color actually installed in the harness was directly dependent on how much wine Luigi had the night before.

I learned to read wiring diagrams on incorrect diagrams in another language and possibly mislabeled from a completely different model...

When they look like Tygaboy's stuff 95% of that battle is AVOIDED!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Jan 25 2025, 12:00 AM
Post #1316


914 Guru
*****

Group: Members
Posts: 7,021
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
Very slick. Thank you for sharing that. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
KSCarrera
post Jan 25 2025, 04:40 AM
Post #1317


Member
**

Group: Members
Posts: 324
Joined: 31-January 19
From: UK
Member No.: 22,846
Region Association: England
(IMG:http://www.914world.com/bbs2/uploads_offsite/i.postimg.cc-22846-1737801606.1.jpg)

A nice aside is that the 4.0-litre Caymans are built at Osnabrück where our beloved 914s were assembled... Karmann is very proud of their links with Porsche and have an example of every car they've built in their factory museum.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Feb 6 2025, 06:41 PM
Post #1318


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

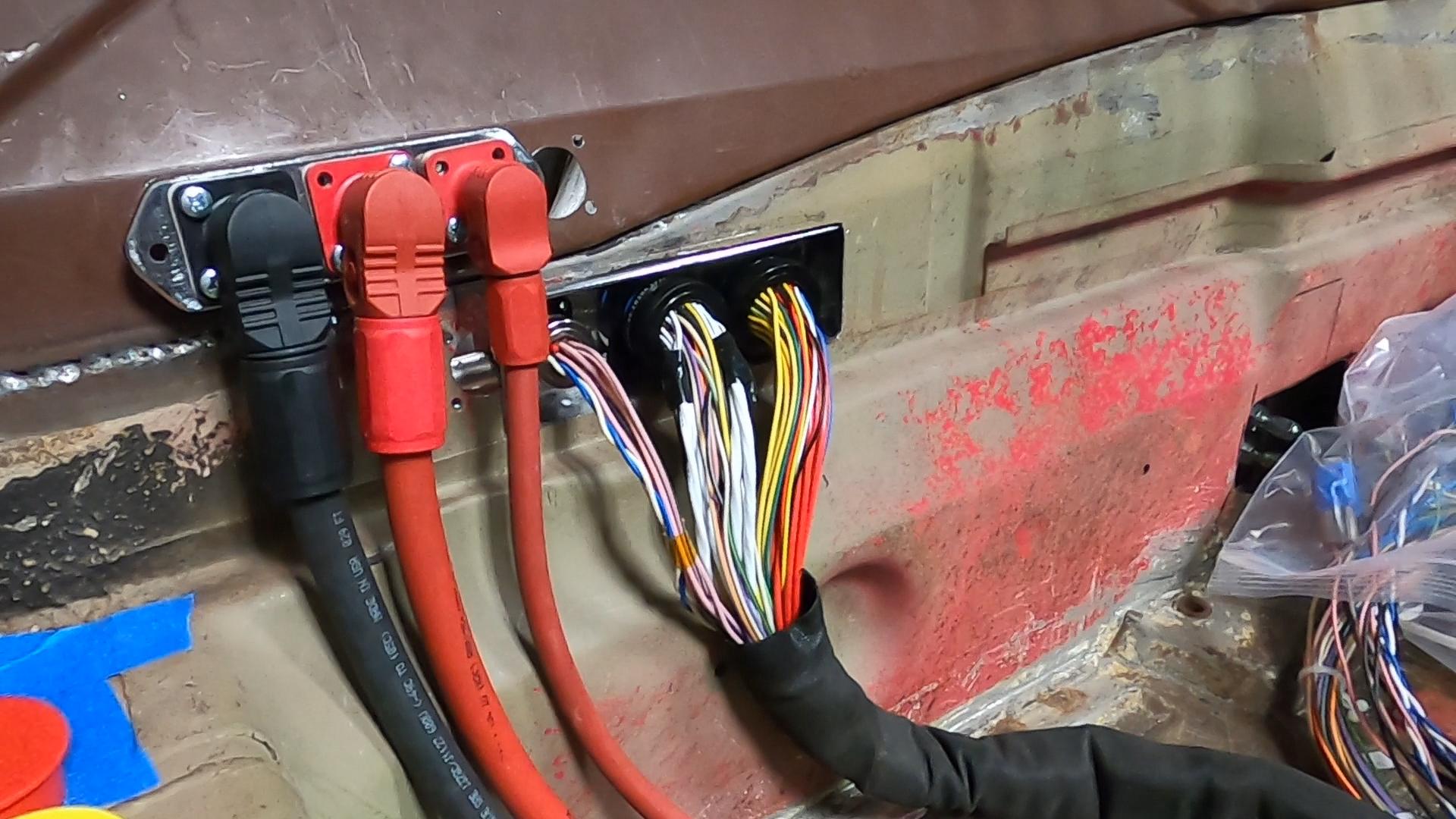

Making progress. I fabbed a recessed bulkhead connector panel to create more space for the harness. Then it was work up a pass-through for the 12v feeds for the ECU and the power distributon module. All the panels are just set in place so things aren't positioned exactly as they will be.
I'll be making a cover for all this that'll get upholstered and hide everyting.


Attached thumbnail(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Feb 7 2025, 05:54 AM
Post #1319


Senior Member
***

Group: Members
Posts: 1,841
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
Nice and clean, I like it. I’m sure you’ll be glad to move on from wiring, I know I was. It does seem fitting to put the proper amount of attention on the pasta in this Italian dish!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Lof8
post Feb 7 2025, 07:18 AM
Post #1320


Newbie
*

Group: Members
Posts: 47
Joined: 29-December 23
From: Bradenton, FL
Member No.: 27,823
Region Association: South East States
Looking real nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
