> 914 GT 3.6 Ferrari Build, - Wiring underway!
tygaboy
post Mar 6 2025, 10:52 PM
Post #1341


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California

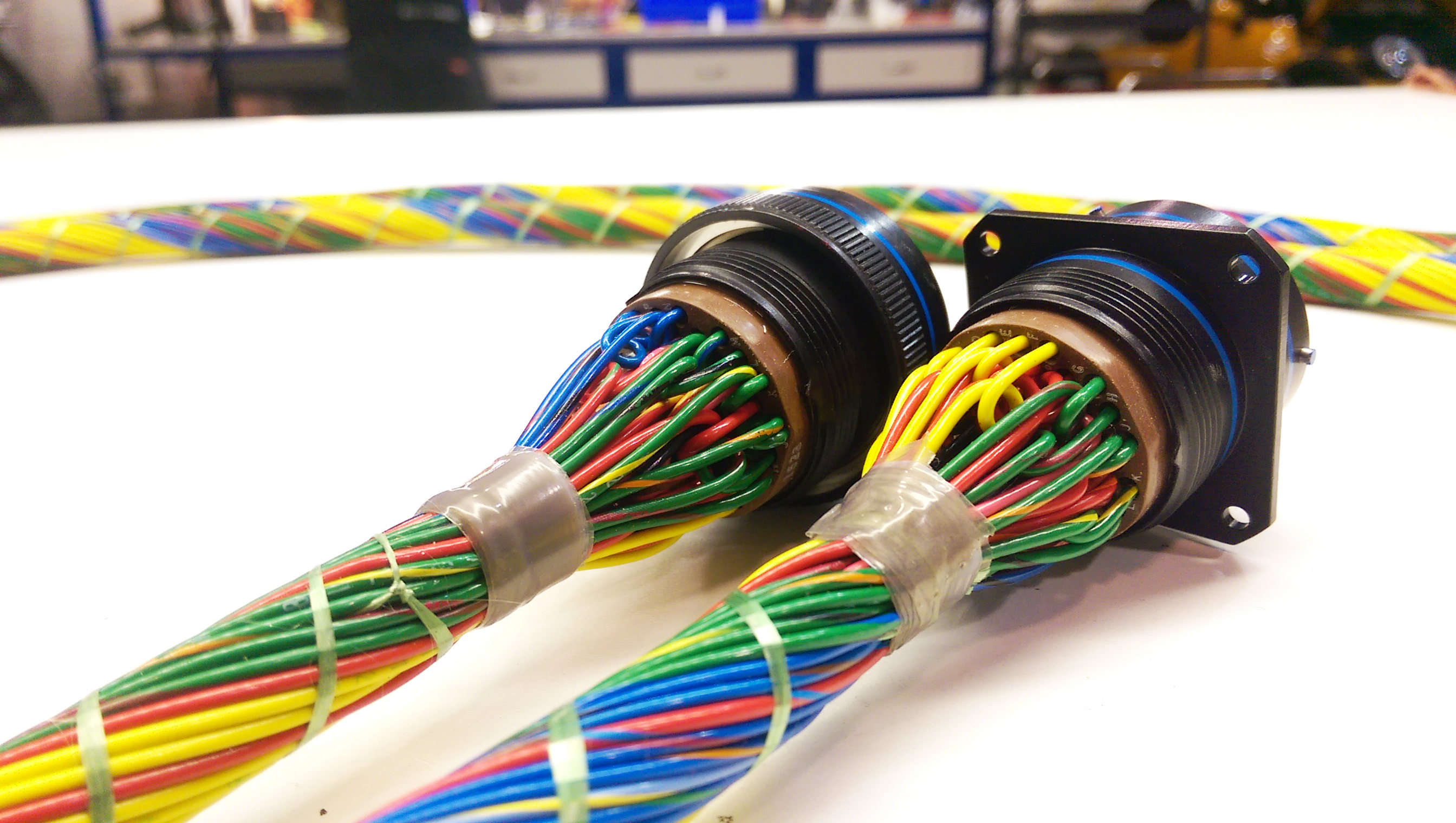

Engine harness Version 1 is nearly done and will be used to get the car running and dialed in. But those of you who know me know Version 2 can't be far behind. And it's not.
So, here I go: my first time building a full motorsport-level, concentric twist harness.
There are a host of formulas, measurements and general best-practices that need to be followed and they take 4-5 times as long to build as a conventional harness.

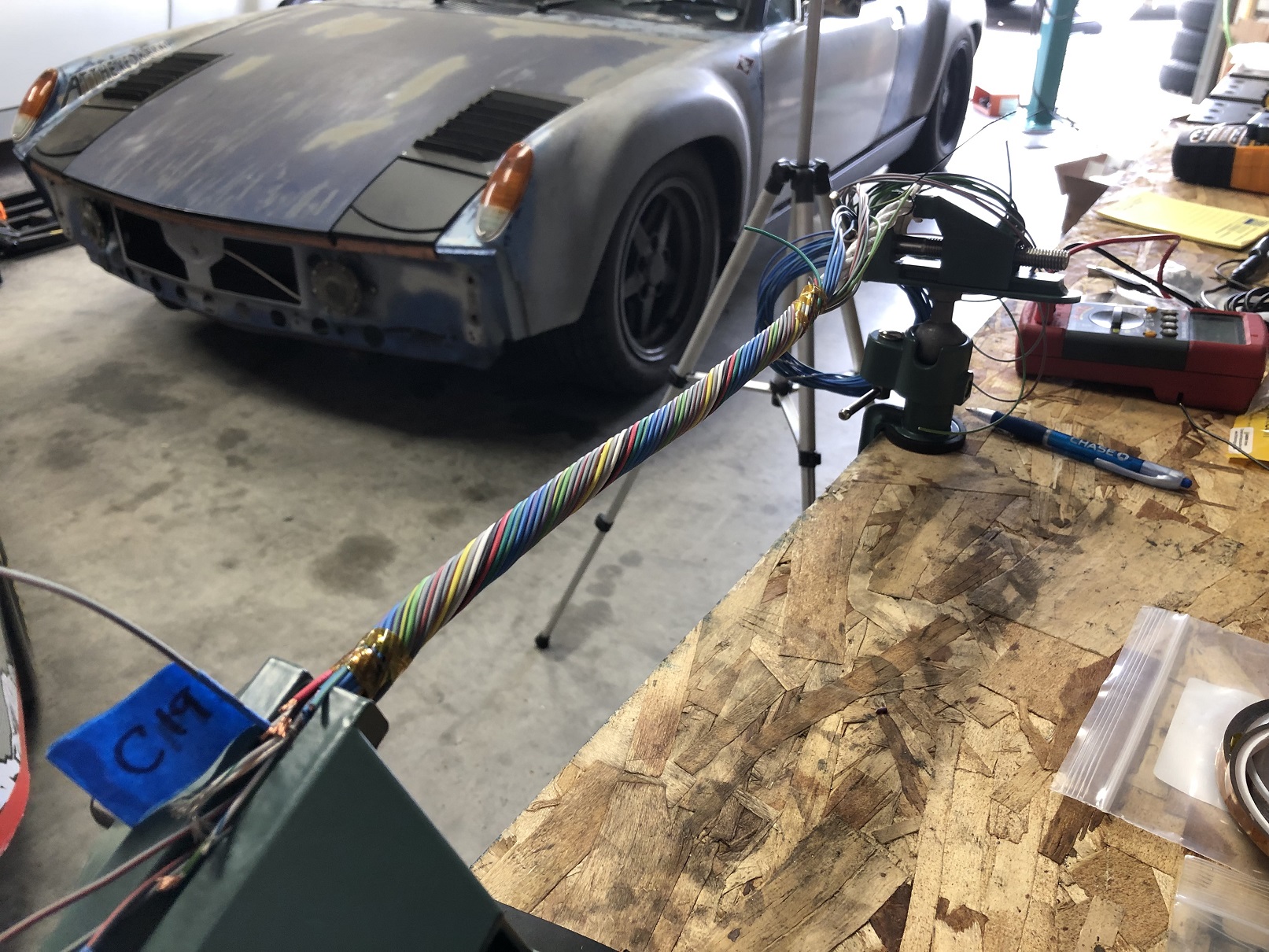

Today I started by constructing a test section that helps validate the design. This is only the core and initial layer. Pretty, no? (IMG:style_emoticons/default/wub.gif)

I'll be covering all the details of this effort in episodes At The Red Barn and posting occasional pics here. I'm really excited to try my hand at this.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Mar 7 2025, 07:58 AM
Post #1342


Michael
**********

Group: Members
Posts: 10,310
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
That is pretty; can't wait to see this progress. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 24 2025, 08:34 AM
Post #1343


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
The latest update:

https://www.youtube.com/watch?v=7vRsBe4UW5E
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Mar 24 2025, 09:01 AM
Post #1344


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 8,905
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Why the concentric twist? Have not seen that before.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 24 2025, 09:51 AM
Post #1345


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(JeffBowlsby @ Mar 24 2025, 08:01 AM) *

Why the concentric twist? Have not seen that before.

@JeffBowlsby Jeff- there's a bunch of info available but in short, with this approach, the harness is as small as possible (due to the type of wire used), remains very flexible, it keeps everything neat and tidy and ensures none of the wires in the harness see more stress than others.

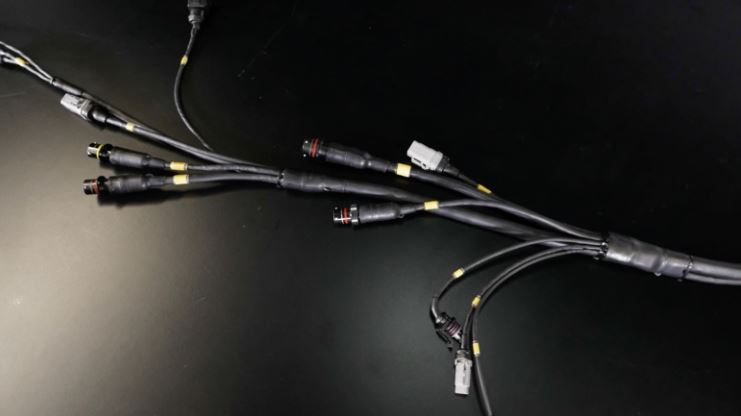

There are "service loops" (pictured) at the connectors to facilitate repair if that's ever needed.
Also, the entire harness is sealed - every connector is booted, every branch point epoxied and strain relieved. No exposed conductors anywhere. (also pictured)
Yes, it's totally unnecessary for what I'm up to with a street car. But as the saying goes:
There's no kill like overkill!


Attached thumbnail(s)
Attached Image

Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Mar 24 2025, 07:31 PM
Post #1346


914 Historian
*****

Group: Benefactors
Posts: 5,262
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244
Region Association: Canada
But how much does the concentric twist shorten the harness or did you add the extra length in to start with?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 24 2025, 07:41 PM
Post #1347


914 Guru
*****

Group: Members
Posts: 8,360
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(davep @ Mar 24 2025, 06:31 PM) *

But how much does the concentric twist shorten the harness or did you add the extra length in to start with?


That's my question. A straight wire is the shortest route, right?

But way cool.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 24 2025, 08:51 PM
Post #1348


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
@davep @bkrantz A concentric twist harness is built to the same dimension since it still has to connect to everything, but uses 15-20% more wire length. The twist and service loops takes some length and, depending on the branching approach, some extra length is used there, too.
But the wire that's typically used (Tefzel M22759/32) is smaller diameter and lighter, due to the type of insulation is uses.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post Mar 25 2025, 07:18 PM
Post #1349


914 Guru
*****

Group: Members
Posts: 8,360
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains
QUOTE(tygaboy @ Mar 24 2025, 07:51 PM) *

@davep @bkrantz A concentric twist harness is built to the same dimension since it still has to connect to everything, but uses 15-20% more wire length. The twist and service loops takes some length and, depending on the branching approach, some extra length is used there, too.
But the wire that's typically used (Tefzel M22759/32) is smaller diameter and lighter, due to the type of insulation is uses.


And cool.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 29 2025, 06:59 AM
Post #1350


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
Enough with the wiring! Well, at least for a bit. Let's work on the cooling system and learn about what NOT to do when welding aluminum. (IMG:style_emoticons/default/wacko.gif)

https://www.youtube.com/watch?v=GsExTNbnSNQ
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Mar 29 2025, 07:22 AM
Post #1351


Michael
**********

Group: Members
Posts: 10,310
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
Getting close to turning the key.... (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
East coaster
post Mar 29 2025, 09:36 AM
Post #1352


Senior Member
***

Group: Members
Posts: 1,841
Joined: 28-March 03
From: Millville, NJ
Member No.: 487
Region Association: None
Nice progress! I’ve done the stainless rod mistake and it’s a mess when it happens.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Mar 29 2025, 10:59 AM
Post #1353


914 Guru
*****

Group: Members
Posts: 7,019
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch

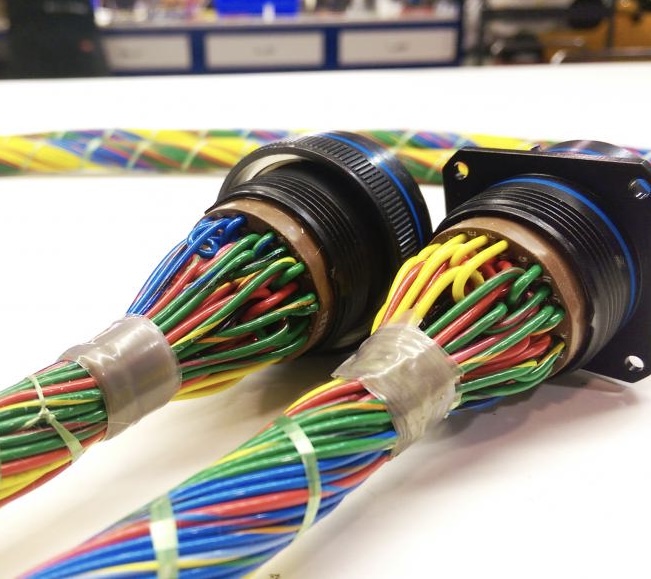

Always impressed with your craftsmanship on the wiring. (IMG:style_emoticons/default/first.gif) Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Mar 30 2025, 08:59 AM
Post #1354


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
QUOTE(Superhawk996 @ Mar 29 2025, 09:59 AM) *

Always impressed with your craftsmanship on the wiring. (IMG:style_emoticons/default/first.gif) Attached Image

@Superhawk996 - To be clear, that's an example of what I'm attempting but that's NOT my work! I aspire to that level of result but we'll have to wait to see how close I can get!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Mar 30 2025, 11:05 AM
Post #1355


914 Guru
*****

Group: Members
Posts: 7,019
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(tygaboy @ Mar 30 2025, 10:59 AM) *


@Superhawk996 - To be clear, that's an example of what I'm attempting but that's NOT my work! I aspire to that level of result but we'll have to wait to see how close I can get!

(IMG:style_emoticons/default/laugh.gif) Appreciate the honesty! Based on the photo of your twisting work and what I’ve seen of your wiring on the V8, I assumed that was your work. I have no doubt you’ll pull it off!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Dion
post Apr 3 2025, 07:15 AM
Post #1356


RN
****

Group: Members
Posts: 2,839
Joined: 16-September 04
From: Audubon,PA
Member No.: 2,766
Region Association: MidAtlantic Region
Loving the videos on the YouTube! Have to say I’m always learning something.
The Tig worked out in the end. (IMG:style_emoticons/default/biggrin.gif)
Look forward to more Chris.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 6 2025, 08:17 AM
Post #1357


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
The coolant plumbing is coming along:

https://www.youtube.com/watch?v=hvvDfRKGELc
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cairo94507
post Apr 6 2025, 09:23 AM
Post #1358


Michael
**********

Group: Members
Posts: 10,310
Joined: 1-November 08
From: Auburn, CA
Member No.: 9,712
Region Association: Northern California
I really enjoy the videos; Chris takes the time to explain everything as he walks us through his plan from beginning to end. (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tygaboy
post Apr 12 2025, 07:52 AM
Post #1359


914 Guru
*****

Group: Members
Posts: 5,557
Joined: 6-October 15
From: Petaluma, CA
Member No.: 19,241
Region Association: Northern California
More stuff getting done means less left to do before I try and start this thing!

https://www.youtube.com/watch?v=yiQ9OoCeNUU
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Apr 12 2025, 08:02 AM
Post #1360


Apex killer!
***************

Group: Members
Posts: 24,018
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California
QUOTE(tygaboy @ Mar 24 2025, 11:51 PM) *

@davep @bkrantz A concentric twist harness is built to the same dimension since it still has to connect to everything, but uses 15-20% more wire length. The twist and service loops takes some length and, depending on the branching approach, some extra length is used there, too.
But the wire that's typically used (Tefzel M22759/32) is smaller diameter and lighter, due to the type of insulation is uses.


If you used Tefzel that harness is likely more expensive than my car was when I bought it!

I see signs that someone took the High Performance Academy Motorsports wiring course?
