 Do I have the rear engine seal upside-down? |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| bkrantz |
 May 24 2022, 08:28 PM
Post
#1
|
|
914 Guru  Group: Members Posts: 8,381 Joined: 3-August 19 From: SW Colorado Member No.: 23,343 Region Association: Rocky Mountains
 |

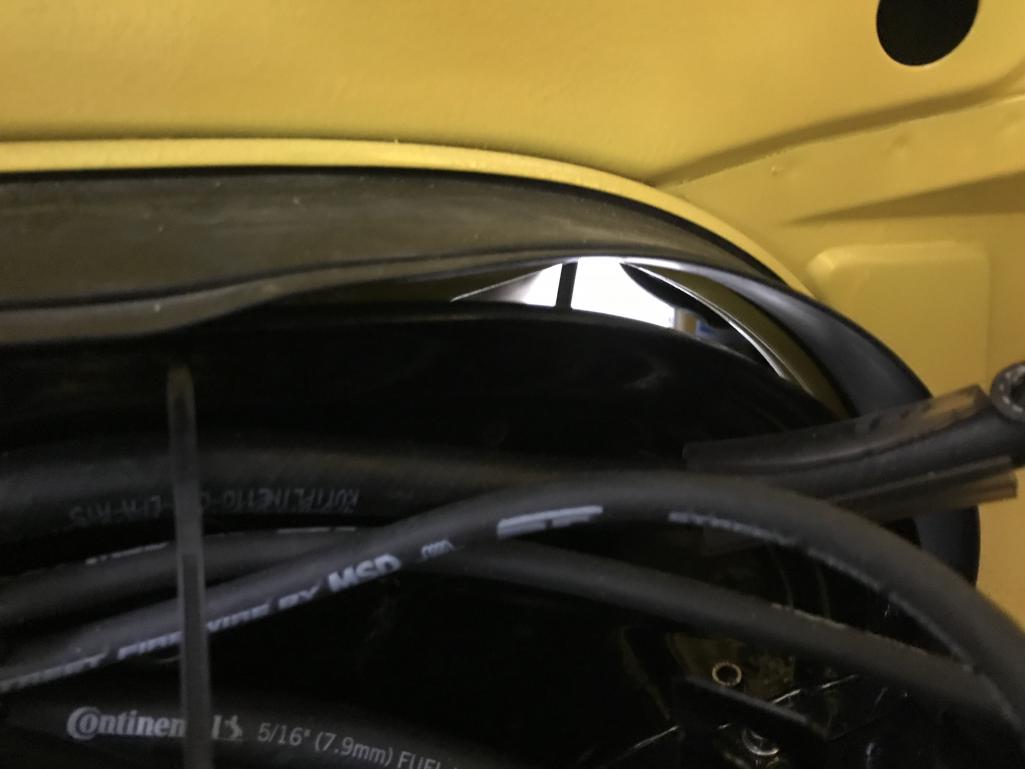

I noticed (and then forgot) this when I first installed the engine, but the rear seal across the vertical sheet metal does not lie close to sealing along the sides. Did I install the rubber upside-down? The shorter flap is on top.
Attached thumbnail(s)
|
   |

|
| 914werke |
May 24 2022, 09:48 PM
Post
#2
|
|
"I got blisters on me fingers" Group: Members Posts: 11,273 Joined: 22-March 03 From: USofA Member No.: 453 Region Association: Pacific Northwest
|
Looks correct but you need to coax the back flap to the Trans side of the R. tin
|
 |
|
| mgphoto |
May 25 2022, 08:49 AM
Post
#3
|
|
"If there is a mistake it will find me" Group: Members Posts: 1,375 Joined: 1-April 09 From: Los Angeles, CA Member No.: 10,225 Region Association: Southern California |
The engine tin fits between the two flaps, one flap in the engine compartment and one in the transmission section.
|
|
|
|
|
