> Front Recovery Tow Point, Jman Option
jdamiano
post Sep 4 2022, 06:16 PM
Post #1


Member
**

Group: Members
Posts: 334
Joined: 18-March 18
From: Jacksonville
Member No.: 21,981
Region Association: South East States

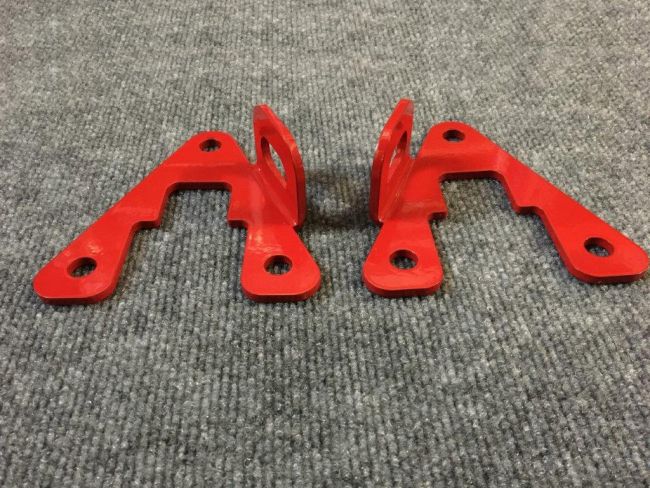

My car has dealership installed AC so the front tow point is gone. I got it with a bent drop link I’m sure was the result of a past tow. I’m trying to figure out what my options are and found these tie downs from Jman. Has anyone used these or something similar? If so I would really appreciate a picture of one installed.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mlindner
post Sep 5 2022, 06:19 AM
Post #2


Senior Member
***

Group: Members
Posts: 1,320
Joined: 11-November 11
From: Merrimac, WI
Member No.: 13,770
Region Association: Upper MidWest
Yes, those are 911 type and will fit. But, not with the front valance on without cutting holes in it. Mark
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AzGuy238
post Sep 5 2022, 06:25 AM
Post #3


Newbie
*

Group: Members
Posts: 21
Joined: 26-July 20
From: Montgomery, TX
Member No.: 24,536
Region Association: Southwest Region
I have them on my 1976 and they seem to work fine even with the valance
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TX914
post Sep 5 2022, 06:34 AM
Post #4


Alan-B
**

Group: Members
Posts: 156
Joined: 27-July 14
From: USA
Member No.: 17,689
Region Association: None
I have a similar situation and looked into a tow loop last year. Here's a thread discussing some options: http://www.914world.com/bbs2/index.php?showtopic=353132

I went with a tow loop from Patrick Motorsports because it provides ground clearance and clears the LE spoiler. I don't know if it will clear the stock valance.
I do wish it was parallel to the ground vs. the mount point. Easy to install with the wheel off the ground.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jdamiano
post Sep 5 2022, 07:05 AM
Post #5


Member
**

Group: Members
Posts: 334
Joined: 18-March 18
From: Jacksonville
Member No.: 21,981
Region Association: South East States
QUOTE(AzGuy238 @ Sep 5 2022, 06:25 AM) *

I have them on my 1976 and they seem to work fine even with the valance


Can you post a picture? I would like to see one installed. Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
infraredcalvin
post Sep 5 2022, 11:15 AM
Post #6


Distracted Member
***

Group: Members
Posts: 1,376
Joined: 25-August 08
From: Ladera Ranch, CA
Member No.: 9,463
Region Association: Southern California
QUOTE(jdamiano @ Sep 4 2022, 05:16 PM) *

My car has dealership installed AC so the front tow point is gone. I got it with a bent drop link I’m sure was the result of a past tow. I’m trying to figure out what my options are and found these tie downs from Jman. Has anyone used these or something similar? If so I would really appreciate a picture of one installed.


I’m assuming you have to install a spacer on the front bolt?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AzGuy238
post Sep 5 2022, 11:44 AM
Post #7


Newbie
*

Group: Members
Posts: 21
Joined: 26-July 20
From: Montgomery, TX
Member No.: 24,536
Region Association: Southwest Region

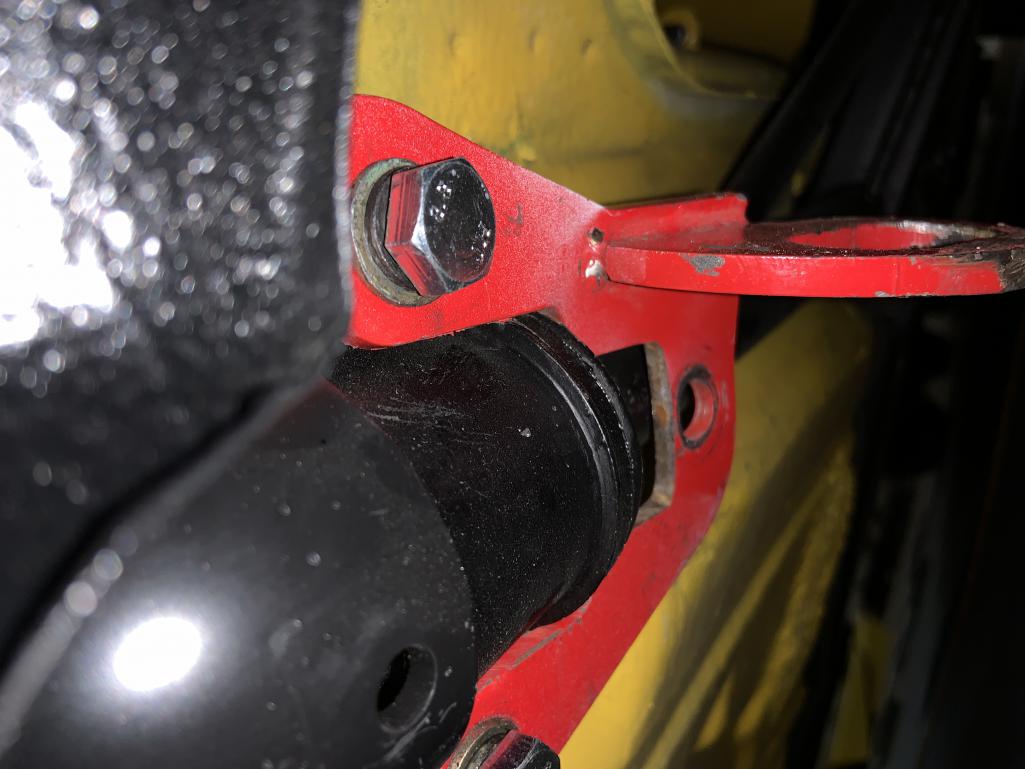

I actually reversed them and only use the two bolt holes on the side...use Grade 8 bolts.Attached Image Attached ImageAttached ImageAttached Image[attachmentid=850
315]
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
AzGuy238
post Sep 5 2022, 11:58 AM
Post #8


Newbie
*

Group: Members
Posts: 21
Joined: 26-July 20
From: Montgomery, TX
Member No.: 24,536
Region Association: Southwest Region
sorry, I'm not very good at posting photos
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jdamiano
post Sep 5 2022, 12:06 PM
Post #9


Member
**

Group: Members
Posts: 334
Joined: 18-March 18
From: Jacksonville
Member No.: 21,981
Region Association: South East States
QUOTE(AzGuy238 @ Sep 5 2022, 11:44 AM) *

I actually reversed them and only use the two bolt holes on the side...use Grade 8 bolts.Attached Image Attached ImageAttached ImageAttached Image[attachmentid=850
315]


Thanks. That was the info I needed. I just ordered. Hopefully I will never need to use it but if I do it will be there.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Sep 5 2022, 01:05 PM
Post #10


Advanced Member
****

Group: Members
Posts: 4,848
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
Duplicate
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Sep 5 2022, 01:07 PM
Post #11


Advanced Member
****

Group: Members
Posts: 4,848
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
By turning those around and eliminating the 3rd fastener you are likey going to find that they fold up when you need them.

Two fasteners creates a hinge point where they will bend when loaded.

Also front suspension fasteners should be Grade 10.9 not 8.8.

Metric grade 8.8 is basically equivalent to SAE grade 5.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jdamiano
post Sep 5 2022, 01:27 PM
Post #12


Member
**

Group: Members
Posts: 334
Joined: 18-March 18
From: Jacksonville
Member No.: 21,981
Region Association: South East States
QUOTE(Superhawk996 @ Sep 5 2022, 01:07 PM) *

By turning those around and eliminating the 3rd fastener you are likey going to find that they fold up when you need them.

Two fasteners creates a hinge point where they will bend when loaded.

Also front suspension fasteners should be Grade 10.9 not 8.8.

Metric grade 8.8 is basically equivalent to SAE grade 5.


If it fold great. Maybe it will create more clearance causing less chance of damage to the valance. I might also gusset it on the sides. Never work on my baja bug since it gets pulled hard sometimes. I had it up to the doors in mud a few months ago and it got snatched hard. Hopefully I never need this and if I do it’s a slow pull onto a flatbed. I’m also going to add a soft shackle to my trunk supply to go from this to any cable the tow guy wants to use.

I will take your advice on the bolts though. Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jdamiano
post Sep 17 2022, 04:40 PM
Post #13


Member
**

Group: Members
Posts: 334
Joined: 18-March 18
From: Jacksonville
Member No.: 21,981
Region Association: South East States

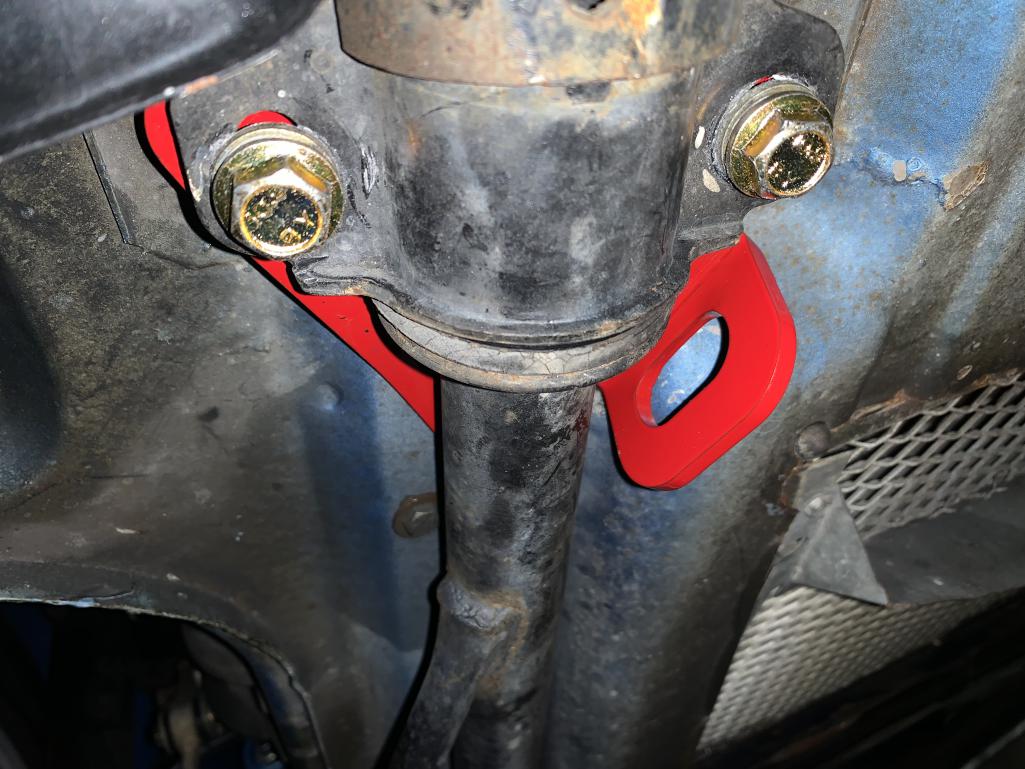

Here is how I ended up mounting the Jman loop.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 17 2022, 05:55 PM
Post #14


I am Tangerine Racing
*****

Group: Members
Posts: 7,831
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
It really shouldn't be between the a-arm carrier and the body.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jdamiano
post Sep 17 2022, 07:16 PM
Post #15


Member
**

Group: Members
Posts: 334
Joined: 18-March 18
From: Jacksonville
Member No.: 21,981
Region Association: South East States
QUOTE(ChrisFoley @ Sep 17 2022, 05:55 PM) *

It really shouldn't be between the a-arm carrier and the body.


I was concerned about that but saw lots of photos on line of people mounting them between. What is it I should be worried about? I don’t want to create a problem for a tow loop.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Sep 17 2022, 08:03 PM
Post #16


Advanced Member
****

Group: Members
Posts: 4,848
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(jdamiano @ Sep 17 2022, 09:16 PM) *

QUOTE(ChrisFoley @ Sep 17 2022, 05:55 PM) *

It really shouldn't be between the a-arm carrier and the body.


I was concerned about that but saw lots of photos on line of people mounting them between. What is it I should be worried about? I don’t want to create a problem for a tow loop.


You’ve now changed the geometry of the suspension.

The most obvious is that the torsion bar will no longer be co-axially centered in the LCA. The rear end of torsion bar is fixed at the cross member. The front of the LCA is now shimmed down by the thickness of the material used (1/8” I’m guessing).

At best - premature wear of the bushings. Worst - torsion bar begins rubbing inside the LCA, wears the bar and the LCA, leads to torsion bar failure.

You will also have changed the anti dive characteristic of the front suspension to some degree.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post Sep 18 2022, 07:54 AM
Post #17


"I got blisters on me fingers"
*****

Group: Members
Posts: 8,782
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest
Confused about intended use? Title says "Tow point" are those actually intended to tow with ? I thought they are more focused as a
Recovery point.
Agree with previous comments, you really need that front bolt as it's the only that penetrates & is seam welded to the tub, & for fitment you have to remove the covers.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jdamiano
post Sep 18 2022, 08:24 AM
Post #18


Member
**

Group: Members
Posts: 334
Joined: 18-March 18
From: Jacksonville
Member No.: 21,981
Region Association: South East States
QUOTE(914werke @ Sep 18 2022, 07:54 AM) *

Confused about intended use? Title says "Tow point" are those actually intended to tow with ? I thought they are more focused as a
Recovery point.
Agree with previous comments, you really need that front bolt as it's the only that penetrates & is seam welded to the tub & for fitment you have to remove the covers.


I’m trying to add a good place to hook a tow cable to in case I need to drag it up my trailer or a tow truck. I haven’t found one 914 specific that doesn’t stick out the front. This one was listed for a 914 but that front bolt no way matches the location on a 914. Also if I install it with the third bolt hole facing forward I can’t reinstall the torsion bar protector. Right now I’m thinking I’m going to keep it pointing the same way but move it below the mount bracket. The loop on this one is closer to the two bolts and shorter than the ones posted earlier in this thread so I think it will be strong enough. If someone has a better solution I’m all ears!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Olympic 914
post Sep 18 2022, 08:41 AM
Post #19



***

Group: Members
Posts: 1,584
Joined: 7-July 11
From: Pittsburgh PA
Member No.: 13,287
Region Association: North East States
I carry a couple motorcycle tie down straps.

Wrap them around the front of the lower A arm.

I have used them multiple time to load car onto trailer or flatbed.

Just keep them in the trunk.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
ChrisFoley
post Sep 18 2022, 08:42 AM
Post #20


I am Tangerine Racing
*****

Group: Members
Posts: 7,831
Joined: 29-January 03
From: Bolton, CT
Member No.: 209
Region Association: None
QUOTE(jdamiano @ Sep 18 2022, 09:24 AM) *


I’m trying to add a good place to hook a tow cable to in case I need to drag it up my trailer or a tow truck. I haven’t found one 914 specific that doesn’t stick out the front.
...
If someone has a better solution I’m all ears!

I will be releasing a new product in just a few weeks which should fully address your needs and concerns.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
