> Belt flying off 4 times now
scottsilvertt
post Sep 20 2022, 08:04 AM
Post #1


scottsilvertt
*

Group: Members
Posts: 40
Joined: 17-May 06
From: South East USA
Member No.: 6,019
Region Association: Northern California



I took my engine out of my car.
Repainted all sheet metal, repaired this and that.

Put the engine back in.

Put on a new German belt, it flew off in 10 minutes. And then again.
Put the old belt on, that has flown off twice.
Using a straight edge, I can measure a 1/2 inch misalignment in the pulleys.

I can’t even imagine how they became misaligned.
I would think it could only go back together one way.

The alternator pulley is further out towards front of car.
With the engine pulley closer to rear of car.
The engine pulley seems nice and flush around its surrounding cover stuff.


I can only imagine that the alt pulley is turned around.
So, I can try flipping that.

But is there a spacer behind the engine pulley? I don’t think I ever removed the engine fan/pulley.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ConeDodger
post Sep 20 2022, 08:30 AM
Post #2


Apex killer!
***************

Group: Members
Posts: 22,790
Joined: 31-December 04
From: Tahoe Area
Member No.: 3,380
Region Association: Northern California



It will fly off d/T misalignment. Doesn’t take much either. I once powder coated the washers and such and started throwing belts like it was a competition. @McMark figured it out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Sep 20 2022, 09:03 AM
Post #3


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,129
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California



Your fan pulley is out of alignment with your alternator pulley, take a straight edge a look to see which direction it is off.
Probably have to remove some of the sheet metal under the car to make adjustments.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Sep 20 2022, 11:10 AM
Post #4


Life's been good to me so far.....
**********

Group: Admin
Posts: 13,832
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille



The factory put a spacer between the fan and the crank. If it is missing, it will cause the misalignment you are seeing. If you can't find the spacer, just put an AC pulley in there. They are the same thickness, and the pulley won't hurt a thing.


Hope that helps.
Clay
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Sep 21 2022, 09:40 AM
Post #5


Senior Member
***

Group: Members
Posts: 1,513
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States



QUOTE(mgphoto @ Sep 20 2022, 09:03 AM) *

Your fan pulley is out of alignment with your alternator pulley, take a straight edge a look to see which direction it is off.
Probably have to remove some of the sheet metal under the car to make adjustments.

(IMG:style_emoticons/default/agree.gif)

Somewhere something didn't get back to where it was. I would put $5. on it
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Eric_Shea
post Sep 21 2022, 11:38 AM
Post #6


PMB Performance
***************

Group: Admin
Posts: 19,176
Joined: 3-September 03
From: Salt Lake City, UT
Member No.: 1,110
Region Association: Rocky Mountains



Flip the pulley
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
TheCabinetmaker
post Sep 22 2022, 10:39 AM
Post #7


I drive my car everyday
*****

Group: Members
Posts: 8,160
Joined: 8-May 03
From: Tulsa, Ok.
Member No.: 666



Flip it.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
GregAmy
post Sep 22 2022, 10:48 AM
Post #8


Senior Member
***

Group: Members
Posts: 1,866
Joined: 22-February 13
From: Middletown CT
Member No.: 15,565
Region Association: North East States



QUOTE(TheCabinetmaker @ Sep 22 2022, 12:39 PM) *

Flip it.

Yup. I put my pulley on backwards during an alt change and that caused it. PITA!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scottsilvertt
post Sep 22 2022, 02:43 PM
Post #9


scottsilvertt
*

Group: Members
Posts: 40
Joined: 17-May 06
From: South East USA
Member No.: 6,019
Region Association: Northern California

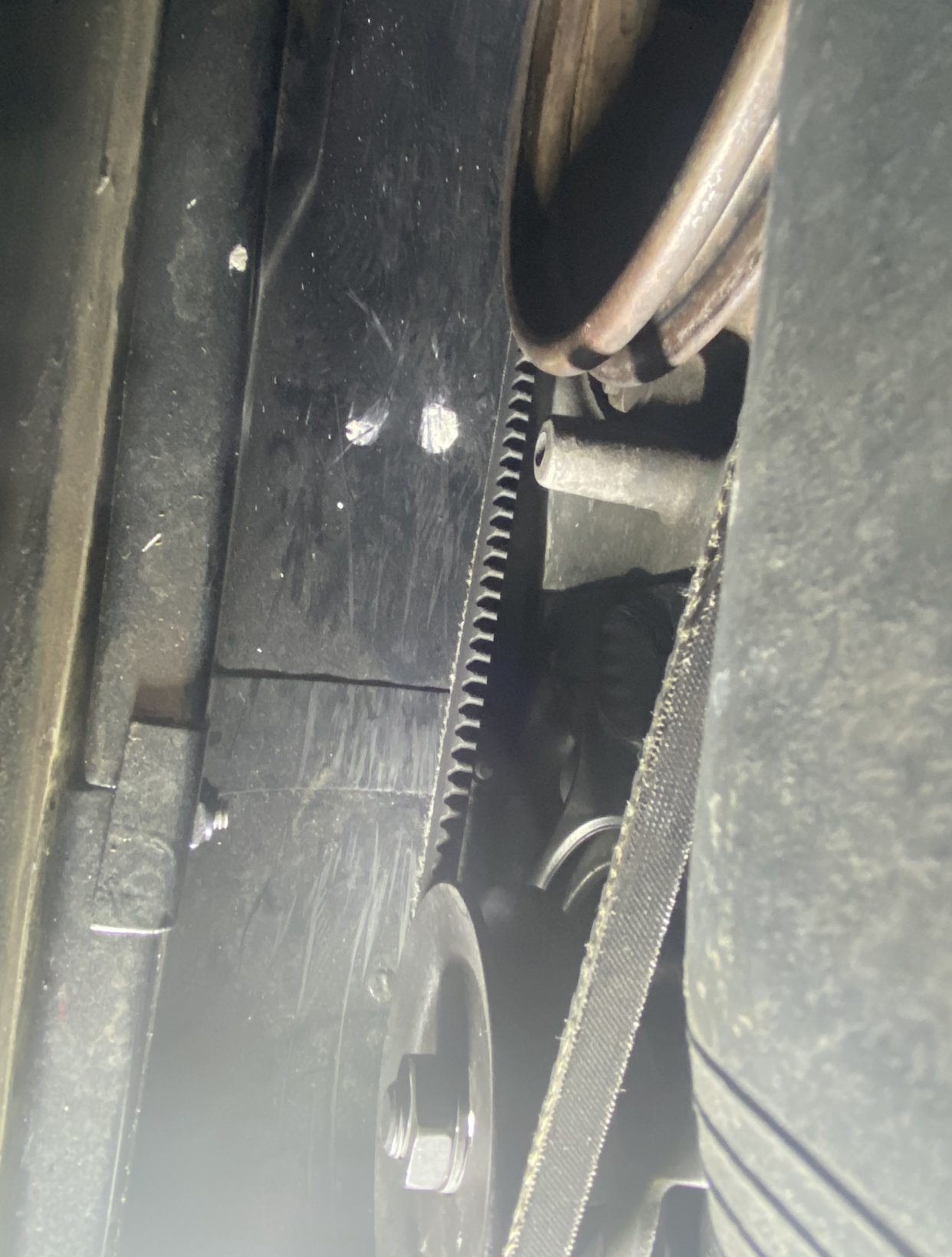

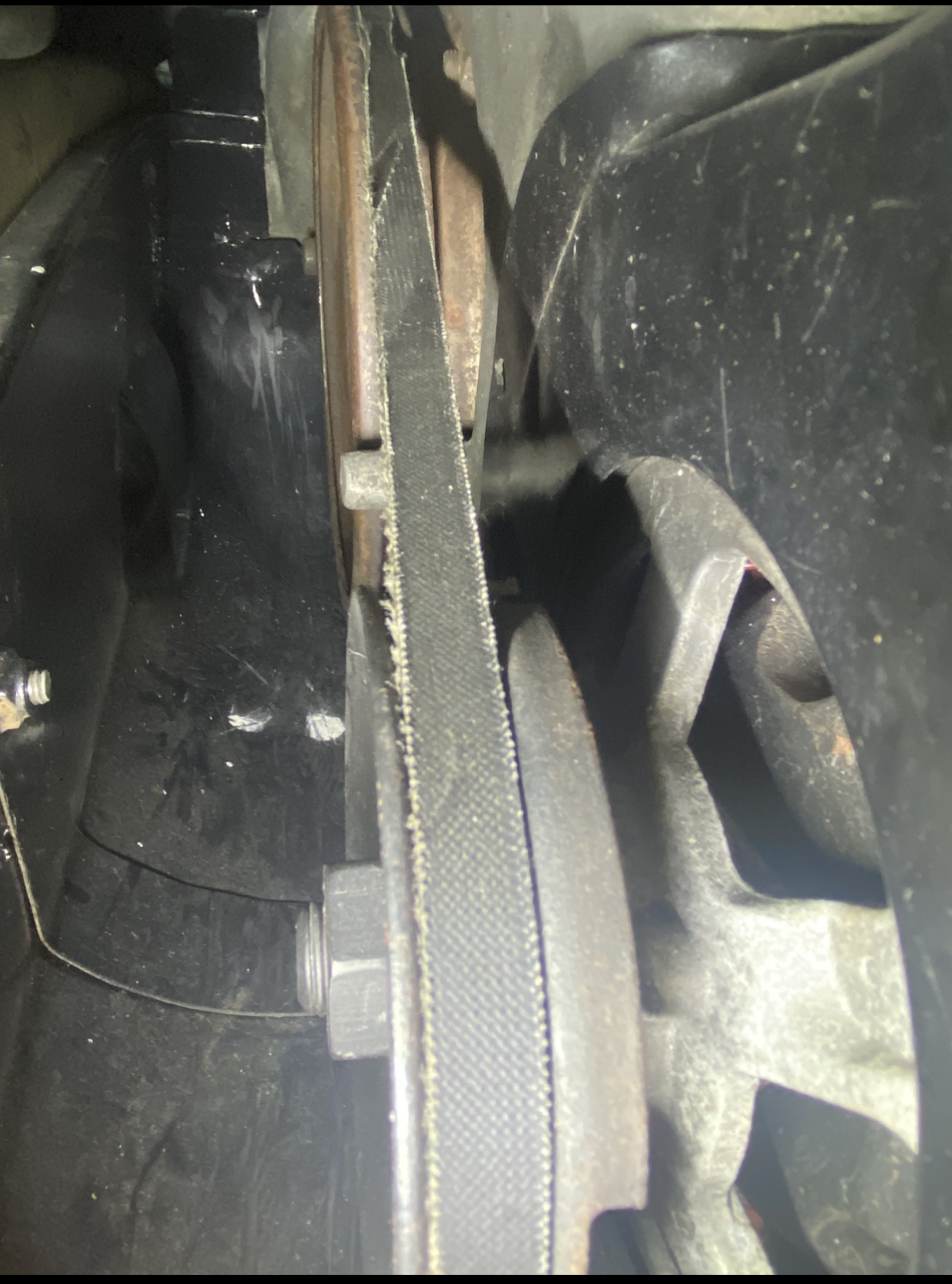

This is my car, with the old belt for now.
I can see pulleys are not parallel. As well as measure.
The small pulley is too far to the front.

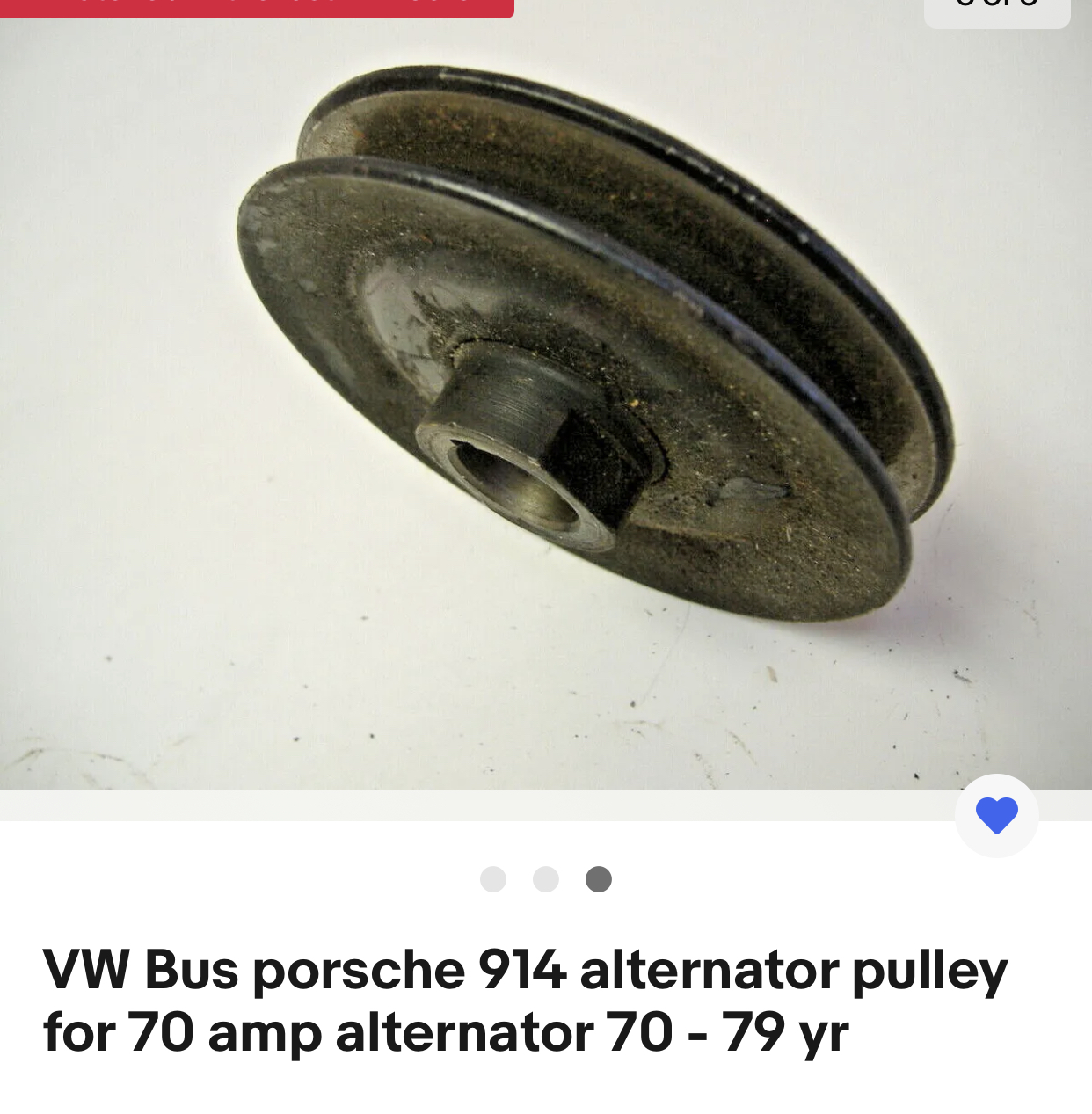

And the small pulley doesn’t look like the one on eBay, which doesn’t have the notches.

(I am trying a looser belt, less tension, to see if it stays on longer)

Anyone have a photo of their pulley? In an engine sitting in their garage?

Attached Image

Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Al Meredith
post Sep 22 2022, 03:07 PM
Post #10


Senior Member
***

Group: Members
Posts: 912
Joined: 4-November 04
From: Atlanta, ga
Member No.: 3,061



I one time removed the pully from, the cast fan blades to paint the pully. I didn't center the big pully on the fan housing and would through a belt at about 4/5000 RPM.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
yeahmag
post Sep 22 2022, 04:11 PM
Post #11


Advanced Member
****

Group: Members
Posts: 2,343
Joined: 18-April 05
From: Pasadena, CA
Member No.: 3,946
Region Association: Southern California



QUOTE(scottsilvertt @ Sep 22 2022, 01:43 PM) *

This is my car, with the old belt for now.
I can see pulleys are not parallel. As well as measure.
The small pulley is too far to the front.

And the small pulley doesn’t look like the one on eBay, which doesn’t have the notches.

(I am trying a looser belt, less tension, to see if it stays on longer)

Anyone have a photo of their pulley? In an engine sitting in their garage?


That pulley is on backwards. The cut outs go towards the outside (used to hold the pulley when tightening it).
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
scottsilvertt
post Sep 22 2022, 07:40 PM
Post #12


scottsilvertt
*

Group: Members
Posts: 40
Joined: 17-May 06
From: South East USA
Member No.: 6,019
Region Association: Northern California



Somehow, I’ll get that thing turned around while in the car.
Thanks for confirmation.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Sep 24 2022, 04:03 AM
Post #13


914 Idiot
**********

Group: Members
Posts: 14,641
Joined: 9-January 03
From: Silly-con Valley, CA
Member No.: 121
Region Association: Northern California



Replacing the alternator is possible without dropping the motor. You may have to remove the left-front piece of engine tin--I did on my car, but I don't remember if it was actually necessary. There were also a bunch of times that I worked from the top side then the bottom side and went back and forth like that.

Of course, once I got it all back together I forgot to hook up the charging wire to the starter... D'OH! A quick fix, but took a little while to notice the error.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bbrock
post Sep 24 2022, 08:00 AM
Post #14


914 Guru
*****

Group: Members
Posts: 5,128
Joined: 17-February 17
From: Montana
Member No.: 20,845
Region Association: Rocky Mountains



QUOTE(Dave_Darling @ Sep 24 2022, 04:03 AM) *

Replacing the alternator is possible without dropping the motor. You may have to remove the left-front piece of engine tin--I did on my car, but I don't remember if it was actually necessary. There were also a bunch of times that I worked from the top side then the bottom side and went back and forth like that.

Of course, once I got it all back together I forgot to hook up the charging wire to the starter... D'OH! A quick fix, but took a little while to notice the error.

--DD


I just did this a month ago. Yes, left front engine tin has to come off. I also had to remove the left warm air guide from the heat exchanger to have room to pull the alternator. I think you might have room to flip the bracket without taking the alternator out of its bracket though.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
930cabman
post Sep 24 2022, 08:05 AM
Post #15


Senior Member
***

Group: Members
Posts: 1,513
Joined: 12-November 20
From: Buffalo
Member No.: 24,877
Region Association: North East States



QUOTE(bbrock @ Sep 24 2022, 08:00 AM) *

QUOTE(Dave_Darling @ Sep 24 2022, 04:03 AM) *

Replacing the alternator is possible without dropping the motor. You may have to remove the left-front piece of engine tin--I did on my car, but I don't remember if it was actually necessary. There were also a bunch of times that I worked from the top side then the bottom side and went back and forth like that.

Of course, once I got it all back together I forgot to hook up the charging wire to the starter... D'OH! A quick fix, but took a little while to notice the error.

--DD


I just did this a month ago. Yes, left front engine tin has to come off. I also had to remove the left warm air guide from the heat exchanger to have room to pull the alternator. I think you might have room to flip the bracket without taking the alternator out of its bracket though.


I just replaced the alternator last week and did not remove the tin, but probably much easier. There may have been a few choice Italian words used in the process. I did not have the heat pipes installed prior
User is offlineProfile CardPM
Go to the top of the page
