> New Project Under Way, NEW EV14 Fuel Injectors & Rail Setup
914Sixer
post Oct 27 2022, 07:19 AM
Post #1


914 Guru
*****

Group: Members
Posts: 9,188
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region

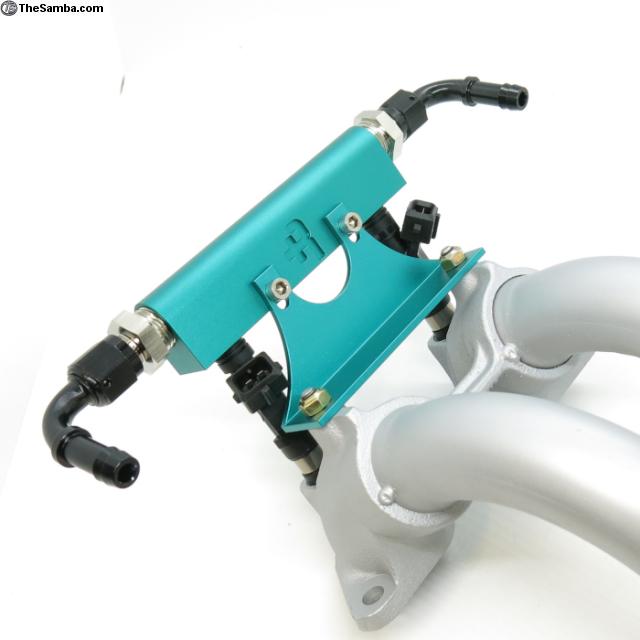

I am working with a company to develop new EV14 injectors that will work for 2.0L engines. They already have the setup made just not the correct injector. Sending NOS injectors for them to evaluate so they can finish kit. Stole picture to show design elements. Silver adapters have been eliminated and new grooved O rings fitted, along with new rail design. Just an idea of set up.
Projected cost under $500.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Superhawk996
post Oct 27 2022, 07:24 AM
Post #2


914 Guru
*****

Group: Members
Posts: 7,219
Joined: 25-August 18
From: Woods of N. Idaho
Member No.: 22,428
Region Association: Galt's Gulch
QUOTE(914Sixer @ Oct 27 2022, 09:19 AM) *

I am working with a company to develop new EV14 injectors that will work for 2.0L engines. They already have the setup made just not the correct injector. Sending NOS injectors for them to evaluate so they can finish kit.

(IMG:style_emoticons/default/idea.gif) interesting.

Always impressed with the ingenuity of the community to come up with solutions to the NLA parts situation! (IMG:style_emoticons/default/aktion035.gif)

Can’t wait to see the finished product!
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914Sixer
post Oct 27 2022, 08:41 AM
Post #3


914 Guru
*****

Group: Members
Posts: 9,188
Joined: 17-January 05
From: San Angelo Texas
Member No.: 3,457
Region Association: Southwest Region
Found a picture to show design elements.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Oct 27 2022, 08:43 AM
Post #4


Senior Member
***

Group: Members
Posts: 1,379
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
Check this place;
https://www.cjponyparts.com/catalogsearch/r...t/?q=+injectors
I know a couple people are using injectors from them.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
sithot
post Oct 27 2022, 12:44 PM
Post #5


Member
**

Group: Members
Posts: 448
Joined: 25-October 06
From: Virginia
Member No.: 7,090
Region Association: None
QUOTE(NARP74 @ Oct 27 2022, 10:43 AM) *

Check this place;
https://www.cjponyparts.com/catalogsearch/r...t/?q=+injectors
I know a couple people are using injectors from them.


Cool!

Which ones? Chevy, Ford or Jeep based? (IMG:style_emoticons/default/popcorn[1].gif)

Seriously.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bdstone914
post Oct 27 2022, 02:12 PM
Post #6


bdstone914
*****

Group: Members
Posts: 5,031
Joined: 8-November 03
From: Riverside CA
Member No.: 1,319
QUOTE(914Sixer @ Oct 27 2022, 06:19 AM) *

I am working with a company to develop new EV14 injectors that will work for 2.0L engines. They already have the setup made just not the correct injector. Sending NOS injectors for them to evaluate so they can finish kit. Stole picture to show design elements. Silver adapters have been eliminated and new grooved O rings fitted, along with new rail design. Just an idea of set up.
Projected cost under $500.

@914sixer
You may have a interference problem on the passenger side to the MAP sensor. I know the fuel rail with the test port will hit the NAP sensor.
What advantage will these have over the SMP injectors that are available for 2.0s ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JamesM
post Oct 27 2022, 02:22 PM
Post #7


Advanced Member
****

Group: Members
Posts: 2,100
Joined: 6-April 06
From: Kearns, UT
Member No.: 5,834
Region Association: Intermountain Region
QUOTE(914Sixer @ Oct 27 2022, 05:19 AM) *

I am working with a company to develop new EV14 injectors that will work for 2.0L engines. They already have the setup made just not the correct injector. Sending NOS injectors for them to evaluate so they can finish kit. Stole picture to show design elements. Silver adapters have been eliminated and new grooved O rings fitted, along with new rail design. Just an idea of set up.
Projected cost under $500.



D-jet compatible injectors or not this would still be beneficial for anyone running aftermarket injection as the selection of new high impedance injectors that are compatible with the stock 914 fuel rails is really REALLY small.

If you produce these I would be in for a set, if not multiple sets.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JamesM
post Oct 27 2022, 02:23 PM
Post #8


Advanced Member
****

Group: Members
Posts: 2,100
Joined: 6-April 06
From: Kearns, UT
Member No.: 5,834
Region Association: Intermountain Region
QUOTE(bdstone914 @ Oct 27 2022, 12:12 PM) *

QUOTE(914Sixer @ Oct 27 2022, 06:19 AM) *

I am working with a company to develop new EV14 injectors that will work for 2.0L engines. They already have the setup made just not the correct injector. Sending NOS injectors for them to evaluate so they can finish kit. Stole picture to show design elements. Silver adapters have been eliminated and new grooved O rings fitted, along with new rail design. Just an idea of set up.
Projected cost under $500.

@914sixer
You may have a interference problem on the passenger side to the MAP sensor. I know the fuel rail with the test port will hit the NAP sensor.
What advantage will these have over the SMP injectors that are available for 2.0s ?



I think the angle of the picture is deceiving. The fuel rail port hits the MPS because the injector hoses turn up 90 degrees, this setup looks to be straight out from the injector ports so may not be an issue.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Oct 27 2022, 03:02 PM
Post #9


Advanced Member
****

Group: Members
Posts: 3,002
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
Very attractive setup. Looks like it would remove all the difficult angle and seal issues with the old design and the cranky rails.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Oct 27 2022, 04:27 PM
Post #10


Senior Member
***

Group: Members
Posts: 1,379
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
QUOTE(sithot @ Oct 27 2022, 12:44 PM) *

QUOTE(NARP74 @ Oct 27 2022, 10:43 AM) *

Check this place;
https://www.cjponyparts.com/catalogsearch/r...t/?q=+injectors
I know a couple people are using injectors from them.


Cool!

Which ones? Chevy, Ford or Jeep based? (IMG:style_emoticons/default/popcorn[1].gif)

Seriously.

Start with @IanKarr , he has mentioned them in a video or 2.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
914sgofast2
post Oct 27 2022, 06:16 PM
Post #11


Senior Member
***

Group: Members
Posts: 732
Joined: 10-May 13
From: El Dorado Hills, CA
Member No.: 15,855
Region Association: None
That foto looks like the Injector-Rehab system currently being sold for VW Bay Window Buses, VW Vanagons, and Porsche 914s. Here is the link:https://injector-rehab.com/product/complete-fuel-rail-system-for-type-4-vw-bus-injectors-included/
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
