> Horn Pin Length, Short or Long?
MSGGrunt
post Mar 4 2023, 05:03 PM
Post #1


Newbie
*

Group: Members
Posts: 44
Joined: 25-January 23
From: Western Massachusetts, USA
Member No.: 27,119
Region Association: North East States
Car is a 1975 and I am going back to the OEM steering wheel from a Momo. I bought a steering wheel listed for a 1975 car, but it didn't come with the horn pin. I see there are two types, long and short with each saying they fit a 1975 1.8 car. How do I know which is correct for the steering wheel I have?

Short.

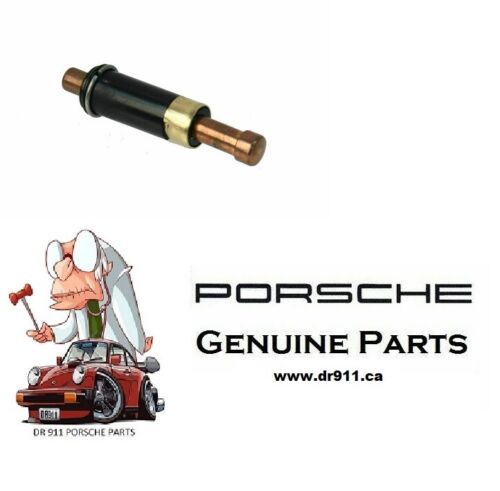

https://www.ebay.com/itm/284708651730?fits=...ABk9SR-zDgevVYQ

Long.

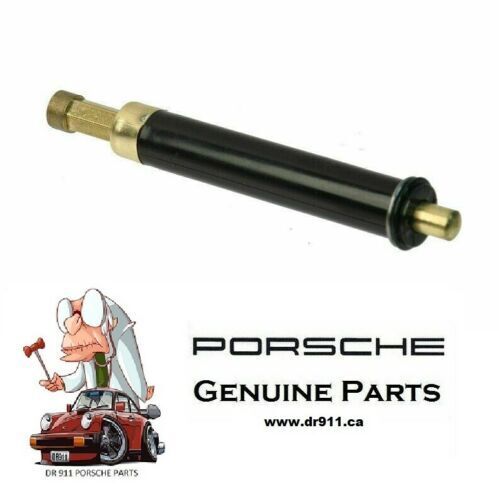

https://www.ebay.com/itm/284771763445?fits=...ABk9SR-zDgevVYQ

Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sbsix
post Mar 4 2023, 05:39 PM
Post #2


only the lead dog enjoys a change in scenery...
**

Group: Members
Posts: 450
Joined: 10-January 12
From: Santa Barbara, CA
Member No.: 13,990
Region Association: Southern California
914-6 takes the longer 44mm. Don’t know about the various 914-4 steering wheels.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Mar 4 2023, 06:26 PM
Post #3


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,339
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
QUOTE(MSGGrunt @ Mar 4 2023, 03:03 PM) *

Car is a 1975 and I am going back to the OEM steering wheel from a Momo. I bought a steering wheel listed for a 1975 car, but it didn't come with the horn pin. I see there are two types, long and short with each saying they fit a 1975 1.8 car. How do I know which is correct for the steering wheel I have?

Short.
https://www.ebay.com/itm/284708651730?fits=...ABk9SR-zDgevVYQ

Long.
https://www.ebay.com/itm/284771763445?fits=...ABk9SR-zDgevVYQ

Attached ImageAttached Image

Not in a ‘75
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Mar 4 2023, 07:36 PM
Post #4


914-6 GT in waiting
***************

Group: Members
Posts: 19,277
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(mgphoto @ Mar 4 2023, 07:26 PM) *

QUOTE(MSGGrunt @ Mar 4 2023, 03:03 PM) *

Car is a 1975 and I am going back to the OEM steering wheel from a Momo. I bought a steering wheel listed for a 1975 car, but it didn't come with the horn pin. I see there are two types, long and short with each saying they fit a 1975 1.8 car. How do I know which is correct for the steering wheel I have?

Short.
https://www.ebay.com/itm/284708651730?fits=...ABk9SR-zDgevVYQ

Long.
https://www.ebay.com/itm/284771763445?fits=...ABk9SR-zDgevVYQ

Attached ImageAttached Image

Not in a ‘75

Right. 72-76 uses the later plastic hub with the plastic turn signal cancel disk and a brown wire that connects to a tab on the horn pad.
Early wheels 70-71 use a long horn pin. 914-6 uses a short pin since there is no plastic hub to space out the wheel.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bob164
post Mar 5 2023, 12:46 AM
Post #5


Member
**

Group: Members
Posts: 96
Joined: 10-February 18
From: SoCal
Member No.: 21,877
Region Association: Southern California
@mepstein Can you clarify, so the 72 to 76 914-4s don't need a pin at all, since the brown wire takes care of that function? In the PET for those years there is no pin shown at all, so that would make sense.
Thanks in advance for the education.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mgphoto
post Mar 5 2023, 01:18 AM
Post #6


"If there is a mistake it will find me"
***

Group: Members
Posts: 1,339
Joined: 1-April 09
From: Los Angeles, CA
Member No.: 10,225
Region Association: Southern California
QUOTE(bob164 @ Mar 4 2023, 10:46 PM) *

@mepstein Can you clarify, so the 72 to 76 914-4s don't need a pin at all, since the brown wire takes care of that function? In the PET for those years there is no pin shown at all, so that would make sense.
Thanks in advance for the education.

As mepstein said the difference is the slip ring.

Attached Image

#4 is the slip ring, it replaces the pin. The brown wire (ground) connects to the batwing which completes the circuit to ground when the batwing contacts the slip ring.
The horn has power all the time, when the circuit is complete to ground the horn operates.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
mepstein
post Mar 5 2023, 06:53 AM
Post #7


914-6 GT in waiting
***************

Group: Members
Posts: 19,277
Joined: 19-September 09
From: Landenberg, PA/Wilmington, DE
Member No.: 10,825
Region Association: MidAtlantic Region
QUOTE(bob164 @ Mar 5 2023, 01:46 AM) *

@mepstein Can you clarify, so the 72 to 76 914-4s don't need a pin at all, since the brown wire takes care of that function? In the PET for those years there is no pin shown at all, so that would make sense.
Thanks in advance for the education.

Yes. The 70-71 has a plastic hub with a metal tab to cancel the turn signal. The 72-76 has a plastic hub that accepts the plastic horn cancel ring with the brown wire for the horn. No pin.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
bob164
post Mar 5 2023, 08:40 AM
Post #8


Member
**

Group: Members
Posts: 96
Joined: 10-February 18
From: SoCal
Member No.: 21,877
Region Association: Southern California
@mgphoto and @mepstein
Thanks so much, that really clears things up for me.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MSGGrunt
post Mar 5 2023, 06:07 PM
Post #9


Newbie
*

Group: Members
Posts: 44
Joined: 25-January 23
From: Western Massachusetts, USA
Member No.: 27,119
Region Association: North East States
Seems I don't have the brown wire I assume I need for the OEM horn to work.

This is my working Momo set-up and I understand how the bronze ring is in constant contact with the contacts of the directional mechanism and how when the horn button is pushed the horn grounds out and sounds.

Attached Image Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MSGGrunt
post Mar 5 2023, 06:26 PM
Post #10


Newbie
*

Group: Members
Posts: 44
Joined: 25-January 23
From: Western Massachusetts, USA
Member No.: 27,119
Region Association: North East States
And the OEM wheel I picked up. Do I need to connect a ground to the spade connector? Am I missing something? I don't see where the stock wheel would make contact with the directional contacts to receive power. I am also missing 4 small screws that connects the back plastic hub to the wheel.

Attached Image Attached ImageAttached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MSGGrunt
post Mar 5 2023, 06:30 PM
Post #11


Newbie
*

Group: Members
Posts: 44
Joined: 25-January 23
From: Western Massachusetts, USA
Member No.: 27,119
Region Association: North East States
Is the missing piece #4?

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
MSGGrunt
post Mar 5 2023, 06:48 PM
Post #12


Newbie
*

Group: Members
Posts: 44
Joined: 25-January 23
From: Western Massachusetts, USA
Member No.: 27,119
Region Association: North East States
Seems like I answered my own question by looking at other used steering wheels on eBay. #4 on the steering wheel I bought had been removed, probably to sell separately.

I found one on Ebay and grabbed it.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Mar 5 2023, 07:29 PM
Post #13


Life's been good to me so far.....
***************

Group: Admin
Posts: 15,474
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(MSGGrunt @ Mar 5 2023, 06:48 PM) *

Seems like I answered my own question by looking at other used steering wheels on eBay. #4 on the steering wheel I bought had been removed, probably to sell separately.

I found one on Ebay and grabbed it.

Attached Image
