O.T. - "Q" for the CAD guys.., WTF am I doin' wrong here....? |
SpecialK |
Aug 13 2005, 11:51 AM
Post
#1
|
aircraft surgeon Group: Benefactors Posts: 3,211 Joined: 15-March 04 From: Pacific, MO Member No.: 1,797 |

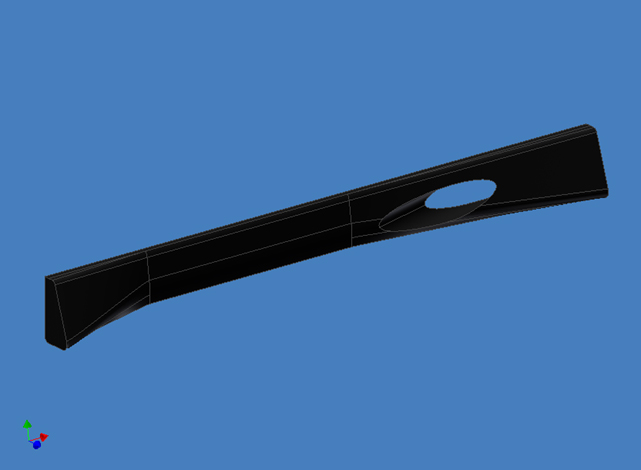

Just messing around on Autodesk Inventor V5 with a custom rocker panel (pretty rough....emphasis on "messing"), and I'm trying to insert a 4" tube I created into the hole "cut" from the rocker. I can't seem to create an axis for the rocker opening to align the tube for insertion/mating. The inlet opening was created by lofting two 4" circles, and cutting through the rocker. Is that where I went wrong? (IMG:http://www.914world.com/bbs2/html/emoticons/confused24.gif)
Attached image(s) |
