> Gaps between engine tin and engine bay gaskets., Trying to figure out how to close them.
Chaznaster
post May 29 2023, 06:33 PM
Post #1


Member
**

Group: Members
Posts: 305
Joined: 22-November 15
From: Concord, MA
Member No.: 19,389
Region Association: North East States



I put my engine back in today for the first time.

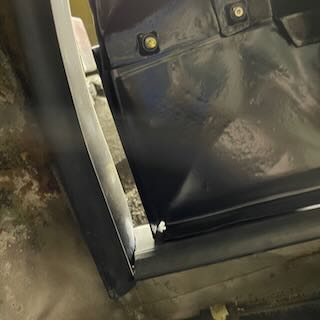

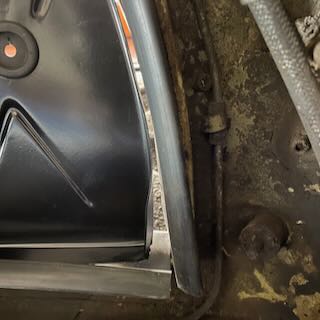

It went pretty well but have a gap between the tin and seals on the left and right towards the front. It is about 1/2" on the L and 3/8" on the right. I installed brand new seals from 914Rubber but they do not bridge the gap. The tin is also pretty far above the lip in the seal where it should contact the tin. Not sure about the metal staples/clips that came with the seals - are they used to close gaps like the ones in the pics?

Or ... another thought: the engine looks like it might be a little too far forward. Moving it back should help close the gap, at least where the curve is. Should/ can I loosen the bolts holding on the crossbar and the big bolts where the transmission attaches to the mounts and pull it all back a bit?

Thanks for your thoughts on this ...

Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post May 29 2023, 06:48 PM
Post #2


Custom Member
***************

Group: Members
Posts: 24,598
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States



The forward or rearward position is easiest to spot at the transmission mounts to the chassis.
Those should sit freely in the middle of the u-channel in the transmission.

The rubber gaskets are not always made correctly and require you to twist the rubber to get it to hook up to the tin.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914werke
post May 29 2023, 07:53 PM
Post #3


"I got blisters on me fingers"
**********

Group: Members
Posts: 10,186
Joined: 22-March 03
From: USofA
Member No.: 453
Region Association: Pacific Northwest



Make sure your Eng bar & trans mnts are square. You can bend out the tin "flange" slightly to allow the seal to grab
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gonzo54
post May 29 2023, 08:45 PM
Post #4


Orange Crush
**

Group: Members
Posts: 227
Joined: 10-May 19
From: Seal Beach, CA
Member No.: 23,112
Region Association: Southern California



I have encountered the same problem after my recent enigne rebuild and installation. Rubber seals are from the same vendor with new motor mounts and transmission mounts. I thought the motor mounts might not be the correct P/N or height but the P/N is correct. So is the engine to low for the tin to hook up the the seals?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Front yard mechanic
post May 29 2023, 09:00 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,174
Joined: 23-July 15
From: New Mexico
Member No.: 18,984
Region Association: None



Drill a small hole in the tin right through the rubber seal and zip tie it into submission
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
nditiz1
post May 29 2023, 10:04 PM
Post #6


Senior Member
***

Group: Members
Posts: 1,191
Joined: 26-May 15
From: Mount Airy, Maryland
Member No.: 18,763
Region Association: MidAtlantic Region



^This is what I did. Worked great.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
bkrantz
post May 29 2023, 10:04 PM
Post #7


914 Guru
*****

Group: Members
Posts: 7,831
Joined: 3-August 19
From: SW Colorado
Member No.: 23,343
Region Association: Rocky Mountains

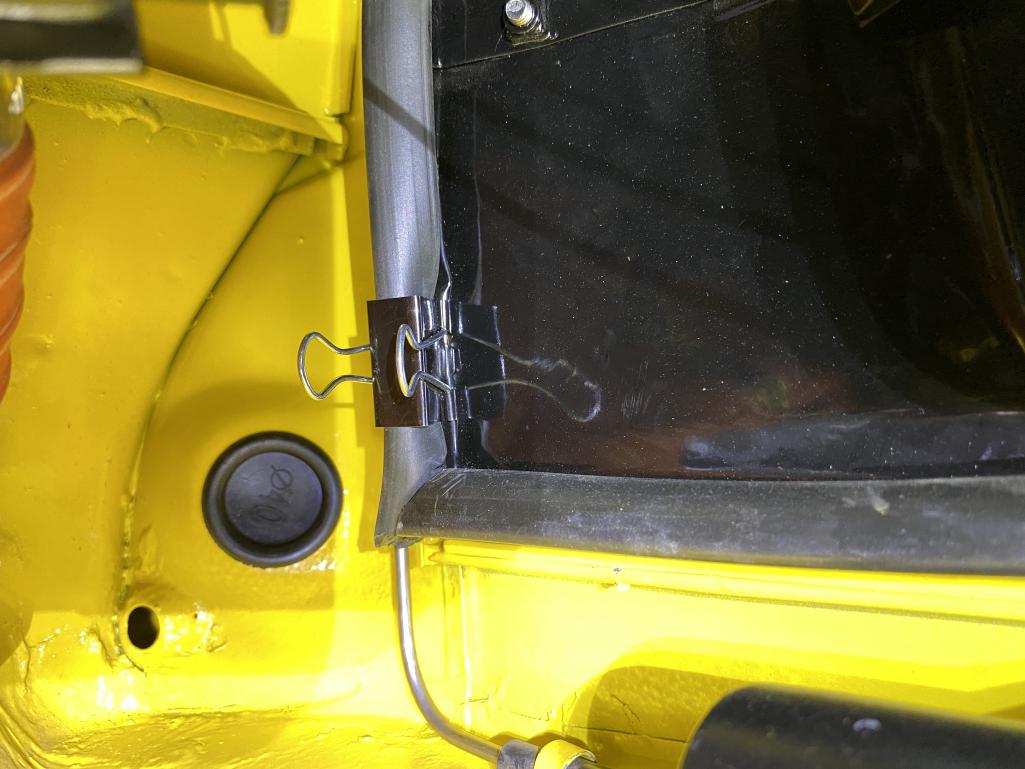

Or get some paper clips and do this. Once in place you can remove the handles.


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post May 29 2023, 11:23 PM
Post #8


914 Idiot
**********

Group: Members
Posts: 14,999
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California



QUOTE(Chaznaster @ May 29 2023, 05:33 PM) *

Not sure about the metal staples/clips that came with the seals - ...


They may be to keep the front corners closed. There were hog-rings in the corners on my car when I bought it.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mikey914
post May 30 2023, 09:28 AM
Post #9


The rubber man
**********

Group: Members
Posts: 12,680
Joined: 27-December 04
From: Hillsboro, OR
Member No.: 3,348
Region Association: None



The hog rings were what factory did. We supply them with our complete set of seals now.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JamesM
post May 30 2023, 01:06 PM
Post #10


Senior Member
***

Group: Members
Posts: 1,931
Joined: 6-April 06
From: Kearns, UT
Member No.: 5,834
Region Association: Intermountain Region



The tin originally had a curve to it. If it has been bent/hammered flat it can create a gap like this.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rgalla9146
post May 30 2023, 03:26 PM
Post #11


Advanced Member
****

Group: Members
Posts: 4,579
Joined: 23-November 05
From: Paramus NJ
Member No.: 5,176
Region Association: None

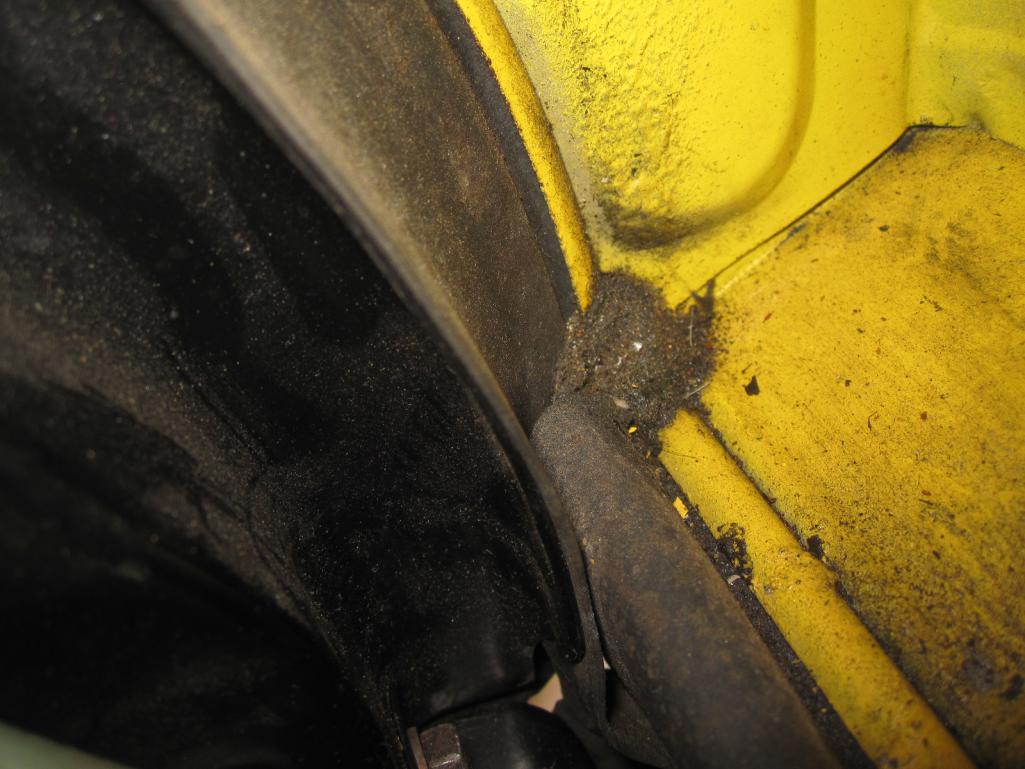

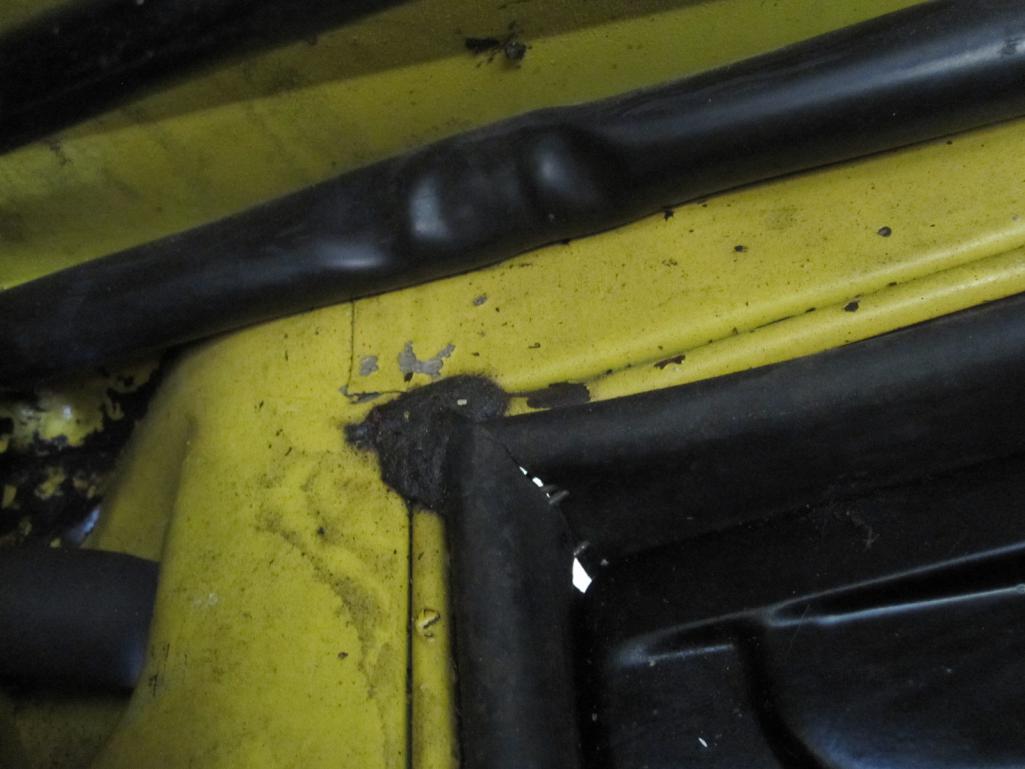

the corners were not only hog ringed they also had a fat blob of black rubber/
putty for better seal.
The pics are an un-touched 6


Attached thumbnail(s)
Attached Image Attached Image
User is online!Profile CardPM
Go to the top of the page
+Quote Post
Chaznaster
post May 30 2023, 06:53 PM
Post #12


Member
**

Group: Members
Posts: 305
Joined: 22-November 15
From: Concord, MA
Member No.: 19,389
Region Association: North East States



Thanks for all the great insights on this!

I looked into moving the engine back but everything seems to line up right, including the transmission mounts to the car and to the transmission itself. The big bolt is pretty much centered.

So no go there ... although I still think the engine sits a little too far forward because the tin on the other end, over the junction between the engine and transmission, is a bit more into the engine bay than I would have thought it should be. The tabs on that piece of tin were not straddling the transmission housing when I started - the whole thing was pushed backwards - so do not have a mental image of what that is supposed to look like.

The crossbar itself looks fine - the ends are not bent. No damage from hitting a speed bump that I can see. And I cannot see anything wrong with the mount points on the car.

I am chalking it up to the tin being flattened at some point. I might have even added to that problem unintentionally when I prepped it for powder coating. It's pretty much impossible to bend it down when in the car unless I hang from it and I do not want to do that.

For now, I am working with the binder clip approach to keep everything closed. Might switch to some of those semicircular spring steel clips with the pointy ends that are used for gluing up picture frames.

When the engine is next out, I'lll see about bending the tin down.

Again, thanks much for the help.
