> Progress on the hockey puck (3d printed), Final draft, ready for printing.
burton73
post Feb 21 2025, 02:13 PM
Post #21


Senior member, and old dude
****

Group: Members
Posts: 3,868
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California
@emerygt350

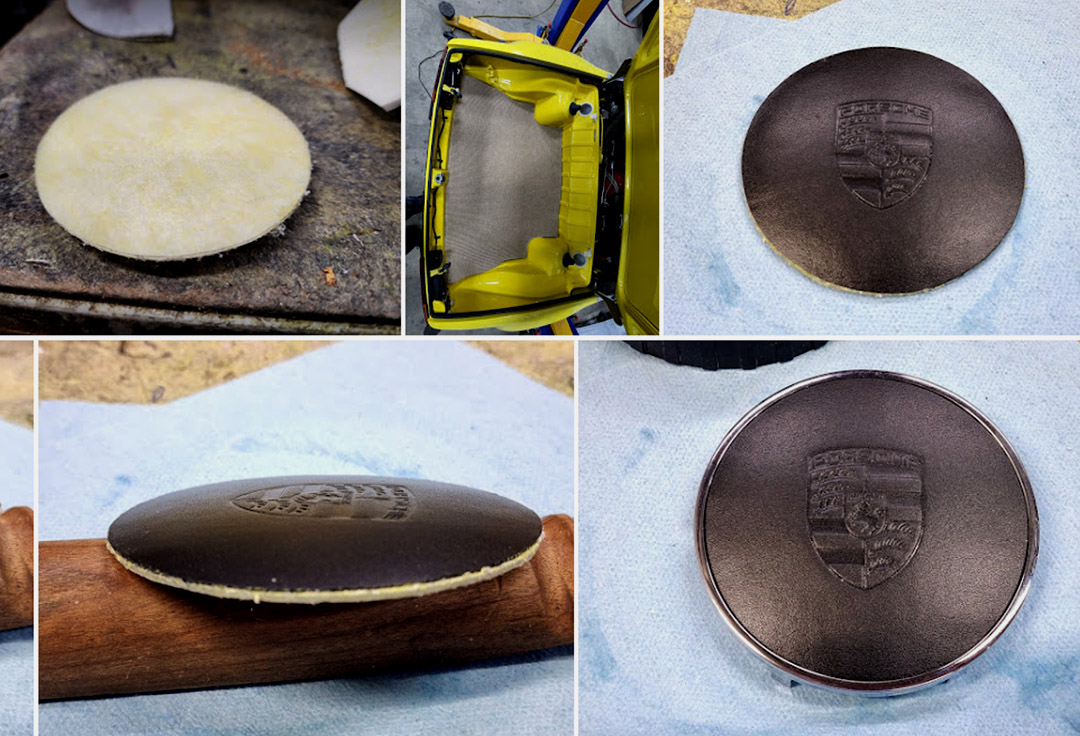

On to the great work that you are doing on the horn pucks. These pictures show the leather part as Dale contoured it for my 6 build. My factory old puck was less than flat same as @sixnotfour showed us. You can see how the leather has shrunk down as the padding material under the leather aged. If you could put the slight dome contour on your as well as the leather texture on it would be a fantastic item for people. I hope that you will come up with a way to monetize all your hard work!

By the way I do not care what the Chalon hatters saw, I love the look of the Porsche 914 Chalon body, have from the late 1970. I had thought of doing one and putting the aluminum front and rear bumpers and real rubber accordion pieces from real 911s or 924 and Valances so it would not get damaged from scrapes in the real world. Just my thinking in the 80s

Best Bob B

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Feb 21 2025, 02:56 PM
Post #22


Advanced Member
****

Group: Members
Posts: 3,068
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
Thanks for the images. I have created several leather textures but sadly 3d printing doesn't have the resolution to execute them. You can almost do it if you print it at an angle but that creates other issues.

The leather insert costs around 75 dollars I believe, perhaps I will make a version you could just insert that into.

I do this for the challenge. It's like a crossword puzzle for me but I have something useful when I am done, and some improved skills with CAD.

Long live the Chalon!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Feb 21 2025, 04:10 PM
Post #23


914 Wizard
**********

Group: Members
Posts: 10,919
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Ok, Snow melting,
The upper dia. is 99.00mm
The step down at that dia. is 6.50mm
The dia. just below above dia. is 102.50mm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Feb 21 2025, 04:27 PM
Post #24


Advanced Member
****

Group: Members
Posts: 3,068
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
Great. I was very close. I guessed 7mm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Feb 21 2025, 04:46 PM
Post #25


914 Wizard
**********

Group: Members
Posts: 10,919
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
old shrunk crest is 30mm x 37mm

The puck to the top of chrome is 2.5mm, and is 89.50 in dia.

Width of chrome ring is 2.75mm
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Feb 22 2025, 11:32 AM
Post #26


Advanced Member
****

Group: Members
Posts: 3,068
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
Ok, quick update of the files today. I have now changed all of the measures to match what you guys have so thankfully provided. Looking pretty good. I am testing out the brass insert holes today (made them larger) and will start printing what I hope will be the final product. I kicked the little buttresses out to the 1.5 mm at the base. That was hard to do with the polar array in Blender. It really is like juggling twelve plates at the same time.

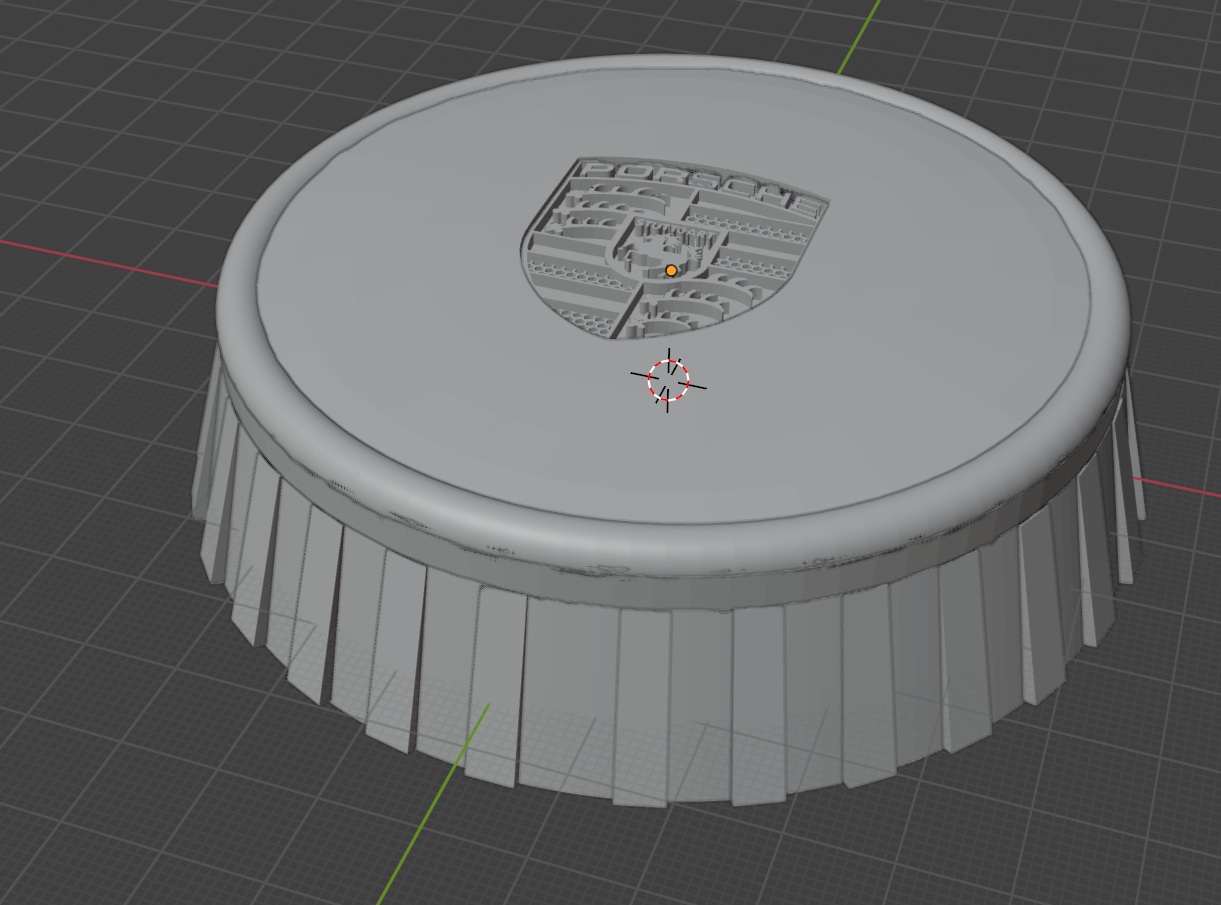

Here is the small logo version:
Attached Image

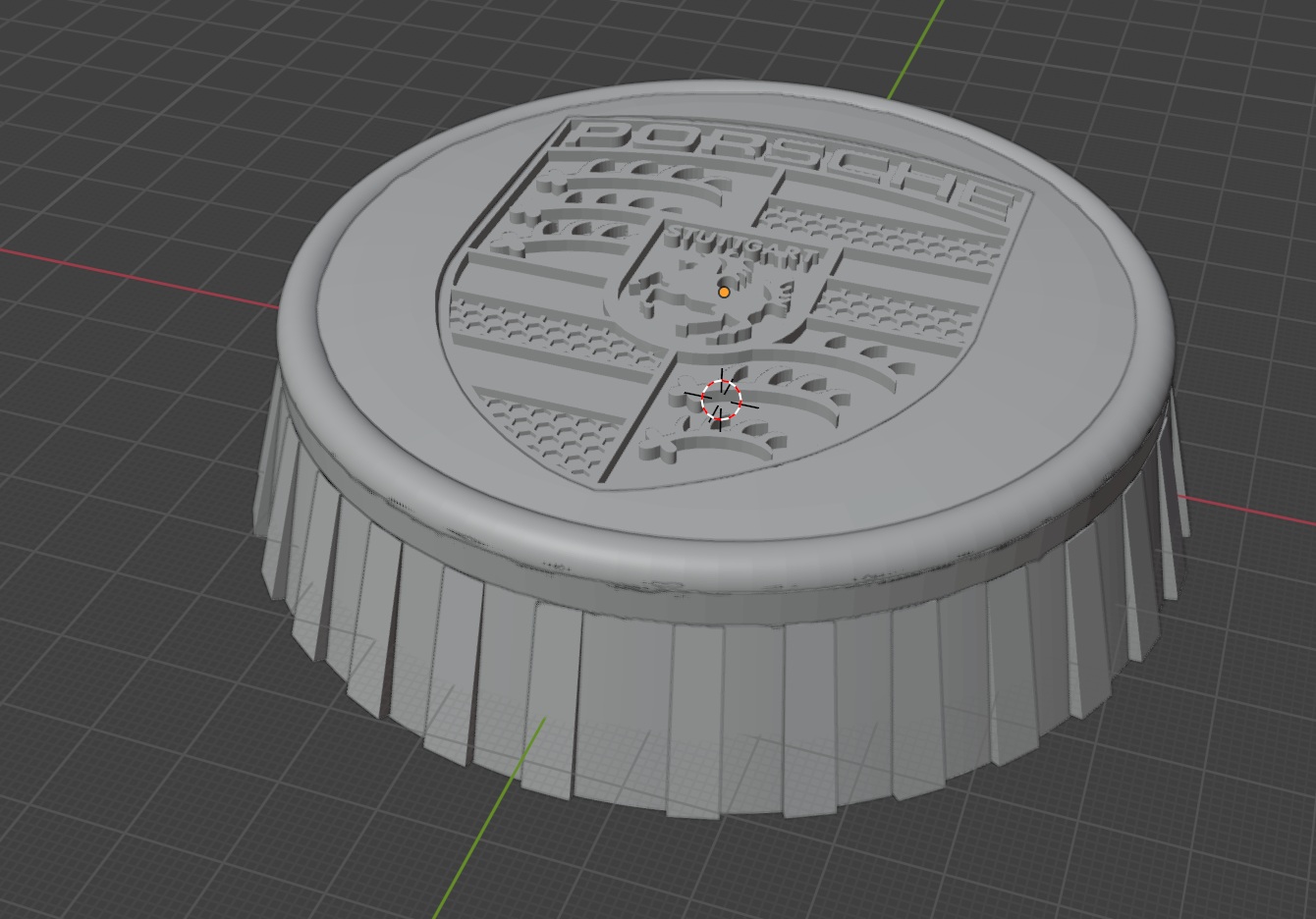

And the large logo:
Attached Image

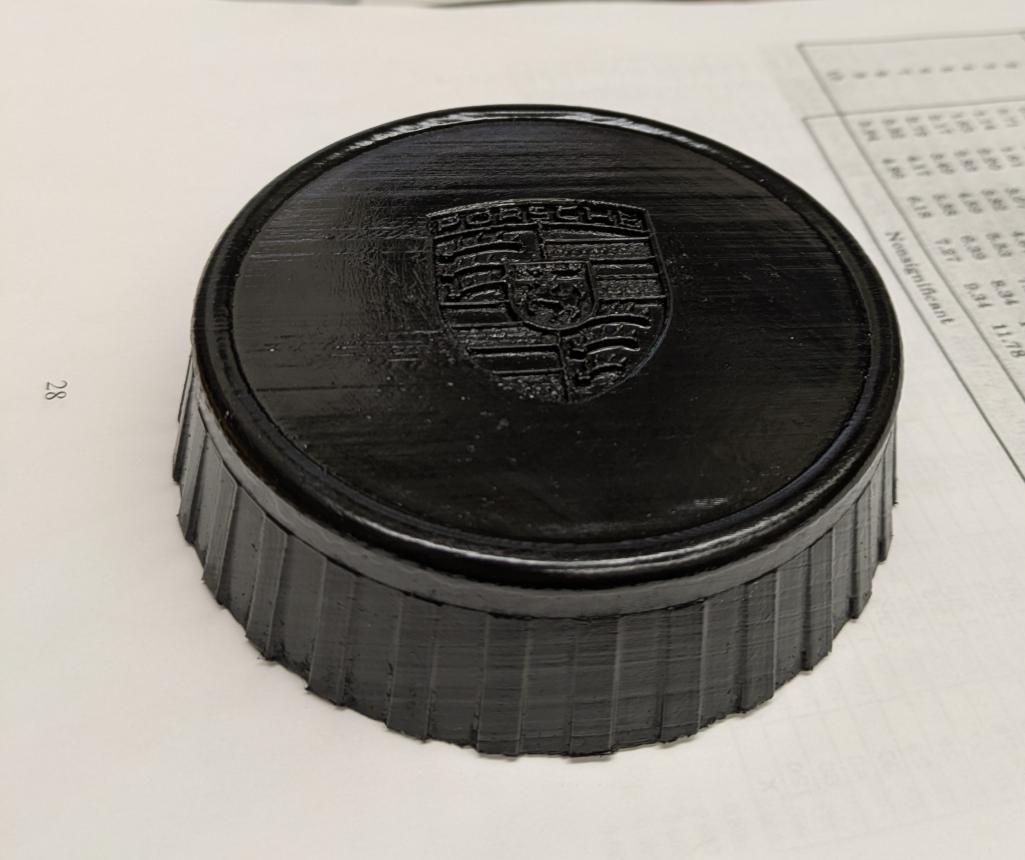

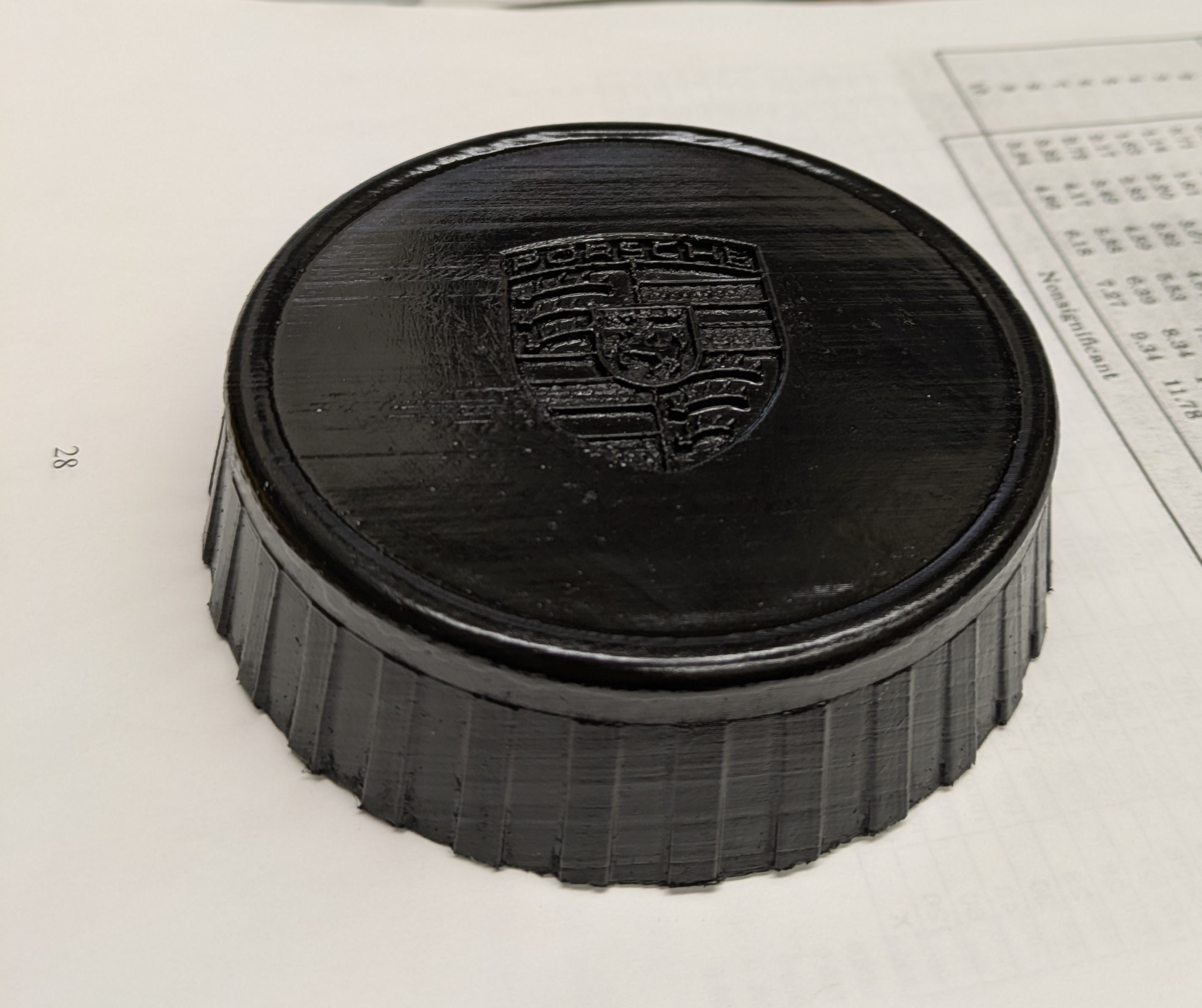

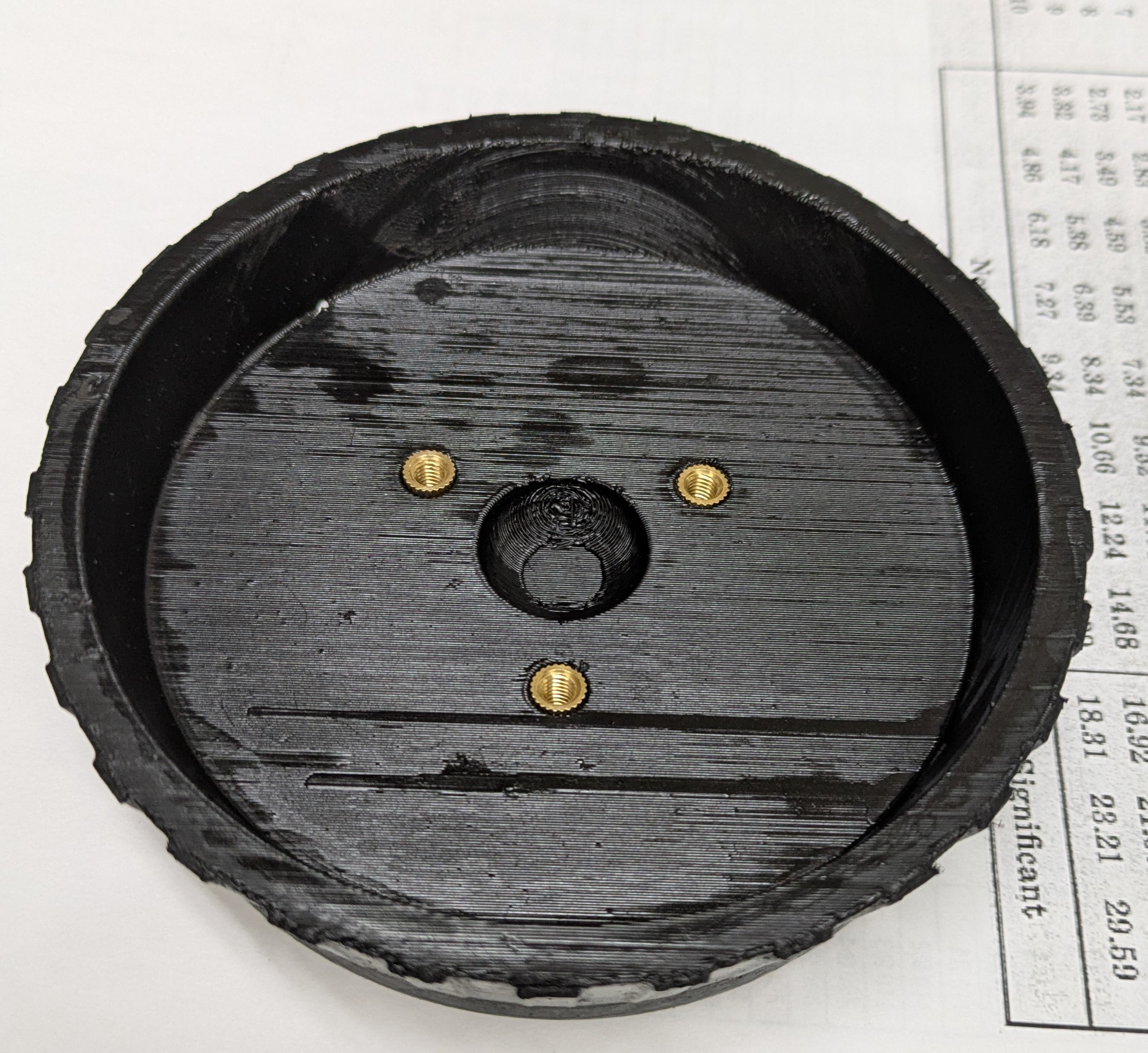

And here is the print of yesterdays design before the last little changes today. I printed the small logo 'suspended' which allowed me to get a little better resolution on the logo. I rinsed it in acetone a couple times and then painted it. Didn't turn out too bad. You can see the brass inserts underneath.

Attached Image

Attached Image

I am going to start printing the newest design and tomorrow I should have it all finished up!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Feb 22 2025, 11:32 AM
Post #27


Advanced Member
****

Group: Members
Posts: 3,068
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
And these files are all updated on thingiverse if you want to give it a go.

https://www.thingiverse.com/thing:6238862
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Feb 22 2025, 02:45 PM
Post #28


Advanced Member
****

Group: Members
Posts: 3,068
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States

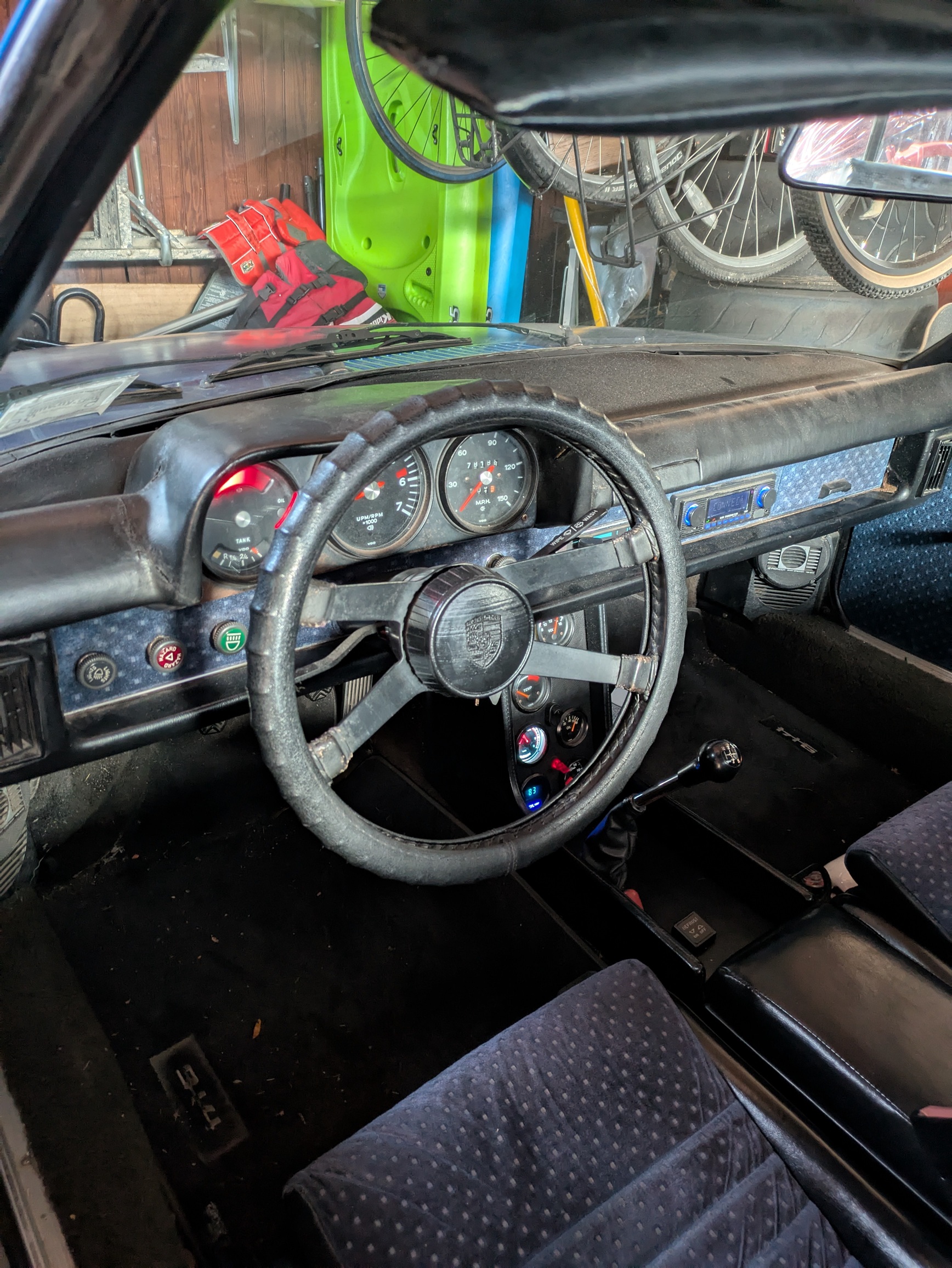

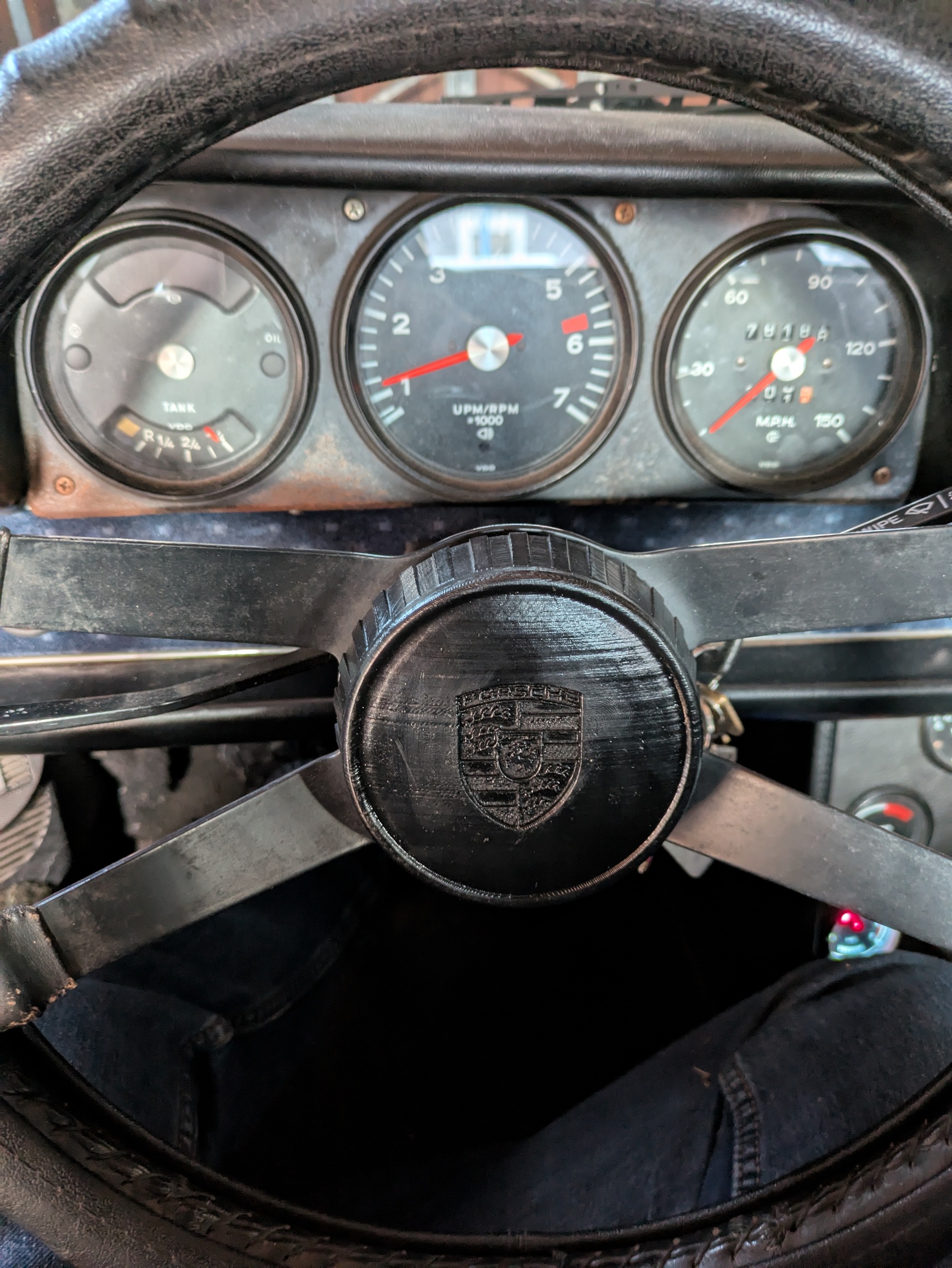

And here it is mounted in the car. Just about perfect! Can't wait for the new one to finish printing with the slightly more accurate dimensions all around.



Attached Image

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Feb 22 2025, 05:35 PM
Post #29


914 Wizard
**********

Group: Members
Posts: 10,919
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
Very Nice !!!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Feb 22 2025, 05:49 PM
Post #30


914 Wizard
**********

Group: Members
Posts: 10,919
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains

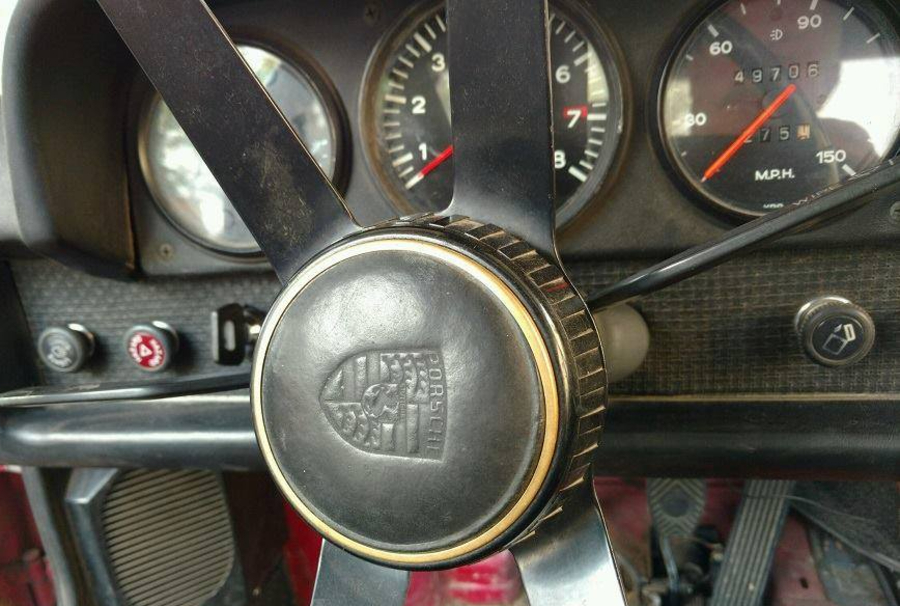

Here's a pic of my vintage version.. (IMG:style_emoticons/default/beerchug.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Feb 22 2025, 07:12 PM
Post #31


Advanced Member
****

Group: Members
Posts: 3,068
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
Thanks! Next step is getting the chrome ring right...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Feb 23 2025, 05:58 AM
Post #32


Hey nice rack! -Celette
***************

Group: Members
Posts: 21,042
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Very nice! I had a friend that did vinyl seat and dash repair several years ago. He would fill and apply some kind vinyl adhesibe and use multiple different vinyl patterns to press in the graining then mask and paint the dash or seat bolster to match. He would travel around to dealerships and do this. My point is, maybe the graining could be added in a similar manner.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Feb 23 2025, 06:02 AM
Post #33


Advanced Member
****

Group: Members
Posts: 3,068
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
I think something like that would work here. I am thinking about fillers...
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rick 918-S
post Feb 23 2025, 06:06 AM
Post #34


Hey nice rack! -Celette
***************

Group: Members
Posts: 21,042
Joined: 30-December 02
From: Now in Superior WI
Member No.: 43
Region Association: Northstar Region
Not that you need to replicate the exact look. It's cool that you have have the skills to do this.
User is online!Profile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Feb 23 2025, 09:23 AM
Post #35


Advanced Member
****

Group: Members
Posts: 3,068
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States

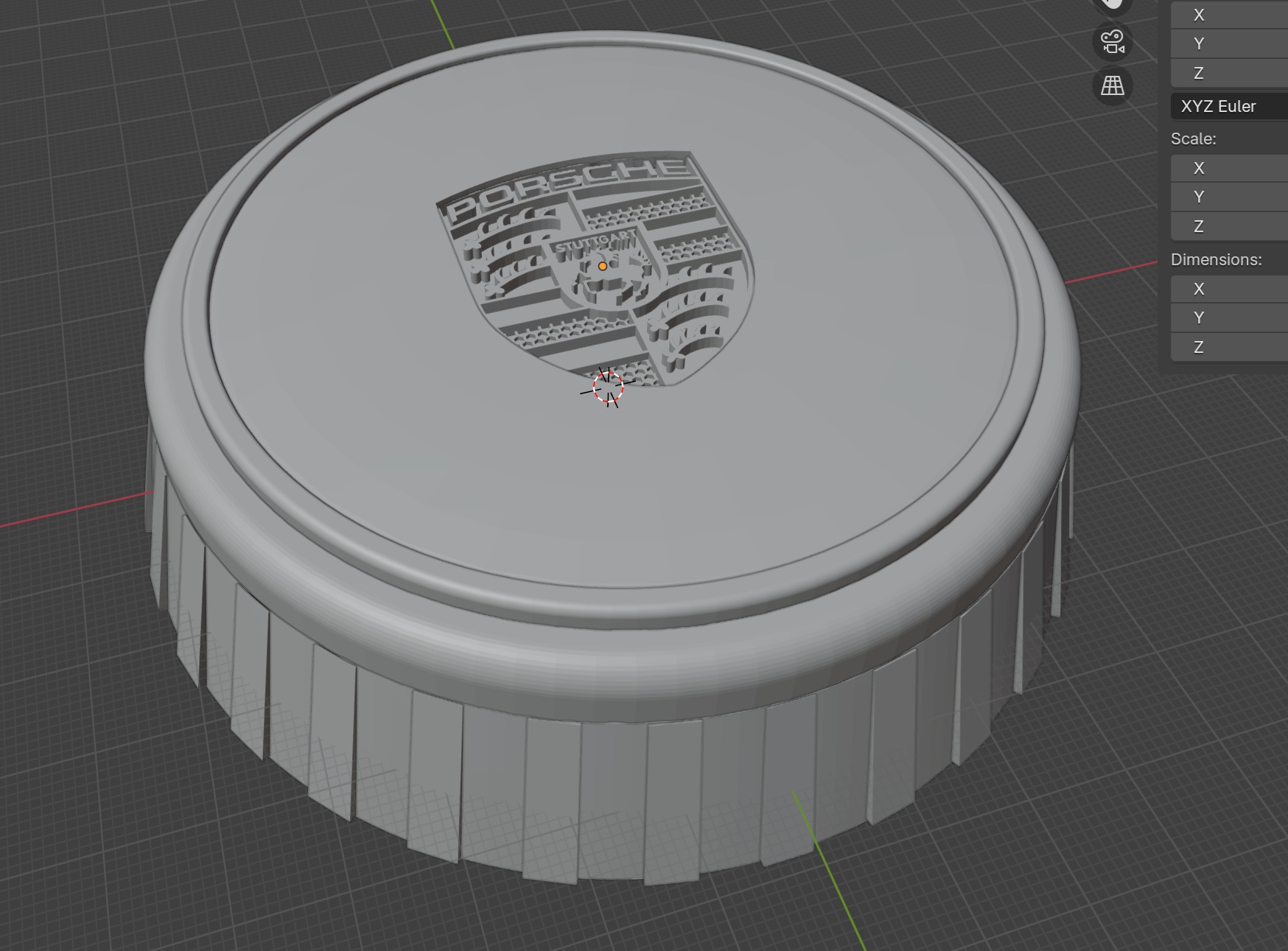

Chrome ring added.

Now to see if I can print it in ABS. PLA can't take the uv and the heat inside a car. ABS is hard to work with though.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Feb 23 2025, 04:52 PM
Post #36


914 Wizard
**********

Group: Members
Posts: 10,919
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
(IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
burton73
post Feb 23 2025, 06:27 PM
Post #37


Senior member, and old dude
****

Group: Members
Posts: 3,868
Joined: 2-January 07
From: Los Angeles
Member No.: 7,414
Region Association: Southern California
Very nice, very nice!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Feb 25 2025, 01:53 PM
Post #38


Advanced Member
****

Group: Members
Posts: 3,068
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States

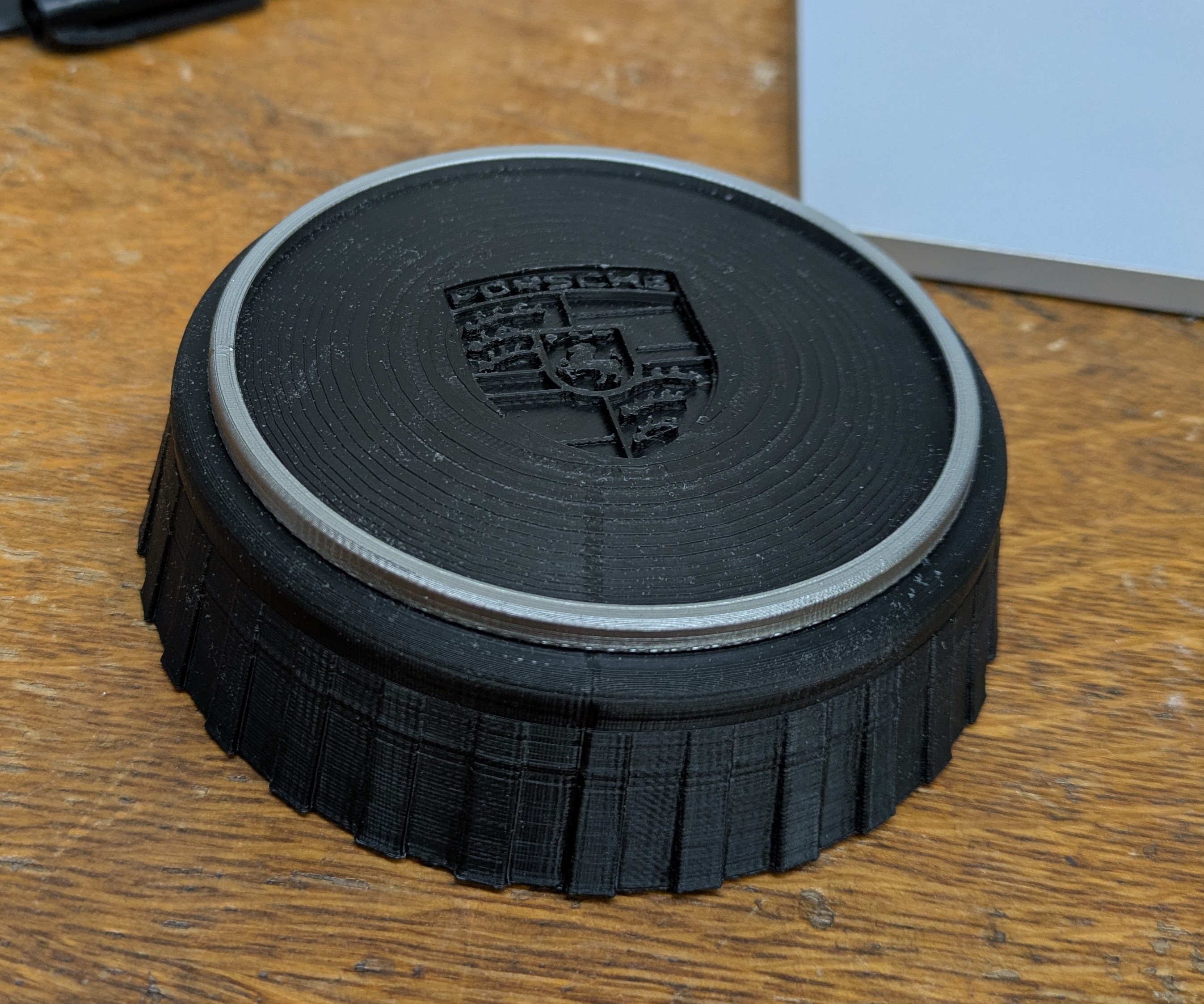

Ever so much closer. Just have to fine tune the clearances on the chrome ring.
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
emerygt350
post Feb 26 2025, 07:02 AM
Post #39


Advanced Member
****

Group: Members
Posts: 3,068
Joined: 20-July 21
From: Upstate, NY
Member No.: 25,740
Region Association: North East States
QUOTE(sixnotfour @ Feb 21 2025, 10:40 AM) *

yes, dia. of bumps... I can Get you any measurement you need,, later today..

@sixnotfour Can you send me the total height of the puck from base to the top of the chrome?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Feb 26 2025, 12:55 PM
Post #40


914 Wizard
**********

Group: Members
Posts: 10,919
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
QUOTE(emerygt350 @ Feb 26 2025, 06:02 AM) *

QUOTE(sixnotfour @ Feb 21 2025, 10:40 AM) *

yes, dia. of bumps... I can Get you any measurement you need,, later today..

@sixnotfour Can you send me the total height of the puck from base to the top of the chrome?



About 31.25mm
