Was the chrome "ornamental exhaust pipe" (901-111-245-01) standard on 914-6? Authenticity book just indicates "there was a chrome removable tip".
Is there an easy way to distinguish it from the myriad of other exhaust tips (e.g. diameter or markings on the part)? If I go shopping on the boards or auction sites, I want to make sure I get the right one. Thanks. |
   |

|
| 914Sixer |
Jun 8 2025, 04:11 PM
Post
#2
|
|
914 Guru Group: Members Posts: 9,156 Joined: 17-January 05 From: San Angelo Texas Member No.: 3,457 Region Association: Southwest Region
|
914-6 was a special tip, has different angle cut to fit muffler because of tail pipe bend.
|
 |
|
| fixer34 |
Jun 9 2025, 12:27 PM
Post
#3
|
|
Senior Member Group: Members Posts: 1,286 Joined: 16-September 14 From: Chicago area Member No.: 17,908 Region Association: Upper MidWest
|

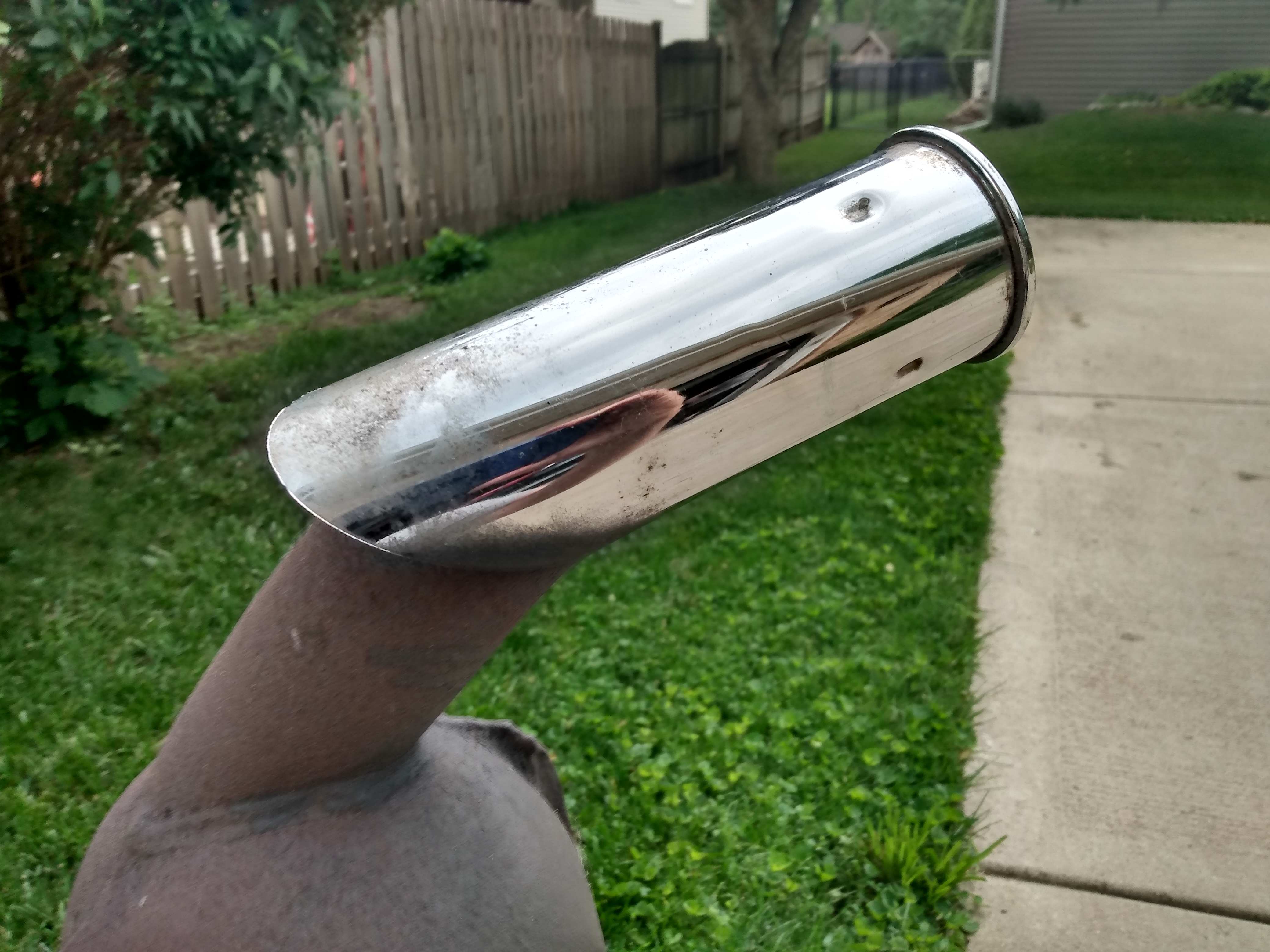

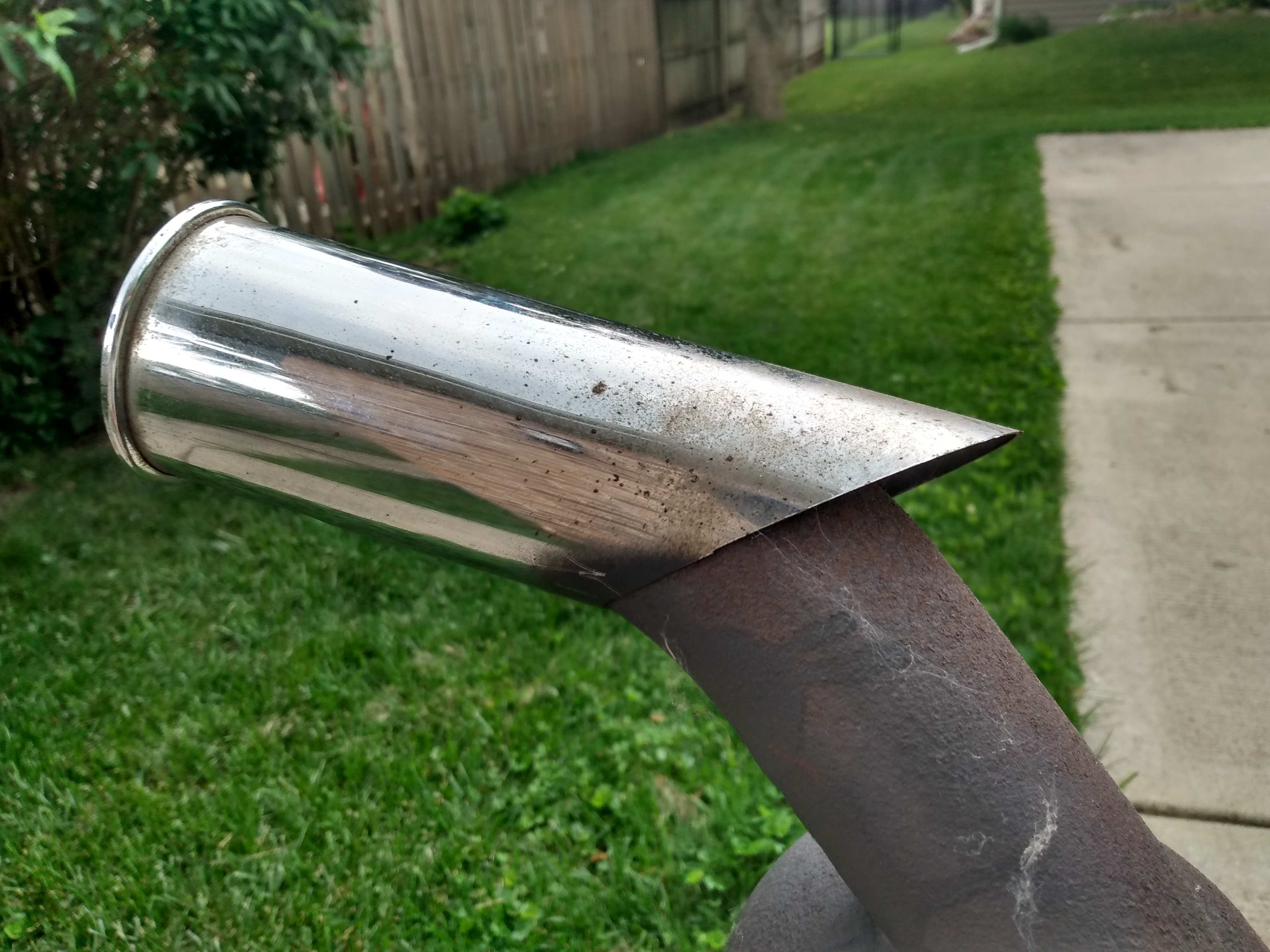

Here's what mine looks like. Top view/bottom view. No idea if a 'factory part'. Installed by the Dr when AA did some work on my car 35 yrs ago. Just swapped the muffler for one of Ben's a couple years ago so this was on the shelf.
  |
|
|
|
| Cairo94507 |
Jun 11 2025, 03:06 PM
Post
#4
|
|
Michael Group: Members Posts: 10,358 Joined: 1-November 08 From: Auburn, CA Member No.: 9,712 Region Association: Northern California
|

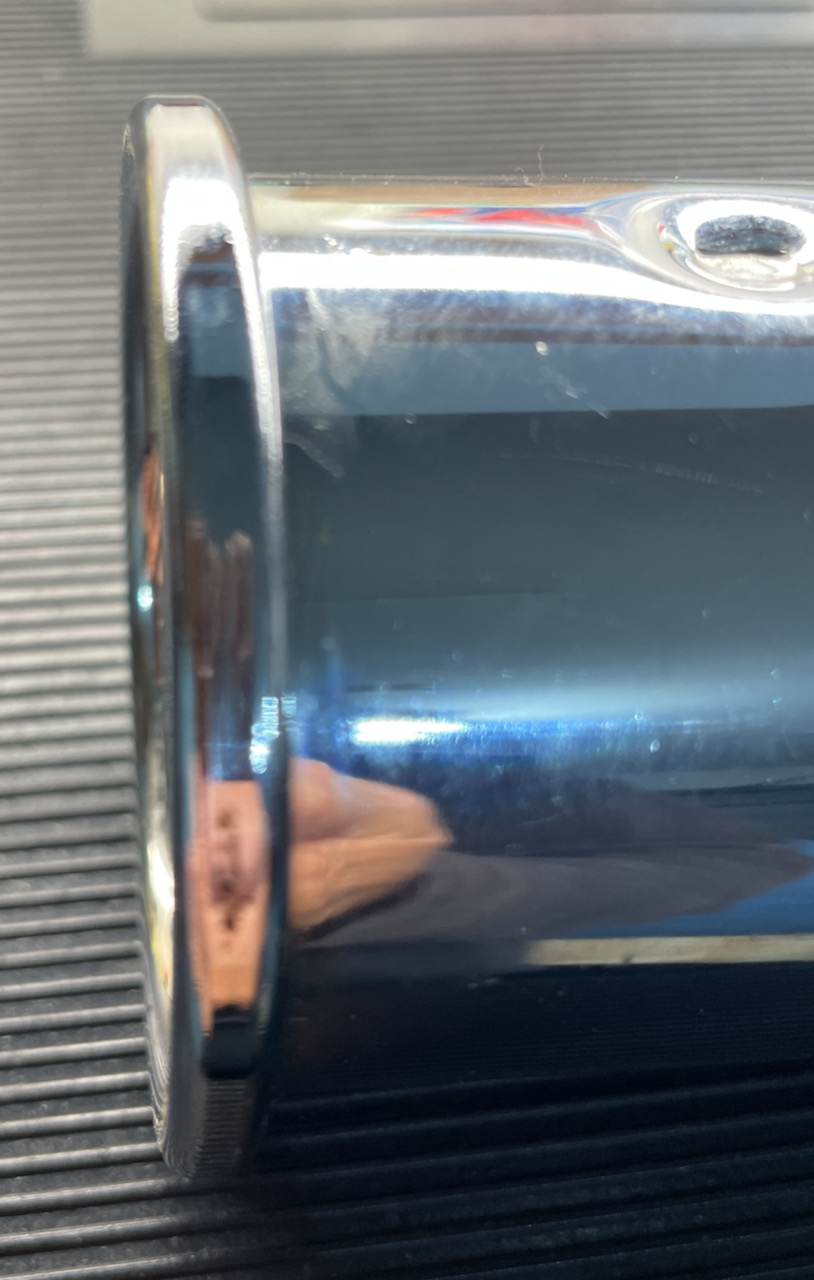

Here is an original 914-6 exhaust finisher (tip). It has almost square shoulders on the tip. The reproduction tips we usually see are more rounded on the tip adornment.
  |
|
|
|
| davep |
Jun 12 2025, 07:23 AM
Post
#5
|
|
914 Historian Group: Benefactors Posts: 5,278 Joined: 13-October 03 From: Burford, ON, N0E 1A0 Member No.: 1,244 Region Association: Canada  |
Part # 901 111 245 01 from the 914 parts catalog
Can you each provide dimensions of the diameters and lengths (short side & long side)/? Enough to create a dimensional drawing? |
|
|
|
| fixer34 |
Jun 14 2025, 02:22 PM
Post
#6
|
|
Senior Member Group: Members Posts: 1,286 Joined: 16-September 14 From: Chicago area Member No.: 17,908 Region Association: Upper MidWest
|
Best I can get from mine: (tip end appears 'square' so may be a factory part)
caliper I have is US only Rim thickness 0.160" outer diameter of rim 2.700" outer diameter of pipe 2.540" inner diameter of pipe 2.400" short length of pipe 10.5 cm (to lip edge) long/point length 18cm |
|
|
|
|
