 Help with 6 heat exchanger mounting brackets |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| sixaddict |
 Jun 14 2025, 09:10 AM
Post
#1
|
|
Senior Member  Group: Members Posts: 949 Joined: 22-January 09 From: Panama City Beach, FL Member No.: 9,961 Region Association: South East States
 |
So finalizing engine details and need a little help with mounting brackets.

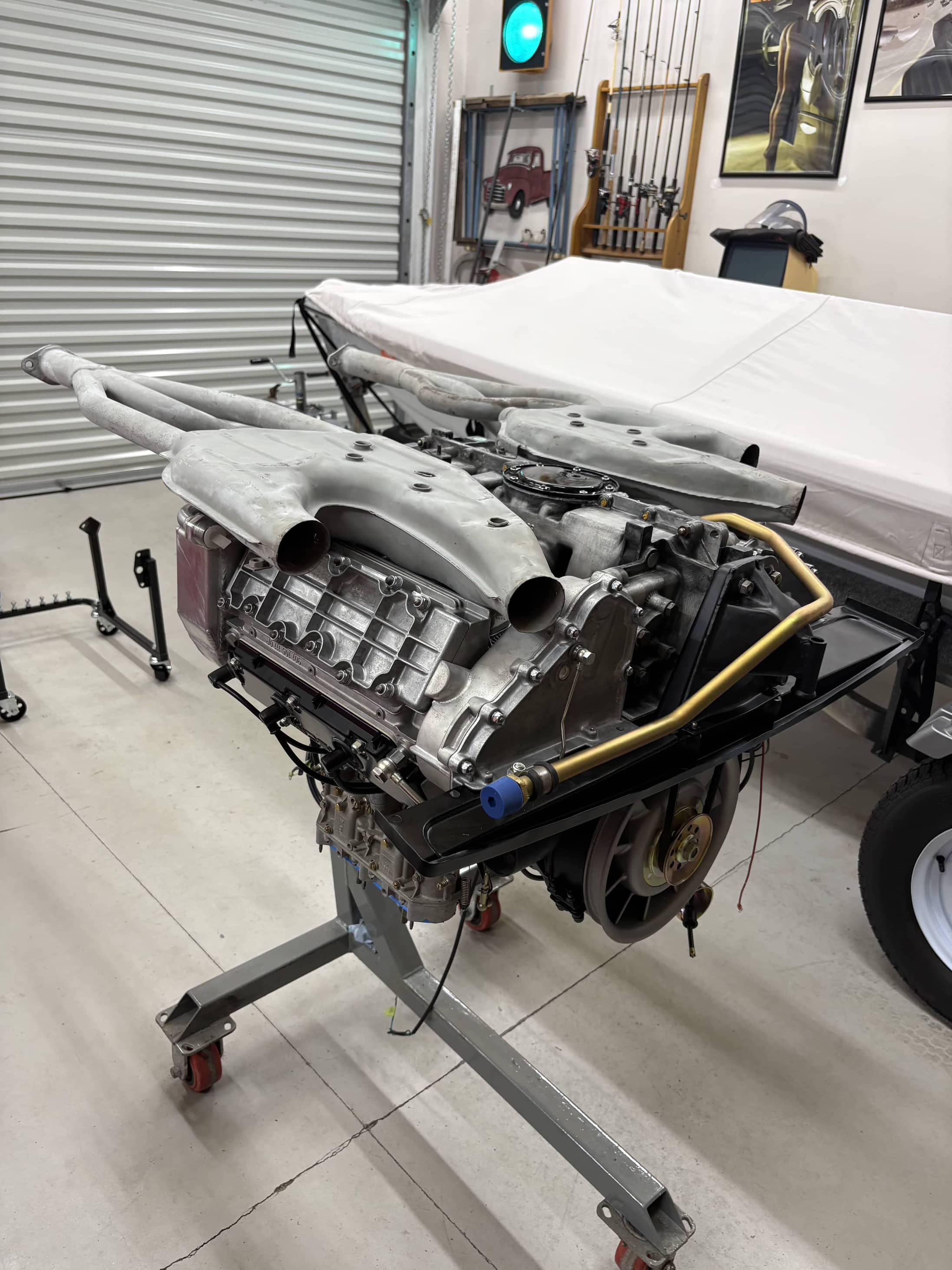

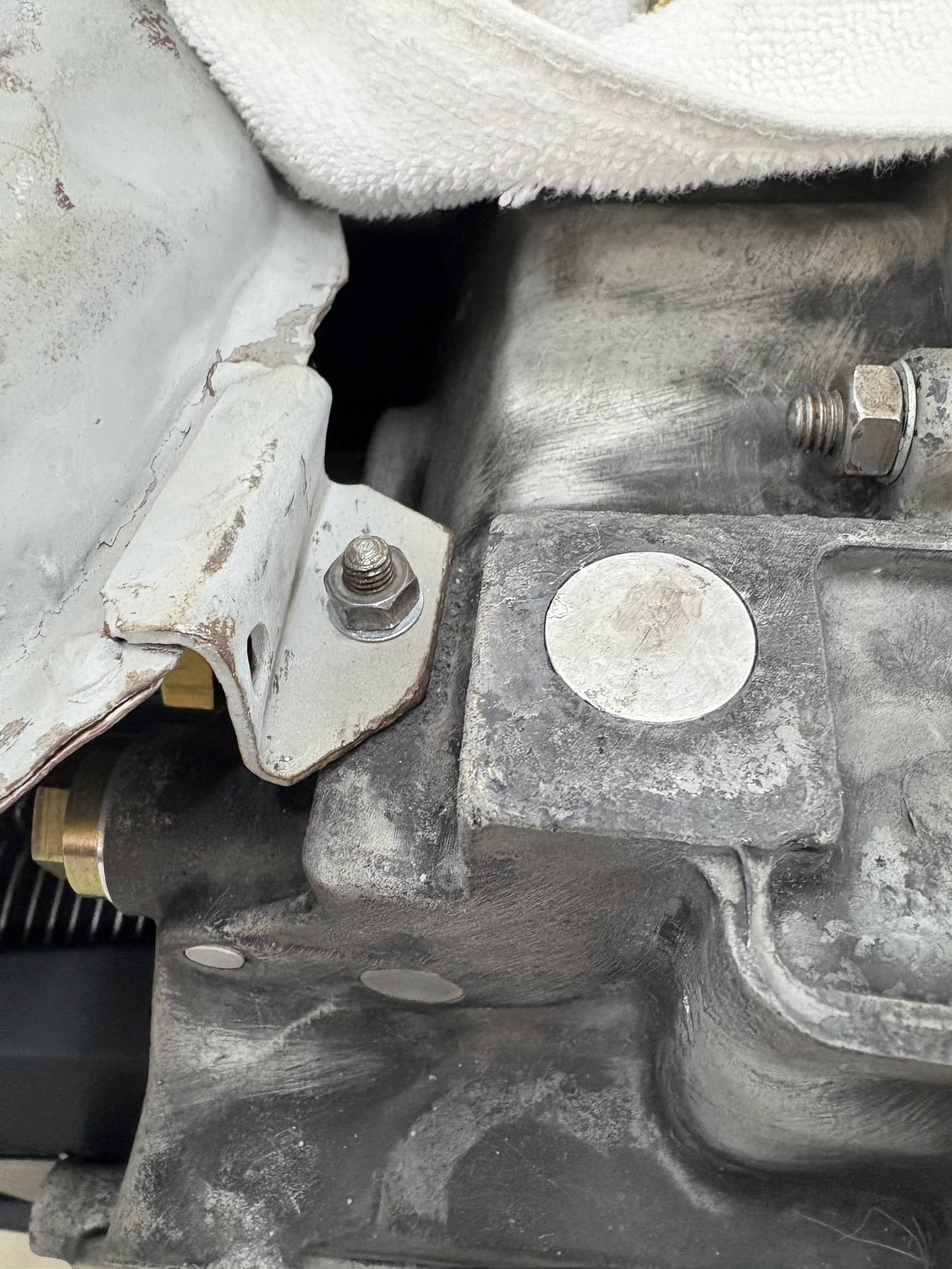

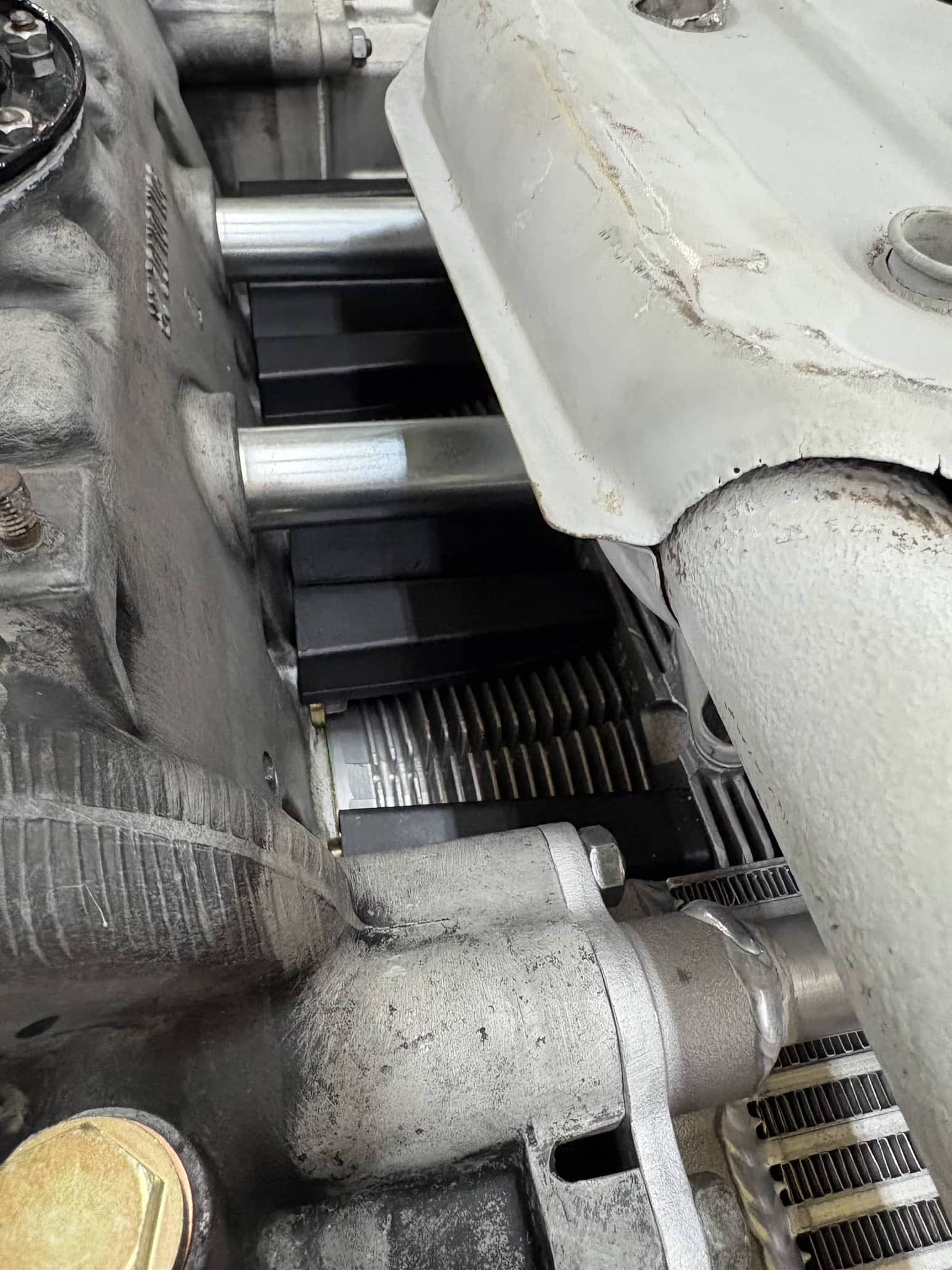

This picture shows mounting bracket in place.  The bracket on this side is MIA…maybe  Next is outboard…  Could some post what I should be seeing if correct. Zoom in on last pic and you can see outboard bracket. Trying to also determine where that attaches. Thanks….. |
   |

|
| 930cabman |
Jun 14 2025, 10:08 AM
Post
#2
|
|
Advanced Member Group: Members Posts: 4,139 Joined: 12-November 20 From: Buffalo Member No.: 24,877 Region Association: North East States
|
I am not able to help with this, but it looks like things are coming together, keep it going
(IMG:style_emoticons/default/beerchug.gif) |
|
|
|
| johnhora |
Jun 14 2025, 11:17 AM
Post
#3
|
|
Senior Member Group: Members Posts: 887 Joined: 7-January 03 From: Derby City KY Member No.: 107 Region Association: None
|

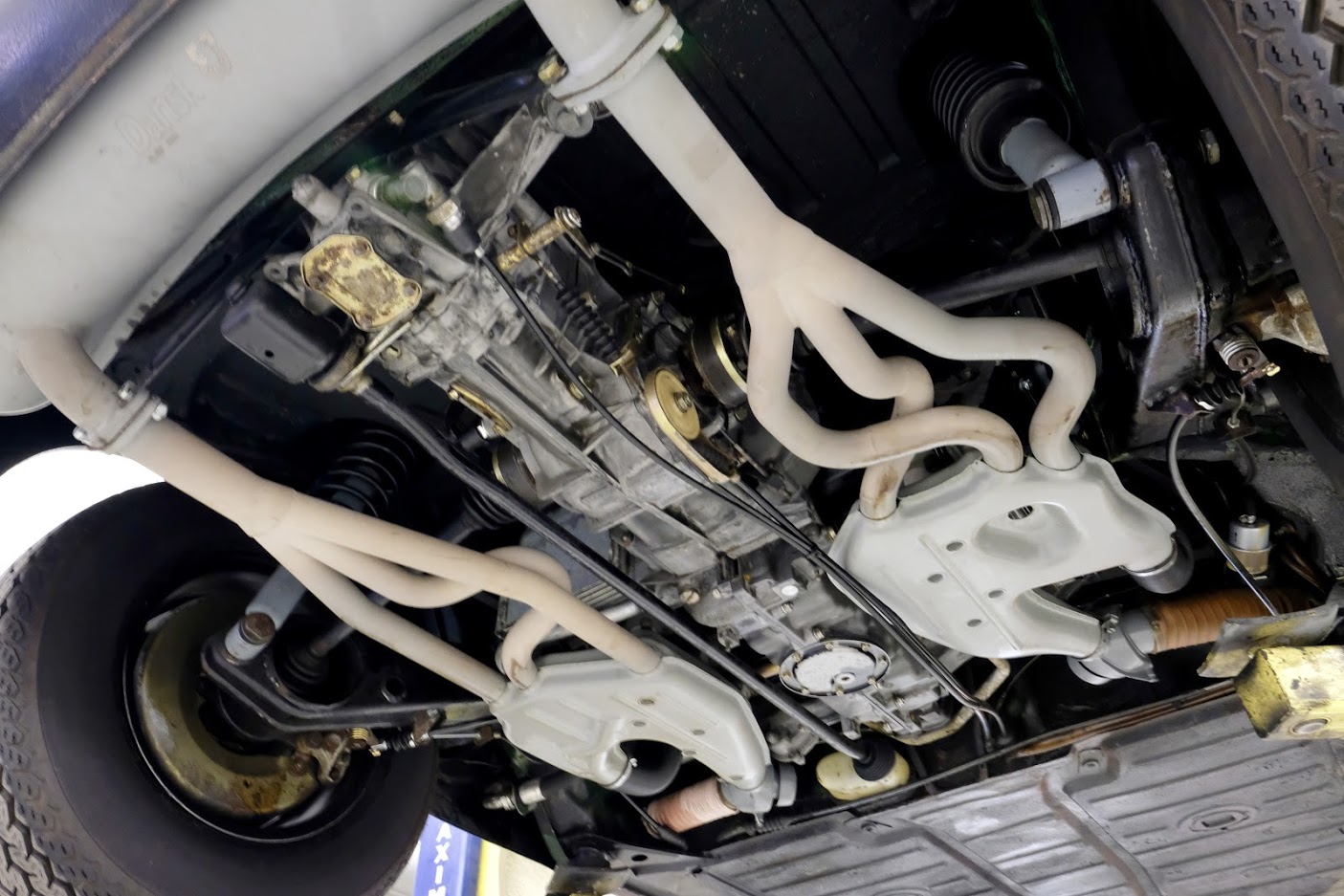

TOT...don't think there's a mounting tab on that side..the one on the dr side has the tab that the clamp for attaching the speedo, clutch, and throttle cables is also connected
 |
|
|
|
| johnhora |
Jun 14 2025, 11:18 AM
Post
#4
|
|
Senior Member Group: Members Posts: 887 Joined: 7-January 03 From: Derby City KY Member No.: 107 Region Association: None
|

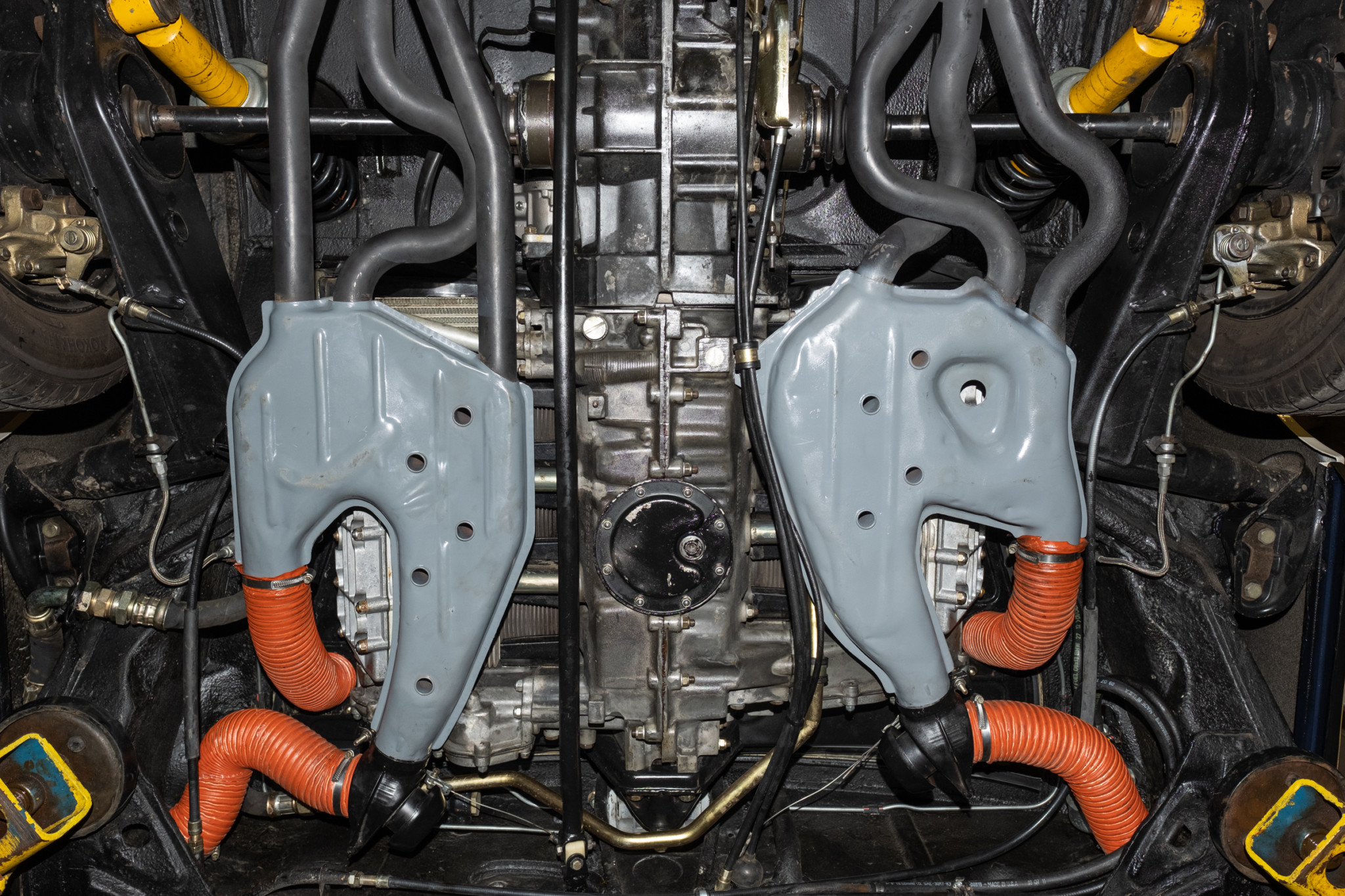

here's another pic of OEM HE's
 |
|
|
|
| sixaddict |
Jun 14 2025, 12:22 PM
Post
#5
|
|
Senior Member Group: Members Posts: 949 Joined: 22-January 09 From: Panama City Beach, FL Member No.: 9,961 Region Association: South East States
|
They are…..we ( builder and I) better known as technician and financier, plan to build engine stand as he would like to hear results of labors plus we can be sure all is well.
Thanks for noticing… quote name='930cabman' date='Jun 14 2025, 08:08 AM' post='3210205'] I am not able to help with this, but it looks like things are coming together, keep it going (IMG:style_emoticons/default/beerchug.gif) [/quote] |
|
|
|
| sixaddict |
Jun 14 2025, 12:24 PM
Post
#6
|
|
Senior Member Group: Members Posts: 949 Joined: 22-January 09 From: Panama City Beach, FL Member No.: 9,961 Region Association: South East States
|
John…
Thanks exactly what I was hoping for…..great pics! Thank you. Terry |
|
|
|
| fixer34 |
Jun 14 2025, 01:33 PM
Post
#7
|
|
Senior Member Group: Members Posts: 1,285 Joined: 16-September 14 From: Chicago area Member No.: 17,908 Region Association: Upper MidWest
|
Yes, I believe the tab on the one side is to clamp the cables in place, not mount to the case.
On a different note, I see you installed turbo valve covers on the exhausts. If you ever plan to check/adjust the valves with the engine in the car (and bolted up) you need to mill/shave some of the fins around a couple bolts. Otherwise they won't clear the trailing arm frame mounts. There are a couple threads about it. Ask me how I know.. |
|
|
|
| sixnotfour |
Jun 14 2025, 08:49 PM
Post
#8
|
|
914 Wizard Group: Members Posts: 10,888 Joined: 12-September 04 From: Life Elevated..planet UT. Member No.: 2,744 Region Association: Rocky Mountains
|
Brackets..

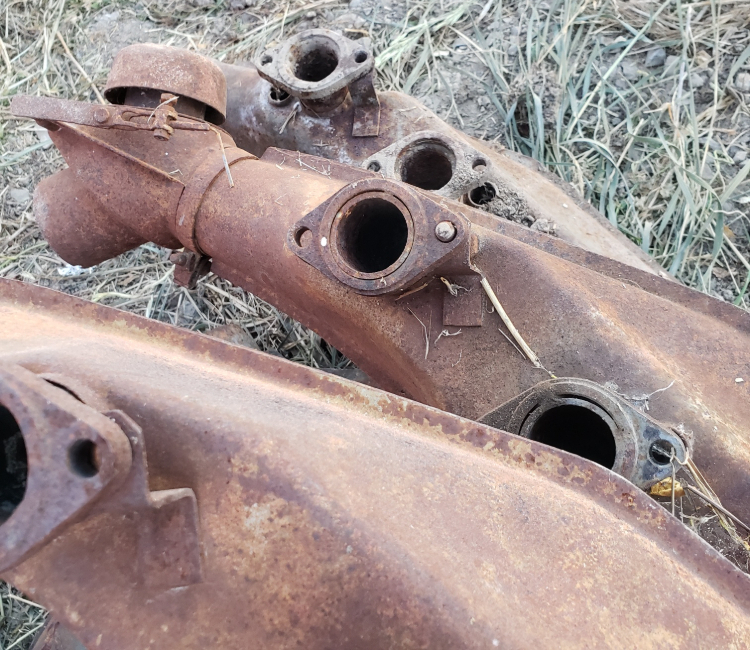

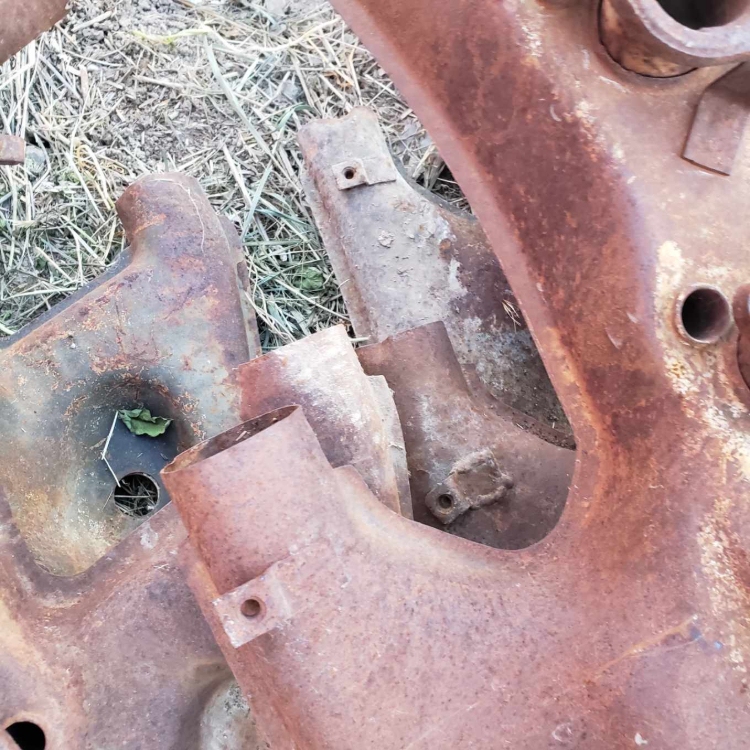

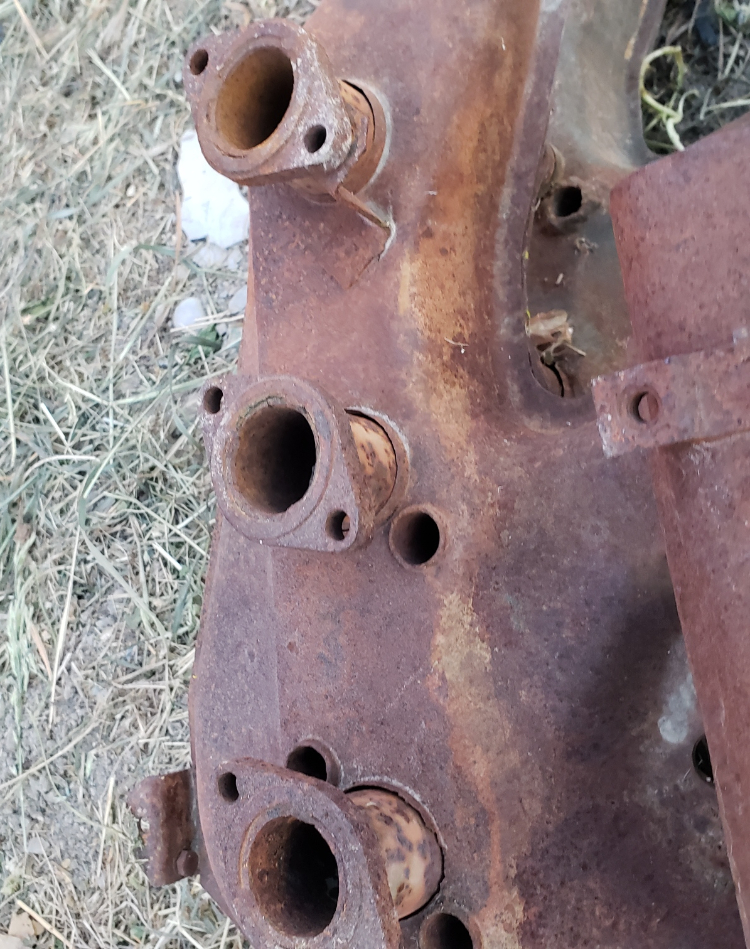

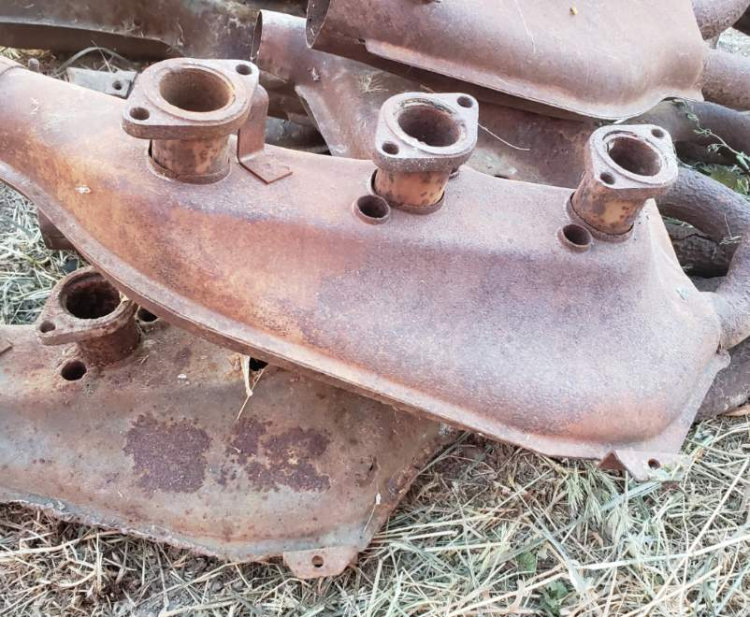

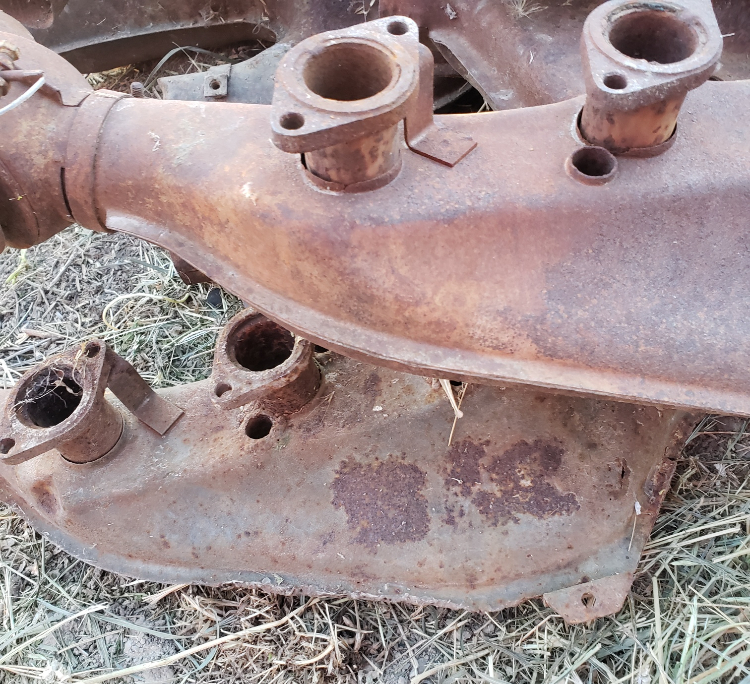

Attached image(s)
|
|
|
|
| porschetub |
Jun 14 2025, 09:57 PM
Post
#9
|
|
Advanced Member Group: Members Posts: 4,853 Joined: 25-July 15 From: New Zealand Member No.: 18,995 Region Association: None |
QUOTE(fixer34 @ Jun 15 2025, 07:33 AM)  Yes, I believe the tab on the one side is to clamp the cables in place, not mount to the case. On a different note, I see you installed turbo valve covers on the exhausts. If you ever plan to check/adjust the valves with the engine in the car (and bolted up) you need to mill/shave some of the fins around a couple bolts. Otherwise they won't clear the trailing arm frame mounts. There are a couple threads about it. Ask me how I know.. (IMG:style_emoticons/default/agree.gif) why would want to solid mount to the HX on to the case ? but why it perfectly lines up on that case stub has got me baffled ??? . Pretty sure OP knows about the lower rocker covers ,cheers. |
|
|
|
| porschetub |
Jun 14 2025, 10:42 PM
Post
#10
|
|
Advanced Member Group: Members Posts: 4,853 Joined: 25-July 15 From: New Zealand Member No.: 18,995 Region Association: None |
[quote name='porschetub' date='Jun 15 2025, 03:57 PM' post='3210274']
[quote name='fixer34' post='3210221' date='Jun 15 2025, 07:33 AM'] Yes, I believe the tab on the one side is to clamp the cables in place, not mount to the case. On a different note, I see you installed turbo valve covers on the exhausts. If you ever plan to check/adjust the valves with the engine in the car (and bolted up) you need to mill/shave some of the fins around a couple bolts. Otherwise they won't clear the trailing arm frame mounts. There are a couple threads about it. Ask me how I know.. [/quote] (IMG:style_emoticons/default/agree.gif) why would want to solid mount to the HX on to the case ? but why it perfectly lines up on that case stub has got me baffled ??? . Pretty sure OP knows about the lower rocker covers ,cheers. Edit ,great pics supplied sixer ,confirms than bracket isn't there in that bunch of tressures you have ?? ,rest look like lower tin fitment ...think so as they are 6mm. Cheers. |
|
|
|
| mb911 |
Jun 15 2025, 04:34 AM
Post
#11
|
|
914 Guru Group: Members Posts: 7,580 Joined: 2-January 09 From: Burlington wi Member No.: 9,892 Region Association: Upper MidWest
|
Terry are you still having the debate on the heat exchangers? Just one tab on that side and then the z bracket on the other side
|
 |
|
|
