> Birth of an Oil Cooler...
Darren65
post Jul 12 2025, 03:38 PM
Post #41


Newbie
*

Group: Members
Posts: 38
Joined: 25-March 25
From: Wiltshire
Member No.: 28,677
Region Association: None
Thanks for letting me share and for my introduction to 914World.

This was never a commercial venture and is just about a couple of early Porsche enthusiasts getting carried away when hunting for their own needs.

The project has been a lot of fun and we've been lucky to receive some amazing feedback with the likes Armando Serrano saying these are the best reproductions ever made with Glenn Stazak echoing those comments and even purchasing a couple of coolers for his own cars (IMG:style_emoticons/default/smile.gif)

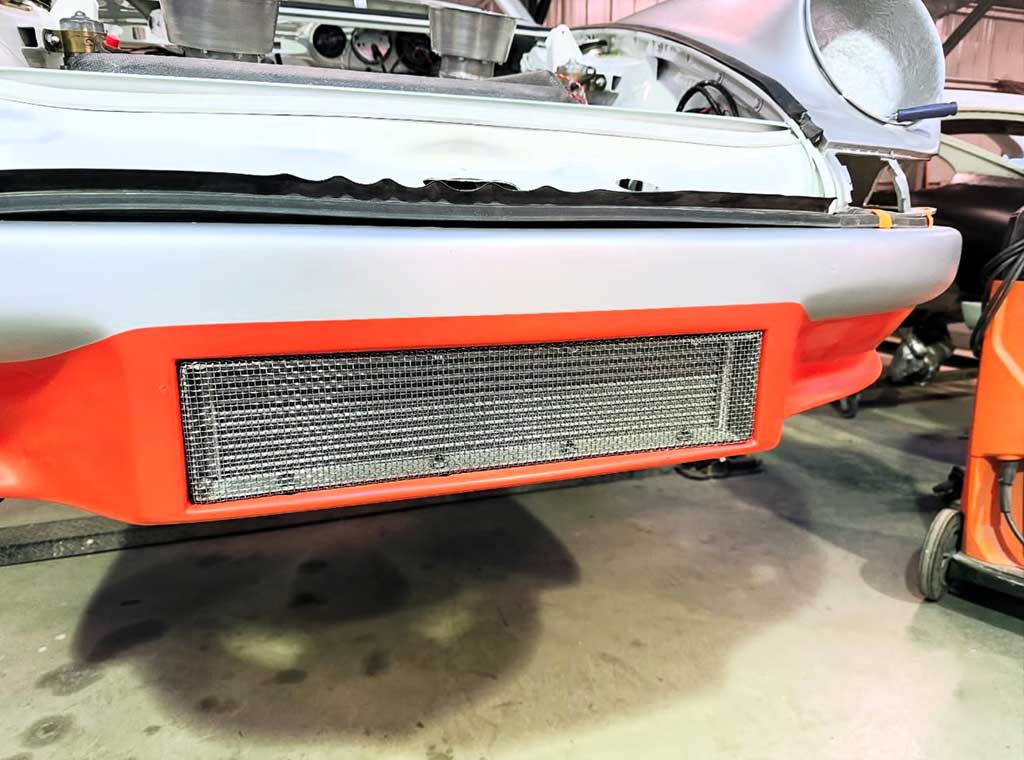

It's been a real buzz seeing these coolers being fitted to real RSR's and the like although I get most excited about seeing them find their way onto somebody's project where I've seen the hours of love and dedication that it takes to build these amazing cars...

(IMG:http://www.914world.com/bbs2/uploads_offsite/live.staticflickr.com-28677-1752356304.1.jpg)

...I'm looking forward to seeing a few photos of these fitted to a 914-6 GT.

I wonder if it will ever be my own!!

Cheers,
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Darren65
post Jul 19 2025, 02:20 PM
Post #42


Newbie
*

Group: Members
Posts: 38
Joined: 25-March 25
From: Wiltshire
Member No.: 28,677
Region Association: None

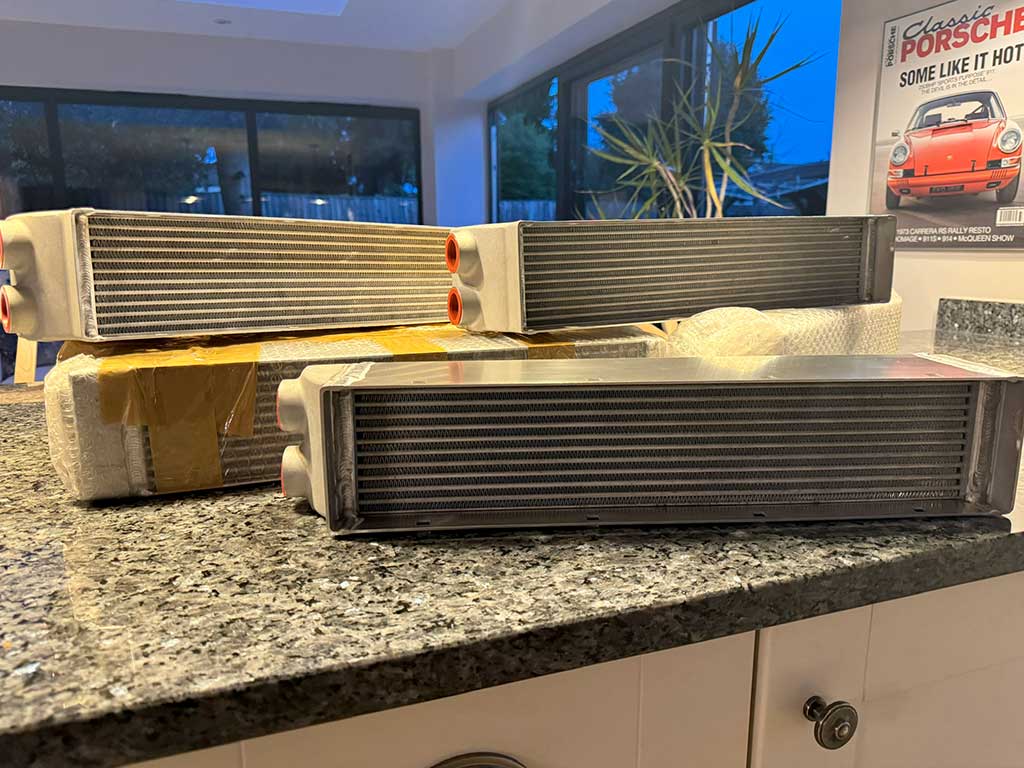

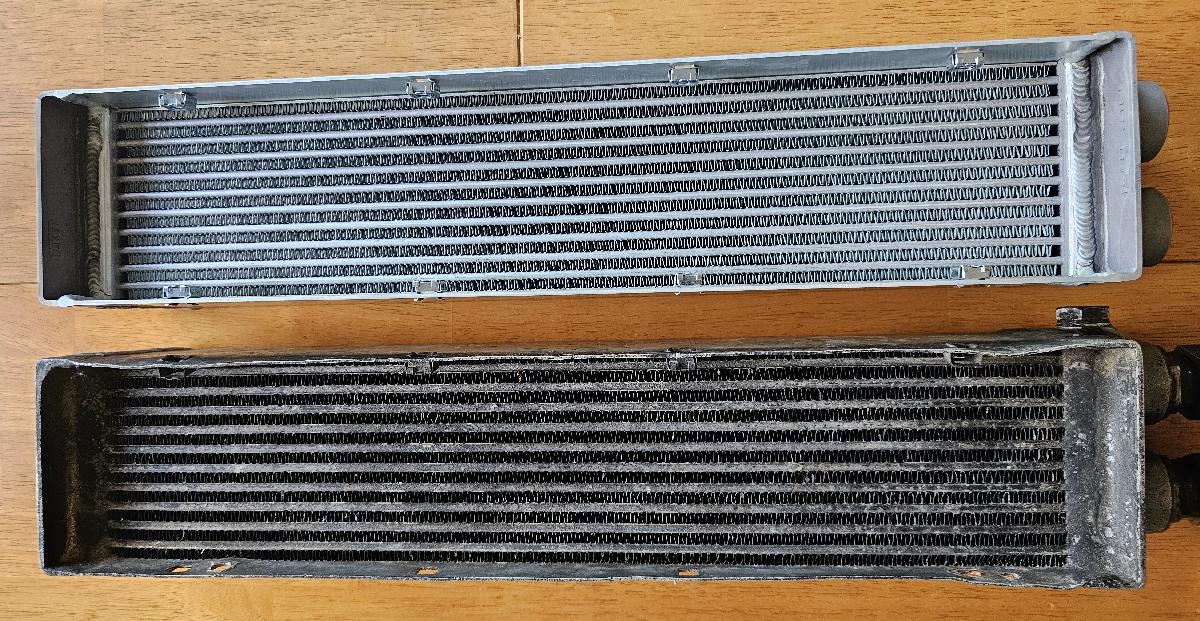

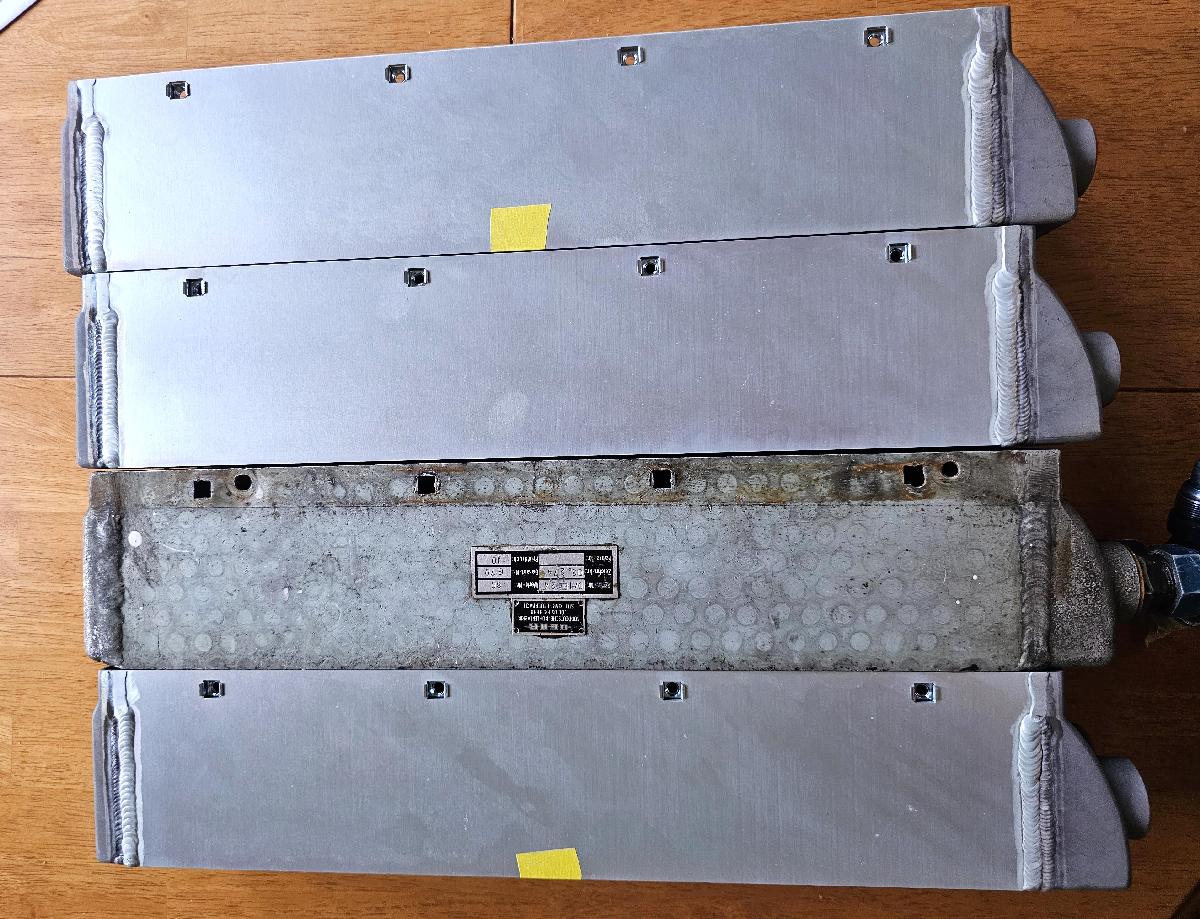

Collected what will be the final batch of 7 GT oil coolers we'll produce from Bob at Concept Racing yesterday.....3 of these are spoken with 4 available if anyone has a need...

(IMG:http://www.914world.com/bbs2/uploads_offsite/staging-jubilee.flickr.com-28677-1752956436.1.jpg)

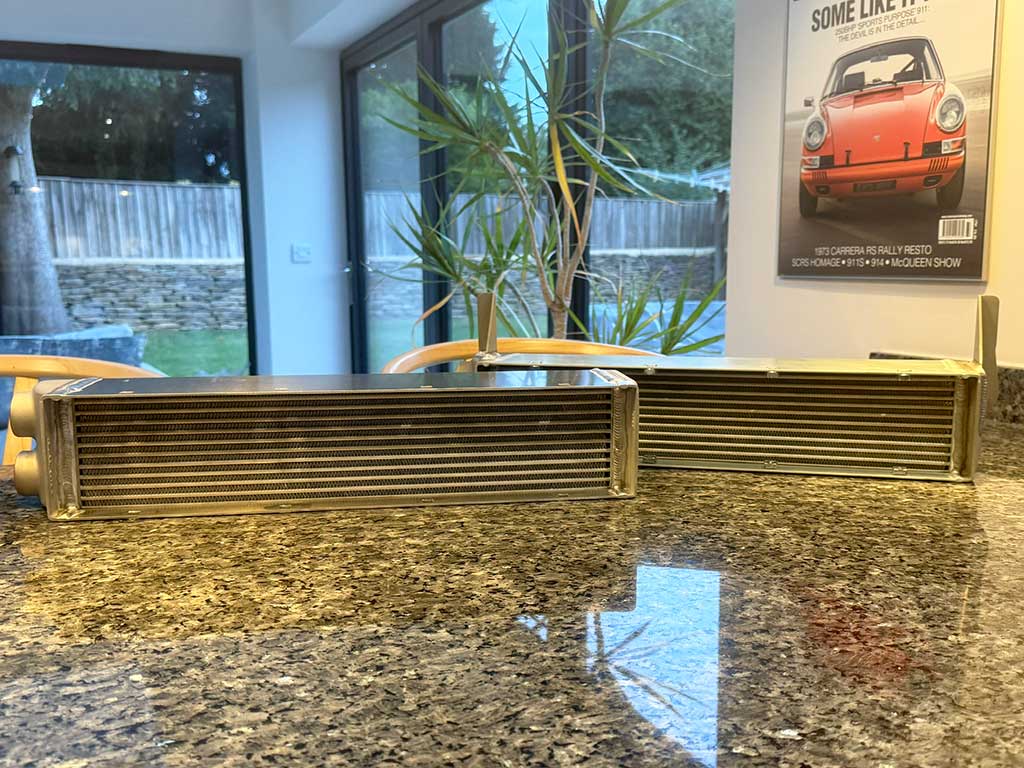

...all a little shiny at the moment until they receive their Alocrom treatment next week....

(IMG:http://www.914world.com/bbs2/uploads_offsite/staging-jubilee.flickr.com-28677-1752956436.2.jpg)

.....
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Darren65
post Jul 19 2025, 02:29 PM
Post #43


Newbie
*

Group: Members
Posts: 38
Joined: 25-March 25
From: Wiltshire
Member No.: 28,677
Region Association: None
...as wonderfully fabricated these coolers are they really are childs play when it comes to Bob's talent....

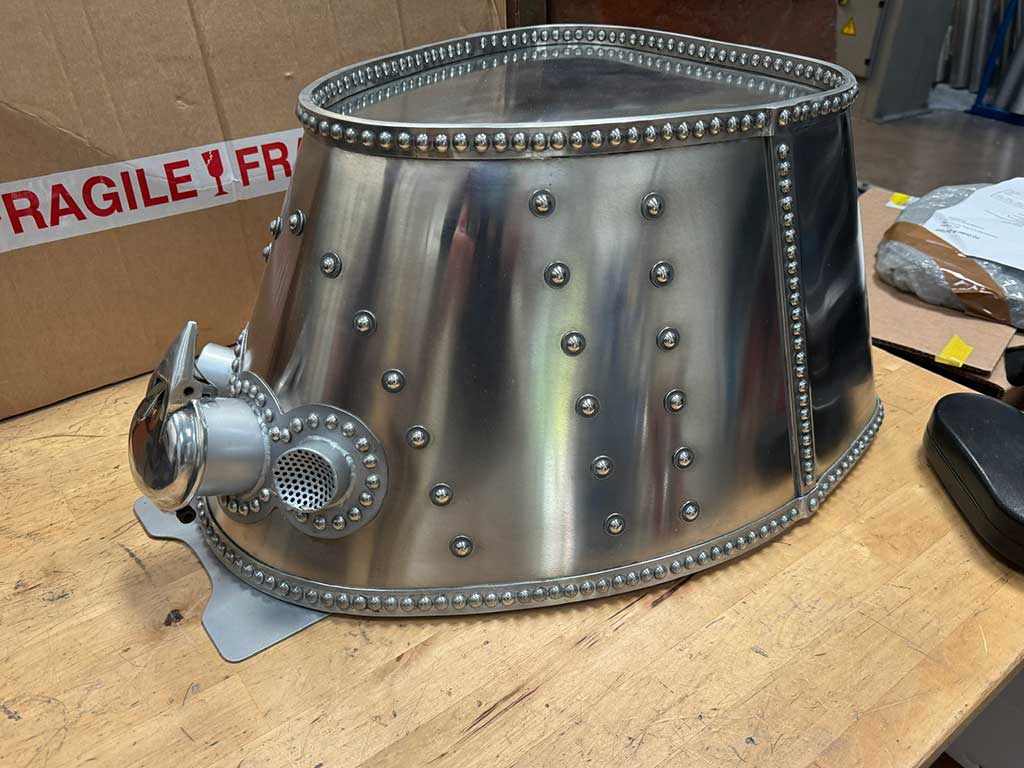

....just for interest, what's far more impressive is this oil tank he's just completed. Hand made from scratch and really quite complex internally, it really is jewellery of the highest order! Amazing what you can do with an English Wheel and a sheet of aluminium! (IMG:style_emoticons/default/sunglasses.gif) ....

(IMG:http://www.914world.com/bbs2/uploads_offsite/staging-jubilee.flickr.com-28677-1752956991.1.jpg)

....can anyone guess the car it belongs to?

Cheers,
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NARP74
post Jul 19 2025, 08:01 PM
Post #44


Senior Member
***

Group: Members
Posts: 1,417
Joined: 29-July 20
From: Colorado, USA, Earth
Member No.: 24,549
Region Association: Rocky Mountains
What are people using for screens for these oil coolers and how are they mounted?
Cheers
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Darren65
post Jul 20 2025, 09:00 AM
Post #45


Newbie
*

Group: Members
Posts: 38
Joined: 25-March 25
From: Wiltshire
Member No.: 28,677
Region Association: None
QUOTE(NARP74 @ Jul 19 2025, 08:01 PM) *

What are people using for screens for these oil coolers and how are they mounted?
Cheers

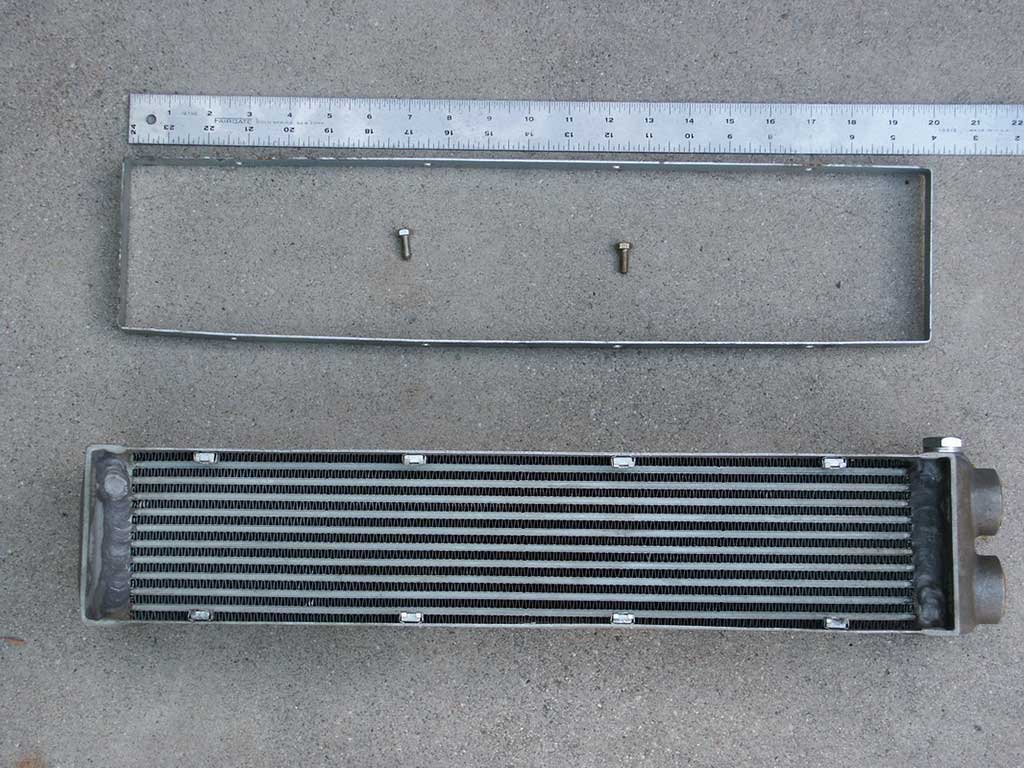

Not quite sure what type of mesh would have been used on the 914-6 GT although this was held in place by a simple frame bolted onto the captive nuts clipped on the cooler....

(IMG:http://www.914world.com/bbs2/uploads_offsite/staging-jubilee.flickr.com-28677-1753023614.1.jpg)

....obviously the 2.8 cooler had brackets which bolted to front bulkhead of the 911 as per Patrick's Martini car above although again not certain how this worked on the 914.

I'll do some research although would be great if the knowledgeable on here could post how this was done?

Many thanks,
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Darren65
post Jul 20 2025, 09:06 AM
Post #46


Newbie
*

Group: Members
Posts: 38
Joined: 25-March 25
From: Wiltshire
Member No.: 28,677
Region Association: None
QUOTE(Darren65 @ Jul 19 2025, 02:29 PM) *

....can anyone guess the car it belongs to?

Cheers,

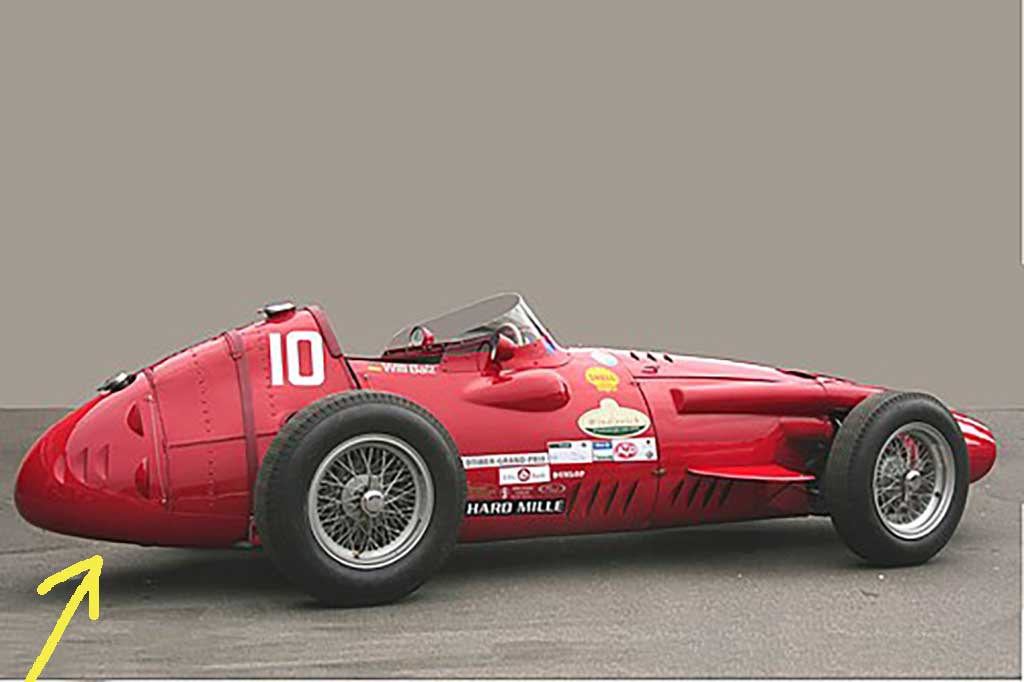

....at the rear of the Maserati 250F btw (IMG:style_emoticons/default/sunglasses.gif)

(IMG:http://www.914world.com/bbs2/uploads_offsite/staging-jubilee.flickr.com-28677-1753023967.1.jpg)

Cheers,
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Montreal914
post Jul 20 2025, 09:08 AM
Post #47


Senior Member
***

Group: Members
Posts: 1,903
Joined: 8-August 10
From: Claremont, CA
Member No.: 12,023
Region Association: Southern California
(IMG:style_emoticons/default/pray.gif)

The cap behind the back seat is the oil tank, keeping the driver warm? (IMG:style_emoticons/default/driving.gif) I though your friend's tank was the fuel tank for some reason. Reread the post.

Still (IMG:style_emoticons/default/pray.gif) (IMG:style_emoticons/default/pray.gif) (IMG:style_emoticons/default/pray.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Darren65
post Jul 26 2025, 01:00 AM
Post #48


Newbie
*

Group: Members
Posts: 38
Joined: 25-March 25
From: Wiltshire
Member No.: 28,677
Region Association: None
I’ve been asked what hardware is needed to mount these coolers in a 914-6 GT, can anyone offer advice?

Cheers,
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Darren65
post Jul 26 2025, 01:24 AM
Post #49


Newbie
*

Group: Members
Posts: 38
Joined: 25-March 25
From: Wiltshire
Member No.: 28,677
Region Association: None
Pics would be nice (IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Jul 26 2025, 09:18 AM
Post #50


Advanced Member
****

Group: Members
Posts: 2,733
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest
@Darren65 these are absolutely perfect and I cannot wait until mine arrive!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Krieger
post Jul 26 2025, 10:08 AM
Post #51


Advanced Member
****

Group: Members
Posts: 4,821
Joined: 24-May 04
From: Santa Rosa CA
Member No.: 2,104
Region Association: None
Absolutely stunning work!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
live free & drive
post Jul 27 2025, 12:29 PM
Post #52


Member
**

Group: Members
Posts: 207
Joined: 29-June 16
From: New Hampshire
Member No.: 20,159
Region Association: None
QUOTE(NARP74 @ Jul 19 2025, 08:01 PM) *

What are people using for screens for these oil coolers and how are they mounted?
Cheers


You can see the parts here: https://pbase.com/9146gt/oil_cooler_cover_support

Mittelmotor in Germany carries steel replicas - other places (Patrick MS) have fiberglass copies.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Aug 5 2025, 05:35 PM
Post #53


Advanced Member
****

Group: Members
Posts: 2,733
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest

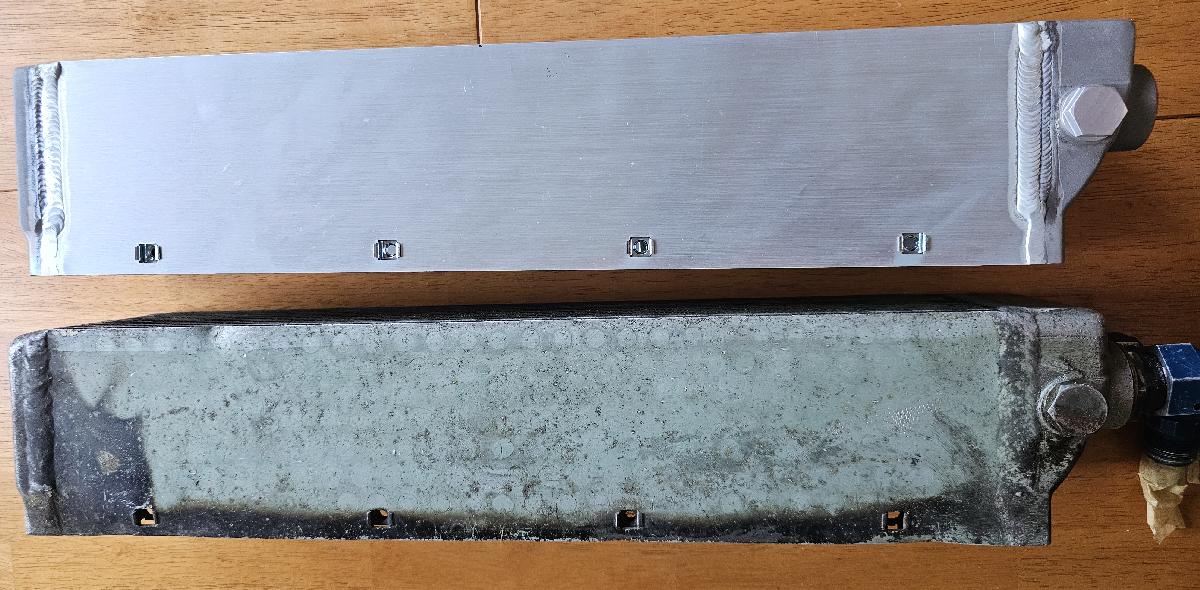

they are perfect!
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Aug 5 2025, 07:02 PM
Post #54


Advanced Member
****

Group: Members
Posts: 2,733
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest

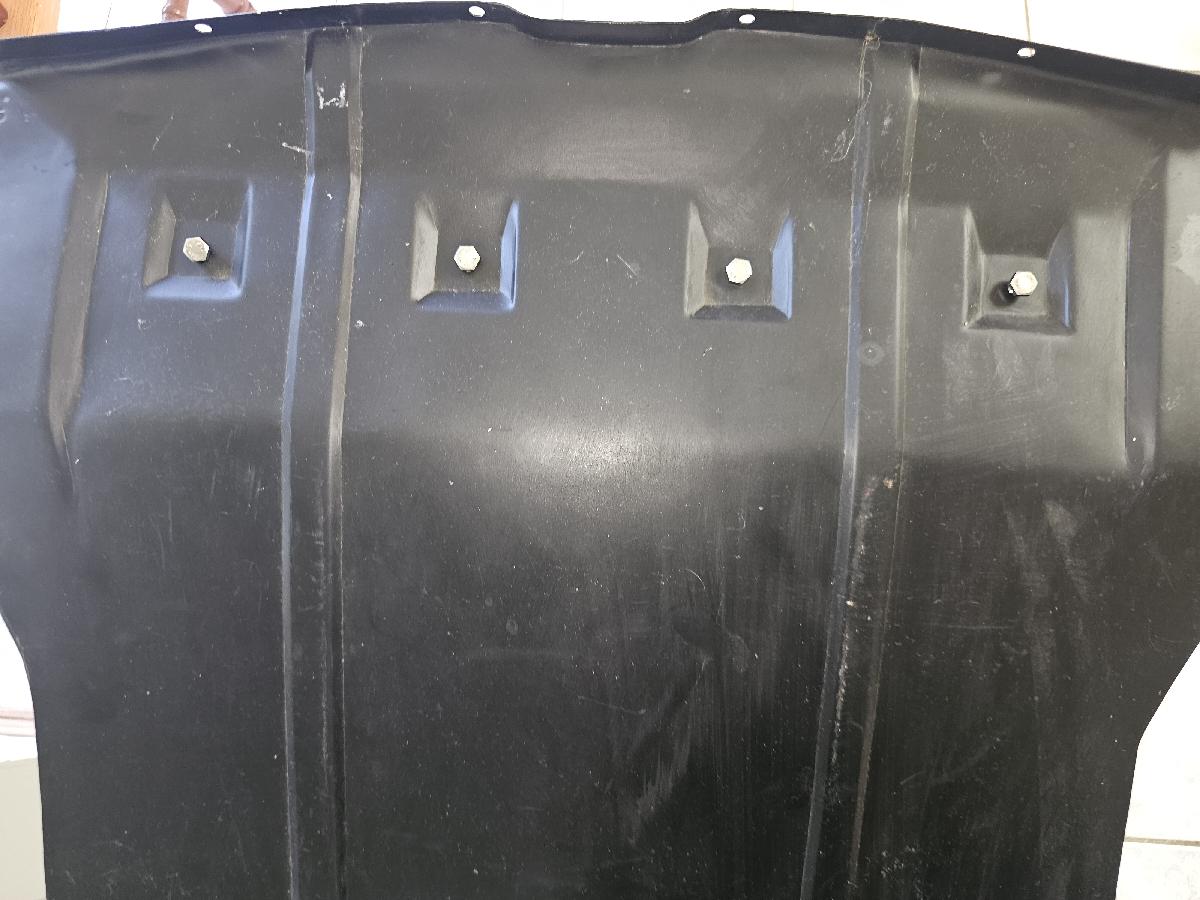

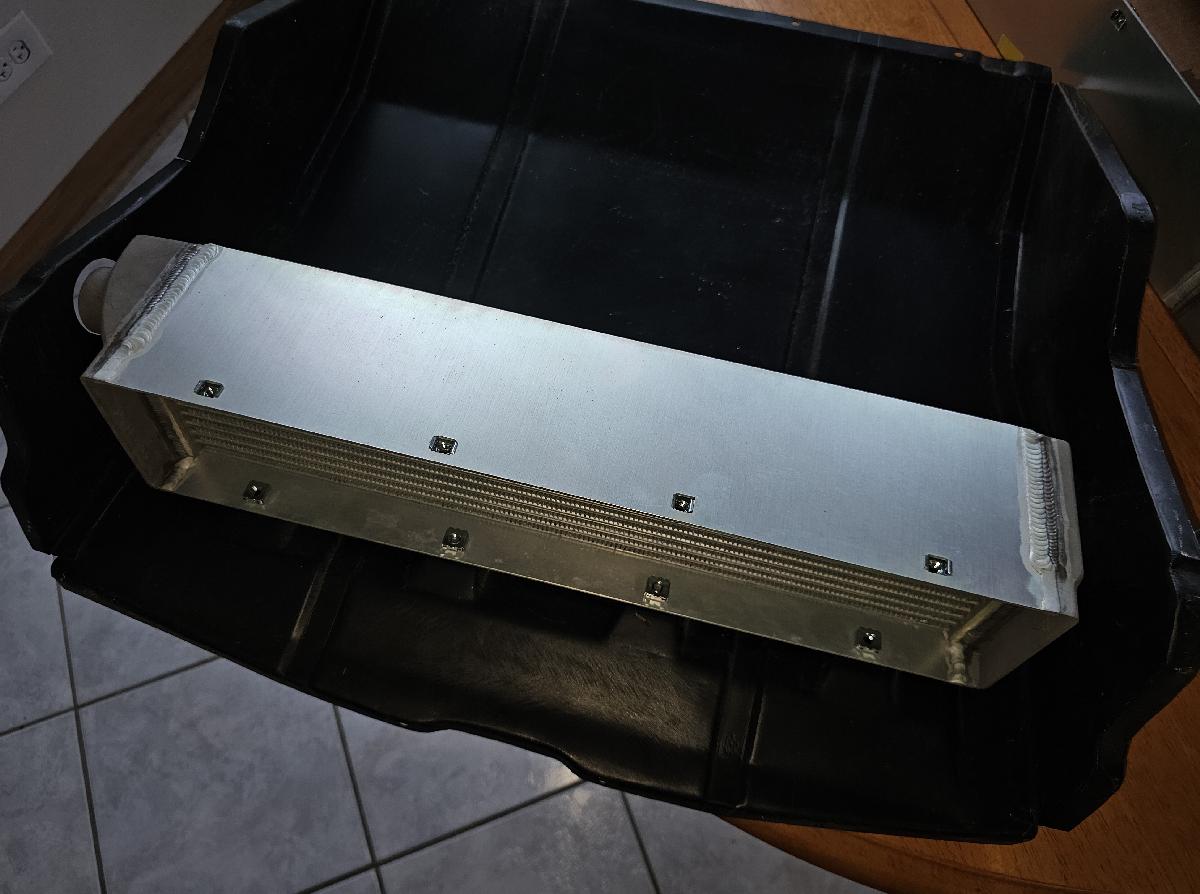

this is upside down, use M6x12mm hex heads
Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sixnotfour
post Aug 6 2025, 08:33 AM
Post #55


914 Wizard
**********

Group: Members
Posts: 10,940
Joined: 12-September 04
From: Life Elevated..planet UT.
Member No.: 2,744
Region Association: Rocky Mountains
(IMG:style_emoticons/default/beerchug.gif) (IMG:style_emoticons/default/pray.gif) Note the 2 bolt bottom pan bracket.. {top side in pic}


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
gms
post Aug 9 2025, 08:54 AM
Post #56


Advanced Member
****

Group: Members
Posts: 2,733
Joined: 12-March 04
From: Chicagoland
Member No.: 1,785
Region Association: Upper MidWest

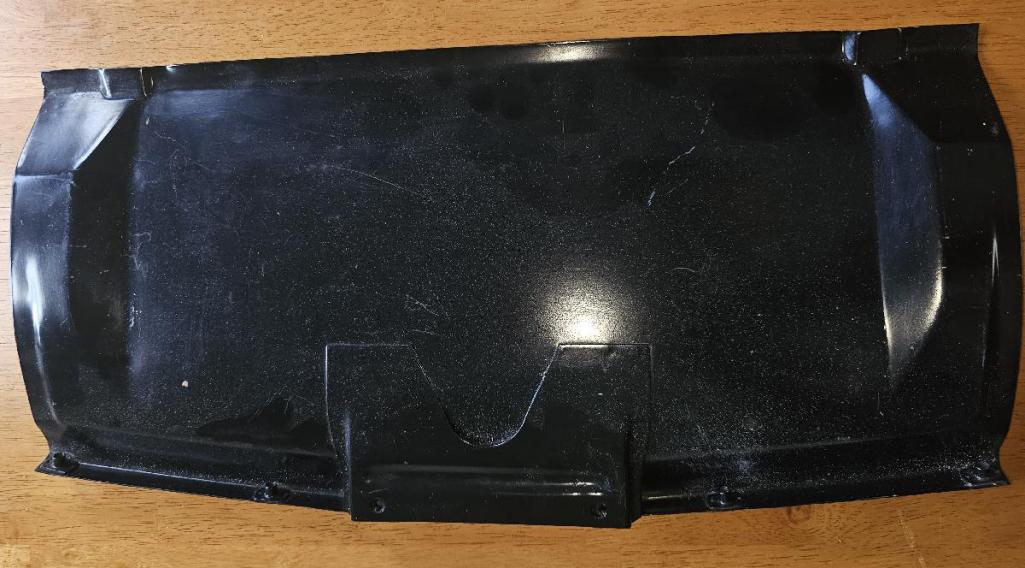

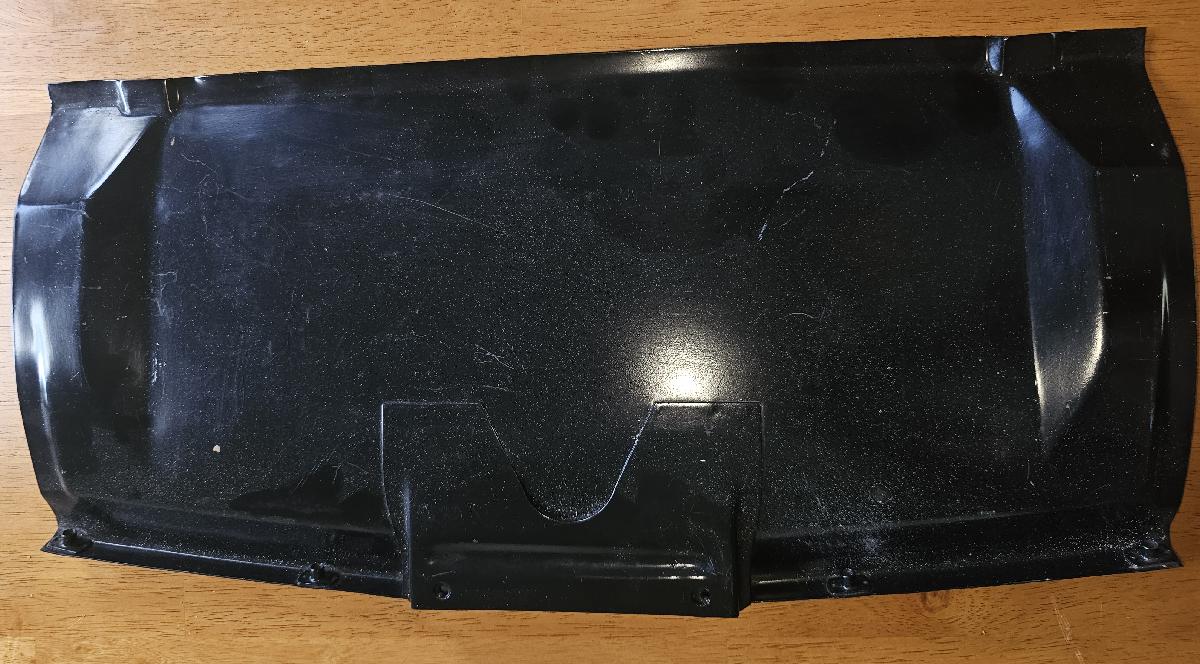

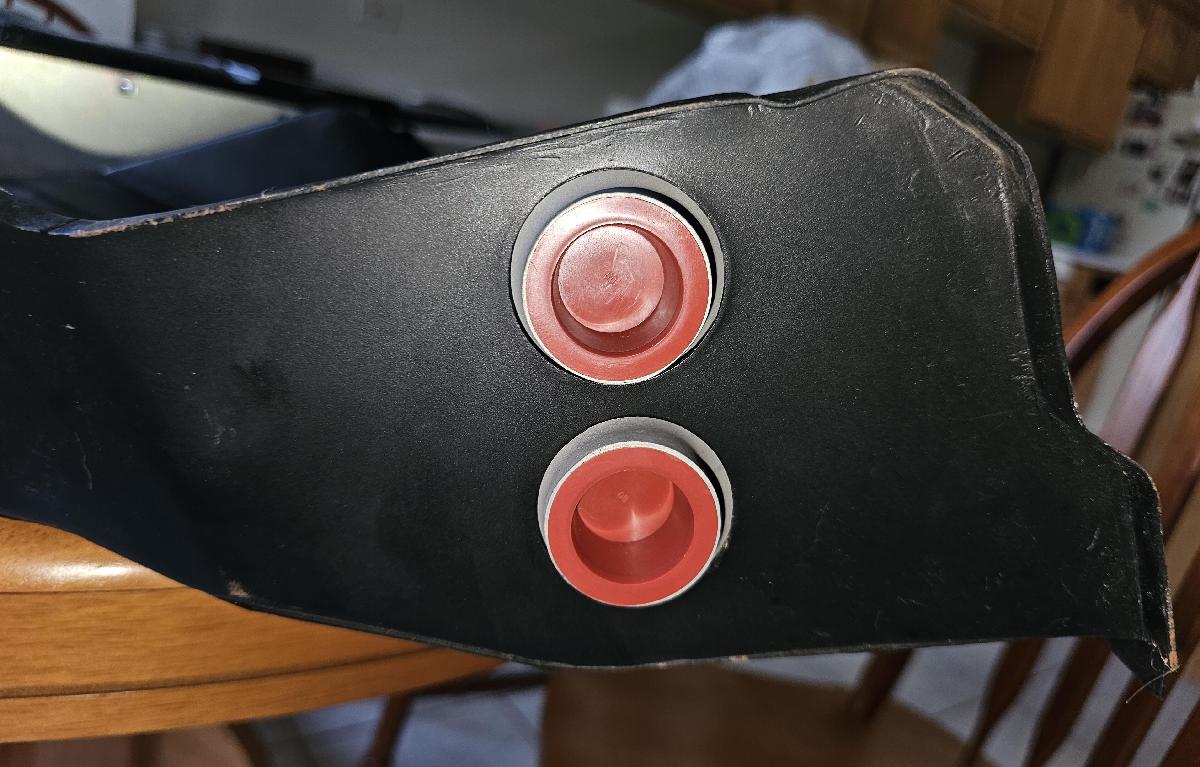

Bottom plate
Attached Image

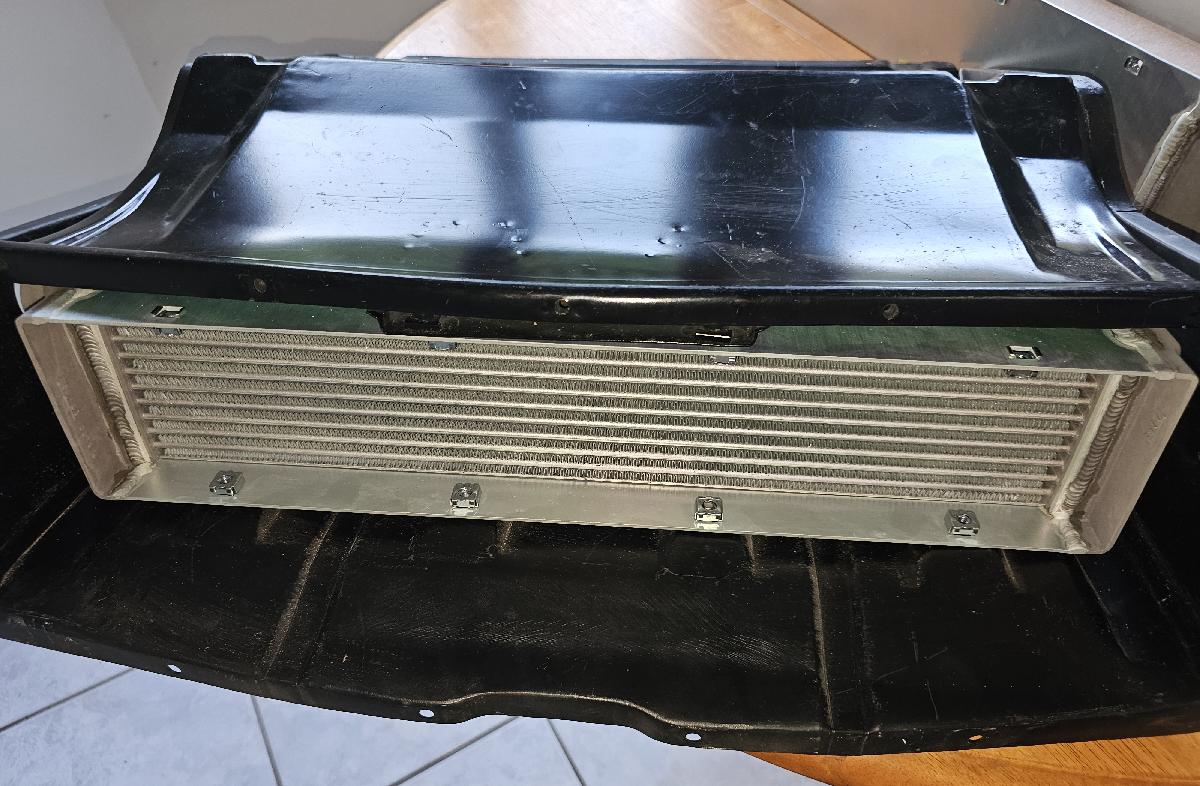

Top Shroud fastened to top of oil cooler
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Darren65
post Aug 10 2025, 04:28 AM
Post #57


Newbie
*

Group: Members
Posts: 38
Joined: 25-March 25
From: Wiltshire
Member No.: 28,677
Region Association: None
QUOTE(gms @ Aug 5 2025, 05:35 PM) *

they are perfect!

Great to hear you say that Glenn (IMG:style_emoticons/default/smile.gif)

Thank you so much for your help and support.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Darren65
post Aug 10 2025, 04:28 AM
Post #58


Newbie
*

Group: Members
Posts: 38
Joined: 25-March 25
From: Wiltshire
Member No.: 28,677
Region Association: None
Just a few of the awesome cars these coolers are being fitted to (IMG:style_emoticons/default/sunglasses.gif) ...

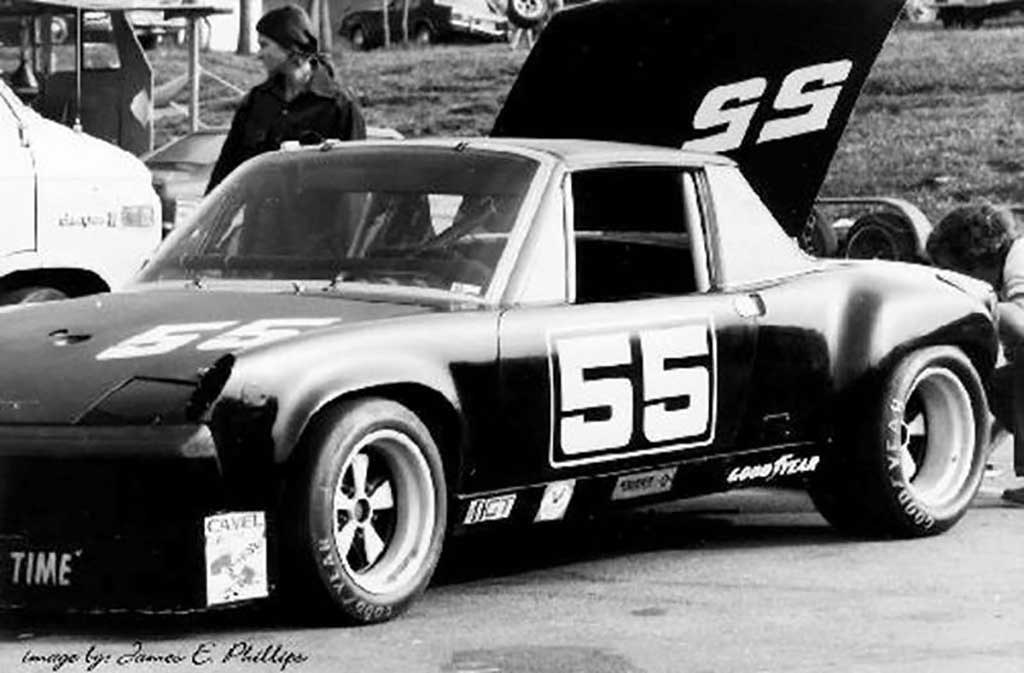

Cutler GT
(IMG:http://www.914world.com/bbs2/uploads_offsite/live.staticflickr.com-28677-1754821721.1.jpg)

Meaney GT
(IMG:http://www.914world.com/bbs2/uploads_offsite/live.staticflickr.com-28677-1754821722.2.jpg)

Stoddard GT
(IMG:http://www.914world.com/bbs2/uploads_offsite/live.staticflickr.com-28677-1754821722.3.jpg)

....we're now sold out of the current batch.

Not knowing how the split of RSR/914 coolers would go we held back the final 8 cores and end tanks which we plan to have fabricated at the beginning of October. Once these are made there will be no more.

At this stage we're undecided on how many we'll allocate to 914-6 GT's but if you think you might have a need now or in the future then please do let me know.

Many thanks,
