> 911 Fog Light Switch for Front & Rear lights, Need help wiring…See my labeled diagram
jim_hoyland
post Jan 13 2026, 12:57 PM
Post #1


Get that VIN ?
**********

Group: Members
Posts: 10,003
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California

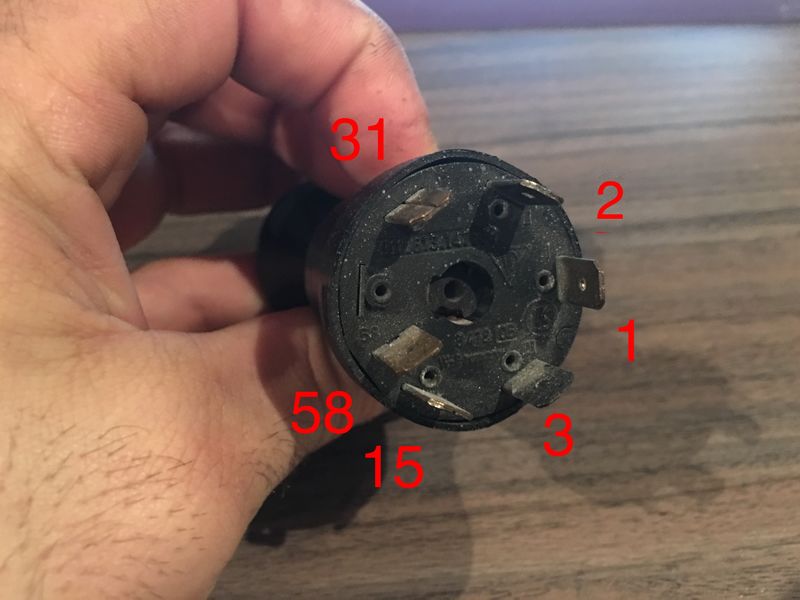

I have the dual fog light switch for front and rear fog lights.
Part # 911.613.147.00
How does it get wired ?
@Spoke


Attached image(s)
Attached Image Attached Image Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jan 13 2026, 11:02 PM
Post #2


Jerry
*****

Group: Members
Posts: 7,319
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
I searched for that p/n for a schematic of it or a layout or pinout. Didn't find much. Maybe the schematic from the vehicle this was used in?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 13 2026, 11:31 PM
Post #3


914 Wiring Harnesses & Beekeeper
*****

Group: Members
Posts: 9,165
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None
Easiest to simply check true continuity of each of the connecting poles (circuits) relative to each position of the switch. Ohmmeter with a buzzer is the tool of choice.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jan 16 2026, 02:19 PM
Post #4


Get that VIN ?
**********

Group: Members
Posts: 10,003
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
So far I have:
31 = ground
15 = keyed battery power
58 = light (s)
Still search to learn about I, I, III


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
cholland_
post Jan 16 2026, 02:54 PM
Post #5


Member
**

Group: Members
Posts: 73
Joined: 11-October 06
From: Toronto, Ontario
Member No.: 7,029
Region Association: None
QUOTE(jim_hoyland @ Jan 16 2026, 03:19 PM) *

So far I have:
31 = ground
15 = keyed battery power
58 = light (s)
Still search to learn about I, I, III


Do you have a multimeter? Set to ohms and put one lead on the 15 post. Then pull out the switch and see what opens at each setting.

58 and 31 should just for the switch's backlight.

Every fog light switches I've seen will turn on the front fogs on the first click, then the front and rear on the second, but you'll have to verify this one yourself. I can't guess what position 3 would be for.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jan 16 2026, 05:20 PM
Post #6


Get that VIN ?
**********

Group: Members
Posts: 10,003
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
So far: Switch on: I connected 31 and I with a 9v battery; that turned on the orange switch light when switch is pulled out.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
914Wes
post Jan 16 2026, 09:10 PM
Post #7


Member
**

Group: Members
Posts: 50
Joined: 9-March 22
From: SO CAL
Member No.: 26,388
Region Association: Southern California
These are from the 911 factory manuals:

Attached Image Attached ImageAttached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jan 17 2026, 01:48 PM
Post #8


Get that VIN ?
**********

Group: Members
Posts: 10,003
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
The Fog light switch has two positions; one for turning on the front fog lamps and a second position for a rear fog lamp. Unlike the 914 fog lamp switch, this 911 switch has two on positions: pulled out and pulled out and twisted to the left
Today I tested connectivity between 15 and I, II, III
Results: switch pulled- continuity between 15 and I and III
Switch pulled- continuity between I, and II


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jan 17 2026, 11:29 PM
Post #9


Jerry
*****

Group: Members
Posts: 7,319
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
@jim_hoyland

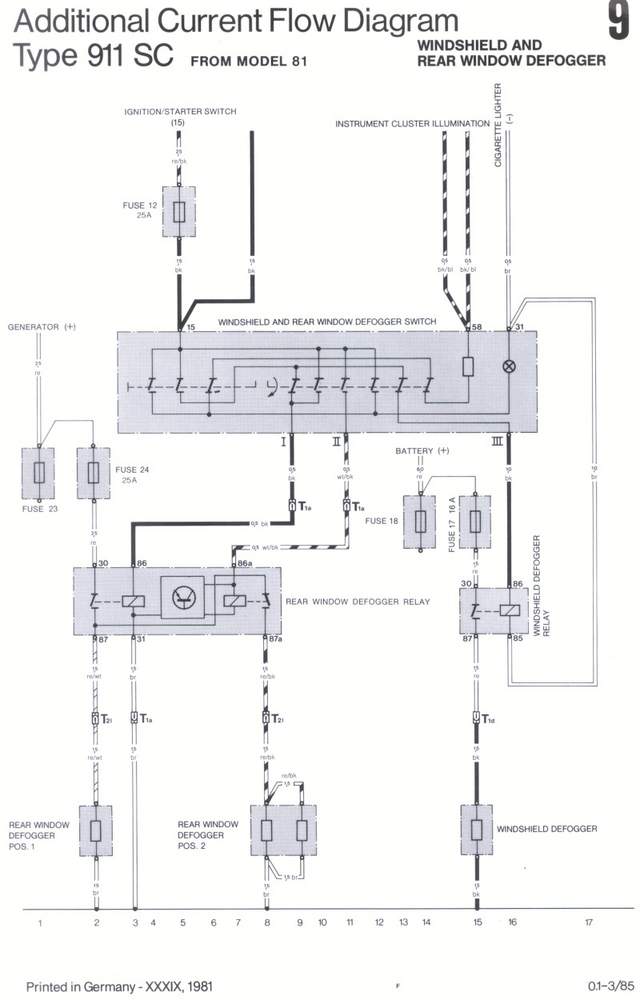

This looks like the switch.

I looks like the rear defogger level 1
II looks like the rear defogger level 2
III powers the front defogger
58 is power from the dash lights. Looks like a resistor between 58 and the bulb so the bulb lights up gently with lights on. When the switch is active, the bulb gets full power and bright through pin 15.

Here's a thread about the switch on Pelican Parts from 20 years ago: 2 Stage Defogger Switch - Wiring

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jan 18 2026, 07:25 AM
Post #10


Get that VIN ?
**********

Group: Members
Posts: 10,003
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Thanks (IMG:style_emoticons/default/smile.gif) The diagram explain a lot.
To light the front fog lamp and turn on a rear fog light :
31= ground
15 = fused 12v power
58 = dash light connection
III = front fog lights
I = rear fog light

I don’t use II


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jan 18 2026, 03:35 PM
Post #11


Jerry
*****

Group: Members
Posts: 7,319
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(jim_hoyland @ Jan 18 2026, 08:25 AM) *

Thanks (IMG:style_emoticons/default/smile.gif) The diagram explain a lot.
To light the front fog lamp and turn on a rear fog light :
31= ground
15 = fused 12v power
58 = dash light connection
III = front fog lights
I = rear fog light

I don’t use II


So you'll just use the pull setting I & III, not the pull/twist I & II?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jan 18 2026, 04:01 PM
Post #12


Get that VIN ?
**********

Group: Members
Posts: 10,003
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Im not sure whether I need I and II or I and III
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jan 18 2026, 08:03 PM
Post #13


Jerry
*****

Group: Members
Posts: 7,319
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
It looks like I and III (stage 1 rear + front) come on with a pull.

Then I and II power with the twist and III is off.

You're using it for front and rear fog lights, correct?

If you go I and III, both F and R come on together with a pull, then with a twist, I remains powered and III goes out.

At least that's how I think they work.

If you go I and II, I comes on with a pull, then II comes on with a twist and I stays on.

You decide which is front and which is rear.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jan 19 2026, 09:28 AM
Post #14


Get that VIN ?
**********

Group: Members
Posts: 10,003
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Thanks (IMG:style_emoticons/default/smile.gif) Looks like I & II are what I’m looking at.
Gonna do a bench test 1st using a 9 volt battery and two bulbs.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jan 23 2026, 08:08 PM
Post #15


Get that VIN ?
**********

Group: Members
Posts: 10,003
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Did a bunch of tests today. I noticed the switch center ( orange) lights up when switch is turned


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Shivers
post Jan 24 2026, 05:44 AM
Post #16


Senior Member
****

Group: Members
Posts: 3,232
Joined: 19-October 20
From: La Quinta, CA
Member No.: 24,781
Region Association: Southern California
QUOTE(jim_hoyland @ Jan 23 2026, 06:08 PM) *

Did a bunch of tests today. I noticed the switch center ( orange) lights up when switch is turned


Hi Jim, please post up the solution when you figure it out. I have the same switch and this is coming up. Thanks
User is online!Profile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jan 24 2026, 06:41 AM
Post #17


Get that VIN ?
**********

Group: Members
Posts: 10,003
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
QUOTE(Shivers @ Jan 24 2026, 03:44 AM) *

QUOTE(jim_hoyland @ Jan 23 2026, 06:08 PM) *

Did a bunch of tests today. I noticed the switch center ( orange) lights up when switch is turned


Hi Jim, please post up the solution when you figure it out. I have the same switch and this is coming up. Thanks

(IMG:style_emoticons/default/smile.gif) Will Do, I’m real close
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Spoke
post Jan 24 2026, 07:26 AM
Post #18


Jerry
*****

Group: Members
Posts: 7,319
Joined: 29-October 04
From: Allentown, PA
Member No.: 3,031
Region Association: None
QUOTE(jim_hoyland @ Jan 23 2026, 09:08 PM) *

Did a bunch of tests today. I noticed the switch center ( orange) lights up when switch is turned

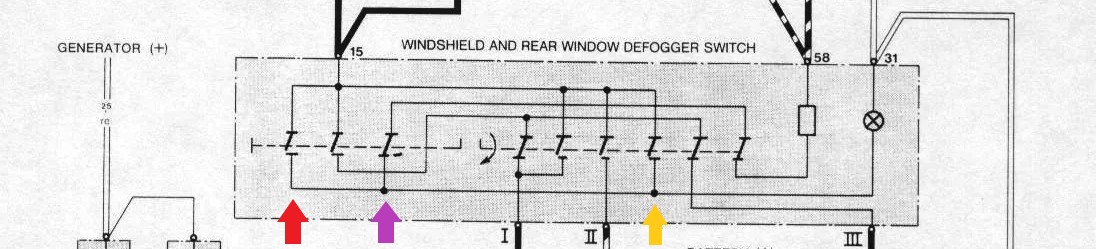

Looking at the schematic for the switch, the lamp should get bright when the switch is pulled (red arrow) or when the switch is turned (yellow arrow).

The purple arrow shows how the lamp is powered by the dash illumination through pin 58.

Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
73-914
post Jan 24 2026, 09:17 AM
Post #19


Senior Member
***

Group: Members
Posts: 645
Joined: 24-April 10
From: Albany UpstateNY
Member No.: 11,651
Region Association: None
Has anybody figured out if a foglight switch is the same as window defogger switch?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Jan 24 2026, 10:52 AM
Post #20


Get that VIN ?
**********

Group: Members
Posts: 10,003
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
QUOTE(73-914 @ Jan 24 2026, 07:17 AM) *

Has anybody figured out if a foglight switch is the same as window defogger switch?

I have the feeling that this switch design was used for defogging front & rear windows, wipers for front and rear, as well as fog lights for front and rear.
This switch allows for separate control of front and rear; either separately or together.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
