maf914 |
Dec 21 2005, 08:06 AM
Post
#21
|
Not a Guru! Group: Members Posts: 3,049 Joined: 30-April 03 From: Central Florida Member No.: 632 Region Association: None |
Wow, I can't believe the flat 12 in Paul's pic is cantilever mounted to a standard Porsche engine stand! (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif)
|
rhodyguy |
Dec 21 2005, 09:45 AM
Post
#22
|
Chimp Sanctuary NW. Check it out. Group: Members Posts: 22,080 Joined: 2-March 03 From: Orion's Bell. The BELL! Member No.: 378 Region Association: Galt's Gulch |

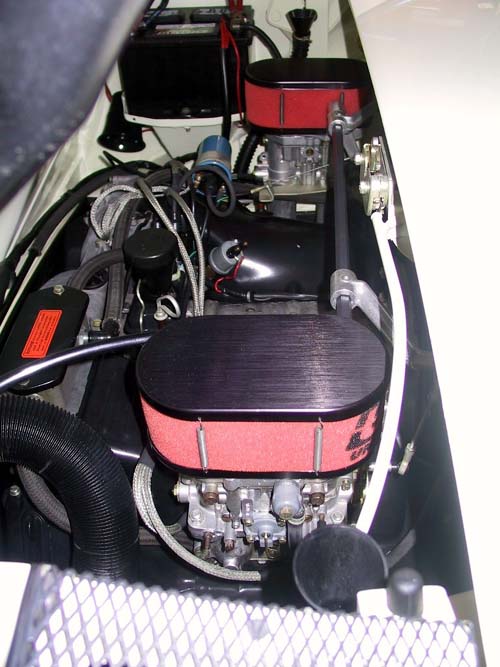

best linkage on the market in my book. expensive? a little. worth it? i haven't touched my carbs in a year and 1/2. disregard the bungee cord.
k Attached image(s) |
jr91472 |
Dec 21 2005, 10:07 AM
Post
#23
|
"I'm pacing myself sergeant..." Group: Members Posts: 1,205 Joined: 2-August 04 From: McKinney, TX Member No.: 2,437 |
Thanks for starting this thread. I am in the same process right now.
Question to all: is there any advantage to which way the carbs face? Specifically, having cross-bar closest to the cockpit vs closest to the trunk? I've seen picture of both installs. hope this isn't a hijack (IMG:http://www.914world.com/bbs2/html/emoticons/beer.gif) |
rhodyguy |
Dec 21 2005, 10:10 AM
Post
#24
|
Chimp Sanctuary NW. Check it out. Group: Members Posts: 22,080 Joined: 2-March 03 From: Orion's Bell. The BELL! Member No.: 378 Region Association: Galt's Gulch |
forgot to add mine is a triad. i never understood putting the bar on with the works on the rear.
k |
Carlitos Way |
Dec 21 2005, 10:18 AM
Post
#25
|
I did it MY WAY Group: Members Posts: 1,337 Joined: 14-September 04 From: Simi Valley, CA Member No.: 2,757 Region Association: Southern California |

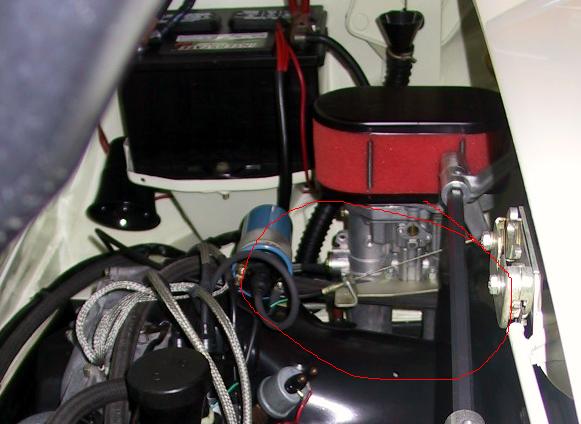

I really dig this linkage:
Attached image(s) |
rhodyguy |
Dec 21 2005, 10:29 AM
Post
#26
|
Chimp Sanctuary NW. Check it out. Group: Members Posts: 22,080 Joined: 2-March 03 From: Orion's Bell. The BELL! Member No.: 378 Region Association: Galt's Gulch |
look are where the drop links are positioned in that picture (under the rear lid? (IMG:http://www.914world.com/bbs2/html/emoticons/ohmy.gif) ). you have to stand on your head to dial the carbs in. what keeps the bar centered? a couple of springs?
k |
Aaron Cox |
Dec 21 2005, 10:53 AM
Post
#27
|
||
Professional Lawn Dart Group: Retired Admin Posts: 24,541 Joined: 1-February 03 From: OC Member No.: 219 Region Association: Southern California |
ive had mine on the rear before... PITA like kevin said. Kev - the CB setup is self centering. it has springs in each end.... |
||
Kargeek |
Dec 21 2005, 11:37 AM
Post
#28
|
Senior Member Group: Members Posts: 555 Joined: 14-March 03 From: Orange, CA Member No.: 430 |
Having the arms to the rear is no big deal... you set it up properly once and that's it. More time is spent adjusting fuel mixture and synchronizing both carbs... then adjust your drop links to fit with the throttle arms horizontal without any side to side preloading of your final carb set up.

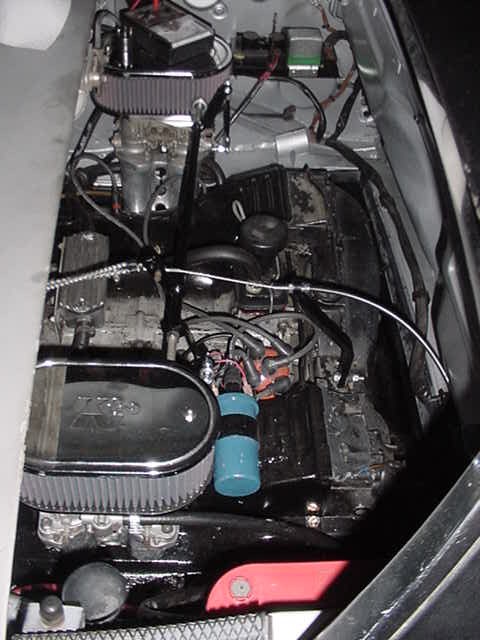

It also makes for neatly routing the stock length throttle cable. Yes, the arms are centered with springs in each end of the bar. The only issue with arms to the rear is if you have a tall mount linkage - it may interfere with the trunk torsion bars- mine are gone as I’m using 944 rear hatch shocks. DH Attached image(s) |
Carlitos Way |
Dec 21 2005, 12:11 PM
Post
#29
|
||
I did it MY WAY Group: Members Posts: 1,337 Joined: 14-September 04 From: Simi Valley, CA Member No.: 2,757 Region Association: Southern California |
Where did you get that mounting bracket for the throttle cable? That is AWESOME!!! |
||
Aaron Cox |
Dec 21 2005, 12:14 PM
Post
#30
|
||||
Professional Lawn Dart Group: Retired Admin Posts: 24,541 Joined: 1-February 03 From: OC Member No.: 219 Region Association: Southern California |
he made it. looks like 18ga, a little dremel, and a set of vice grips to fold it, and a drill... |
||||
Eddie Williams |
Dec 21 2005, 12:52 PM
Post
#31
|
Senior Member Group: Members Posts: 822 Joined: 30-December 02 From: Nederland, TX Member No.: 55 Region Association: None |
I planed on using the Aeromotive A1000 Bypass regulator for my setup, any thoughts??
http://216.242.145.16/products/product.phtml?p=20 |
Aaron Cox |
Dec 21 2005, 01:59 PM
Post
#32
|
||
Professional Lawn Dart Group: Retired Admin Posts: 24,541 Joined: 1-February 03 From: OC Member No.: 219 Region Association: Southern California |
-10 feed????? thats the size of my front oil cooler lines.... way too big i think. |
||
jhadler |
Dec 21 2005, 02:32 PM
Post
#33
|
||
Long term tinkerer... Group: Members Posts: 1,879 Joined: 7-April 03 From: Lyons, CO Member No.: 529 |
An-10 feed?!?! Good grief, this is a 914 we're talking about, not a top fuel drag car... Way overkill. You'll need one seriously hefty pump to deliver enough fuel at enough pressure if you use -10 lines... -Josh2 |
||
Kargeek |
Dec 21 2005, 04:34 PM
Post
#34
|
Senior Member Group: Members Posts: 555 Joined: 14-March 03 From: Orange, CA Member No.: 430 |
[/QUOTE]Where did you get that mounting bracket for the throttle cable? That is AWESOME!!!
Yes, I made it- 18 years ago. You can make one too. Some scrap metal, cardboard template (I'm big on templates) , hacksaw, drill, grinder and files. It got thrown into all of the parts that got cad plated. |
Eddie Williams |
Dec 21 2005, 05:03 PM
Post
#35
|
Senior Member Group: Members Posts: 822 Joined: 30-December 02 From: Nederland, TX Member No.: 55 Region Association: None |
indeed, quite large
as my feed is -6 can I just use a -10 to -6 union adapter? and a -8 to -6 on the return? and then -6 to each weber? |
Aaron Cox |
Dec 21 2005, 05:04 PM
Post
#36
|
||
Professional Lawn Dart Group: Retired Admin Posts: 24,541 Joined: 1-February 03 From: OC Member No.: 219 Region Association: Southern California |
or buy the right one to begin with and be money ahead. mallory makes a great regulator WITH return |
||
Eddie Williams |
Dec 21 2005, 06:07 PM
Post
#37
|
||
Senior Member Group: Members Posts: 822 Joined: 30-December 02 From: Nederland, TX Member No.: 55 Region Association: None |
ok, smart a$$... All my research for a FP Regulator with bypass pointed to this... I'll check out the mallory, is it all -6?? |
||
Eddie Williams |
Dec 21 2005, 08:15 PM
Post
#38
|
Senior Member Group: Members Posts: 822 Joined: 30-December 02 From: Nederland, TX Member No.: 55 Region Association: None |
the Mallory has -8 lines so i'd stll have to buy fittings...
|
Aaron Cox |
Dec 21 2005, 08:35 PM
Post
#39
|
||
Professional Lawn Dart Group: Retired Admin Posts: 24,541 Joined: 1-February 03 From: OC Member No.: 219 Region Association: Southern California |
Mallory with return... use these fittings... (IMG:http://www.jegs.com/images/photos/6504207.jpg) |
||
Eddie Williams |
Dec 21 2005, 08:51 PM
Post
#40
|
Senior Member Group: Members Posts: 822 Joined: 30-December 02 From: Nederland, TX Member No.: 55 Region Association: None |
How do I get -6 fuel line to screw onto that? (IMG:http://www.914world.com/bbs2/html/emoticons/huh.gif)
|
