1976 2.0 question, throttle body

jimkelly	Jan 7 2006, 09:41 PM Post #1

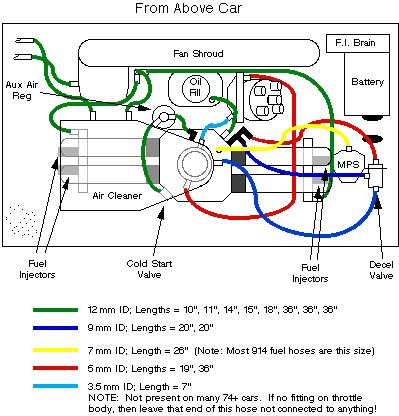

Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region	Up untill a few days ago my car was running fine but all of a sudden it started to back fire when I decelerated and starting it became difficult. One thing that has been found is the both the vaccum hoses - light blue and the red to the distributor - both pull vaccum at idle and both lose vaccum when giving the motor some throttle. The red is supposed to have little vaccum at idle and gain vaccum with added throttle - correct? We are thinking that my throttle body has gummed up hole some where but at this moment we don't know how the advance hose nipple is plumbed in the 1976 2.0 throttle body - anyone got any ideas or a detailed drawing of how the advance vaccum flows through it? Thanks, Jim Attached image(s)

jimkelly	Jan 7 2006, 09:41 PM Post #2
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region	TB Attached image(s)

Bleyseng	Jan 8 2006, 12:15 AM Post #3
Aircooled Baby! Group: Members Posts: 13,036 Joined: 27-December 02 From: Seattle, Washington (for now) Member No.: 24 Region Association: Pacific Northwest	Advance hose from the dizzy is plugged and just lays on the engine, only the vacuum retard is hooked up to the TB. (IMG:http://www.914world.com/bbs2/html/emoticons/popcorn[1].gif)

jimkelly	Jan 9 2006, 01:36 PM Post #4
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region	I could be mixed up but I think we determined that the red hose from TB goes to where the blue goes on the above drawing and the blue from the air box goes to where the red hose goes to in the above drawing -- and we retimed and dwelled it. But I am still getting hard starts and back fire when letting of the throttle a when driving a decent pace. -- I have to puch the clutch in before i let off the gas peddle if I want to avoid back firing. What could me problem be? I think it is time to replace the points/condensor,cap/rotor/wires just to rule these things out. Maybe it is a bad fuel injector causing me these problems.

r_towle	Jan 9 2006, 02:20 PM Post #5
Custom Member Group: Members Posts: 24,620 Joined: 9-January 03 From: Taxachusetts Member No.: 124 Region Association: North East States	I hate to say this...but check your MPS...pull off the line and put a might vac with a guage on it...see if it hold vacuum... They do just die...the diaphram breaks... Rich

jimkelly	Jan 9 2006, 02:43 PM Post #6
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region	I have a spare MPS - I'll give that a try. Thanks, Jim I still can't get over the fact that my vaccum hose on my trottle body does not get a vaccum increase when I step on the gas peddle and open the butterfly?? I mean it is just a freaking tiny hole under the butterfly that has a nipple the comes out the side of the trottle body - not complicated.

Rand	Jan 9 2006, 02:48 PM Post #7
Cross Member Group: Members Posts: 7,409 Joined: 8-February 05 From: OR Member No.: 3,573 Region Association: None	If you connect a vacuum gauge to that nipple with a good piece of hose, clamped if necessary, and still don't get a vacuum reading.... that port must be clogged!

jimkelly	Jan 9 2006, 02:50 PM Post #8
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region	We get a vaccum reading at idle - but it dropps off when we step on the gas. We also thoroughly cleaned the TB and can see the port is clear and shiny.' Jim

Rand	Jan 9 2006, 02:54 PM Post #9
Cross Member Group: Members Posts: 7,409 Joined: 8-February 05 From: OR Member No.: 3,573 Region Association: None	Vacuum at idle but not at throttle = port below butterfly. Right? The placement of the port determines how it is supposed to act at idle versus open throttle.

Dave_Darling

Jan 9 2006, 02:55 PM

Post #10

914 Idiot

Group: Members
Posts: 15,039
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California

QUOTE (jimkelly @ Jan 9 2006, 11:36 AM)

I could be mixed up but I think we determined that the red hose from TB goes to where the blue goes on the above drawing and the blue from the air box goes to where the red hose goes to in the above drawing...

You are mixed up--the drawing is correct. The light-blue and red hoses both go from the throttle body, not the air cleaner, to the distributor dashpot. The retard hose (the only one that you have, according to your picture) will have vacuum at idle and the vacuum will drop off pretty rapidly as the throttle is opened. You do not have the advance fitting on the throttle body, so you won't get the advance vacuum signature (no vacuum at idle, a bunch at a little throttle opening, none at higher throttle openings) anywhere.

In other words, everything is just fine. Disconnect the hose going to the advance fitting on the distributor dashpot (that's the one pointing away from the distributor body) and leave the other end of the hose open to the air.

Look for your problems elsewhere....

--DD

jimkelly	Jan 9 2006, 03:03 PM Post #11
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region	rand - yes - vaccum at idel - it drops off with throttle dave - the drawing being correct is good to know. I was refering to the air box - not air cleaner - the air box being the metal container under the throttle body - sorry for my lack of proper jargon : ) I also have two vaccum nipples on the air box just under the TB and this is where we originally had the blue connection as per the drawing. The nipple on the TB is where we originally had the red hose hooked up. My distributor dashpot does have a retard nipple low position and pointing toward to dist and an advance nipple top pointing away from dist. Thanks, Jim

r_towle	Jan 9 2006, 03:06 PM Post #12
Custom Member Group: Members Posts: 24,620 Joined: 9-January 03 From: Taxachusetts Member No.: 124 Region Association: North East States	the vacuum advance circuit would only need to produce vacuum in the upper engine range, possibly 3k or higher... It also does not need to produce to much vacuum for it to pull the canister on the dizzy... I would suggest putting a guage on that line and watch it from 3k-5k It will top out in the high 4k range... Rich

Rand

Jan 9 2006, 04:33 PM

Post #13

Cross Member

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None

QUOTE

the vaccum hoses - light blue and the red to the distributor - both pull vaccum at idle and both lose vaccum when giving the motor some throttle.

I don't mean to beat a dead horse, but this is normal. A port at the air distribution box, below the butterfly, will have maximum vacuum at idle but drop off as the butterfly opens.

The engine is sucking a lot of air. Put a vacuum port in the intake below the butterfly, close the butterfly, and that port will pull a hard vacuum. Open the butterfly and the path of least resistance is the throttle body, not that little port. Vacuum at the port drops.

The hose at the port below the butterfly should go to the distributor retard. So at idle, it retards the timing. Your car does not need the advance side at all.

Sorry for the rabbit trail... I know this doesn't solve your problem, but it seemed like a worthwhile sidetrack. Your problem may be elsewhere.

Cap'n Krusty

Jan 9 2006, 04:45 PM

Post #14

Cap'n Krusty

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California

QUOTE (jimkelly @ Jan 9 2006, 12:50 PM)

We get a vaccum reading at idle - but it dropps off when we step on the gas.

We also thoroughly cleaned the TB and can see the port is clear and shiny.'

Jim

The port farthest from the distributor is the retard side, and it goes to the "back" side of the vac can. It has vacuum when the throttle's closed, no vacuum after the throttle's cracked open. The smaller diameter fittings are for the advance side of the can, and that circuit has vacuum when the throttle's opened (no vacuum at idle). The Cap'n

jimkelly	Jan 9 2006, 05:06 PM Post #15
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region	Well I changed the mps and things are better but not perfect. two questions - is the advance port on the dashpot the one closest to the dist or the one furthest and on top of the dashpot the advance port. Also - do I plug the hose coming off the advance port of the dashpot or do I leave it open to the air.

jimkelly	Jan 9 2006, 05:07 PM Post #16
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region	pic Attached image(s)

Rand

Jan 9 2006, 05:09 PM

Post #17

Cross Member

Group: Members
Posts: 7,409
Joined: 8-February 05
From: OR
Member No.: 3,573
Region Association: None

QUOTE

two questions - is the advance port on the dashpot the one closest to the dist or the one furthest and on top of the dashpot the advance port. Also - do I plug the hose coming off the advance port of the dashpot or do I leave it open to the air.

Your questions have already been answered... (IMG:http://www.914world.com/bbs2/html/emoticons/wink.gif)

QUOTE

Disconnect the hose going to the advance fitting on the distributor dashpot (that's the one pointing away from the distributor body) and leave the other end of the hose open to the air.

jimkelly	Jan 9 2006, 05:34 PM Post #18
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region	Captain wrote opposite Dave - I had to ask despite feeling very confident with Dave's reply. Also the advance hose plugged or unplugged seesm to be not fully in agreement but again I am going with what Dave advises - but want to thank everyone for their replies!!! Jim

Rand	Jan 9 2006, 05:39 PM Post #19
Cross Member Group: Members Posts: 7,409 Joined: 8-February 05 From: OR Member No.: 3,573 Region Association: None	Gotchya... I have read the factory left it UNplugged. Not sure how much it matters.

Bleyseng

Jan 9 2006, 07:31 PM

Post #20

Aircooled Baby!

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest

QUOTE (jimkelly @ Jan 9 2006, 11:36 AM)

I could be mixed up but I think we determined that the red hose from TB goes to where the blue goes on the above drawing and the blue from the air box goes to where the red hose goes to in the above drawing -- and we retimed and dwelled it.

But I am still getting hard starts and back fire when letting of the throttle a when driving a decent pace. -- I have to puch the clutch in before i let off the gas peddle if I want to avoid back firing. What could me problem be? I think it is time to replace the points/condensor,cap/rotor/wires just to rule these things out. Maybe it is a bad fuel injector causing me these problems.

The drawing is correct!

If you have a real 76 TB there is no port on the TB for the Vacuum advance and don't worry about it.

From the Factory a hose was plugged into the dizzy advance port and plugged and stuffed under the runners, it didn't go ANYWHERE.

The dizzy is mostly a mechanical advance unit and the vacuum advance isn't really needed.

Time to due a full maintance on the car, adjust valves, oil change, plugs, points, cap, rotor and retime it. Then see whats up. (IMG:http://www.914world.com/bbs2/html/emoticons/cool_shades.gif)
