| wilchek |
 Mar 4 2006, 11:47 AM
Post
#1
|
|
Senior Member  Group: Members Posts: 506 Joined: 8-June 04 From: Eastern Pennsylvania Member No.: 2,177  |
i posted the start of this like 3 weeks ago. I think it ended up looking good. I was amazed how much sound an 8in woofer would put out if set in the proper enclosure. The bass from the one 8in woofer can rattle the license plate.

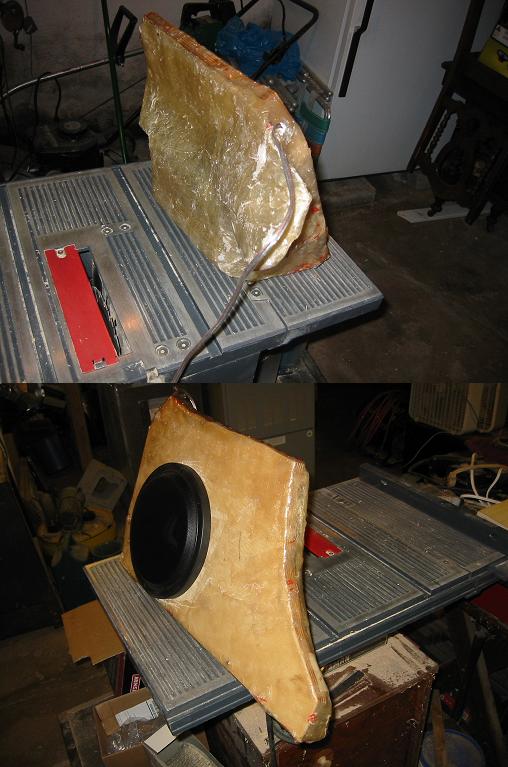

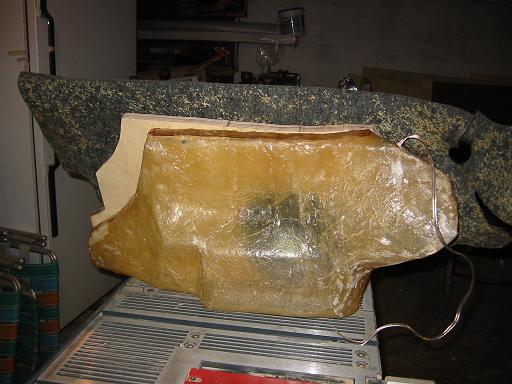

pic attached Start: took out the foam block under the passenger footwell and covered in plastic and then fiberglassed over that. Attached image(s)
|
   |

|
| wilchek |
Mar 4 2006, 11:47 AM
Post
#2
|
|
Senior Member Group: Members Posts: 506 Joined: 8-June 04 From: Eastern Pennsylvania Member No.: 2,177 |

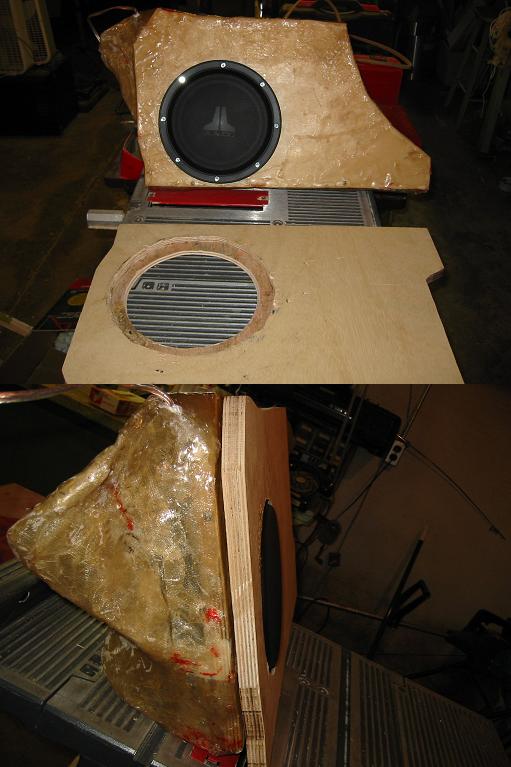

front and back speaker mounted
Attached image(s)
|
|
|
|
| wilchek |
Mar 4 2006, 11:48 AM
Post
#3
|
|
Senior Member Group: Members Posts: 506 Joined: 8-June 04 From: Eastern Pennsylvania Member No.: 2,177 |

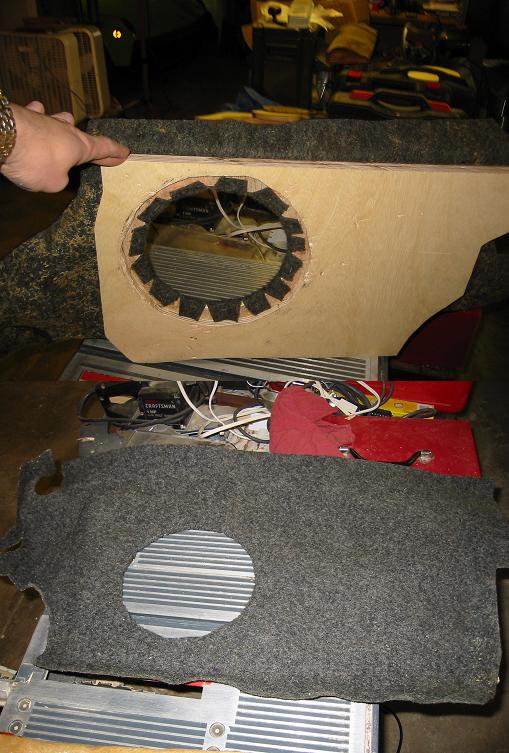

cover board to make carpet flush with speaker grill
Attached image(s)
|
|
|
|
| wilchek |
Mar 4 2006, 11:48 AM
Post
#4
|
|
Senior Member Group: Members Posts: 506 Joined: 8-June 04 From: Eastern Pennsylvania Member No.: 2,177 |

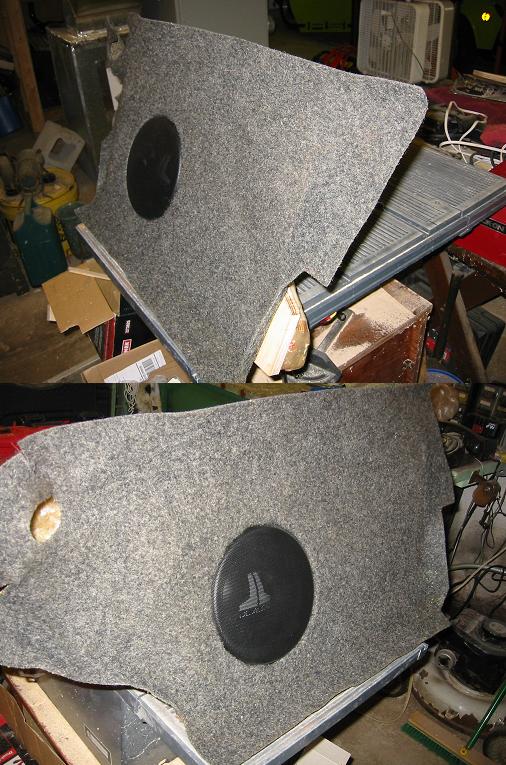

cover board carpeted
Attached image(s)
|
|
|
|
| wilchek |
Mar 4 2006, 11:49 AM
Post
#5
|
|
Senior Member Group: Members Posts: 506 Joined: 8-June 04 From: Eastern Pennsylvania Member No.: 2,177 |
cover speaker completed- flush carpet with grill
Attached image(s)
|
|
|
|
| wilchek |
Mar 4 2006, 11:49 AM
Post
#6
|
|
Senior Member Group: Members Posts: 506 Joined: 8-June 04 From: Eastern Pennsylvania Member No.: 2,177 |
completed unit
Attached image(s)
|
|
|
|
| anthony |
Mar 4 2006, 11:50 AM
Post
#7
|
|
2270 club Group: Benefactors Posts: 3,107 Joined: 1-February 03 From: SF Bay Area, CA Member No.: 218  |
Cool project! How much foot space does the passenger lose?
|
|
|
|
| wilchek |
Mar 4 2006, 11:50 AM
Post
#8
|
|
Senior Member Group: Members Posts: 506 Joined: 8-June 04 From: Eastern Pennsylvania Member No.: 2,177 |

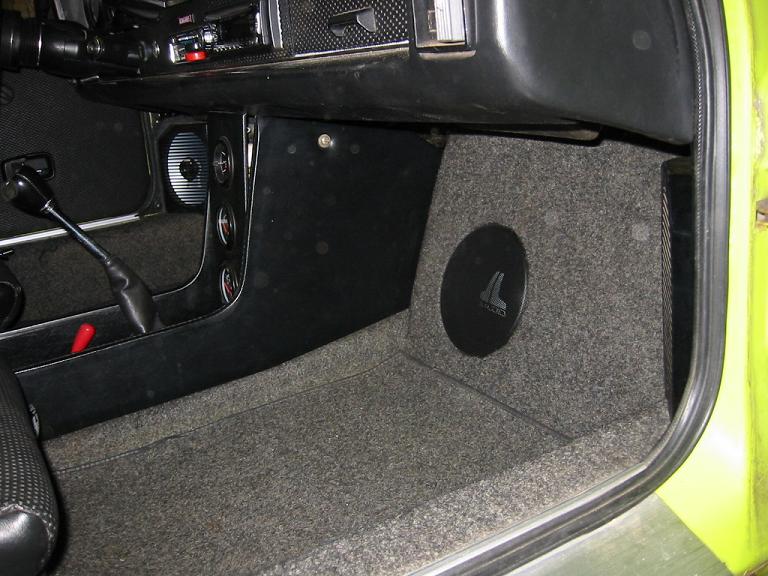

final box installed
Attached image(s)
|
|
|
|
| wilchek |
Mar 4 2006, 11:50 AM
Post
#9
|
|
Senior Member Group: Members Posts: 506 Joined: 8-June 04 From: Eastern Pennsylvania Member No.: 2,177 |

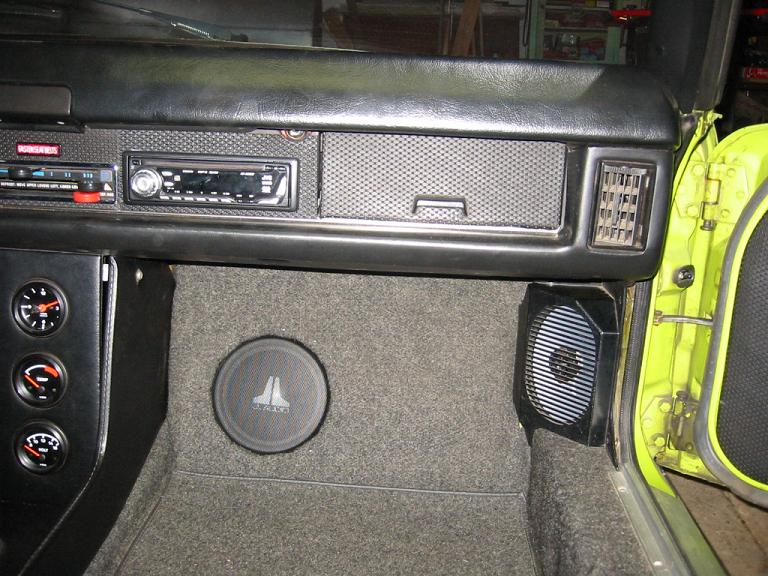

another angle final
Attached image(s)
|
|
|
|
| wilchek |
Mar 4 2006, 11:54 AM
Post
#10
|
||
|
Senior Member Group: Members Posts: 506 Joined: 8-June 04 From: Eastern Pennsylvania Member No.: 2,177 |
loose only about 1 1/2 to 2". Not really noticable to me and I am 6 feet tall. |
||
|
|
|
||
| Allan |
Mar 4 2006, 11:57 AM
Post
#11
|
|
Teenerless Weenie Group: Members Posts: 8,373 Joined: 5-July 04 From: Western Mesopotamia Member No.: 2,304 Region Association: Southern California |
And these will be available to purchase when???
|
|
|
|
| wilchek |
Mar 4 2006, 12:03 PM
Post
#12
|
|
Senior Member Group: Members Posts: 506 Joined: 8-June 04 From: Eastern Pennsylvania Member No.: 2,177 |
I was going to make more, but it takes too long to do all the layers of fiberglass. Also, I hate doing fiberglass. If you need any help making one let me know, I made a bunch of templates.
|
|
|
|
| whitetwinturbo |
Jul 5 2015, 10:16 PM
Post
#13
|
|
Honey, does this wing make my ass look fat? Group: Members Posts: 1,391 Joined: 22-October 11 From: Newport Beach/Kalefornya/USA Member No.: 13,704 Region Association: Southern California |
Here's how to do it without using passenger footwell:
http://www.ebay.com/itm/121696615690?ssPag...984.m1555.l2649 |
|
|
|
|
