| michelko |
 Mar 11 2006, 05:03 PM
Post
#1
|
|
Senior Member  Group: Members Posts: 867 Joined: 30-November 03 From: Germany, Lambsheim Member No.: 1,404 Region Association: None  |
Hi guys,

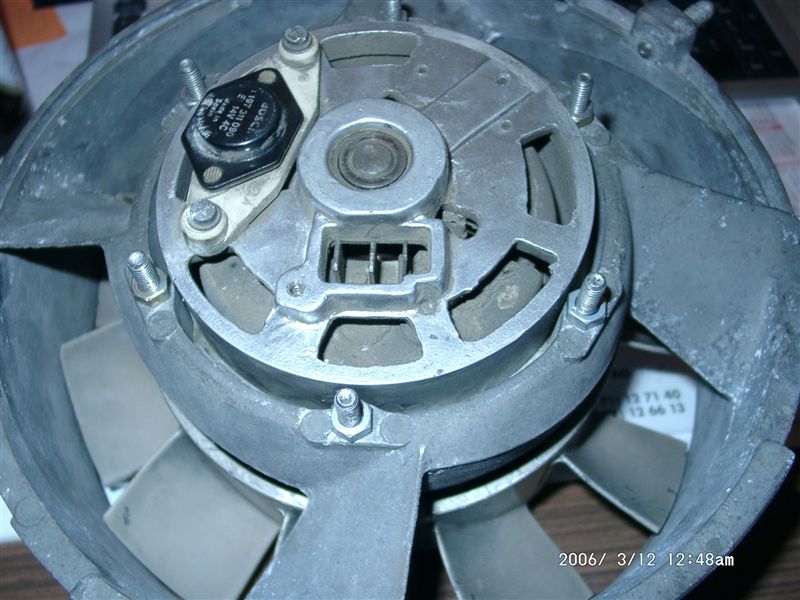

bought an six engine on ebay an got a not matching alternator with it. Anybody knows this one? How is it hooked up to the wiring. There are fouur conectors. The two big ones are joined. I think this is positive line. Attached image(s)
|
   |

|
| michelko |
Mar 11 2006, 05:04 PM
Post
#2
|
|
Senior Member Group: Members Posts: 867 Joined: 30-November 03 From: Germany, Lambsheim Member No.: 1,404 Region Association: None |
other view
Attached image(s)
|
|
|
|
| michelko |
Mar 11 2006, 05:06 PM
Post
#3
|
|
Senior Member Group: Members Posts: 867 Joined: 30-November 03 From: Germany, Lambsheim Member No.: 1,404 Region Association: None |
is the controler build in ?
The four alternators are using three small lines to the controler on the relay board. Also the fan is from a newer car i guess. Any ideas? |
|
|
|
| michelko |
Mar 11 2006, 05:07 PM
Post
#4
|
|
Senior Member Group: Members Posts: 867 Joined: 30-November 03 From: Germany, Lambsheim Member No.: 1,404 Region Association: None |
front view of the fan
Attached image(s)
|
|
|
|
| Jeroen |
Mar 11 2006, 07:19 PM
Post
#5
|
|
914 Guru Group: Members Posts: 7,887 Joined: 24-December 02 From: The Netherlands Member No.: 3 Region Association: Europe |
can't help you on the wiring
but the partnumber on the fan says 930 the fan on my 3.2 didn't have the three studs... |
|
|
|
|
