 Exploded 914-6 Rear Caliper, Picture of Rebuild |
|
|
|
Porsche, and the Porsche crest are registered trademarks of Dr. Ing. h.c. F. Porsche AG.
This site is not affiliated with Porsche in any way. Its only purpose is to provide an online forum for car enthusiasts. All other trademarks are property of their respective owners. |
|
|
  |
| McMark |
 Oct 25 2003, 12:58 AM
Post
#1
|
|
914 Freak!  Group: Retired Admin Posts: 20,179 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None  |

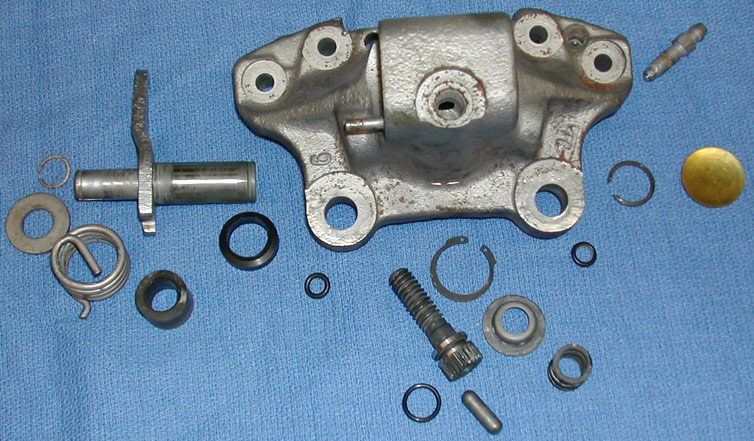

Took a picture of the caliper I'm rebuilding. Maybe this is common knowledge, but hopefully someone will find it useful.
Attached image(s)
|
   |

|
| Brad Roberts |
Oct 25 2003, 01:00 AM
Post
#2
|
|
914 Freak! Group: Members Posts: 19,148 Joined: 23-December 02 Member No.: 8 Region Association: None |
We need arrows telling us what EVERY part is..LOL
B |
|
|
|
| J P Stein |
Oct 25 2003, 01:04 AM
Post
#3
|
|
Irrelevant old fart Group: Members Posts: 8,797 Joined: 30-December 02 From: Vancouver, WA Member No.: 45 Region Association: None |
Entirely too many "fiddly bits" there for my taste.
|
|
|
|
| McMark |
Oct 25 2003, 01:19 AM
Post
#4
|
|
914 Freak! Group: Retired Admin Posts: 20,179 Joined: 13-March 03 From: Grand Rapids, MI Member No.: 419 Region Association: None |
Okay, fine. (IMG:style_emoticons/default/smile.gif) Here we go again.
Here's the info that's not in the image: The little pill looking thing is what get's pushed out by the ebrake arm and it pushes the adjusting screw out. To the right of the adjusting screw is the spring, cover and circlip that holds the adjusting screw in place in the caliper. Attached image(s)
|
|
|
|
| thesey914 |
Oct 25 2003, 04:40 AM
Post
#5
|
|
Senior Member Group: Benefactors Posts: 1,155 Joined: 1-January 03 From: Staffordshire -England Member No.: 66  |
Good pic Mark, very interesting so see as I've never stripped mine down.
BTW which is the most recent foto of you .....the one on your site shaven headed sprawled over the boot of your 914 or the quarter pounder with cheese munching 'fro in your avatar ? |
|
|
|
|
