How can I tell which one I have installed.
|
   |

|
| Mueller |
Oct 11 2006, 10:34 AM
Post
#2
|
|
914 Freak! Group: Members Posts: 17,146 Joined: 4-January 03 From: Antioch, CA Member No.: 87 Region Association: None
|
should be a number cast on it...99% chance it is a 17mm or 19mm
there might be another number on it, but I think that is the casting/core number or something like that.... |
|
|
|
| Joe Ricard |
Oct 11 2006, 10:36 AM
Post
#3
|
|
CUMONIWANNARACEU Group: Members Posts: 6,811 Joined: 5-January 03 From: Gautier, MS Member No.: 92 |
Lots of time the size number is on top of the piece. so a mirror and flash light are required.
|
|
|
|
| bd1308 |
Oct 11 2006, 10:58 AM
Post
#4
|
|
Sir Post-a-lot Group: Members Posts: 8,020 Joined: 24-January 05 From: Louisville,KY Member No.: 3,501 |
mine says 15 on the bottom.
|
|
|
|
| davep |
Oct 11 2006, 03:06 PM
Post
#5
|
|
914 Historian Group: Benefactors Posts: 5,141 Joined: 13-October 03 From: Burford, ON, N0E 1A0 Member No.: 1,244 Region Association: Canada  |
QUOTE(bd1308 @ Oct 11 2006, 08:58 AM)  mine says 15 on the bottom. Then you are looking in the wrong place. I believe the number is cast between the mounting ears and the end that the pedal rod goes in. In the car it would reside within the pedal cluster. |
|
|
|
| davep |
Oct 15 2006, 07:47 AM
Post
#6
|
|
914 Historian Group: Benefactors Posts: 5,141 Joined: 13-October 03 From: Burford, ON, N0E 1A0 Member No.: 1,244 Region Association: Canada |

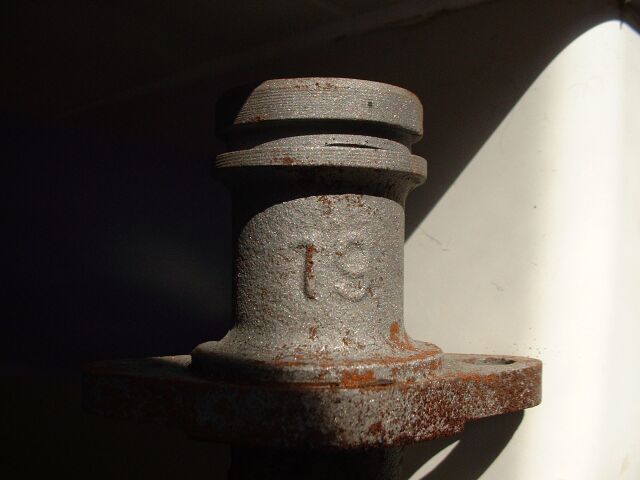

Perhaps this will help:
Attached image(s)
|
|
|
|
| davep |
Oct 17 2006, 08:26 PM
Post
#7
|
|
914 Historian Group: Benefactors Posts: 5,141 Joined: 13-October 03 From: Burford, ON, N0E 1A0 Member No.: 1,244 Region Association: Canada |

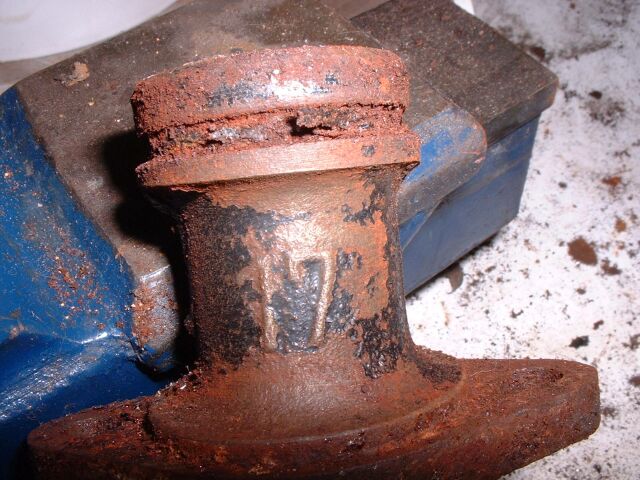

Nother one
Attached image(s)
|
|
|
|
|
