> afm calibration, anyone know how to do it
mattp
post Feb 7 2007, 08:12 PM
Post #1


Member
**

Group: Members
Posts: 257
Joined: 22-November 06
From: westchester NY
Member No.: 7,252
anyone know how to calibrate one for a 1.8 engine?

When I open my throttle the sweeper does not go all the way?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
ClayPerrine
post Feb 7 2007, 09:01 PM
Post #2


Life's been good to me so far.....
***************

Group: Admin
Posts: 16,523
Joined: 11-September 03
From: Hurst, TX.
Member No.: 1,143
Region Association: NineFourteenerVille
QUOTE(mattp @ Feb 7 2007, 08:12 PM) *

anyone know how to calibrate one for a 1.8 engine?

When I open my throttle the sweeper does not go all the way?



It may not. That spring is designed to hold against a wide open throttle at high engine RPM under load. It may not go all the way without the load on the engine.


I have the calibration gauge. Unfortunately, the meter that is supposed to work with the gauge is INOP.


If you have altered it, I would suggest that you get a replacement. I would not suggest a rebuilt one, as they are calibrated for a VW type I. The spring and wiper adjustments are different for a Type IV.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Feb 7 2007, 09:22 PM
Post #3


Get that VIN ?
*****

Group: Members
Posts: 9,885
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
When a rebuild meant for a VW is used on a 914, what performance issues arise ?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
banger
post Feb 7 2007, 11:33 PM
Post #4


Member
**

Group: Members
Posts: 354
Joined: 12-November 06
From: Santa Clarita
Member No.: 7,205
Region Association: Southern California
You can use a wideband O2 sensor to calibrate it, and make sure you are running the right air-fuel ratio. If you need one, let me know.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Mueller
post Feb 7 2007, 11:38 PM
Post #5


914 Freak!
***************

Group: Members
Posts: 17,155
Joined: 4-January 03
From: Antioch, CA
Member No.: 87
Region Association: None
QUOTE(mattp @ Feb 7 2007, 06:12 PM) *

anyone know how to calibrate one for a 1.8 engine?

When I open my throttle the sweeper does not go all the way?



so you are running the motor at WOT????

depending on the conditions, it might not "need" to open 100%, I don't think it's a 1:1 relationship between the throttle and the AFM door
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Feb 8 2007, 12:16 AM
Post #6


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
Use the LM1 meter and adjust the sweeper (loosen that tiny screw) very slightly to set the AFR to 14 to 1 under load driving. Should be stable from idle to WOT otherwise you have some other problem.

Worked great on my bus with Ljet. See pic on other post.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
banger
post Feb 8 2007, 02:10 AM
Post #7


Member
**

Group: Members
Posts: 354
Joined: 12-November 06
From: Santa Clarita
Member No.: 7,205
Region Association: Southern California
You probably want to run a little lower than 14 for better power, and a little cooler running.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Feb 8 2007, 10:15 AM
Post #8


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
You can try 13.7 to 1 but that seemed too rich in my Westy and 13.9 is one tick away from 14.0.

Try it and see your results....look at your plug color and CHT, oil temps. I run cool CHTs so I can get away with it. I want to test a stock 1.8L and see what the factory set the AFR at. Book says 13.7 for partload for Djet but the AFR goes all over the place compared to Ljet.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Feb 8 2007, 01:01 PM
Post #9


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest

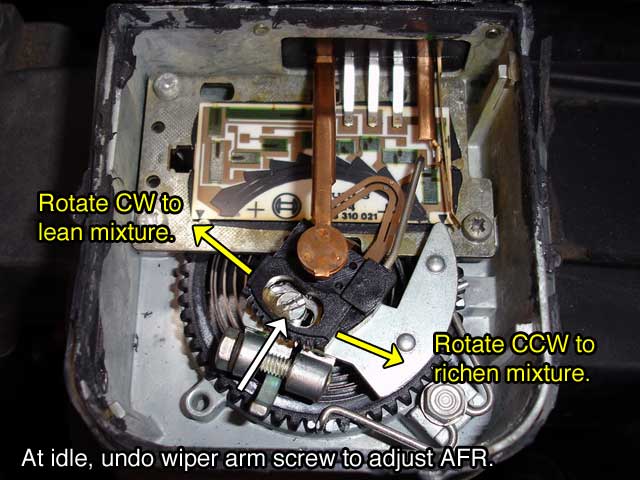

pic of inside of the AFM. Loosen the screw after removing the glue. Slight movements mean alot!!! You will have to bend the FP shutoff arm when done so its right too or the FP will run with the engine stopped.


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Feb 9 2007, 06:08 AM
Post #10


Get that VIN ?
*****

Group: Members
Posts: 9,885
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Nice illustration of te AFM adjustment; what is an LM1 ? (IMG:style_emoticons/default/sad.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Feb 9 2007, 09:35 AM
Post #11


Its alive
****

Group: Members
Posts: 4,855
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States
Its a wideband O2 sensor Jim.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Feb 9 2007, 10:12 AM
Post #12


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
http://www.innovatemotorsports.com/products/lm1.php
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Cap'n Krusty
post Feb 9 2007, 11:36 AM
Post #13


Cap'n Krusty
**********

Group: Members
Posts: 10,794
Joined: 24-June 04
From: Santa Maria, CA
Member No.: 2,246
Region Association: Central California
QUOTE(ClayPerrine @ Feb 7 2007, 07:01 PM) *

QUOTE(mattp @ Feb 7 2007, 08:12 PM) *

anyone know how to calibrate one for a 1.8 engine?

When I open my throttle the sweeper does not go all the way?



It may not. That spring is designed to hold against a wide open throttle at high engine RPM under load. It may not go all the way without the load on the engine.


I have the calibration gauge. Unfortunately, the meter that is supposed to work with the gauge is INOP.


If you have altered it, I would suggest that you get a replacement. I would not suggest a rebuilt one, as they are calibrated for a VW type I. The spring and wiper adjustments are different for a Type IV.



Why would a T4 airbox be calibrated to T1 specs? Different plug, different number of pins, different intake boot diameter, and a different engine with different characteristics. The T1 airbox WON'T FIT on a T4 engine, and vice-versa........ The Cap'n

BTW, IIRC, the 914 airboxes (2 or 3 or more part numbers), have been NLA for years. NOT the same as 2 litre busses.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Feb 9 2007, 03:28 PM
Post #14


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
So what is the difference in the AFM as the part numbers are the same. Later buses AFM's have a suffix lettercode.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Feb 9 2007, 08:49 PM
Post #15


Get that VIN ?
*****

Group: Members
Posts: 9,885
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Thanks for posting the link. Thats very interesting.

QUOTE(Bleyseng @ Feb 9 2007, 08:12 AM) *

http://www.innovatemotorsports.com/products/lm1.php
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Feb 9 2007, 10:58 PM
Post #16


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
Great tuning tool for $400! (IMG:style_emoticons/default/smilie_pokal.gif) I have alot of fun with mine.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
banger
post Feb 9 2007, 11:23 PM
Post #17


Member
**

Group: Members
Posts: 354
Joined: 12-November 06
From: Santa Clarita
Member No.: 7,205
Region Association: Southern California
If you need one some time, I have one Jim. could bring it to the bbq some time if you wanted to check your car.

QUOTE(jim_hoyland @ Feb 9 2007, 06:49 PM) *

Thanks for posting the link. Thats very interesting.

QUOTE(Bleyseng @ Feb 9 2007, 08:12 AM) *

http://www.innovatemotorsports.com/products/lm1.php
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jim_hoyland
post Feb 10 2007, 06:46 PM
Post #18


Get that VIN ?
*****

Group: Members
Posts: 9,885
Joined: 1-May 03
From: Sunset Beach, CA
Member No.: 643
Region Association: Southern California
Update.
Thanks Chris for bringing your wideband sensor to the bar-b-que and testing my car. Very interesting. I think we eliminated the AFM as the idle problem. Learned alot too.....




QUOTE(banger @ Feb 9 2007, 09:23 PM) *

If you need one some time, I have one Jim. could bring it to the bbq some time if you wanted to check your car.

QUOTE(jim_hoyland @ Feb 9 2007, 06:49 PM) *

Thanks for posting the link. Thats very interesting.

QUOTE(Bleyseng @ Feb 9 2007, 08:12 AM) *

http://www.innovatemotorsports.com/products/lm1.php
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Bleyseng
post Feb 11 2007, 12:59 AM
Post #19


Aircooled Baby!
**********

Group: Members
Posts: 13,036
Joined: 27-December 02
From: Seattle, Washington (for now)
Member No.: 24
Region Association: Pacific Northwest
Well, tell us what your readings were! Share! share! (IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
banger
post Feb 11 2007, 01:55 AM
Post #20


Member
**

Group: Members
Posts: 354
Joined: 12-November 06
From: Santa Clarita
Member No.: 7,205
Region Association: Southern California
Readings were around 14.2-14.5 at idle, and 13.5 at WOT.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
