FI retrofit, it's done!!! |
toon1 |
Nov 24 2007, 12:35 AM
Post
#21
|
Senior Member Group: Members Posts: 1,849 Joined: 29-October 05 From: tracy,ca Member No.: 5,022 |
I did some calculations with the ford escort inj. and determined they were a bit too small.
After running the calcs., I did some work with MS on stim and With the flow rates of that inj., the duty cycle at WOT. was about 115%. The FP would have had to been run at about 55psi to get the flow rate for 85% at WOT. I had a set of four inj. from a ford probe INP480's. The flow rate was hard to find but it flowed about 21lbs/hr, about the same as the stock inj. but at 43psi. After running those #'s on MS and the stim, it looked good. I had pw's at idle around 2.2ms. these will also give the latatude to lower the FP, if needed and not hurt the fuel atomization. The probe inj's had a smaller top so I made some new rails with smaller holes. otherwise everything else fit the same as the escort inj's. The connectors where no prob., I just cut them off the wire harness of the probe. they fit just fine with the inj's. in the rails. I have not put them on the wire harness yet but will soon. with the inj's. on the air intake runners which are installed on the motor, it all looks good (IMG:style_emoticons/default/biggrin.gif) I am also retrofitting an EDIS system to the motor,direct coil drive so I have to add a 2nd coil driver. The engine parts took forever to get back from the machinest(4months!). Right now the engine is built and close to being ready for install. Unfortunatly I have run into probs. with my truck. The tranny had to be replaced and also the intake man. gaskets so it has be occupiing my time for the past few day's The car is still a way's off from running but I am anxious to get it going. Keith |
Carrera916 |
Nov 24 2007, 12:36 AM
Post
#22
|
Member Group: Members Posts: 292 Joined: 9-February 03 From: Pleasanton, CA Member No.: 273 |
Hey Toon,
it looks real good and i'm doing the same thing on mine but you're ahead with the fuel rail part. I'm still on soldering the boards now. Maybe some of you guys may not realized this, MegaSquirt fuel metering unit will litterally replace all the old 914 fuel system components (such as AAR, 914 FPR, brain, etc) that are intertwined together in order to function. It's such a pain in the ass to find replacements on some of these components, in fact, NLA!! I CAN'T HARDLY WAIT TO TRY THE MS AND SEE HOW WELL IT WOULD RUN!!! One of these days, I'll get the MS that will deal with fuel metering and spark control, boy, that ought to help a lot and eliminate the distributor issues. I was a bit surprised you had to use the escort FI connectors. If I remembered right, they're the same as the Bosch connectors (T1) except for some bigger injectors that use Ford connectors (T4). I would also use the 914 harness and spline the end of harness (toward the brain) into the MS plug pigtail, that way I can keep the appearance of 914 harness. anyway, keep on going Toon, and hopefully i'll get around to show you mine. Right now, I'm doing one for my Audi Turbo Quattro then will do my 914. cheers, j |
toon1 |
Nov 24 2007, 12:56 AM
Post
#23
|
Senior Member Group: Members Posts: 1,849 Joined: 29-October 05 From: tracy,ca Member No.: 5,022 |
Hey Toon, it looks real good and i'm doing the same thing on mine but you're ahead with the fuel rail part. I'm still on soldering the boards now. Maybe some of you guys may not realized this, MegaSquirt fuel metering unit will litterally replace all the old 914 fuel system components (such as AAR, 914 FPR, brain, etc) that are intertwined together in order to function. It's such a pain in the ass to find replacements on some of these components, in fact, NLA!! I CAN'T HARDLY WAIT TO TRY THE MS AND SEE HOW WELL IT WOULD RUN!!! One of these days, I'll get the MS that will deal with fuel metering and spark control, boy, that ought to help a lot and eliminate the distributor issues. I was a bit surprised you had to use the escort FI connectors. If I remembered right, they're the same as the Bosch connectors (T1) except for some bigger injectors that use Ford connectors (T4). I would also use the 914 harness and spline the end of harness (toward the brain) into the MS plug pigtail, that way I can keep the appearance of 914 harness. anyway, keep on going Toon, and hopefully i'll get around to show you mine. Right now, I'm doing one for my Audi Turbo Quattro then will do my 914. cheers, j With running MS you can do away with almost all of the stock FI components. I am using the CHTS and the ATS with easytherm The AAR can ( and in my case, will) be replaced with a fast idle selonoid. This will give the user the ability to shut off the air bypass when the CHTS reaches the temp. that MS ignores it. this will be nice to get away from the lean miss that accomponies a lagging AAR. It is possible to run MS1 and control spark with MS&S extra if you don't wont to shell out the $$$ for a MSII. In regards to the inj. connectors, I wanted to use the Ford connectors because, to me, they are a far superior connector than stock. There is a rubber seal rather than a boot and it locks into place. Good luck with the Audi sounds like a fun project. Doing a MS retrofit has made me a FI junkie. My next project is to fuel inject my 32hp briggs and stratton boat motor (IMG:style_emoticons/default/happy11.gif) |
Carrera916 |
Nov 24 2007, 01:59 AM
Post
#24
|
Member Group: Members Posts: 292 Joined: 9-February 03 From: Pleasanton, CA Member No.: 273 |
Yeah, your set up sounds good and yes, my AAR will go! I haven't gone that far with the 914 yet as Im still bitchin with the Quattro. I'm trying to retain the original CIS metering ("locked into full flow") and lines toward the intake manifold while sticking the electronic injectors underneath a hidden fuel rail for the sake of passing the visual inspection at the smog station. It's real PITA but i'm getting there.
Speaking of Bosch plugs, no, they do have the rubber seals inside the plugs and I make sure of that before I plug em in. I like to keep everything "dressed" in German as much as I can and hell, you could fake the whole thing by sticking the MS internals inside the gutted 914 ecu, and leave the POS 914 fuel system components in (by pass it all with fake vacuum lines and wiring for appearance purpose) and the only thing would look a bit out of place, a different fuel rail than the tube ones. That would be fine with me as the whole replacement with MS is a big improvement over the stock ones. Oh yes, it will be running in line with Innovance A/F metering and CHT set up to be sure of my fuel mapping at different speed setting without ending up or finding some melted puddles of aluminum on the ground! When I get around to do the 914, I'll holler for help.... j |
toon1 |
Nov 24 2007, 09:12 AM
Post
#25
|
Senior Member Group: Members Posts: 1,849 Joined: 29-October 05 From: tracy,ca Member No.: 5,022 |
If you are looking to keep things looking stock, Dave hunt did a 914 with MS and hid all the components.
There is a write up on it. He did a very good job. Do a search it should give you some good idea's. |
yarin |
Nov 24 2007, 11:40 AM
Post
#26
|
'14-X'in FOOL Group: Members Posts: 988 Joined: 13-May 03 From: Guttenberg, NJ Member No.: 693 Region Association: North East States |

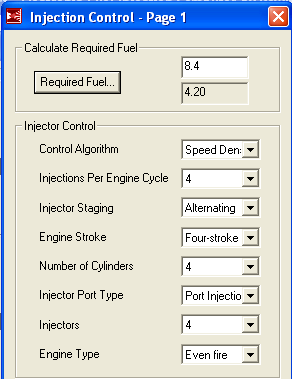

I did some calculations with the ford escort inj. and determined they were a bit too small. After running the calcs., I did some work with MS on stim and With the flow rates of that inj., the duty cycle at WOT. was about 115%. The FP would have had to been run at about 55psi to get the flow rate for 85% at WOT. I had a set of four inj. from a ford probe INP480's. The flow rate was hard to find but it flowed about 21lbs/hr, about the same as the stock inj. but at 43psi. After running those #'s on MS and the stim, it looked good. I had pw's at idle around 2.2ms. these will also give the latatude to lower the FP, if needed and not hurt the fuel atomization. The probe inj's had a smaller top so I made some new rails with smaller holes. otherwise everything else fit the same as the escort inj's. Keith Hey Keith, What were the flow #s for the Ford Escort injectors that you determined were too low? (15-16 lbs/hr?) Stock injectors flow: Yellow (1.7L) - 265 cc/min (25.2 lbs/hr) @ 2.0 Bar Green (2.0L) - 380 cc/min (36.1 lbs/hr) @ 2.0 Bar The theoretical mechanical limitations of most injectors to open/close are about 1.7ms from what I've read. So in your case PWs of 2.2ms are great and leave with you plenty of room to play. May I ask how you arrived at 2.2ms? Looking at my datalogs I see that at idle my PWs are 1.3-1.4ms, I never really analyzed this but this is a problem since the injectors are limited to 1.7ms. Correct? Should I change # of squirts to 2 instead of 4 (double req calc req fuel from 4.2 to 8.4ms) will yield PW of 1.77ms. The equation is PW = REQ_FUEL * VE * MAP * E + accel + Injector_open_time If I do the calcs manually I should get 4.2ms * 30% x (29 / 100 kpa) + 1.0ms = 1.36ms which is what i see in my datalogs. In addition, with the Green 2.0L injectors my max situations are as follows: WOT @ 5000-5500 rpm, PW ~4.2ms, Duty cycle 39%, AFR is really rich at around 11.6. I can send my datalog for anyone that is interested. This just illustrates that these injectors are WAY oversized as previously mentioned. I'm looking at this Injector flow table trying to figure out which injectors I want to go with: http://users.erols.com/srweiss/tableifc.htm I want to go with high impedence so I can move away from PWM. Any suggestions? I found some more info on your Ford Probe injectors here: http://www.fuelinjector.citymaker.com/page/page/5129028.htm 1993-97 application. Here is a set on ebay. Too $$ though. I'd rather buy a used set and send them off to cruzin performance. I'll keep an eye out for ~21-22lb injectors cross referenced between This site for flow data and This site for application then check ebay periodically. Any tips would be most appreciated, also I haven't looked at MS fuel requirements and PW in over a year so i might be a little rusty. Thanks@ Attached image(s) |
yarin |
Nov 24 2007, 02:04 PM
Post
#27
|
'14-X'in FOOL Group: Members Posts: 988 Joined: 13-May 03 From: Guttenberg, NJ Member No.: 693 Region Association: North East States |
I merged two databases of info to help others select injectors based on flow criteria and application.
Info came from http://users.erols.com/srweiss/tableifc.htm & http://www.fuelinjector.citymaker.com/page/page/2235688.htm Used an Excel merge add in and cleaned up the headers a bit. Works really well, it's sorted by Order Part #. Just sort to your preference, or use autofilter to enter the criteria of your filter (ie: impedence, rated PSI, car, type, etc). There are hidden columns that give BSFC Est hp at 80, 95% duty cycle. Just unhide them. I put way too much time in this, hope it helps people in other applications as well. Just to remind myself that I need to use injectors that are will utilize the stock 2.0L injector mouting hardware. Like toon1, i'll fabricate a fuel rail. Enjoy! Attached File(s) Injector_Matrix_FINAL.zip ( 167.66k ) Number of downloads: 5362 |
orange914 |
Nov 24 2007, 03:40 PM
Post
#28
|
http://5starmediaworks.com/index.html Group: Members Posts: 3,371 Joined: 26-March 05 From: Ceres, California Member No.: 3,818 Region Association: Northern California |
really impressive keith (IMG:style_emoticons/default/smilie_pokal.gif)
when your at the test drive stage stop by i'd really like to see how it all looks. do you think it could be possible to run these injectors with boosted fuel pressure on d-jet to take advantage of the atomazation of the modern injectors? i know that is very simplistic but could it be possible to more or less use them with maybe mps/fuel pressure adjustment? (IMG:style_emoticons/default/blink.gif) mike |
Jake Raby |
Nov 25 2007, 11:05 AM
Post
#29
|
Engine Surgeon Group: Members Posts: 9,398 Joined: 31-August 03 From: Lost Member No.: 1,095 Region Association: South East States |
I have found that injectors operating over 80% duty have seriously diminished lives, some lasting only a few thousand miles. I do prefer a tad higher FP and duty cycle using smaller injectors to really boost down low performance and drivability, but their are downfalls to this.
You'll more than likely see that the calculations are just that as you start tuning. Cam, heads, air density and exhaust system effectiveness all impact the tuning of the system. Don't be disappointed if all the calculations and math get you no where. I just went through this as I completed development of the Pinzgauer EFI system last month when things didn't go as calculated at all.... Good luck with MS, I have nothing good to say about it at this point after it cost me 5 years of greif with Dave Hunt's builds and consistent failure. |
jimkelly |
Nov 25 2007, 11:42 AM
Post
#30
|
Delaware USA Group: Members Posts: 4,969 Joined: 5-August 04 From: Delaware, USA Member No.: 2,460 Region Association: MidAtlantic Region |
http://www.914world.com/bbs2/index.php?sho...c=77265&hl=
quote from thread "For #3 and #4- replace the injectors. I'm currently having no problem with my Niehoff injectors for 1974 Mercedes 450 SEL. They were only $49.99 at PartsAmerica.com brand new- not refurbished. I only have 2000 miles and 2 years on them though, so it's early to tell how the reliability stacks up." jim |
toon1 |
Nov 25 2007, 07:48 PM
Post
#31
|
Senior Member Group: Members Posts: 1,849 Joined: 29-October 05 From: tracy,ca Member No.: 5,022 |
Hi guy's, I will try to catchup, I've been hunting all w/e.
Yaring the ford escort inj's are 14lbs/ hr which @ 85% D.C. gives about 11lbs/hr. Yo give it a try , I put the MS on the stim and entered the flow rates on the req fuel and gave it a try. It, at first came back with 115% so I started raising the flow rates until I found about 85%D.C.. It was determined that the F.P. would have had to been run @ 55psi. I already had a set of the ford prob inj's. and one I found the flow rates, I entered those#'s into MS and again worked on the stim. They where much better. you could go with these inj.s for your setup and they should be fine. Most of the inj. bodies are the same dia. but the ford inj.'s where about 3mm shorter so I added the O rings above the stock 914 O ring. 1.7ms for opening time is really low and I found that 4squirts "semms" to be better. You could LOWER your FP with the green top inj's OR run the yellow inj. in your car. They will flow PLENTY of fuel for a 2L. The lower flow rate should give you better PW's My motor had a really high map, like 54kpa. couldn't seem to get it lower. I tore the motor apart before I could do some seriuos tuning. One thing to remember Yarin, tou have a vac. referanced reg. this helpsalot when running big inj. I still think the yellow top( for the time being) are worth a shot, if you have a set. BTW I pulled the probe inj's. at pick and pull, $10 ea. Jake, I know you don't like MS. In your opinion, what are the probs. you have encountered? DO you thing, bacause of the size of Daves motor, it was giving you fits? I can't see why Daves motor would be different than any other motor. Mike, I sure will bring the car by to take a look. |
arvcube |
Nov 25 2007, 08:21 PM
Post
#32
|
Member Group: Members Posts: 170 Joined: 25-September 07 From: poway, ca Member No.: 8,147 |
great info! i'm interested in how you're going to mount your trigger wheel for EDIS as I am interested in running MSnEDIS as well (main reason for buying a f.i. 914)....i've got both running on my vw and love it. thanks for the updates
|
toon1 |
Nov 25 2007, 08:37 PM
Post
#33
|
Senior Member Group: Members Posts: 1,849 Joined: 29-October 05 From: tracy,ca Member No.: 5,022 |
great info! i'm interested in how you're going to mount your trigger wheel for EDIS as I am interested in running MSnEDIS as well (main reason for buying a f.i. 914)....i've got both running on my vw and love it. thanks for the updates The EDIS wheel is already mounted. The wheel needs to be separated from the ford harm. balancer and a disc made to adapt the trigger wheel to the TIV. I used 1/8" alum. I machined a hole in the center within a couple thou. of the crank hub. This gave it a nice, NO SLOP fit. I then machined the outside of the disc so it was perfectly round. The wheel was chucked up next. There is an inner edge (flat spot), I machined an indetation on the flat spot to accept the alum. disc.. I then drilled 4 10/32 holes around the out edge to hold the disc to the wheel. The back of the fan was milled down to make up for the different thickenss of the alum disc vs. the stock washer. I mounted the vr sensor to the fan housing top pass side just fwd of the oil sending unit Jake will have a bolt on disc. avail soon at a great price. |
arvcube |
Nov 25 2007, 11:12 PM
Post
#34
|
Member Group: Members Posts: 170 Joined: 25-September 07 From: poway, ca Member No.: 8,147 |
|
toon1 |
Nov 26 2007, 09:12 AM
Post
#35
|
Senior Member Group: Members Posts: 1,849 Joined: 29-October 05 From: tracy,ca Member No.: 5,022 |
The EDIS wheel is already... Jake will have a bolt on disc. avail soon at a great price. awesome. do you have any pics of your setup? happy to hear someone will have a bolt-on wheel...i had a whirl of a time getting my trigger wheel mounted on my vw engine... Yhere is a pic., do a search for " been workin" or toon1, it's my progress thread. I will be taking more and adding dimentions for Brere's MS file |
Jake Raby |
Nov 26 2007, 10:55 AM
Post
#36
|
Engine Surgeon Group: Members Posts: 9,398 Joined: 31-August 03 From: Lost Member No.: 1,095 Region Association: South East States |
QUOTE Jake, I know you don't like MS. In your opinion, what are the probs. you have encountered? I don't like experimental things, unless those who are experimenting are in the position to prove them. IMHO MS is too broadly used and has too many bells and whistles that can be configured for too many things- thats never good for the guy like most of you- playing in the garage. QUOTE DO you thing, bacause of the size of Daves motor, it was giving you fits? No. The issues I observed were related to the hardware and all the crap that one must go through to make a harnass, set up parameters on injectors and sensors and all of that. QUOTE I can't see why Daves motor would be different than any other motor. It wasn't and thats why I refuse to sell one of my kits to anyone using MS after the FIVE YEARS of bullshit that MS caused for me, Charles @ LN and Dave himself. Sure the system is cheap, but dave could have bought an M400 Motec for what he spent on time and labor repairing the issues that MS caused. My wallet was about 4K lighter and Charles @ LN spent double that supporting dave's project (when we didn't have to. In fact, the experience that we went through with Dave has mandated huge changes to my 2008 engine kit program. History will not repeat it's self. |
toon1 |
Nov 26 2007, 11:07 AM
Post
#37
|
Senior Member Group: Members Posts: 1,849 Joined: 29-October 05 From: tracy,ca Member No.: 5,022 |
QUOTE Jake, I know you don't like MS. In your opinion, what are the probs. you have encountered? I don't like experimental things, unless those who are experimenting are in the position to prove them. IMHO MS is too broadly used and has too many bells and whistles that can be configured for too many things- thats never good for the guy like most of you- playing in the garage. QUOTE DO you thing, bacause of the size of Daves motor, it was giving you fits? No. The issues I observed were related to the hardware and all the crap that one must go through to make a harnass, set up parameters on injectors and sensors and all of that. QUOTE I can't see why Daves motor would be different than any other motor. It wasn't and thats why I refuse to sell one of my kits to anyone using MS after the FIVE YEARS of bullshit that MS caused for me, Charles @ LN and Dave himself. Sure the system is cheap, but dave could have bought an M400 Motec for what he spent on time and labor repairing the issues that MS caused. My wallet was about 4K lighter and Charles @ LN spent double that supporting dave's project (when we didn't have to. In fact, the experience that we went through with Dave has mandated huge changes to my 2008 engine kit program. History will not repeat it's self. What does SDS offer that cannot be had on MS? I know the fuel tables are 16x16. Are the sensors different? |
Jake Raby |
Nov 26 2007, 11:17 AM
Post
#38
|
Engine Surgeon Group: Members Posts: 9,398 Joined: 31-August 03 From: Lost Member No.: 1,095 Region Association: South East States |
The main advantage of SDS was it is proven, well proven and has a robotically assembled board and specific wire harnass and COMES WITH all the sensors that are compatible with it... This means no guess work. It also comes with support from SDS that is unparalleled- not even Motec matches the service and support from SDS and I have experienced both!
It also has simplicity, this is the reason i use it on my turn key engines- If the system is too difficult to tune chances are it will never be totally optimized. Too much bulshit kills engines, bells and whistles are effective marketing items but they compromise practical application so many times. SDS has everything it needs, and nothing that it doesn't- I drive one everyday. |
toon1 |
Nov 26 2007, 11:56 AM
Post
#39
|
Senior Member Group: Members Posts: 1,849 Joined: 29-October 05 From: tracy,ca Member No.: 5,022 |
what type of sensors does it have. Are they specific to SDS or GM?
Jake, what are the AFR's your running with the 02 sensor? |
Jake Raby |
Nov 26 2007, 01:48 PM
Post
#40
|
Engine Surgeon Group: Members Posts: 9,398 Joined: 31-August 03 From: Lost Member No.: 1,095 Region Association: South East States |
Yes, they are all GM excet the CHT which is Bosch..
I tune for 13:1 AFR and tweak timing to find the optimum EGT. |
