> HOW TO: Convert to real 5-lug in the rear using 944 CVs
SirAndy
post Feb 6 2008, 01:38 AM
Post #1


Resident German
*************************

Group: Admin
Posts: 38,560
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



Convert to real 5-lug using 944 CVs


This Article describes how to convert the rear axles on your 914 to give you real 5-lug hubs using a mix of 914, 944 and 911 components.

Tools and Supplies:

  • BFH
  • Two new 914 rear wheel bearings
  • Four new 944 100mm 6-bolt CV joints including mounting bolts, boots and grease
  • Two 911 ('75 - '79) 100mm 6-bolt coarse spline transmission output shafts
  • Two output shaft seals
  • Two 911 ('75 - '79) 100mm 6-bolt stub axles
  • Four 911 100mm CV gaskets
  • Two 911 ('69 - '73?) hubs, must have same bearing surface width as the 914 hubs
  • Access to a lathe

Step 1: Preparing the axle shafts

Remove the CV joints from your old axles and machine both ends of your axle shafts to allow the wider 944 CVs to slide on.
You'll have to remove 4mm of material to make up for the wider 944 CVs.


4mm of material removed:

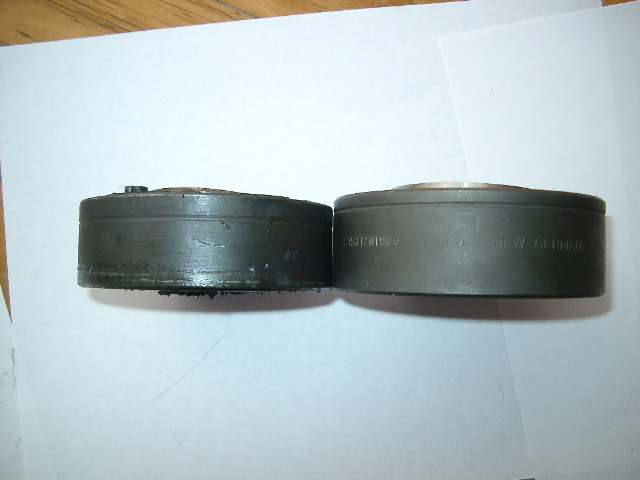

Stock 914 CV on the left and a 944 CV on the right




Step 2: Putting it all together

Grease up your new 944 CVs and slide them on the machined axle shaft *without* using the stock spring washer behind the CV!
Make sure the CV slides all the way on and don't forget to put the circlip back onto the shaft to prevent the CV from sliding off.
Note: Make sure the "groove" on the outside of the new CVs always points away from the axle (see picture with the complete axle).
Remove the old stub axles and hub. Remove the old wheel bearings. Install the new wheel bearing in your trailing arms.
Make sure the bearing surface on your new hubs is clean and press in the new hubs. Install the new stub axles and tighten the axle nut.
Remove the old output flanges from your transmission, replace the seals and slide in the new 911 flanges.
Grease up both, the output flange cup and the stub axle cup and install your new axles. Don't forget the CV seals!
Tighten everything to spec and enjoy!


911 coarse spline output shaft and 911 stub axle:


944 CV on 914 axle shaft:


Test fitting the output shaft on the 944 CV:


And at last, the completed axle. The top shows the original 914/4 axle, the bottom shows the new axle:

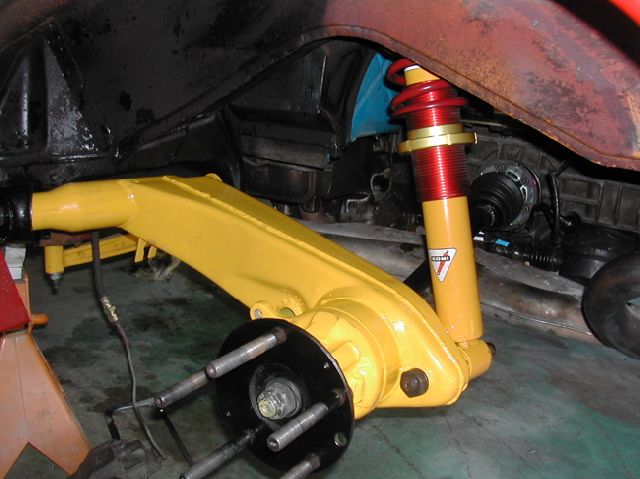

Mounted on the car:



Info compiled by SirAndy
User is online!Profile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Feb 6 2008, 01:38 AM
Post #2


Resident German
*************************

Group: Admin
Posts: 38,560
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California



did i miss something ???

(IMG:style_emoticons/default/idea.gif)
User is online!Profile CardPM
Go to the top of the page
+Quote Post
johannes
post Feb 6 2008, 01:50 AM
Post #3


Club Porsche 914 France President
****

Group: Members
Posts: 3,021
Joined: 13-January 06
From: France
Member No.: 5,409
Region Association: France



QUOTE(SirAndy @ Feb 5 2008, 11:38 PM) *

did i miss something ???

(IMG:style_emoticons/default/idea.gif)


Yes, : This goes to the classics (one vote)

Congrats, this is a great post !

(IMG:style_emoticons/default/smilie_pokal.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Feb 6 2008, 01:52 AM
Post #4


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,196
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest



(IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Wanna9146
post Feb 6 2008, 04:50 AM
Post #5


Member
**

Group: Members
Posts: 235
Joined: 19-January 08
From: Florida
Member No.: 8,595
Region Association: South East States



QUOTE(SirAndy @ Feb 5 2008, 11:38 PM) *

did i miss something ???



Yes...when are you going to start selling these to those of us who are incapable (or lazy)?

(IMG:style_emoticons/default/beerchug.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
rebelmdot
post Feb 6 2008, 06:01 AM
Post #6


914ini
**

Group: Members
Posts: 224
Joined: 25-January 08
From: Tennessee
Member No.: 8,625
Region Association: South East States



QUOTE(SirAndy @ Feb 6 2008, 01:38 AM) *

did i miss something ???

(IMG:style_emoticons/default/idea.gif)



Andy, can you tell me why this is better or more beneficial than the other 5 lug conversions that are on threads here? Thanks.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Joe Ricard
post Feb 6 2008, 06:24 AM
Post #7


CUMONIWANNARACEU
*****

Group: Members
Posts: 6,811
Joined: 5-January 03
From: Gautier, MS
Member No.: 92



Because you don't have to re-drill a 4 hub.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Gint
post Feb 6 2008, 07:24 AM
Post #8


Mike Ginter
***************

Group: Admin
Posts: 15,643
Joined: 26-December 02
From: Denver CO.
Member No.: 20

Region Association: Rocky Mountains



Let this go a few days and make all the edits you want Andy and get it all correct. Then I'll create a tech article.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Richard Casto
post Feb 6 2008, 07:55 AM
Post #9


Blue Sky Motorsports, LLC
***

Group: Members
Posts: 1,465
Joined: 2-August 05
From: Durham, NC
Member No.: 4,523
Region Association: South East States



Andy,

Thanks for the write up. I will probably be using this exact method on my car.

I do have a question. I don't understand the differences in the various transmission output flanges. I am assuming that the course (33 teeth?) flange you mention works with 901/914 transmissions. Does that also work with early 915 transmissions that I think also used a course flange? I think that later 915 transmissions used a fine (43 teeth?) flange. Will this later 915 flange work with this setup?

Overall with the 915, I am concerned if the CV still bolts up (hole pattern and bolt size) and about the output flange to stub axle distance (is the distance the same regardless of which transmission and flange you use. In short, will the 914 axle length always be correct)

I would like to do exactly as you have described, but with my 914 transmission today and then in the future switch to a 915 transmission with hopefully the only potential change is in the output flange.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
davep
post Feb 6 2008, 08:26 AM
Post #10


914 Historian
****

Group: Benefactors
Posts: 4,438
Joined: 13-October 03
From: Burford, ON, N0E 1A0
Member No.: 1,244

Region Association: Canada



QUOTE(SirAndy @ Feb 5 2008, 11:38 PM) *

did i miss something ???

(IMG:style_emoticons/default/idea.gif)

I'd add part #'s for the new parts, and spline counts for the output shaft, hubs and stub axles. Also, when machining the drive shaft, how big of a radius can be left on the inside corner (you do not want to have a sharp corner there), and I think I would also round the outside corner so as to remove the sharp edge. Do you require Schnorr washers as well?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
anderssj
post Feb 6 2008, 08:37 AM
Post #11


the box rox!
***

Group: Members
Posts: 1,228
Joined: 28-January 03
From: VA
Member No.: 207
Region Association: MidAtlantic Region



Great article!

(IMG:style_emoticons/default/agree.gif) It would be helpful to list the actual part numbers under "Tools and Supplies."

Looking forward to using this info in the near future.

THANKS Andy!
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stephenaki
post Feb 6 2008, 09:00 AM
Post #12


Can I get this one dad??
***

Group: Members
Posts: 1,180
Joined: 11-August 07
From: Palmetto, FL
Member No.: 7,987
Region Association: None



How does this affect the issue with the parking/emergency brake? I understand that the 911 conversion negates the use of the parking brake; does this have the same problem or is it a non issue based on the fact that your not changing out the entire suspension.

Uneducated minds would like to know.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Richard Casto
post Feb 6 2008, 09:40 AM
Post #13


Blue Sky Motorsports, LLC
***

Group: Members
Posts: 1,465
Joined: 2-August 05
From: Durham, NC
Member No.: 4,523
Region Association: South East States



QUOTE(stephenaki @ Feb 6 2008, 10:00 AM) *

How does this affect the issue with the parking/emergency brake? I understand that the 911 conversion negates the use of the parking brake; does this have the same problem or is it a non issue based on the fact that your not changing out the entire suspension.

Uneducated minds would like to know.


I believe that e-brake issues are more of a function of moving away from the stock 914 rear caliper than a five lug conversion issue. For example you can do a five lug conversion and use a 914/6 rear caliper ($$$$) as the e-brake solution is the same for all 914 (4 or 6) calipers. But it is common to do a five lug conversion and at the same time move to a 911 (or other) rear caliper that uses a different e-brake solution than the 914 rear caliper does.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PRS914-6
post Feb 6 2008, 09:52 AM
Post #14


Excellence Magazine Project 914 3.6
***

Group: Members
Posts: 1,278
Joined: 20-May 06
From: Central California
Member No.: 6,031
Region Association: None




Andy, nice write up!

I'm going to add a few things here so that it can be found when searching. Andy's method is a great and economical solution for the wimpy 914 CV's. If you are running big horsepower and large sticky tires you "can" go even bigger. It will cost a lot more though.

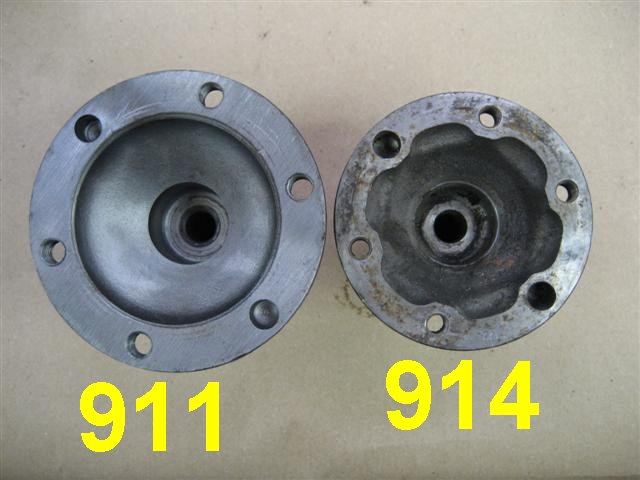

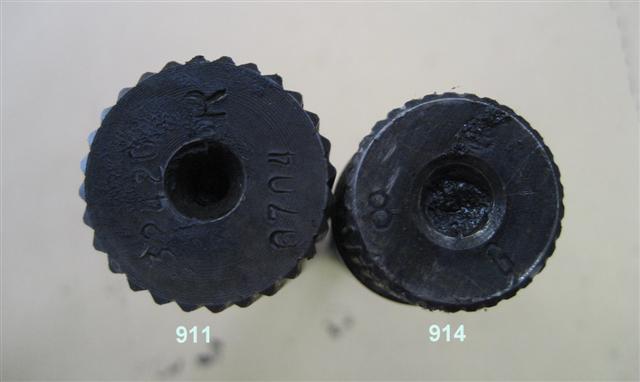

I used course flange 108mm stub axles\CV's that came off the early 911's They are the biggest CV's available that will fit and even larger than the 944's. You can snag the early 911 5 lug stub axles that will bolt right on a 914 as well. (mine were off a 69)

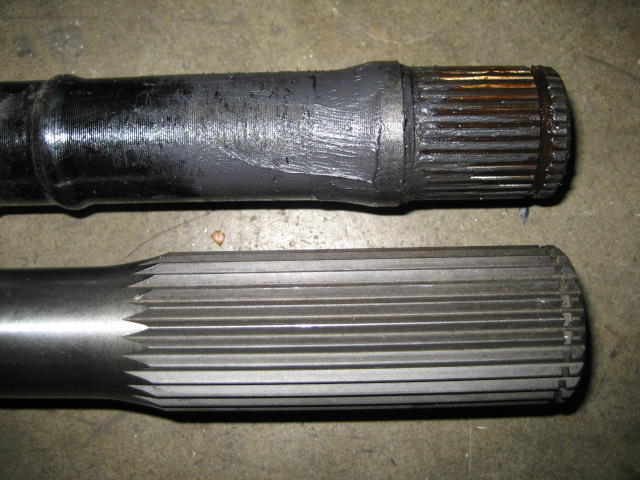

To tie it together I bought some Sway-A-Way free floating race axles that can be bought in most any length you desire. Hopefully a bullet-proof system. Sway-A-Way Web Site

Attached Image
Attached Image
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
John
post Feb 6 2008, 09:54 AM
Post #15


member? what's a member?
****

Group: Members
Posts: 3,334
Joined: 30-January 04
From: Evansville, IN (SIRPCA)
Member No.: 1,615
Region Association: None



QUOTE(Richard Casto @ Feb 6 2008, 07:40 AM) *

QUOTE(stephenaki @ Feb 6 2008, 10:00 AM) *

How does this affect the issue with the parking/emergency brake? I understand that the 911 conversion negates the use of the parking brake; does this have the same problem or is it a non issue based on the fact that your not changing out the entire suspension.

Uneducated minds would like to know.


I believe that e-brake issues are more of a function of moving away from the stock 914 rear caliper than a five lug conversion issue. For example you can do a five lug conversion and use a 914/6 rear caliper ($$$$) as the e-brake solution is the same for all 914 (4 or 6) calipers. But it is common to do a five lug conversion and at the same time move to a 911 (or other) rear caliper that uses a different e-brake solution than the 914 rear caliper does.



This mod has nothing to do with brakes. That would be another topic.

One BIG benefit is that you can still buy NEW 944 CV joints, and they should hold up better with more power.

One can still use 4-cyl rear calipers with 914-6 rear rotors, or one could have 4-cyl rear rotors drilled for 5-lug.




Andy,

Please post Part numbers of the transmission output flanges as these seem to be the item I have the greatest difficulty in obtaining.

Thanks
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stephenaki
post Feb 6 2008, 10:02 AM
Post #16


Can I get this one dad??
***

Group: Members
Posts: 1,180
Joined: 11-August 07
From: Palmetto, FL
Member No.: 7,987
Region Association: None



QUOTE(Richard Casto @ Feb 6 2008, 07:40 AM) *


I believe that e-brake issues are more of a function of moving away from the stock 914 rear caliper than a five lug conversion issue. For example you can do a five lug conversion and use a 914/6 rear caliper ($$$$) as the e-brake solution is the same for all 914 (4 or 6) calipers. But it is common to do a five lug conversion and at the same time move to a 911 (or other) rear caliper that uses a different e-brake solution than the 914 rear caliper does.


OK, got it. My assumption is, correct me if it is wrong, that if I were to do Andy's conversion I would have to re-do the rear brakes or would the stock 914/4 system work with this conversion?

Understand the stopping power is reduced with bigger wheels but if your not racing the car or increasing the power is it required to convert the brakes? I am still a novice at this so am trying to learn as I go along.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Richard Casto
post Feb 6 2008, 10:26 AM
Post #17


Blue Sky Motorsports, LLC
***

Group: Members
Posts: 1,465
Joined: 2-August 05
From: Durham, NC
Member No.: 4,523
Region Association: South East States



QUOTE(stephenaki @ Feb 6 2008, 11:02 AM) *

QUOTE(Richard Casto @ Feb 6 2008, 07:40 AM) *


I believe that e-brake issues are more of a function of moving away from the stock 914 rear caliper than a five lug conversion issue. For example you can do a five lug conversion and use a 914/6 rear caliper ($$$$) as the e-brake solution is the same for all 914 (4 or 6) calipers. But it is common to do a five lug conversion and at the same time move to a 911 (or other) rear caliper that uses a different e-brake solution than the 914 rear caliper does.


OK, got it. My assumption is, correct me if it is wrong, that if I were to do Andy's conversion I would have to re-do the rear brakes or would the stock 914/4 system work with this conversion?


QUOTE(John @ Feb 6 2008, 10:54 AM) *
One can still use 4-cyl rear calipers with 914-6 rear rotors, or one could have 4-cyl rear rotors drilled for 5-lug.


I think John's point above answers your question. Doing the CV and 5 lug conversion does not require you to re-do your rear calipers. You will need to use rotors that have five lugs (either the 914/6 rotors or re-drill the 914/4 rotors)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Wes V
post Feb 6 2008, 11:26 AM
Post #18


Member
**

Group: Members
Posts: 482
Joined: 11-October 07
From: Los angeles
Member No.: 8,211



First off, thanks!!

Requested additions;

1. I'd recommend verifying run-out of the of the hub prior to installing. Put it in a lath and use a dial indicator (while rotating the hub by hand). If the source car was in an accident, the hub could be bent and you may not see it by eye. If you don't notice it until installed, you will have to buy new bearings when you replace it with a good one. (BTDT)

2. CV bolts should be replaced with longer ones to match the 944's wider width. It may be recommended to use grade 8 bolts that allow safety wire. At least, locktite the bolts.

3. For us newbies, the 100mm reference is the outside diameter of the CV, not the bolt circle. Of course, that's if that's correct.

Wes
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Steve Thacker
post Feb 6 2008, 11:45 AM
Post #19


UMMMPH Yea Baby Yea ! UMMMPH
***

Group: Members
Posts: 1,089
Joined: 8-January 03
From: Pickerington, Ohio
Member No.: 113
Region Association: Upper MidWest



Andy,

You have outdone yourself again. I wish I was your next door neighbor. I'd be one smart fucher with these cars. (IMG:style_emoticons/default/aktion035.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
stephenaki
post Feb 6 2008, 12:57 PM
Post #20


Can I get this one dad??
***

Group: Members
Posts: 1,180
Joined: 11-August 07
From: Palmetto, FL
Member No.: 7,987
Region Association: None



QUOTE(Richard Casto @ Feb 6 2008, 08:26 AM) *



I think John's point above answers your question. Doing the CV and 5 lug conversion does not require you to re-do your rear calipers. You will need to use rotors that have five lugs (either the 914/6 rotors or re-drill the 914/4 rotors)


OOPs, I obviously missed that.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post

5 Pages V  1 2 3 > »
Reply to this topicStart new topic
1 User(s) are reading this topic (1 Guests and 0 Anonymous Users)
0 Members:





- Lo-Fi Version Time is now: 19th April 2019 - 11:51 AM
