1974 1.8L Vacuum Diagram, Finally one for us!! |
LowGT |
Feb 20 2008, 10:20 PM
Post
#1
|
1.8 and Proud! Group: Members Posts: 583 Joined: 2-October 05 From: Wylie, TX Member No.: 4,904 Region Association: Southwest Region |

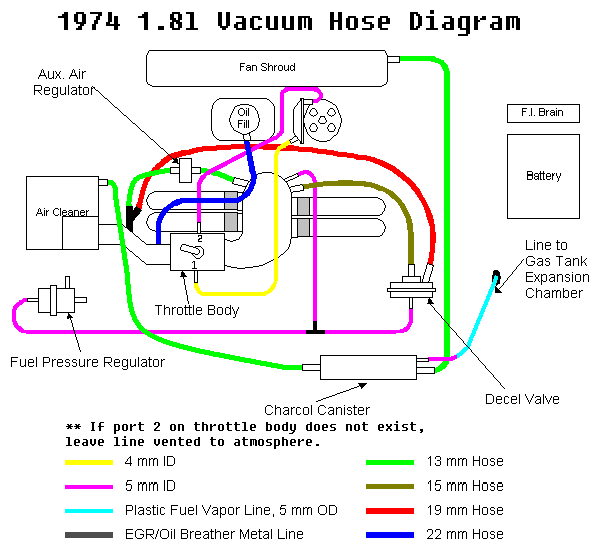

Even though there isn't much difference between 74 and 75-76, it bugs me to try an overlook the smog equipment in existing diagrams. So for your enjoyment, I have an edited version of Pete Klager's diagram. I hope he doesn't mind, after all, its all in the spirit of helping others.
If you see any errors in the diagram please let me know so I can correct it. I don't want to mess people up. (IMG:style_emoticons/default/biggrin.gif) |
