> Tilton Floor Mount Pedals
kyhunting
post Feb 25 2008, 05:05 PM
Post #1


Newbie
*

Group: Members
Posts: 14
Joined: 8-October 07
From: KY
Member No.: 8,199
Has anyone used the Tilton Floor Mount Pedals? If so do you have pictures?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
jd74914
post Feb 25 2008, 10:30 PM
Post #2


Its alive
****

Group: Members
Posts: 4,776
Joined: 16-February 04
From: CT
Member No.: 1,659
Region Association: North East States

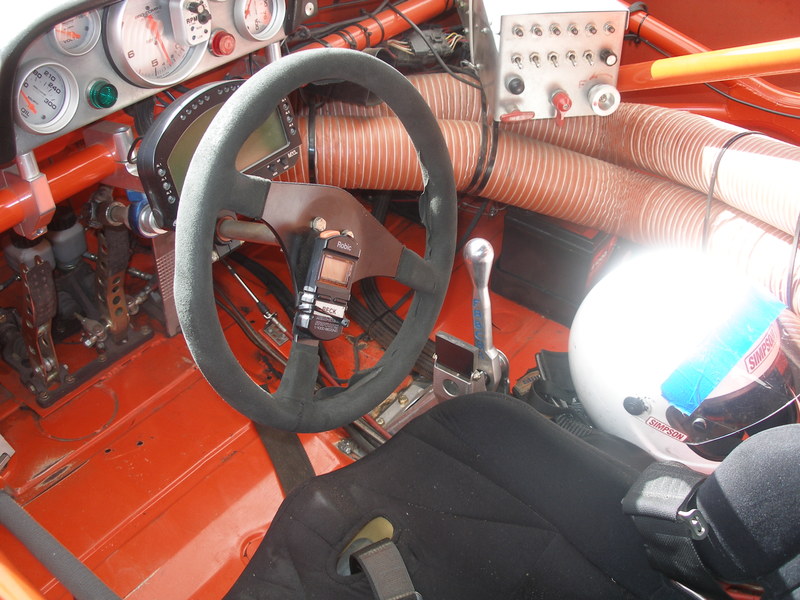

This question should be in the garage. It would get more views there, but here is a picture of a cars with it. (IMG:style_emoticons/default/smile.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
SirAndy
post Mar 5 2008, 06:45 PM
Post #3


Resident German
*************************

Group: Admin
Posts: 41,605
Joined: 21-January 03
From: Oakland, Kalifornia
Member No.: 179
Region Association: Northern California
QUOTE(jd74914 @ Feb 25 2008, 08:30 PM) *

This question should be in the garage.

(IMG:style_emoticons/default/agree.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dakotaewing
post Mar 5 2008, 08:54 PM
Post #4


Senior Member
***

Group: Members
Posts: 1,160
Joined: 8-July 03
From: DeSoto, Tx
Member No.: 897
Region Association: Southwest Region

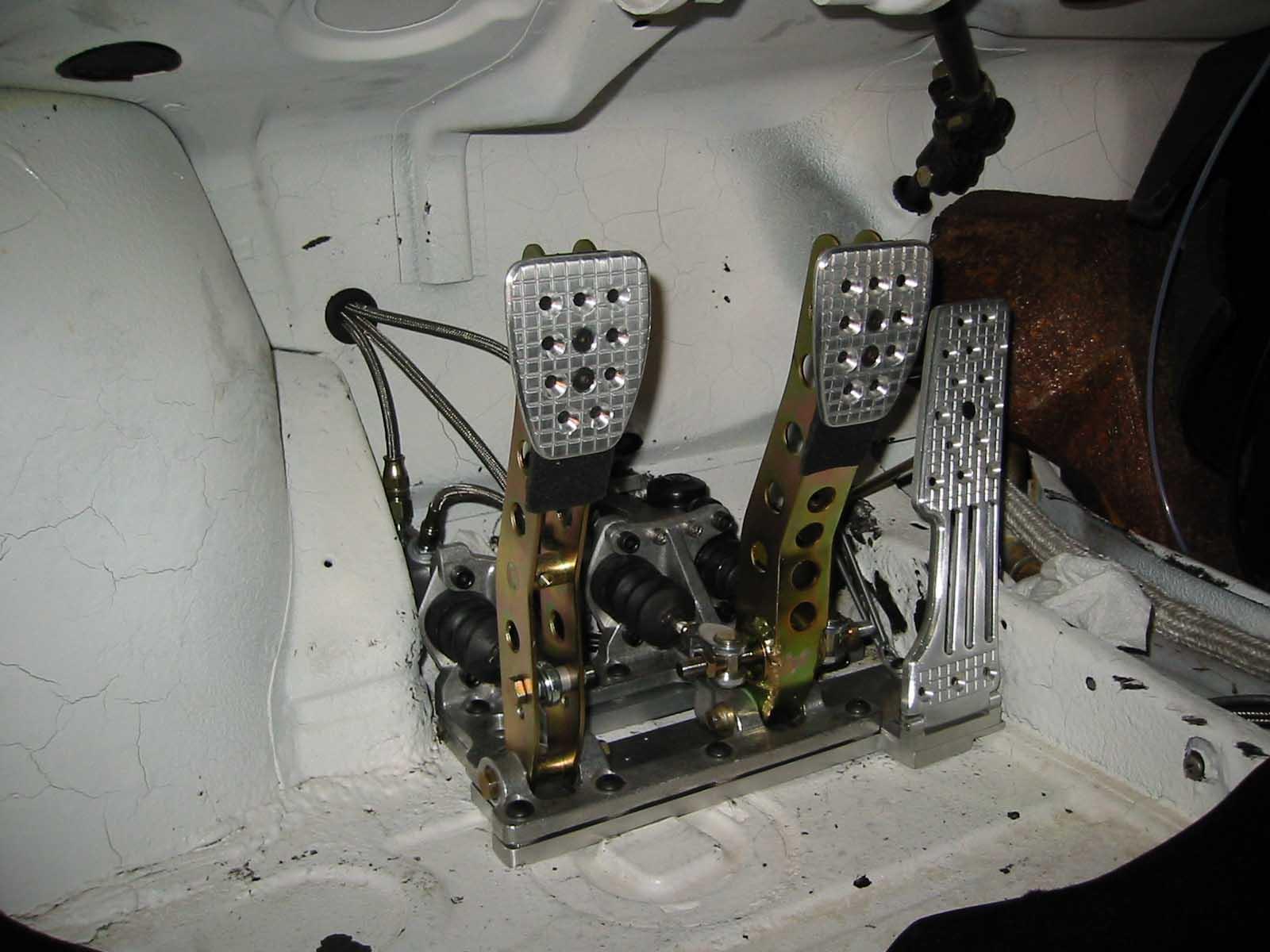

fagafsbg


Attached thumbnail(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dakotaewing
post Mar 5 2008, 08:59 PM
Post #5


Senior Member
***

Group: Members
Posts: 1,160
Joined: 8-July 03
From: DeSoto, Tx
Member No.: 897
Region Association: Southwest Region

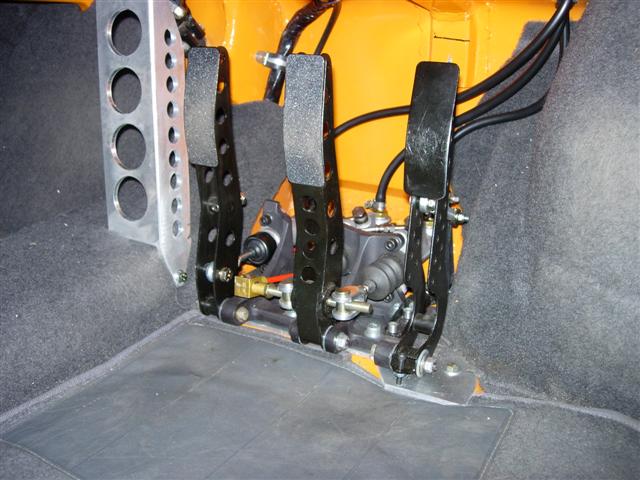

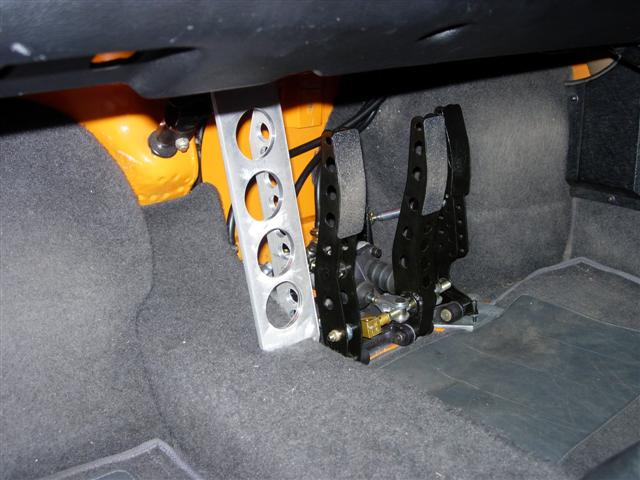

Right Hand Drive


Attached image(s)
Attached Image Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
LarryR
post Mar 5 2008, 09:20 PM
Post #6


Senior Member
***

Group: Members
Posts: 929
Joined: 15-March 07
From: E. Bay Area, N. California
Member No.: 7,604
QUOTE(dakotaewing @ Mar 5 2008, 06:54 PM) *

fagafsbg


SWEET! I hate to ask how much do a set of those cost?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dakotaewing
post Mar 5 2008, 11:33 PM
Post #7


Senior Member
***

Group: Members
Posts: 1,160
Joined: 8-July 03
From: DeSoto, Tx
Member No.: 897
Region Association: Southwest Region

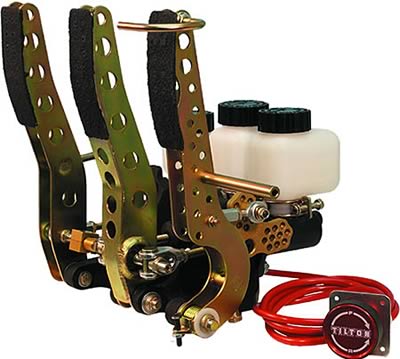

$468 at Summit


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dakotaewing
post Mar 5 2008, 11:35 PM
Post #8


Senior Member
***

Group: Members
Posts: 1,160
Joined: 8-July 03
From: DeSoto, Tx
Member No.: 897
Region Association: Southwest Region
$2169 at HRP.com


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sww914
post Mar 5 2008, 11:42 PM
Post #9


Advanced Member
****

Group: Members
Posts: 2,439
Joined: 4-June 06
Member No.: 6,146
Region Association: None
They're really cool. When I build a 914 for my son who's a dwarf in a couple more years, I'll use those and move them back towards the seat so that his short little legs can reach the pedals.
Nobody will be able to steal the car with their knees stuck into their chin.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
tdgray
post Mar 6 2008, 03:26 PM
Post #10


Thank God Nemo is not here to see this
*****

Group: Members
Posts: 9,705
Joined: 5-August 03
From: Akron, OH
Member No.: 984
Region Association: None
QUOTE(sww914 @ Mar 6 2008, 12:42 AM) *

They're really cool. When I build a 914 for my son who's a dwarf in a couple more years, I'll use those and move them back towards the seat so that his short little legs can reach the pedals.
Nobody will be able to steal the car with their knees stuck into their chin.



Now that is a funny visual (IMG:style_emoticons/default/av-943.gif) ... not your Son... the thief (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
sww914
post Mar 6 2008, 04:25 PM
Post #11


Advanced Member
****

Group: Members
Posts: 2,439
Joined: 4-June 06
Member No.: 6,146
Region Association: None
Oh, my son's funny too! (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif) (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
byndbad914
post Mar 6 2008, 08:47 PM
Post #12


shoehorn and some butter - it fits
***

Group: Members
Posts: 1,547
Joined: 23-January 06
From: Broomfield, CO
Member No.: 5,463
Region Association: None
QUOTE(dakotaewing @ Mar 5 2008, 10:33 PM) *

$468 at Summit

with master cyls an all I had about $800 in mine getting it in the car and working. Worth every penny to go to dual master, adj bias and a slave on the clutch.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
charliew
post Mar 7 2008, 10:29 AM
Post #13


Advanced Member
****

Group: Members
Posts: 2,363
Joined: 31-July 07
From: Crawford, TX.
Member No.: 7,958
QUOTE(dakotaewing @ Mar 5 2008, 08:54 PM) *

fagafsbg


Hey Thom, Thats a nice pedal fitup, looks like a lotta work and expense. I'm in Crawford planning a 914 subie. Got most of the parts. Gonna be a street car. I like the dual master brake setup with the balance bar and clutch master. Hoping for 18x8 and 18x11 with steel flares. May down size before the real construction starts. 9's are really big enough. At best i'tl never see more than 350 whl hp. Gotta get rid of a lotta junk before I can start the 914. Looking forward to milder weather. Post some pictures as you go. The pedals are really high tech.

Charliew
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Mar 7 2008, 01:00 PM
Post #14


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
So how would you do a plantation kit on a 901? Can you even put a slave on a 901?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
byndbad914
post Mar 7 2008, 05:20 PM
Post #15


shoehorn and some butter - it fits
***

Group: Members
Posts: 1,547
Joined: 23-January 06
From: Broomfield, CO
Member No.: 5,463
Region Association: None
QUOTE(Phoenix 914-6GT @ Mar 7 2008, 12:00 PM) *

Can you even put a slave on a 901?

I have a 930 so it is a bit different, but I have seen them on a 901. Just gotta make a bracket to bolt it to the trans and then adapt the end of the clutch fork. Trust me, that will be the easiest part of the whole thing, so if that seems hard to figure out, then the pedal assy will be a nightmare (IMG:style_emoticons/default/smile.gif) I didn't find any part of it difficult at all if that is encouraging..... just tedious.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Mar 7 2008, 05:32 PM
Post #16


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
Now you have me thinking I should give this a try. What did you use for a slave? What was it off of?

Do you have any pictures of your work?
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dakotaewing
post Mar 8 2008, 12:18 AM
Post #17


Senior Member
***

Group: Members
Posts: 1,160
Joined: 8-July 03
From: DeSoto, Tx
Member No.: 897
Region Association: Southwest Region
QUOTE(charliew @ Mar 7 2008, 10:29 AM) *

QUOTE(dakotaewing @ Mar 5 2008, 08:54 PM) *

fagafsbg


Hey Thom, Thats a nice pedal fitup, looks like a lotta work and expense. I'm in Crawford planning a 914 subie. Got most of the parts. Gonna be a street car. I like the dual master brake setup with the balance bar and clutch master. Hoping for 18x8 and 18x11 with steel flares. May down size before the real construction starts. 9's are really big enough. At best i'tl never see more than 350 whl hp. Gotta get rid of a lotta junk before I can start the 914. Looking forward to milder weather. Post some pictures as you go. The pedals are really high tech.

Charliew



Not my setup Charlie - Just pics in my collection from over the years... (IMG:style_emoticons/default/biggrin.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
byndbad914
post Mar 9 2008, 12:16 PM
Post #18


shoehorn and some butter - it fits
***

Group: Members
Posts: 1,547
Joined: 23-January 06
From: Broomfield, CO
Member No.: 5,463
Region Association: None
QUOTE(Phoenix 914-6GT @ Mar 7 2008, 04:32 PM) *

Now you have me thinking I should give this a try. What did you use for a slave? What was it off of?

Do you have any pictures of your work?

sorry for the late response... was loading the trailer F and racing yesterday. I had the assembly in the "old" configuration (when it was still a full stock tub) and have a couple pix that show what it looked like but nothing with great detail. I made an aluminum plate to "flatten" the floor (the pedal box area "sinks" down), made some spacers to fit in the sunken area to support the plate and bolted it down. Now the floor was essentially flat. Then I mounted the pedal assembly to my alum plate with the short master cyls right against the firewall. The slave cyl I used was a standard Wilwood brand slave unit and it is still working in the car just fine as of yesterday.

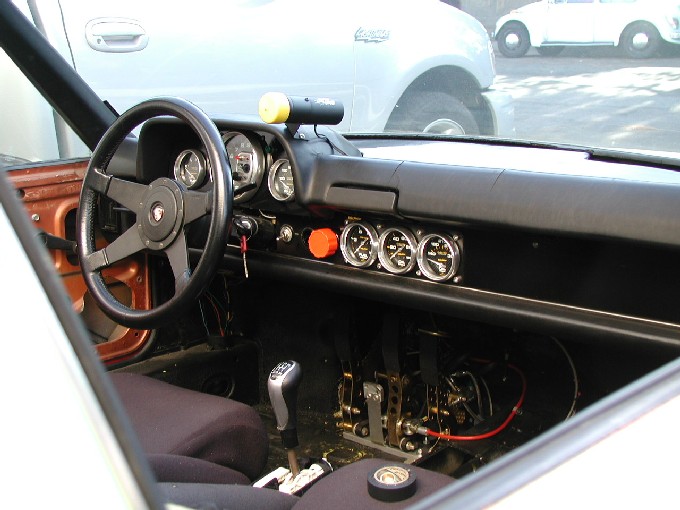

Here are my old pics
Attached Image

you can see I had rigged up a brake light switch with the original switch just to get the car legal again. Shortly after this pic I added an inline pressure switch to operate the brake lights (you can get them from Summit... IIRC mine is a Painless Wiring brand)

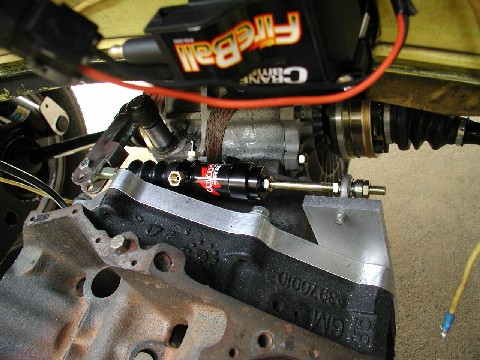

The slave - I bent the rod end immediately cuz I have a Kennedy clutch setup for the V8 that is fricken brutal so I simply used an angle-iron steel bracket in place of the setup you see here and it worked perfectly. I machined up a piece of box steel to slip-fit over the old 930 bracket and had it professionally welded
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
retrofit
post Mar 9 2008, 12:34 PM
Post #19


Member
**

Group: Members
Posts: 176
Joined: 17-April 04
From: Turlock,Ca
Member No.: 1,943
QUOTE(dakotaewing @ Mar 5 2008, 06:54 PM) *

fagafsbg

(IMG:style_emoticons/default/piratenanner.gif) This is awesome. Great for anyone 5'-6" or so who doesn't like the look of always having your seat halfway up towards the dash. One way to justify the expense-just in case you have to-would be to avoid a pedal set rebuild buy this new setup instead. Hmmmmm.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
PeeGreen 914
post Mar 9 2008, 02:08 PM
Post #20


Just when you think you're done...wait, there is more..lol
**********

Group: Members
Posts: 10,219
Joined: 21-September 06
From: Seattle, WA... actually Everett
Member No.: 6,884
Region Association: Pacific Northwest
QUOTE(byndbad914 @ Mar 9 2008, 11:16 AM) *

QUOTE(Phoenix 914-6GT @ Mar 7 2008, 04:32 PM) *

Now you have me thinking I should give this a try. What did you use for a slave? What was it off of?

Do you have any pictures of your work?

sorry for the late response... was loading the trailer F and racing yesterday. I had the assembly in the "old" configuration (when it was still a full stock tub) and have a couple pix that show what it looked like but nothing with great detail. I made an aluminum plate to "flatten" the floor (the pedal box area "sinks" down), made some spacers to fit in the sunken area to support the plate and bolted it down. Now the floor was essentially flat. Then I mounted the pedal assembly to my alum plate with the short master cyls right against the firewall. The slave cyl I used was a standard Wilwood brand slave unit and it is still working in the car just fine as of yesterday.

Here are my old pics
Attached Image

you can see I had rigged up a brake light switch with the original switch just to get the car legal again. Shortly after this pic I added an inline pressure switch to operate the brake lights (you can get them from Summit... IIRC mine is a Painless Wiring brand)

The slave - I bent the rod end immediately cuz I have a Kennedy clutch setup for the V8 that is fricken brutal so I simply used an angle-iron steel bracket in place of the setup you see here and it worked perfectly. I machined up a piece of box steel to slip-fit over the old 930 bracket and had it professionally welded
Attached Image



So if I were to ask you everything I would need to order to do this do you happen to have a list of al the parts needed? I thank you for all the time you've taken already. This could be great for completing my race car.

Oh, how is the throttle handled?
